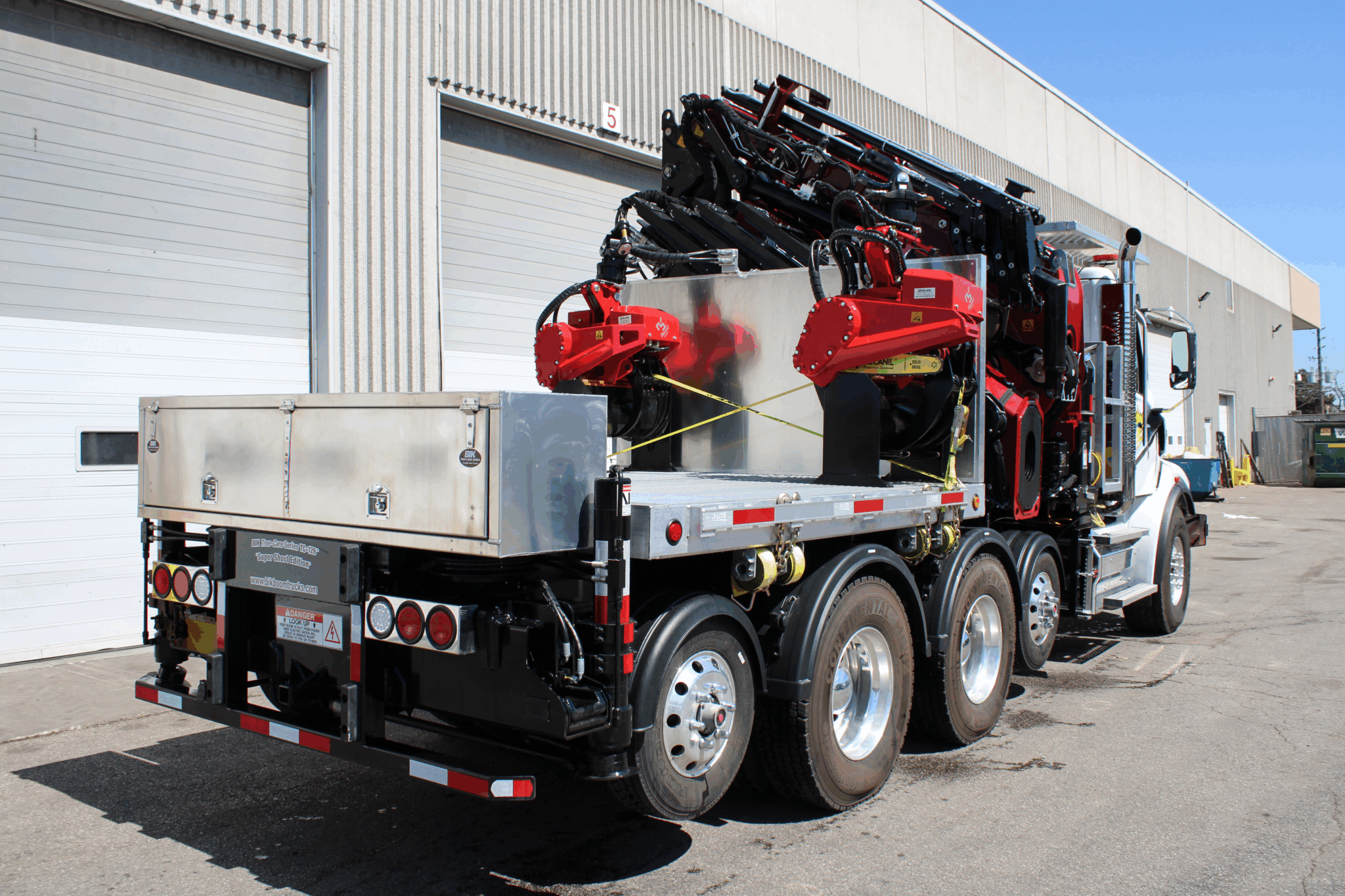

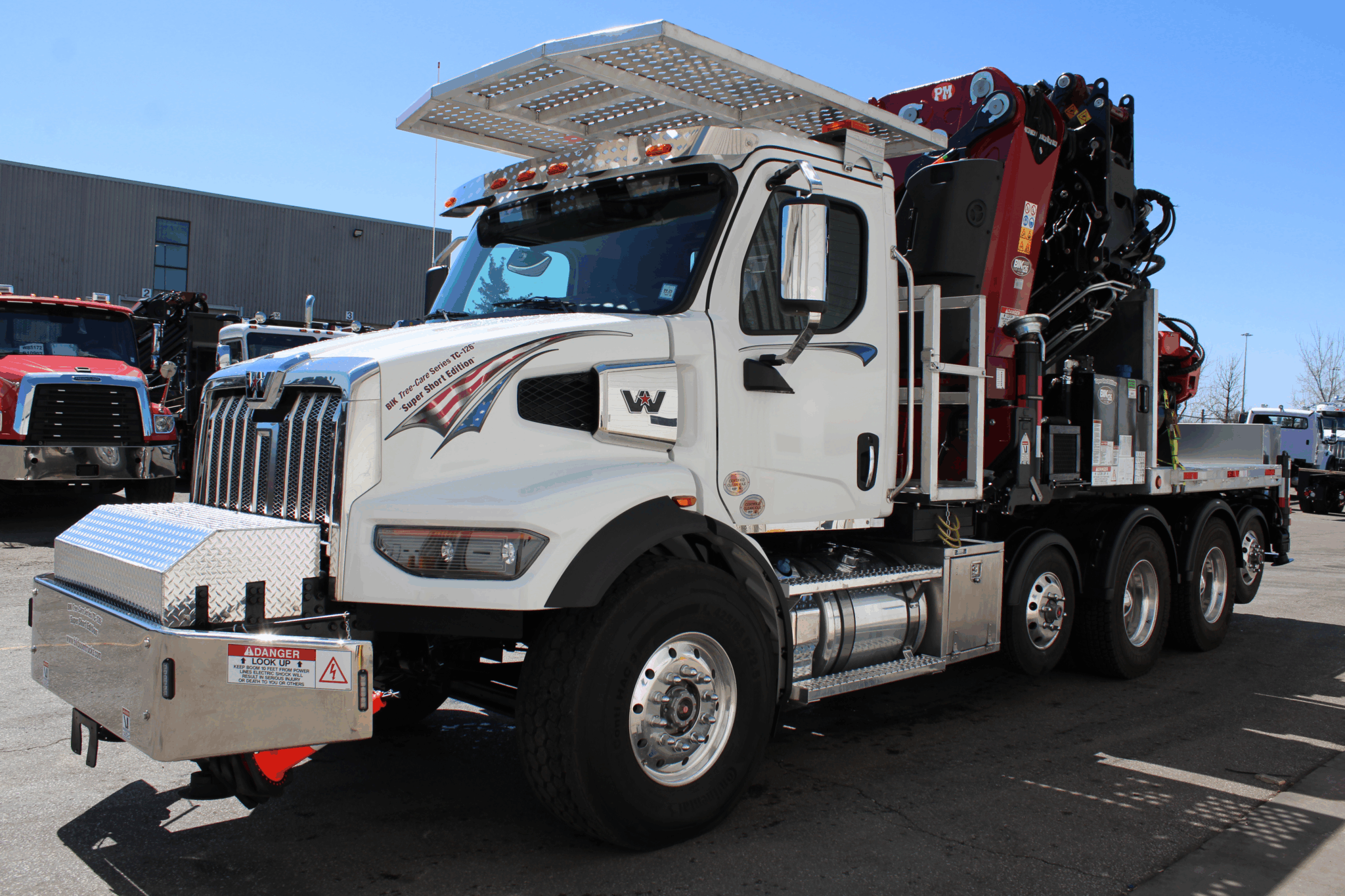

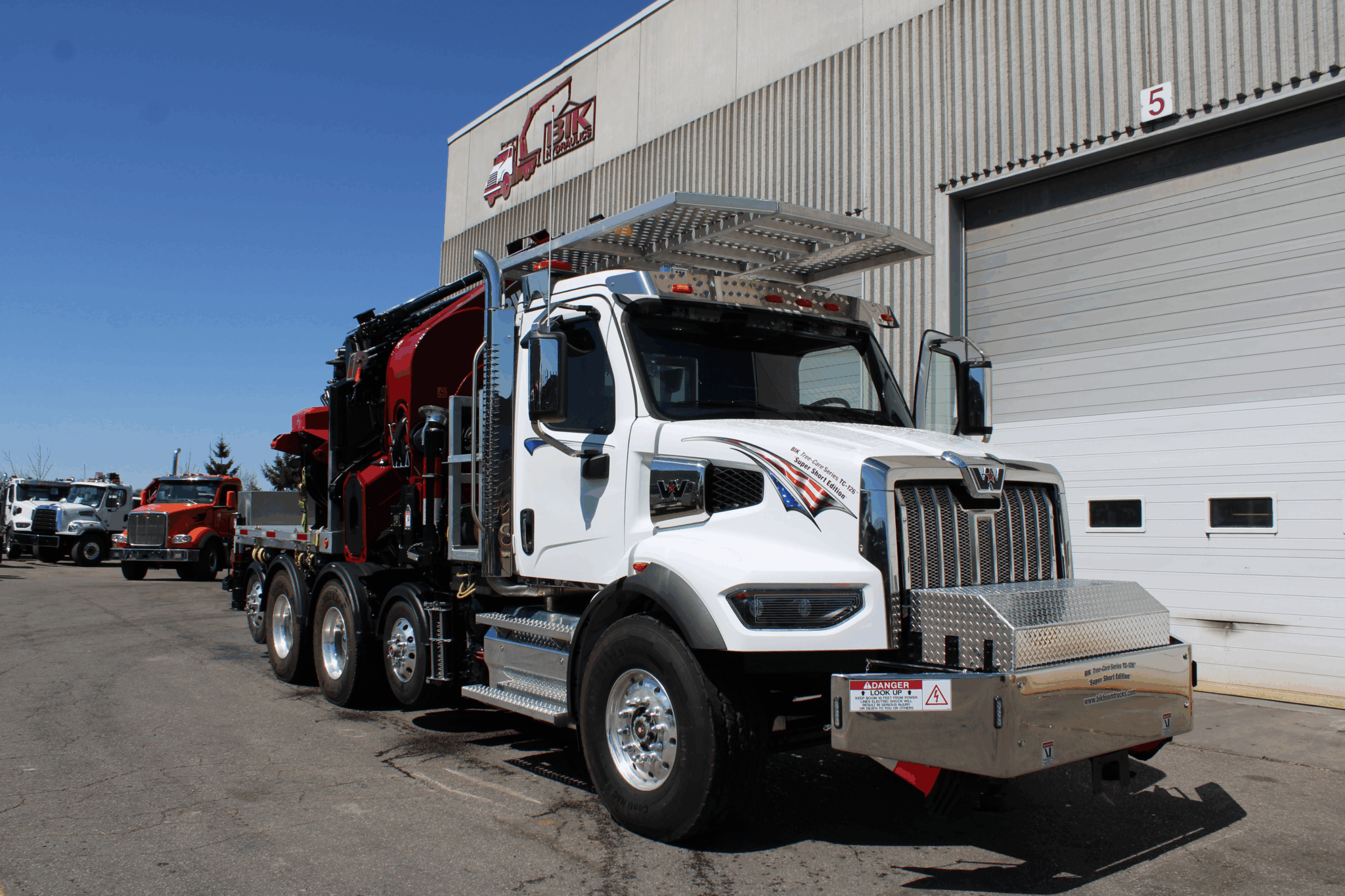

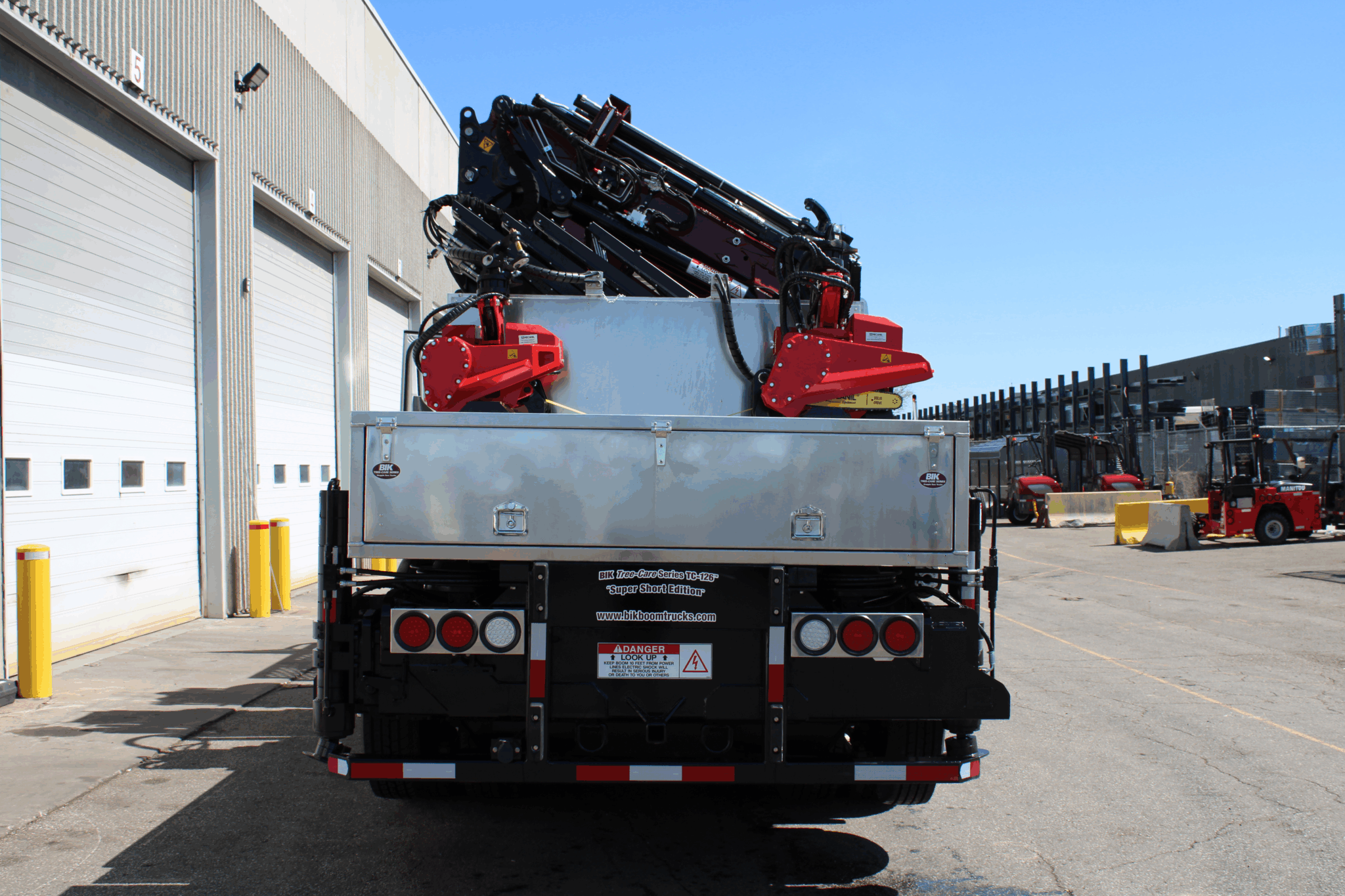

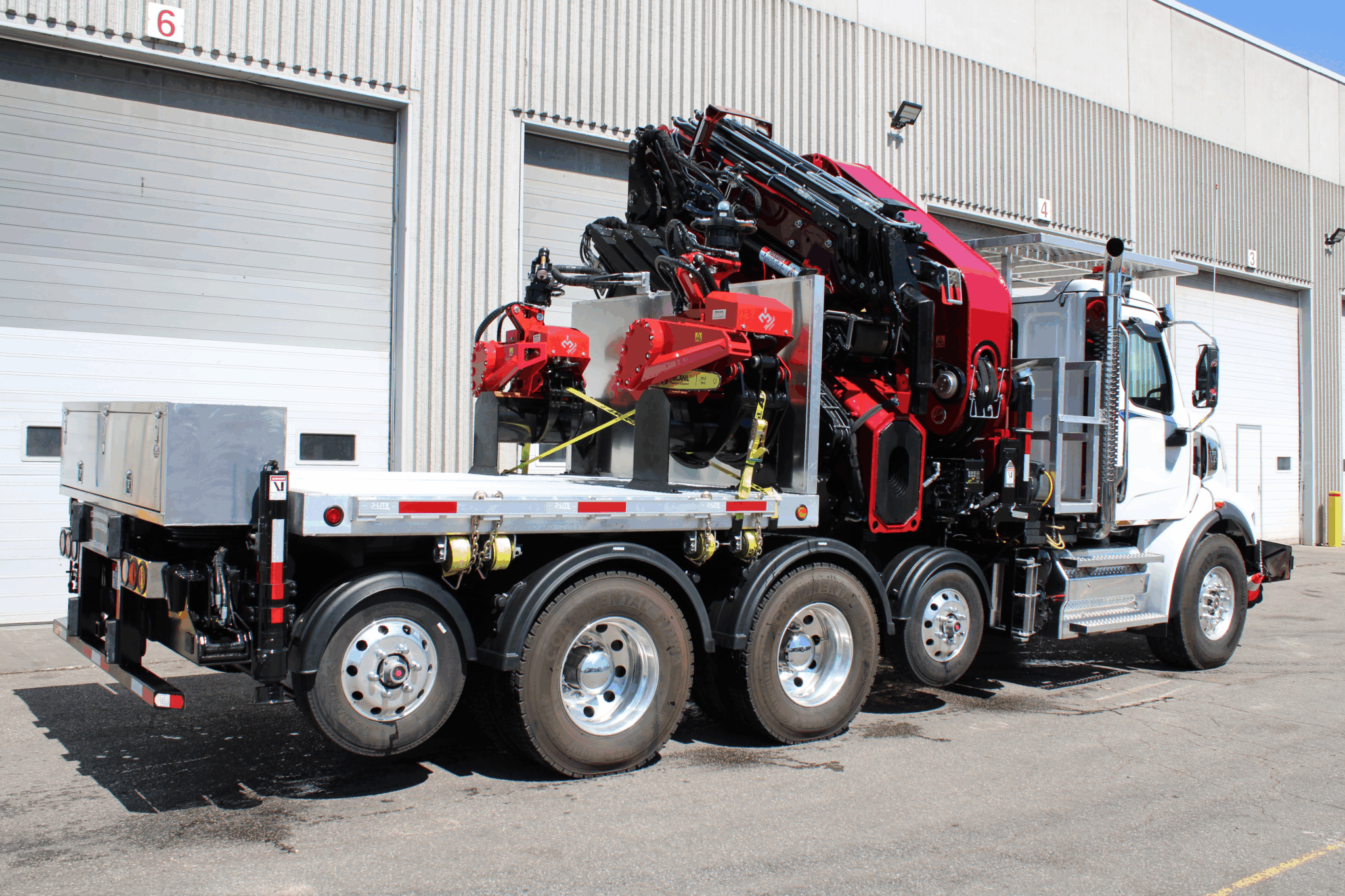

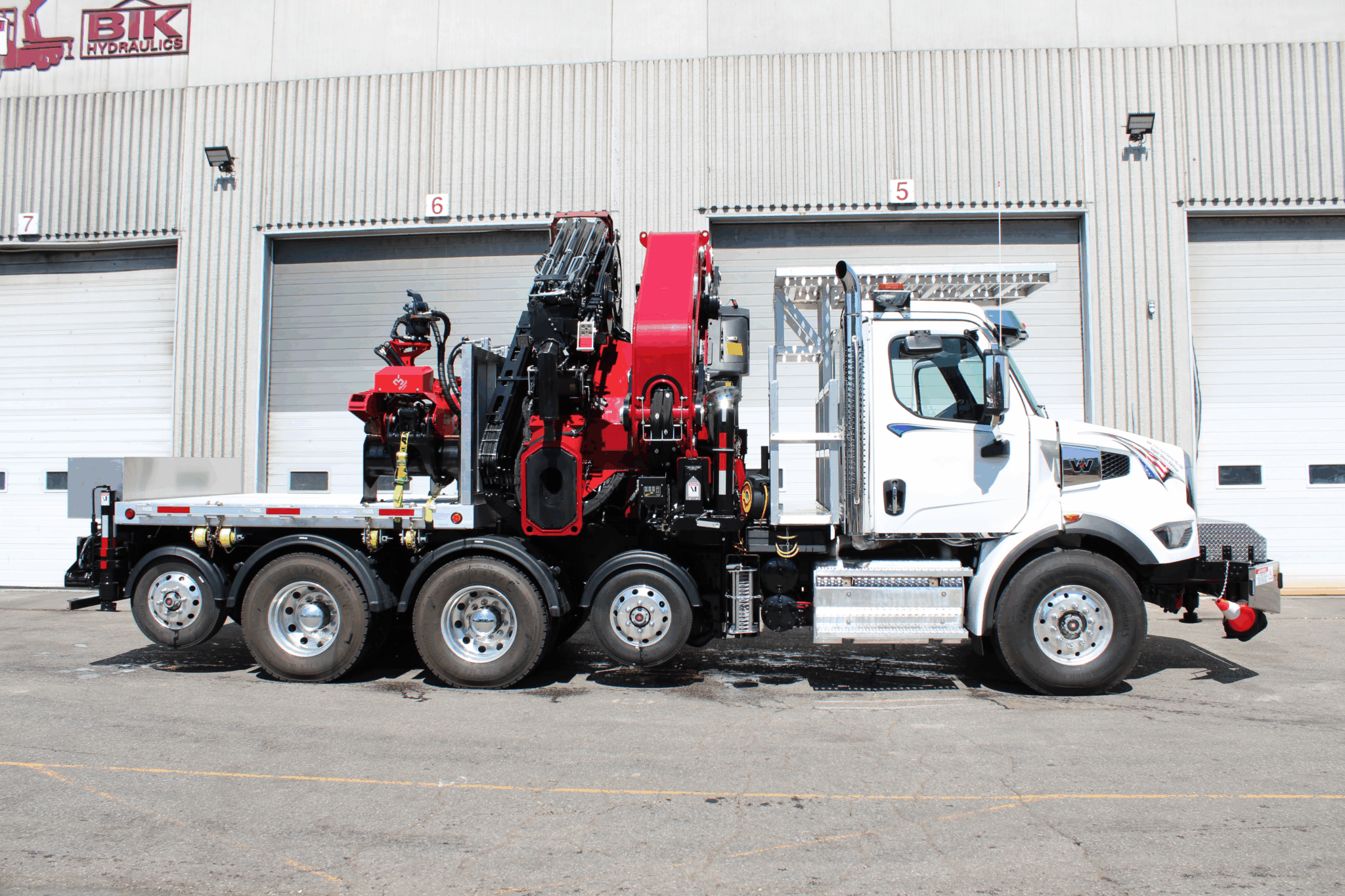

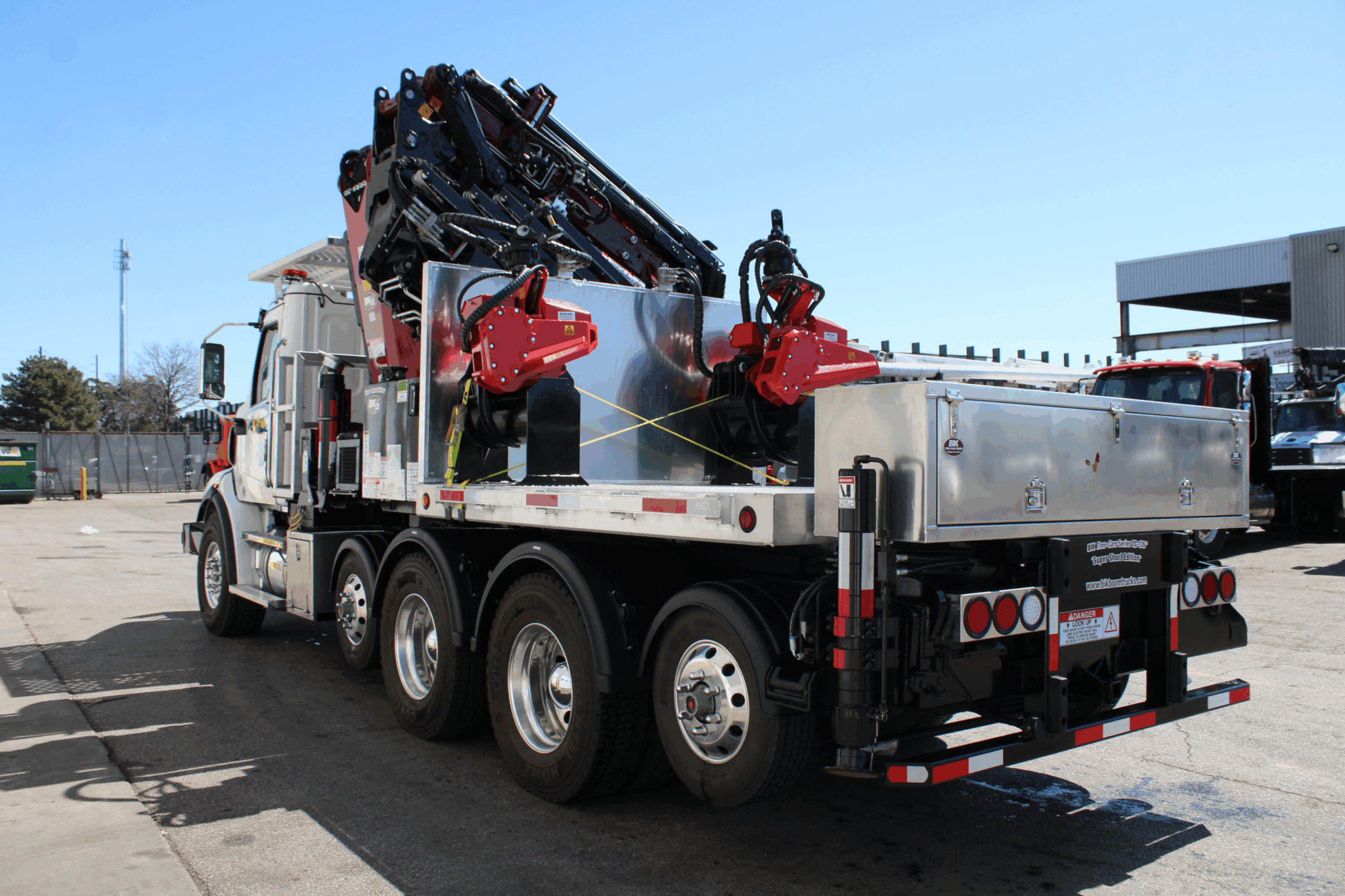

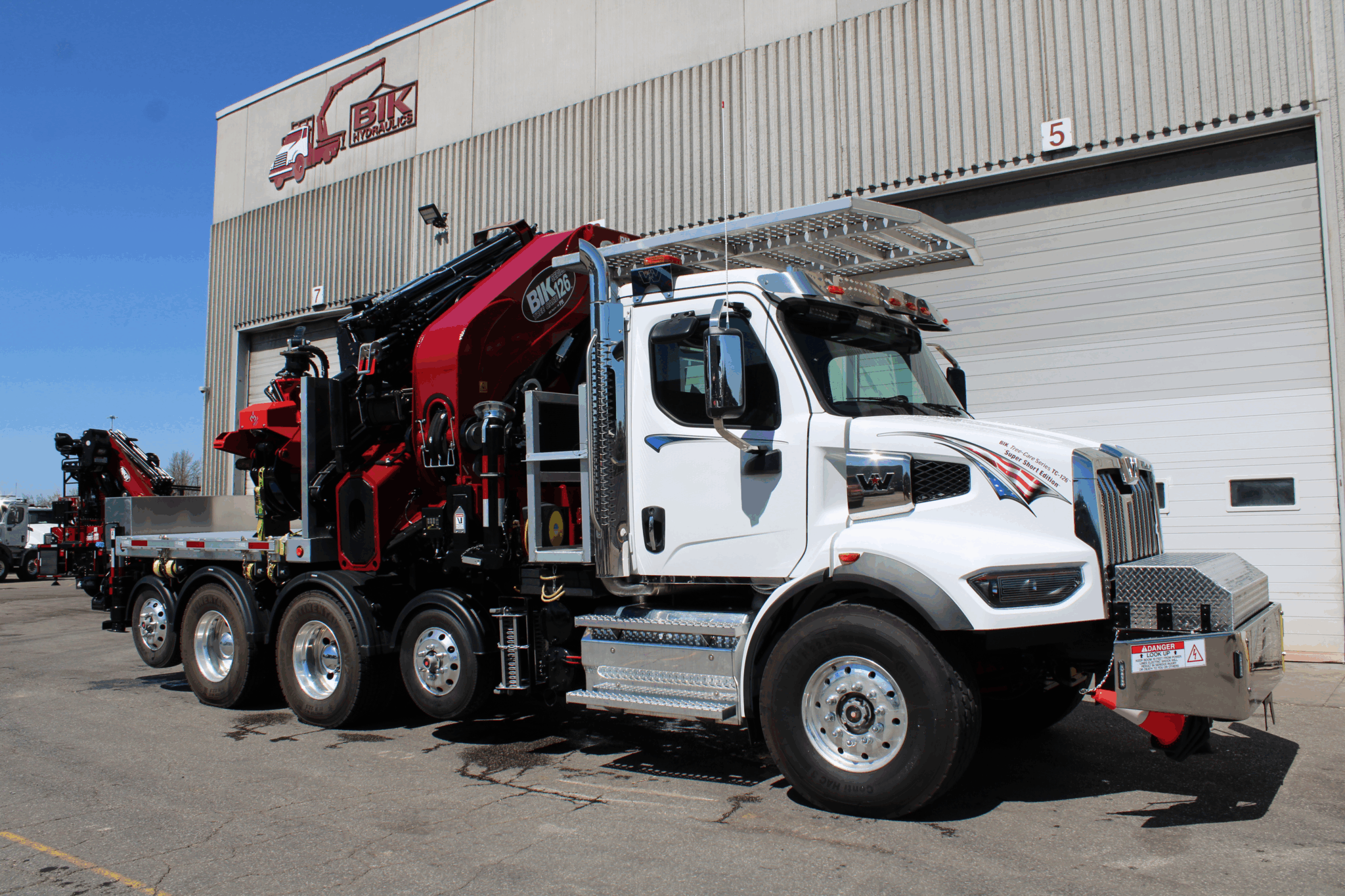

NEW BIK TREE-CARE SERIES TC-126 “SUPER SHORT EDITION” ON NEW WESTERN STAR 49X
 |
NEW BIK TREE-CARE SERIES TC-126 “SUPER SHORT EDITION” ON NEW WESTERN STAR 49X
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
New – BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom “Super Short Edition” – 8 ext Knuckle Boom w/ 6 ext jib + 1-grapple ext
Including (1) Grapple extension in jib, Boom Capacity of 2,280 lbs @ 126’ Vertical Reach (up to 138’ Vertical Reach with 2-manual pull out extn)
Main Boom Horizontal Capacity: 36,800 lb @ 16’, 20,000 lb @ 23’ , 16,000 lb @ 33’, 11,000 lb @ 47’, 7,200 lb @ 67’
Jib Horizontal Capacity: 3,200 lb @ 76’, 2,200 lb @ 100’ , 2,000 lb @ 104’, 1,630 lb @ 110’, w/Grapple extn to 114’
- Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Motors, – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
- – Remote or Side Control Pad Operated 6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted,
- b) 2- Rear Aux Stabilizers behind t/a drives – 26’ Span, c) Dual front bumper mounted Stabilizers at front integral truck frame extension
- Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46.
- Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
- Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
- DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
- Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord, – Boom Factory Painted Dark Red/Burgundy prior to assembly
- Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards, – Load Chart in FT. & LBS.
- Engineer Stability tested & Certified for 360 Degree / 100% load chart capacity in all area’s & zones when stabilizers are fully deployed
Truck Details
2024 Western Star 47X 5-axle Day: 88,000 lb GVWR
- CUMMINS 12X Diesel, 500 HP Jake Brake, Endurant 18 spd Automatic trans.
- 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- (2) x 9,000 lb self steer lift axle – one ahead and one behind t/a
- 46,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims, High RBM Double Frame w/integral front frame extension (for front stabilizer)
- Dual Chrome polished Exhaust on both side of cab
- Chromed Grille & Bumper
- single 100 gallon alum fuel tank
- Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Air ride cab, full differential locks, spot light, fog lights, exterior sun visor, truck cab white etc…
Options Included:
- (6) pcs – PVC stab pads w/holders
- Custom re-enforced manual extn for grapple
- New Mecanil SG-280 Grapple saw
- Alum Mat rack & Cab protector
- 9’ aluminum flat deck with 48” headboard & 7’ wide Alum storage box at rear
- (1) – 24” alum storage box
