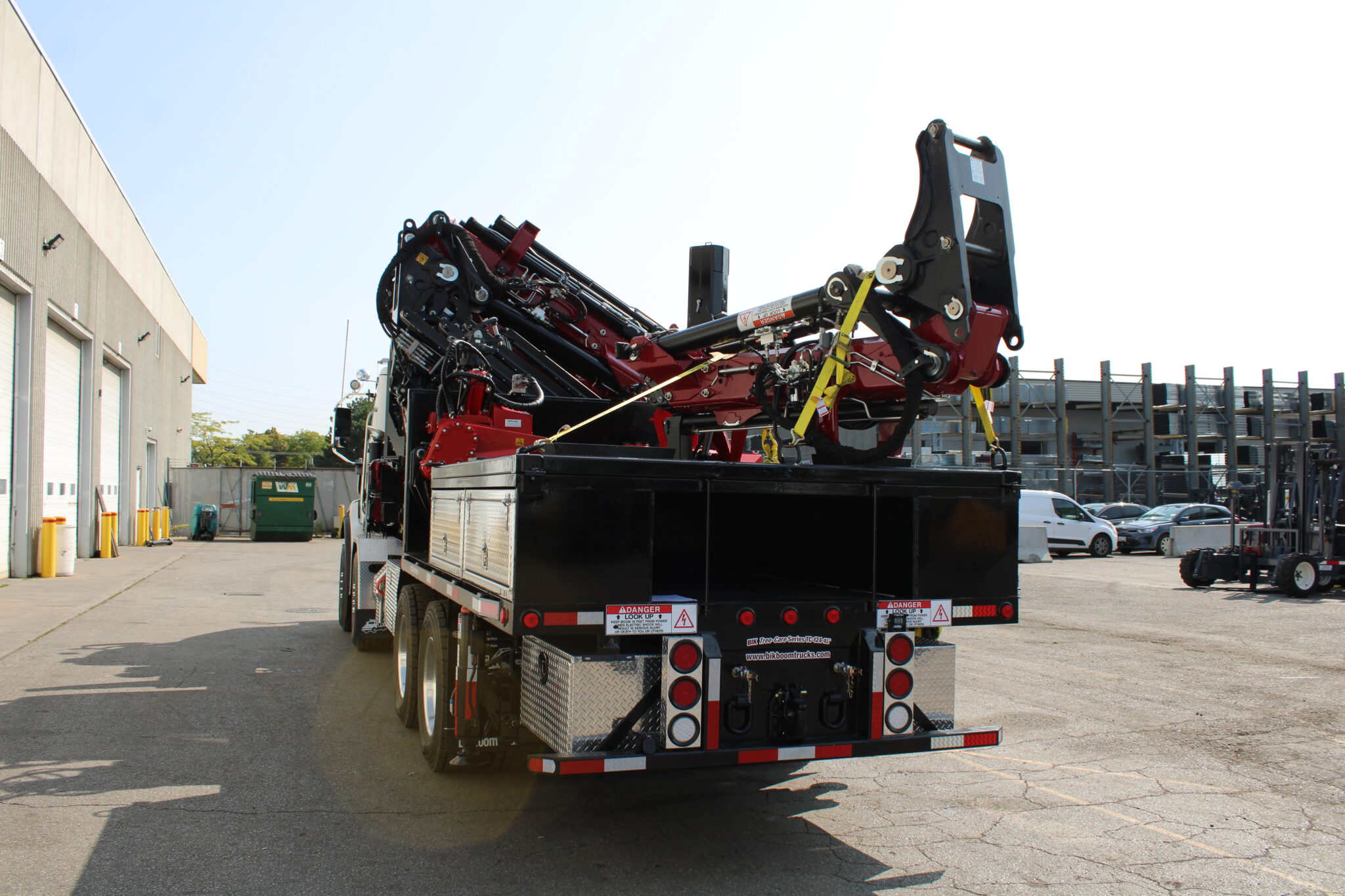

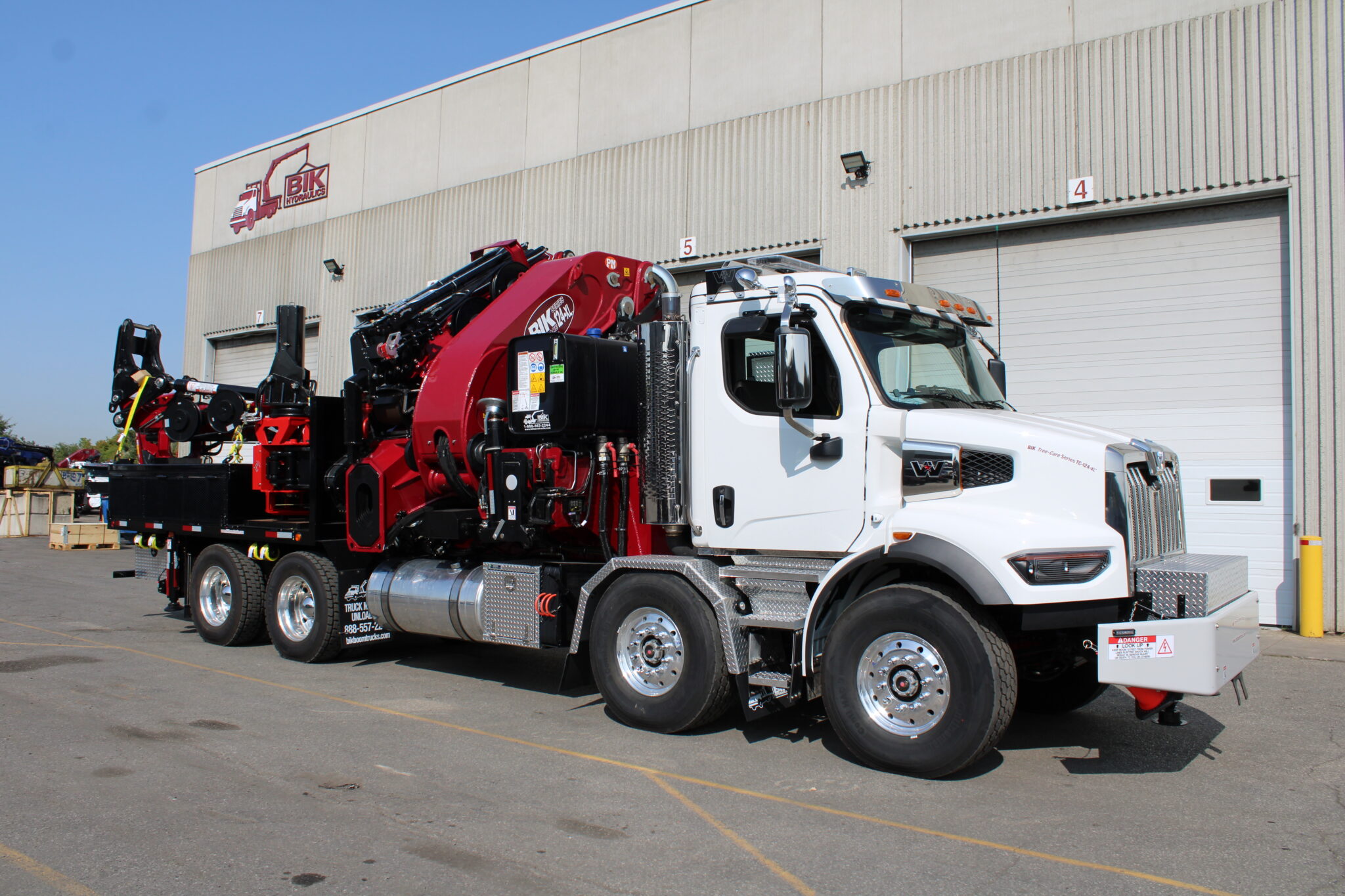

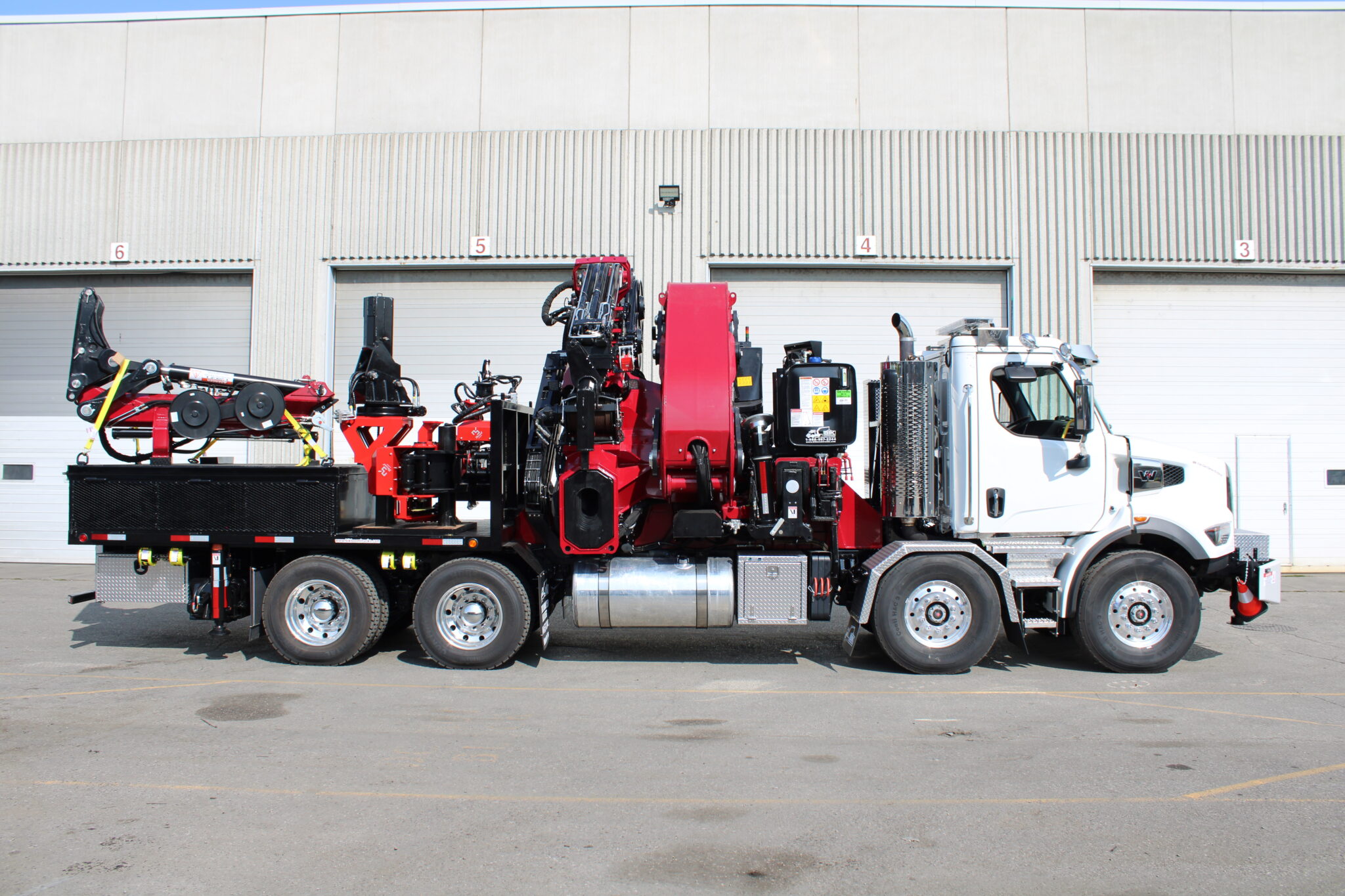

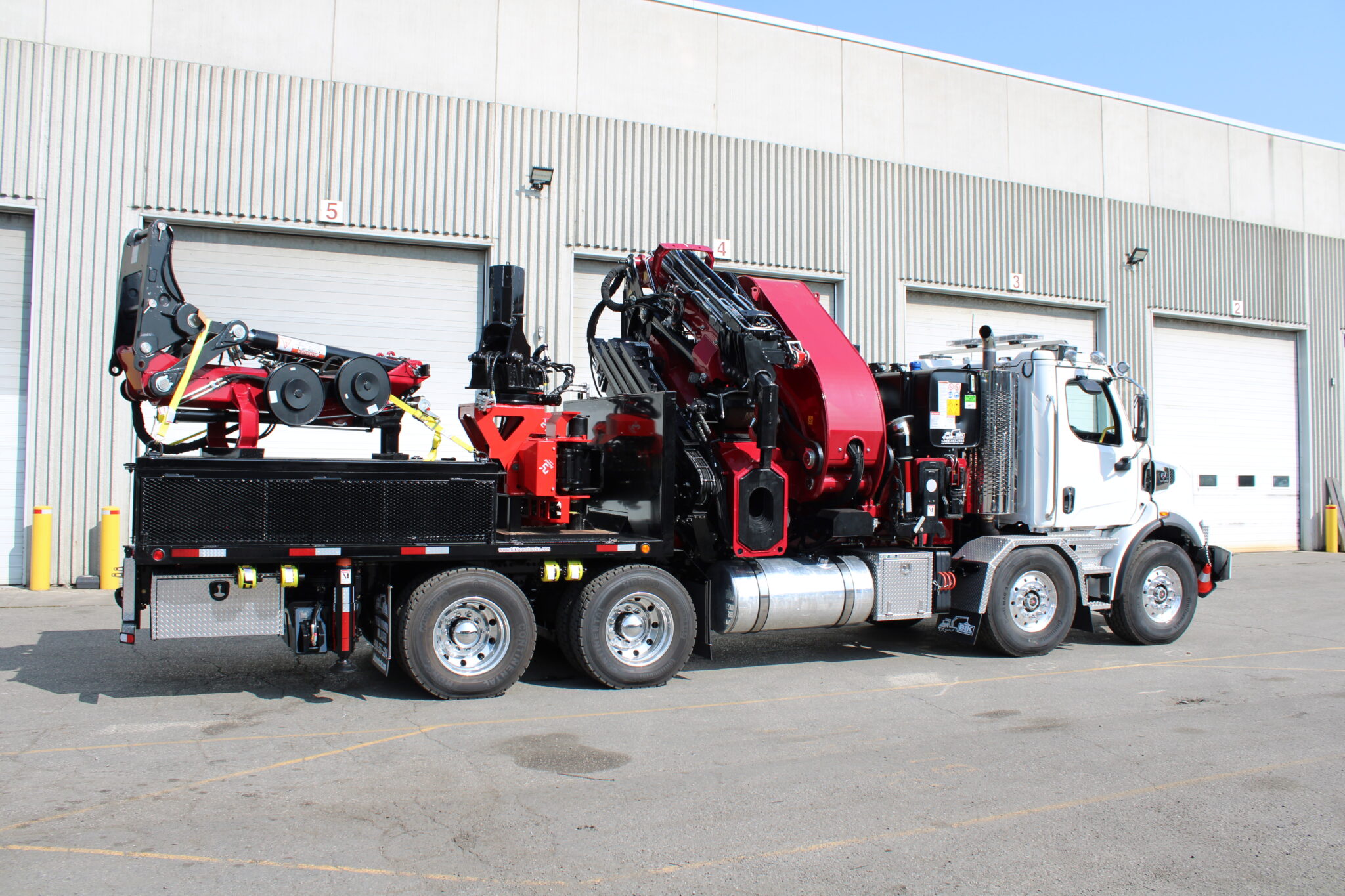

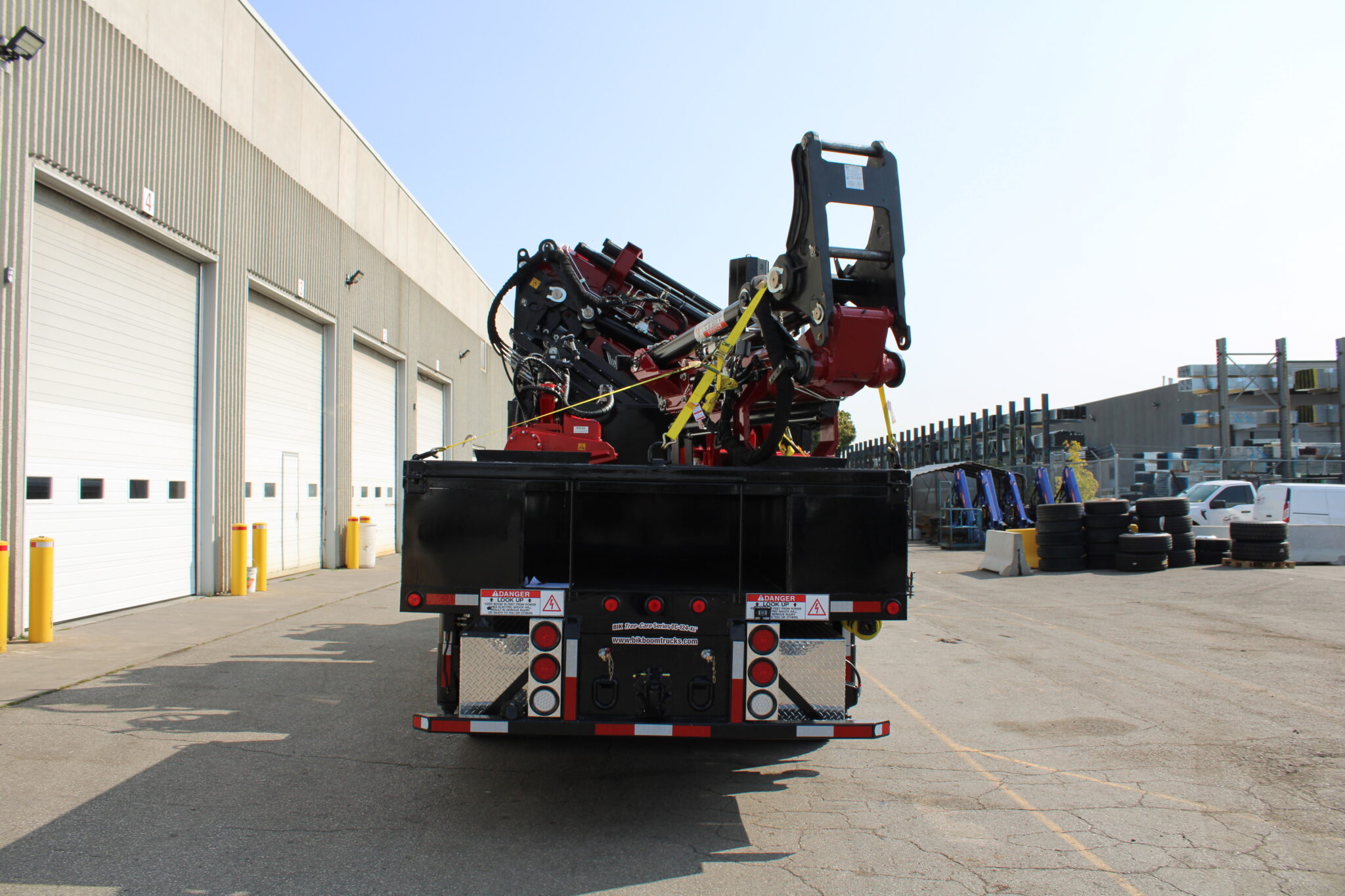

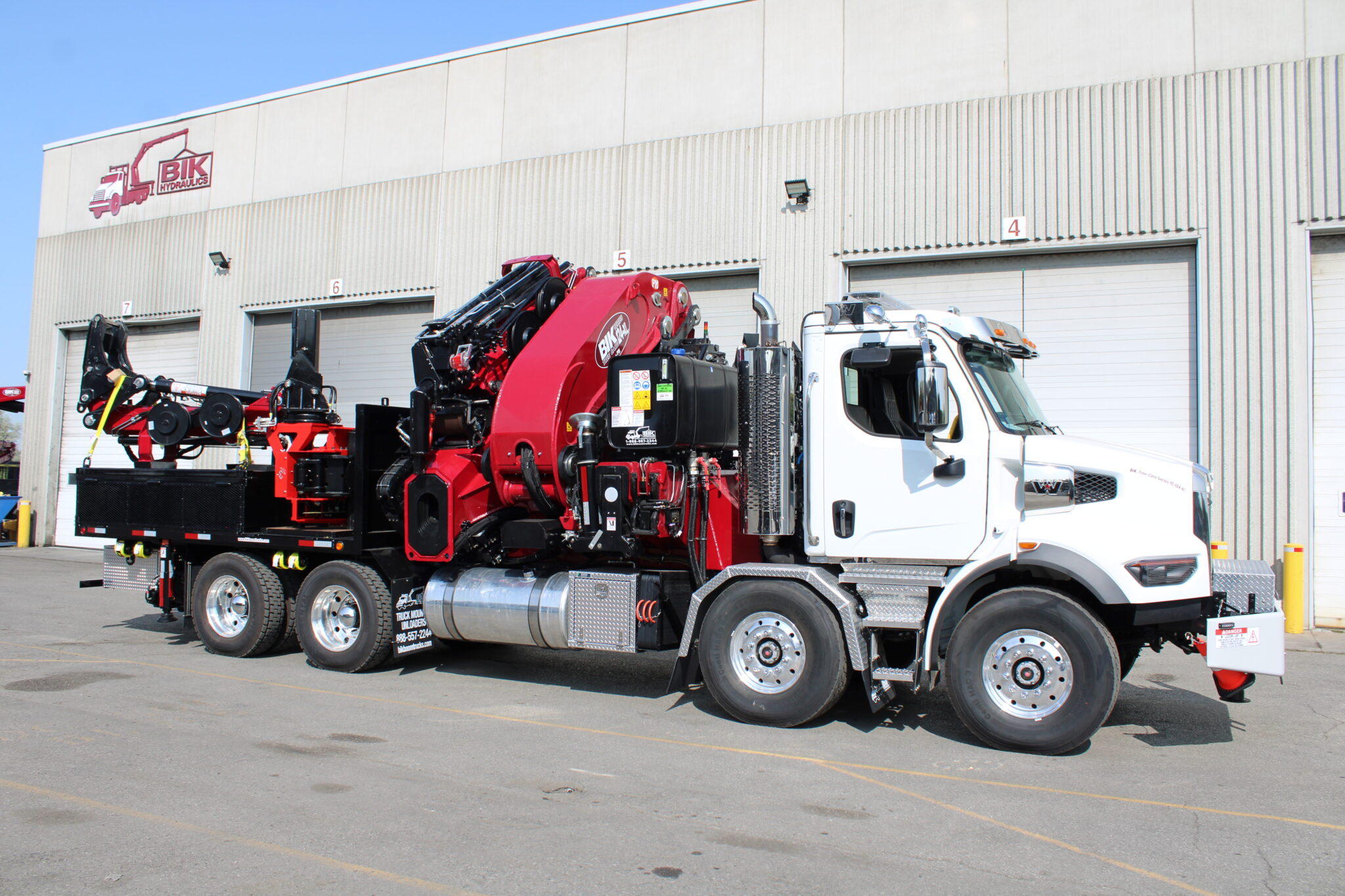

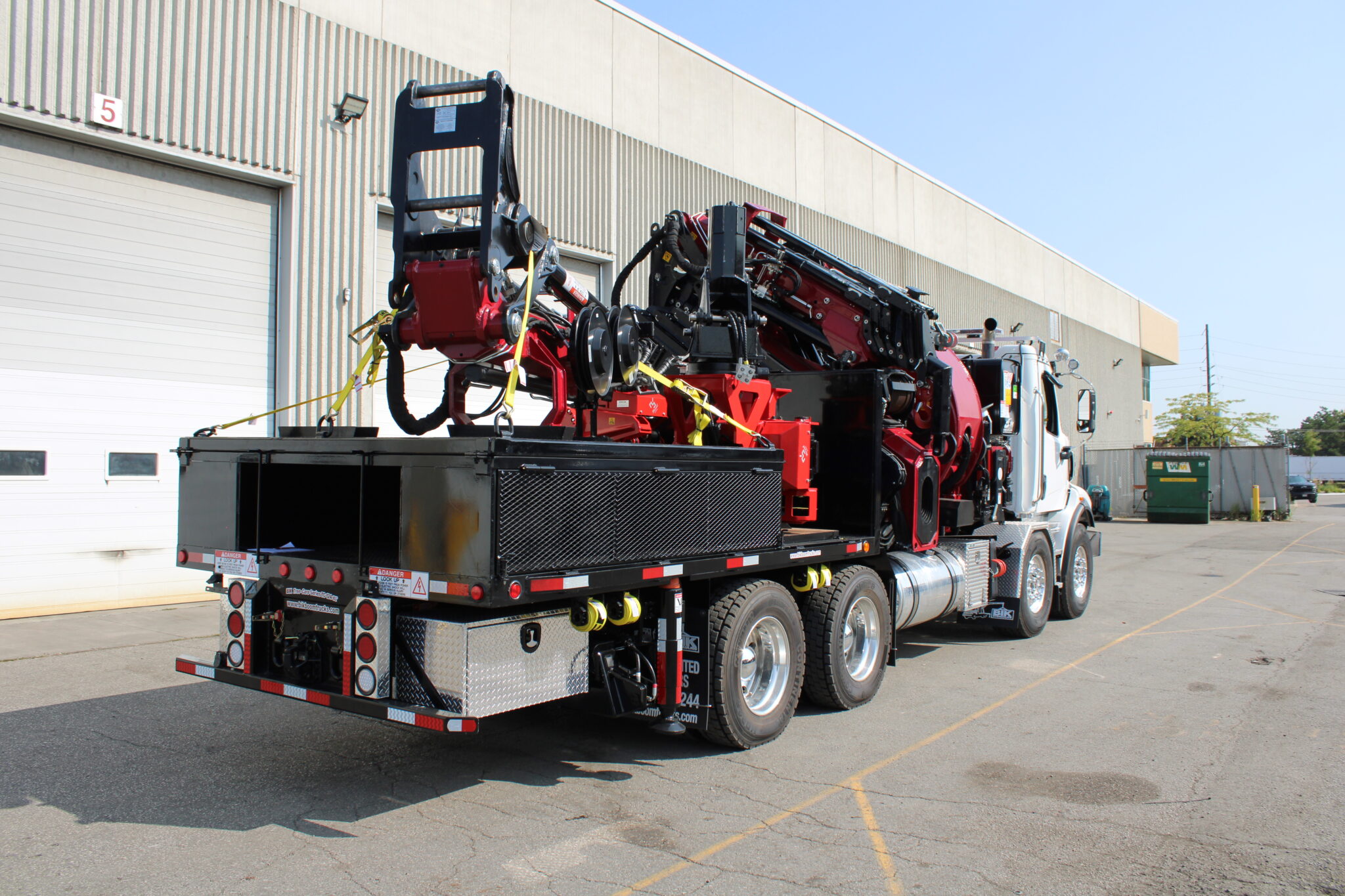

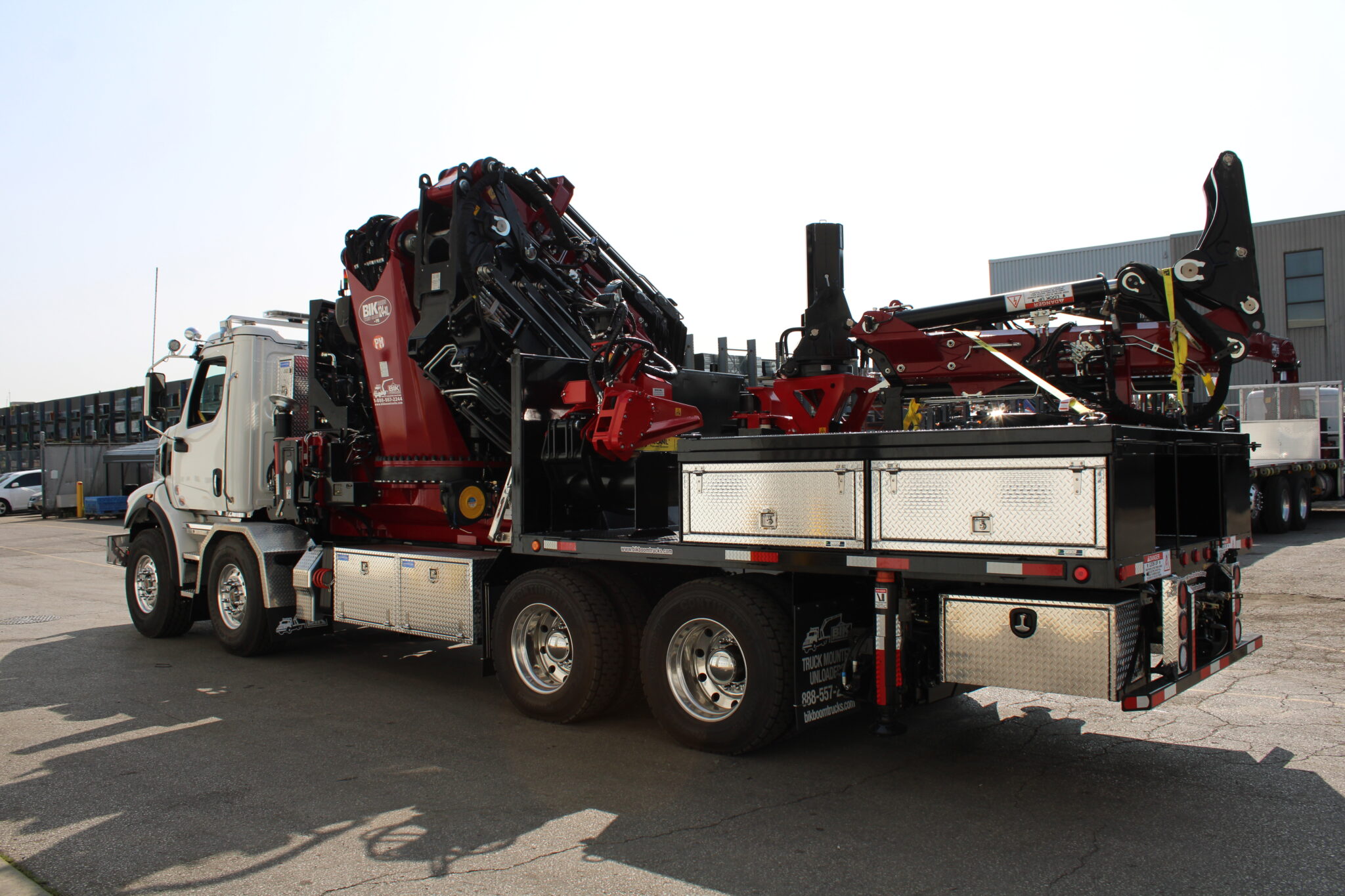

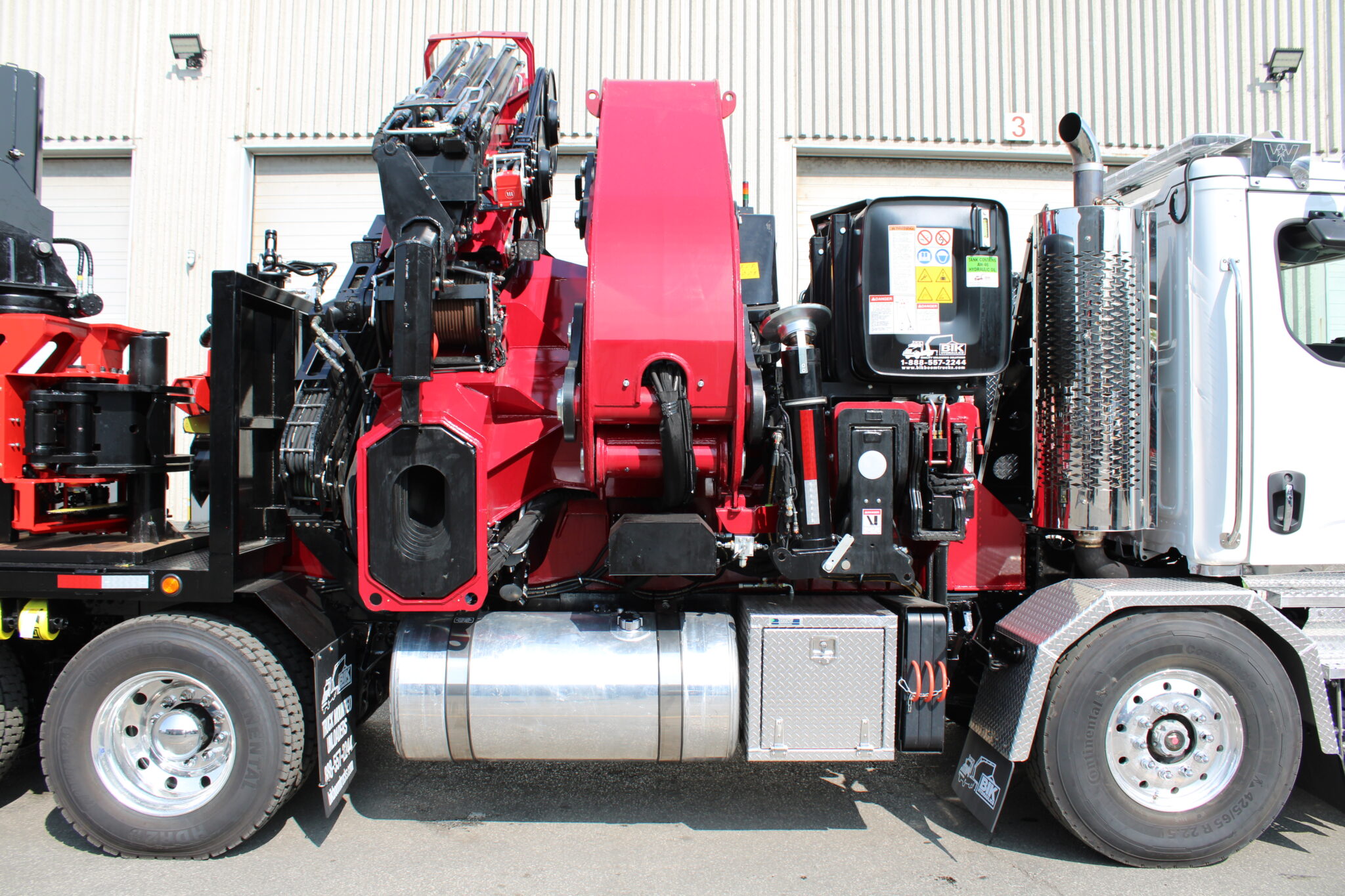

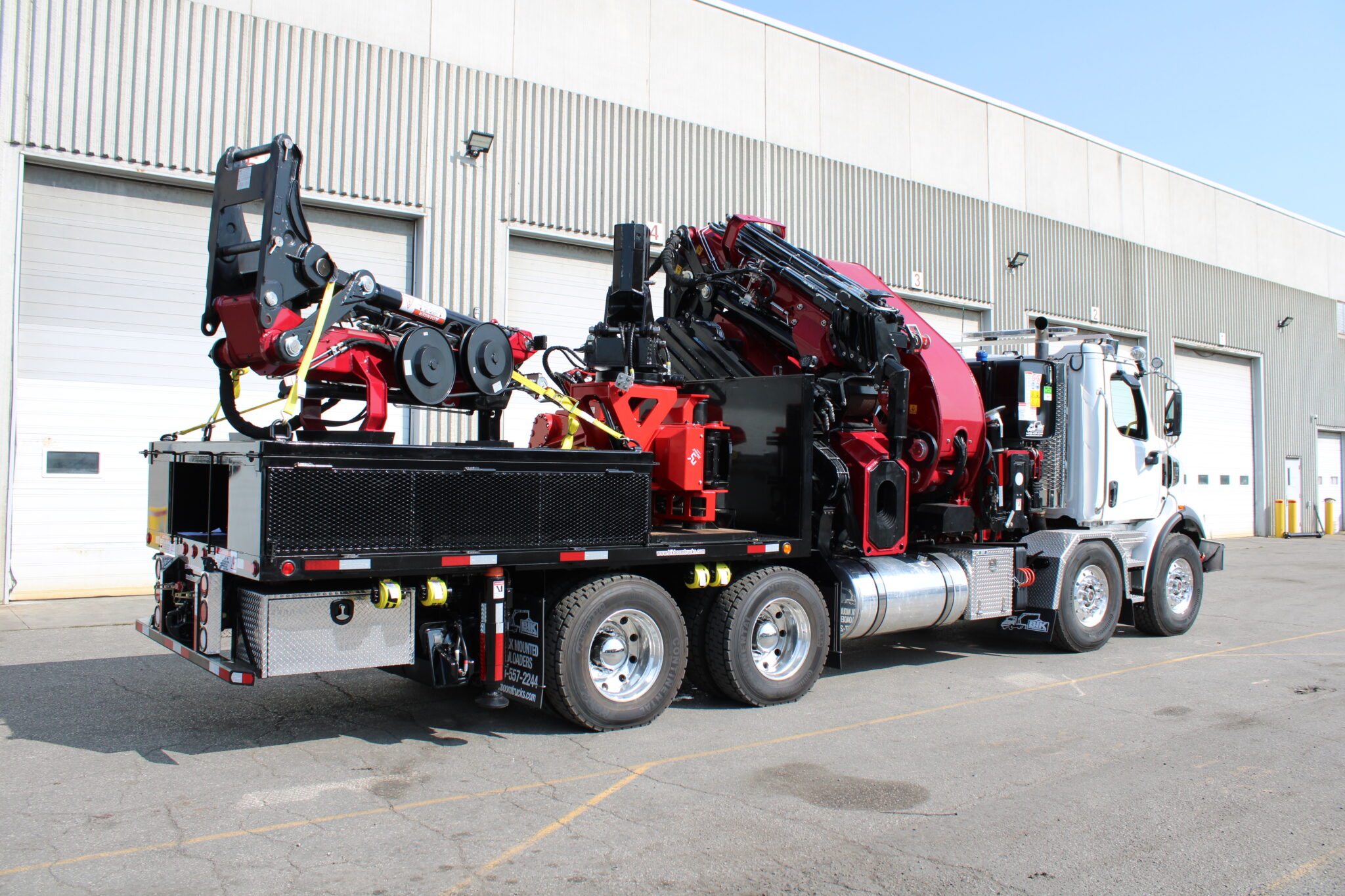

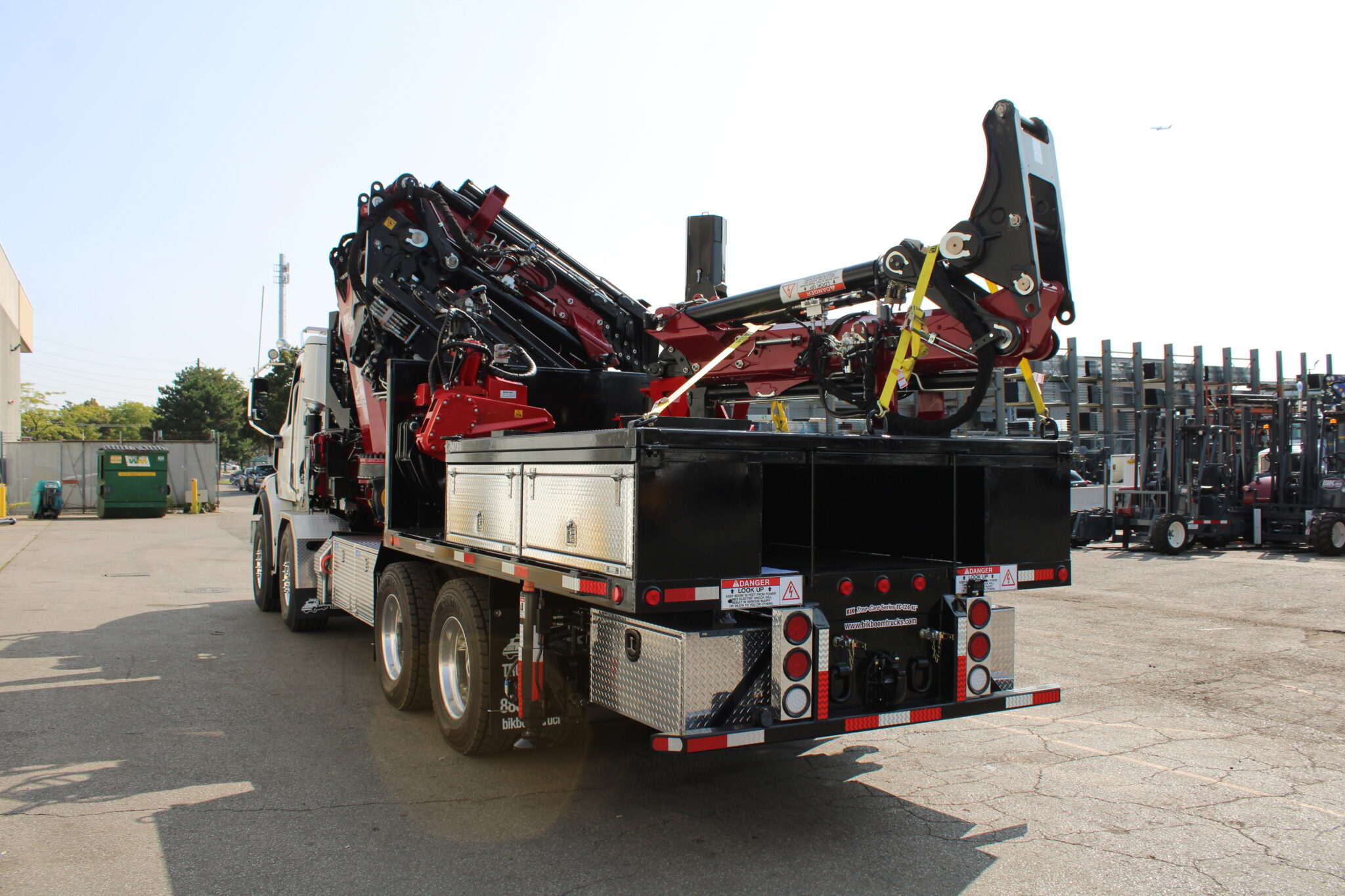

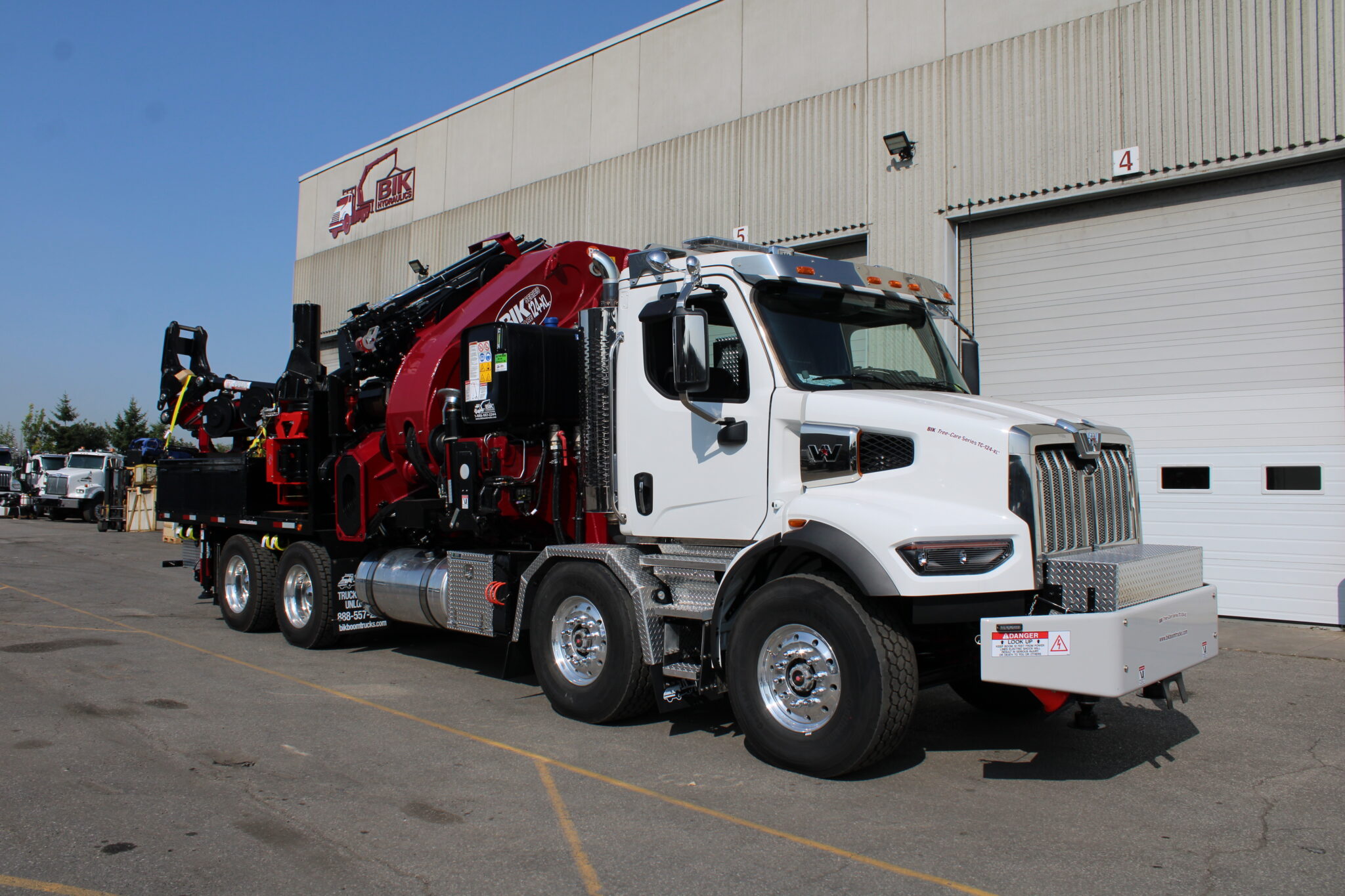

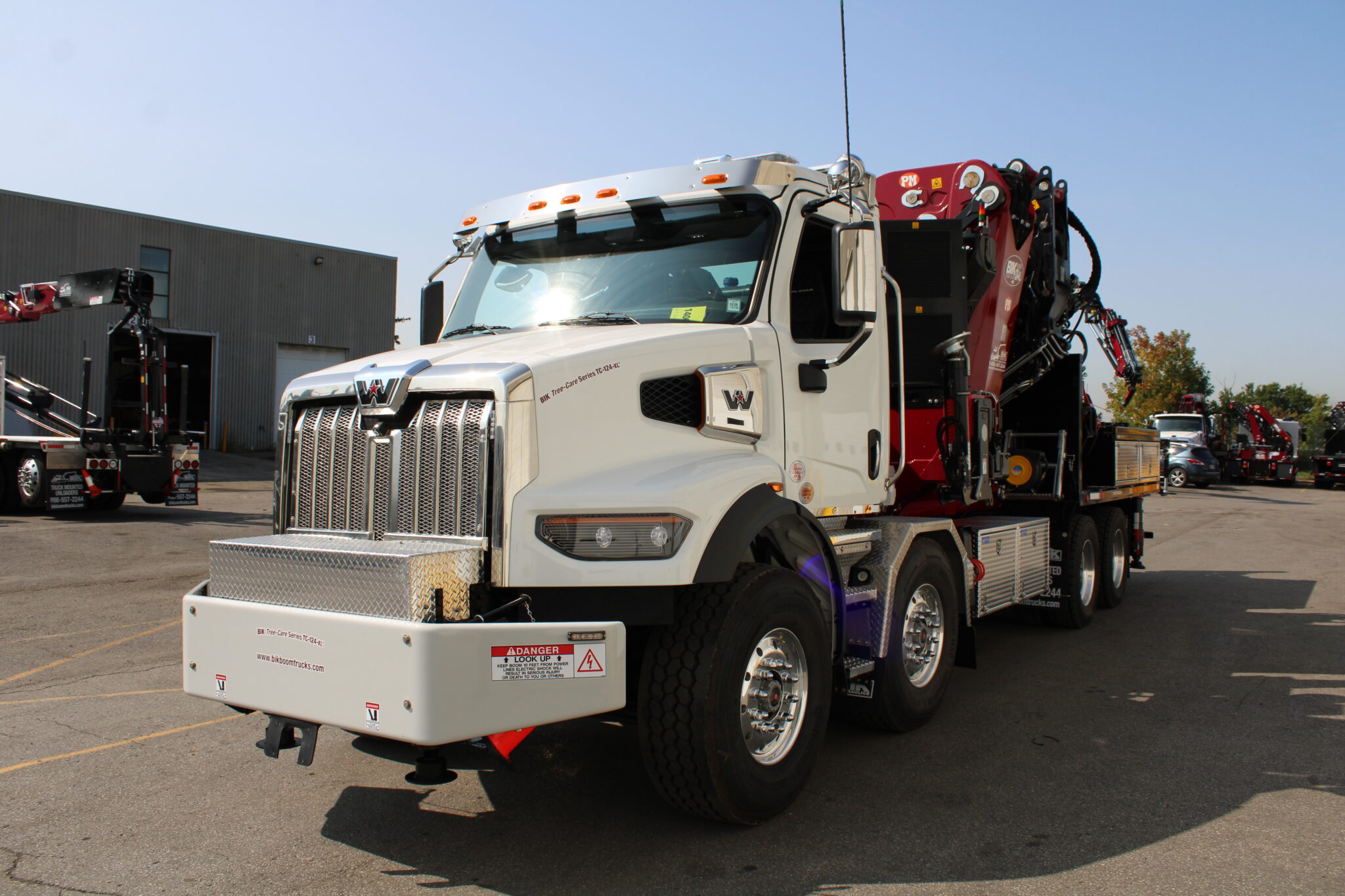

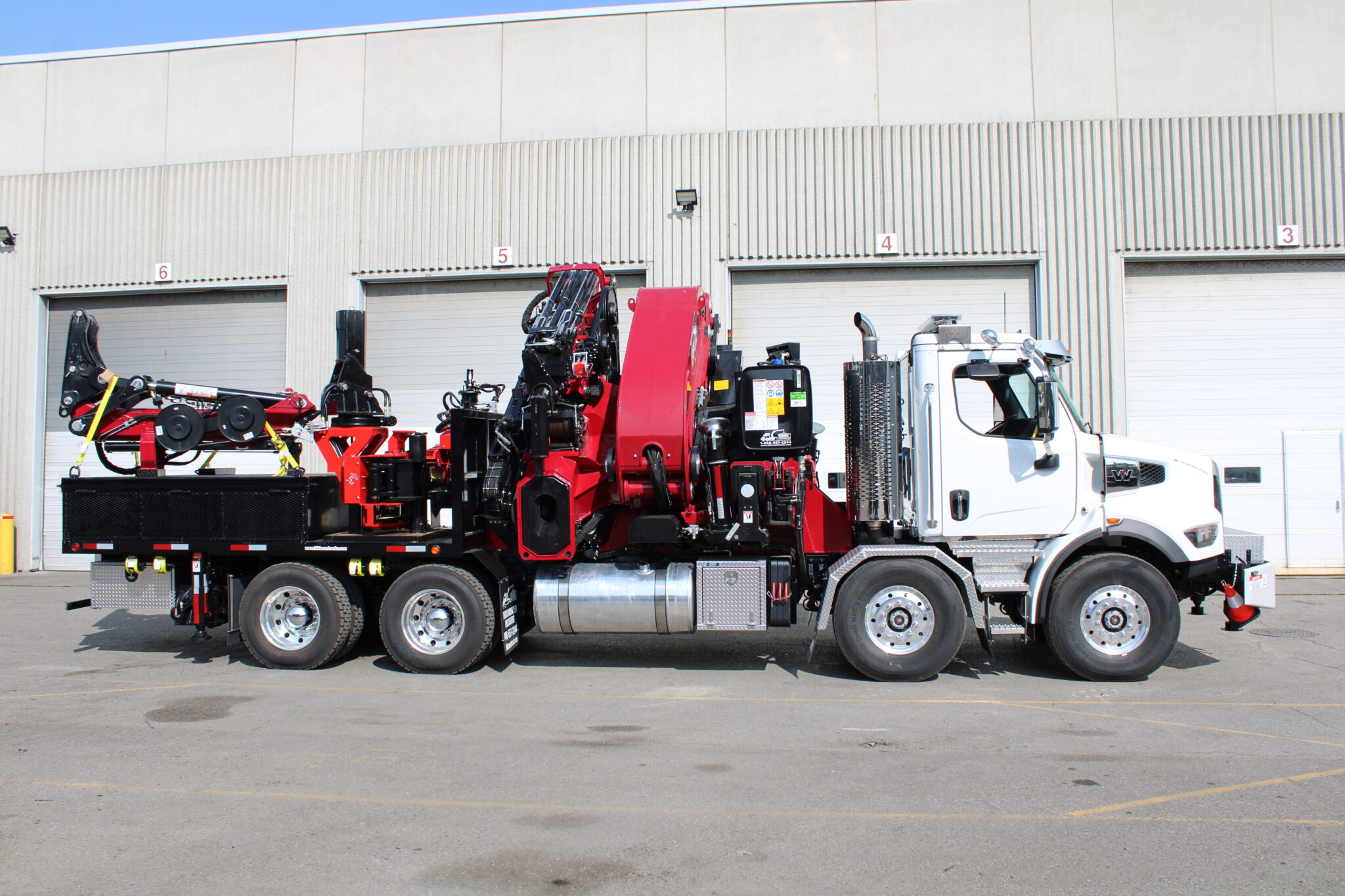

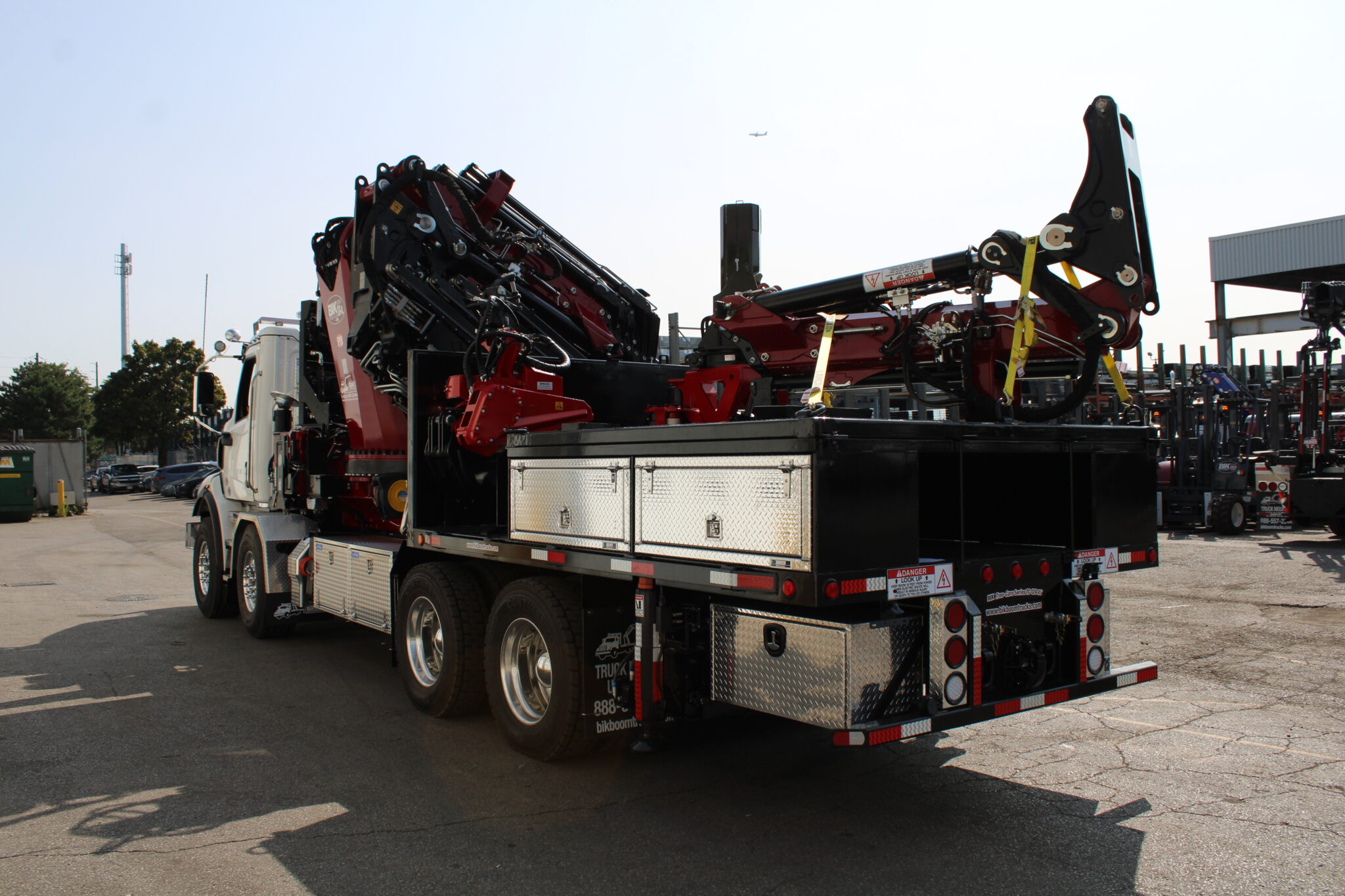

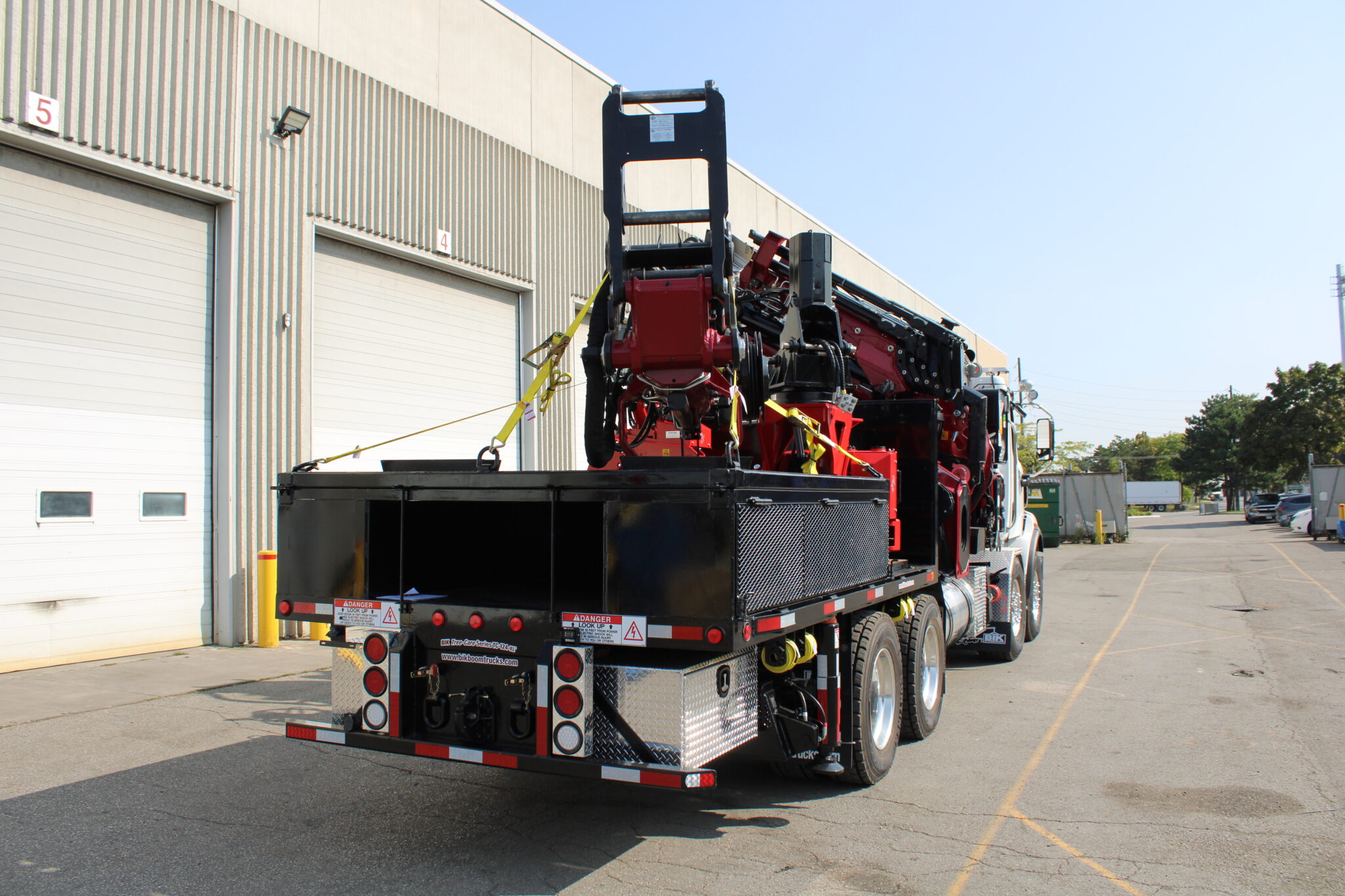

NEW BIK TREE-CARE SERIES TC-124XL “Fixed-Head Edition” ON NEW WESTERN STAR 47X – 4-AXLE

Boom Details

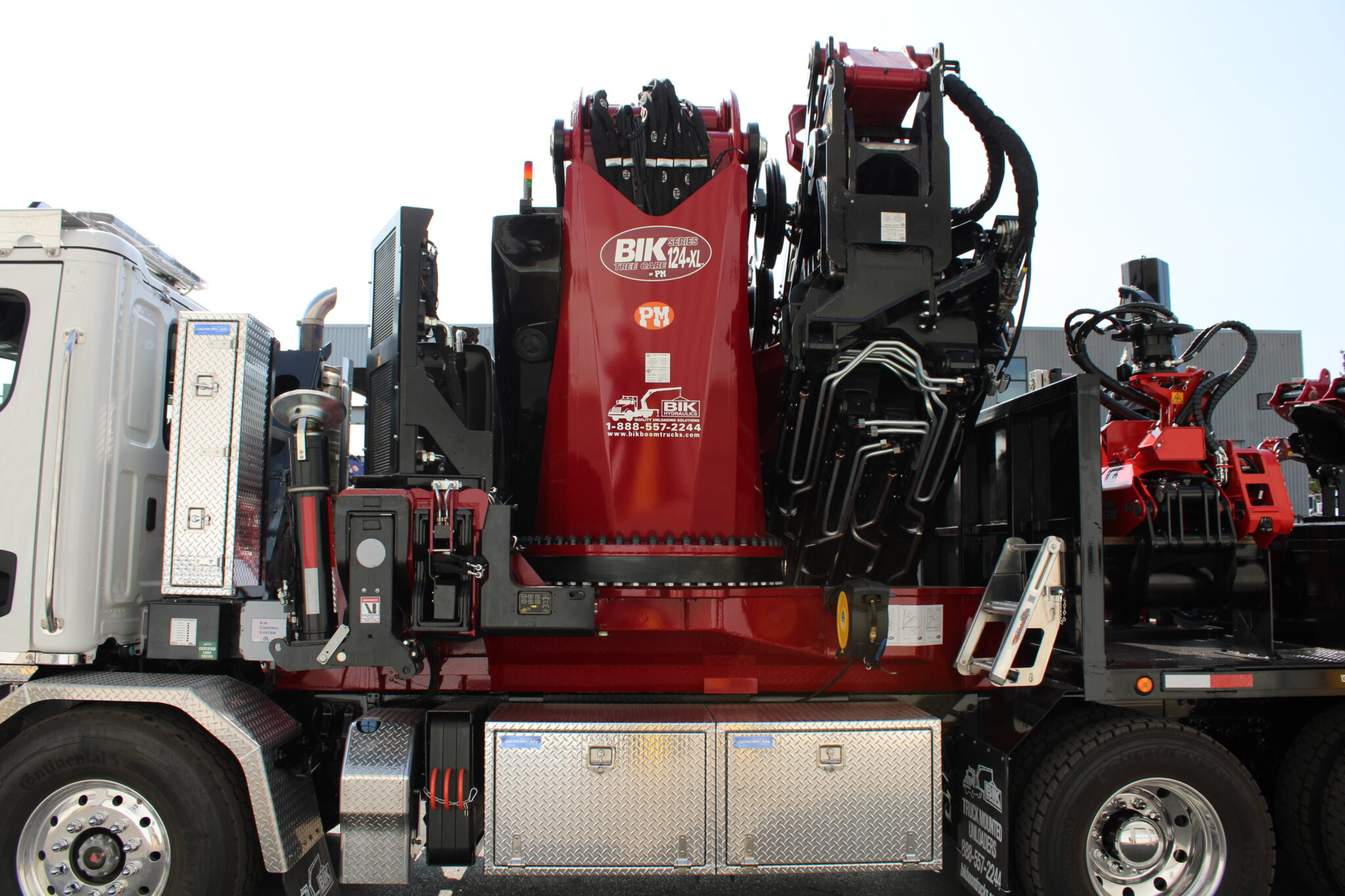

New – BIK Tree-Care Series TC-124-XL – 150 ton/m Knuckle Boom 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn

• Including (1) Grapple extension in jib, Boom Capacity of 3,800 lbs @ 124′ Vertical Reach
• Main Boom Horizontal Capacity:
  • 46,000 lb@ 16′
  • 27,000 lb@ 26′
  • 18,200 lb@ 38′
  • 12,700 lb@ 50′
  • 9,800 lb@ 64′
• Jib Horizontal Capacity:
  • 5,350 lb@ 73′
  • 4,500 lb@ 85′
  • 3,900 lb@ 96′
  • 3,200 lb@ 108′
  • w/Grapple extn to 112′
• PM connecting rods at First Boom and Knuckle, 15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
• Continuous Rotation and Dual Planetary Gear Rotation – Special Extra High Tensile Steel Structure
• Hydraulic Extra Wide Main outriggers at pedestal – 33′ – 6″ span – hydraulic tilting when retracted. Radio controlled
• Hydraulic Oil Cooler, high-pressure return filter and min. 92-gallon oil tank for boom
• Lifting winch on boom plumbed to jib
• DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
• PM Power Tronic Electronic System allows constant crane monitoring & visual display with a 5-level stability control system
• Scanreco Radio Remote Control includes: 2 batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS
• Warranty: 1-Yr. part & labour on the entire boom
• 3-Yr. on Structural Components Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards

Truck Details

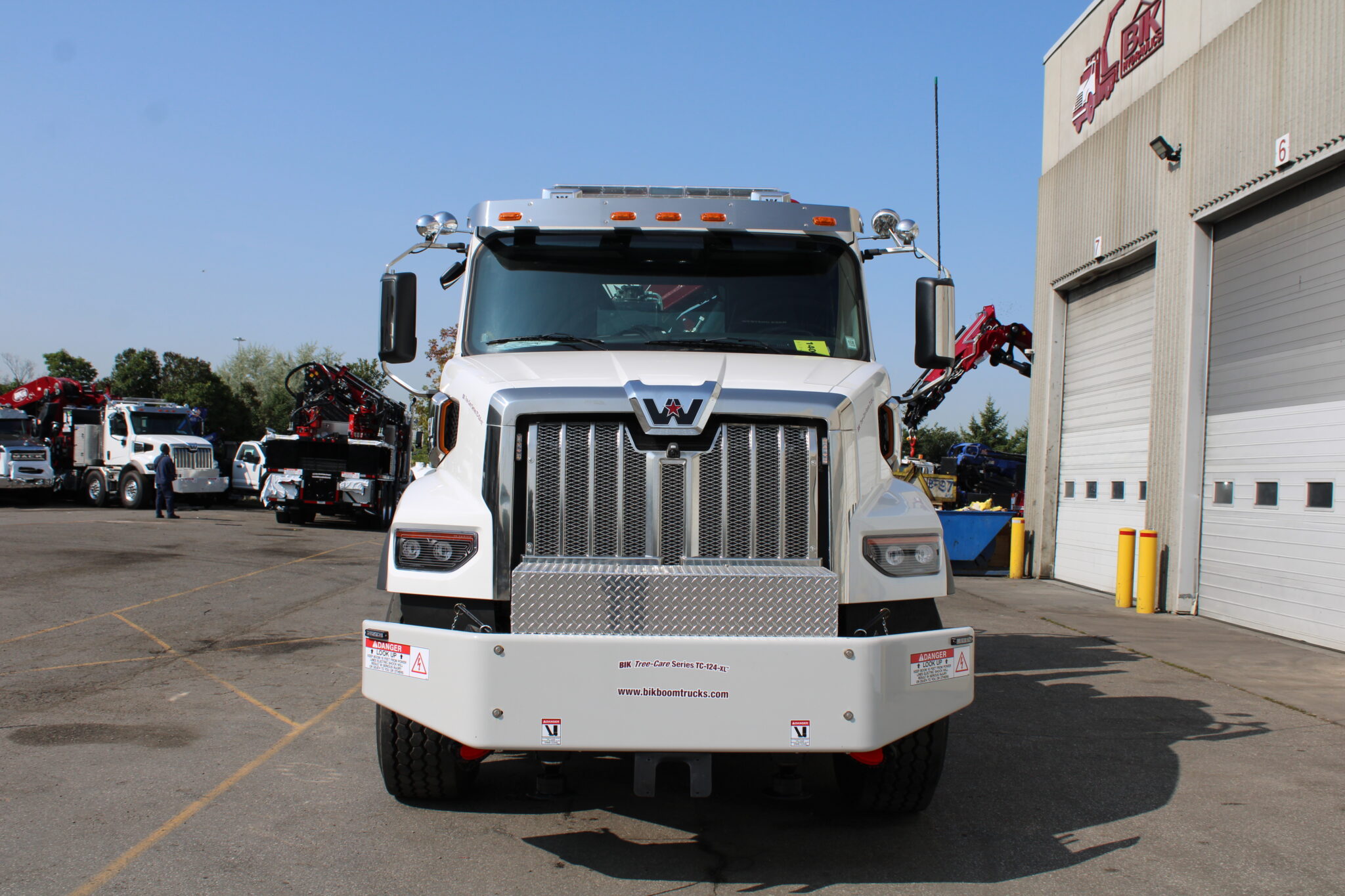

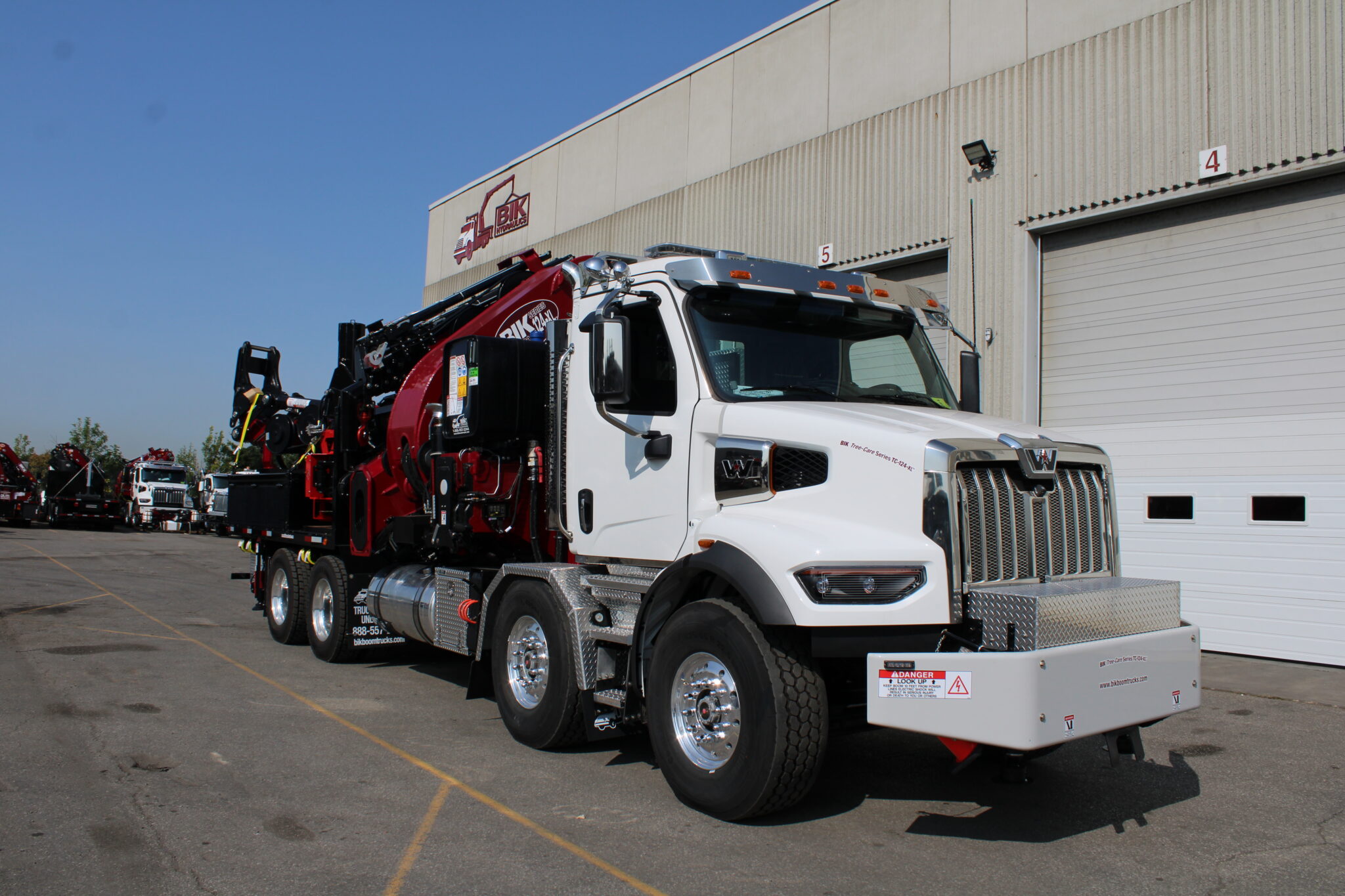

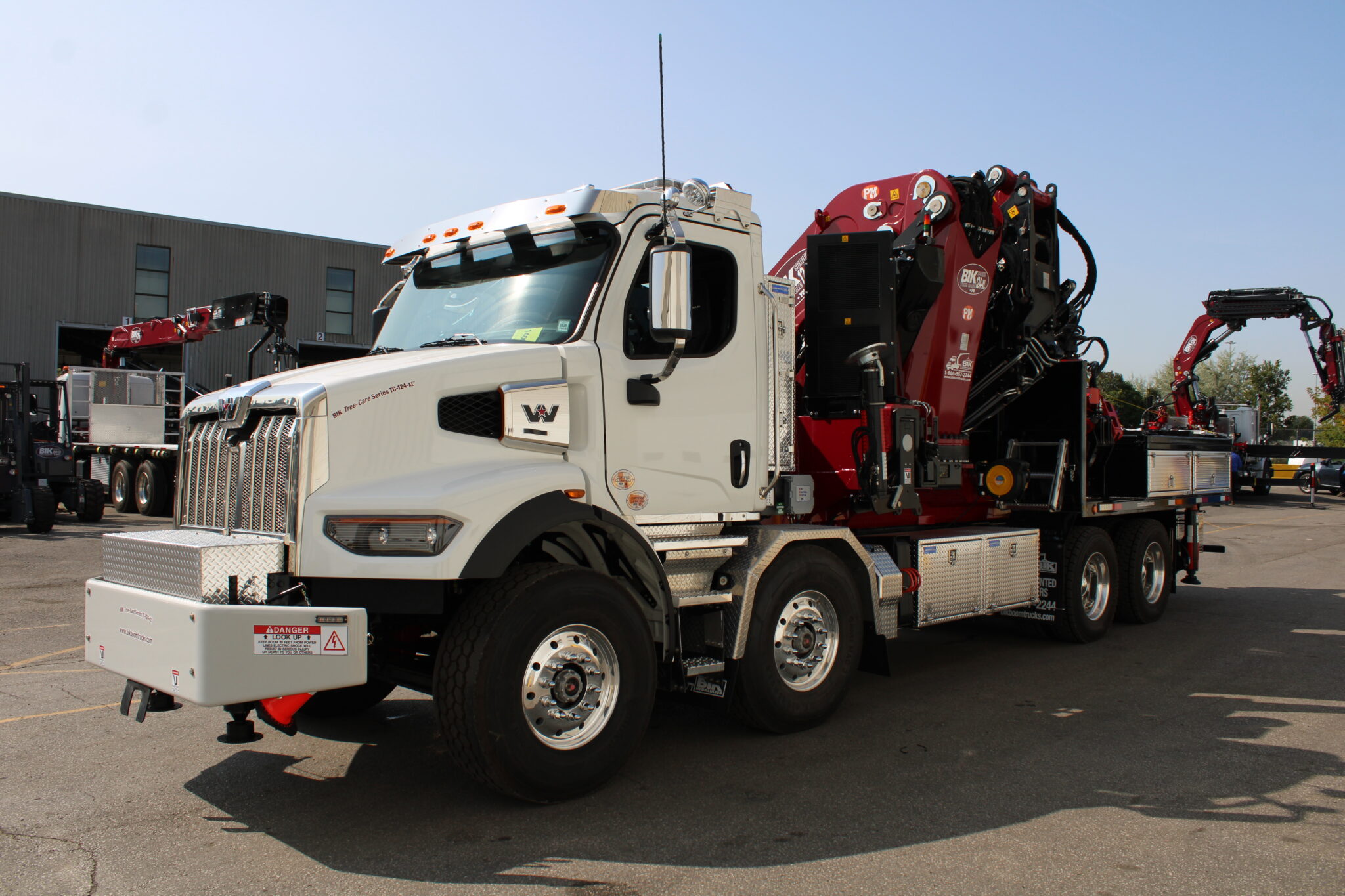

New – Western Star 47X Sloped Short Nose T/A Steer-TIA Rear – 4 Axle: 92,000 lb GVWR

• Cummins 12L
• 500 hp with Jake
• Eaton Ultrashift 18spd Automated Trans.
• (2) x 20,000 LB fronts with 425 / 65R22.5 tires, 52,000 LB Rears on Hendrickson Primax Air-Ride Susp.
• Double Frame
• Polished ALCOA Aluminum Wheels, front and outer rear Dual Chrome single polished Exhaust
• Chrome Grille & Bumper
• Dual 80-gallon aluminum fuel tank

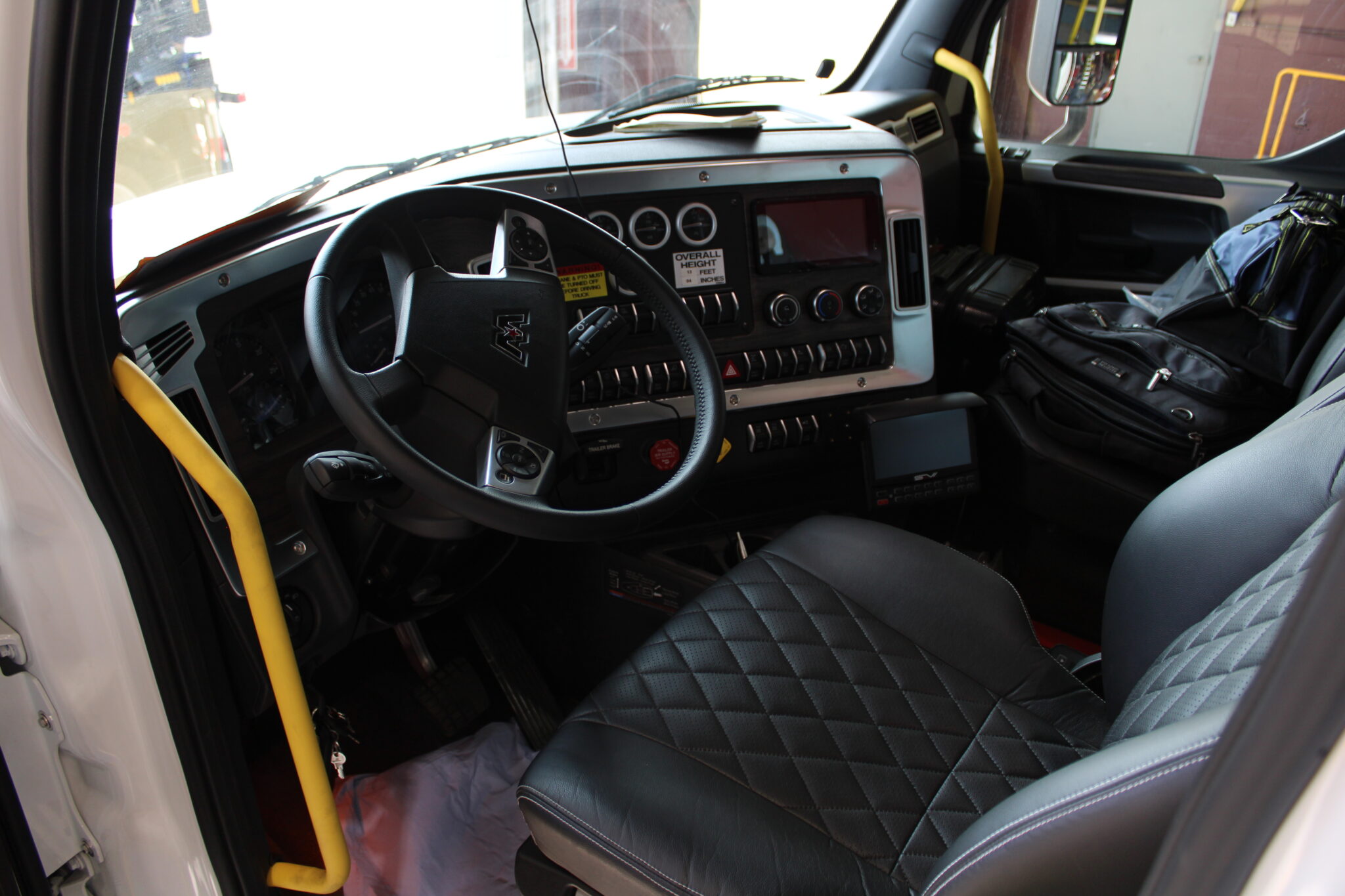

• Loaded with Options including: A/C, Tilt/Telescopic steering, top-level interior, AM/FM/Bluetooth, and air driver’s seat. fixed passenger seat, cruise, heated mirrors, exterior SIS sun visor, 4 wheel lock-ups, power window both sides, power mirrors & door locks, Air ride cab, truck cab to be black colour, Platform to be customized to hold 2nd jib, saws and mats, etc

Options Included:

• (6) pcs – 2″ PVC stab pads w/holders
• 2 pcs Alum storage boxes installed
• Custom reinforced manual extension for grapple
• Mecanil SG-280 Grapple Saw with spare parts kit
• 10′ or 3′ long flat deck, 8′ wide with rub rail
• Sliding winch straps & 48″ headboard
• Spotlights on the main boom and on the jib
• 2 to 3-day Boom feature operation familiarization at your location

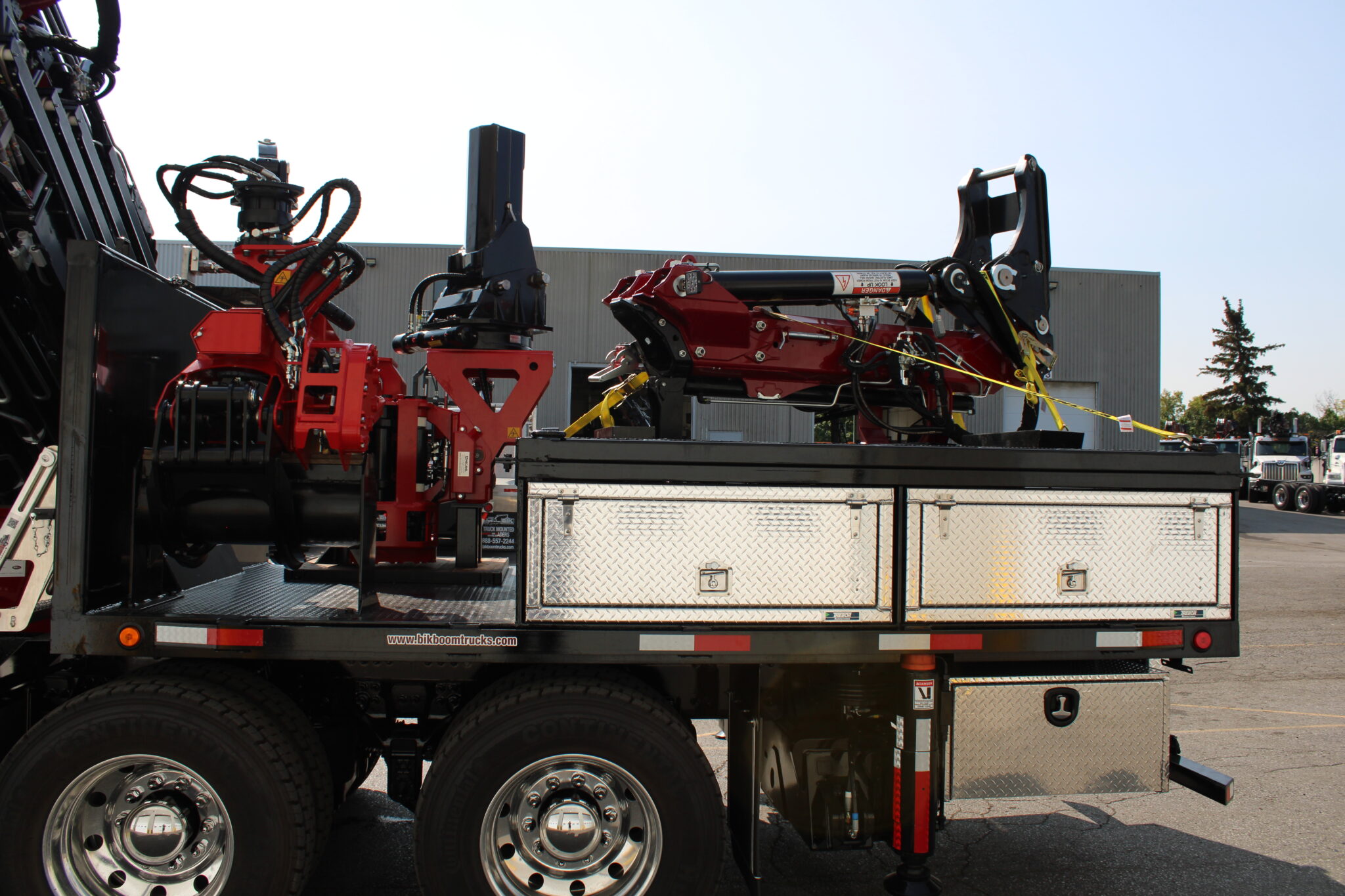

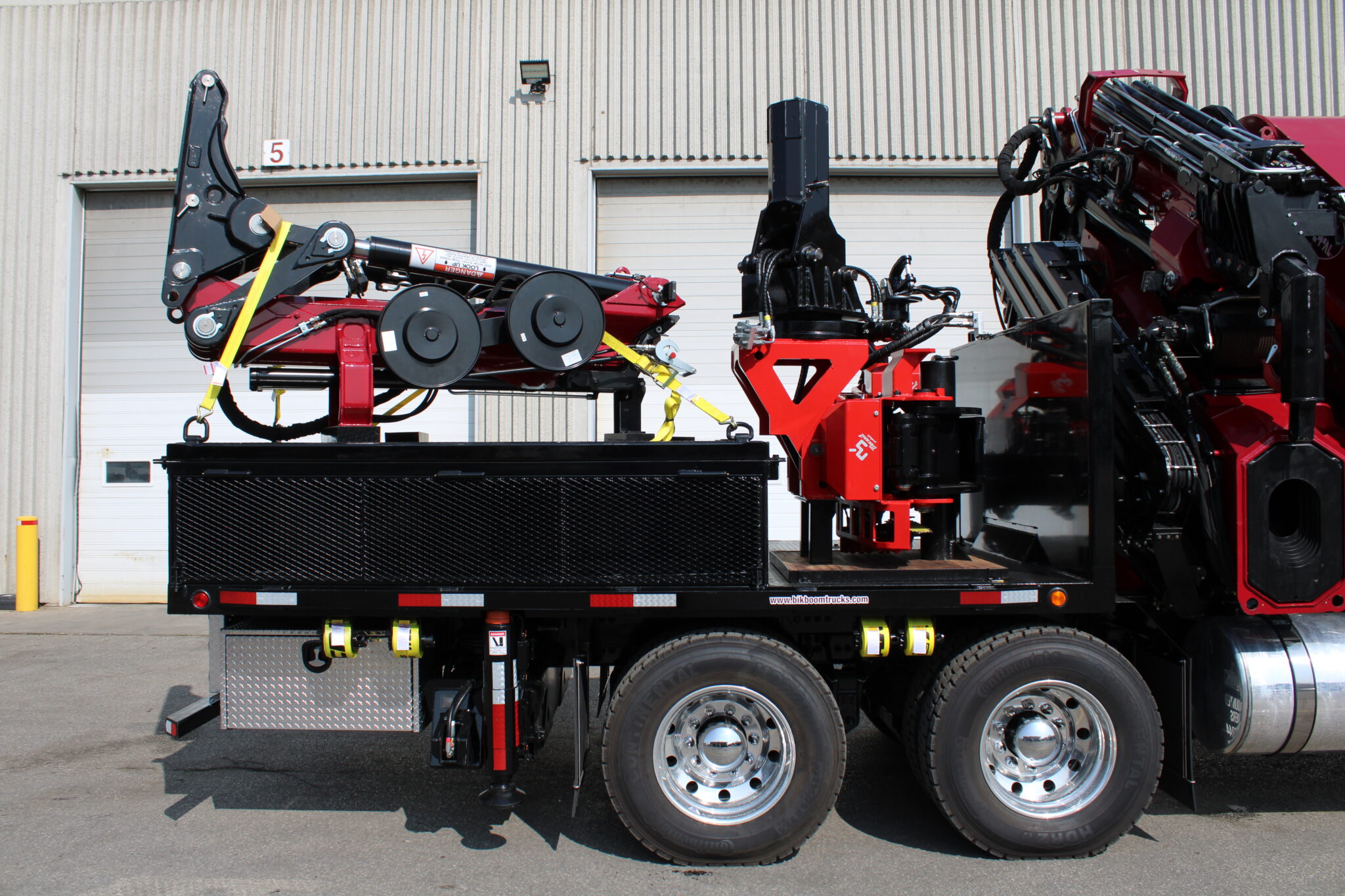

• 2nd Jib- 24 ton Jib with 1-hyd extension with SG-320 (30″ saw” Fixed Mount Grapple Saw
