NEW BIK TREE-CARE SERIES TC-124-XL ON NEW WESTERN STAR 4800

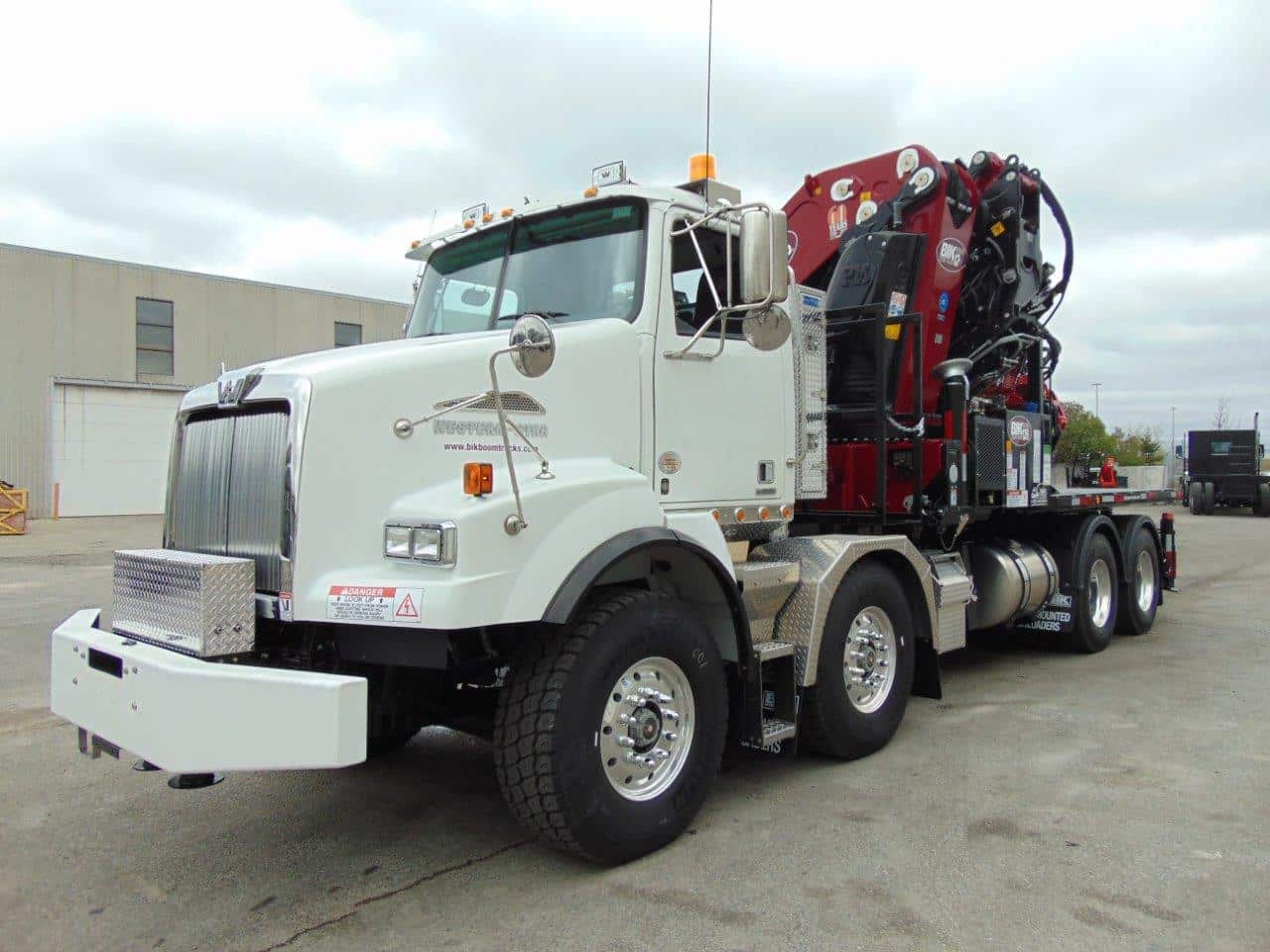

NEW BIK TREE-CARE SERIES TC-124-XL ON NEW WESTERN STAR 4800 – 4 AXLE
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

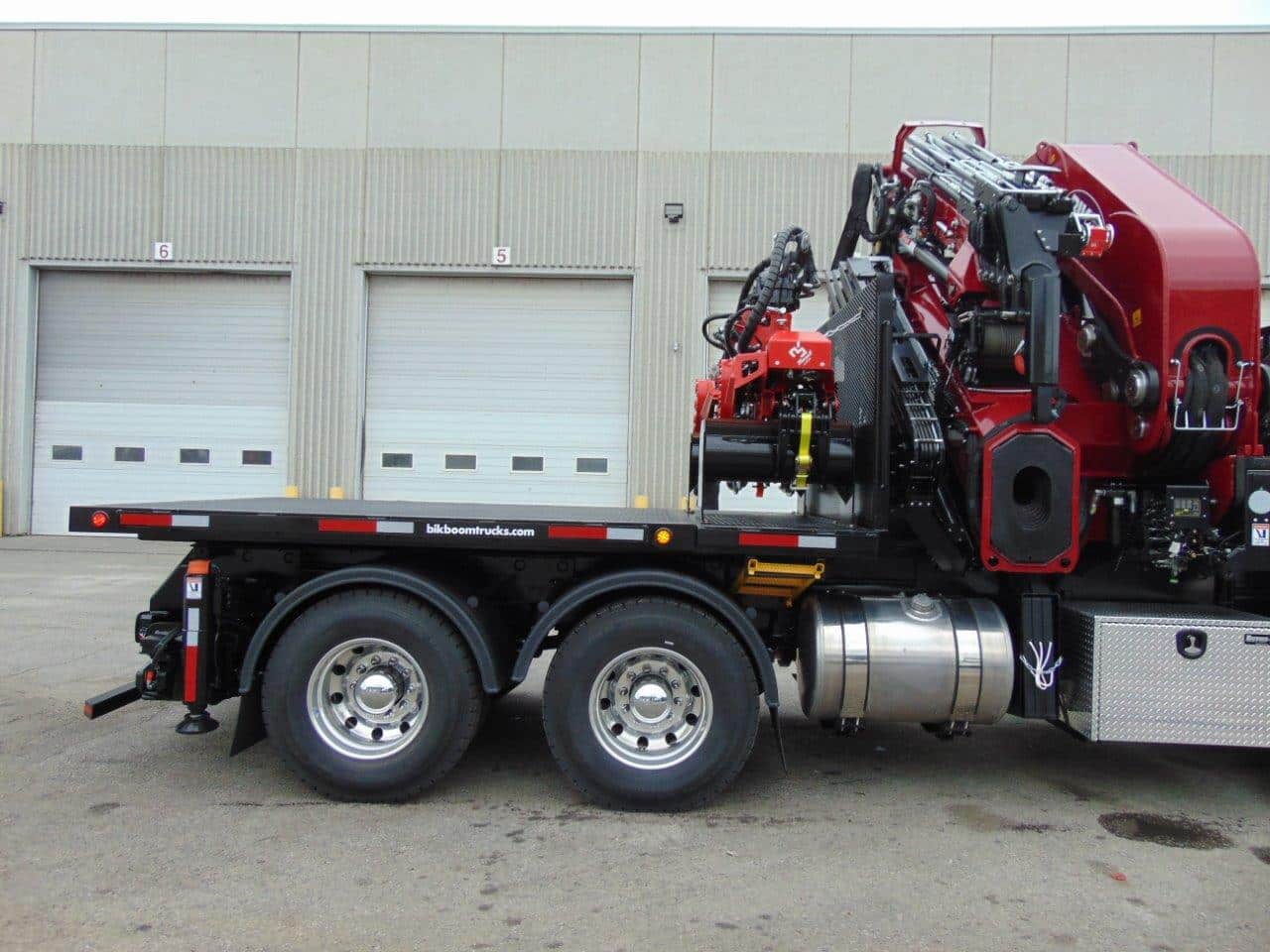

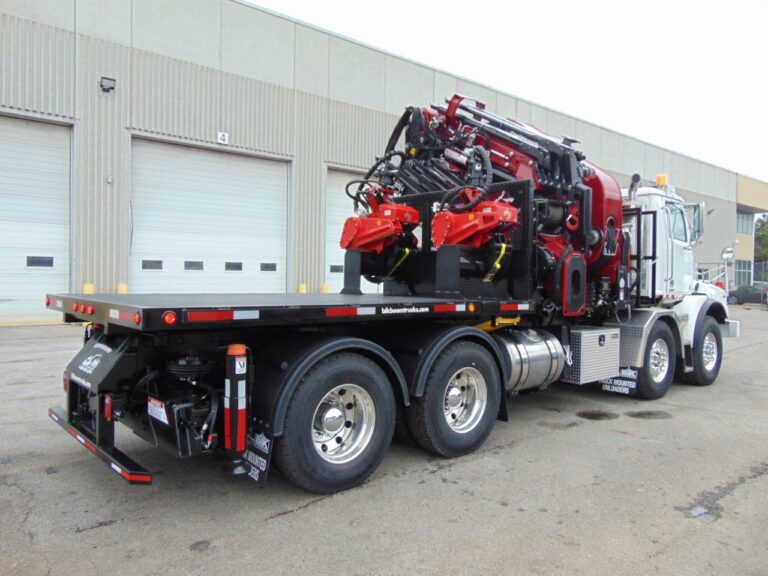

New – BIK Tree-Care Series TC-124-XL – 150 ton/m Knuckle Boom
- 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extension
- Including (1) Grapple extention in jib
- Boom Capacity of 3,800 lbs @ 124’ Vertical Reach
- Main Boom Horizontal Capacity:
- 46,000 lb @ 16’
- 27,000 lb @ 26’
- 18,200 lb @ 38’
- 12,700 lb @ 50’
- 9,800 lb @ 64’
- Jib Horizontal Capacity:
- 5,350 lb @ 73’
- 4,500 lb @ 85’
- 3,900 lb @ 96’
- 3,200 lb @ 108’
- w/Grapple extn to 112’
- PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 33’ – 6” span – hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
- Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart in FT. & LBS.
- Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
Truck Details

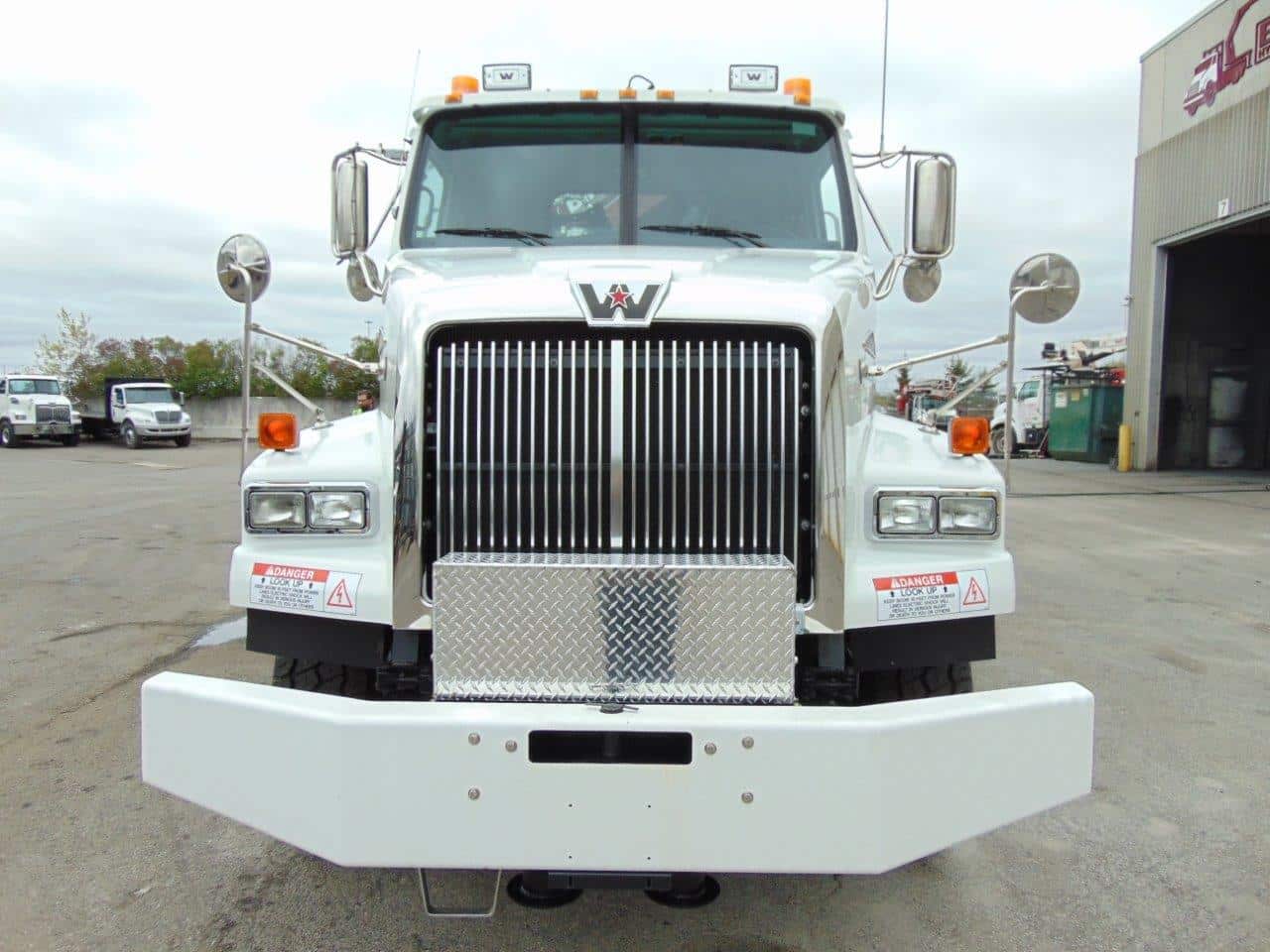

New – Western Star 4800 Sloped Short Nose T/A Steer-T/A Rear – 4 Axle: 92,000 lb GVWR
- DD-13 Diesel – 470 hp with Jake
- Eaton Ultrashift 18spd Automated Trans.
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires, 52,000 LB Rears on Tuftrac Susp.
- Double Frame
- Polished ALCOA Aluminum Wheels front and outer rear
- Dual Chrome single polished Exhaust, Chrome Grille & Bumper
- Dual 80 gallon aluminum fuel tank

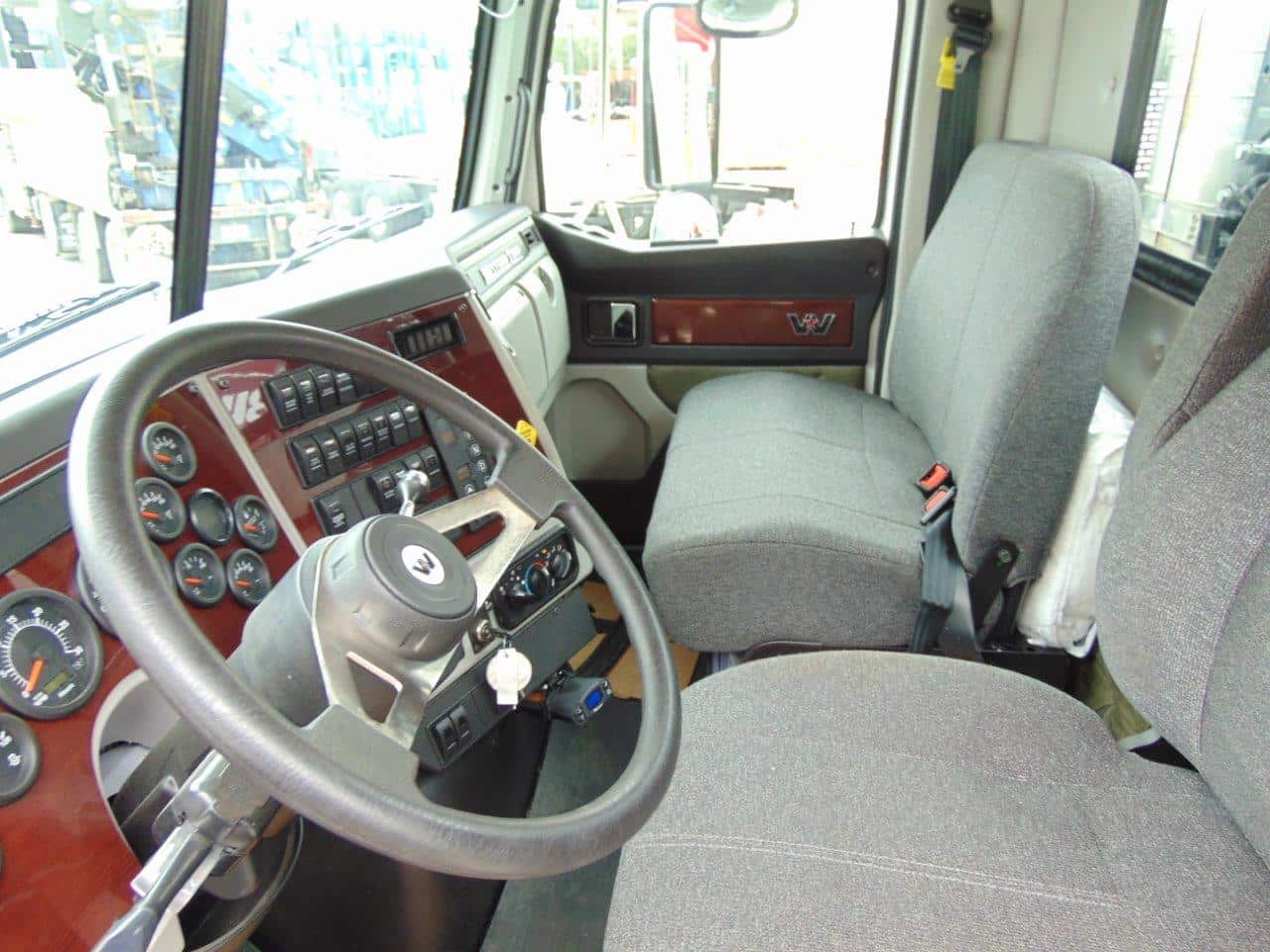

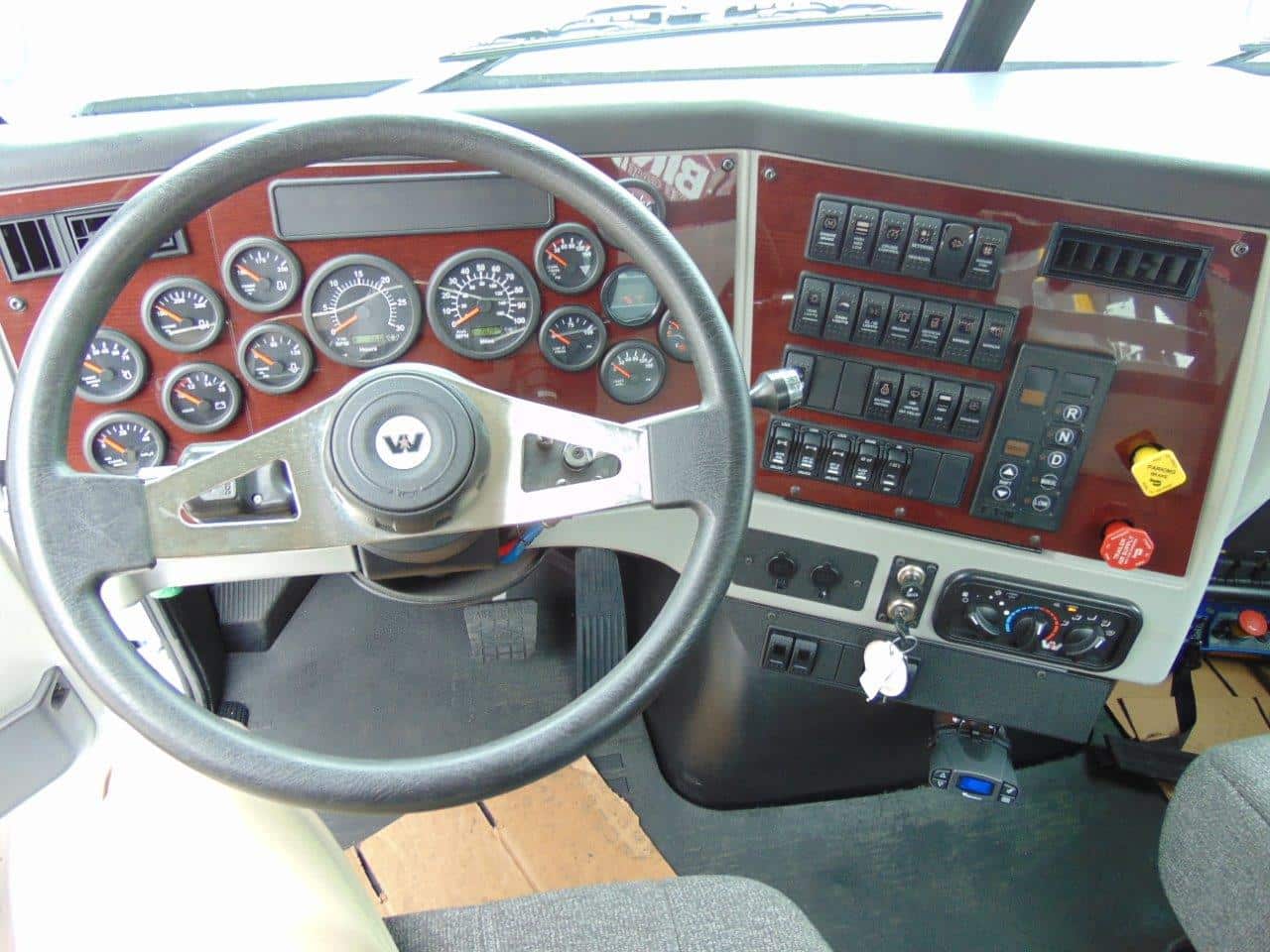

- Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides , power mirrors & door locks, Air ride cab, trailer air tow package, truck cab white colour, 5th wheel on at tandems w/ramps, etc…
Also Included:
- (6) pcs – 2” PVC stab pads w/holders
- (2) pcs Alum storage boxed installed
- Custom re-enforced manual extension for grapple
- Mecanil SG-280 Grapple Saw with spare parts kit
- Custom 2’ deck behind boom with grapple saw holder(s)
- 8’ removable carry deck over 5th wheel,
- Spot lights on main boom and on jib
- 2 to 3 day Boom feature/operation familiarization by BIK tech at your location
Other Options Also Available:
- (additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
- (1) Additional Manual pull out boom extension for regular lifting hook (adds 5.5’ more reach)
- (1) Aluminum single man self-levelling basket
- Hook Lift Deck removal system or Dump Body (instead of 5th wheel or flat deck)
