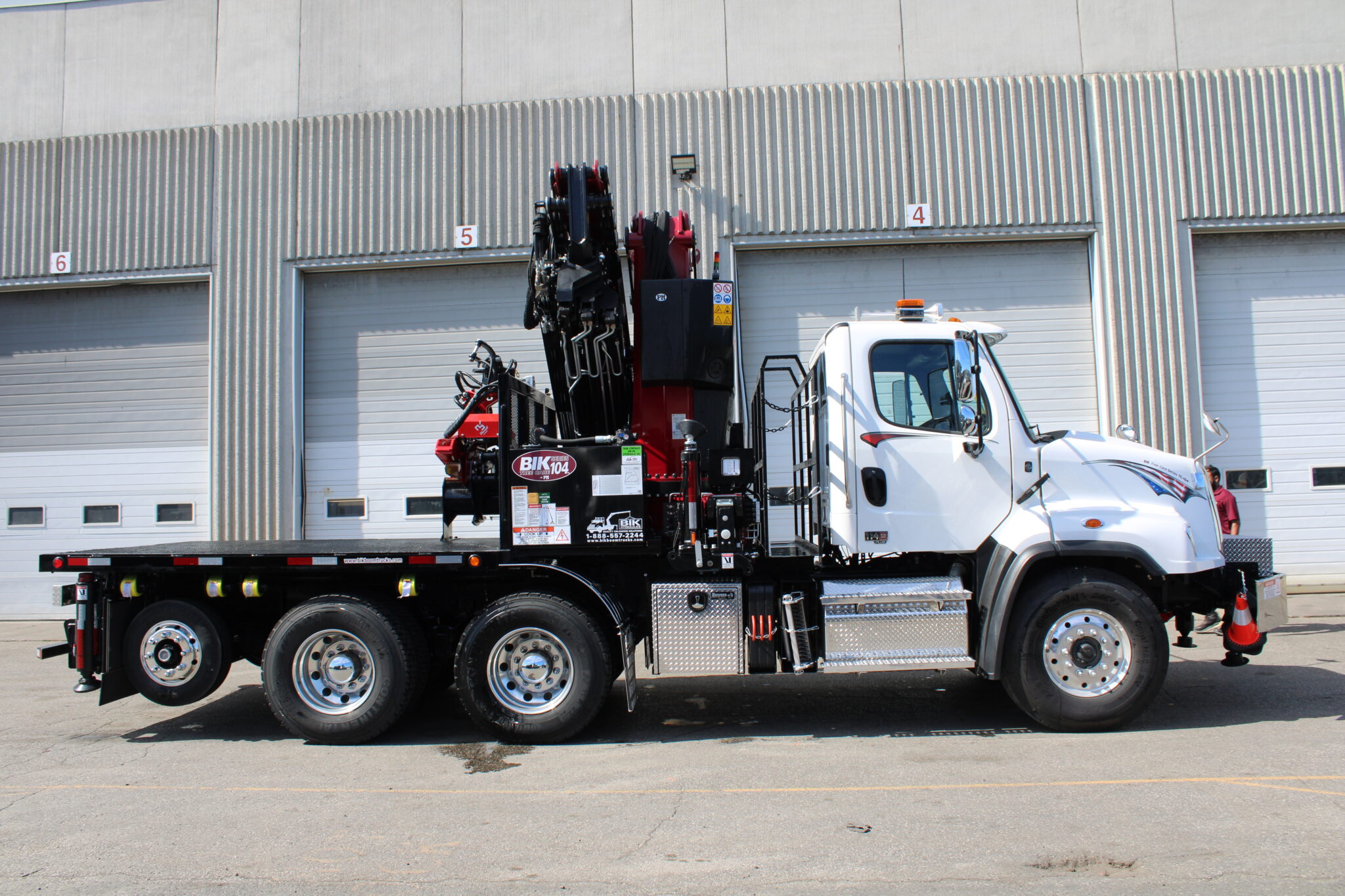

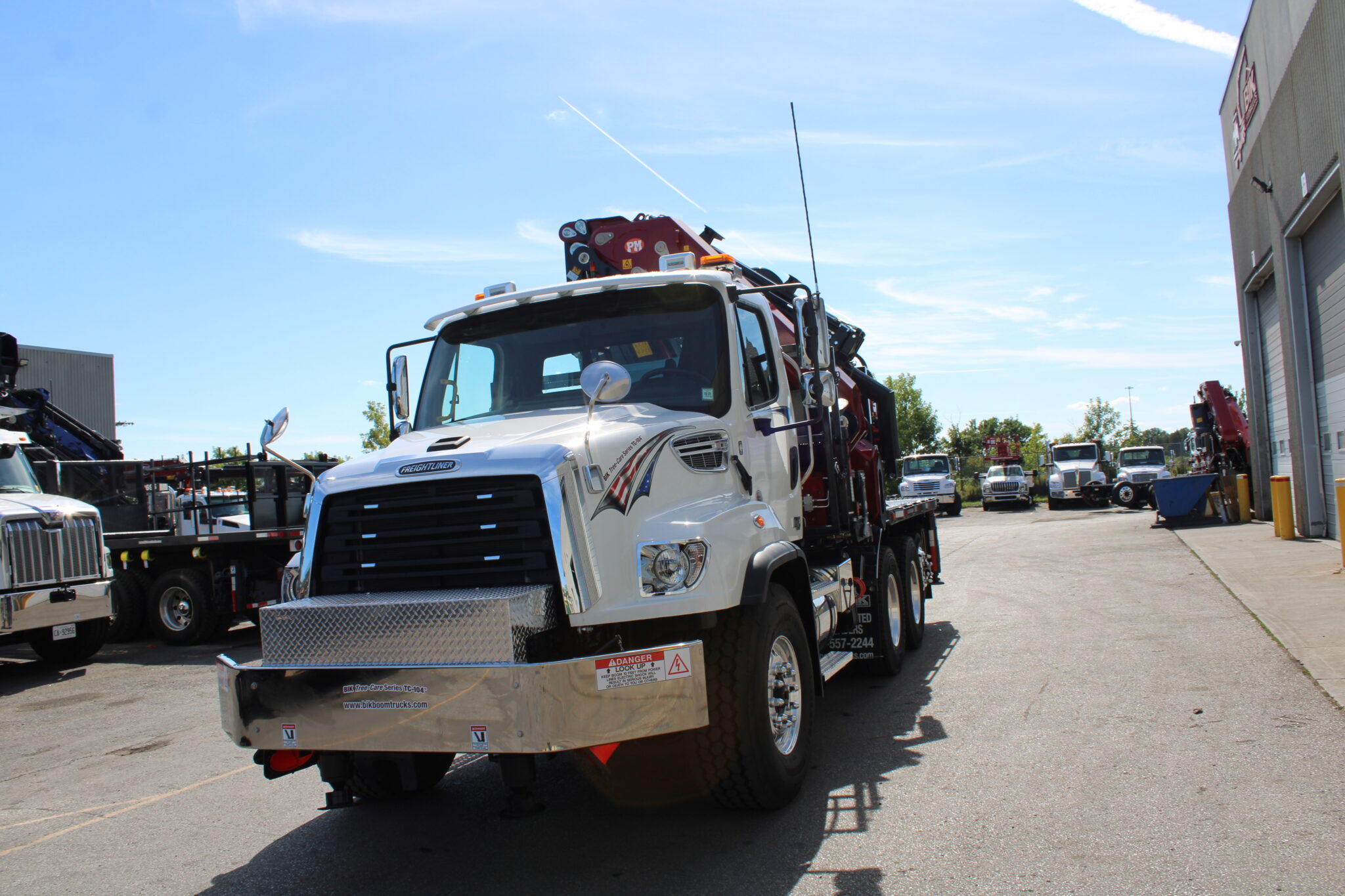

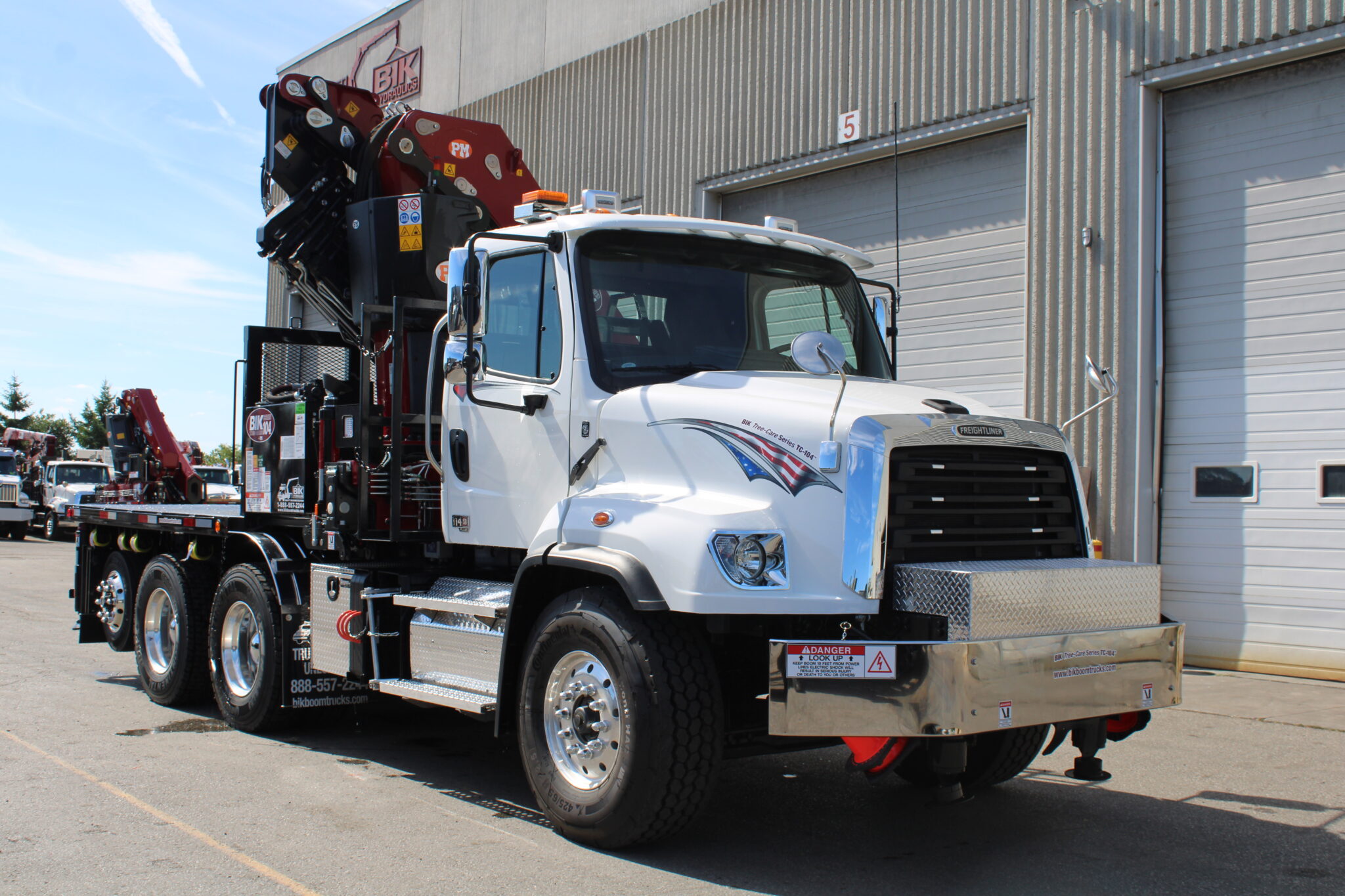

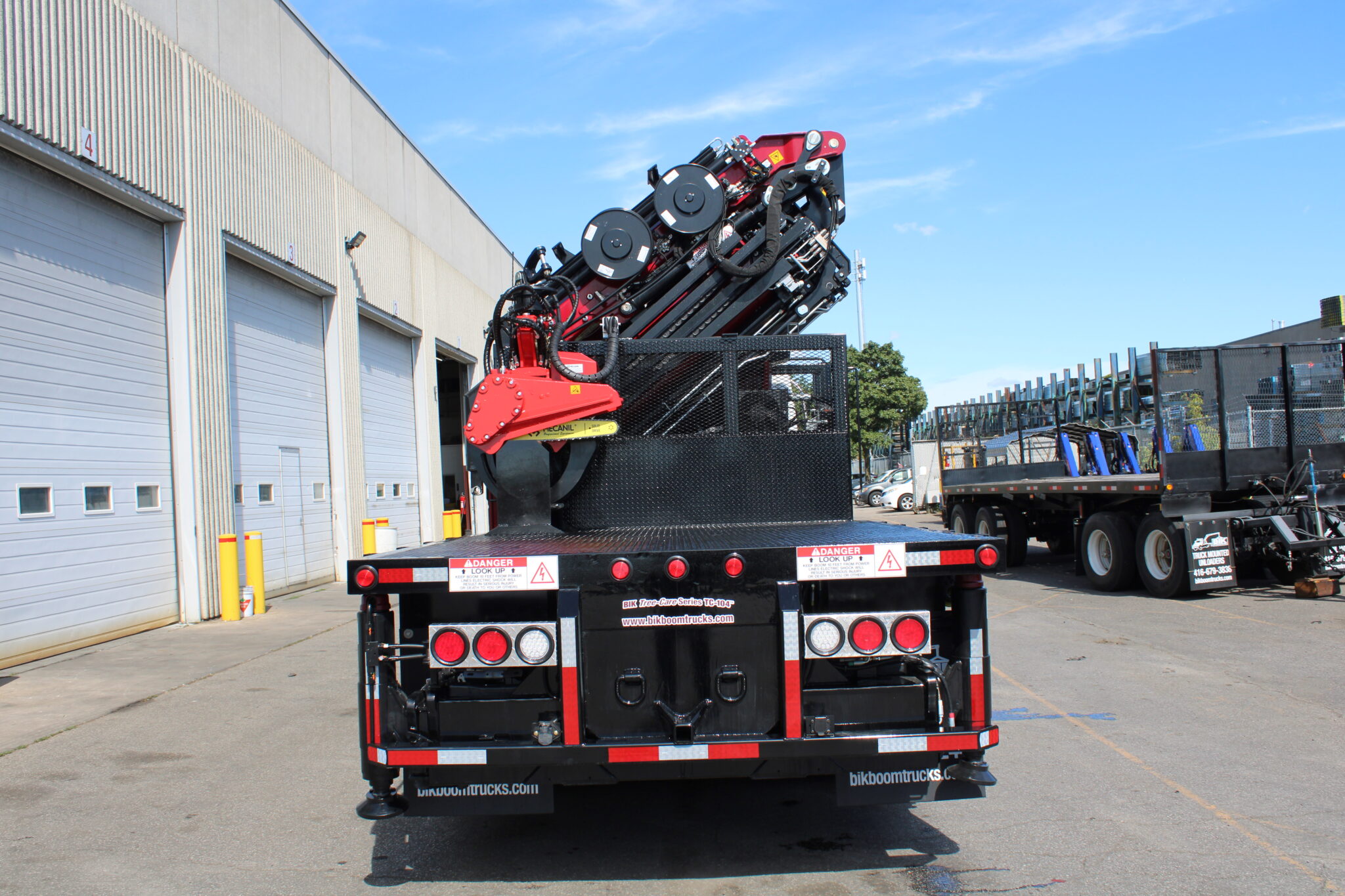

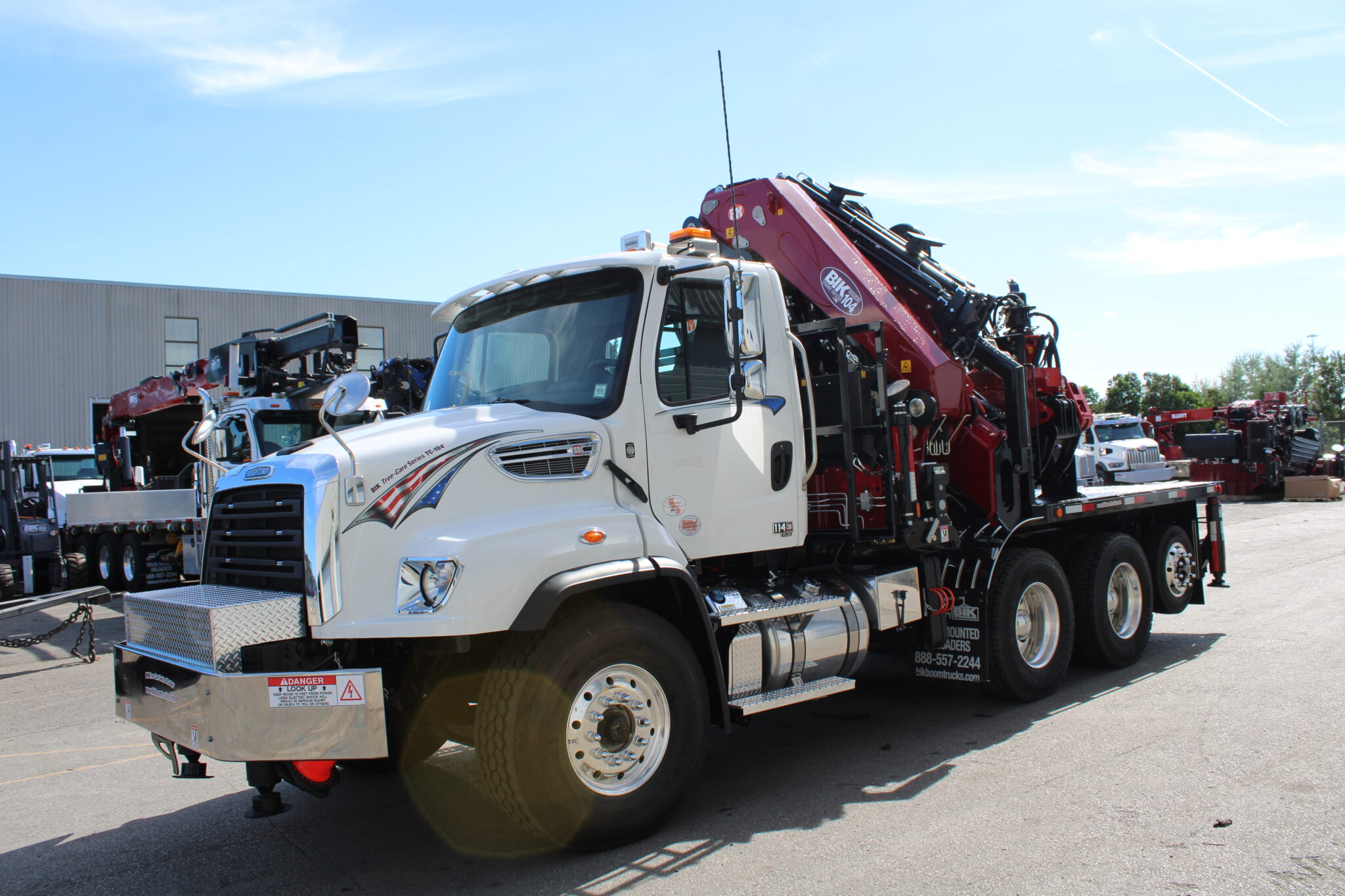

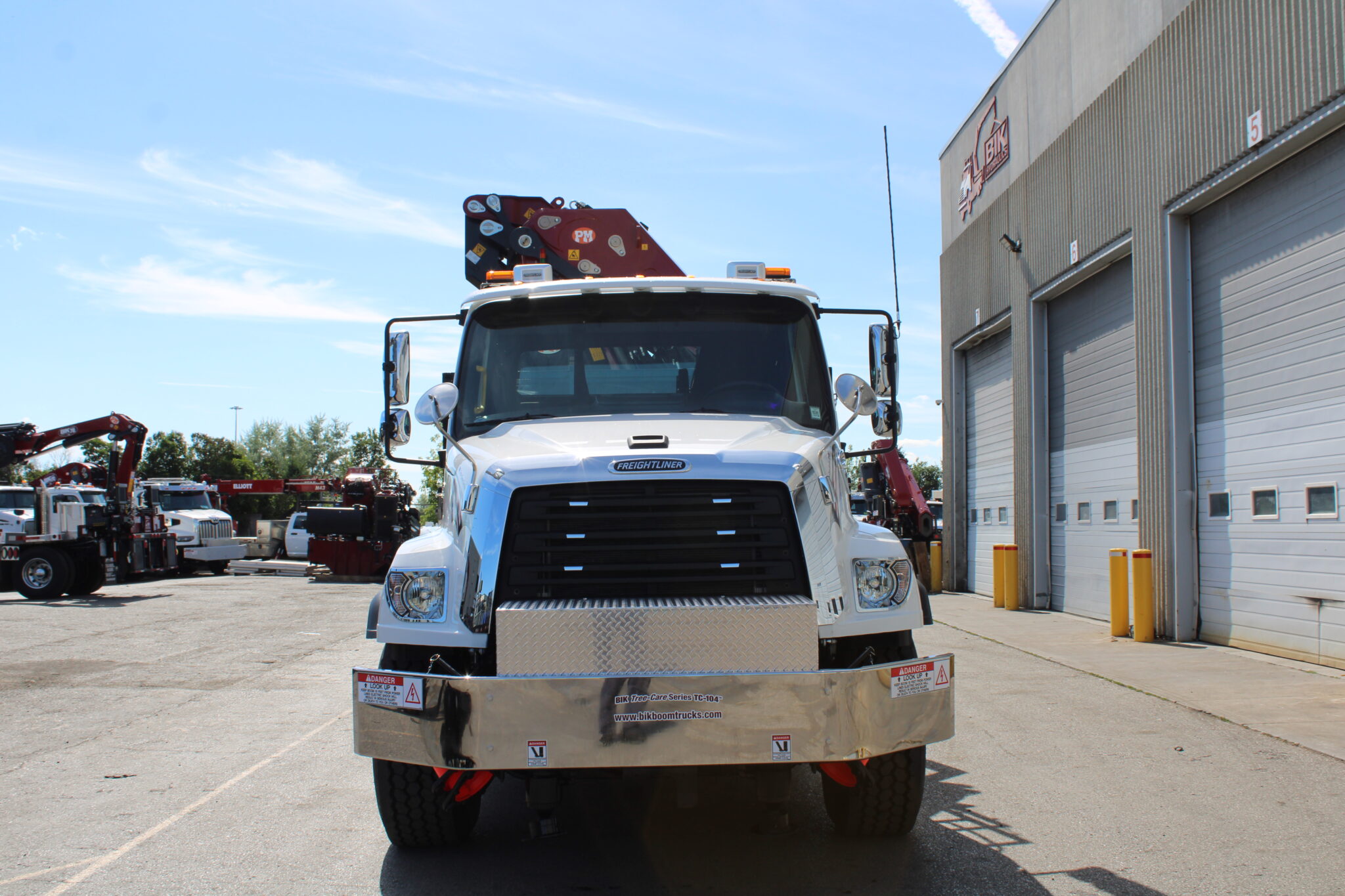

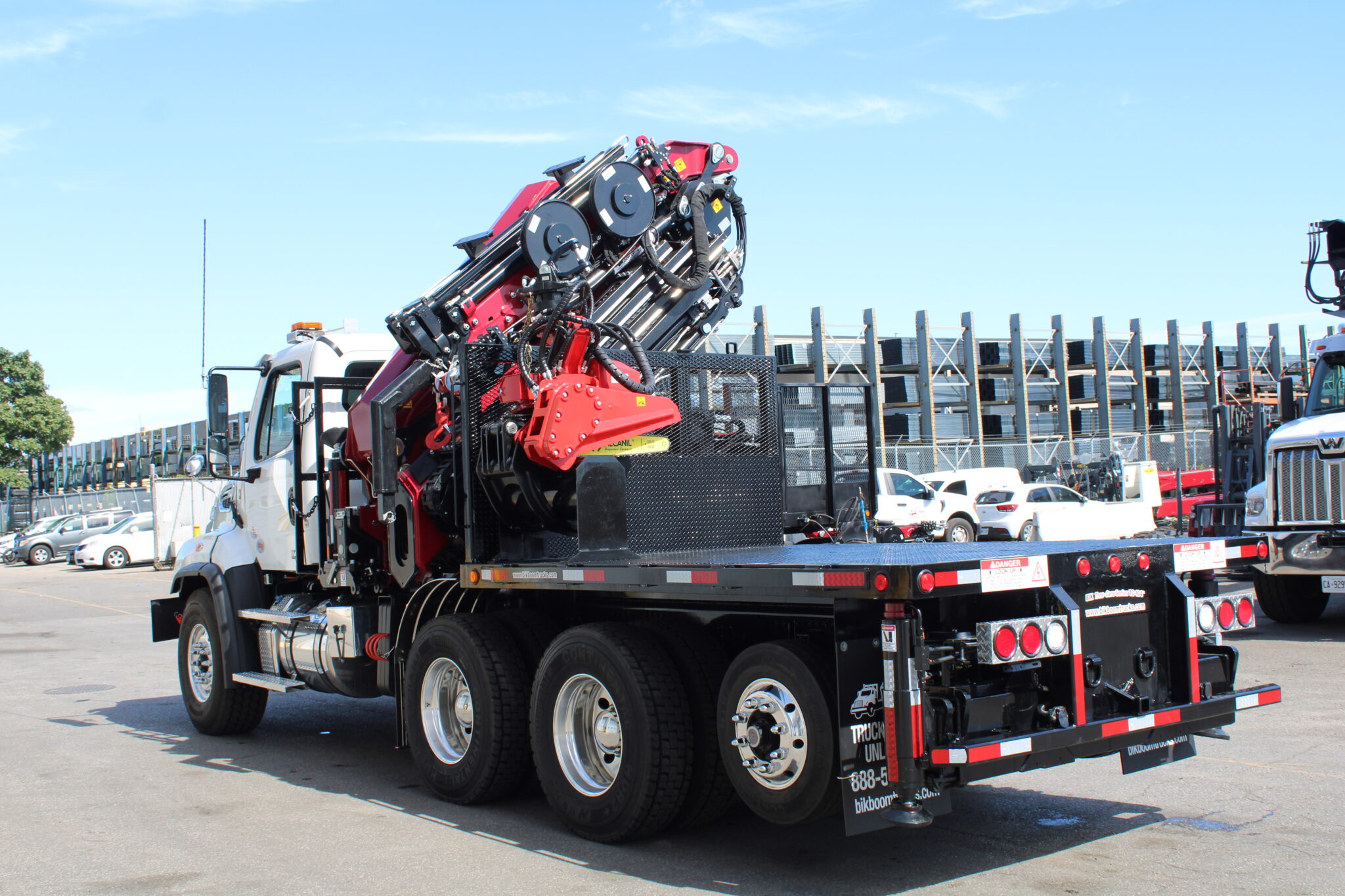

NEW BIK TREE CARE SERIES TC-114 ON NEW FREIGHTLINER 114SD
 |
NEW BIK TREE CARE SERIES TC-114 ON NEW FREIGHTLINER 114SD
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

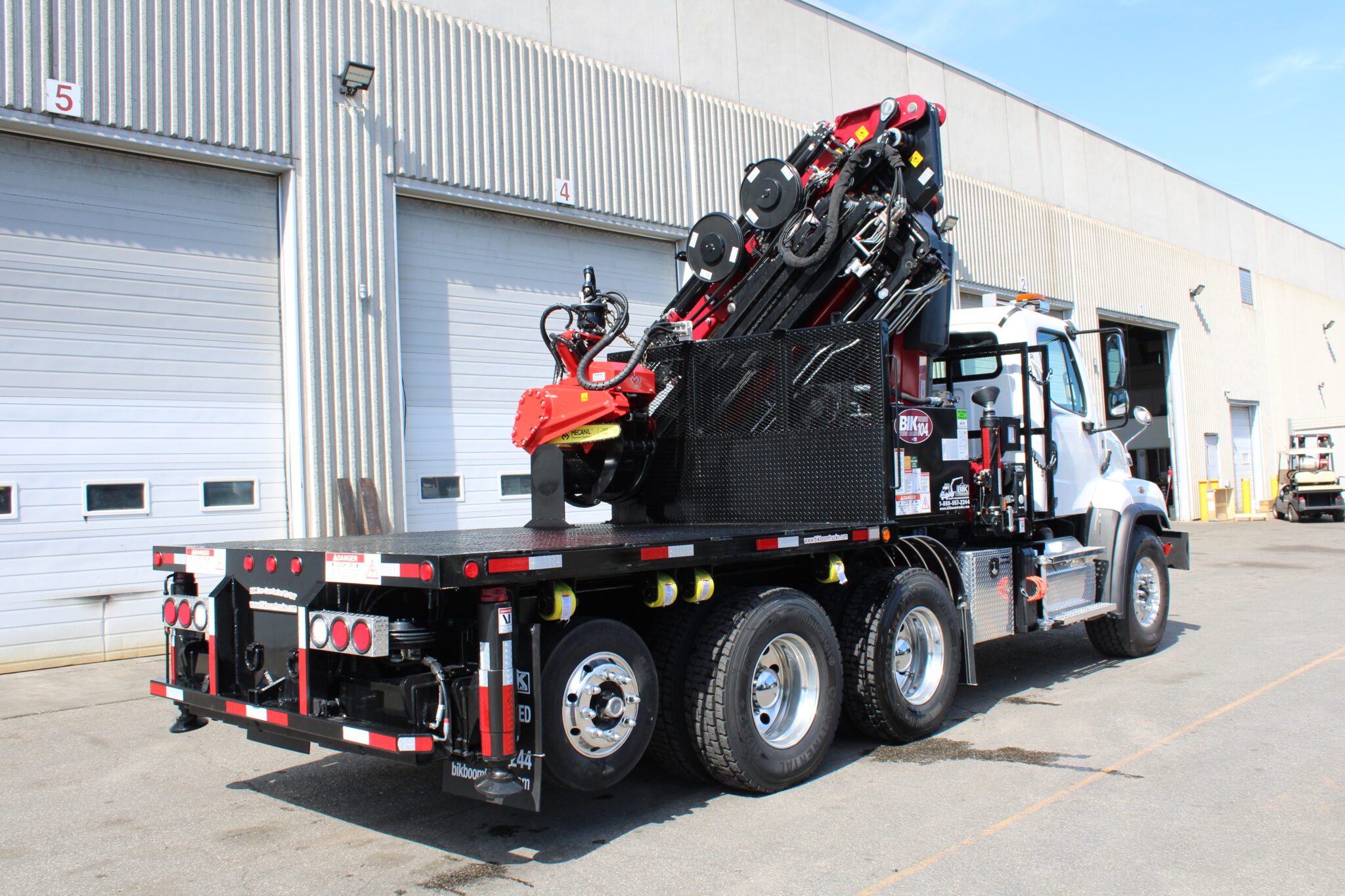

New – BIK Tree-Care Series TC-114 – 70.5 ton/m Knuckle Boom
- 7 ext Knuckle Boom w/ Detachable 6 ext jib + 1-grapple extension
- Including (1) Grapple extension in jib, Boom Capacity of 2,200 lbs @ 114’ Vertical Reach
- Main Boom Horizontal Capacity:
- 36,800 lb @ 16’
- 20,000 lb @ 23’
- 16,000 lb @ 33’
- 11,000 lb @ 47’
- 7,200 lb @ 67’
- Jib Horizontal Capacity:
- 2,740 lb @ 70’
- 2,210 lb @ 80’
- 1,820 lb @ 93’
- 1,600 lb @ 99’
- w/Grapple extension to 102’
- Power-Link connecting rods at First Boom, Knuckle & Jib, -15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Motors, – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
- Remote or Side Control Pad Operated 6 Stabilizers
- a) 2- Extra Wide Main outriggers at pedestal – 28’ 4” span – hyd tilting when retracted,
- b) 2- Rear Aux Stabilizers behind t/a drives – 23’ Span
- c) Dual front bumper mounted Stabilizers at front integral truck frame extension
- Dual Hydraulic Oil Coolers, high pressure return & filter
- 100-gallon oil tank with AW-46 Hydraulic Oil.
- Lifting winch plumbed to jib end of jib
- 4-ton single part line capacity
- Ability to completely fold up the boom without disconnecting the winch
- Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
- DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control.
- Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord, – Boom Factory Painted Dark Red/Burgundy prior to assembly
- Installed back of cab, with custom-engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards, – Load Chart in FT. & LBS.
- Engineer Stability tested & Certified for 360 Degree / 100% load chart capacity in all area’s & zones when stabilizers are fully deployed
Deck Details
New – 11’ x 102” Steel Checker plate Flat Deck
- Checker plate steel deck surface
- 48” head board
- Sliding winch straps
- Rub rail & pockets on side
- Dual sided access ladders
- Primed & painted gloss black
Truck Details
New – Freightliner 114SD 4-axle Day Cab Truck:
- Truck cab White
- 75,000 lb GVWR
- Detroit DD-13 Diesel – 450 HP – Jake Brake
- Eaton Ultrashift Plus Automated 18 spd trans
- 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- 46,000 LB Rears on Tuftrac suspension with 11R22.5 tires on Aluminum outer rims
- 9,000 lb self steer tag axle behind t/a with 17.5” tires/alum rims
- Double Frame with integral front bumper frame extension (for front stabilizer)
- Chromed Grille & Bumper
- Single 80-gallon alum fuel tank

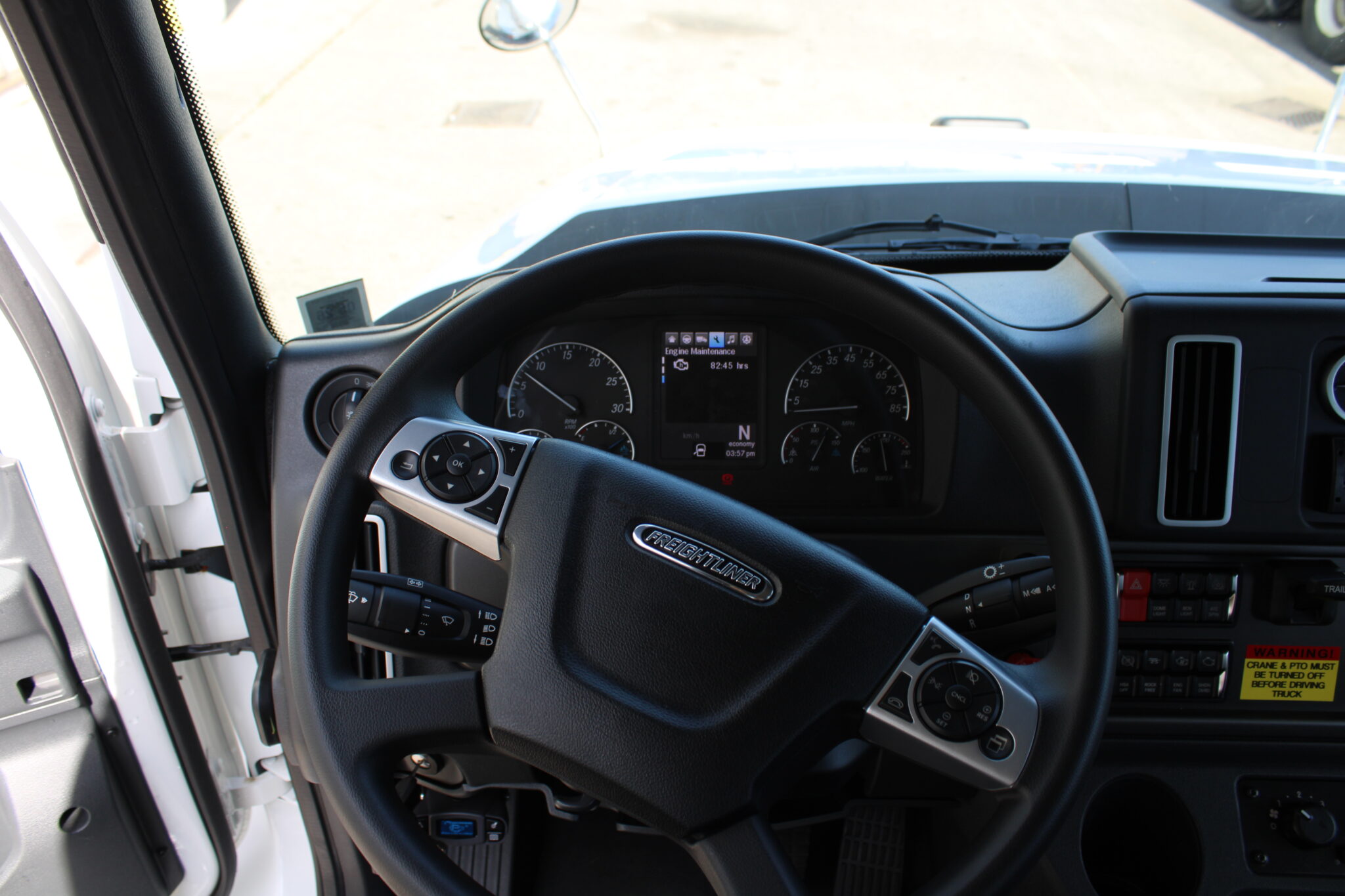

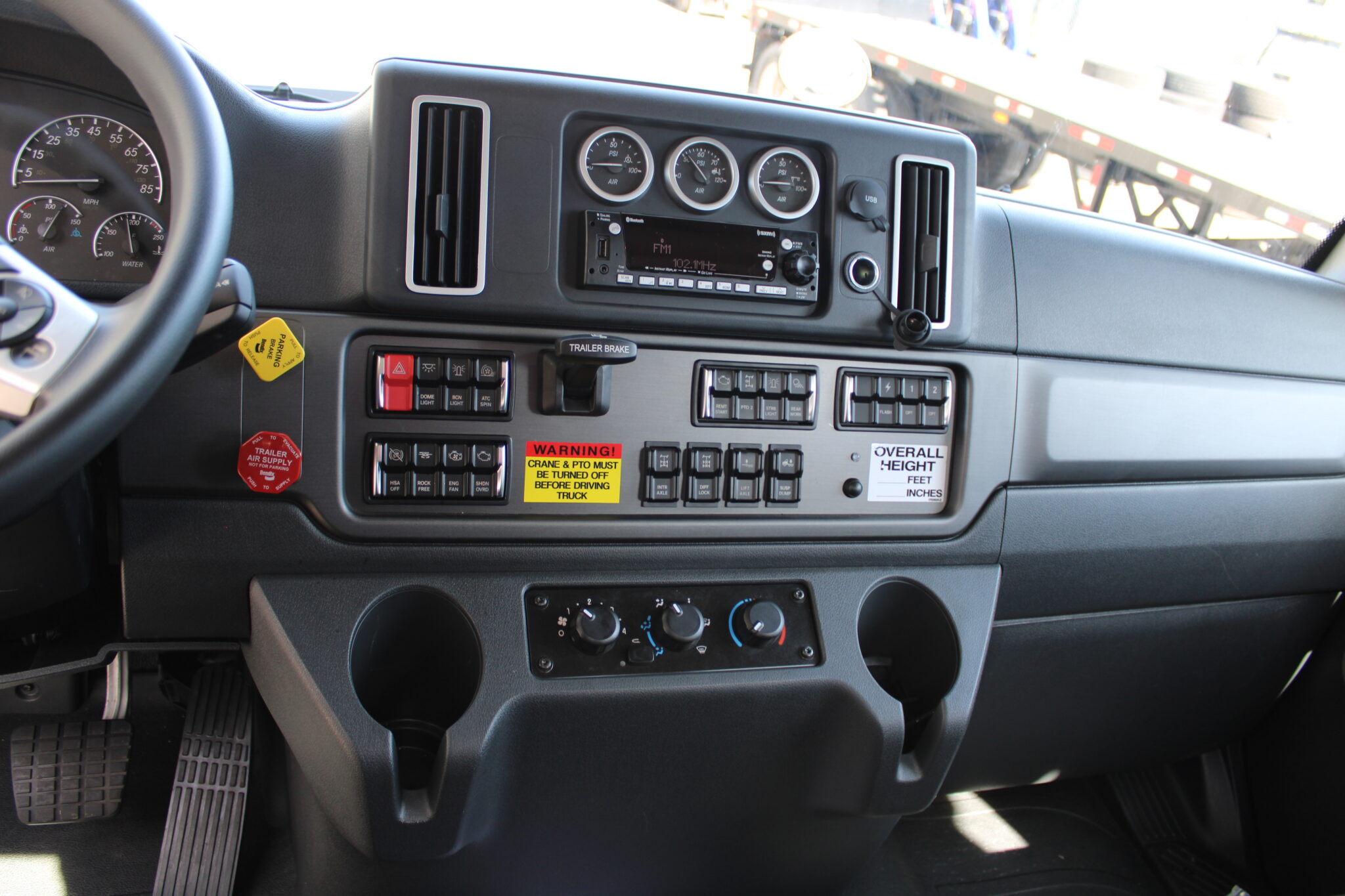

- Loaded with Options Including: A/C, Tilt/Telescopic steering, AM/FM radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, exterior sun visor, et
Options Included:
- (5) pcs – 2” PVC stab pads w/holders
- (1) pc Alum storage boxes installed
- Custom re-enforced manual extension for grapple
- New Mecanil SG-280 Grapple saw with under boom frame mount, stowe
- 2 to 3 day on site boom feature/function familiarization by NJ Crane Expert
