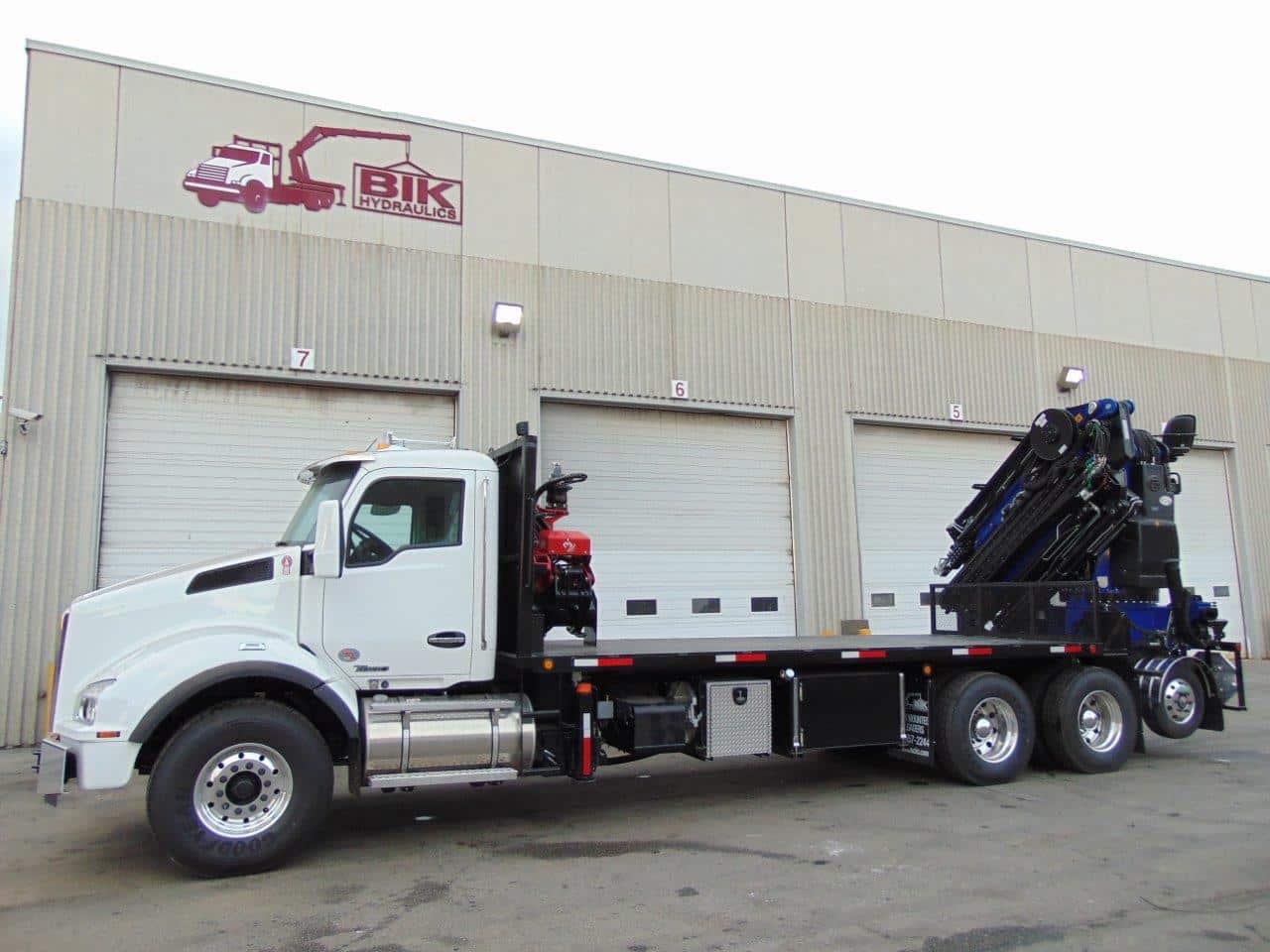

NEW BIK TREE-CARE SERIES TC-106 ON NEW KENWORTH

NEW BIK TREE-CARE SERIES TC-106 ON NEW KENWORTH – NEW 19′ 6″ DECK & SG-280 SAW

The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

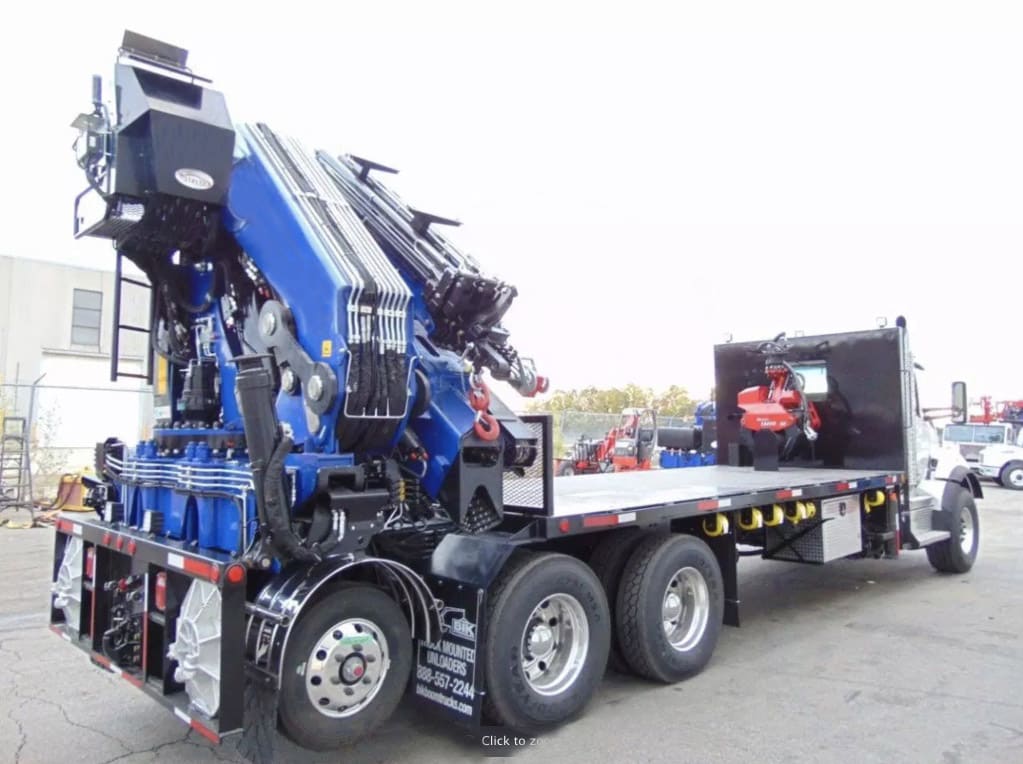

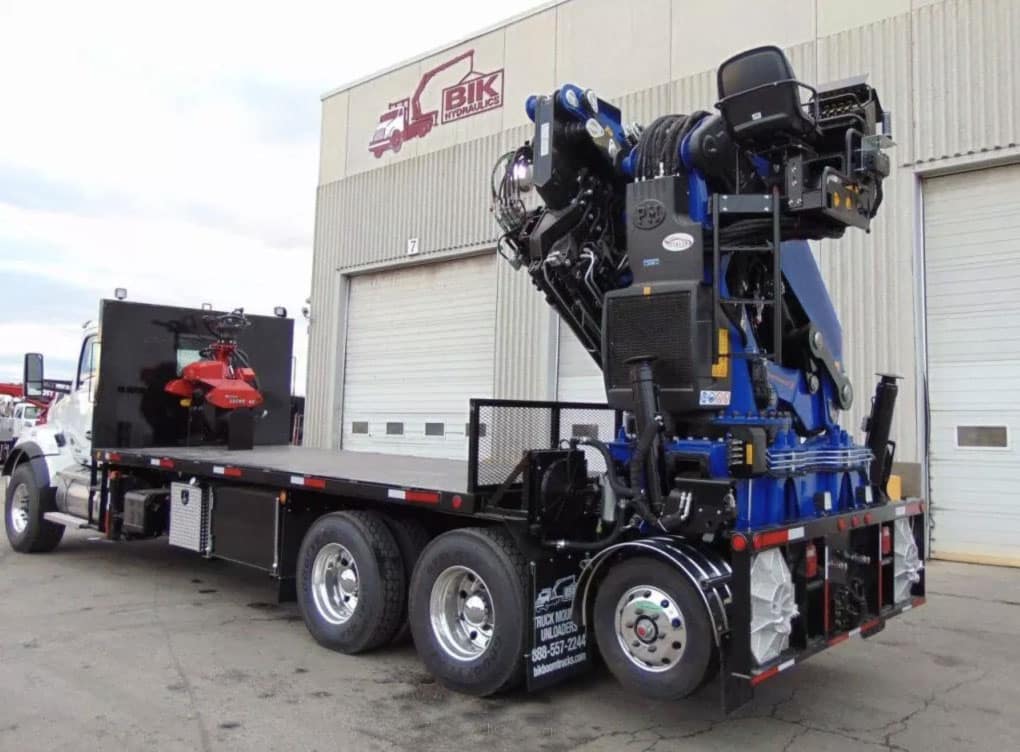

NEW – BIK TREE-CARE SERIES TC-106 – Folding Hydraulic 6-Ext Knuckle Boom with Detachable 5 Ext. Jib – 106′ Vertical Reach Including One (1) Extra Grapple-Saw Extension in Jib to – MAIN BOOM HORIZONTAL CAPACITY: 48,500 lb @ 8′ 2″, 28,260 lb @ 14′ 5″, 15,340 lb @ 25′ 3″, 10,000 lb @ 37′, 7,210 lb @ 50′ 2″ – JIB HORIZONTAL CAPACITY: 3,850 lb @ 59′ 1″, 3,000 lb @ 74′ 6″, 2,340 lb @ 81′ 1″, 2,100 lb @ 88′ – 94′ with Manual for Grapple (106’ Vertical)

PM Power-Link Connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
180 Degree Flip-Up Hydraulic Extra Wide Main Outriggers at Pedestal – 28′ 7″ Span – 360 Degree Full Load Chart Stability, Aux Stab Behind Cab
Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100-Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck

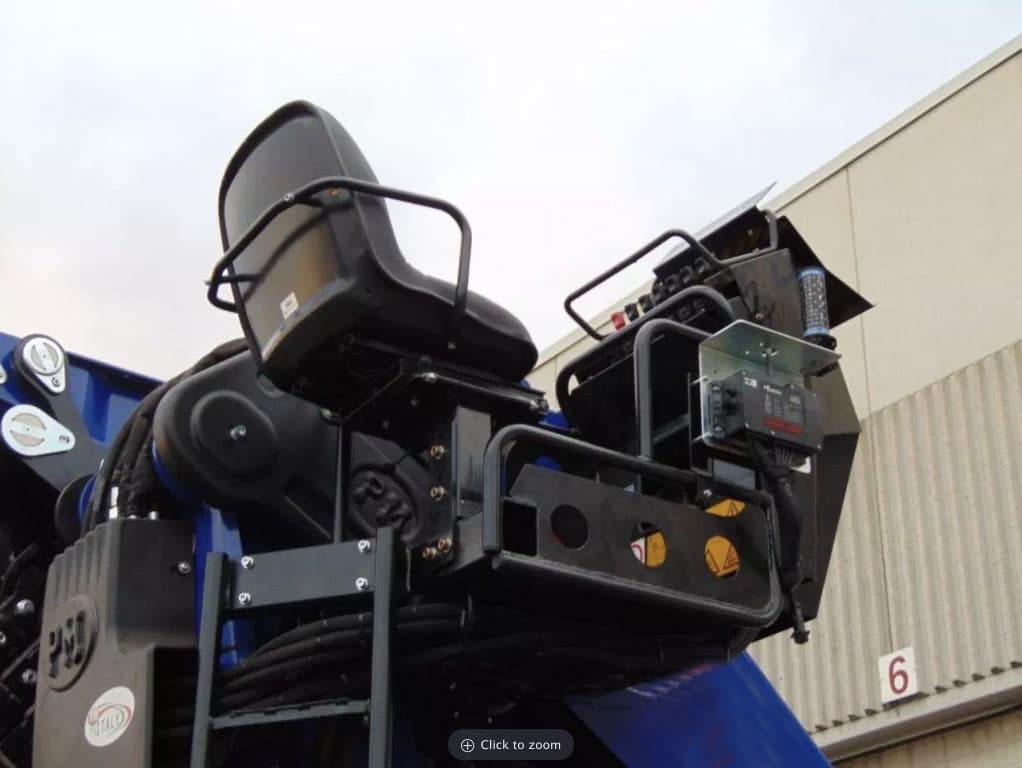

7-Section DANFOSS Proportional Control Valve at Top Seat with Ladder Access & SCANRECO Proportional Radio Remote Control
7-Section DANFOSS Proportional Control Valve at Top Seat with Ladder Access & SCANRECO Proportional Radio Remote Control
PM Power Tronic Onboard Load & Function Monitoring System, Digital Load Indicator at Top Seat & Remote, Electric/Hyd Overload Protection
Radio Remote Control Includes: 2 Batteries, In-Cab Charger and Back-up Cord – 5-Level Turtle (Micro) Slow Down Mode
Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
LED Spot Lights on Jib and Main Boom, Spot Lights Also on Head Board and Rear of Truck
Installed at Rear, with Integral Sub-Frame, 3/8″ Front and Center -1/2″ Sheer Plating at Crane for Maximized Torsion Strength

Deck Details

NEW – 19′ 6″ X 102″ STEEL FLAT DECK
Steel Headboard w/Side Wrap Winches, Steel Checker Plate Floor, Winch Bar and Holder
Integral 6″ Sub-Frame and Extension at Rear as Torque Box for Boom with All Proper Engineered Sheer Plating, X-Braces & Support
Deck Painted Black
2 Deck Access Ladders at Headboard, 2 Ladders at Rear
Reflectors and Mudflaps, 6 Sliding Winches and Track Under Deck

Truck Details

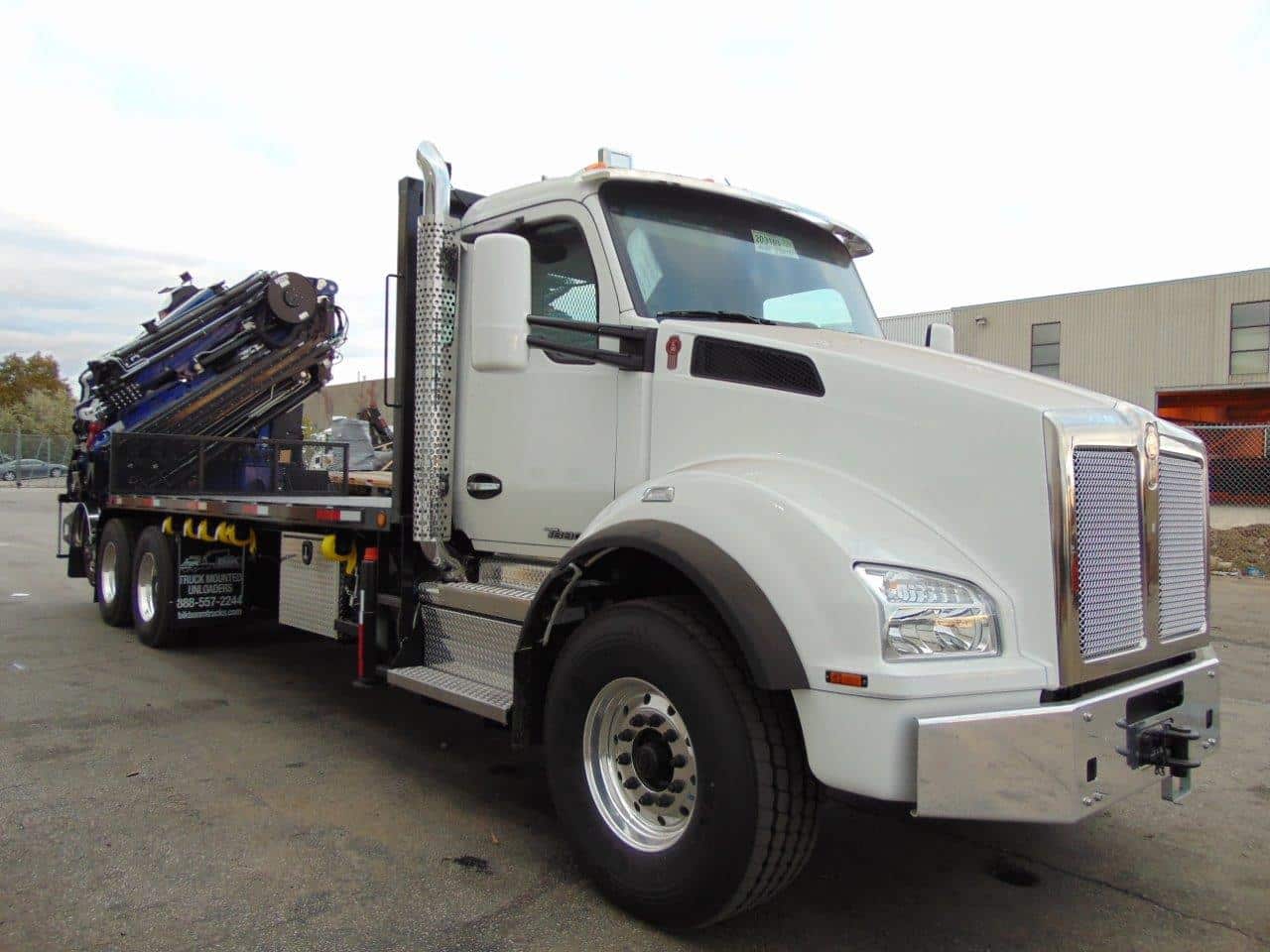

NEW KENWORTH T880 4-AXLE TRUCK: 79,000 lbs GVWR – Cab White
Paccar 485 hp, Jake Brake, Eaton 18 Spd Ultra Shift Plus Trans.
20,000 lb Front Steer Azles with 425 / 65R22.5 Tires on Aluminum Rims
46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
13,000 lb Self-Steer Tag Axle Behind T/A with Low Profile 17″ Tires & Alum Rims
54″ Spread at T/A; Double Frame

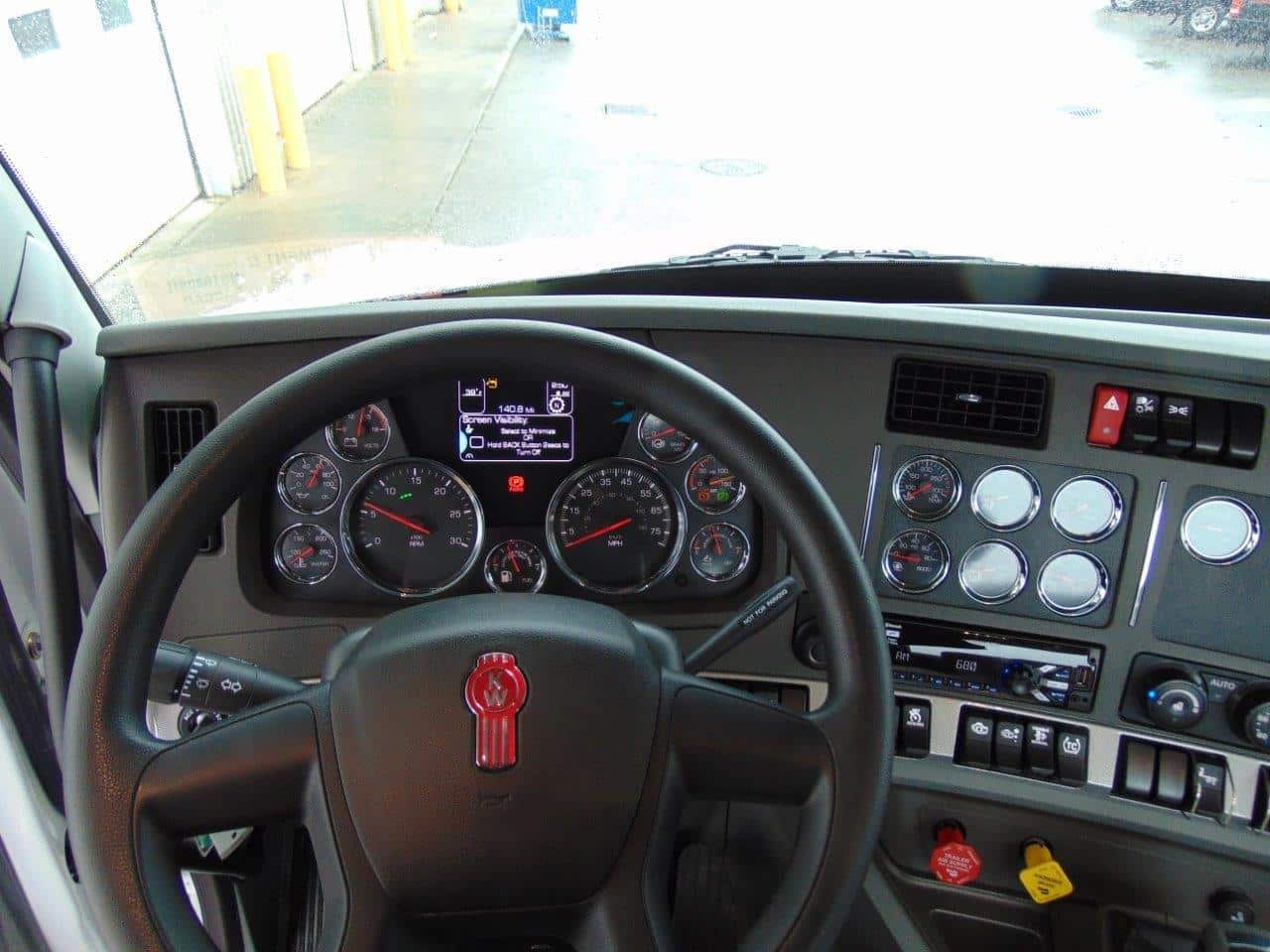

Options Including: A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP-3 w/Bluetooth, Air Driver’s Seat and Standard Pass. Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock Ups, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc…
Options Included:
(4) Pcs – 2″ PVC Stab. Pads w/Holders
(1) x 36″ Alum Storage Box Installed
Custom Reinforced Manual Extn. for Grapple

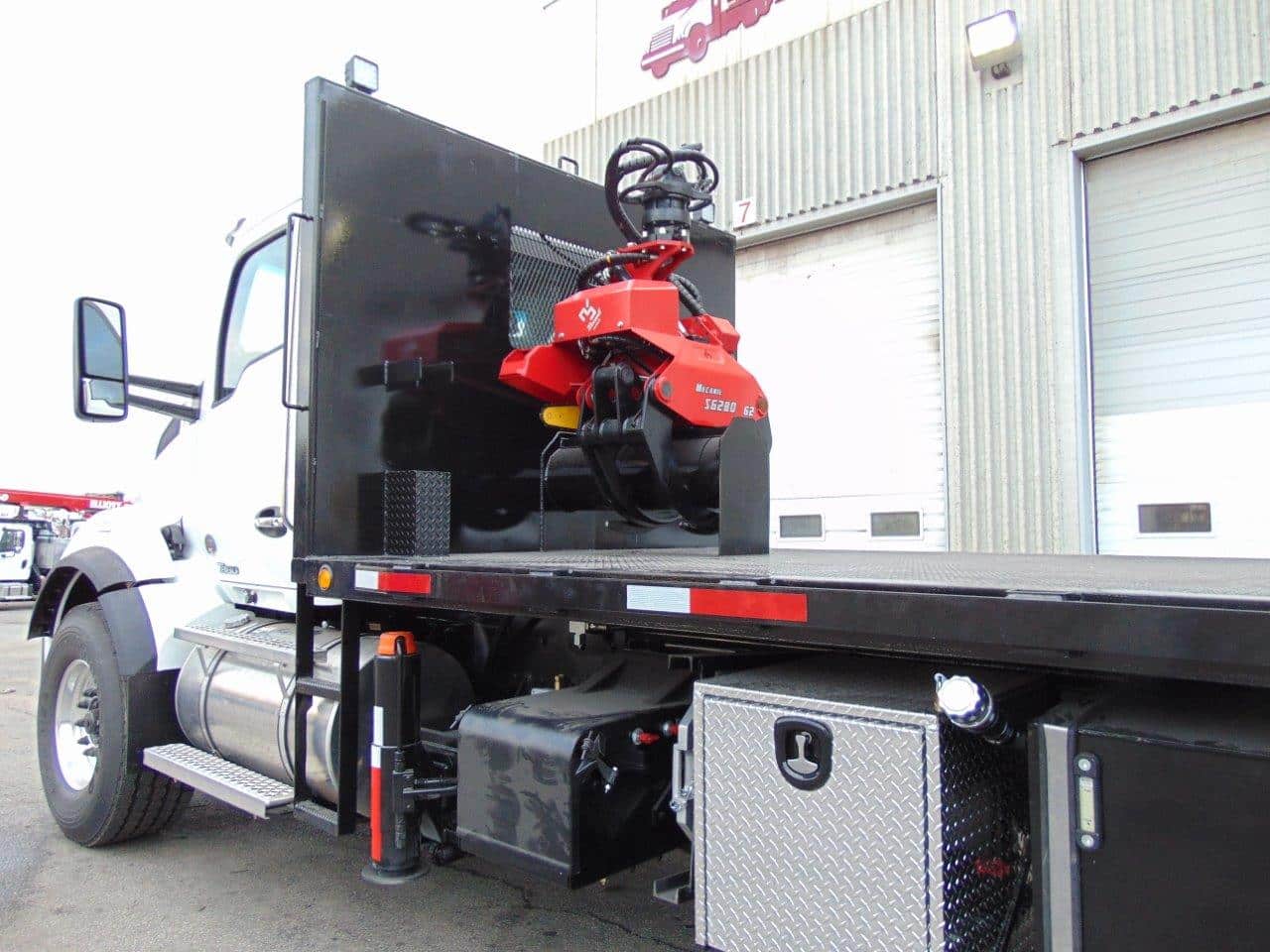

Mecanil SG-220 Grapple Saw
