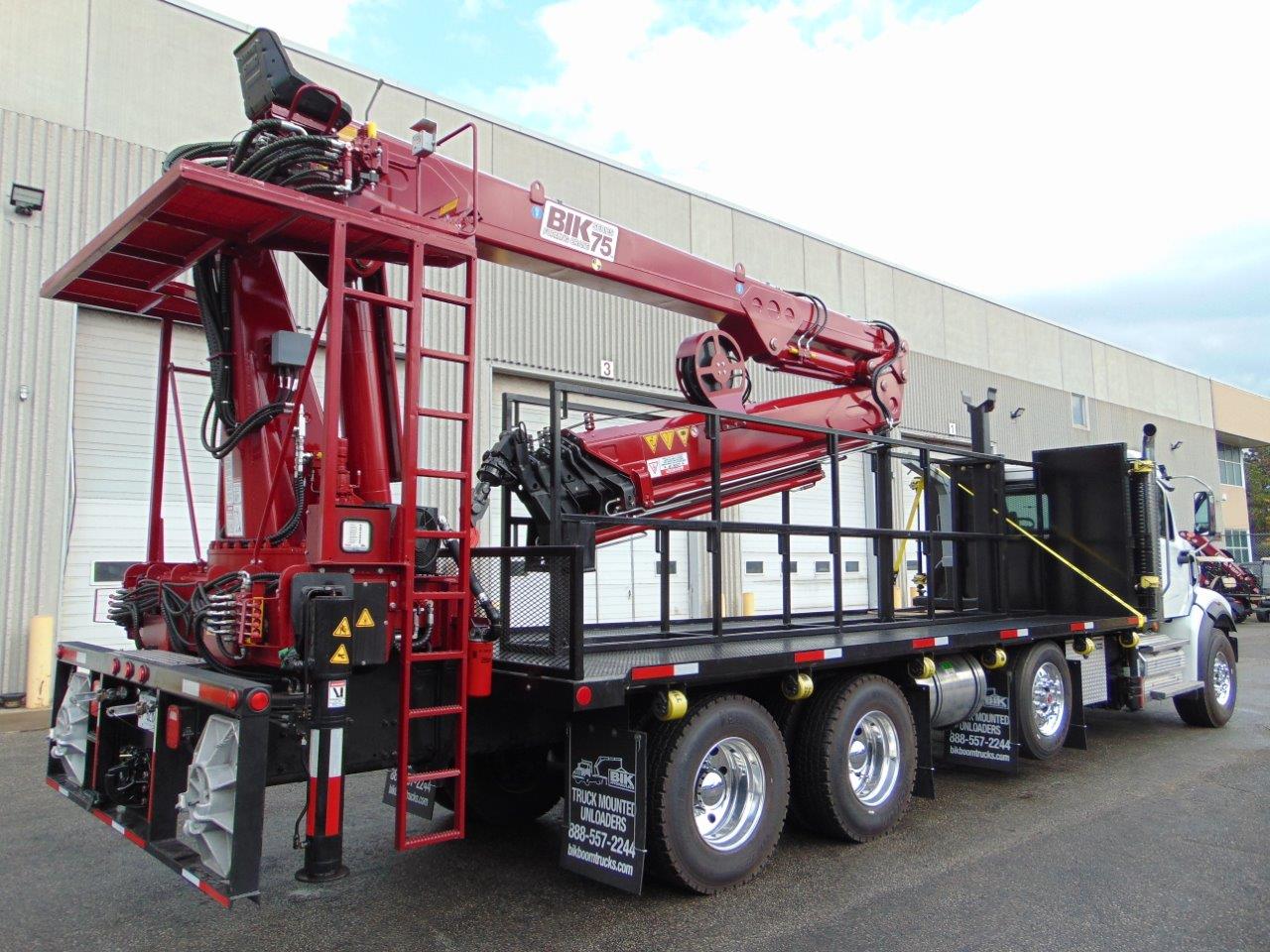

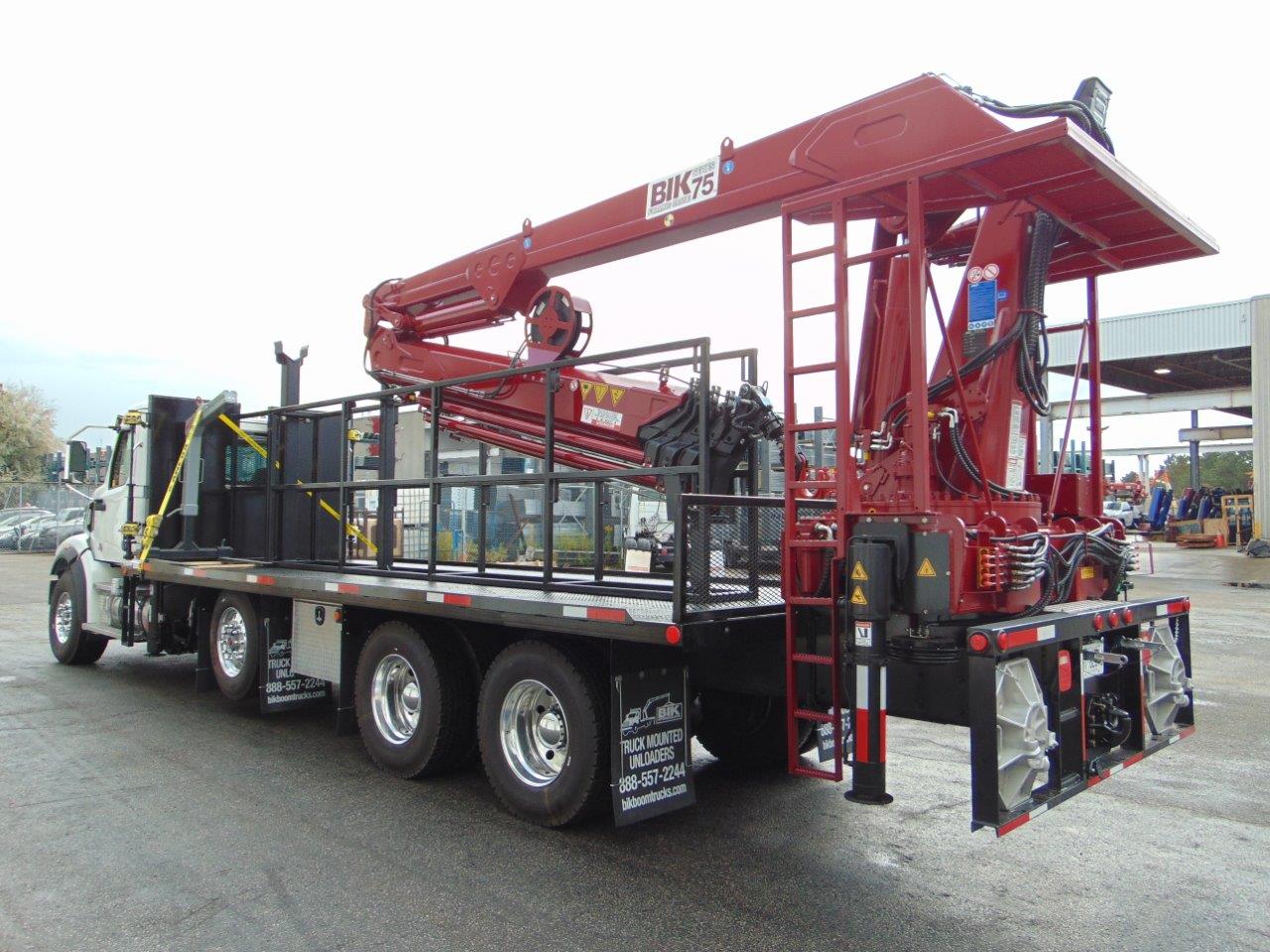

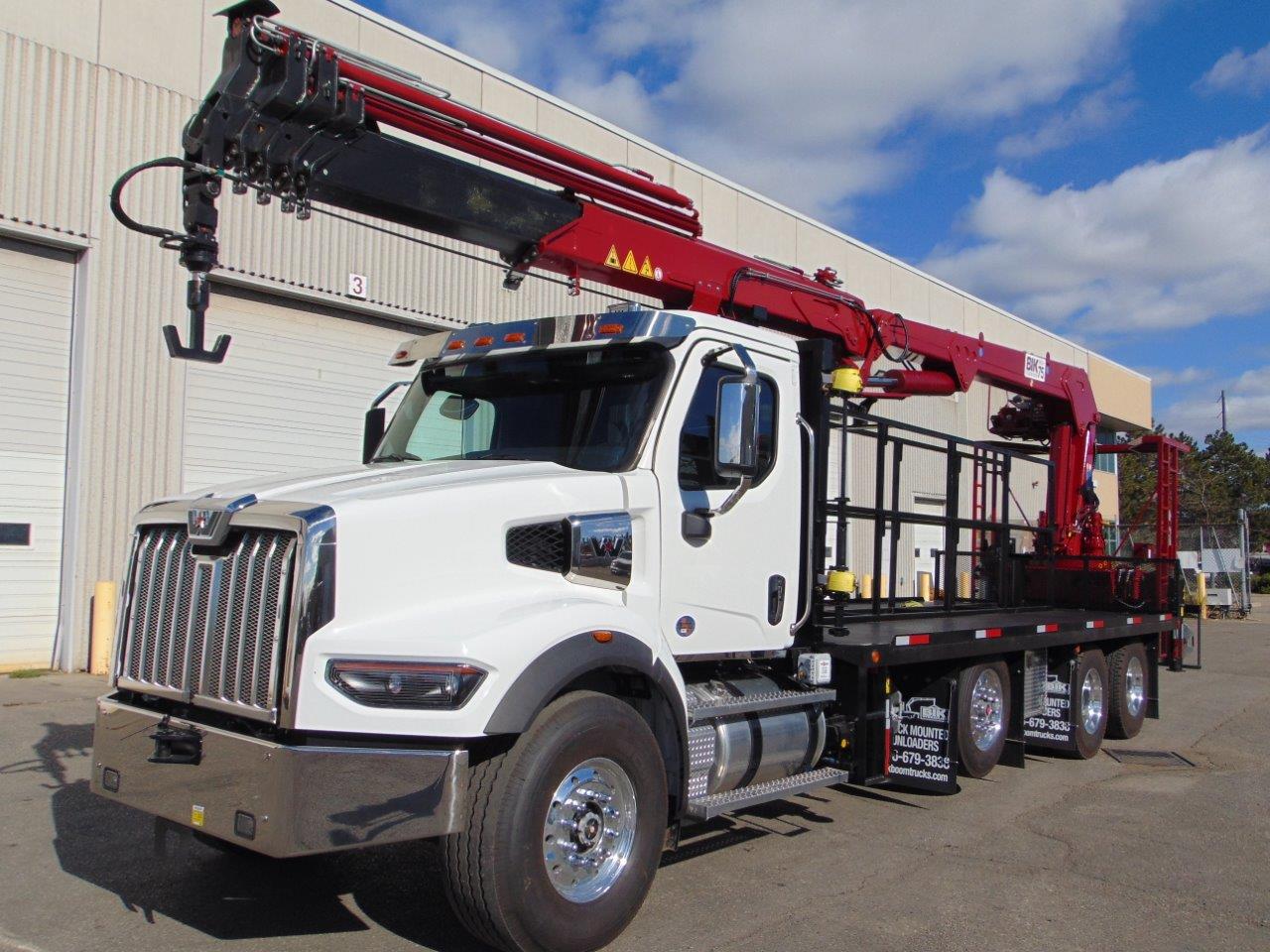

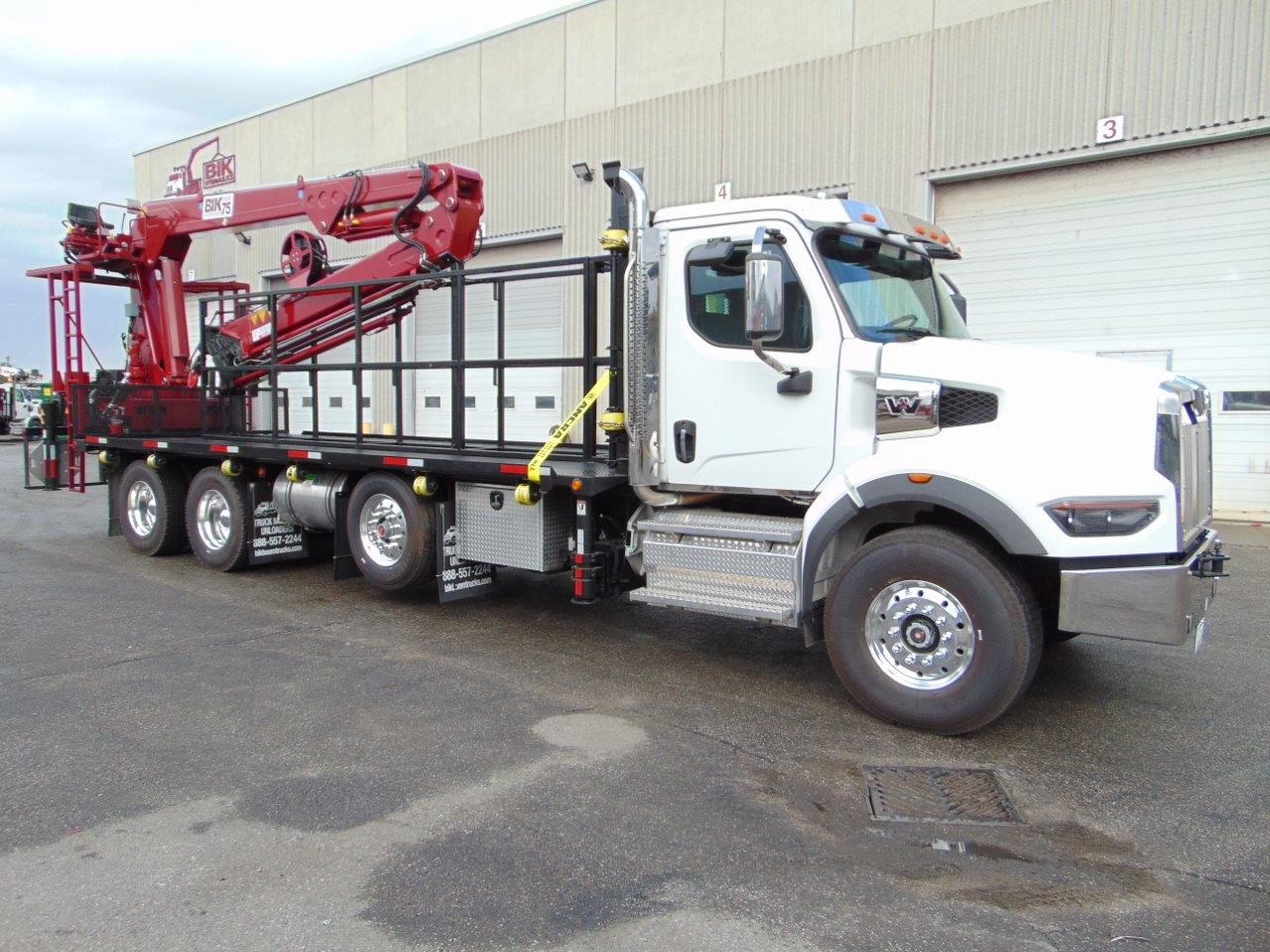

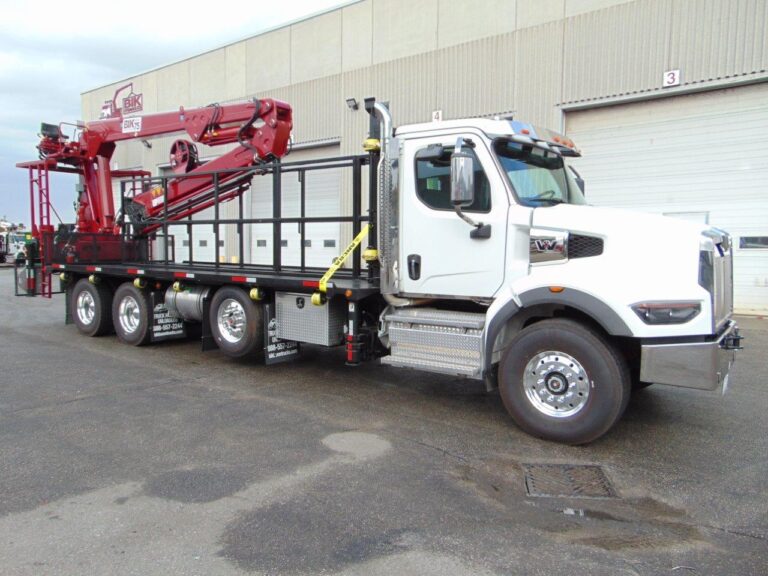

NEW BIK SERIES FC-75 ON NEW WESTERN STAR 49X

NEW BIK SERIES FC-75 ON NEW WESTERN STAR 49X

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

New – BIK Series Forming Crane FC-75  Unloader :  Installed End of frame, on sub-frame by BIK Hydraulics Ltd.

  • Fully Hydraulic Main Boom, with 5- Hyd Extentions to 75’ side reach – (86’ vertical)
  • Boom Size:  35  ton  meter., 2,000 lb cap @ 75’’

STANDARD FEATURES INCLUDE :

  • Continuous Boom Rotation with Dual Planetary Bearing Gear Drive Motors– Base rotating on large sealed bearing – Ensures ease of operation under full load, reduces lifetime maintenance – Boom can rotate up to 15 degrees off level
  • Extra Wide – Double Extention 27’ span Stabilizers all hyd cyl’s & not chain driven at boom base , Front mtd  21’ span Auxilary Stab’s
  • No Computer Sensors – Simple hydraulics – Load holding valves on every cylinder—Hydraulic overload sensing device.
  • Manual controls at top seatJoystick / foot pedal type with ladder access
  • Extra function plumbed o the end of boom with hose reel and Hyd Hook Rotator at end with Special Blue hook
  • Hydraulic Oil Cooler installed at crane to ensure longer life of oil & hyd pump and reduce working temperature of hyd oil
  • Dual 4 section control valve for stabilizers at rear and plumbed to accommodate auxiliary stabalizers
  • Installation on Chassis at end of frame, including Sub-Frame, and New Pump and PTO. All proper connections

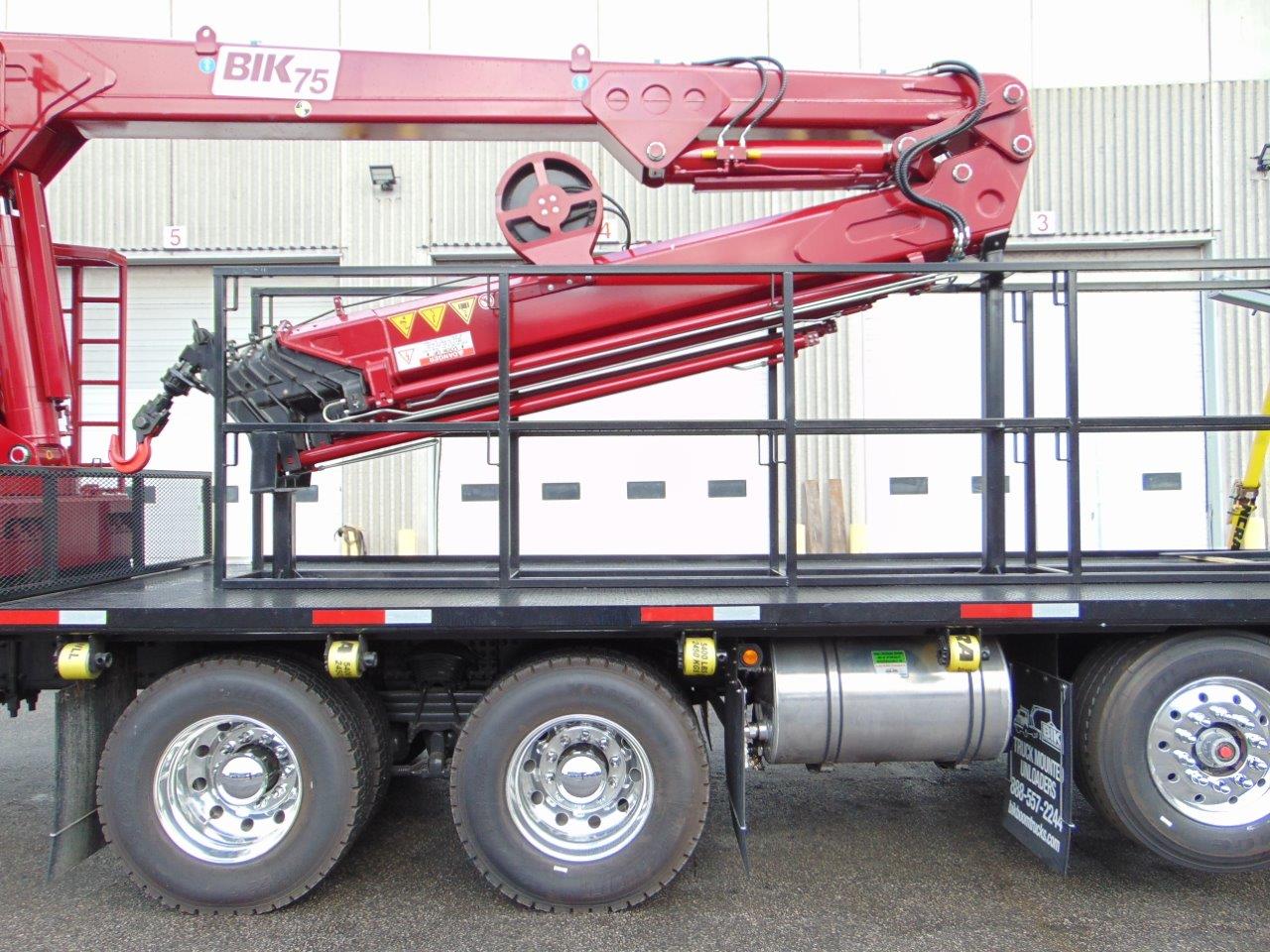

Deck Details

New – 24’ x 102” Steel Checker plate  – LOW PROFILE: to accommodate up to 9’2” tall Form Cages

  • Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear
  • Aluminum deck surface, 60” + headboard, Center Divider
  • 4-vertical mounted winch straps mounted ahead of headboard to wrap around cages  for transport
  • 6 – under deck sliding tie-down winch straps on passenger side
  • Winch bar holder and winch bar, dual ladder access, reflectors and side lights  as required by DOT standards.

Truck Details

New – Western Star 49X  4-Axle  Diesel  Truck:  86,000 lb GVWR

  • 12L Cummins Diesel, 500 hp
  • Eaton Ultrashift Plus Automated 18spd Trans., 20,000 lb fronts with 425/65R22.5 Front Floatation tires on  Alum rims
  • 20,000 lb self steer lift axle ahead of t/a, 46,000 LB Rears on Tuftrac Suspension with  11R22.5 tires on Aluminum rims
  • Double frame chassis

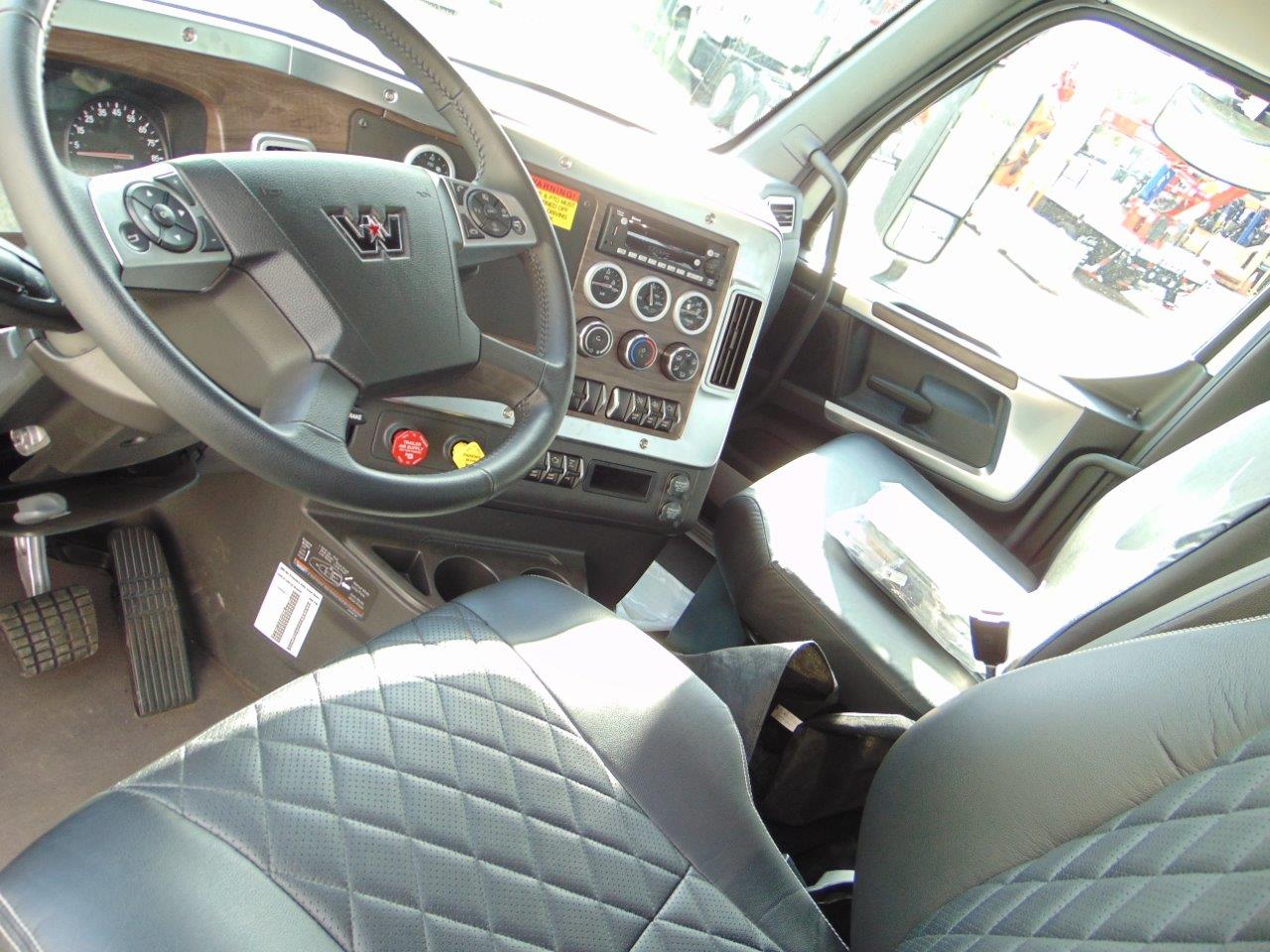

  • Truck  Features Include: Two Stage Engine Brake,  Air Cond., AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, engine block heater, painted ext visor,  trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…

Also included:

  • Two sets of PVC stabilizer pads with holders mounted on truck,
  • 36” aluminum checker plate storage box, hydraulic rotator
  • 1” drawplate installed at rear

75′ HORIZONTAL REACH WITH 2,000LBS CAPACITY

 We will custom build a steel or aluminum Form Cage Deck to suit your Specific Needs

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
