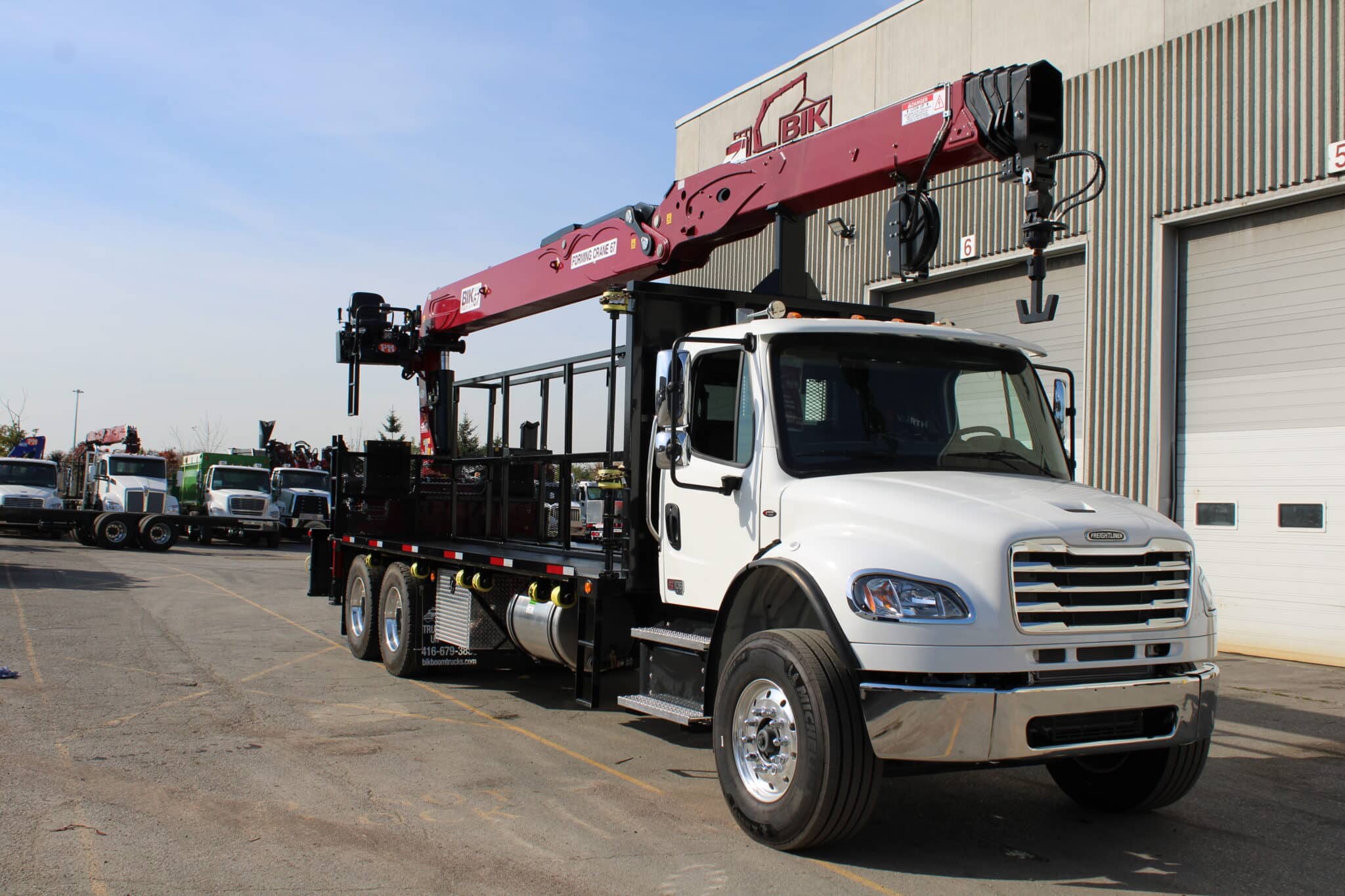

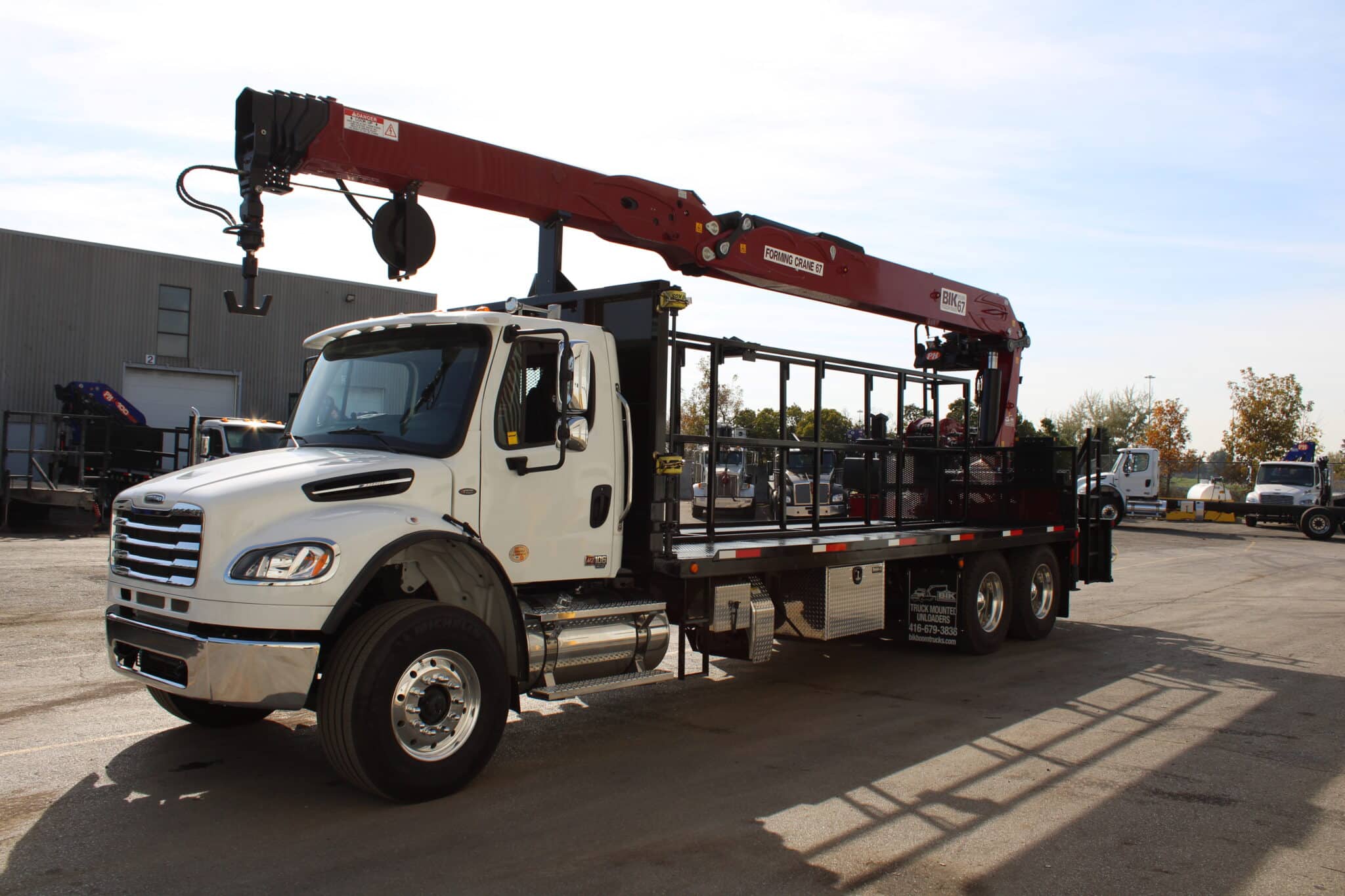

NEW BIK SERIES FC-70 ON NEW FREIGHTLINER M2-106
NEW BIK SERIES FC-70 ON NEW FREIGHTLINER M2-106
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER
- 4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
- Horizontal Capacities are:
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
- Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
- Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
- DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
- Hydraulic Hook Rotator with T-Hook at End of Boom
- DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
- SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
- Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase.
Deck Details
New – 22’ 6” x 102” Aluminum Flat Deck – LOW PROFILE: to accommodate up to 9’2” tall Form Cages
- Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear
- Aluminum deck surface, 66” + headboard
- Removable Center Divider with 4 vertically mounted winch straps to wrap around cages for transport
- 6 – under-deck sliding tie-down winch straps on the passenger side
- winch bar holder and winch bar
- dual ladder access, reflectors and side lights as required by DOT standards.
Truck Details
New – Freightliner M2-106 Tandem Diesel Truck: 60,000 lb GVWR, Truck Cab white in colour
- CUMMINS 360 hp
- Allison automatic transmission.
- 20,000 lb 385/65R22.5 Front tires on Steel white rims
- 40,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum Outer rims – steel inner
- Full double frame chassis
- 54” spread at ta
- Truck Features Include: Air cond., AM/FM stereo, power windows/locks, tilt steering, cruise, air ride cab, painted bumper, heated mirrors, engine block heater, inter axle lock ups, single 70 gal aluminum fuel tank, etc…
