BIK SERIES FC-70 ON NEW KENWORTH T880

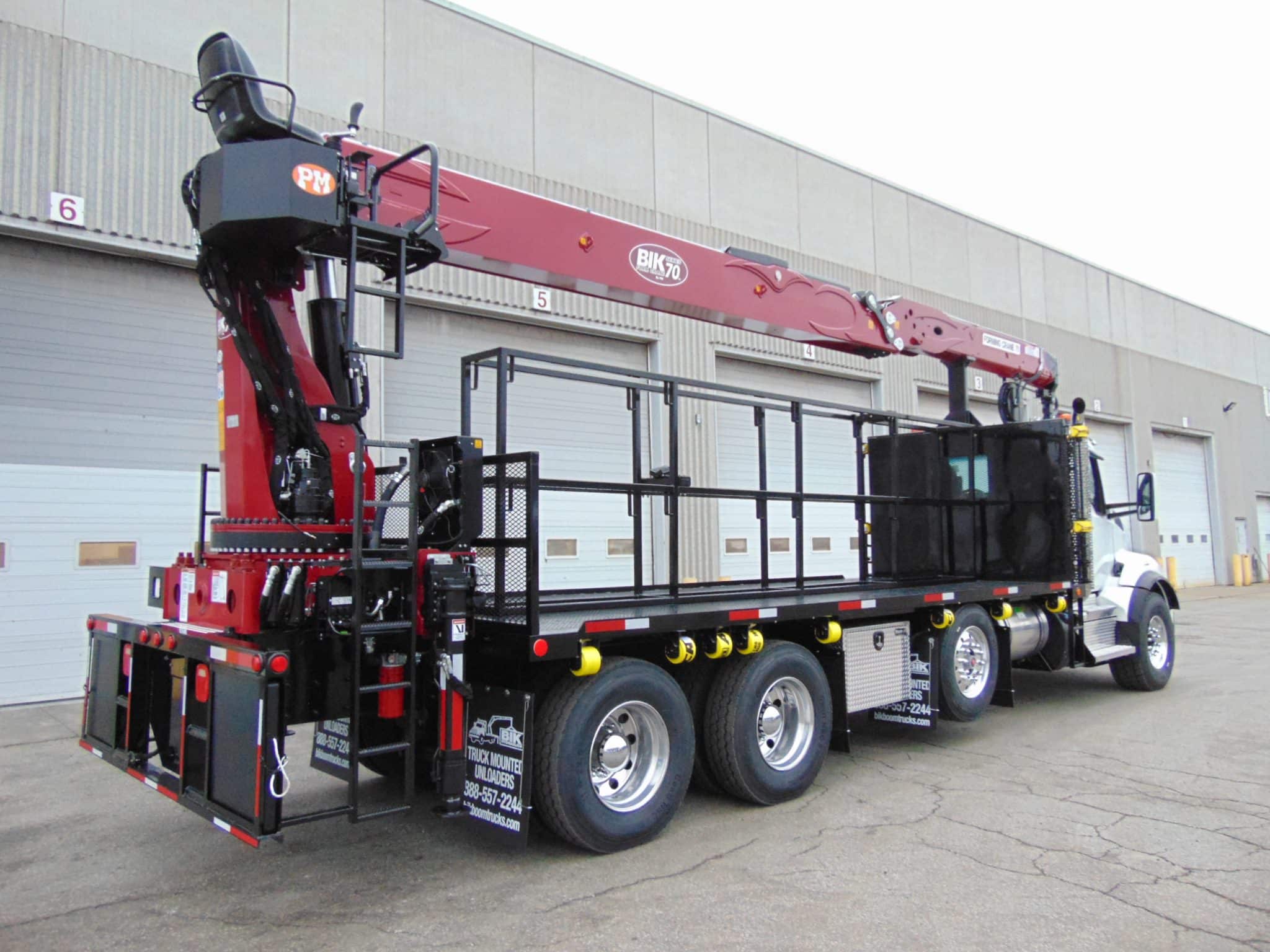

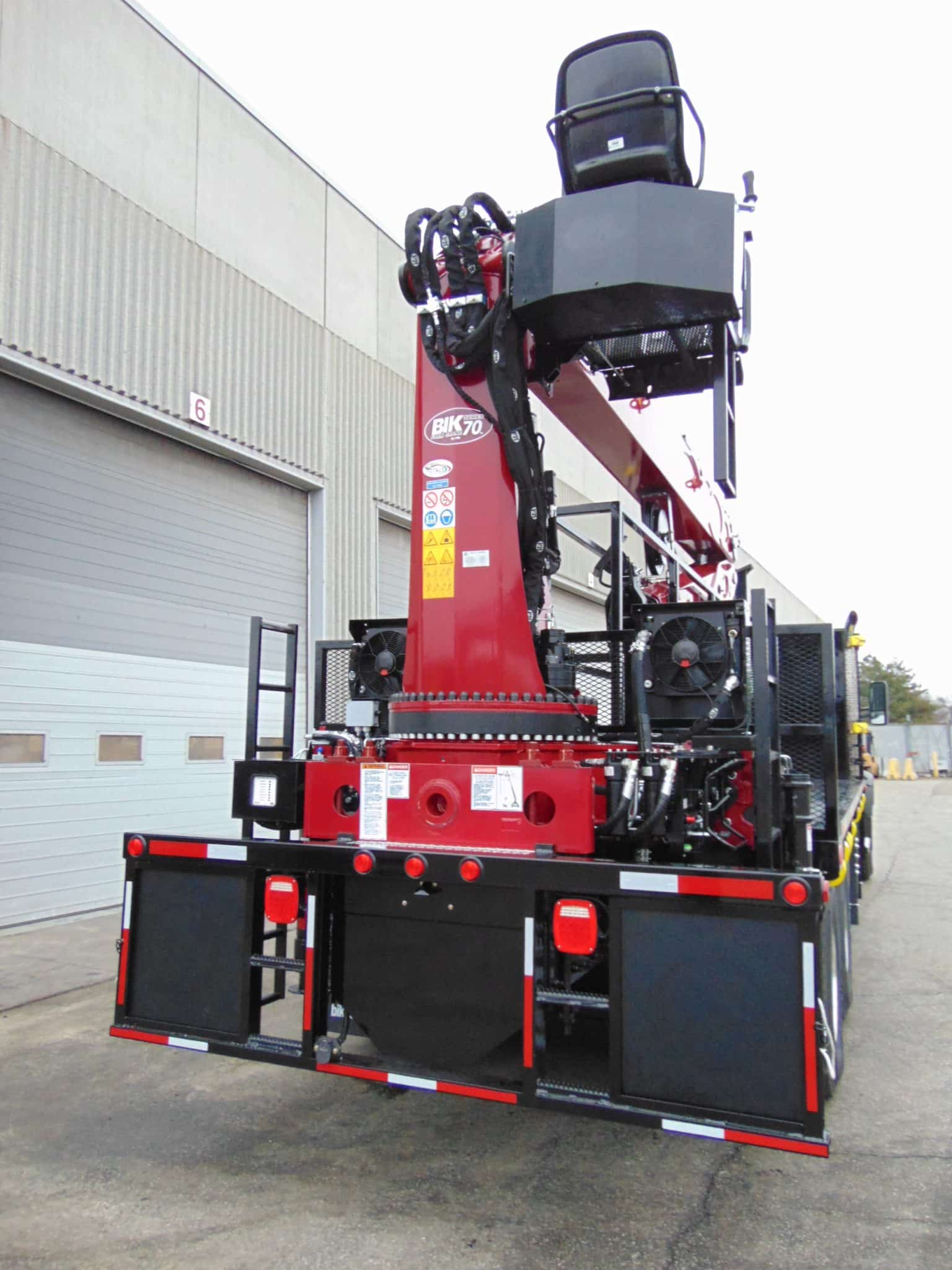

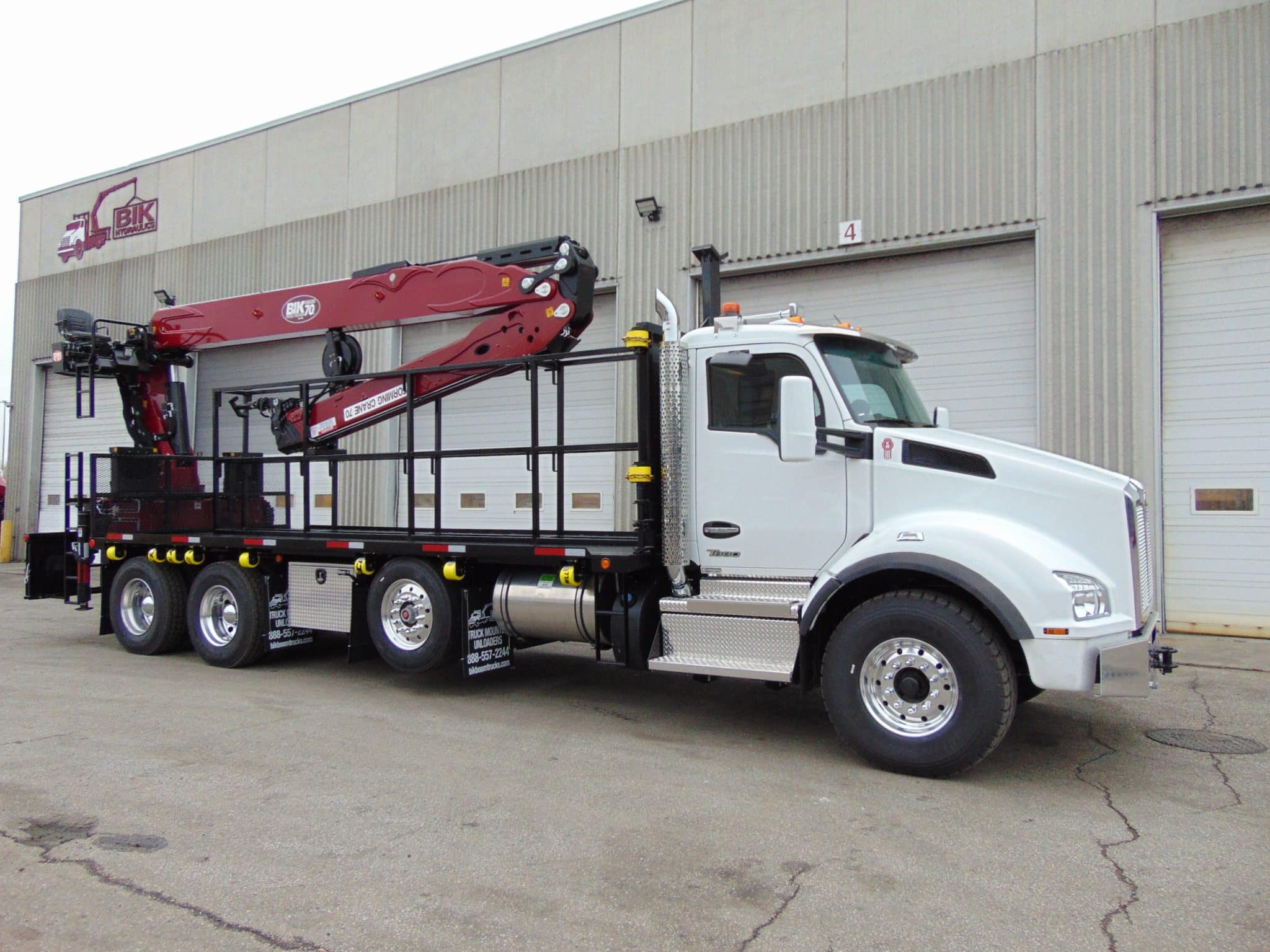

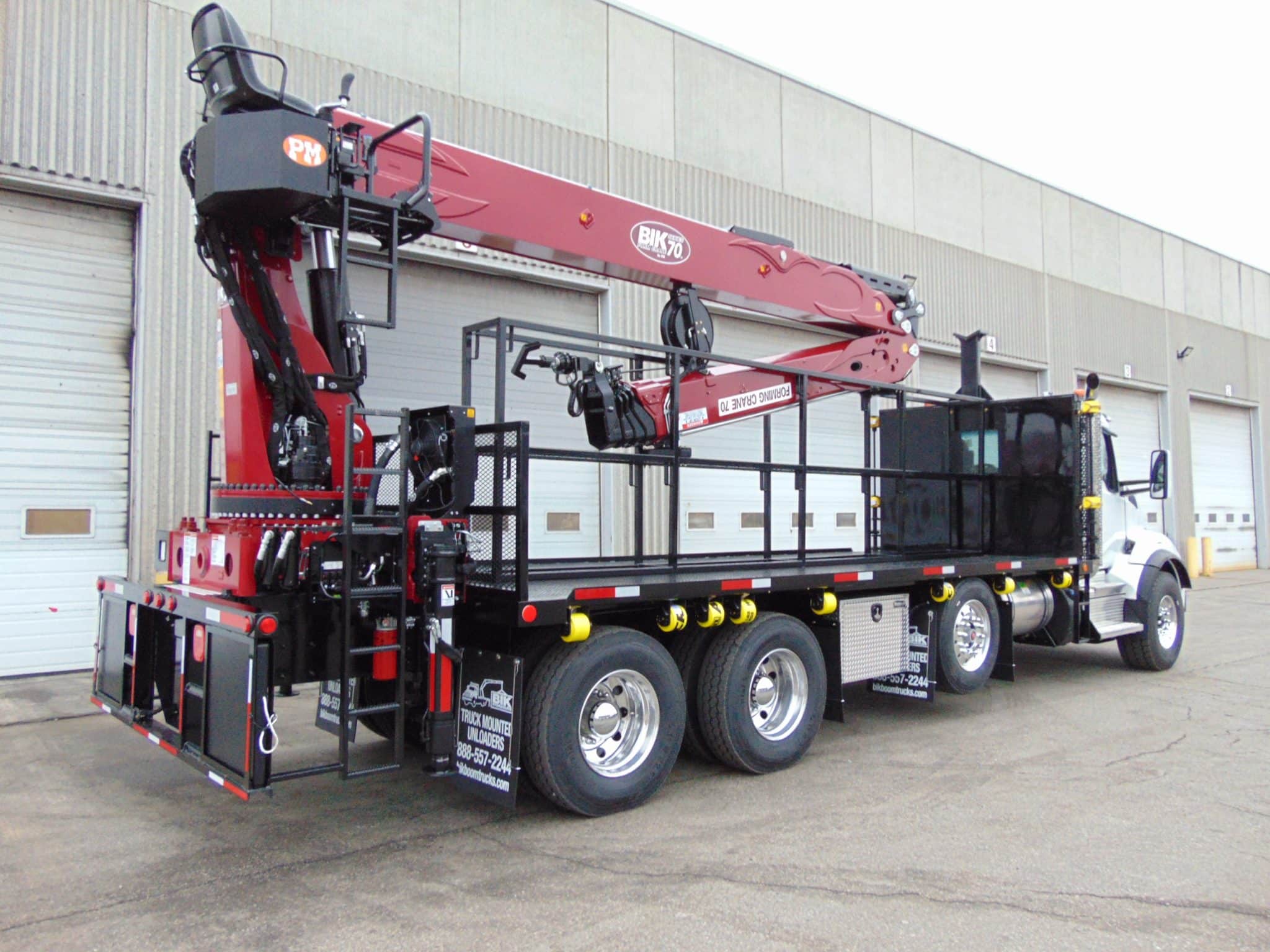

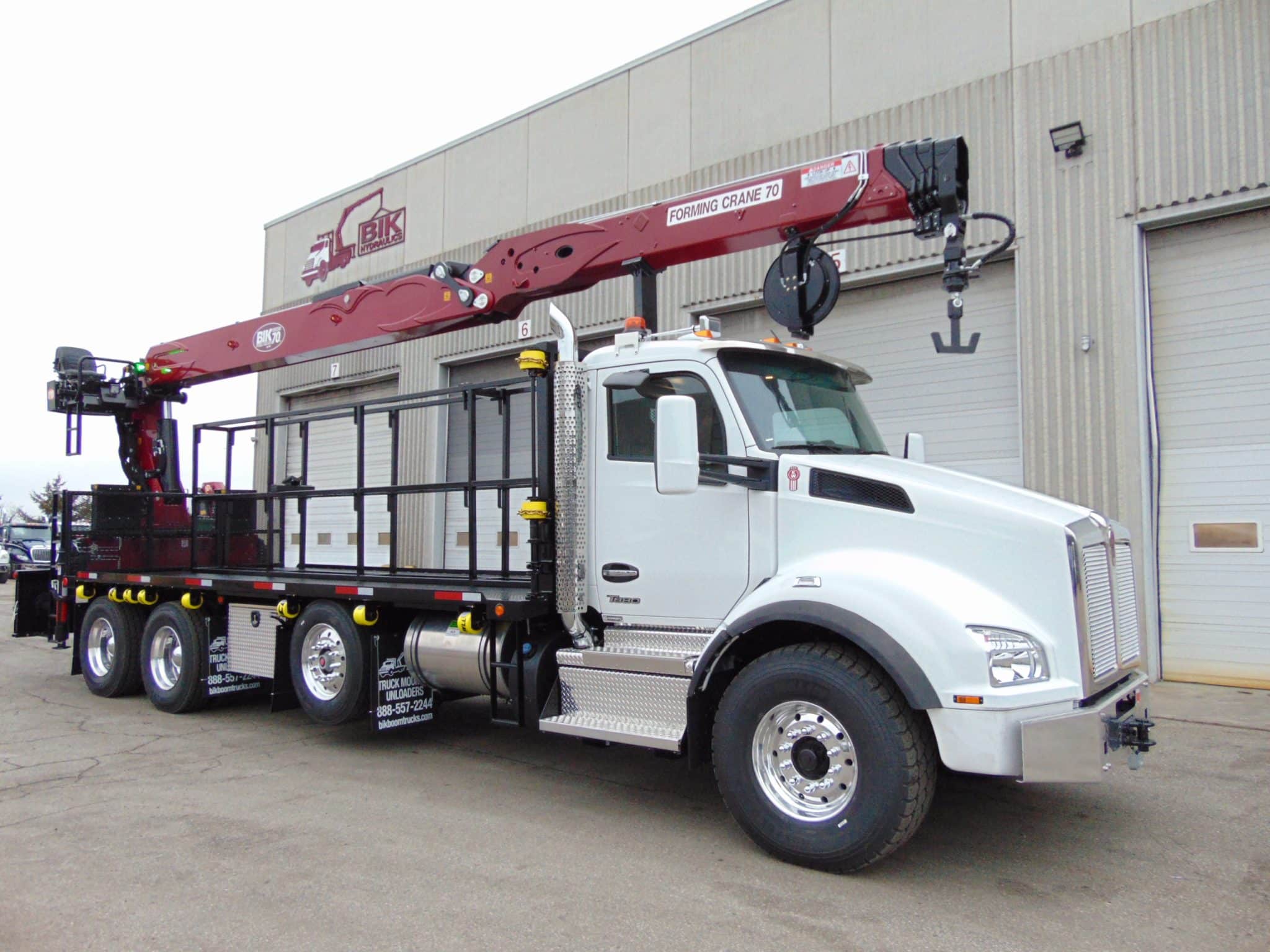

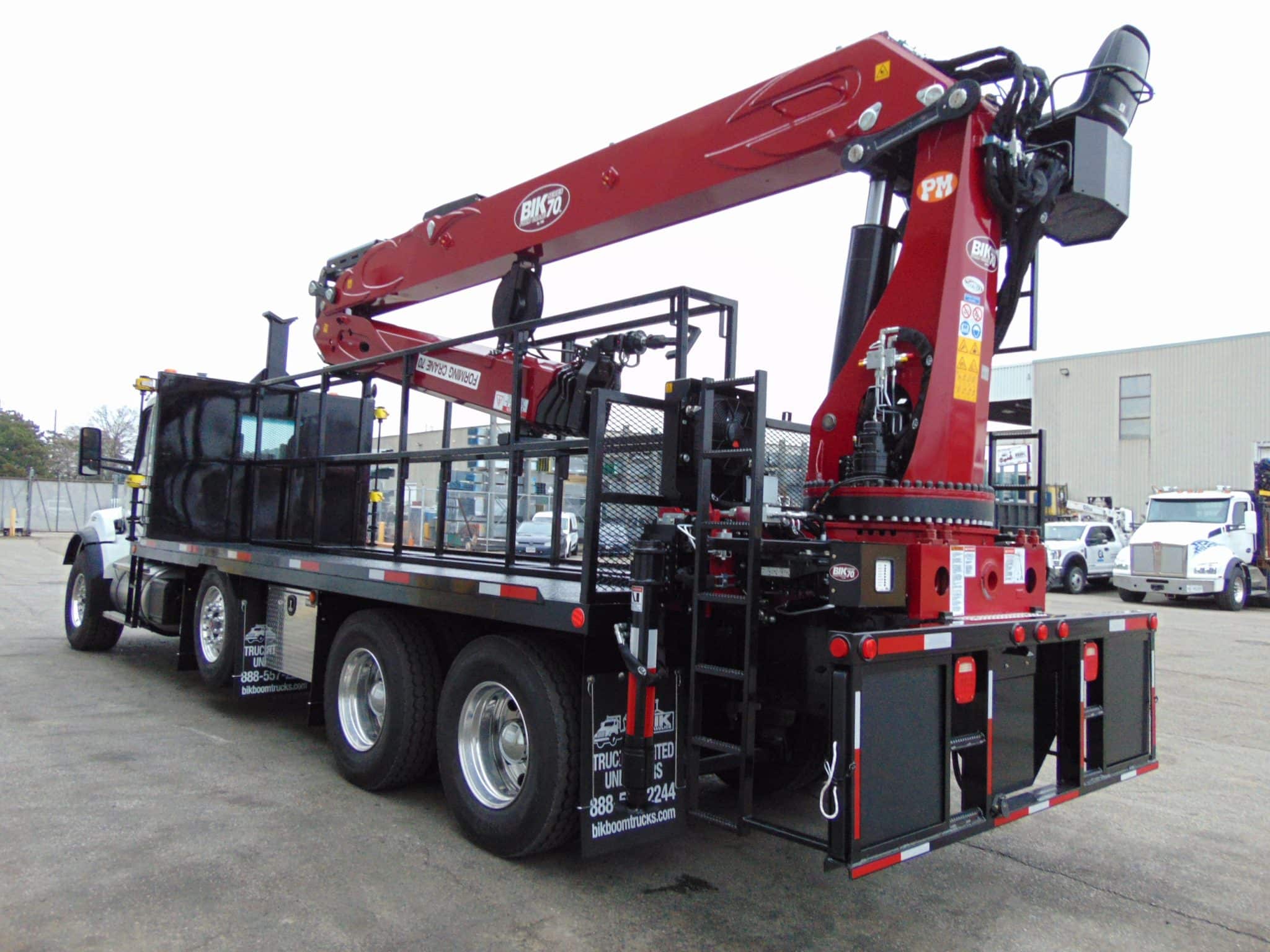

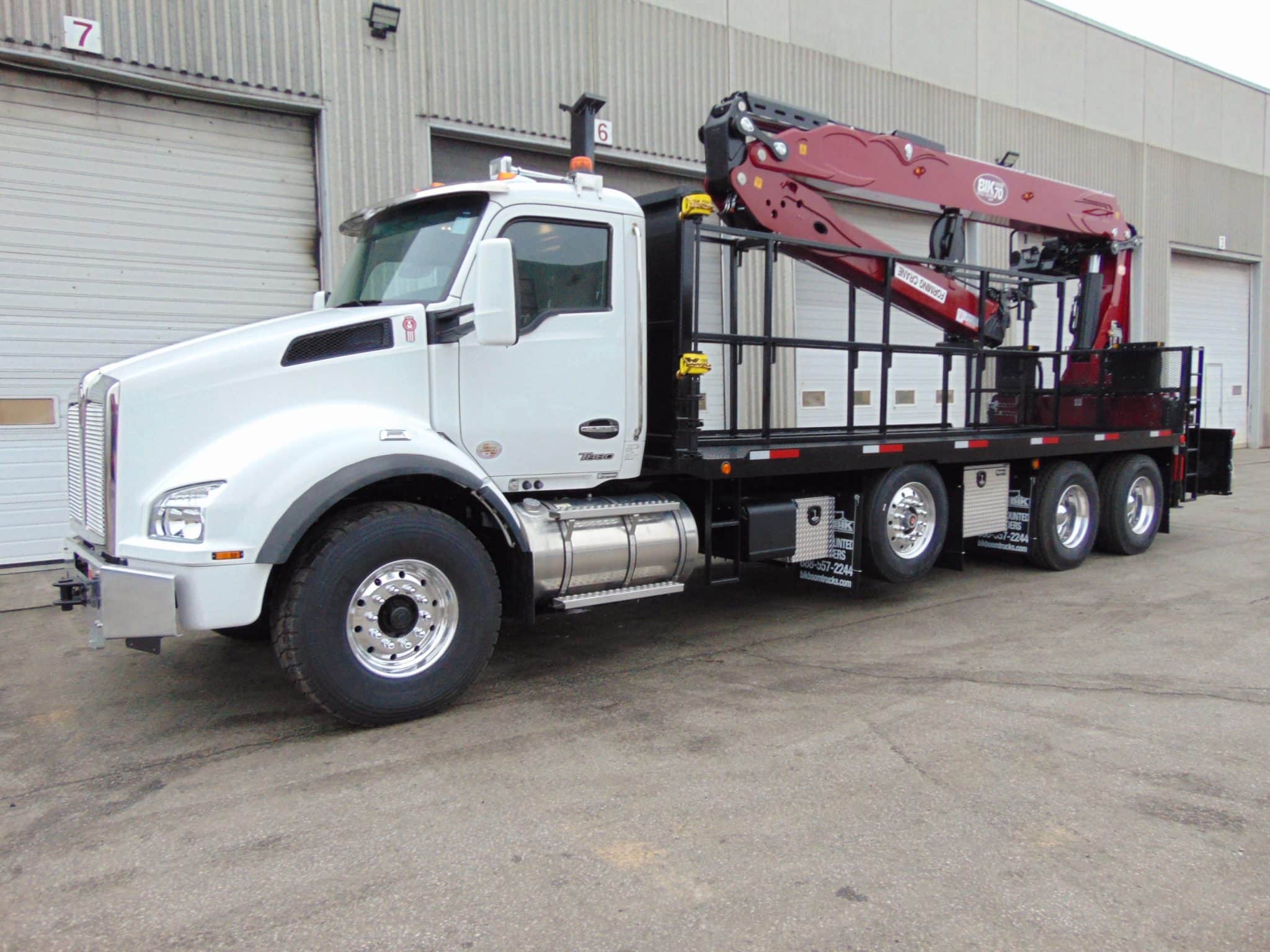

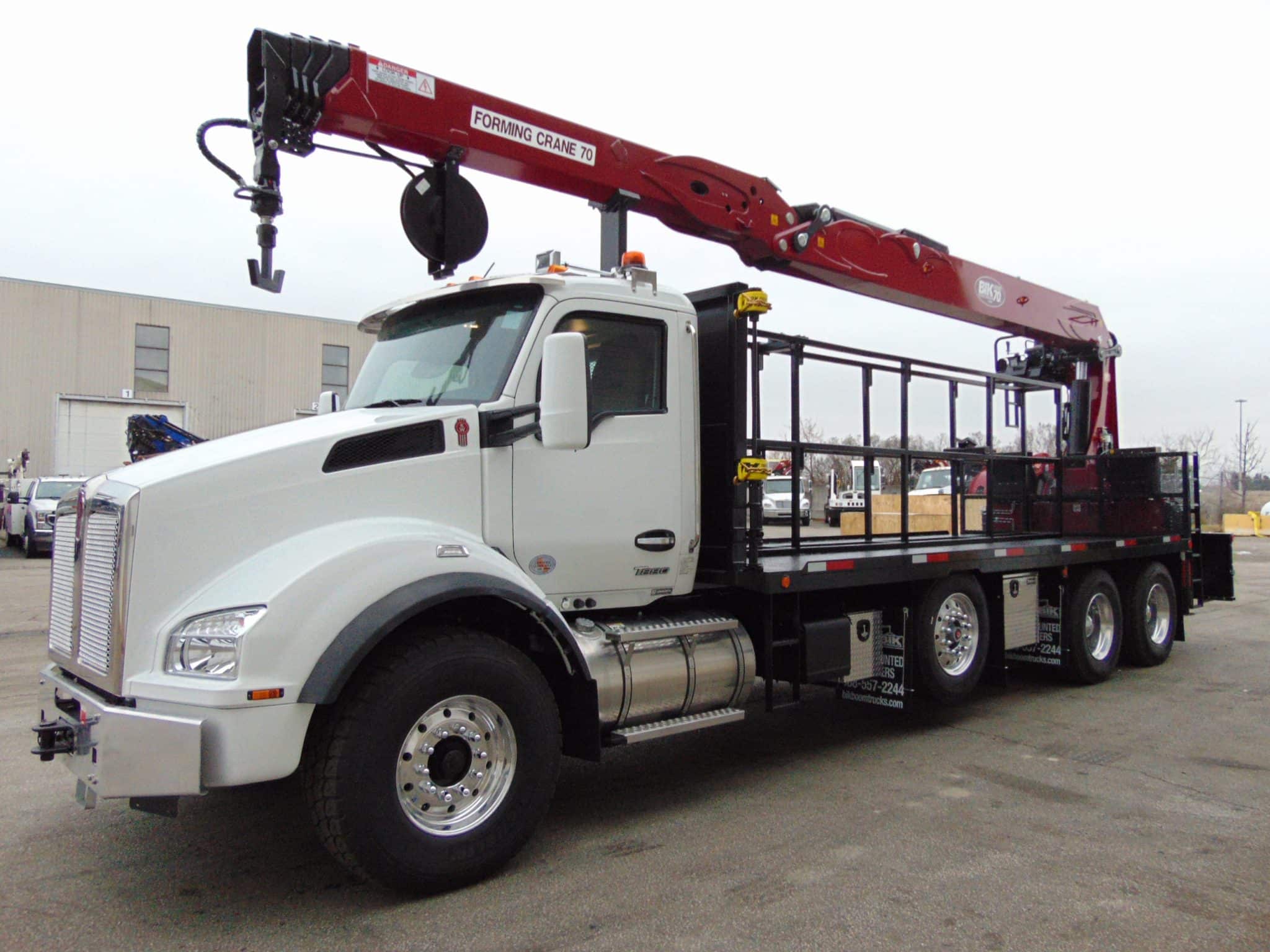

BIK SERIES FC-70 ON NEW KENWORTH T880 4-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER
- 4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
- Horizontal Capacities are:
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
- Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
- Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
- DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
- Hydraulic Hook Rotator with T-Hook at End of Boom
- DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
- SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
- Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase.
Deck Details
NEW – 22’6″ LOW PROFILE STEEL CHECKER PLATED DECK
- Installed on Pre-Engineered 6” Main Sill Sub Frame & Extension with X-Braces for Torsional Support
- Tied to Truck Frame by Sheer Plating at Front, Center and Rear
- Top welded 3” cross members
- Checker plate steel deck surface
- 66” + headboard, Removable Center Divider with 4-vertical mounted winch straps to wrap around cages for transport
- 8 – under deck sliding tie-down winch straps on passenger side
- Winch bar holder and winch bar, dual ladder access at front
- Reflectors and side lights as required by DOT standards.
Truck Details
NEW – KENWORTH T880 4-AXLE TRUCK – 86,000 lbs GVWR
- Cab White, Paccar 485 hp, 1,650 ft/lb Torque
- Jake Brake, Eaton Ultra Shift Plus 18 Spd Automated Transmission
- 20,000 lb Front Steer Axle with 425/65R22.5 Tires on Aluminum Rims
- 20,000 lb Self-Steer Pusher Axle Installed Ahead of Tandem
- 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
- 54” Spread at TA, Double Frame
- Options Including: A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP3 w/Bluetooth, Air Driver’s Seat and Standard Pass Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock-ups, Trailer Air Tow Package, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc…
Also Included:
- Two Sets of Aluminum Stabilizer Pads with Holders Mounted on Truck
- 24” Aluminum Checker Plate Storage Box, Hydraulic Rotator
- 1” Drawplate Installed at Rear
