NEW BIK SERIES FC-67 ON NEW KENWORTH T880 TRIDRIVE

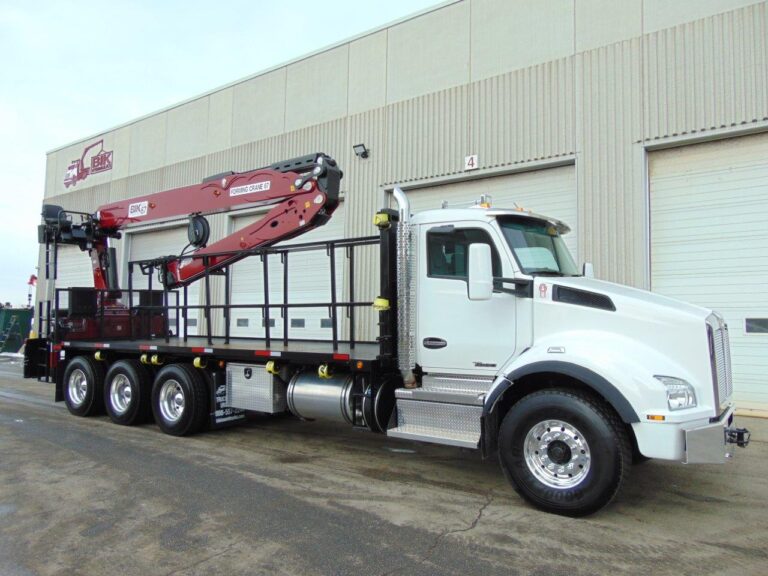

NEW – BIK SERIES FC-67 ON NEW KENWORTH T880 TRIDRIVE 4-AXLE & 23.5′ STEEL DECK – 505 HP – AUTO 18-SPD – IDEAL FORM CAGE HANDLER
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

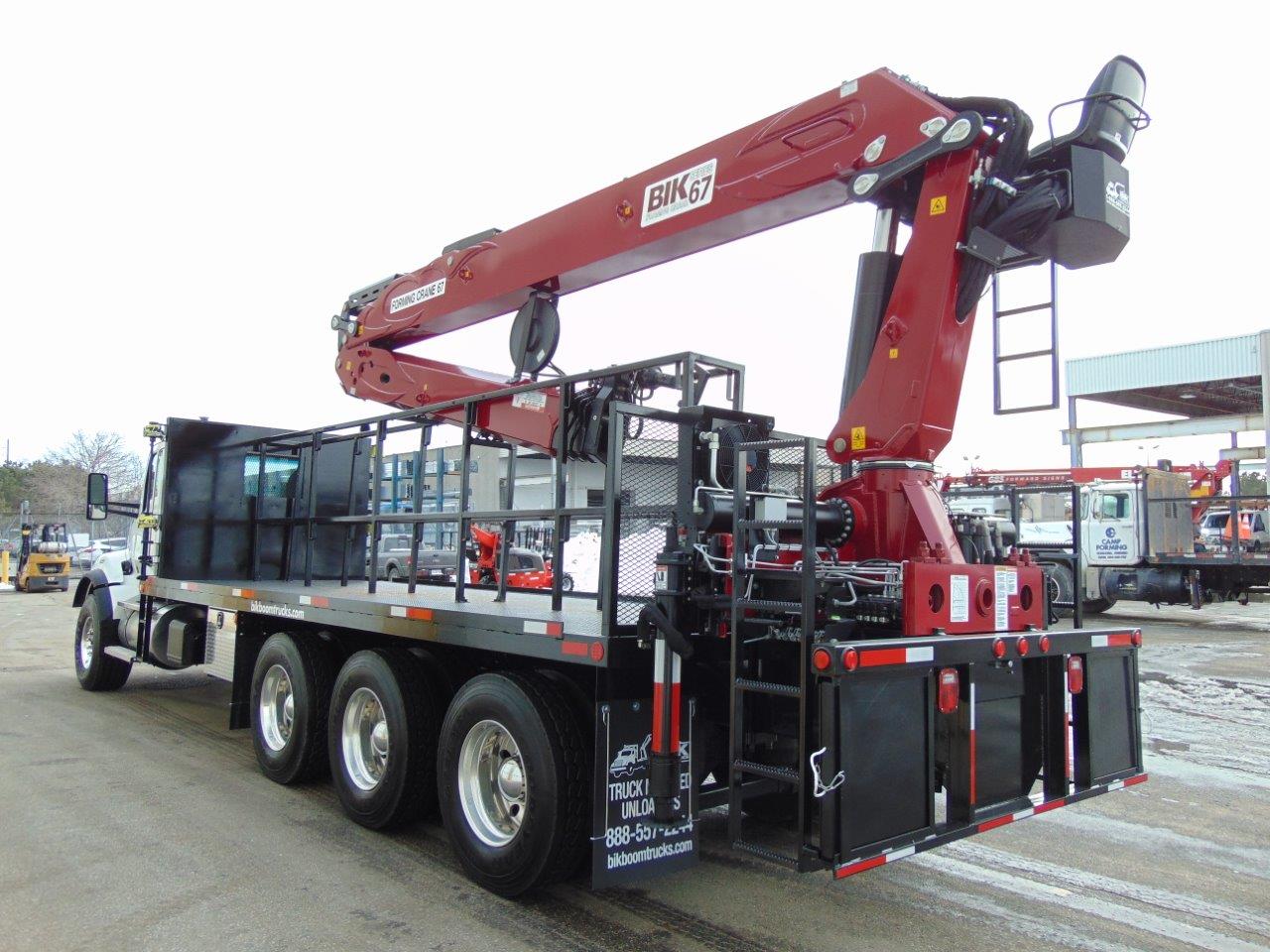

New – BIK Series Forming Crane FC-67 Unloader – 4 Hydraulic Extensions, (simulated 70’ rearward reach w/reverse mount)
- Horizontal Capacities
- 7,400 lb @ 28’
- 3,100 lb @ 55′
- 2,500 lb @ 62′
- 2,200 lb @ 67′
- Internal cylinders on all boom extensions, Outer boom cylinder guard
- Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
- Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
- Extra Wide Stabilizers – 24’ 3” span, hydraulic out and down type
- Flanged holding valves, double acting check valve for the down movement of the stabilizers
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Valve – At Top Seat Level controls full access catwalk
- Hydraulic hook rotator with T-hook at end of boom
- SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord,
- Load Tested & Installed end of frame on pre-engineered sub base.
Deck Details
New – 23’ 4” x 102” LOW PROFILE Steel Checker plate Flat Deck With Center Divider
- Checker plate steel deck surface
- 60” + headboard with two sets of straps and winches ahead of the headboard
- 2” lip around deck for form cage handling
- 3” cross members side welded for low profile deck
- Expanded metal removable rear tailboard
- Winch bar holder and winch bar, ladder, reflectors and 5-side lights
- Integrated torque box with X-bracing and sheer plating mount to frame for optimum stability
- Primed/painted gloss black.

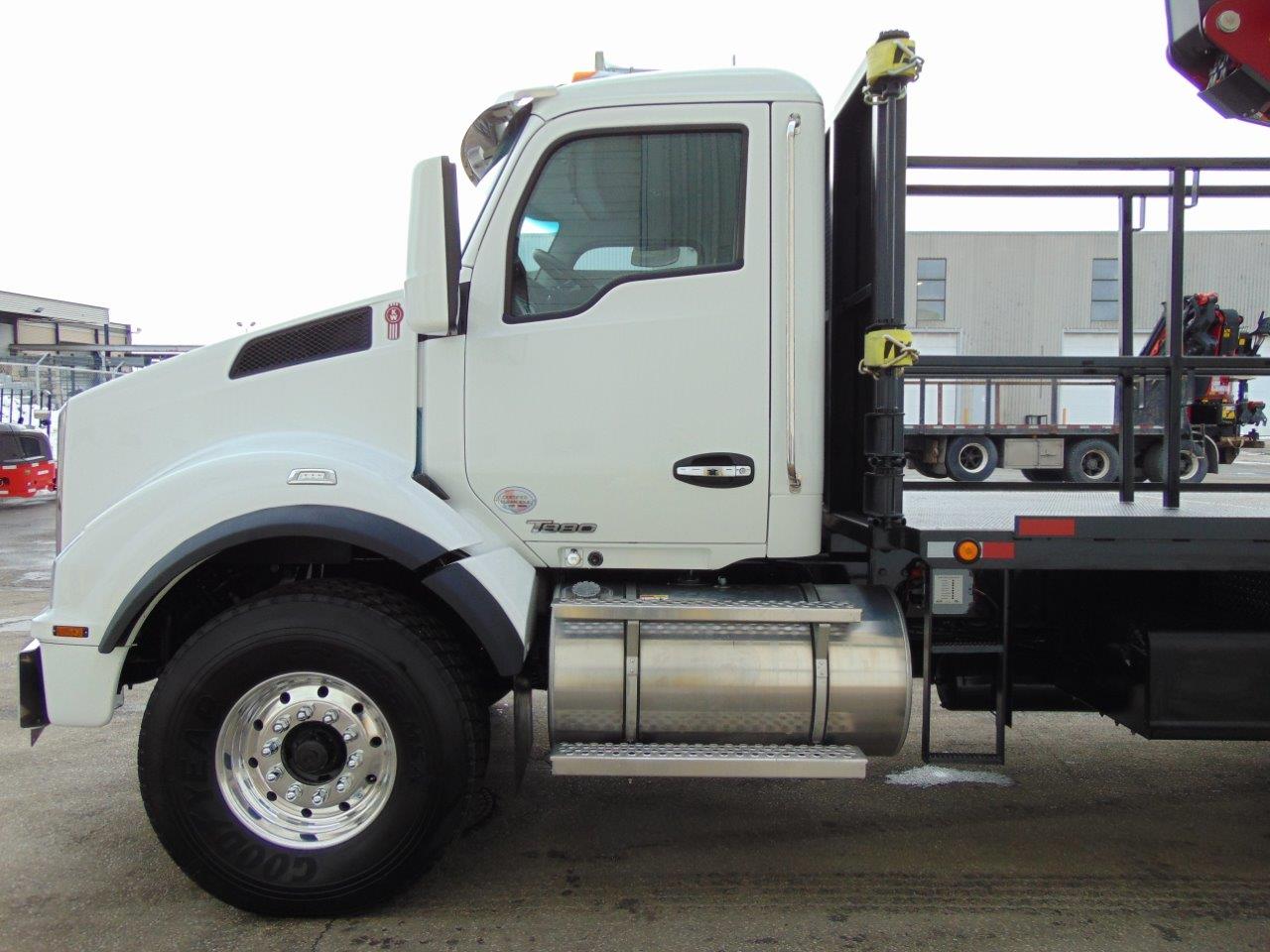

Truck Details
New – Kenworth T880 Tri-Drive 4-axle truck: 89,000 lbs GVWR
- Cab white Paccar 485 HP – 1,650 ft/lb torque, Jake Brake
- Eaton Ultrashift Plus 18 spd automated trans
- 20,000 LB front steer axle with 425 / 65R22.5 tires on Aluminum Rims
- 69,000 LB Rears on Hendrickson Primax Suspension with 11R22.5 tires on aluminum outer rims
- 54” spread at ta
- Double Frame

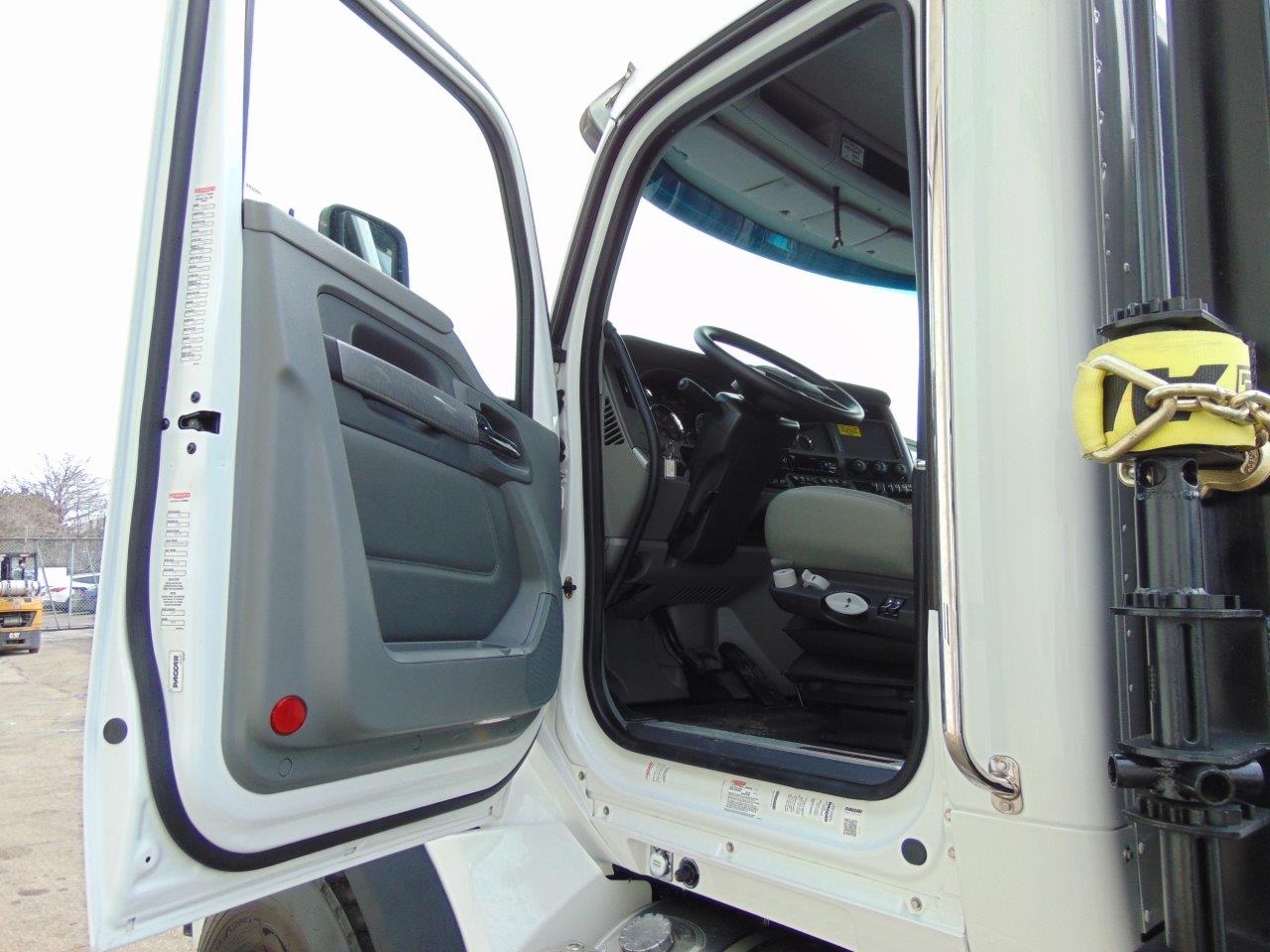

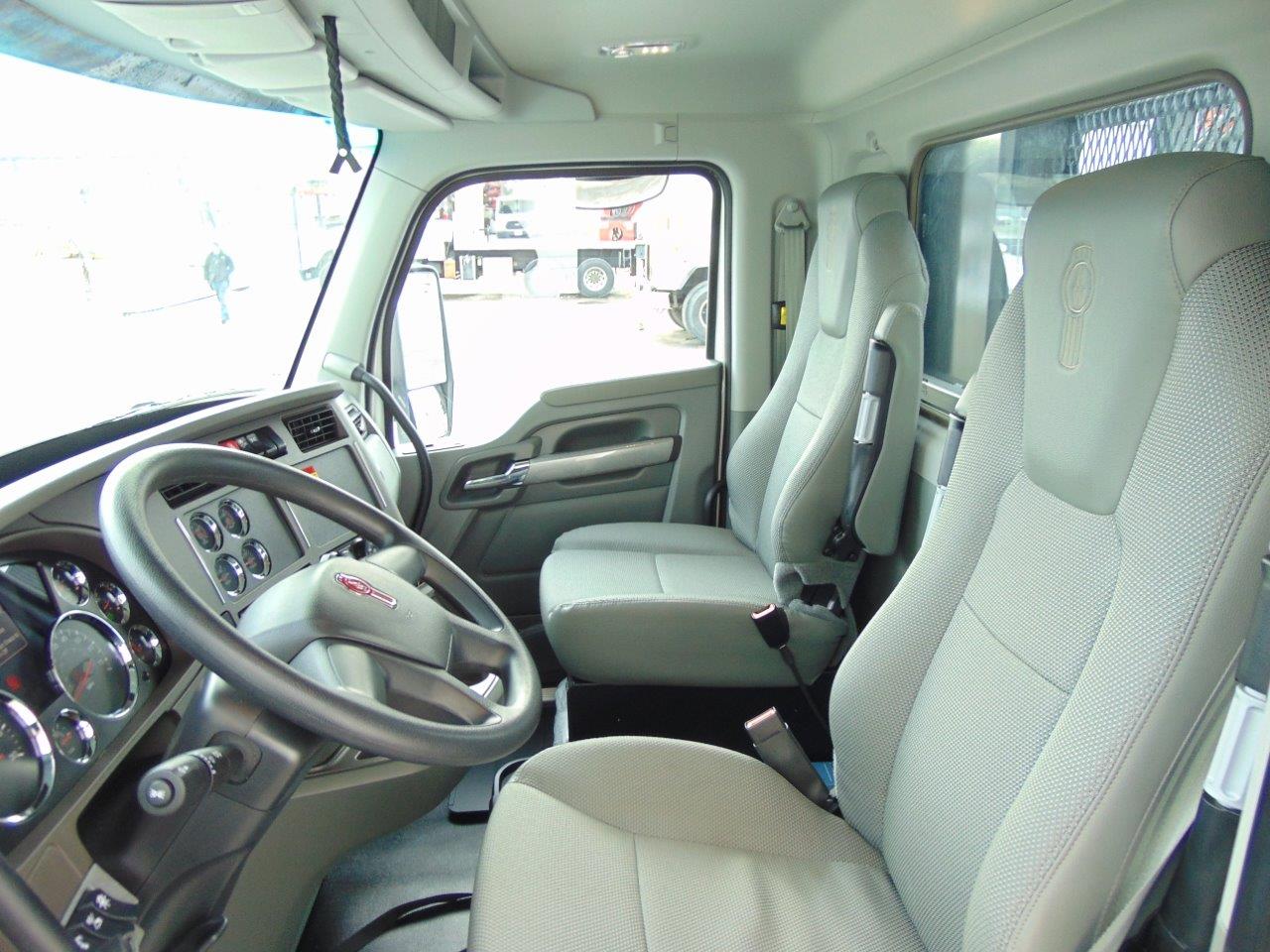

- Truck features include: A/C, Tilt/Telescopic steering, power windows & locks, AM/FM/MP-3 w/bluetooth, air driver’s seat and standard pass seat, cruise, htd mirrors, stainless exterior sun visor, Air ride cab, 4-wheel lock ups, trailer air tow package, Chromed Front and side Grille & Bumper, 100 gal alum fuel tank, etc..
Options Included:
- (1) x 36” Aluminum Toolbox installed, – Wireless Proportional radio remoTE
- LED spot lighting on the boom
- 1” drawplate at rear (for possible pintle hook)
- Junction box at top seat for full engine controls
