*SOLD* BIK SERIES FC-67 FORMING CRANE - NEW 2019 KENWORTH T880 ON NEW 23′ 4″ DECK

SOLD BIK SERIES FC-67 FORMING CRANE – NEW 2019 KENWORTH T880 ON NEW 23′ 4″ DECK

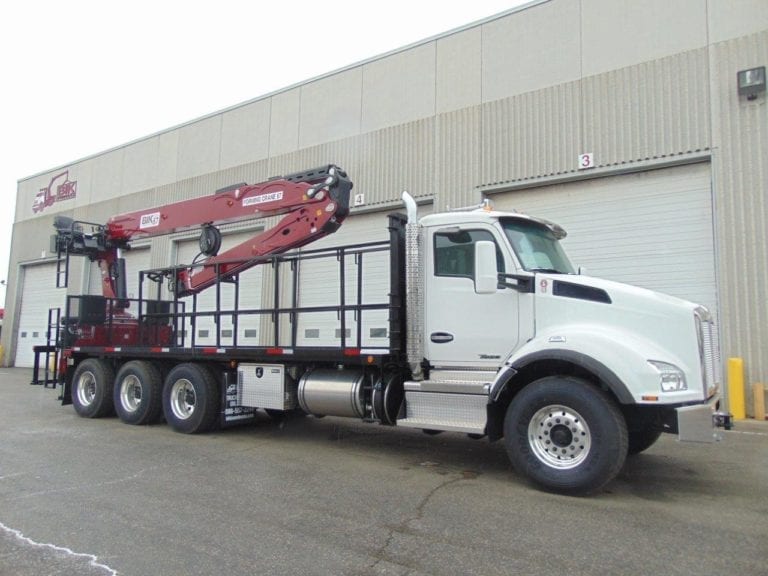

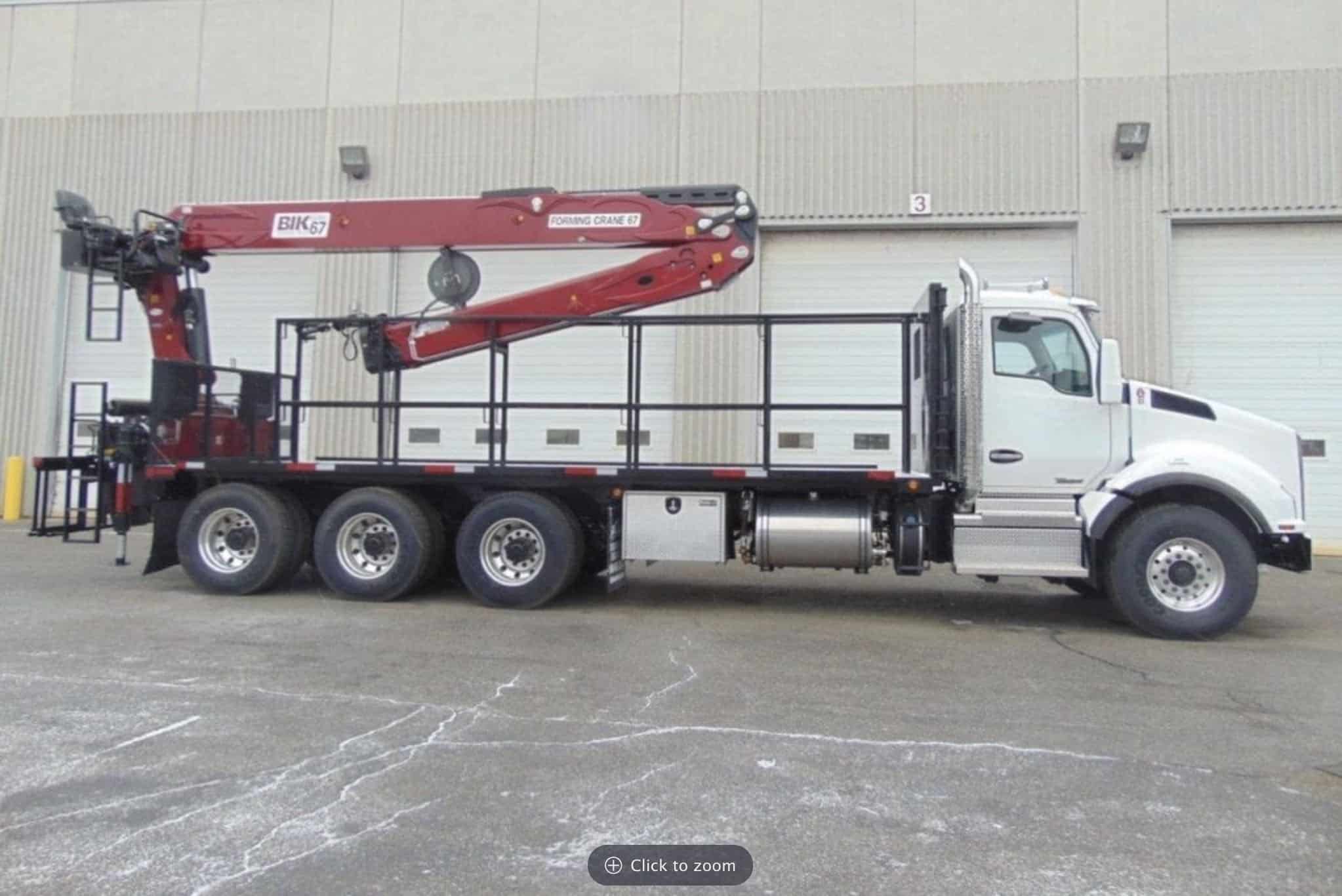

SOLD BIK SERIES FC-67 FORMING CRANE – NEW 2019 KENWORTH T880 TRI-DRIVE – NEW 23′ 4″ DECK

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

*DEMO UNIT* BIK Series Forming Crane FC-67 Unloader – 4- Hyd Extensions, (simulated 70’ rearward reach w/reverse mount) Horizontal Capacities are: 7,400 lb @ 28’, 3,100 lb @ 55’, 2,500 lb @ 62’ ,2,200 lb @ 67’
Internal cylinders on all boom extensions, Outer boom cylinder guard
Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
Extra Wide Stabilizers – 24’ 3” span, hydraulic out and down type
Flanged holding valves, double acting check valve for the down movement of the stabilizers
Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Valve – At Top Seat Level controls full access catwalk
Hydraulic hook rotator with T-hook at end of boom

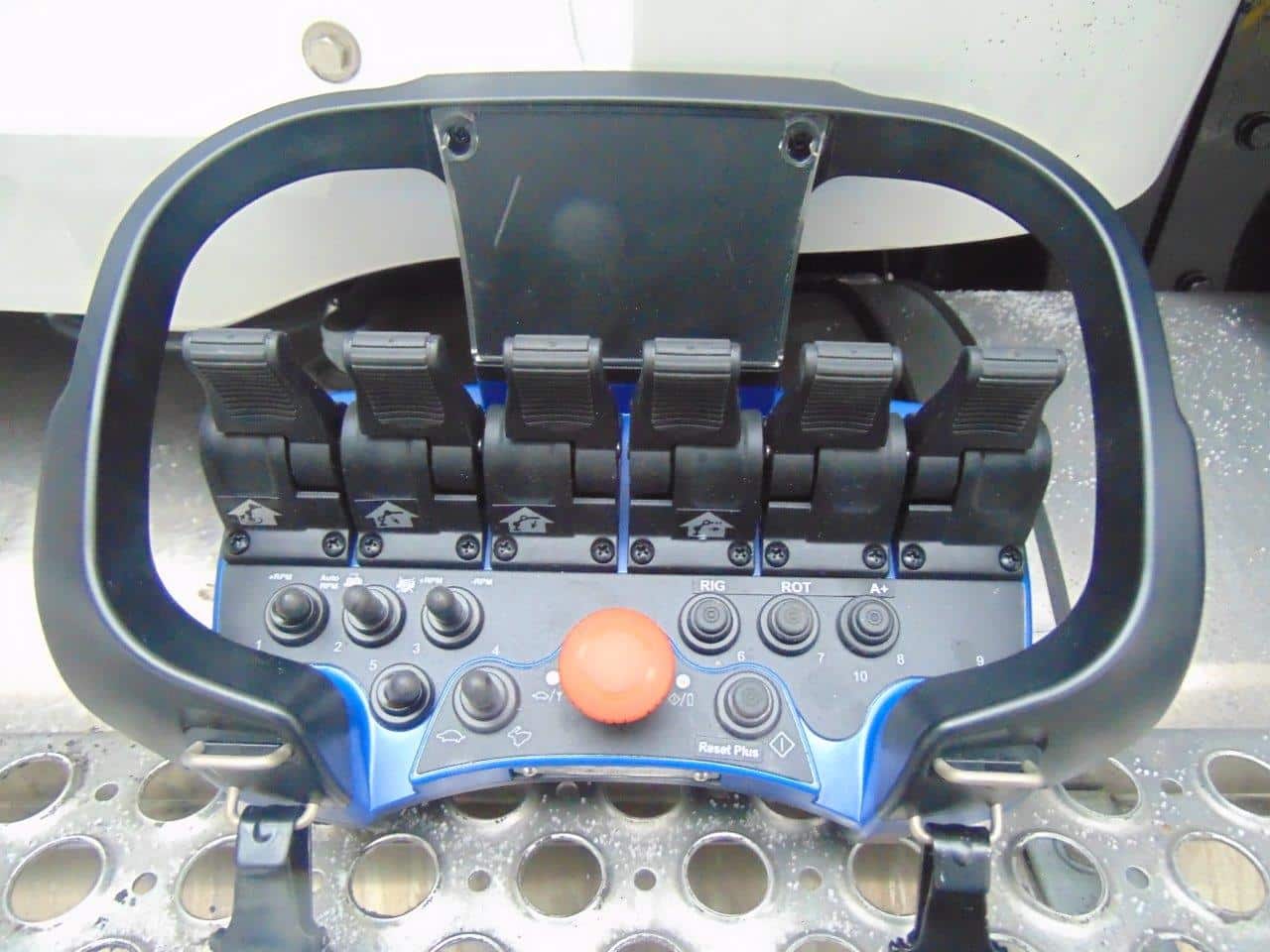

SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord,
Load Tested & Installed end of frame on pre-engineered sub base.

Deck Details

23’ 4” x 102” LOW PROFILE Steel Checker plate Flat Deck With Center Divider Checker plate steel deck surface, 60” + headboard with two sets of straps and winches ahead of the headboard, 2” lip around deck for form cage handling, 3” cross members side welded for low profile deck, expanded metal removable rear tailboard, winch bar holder and winch bar, ladder, reflectors and 5-side lights, Integrated torque box with X-bracing and sheer plating mount to frame for optimum stability. Primed/painted gloss black.

Truck Details

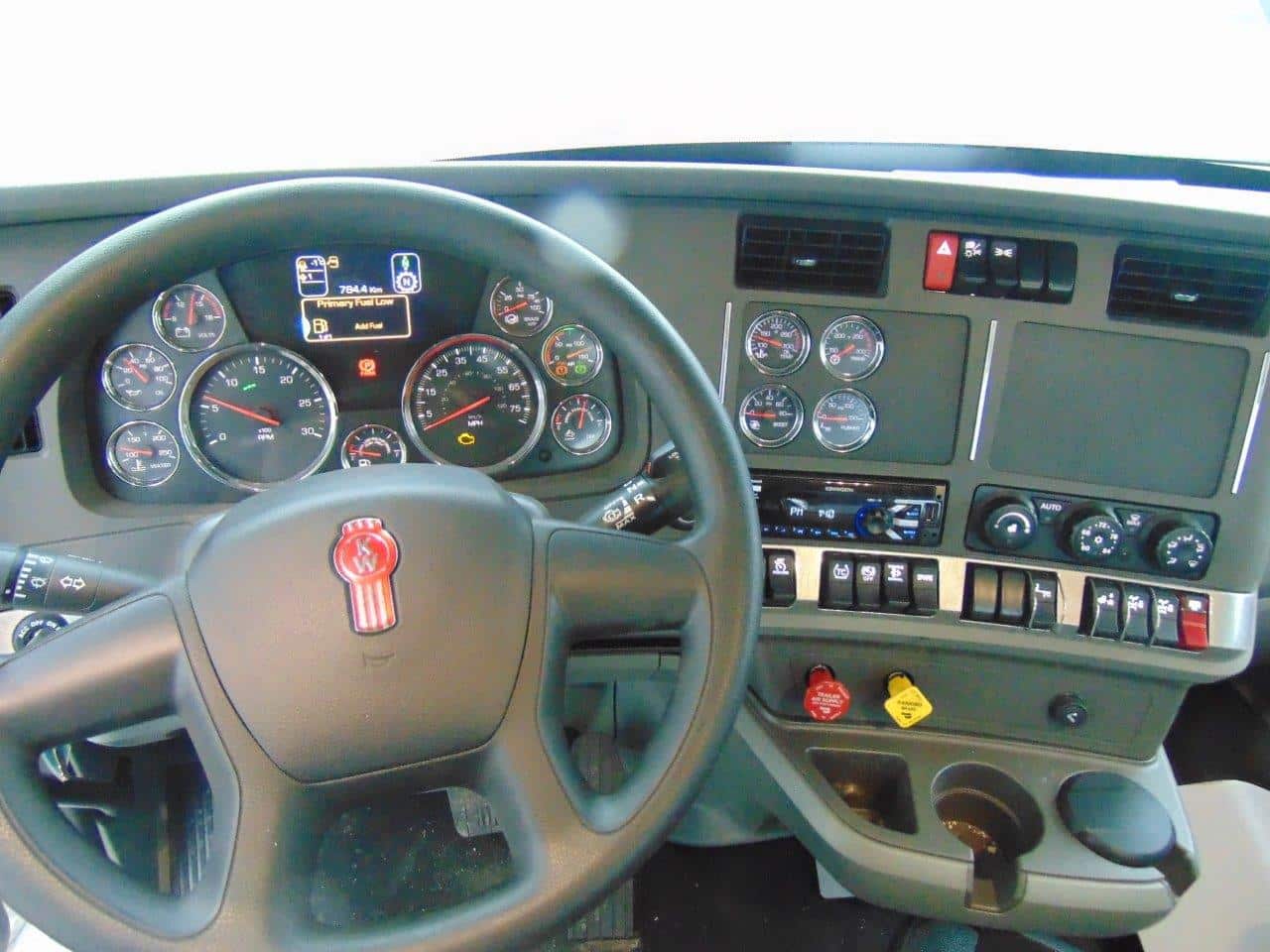

2019 Kenworth T880 Tri-Drive 4-axle truck: 89,000 lbs GVWR – Cab white Paccar 485 HP – 1,650 ft/lb torque, Jake Brake, Eaton Ultrashift Plus 18 spd automated trans , 20,000 LB front steer axle with 425 / 65R22.5 tires on Aluminum Rims, 69,000 LB Rears on Hendrickson Primax Suspension with 11R22.5 tires on aluminum outer rims, 54” spread at ta, Double Frame, Options including: A/C, Tilt/Telescopic steering, power windows & locks, AM/FM/MP-3 w/bluetooth, air driver’s seat and standard pass seat, cruise, htd mirrors, stainless exterior sun visor, Air ride cab, 4-wheel lock ups, trailer air tow package, Chromed Front and side Grille & Bumper, 100 gal alum fuel tank, etc..

Options Included: – (1) x 36” Aluminum Toolbox installed, – Wireless Proportional radio remote, – LED spot lighting on the boom, – 1” drawplate at rear (for possible pintle hook), – Junction box at top seat for full engine controls,

SOLD BIK SERIES FC-67 FORMING CRANE – NEW 2019 KENWORTH T880 ON NEW 23′ 4″ DECK
