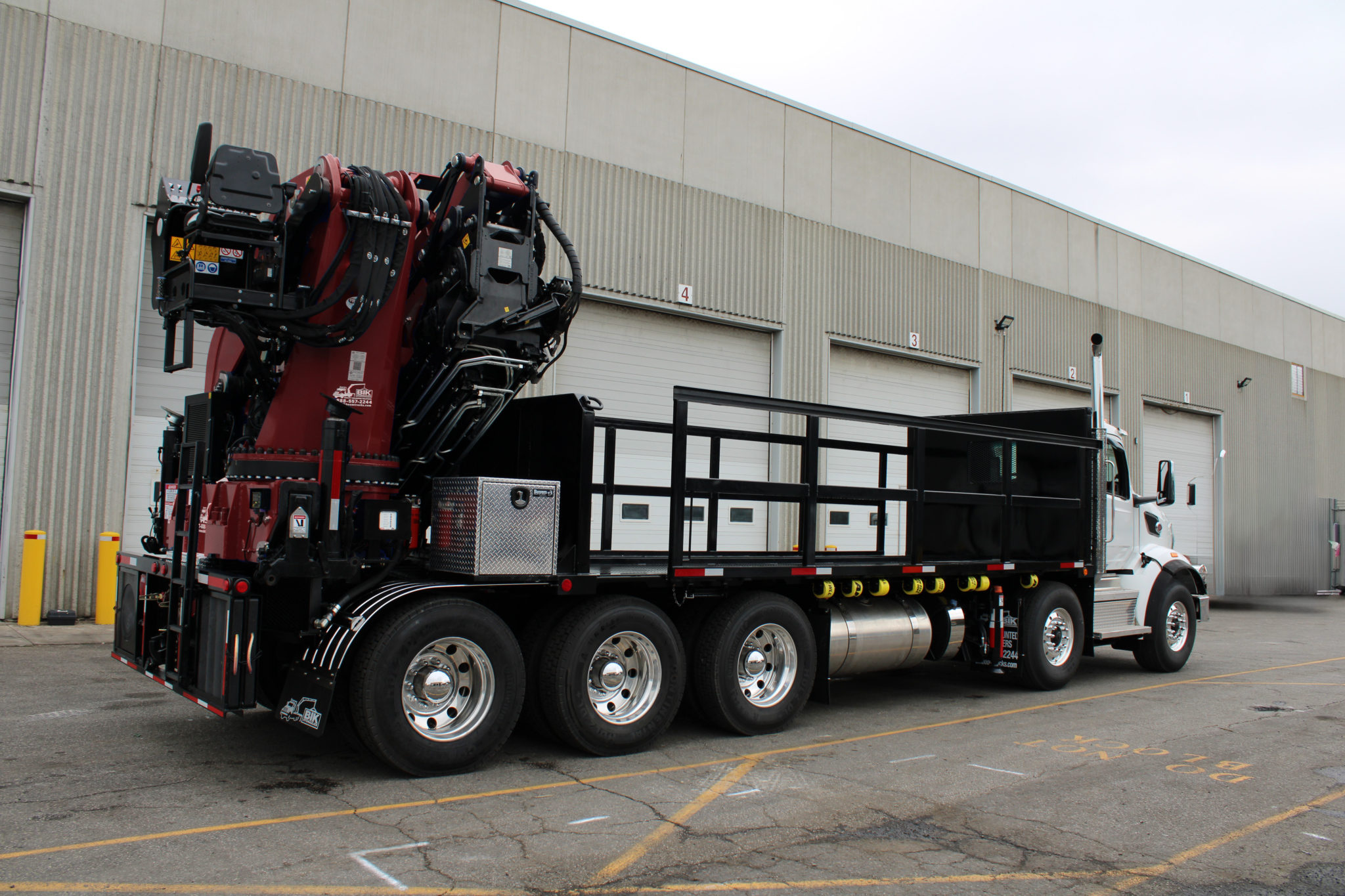

NEW BIK SERIES FC-110 ON NEW PETERBILT 567 5-AXLE
 |
NEW BIK SERIES FC-110 ON PETERBILT 567 5-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

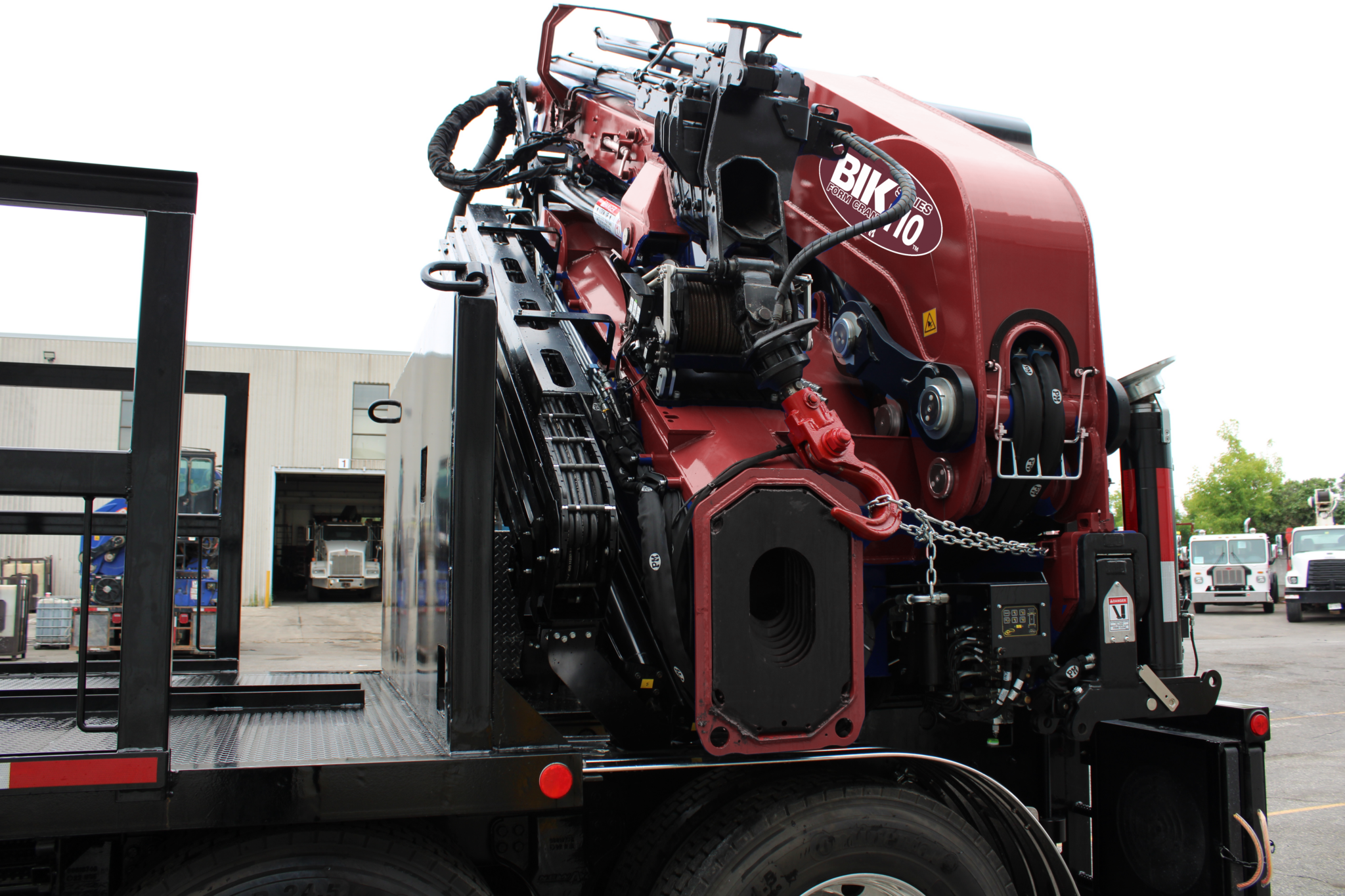

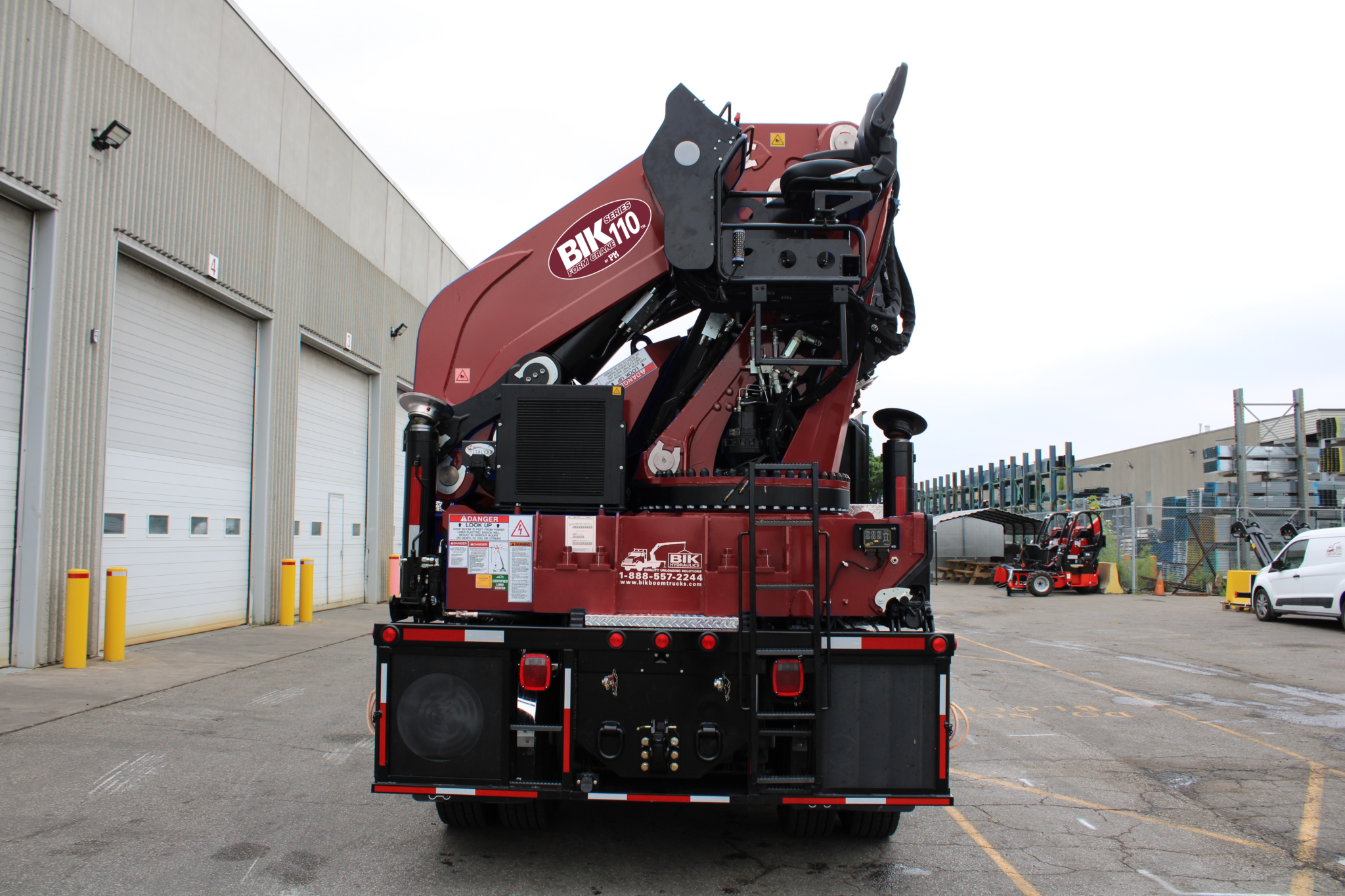

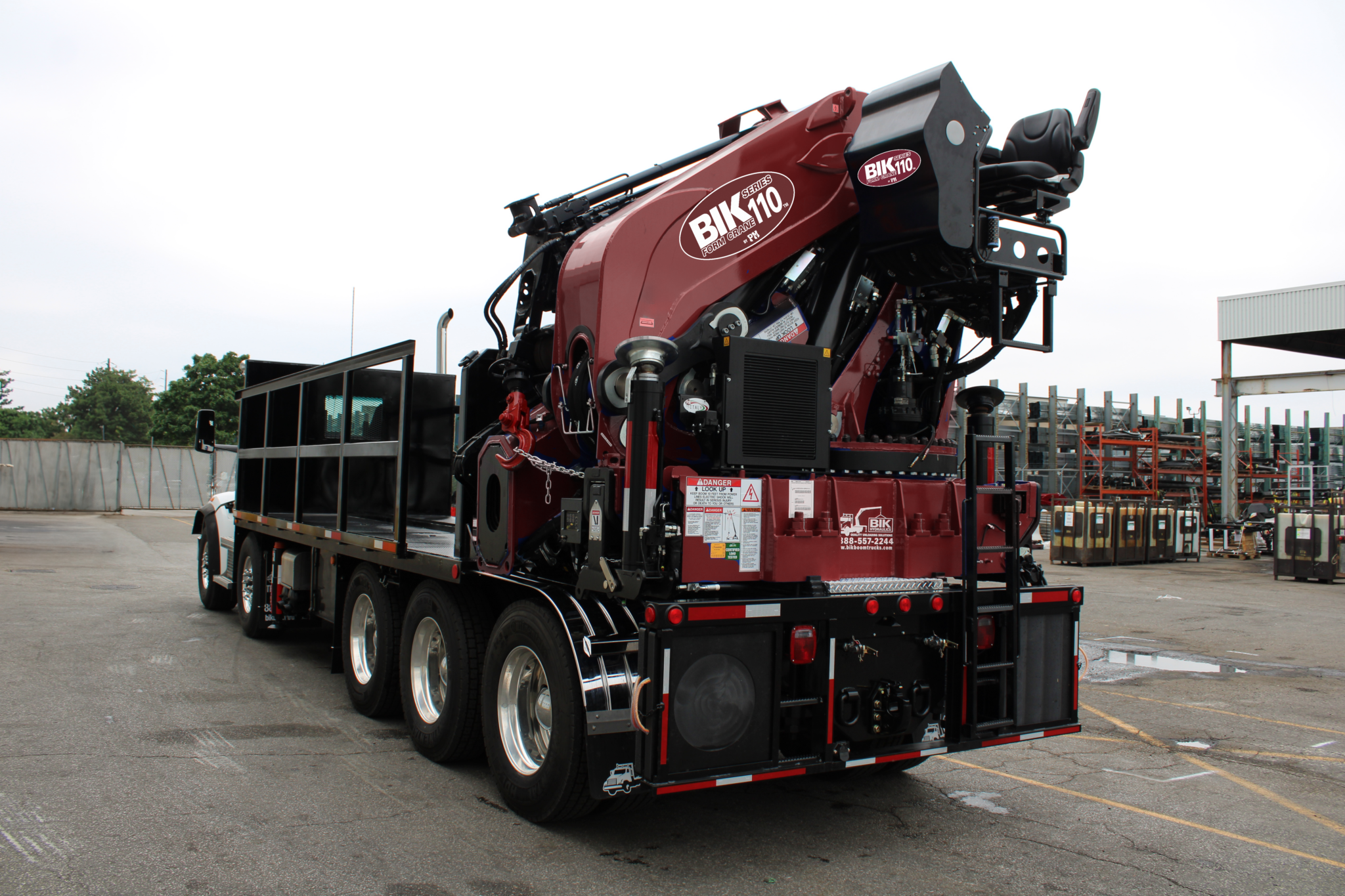

New – BIK Form-Crane Series FC-110 – PM 100028SP + 6-extn Jib Knuckle Boom
- Folding Hyd 8 ext Knuckle Boom with Detachable 6 ext jib
- 110’ Horizontal Reach – Including (w) manual pull-out extension in jib to 122’ horizontal reach (134’ vertical)
- Main Boom Horizontal Capacity:
- 36,800 lb @ 16’
- 20,000 lb @ 23’
- 16,000 lb @ 33’
- 11,000 lb @ 47’
- 7,200 lb @ 67’
- Jib Horizontal Capacity:
- 3,200 lb @ 76’
- 2,600 lb @ 87’
- 2,200 lb @ 100’
- 2,000 lb @ 104’
- 1,600 lb @ 110’
- PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- Double pilot operated on slewing and pilot operated check valves on all cylinders, Extra function plumbed to boom tip w/Hyd rotator & T-hook
- 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability
- Hydraulic Oil Cooler, high pressure return filter and min. 120 –gallon hyd aluminum oil tank with gate valves mounted at front under deck
- 7 – Section DANFOSS Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO Proportional Radio Remote Control
- PM – Power Tronic onboard load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
- Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- Lifting winch on Main boom plumbed to the end of jib with proper load hook & down weights
- Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK
- Installed END OF FRAME, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
Deck Details

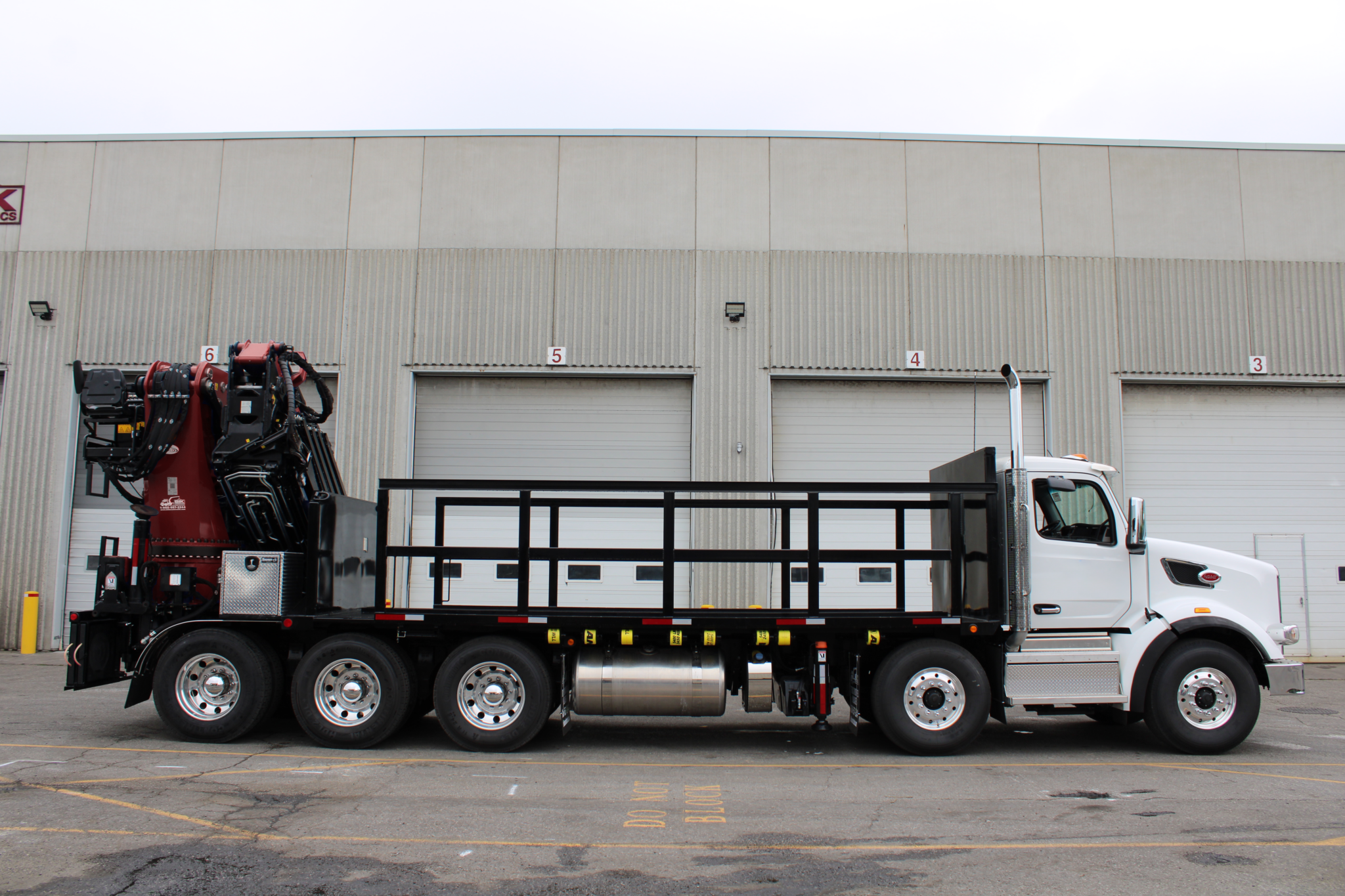

New – Low Profile 22’ 6” x 102” Flat Deck:
- Steel headboard w/ 4 Side Wrap Winches
- Steel Checker plate Floor
- Winch bar and holder
- Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
- X-braces & support
- 2-access Ladders at front
- Removable side rails on both sides
- Reflectors
- Conspicuity tape
- Mud-flaps
- 8-Sliding under deck winch straps
Truck Details

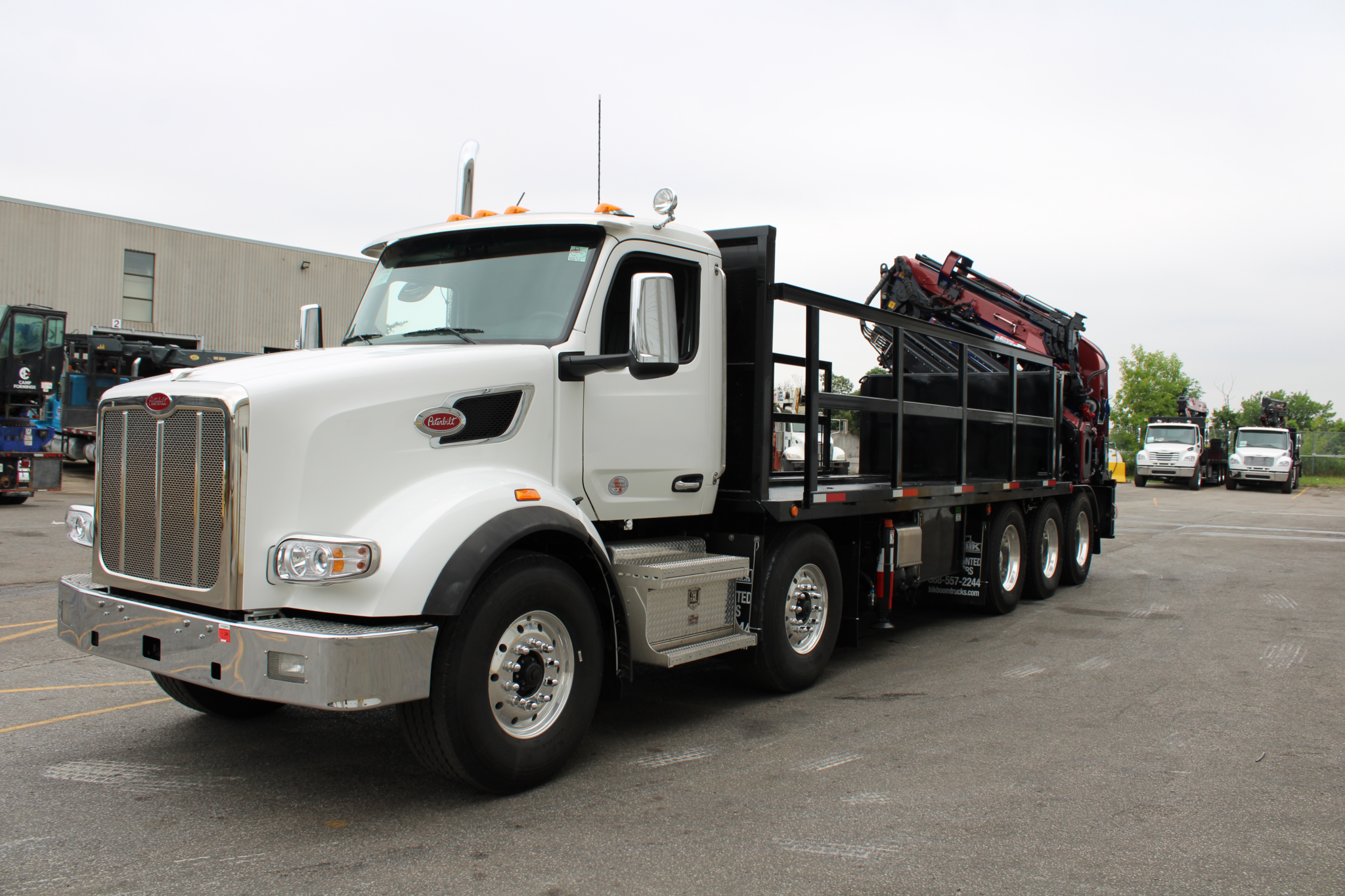

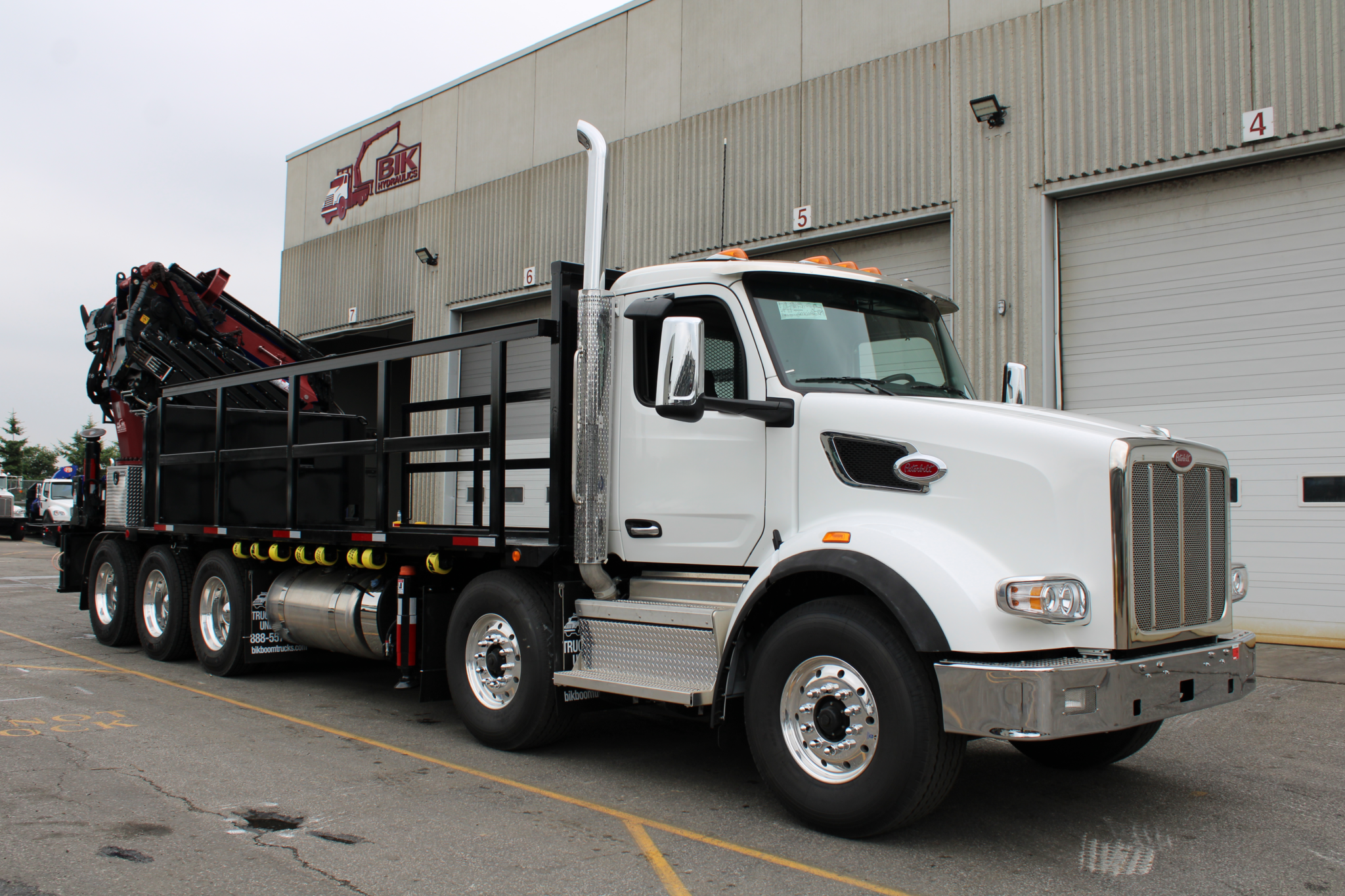

New – 2024 Peterbilt 567 T/A Steer – Tridrive (5 Axles total):
- 109,000 lb GVWR
- Cummins Diesel 15L – 565 hp / 2,050 ft/lb torque
- Engine Brake
- Eaton 18 spd Automated Trans.
- Truck cab white
- (2) x 20,000 LB front steer axles on Air Ride with 425 / 65R22.5 tires
- 69,000 LB Tridrive Rears on Hendrickson Primax Air Ride Susp. With 54” spread between drives
- Double Frame
- Polished ALCOA Aluminum Wheels front and outer rear
- Polished dual Vertical Exhaust pipes
- Chrome Grille & Bumper
- 80 gallon alum fuel tank

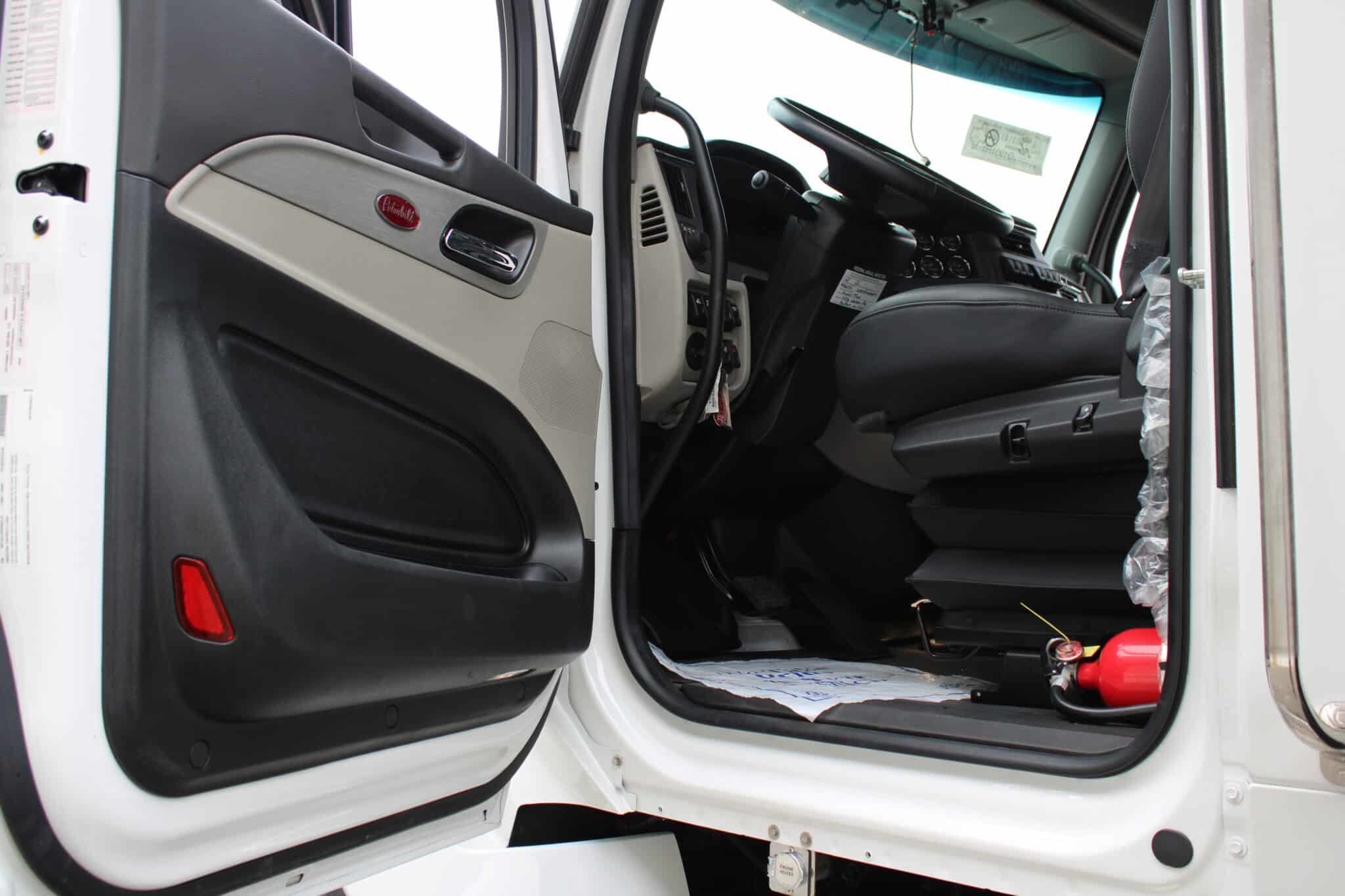

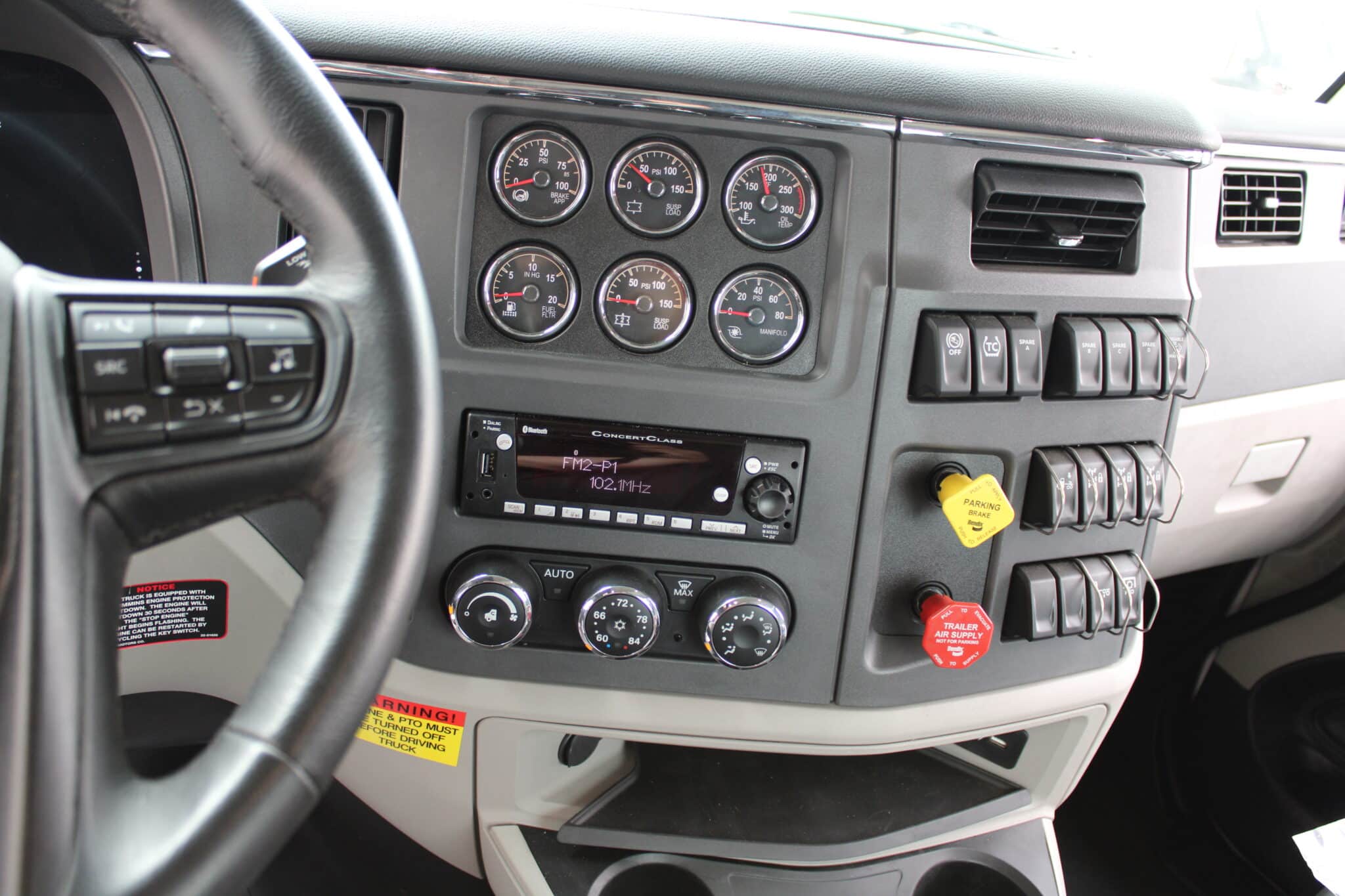

- Loaded with Options Including: A/C, Tilt/Telescopic steering, high level Interior, AM/FM stereo Bluetooth, air driver’s seat, fixed passenger seat, cruise, htd mirrors, exterior S/S sun visor, 6 wheel lock-ups, power windows/locks, Air ride cab, dual roof mounted strobe lights, trailer air tow package, etc…
Included Are:
- Auxiliary Extra-Wide hydraulic outriggers 25’ spread front mounted for 360 degree stability
- 1” Drawplate Plate at rear of truck frame
- (1) – Aluminum locking checker plate toolbox installed
- (4) Aluminum stabilizer pads – with holders (4 pcs).
