NEW BIK HEAVY LIFT SERIES HL 58T

NEW BIK HEAVY LIFT SERIES HL 58T

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

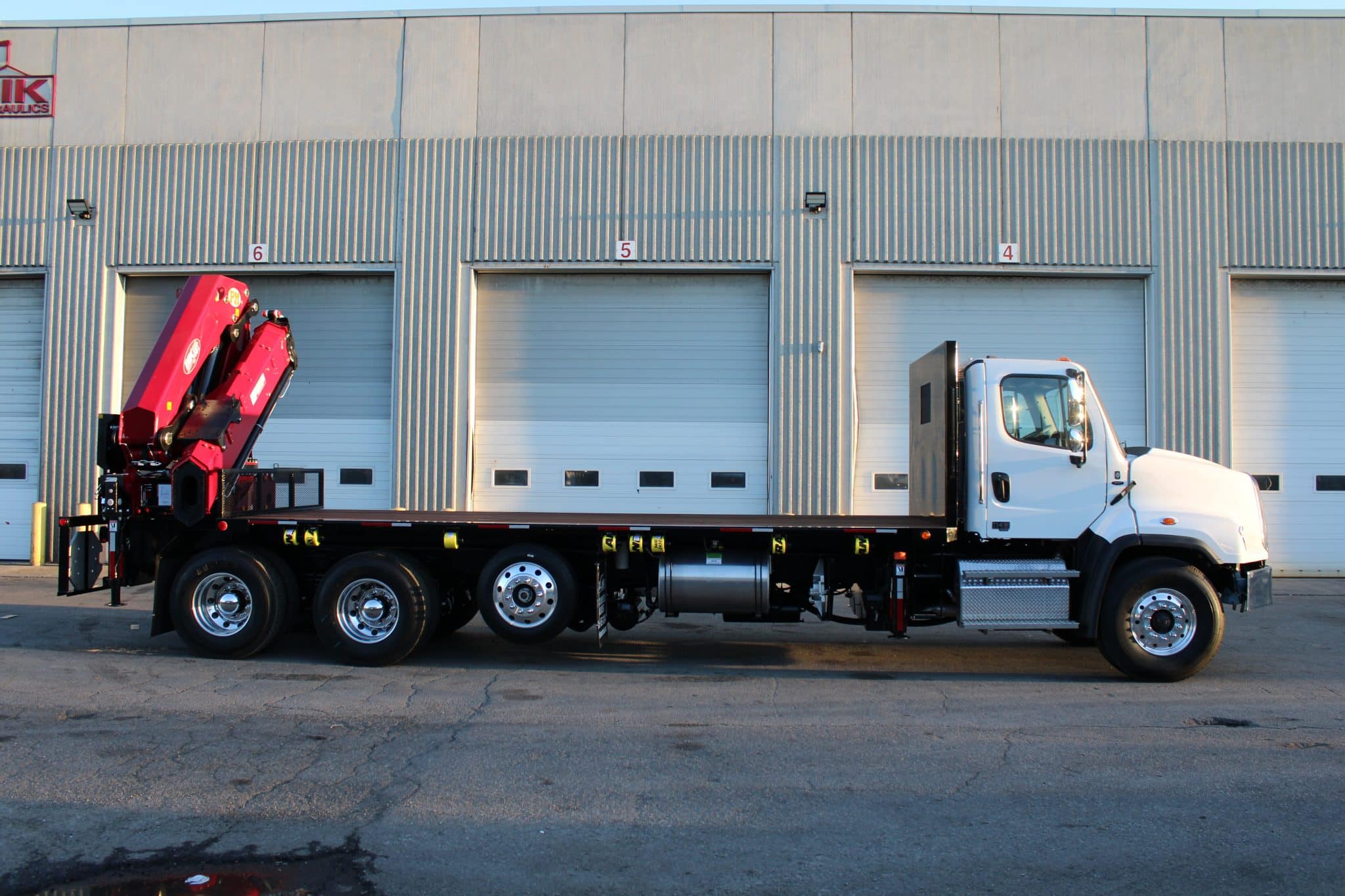

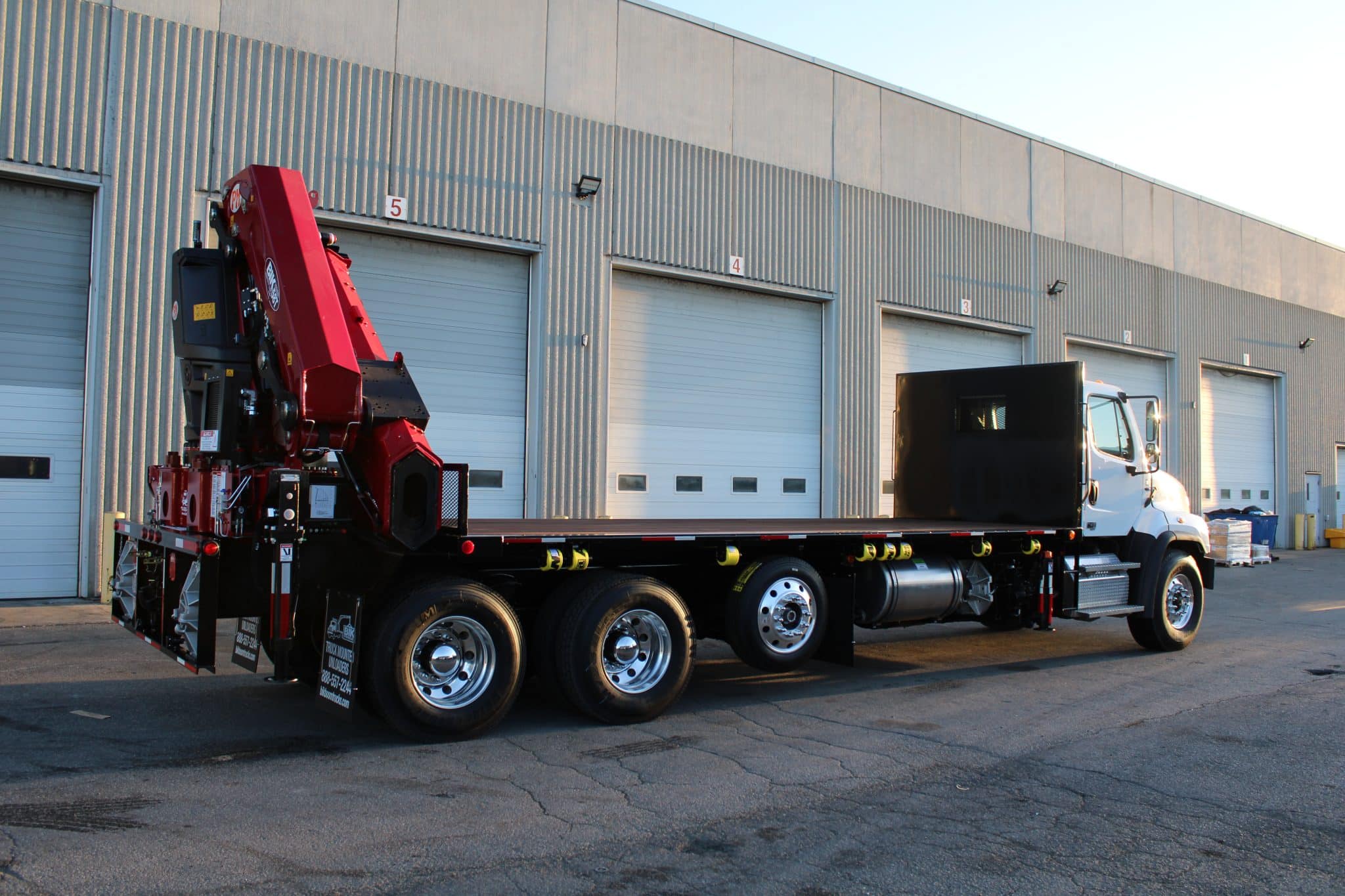

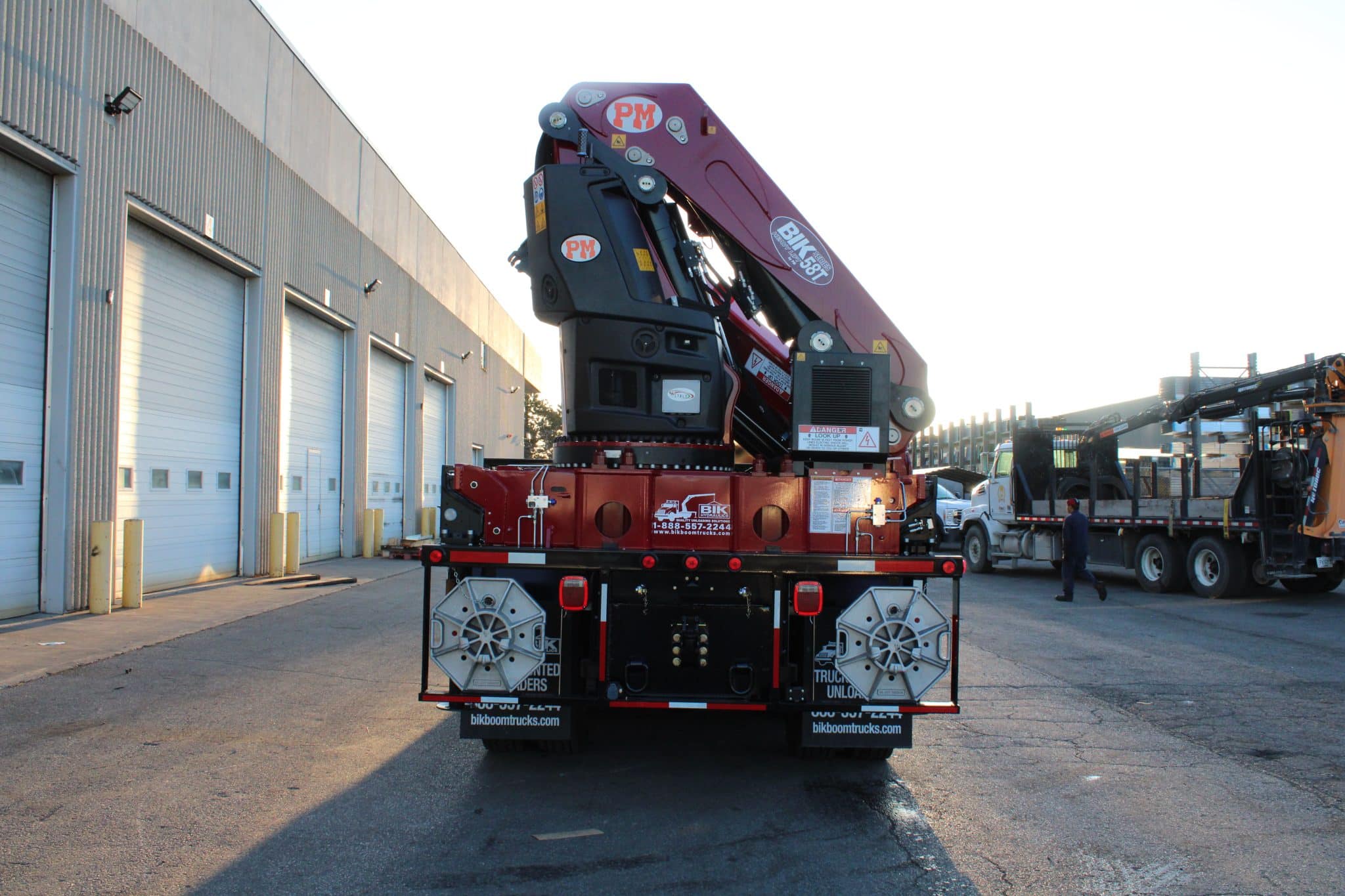

New – BIK “Heavy Lift” Series HL 58T

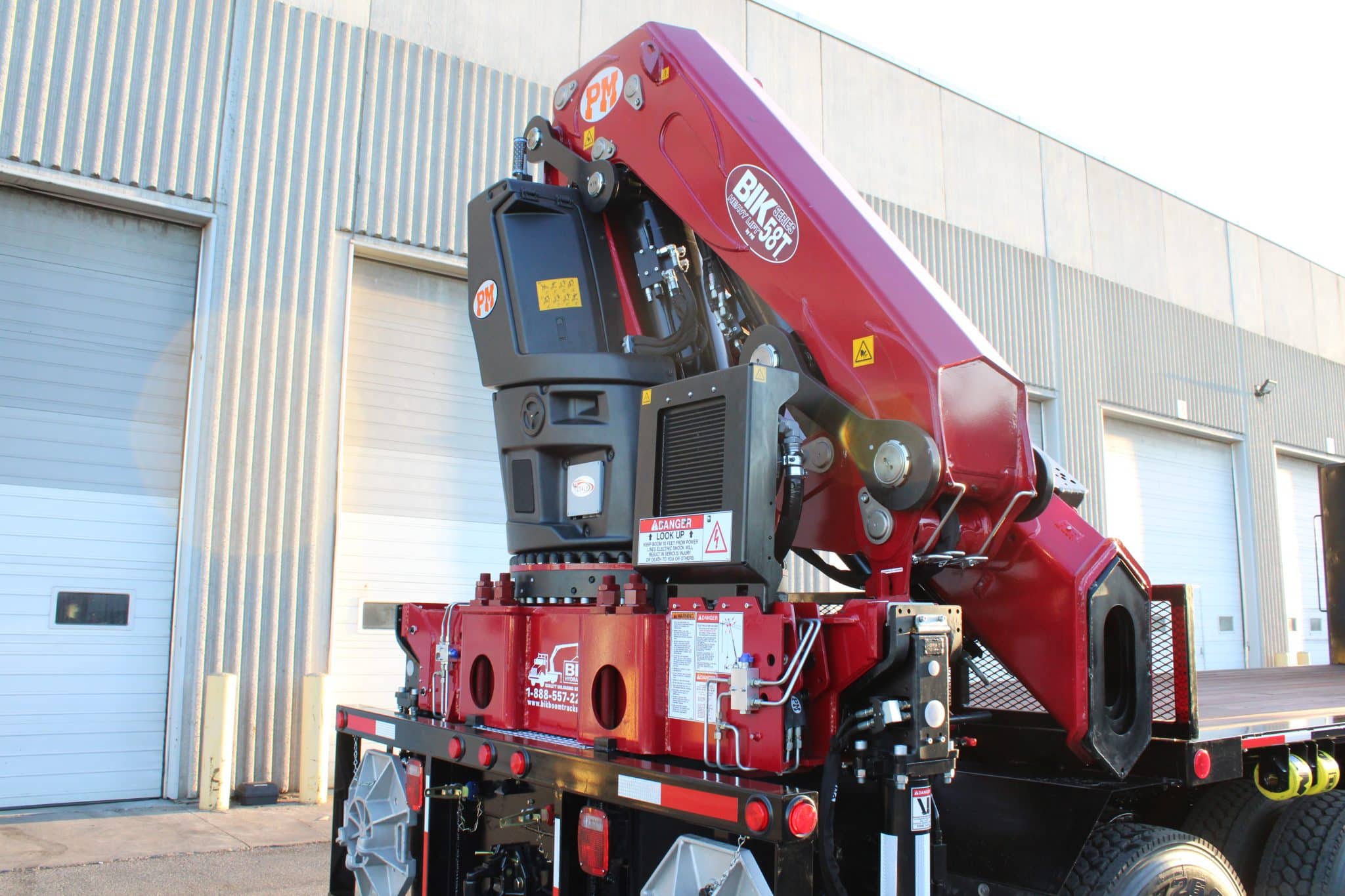

  • PM 58 ton/m – Folding Hydraulic Knuckle Boom – 3 hyd extensions to 32’ Horizontal reach
    • Horizontal Capacity
      • 28,200 lbs @ 14′
      • 20,000 lbs @ 20′
      • 15,200 lbs @25′
      • 12,100 lbs @ 32′
  • 3-Independent Extensions, PM connecting rods at First Boom and Knuckle, Continuous Rotation and Dual Planetary Gear Rotation
  • Double pilot operated on slewing and pilot operated check valves on all cylinders
  • Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
  • Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
  • DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
  • Simplified Hydraulic Overload System allowing maximized uptime crane and easy maintenance
  • Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
  • Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
  • Load Tested & Installed at end of frame, with integral sub-frame to meet or exceed all CMVSS Standards

Deck Details

New – 21.5′ Long x 102″ Hardwood Deck

  • Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom
  • Hardwood Deck surface
  • 66” Headboard
  • Reverse Rail sliding track on passenger side
  • 8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black.

Truck Details

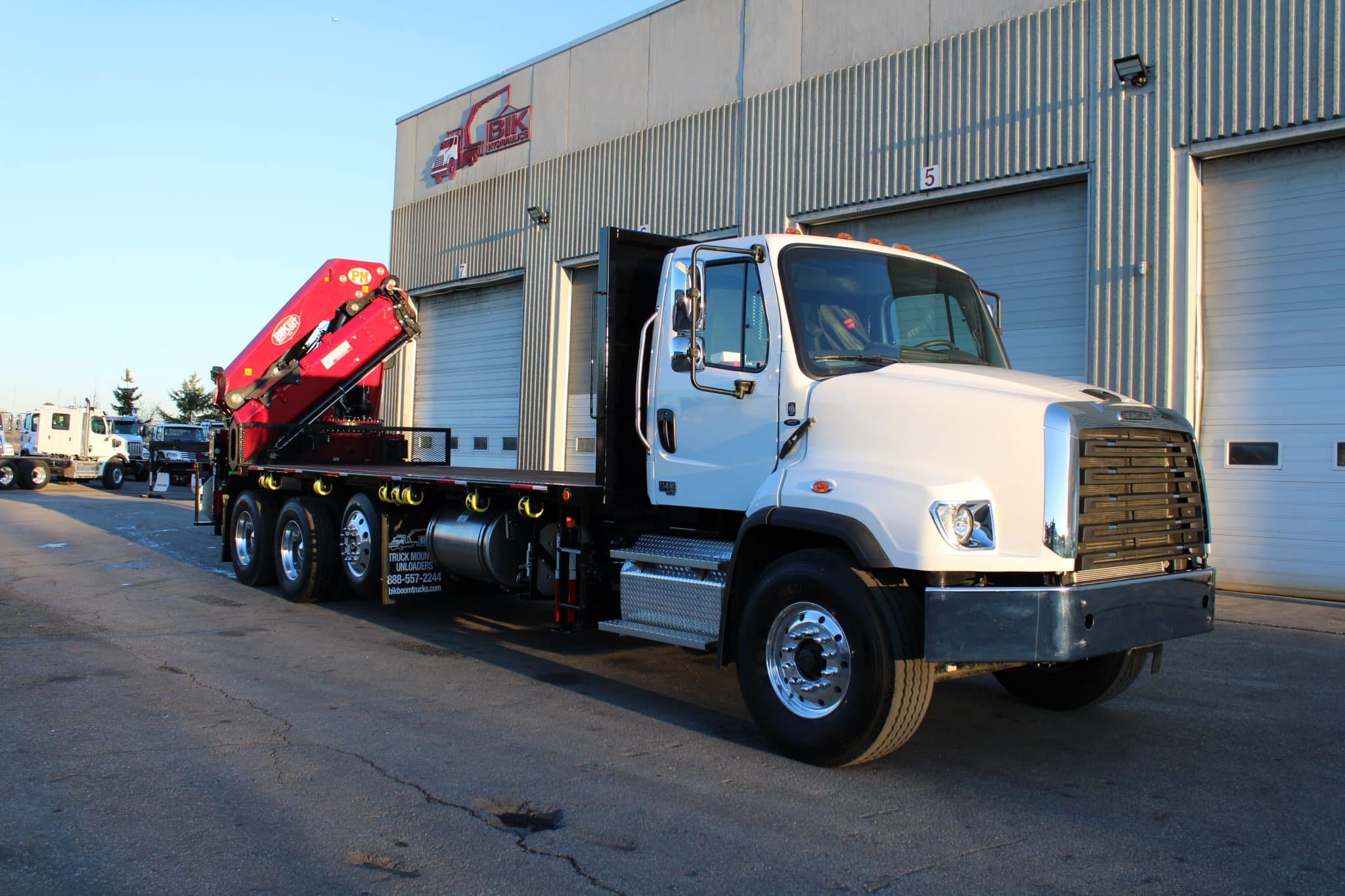

New – 2024 Freightliner 114SD 4- Axle Diesel Truck

  • 70,000 lb GVWR
  • Truck Cab White Colour
  • Diesel 470 hp, Automated  trans
  • 20,000lb fronts with 425/65R22.5 Front Floatation tires on  Alum rims
  • 46,000lb Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims
  • Double frame chassis, 54” spread at tandems

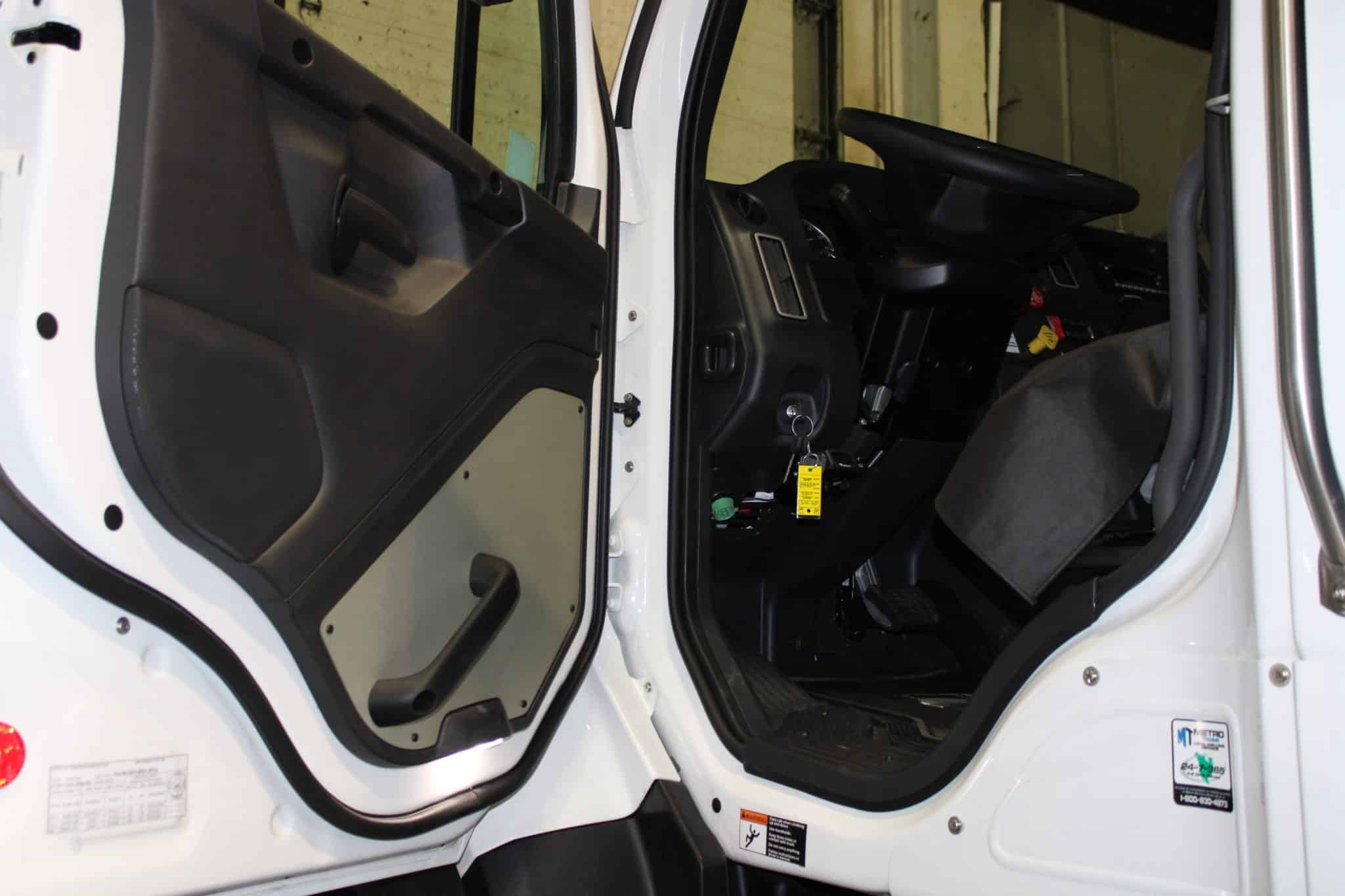

  • Truck  Features Include: Two Stage Engine Brake, Air Cond., AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc.

Also Included:

  • (2) pcs – PVC stabilizer pads with holders at rear
  • Program radio remote control for engine stop/start and truck shut off
  • (1) pc – 48” aluminum Storage Boxes installed
  • 36” aluminum storage box installed

Options at Extra Cost:

  • 1” drawplate installed at rear with heavy duty pintle hook and trailer hook ups
  • Front Auxilary Stabilizers – Hyd out & Down Type – 21’ Span, Install under frame back of cab
  • Kenworth T-880 instead of Freightliner add

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
