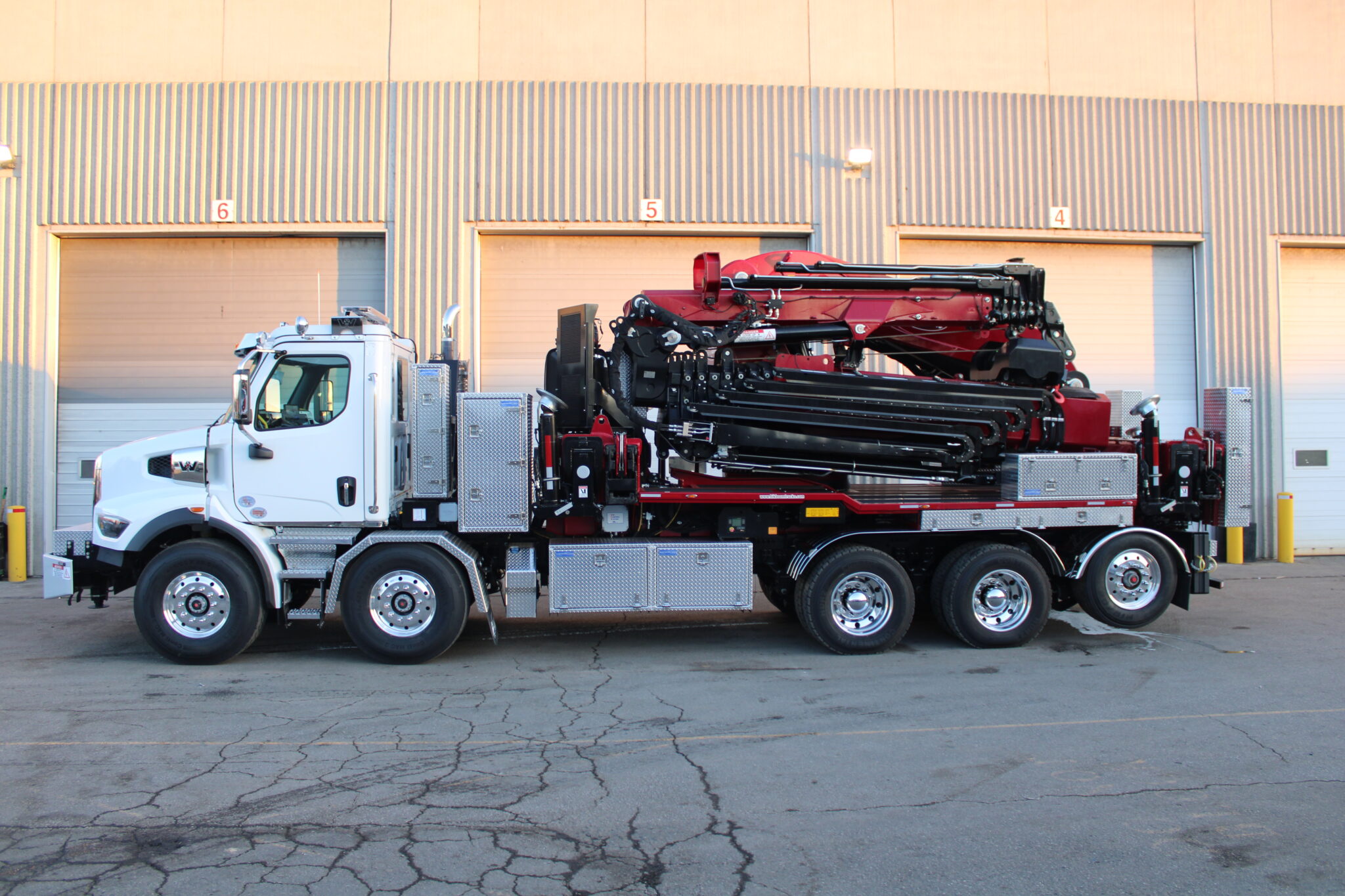

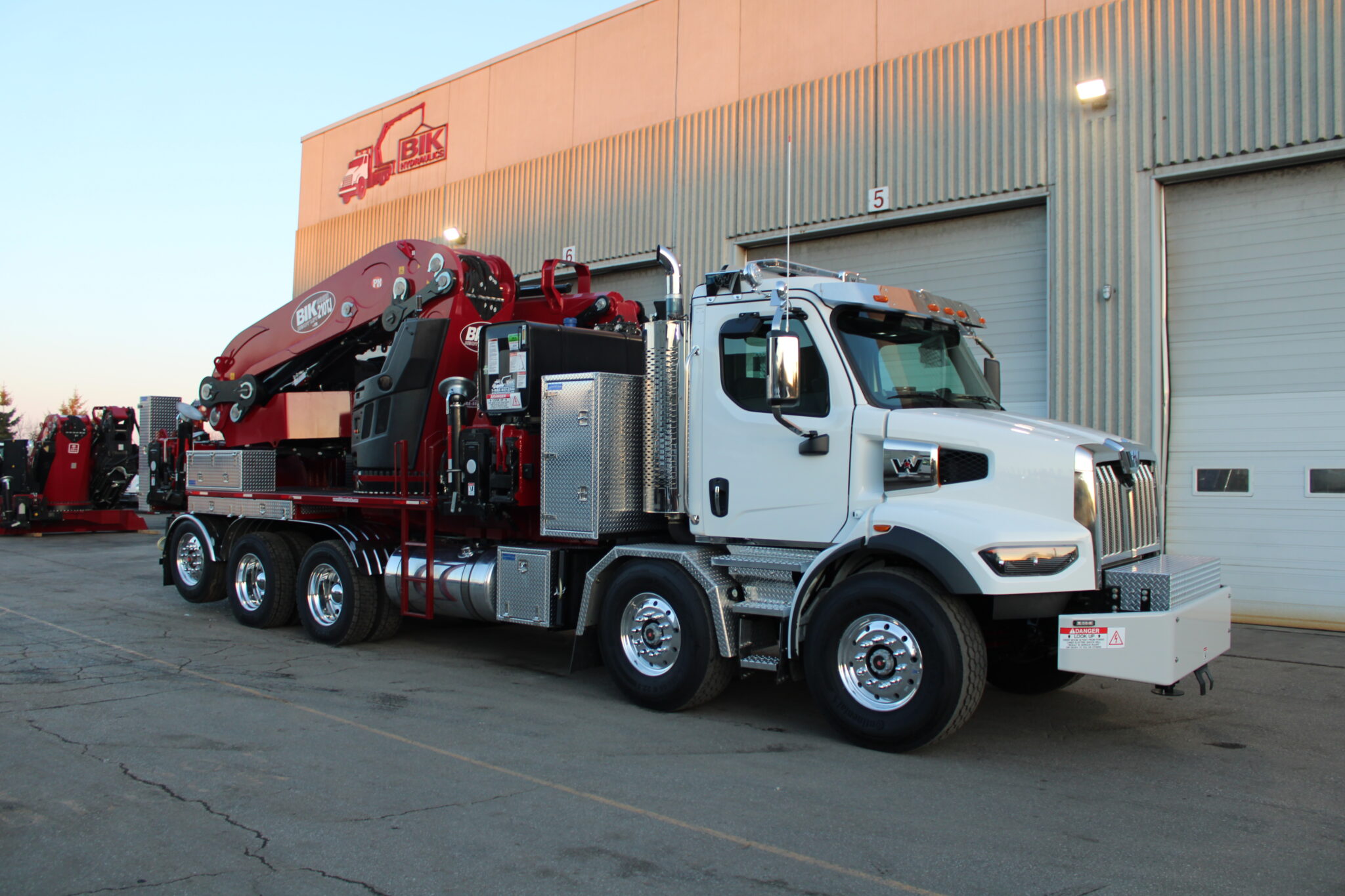

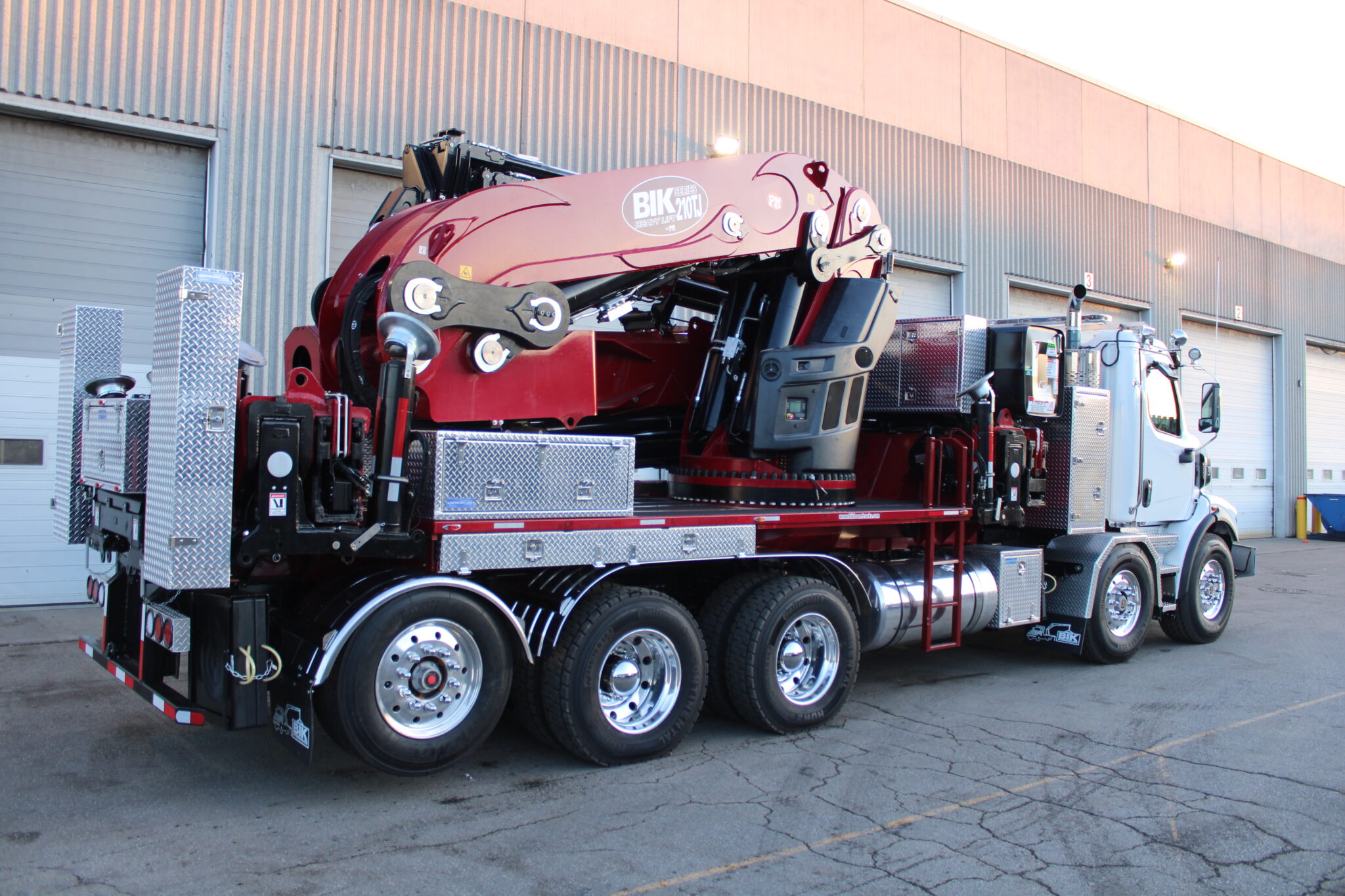

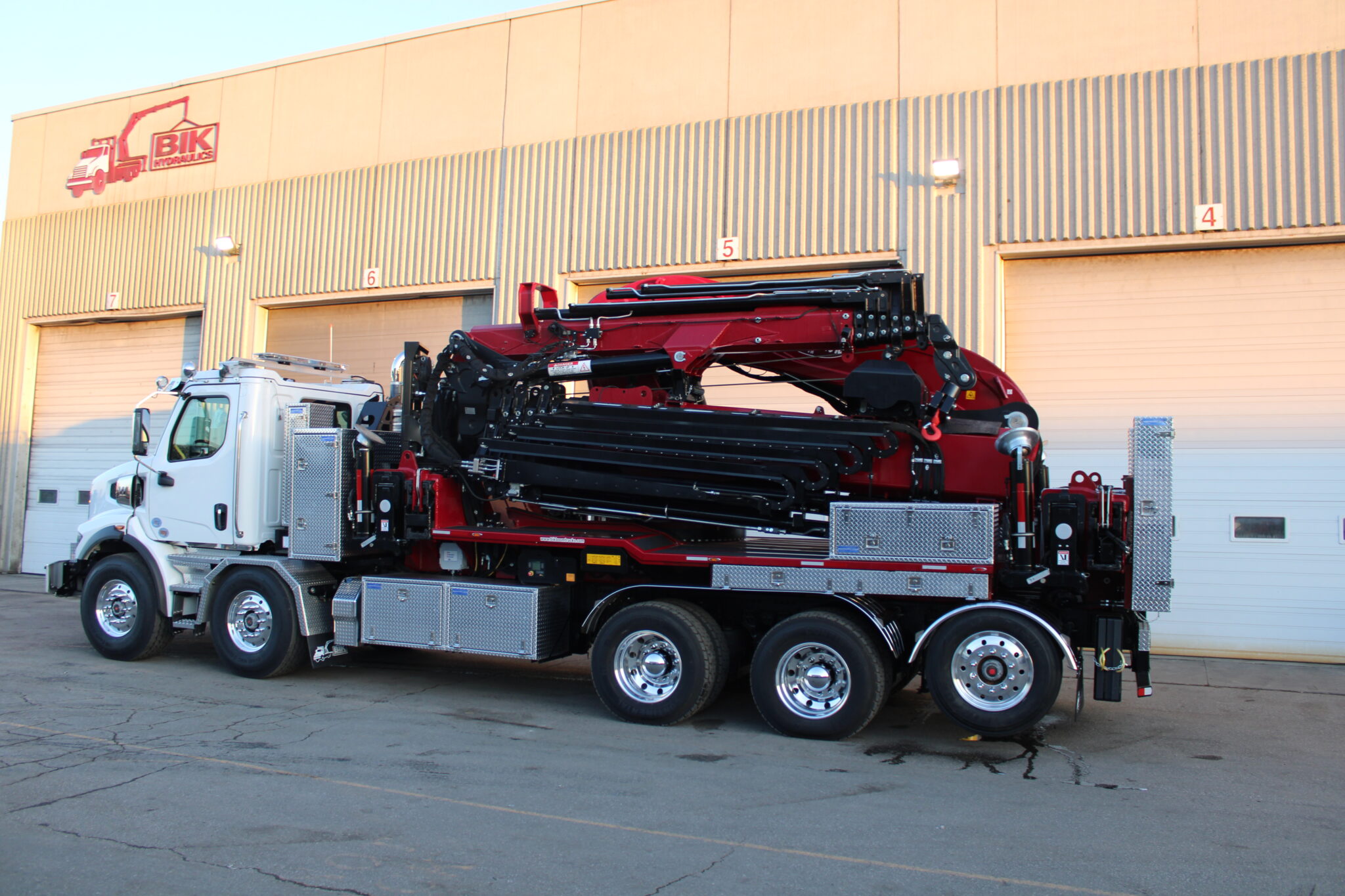

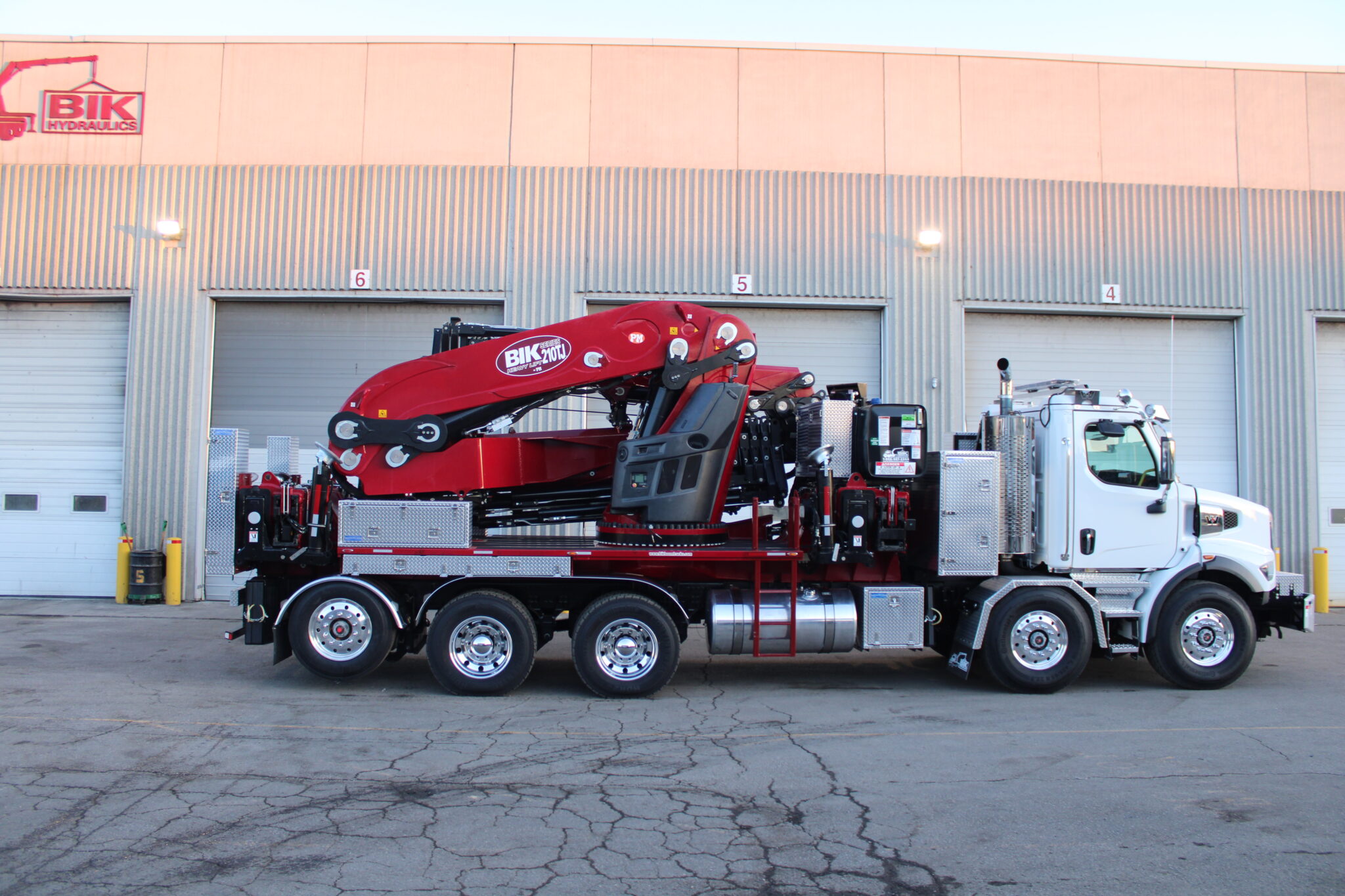

NEW BIK HEAVY LIFT SERIES HL-210TJ ON WESTERN STAR 47X T/A STEER 5-AXLE
 |
NEW BIK HEAVY LIFT SERIES HL-210TJ ON WESTERN STAR 47X 5-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

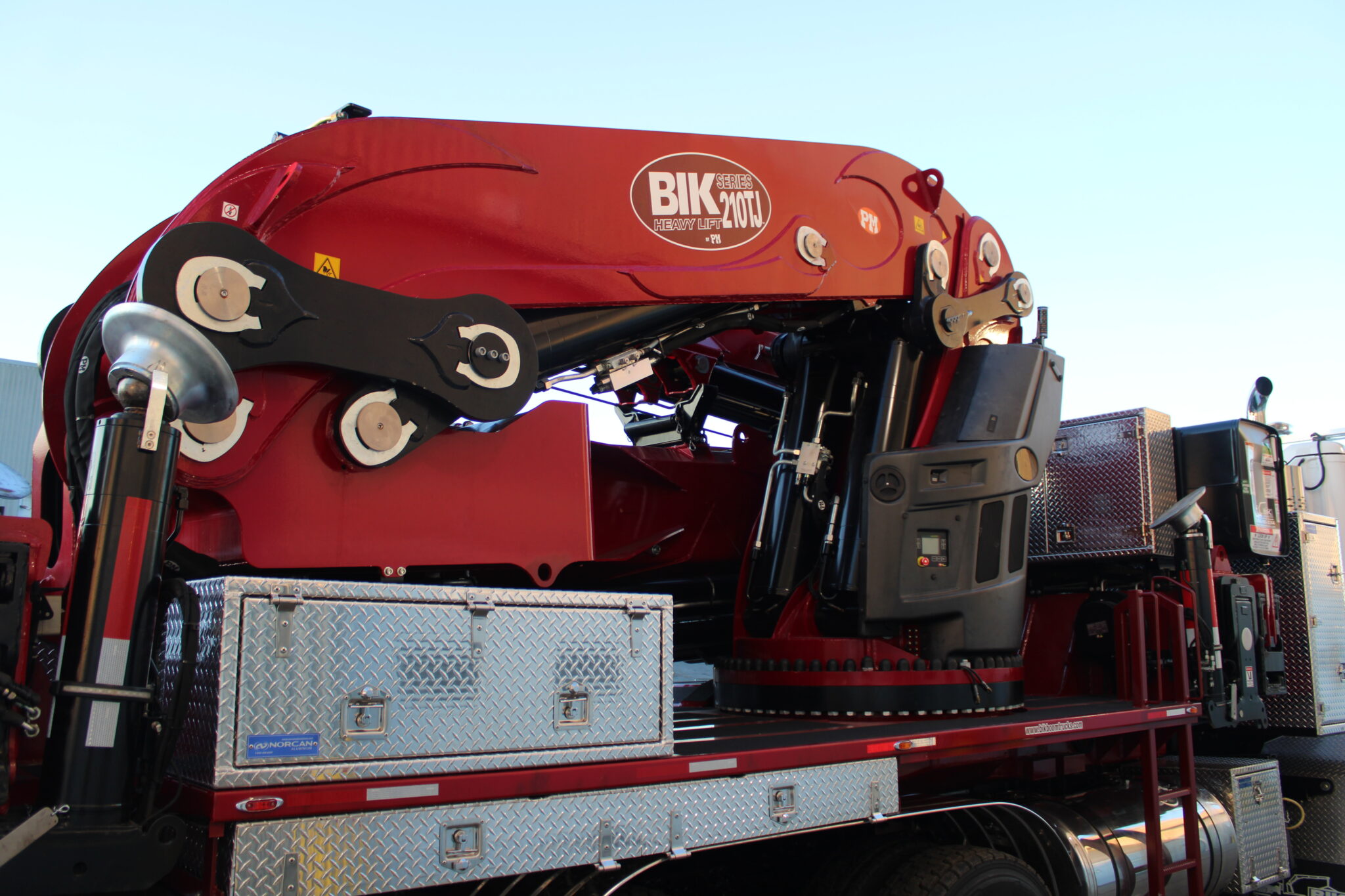

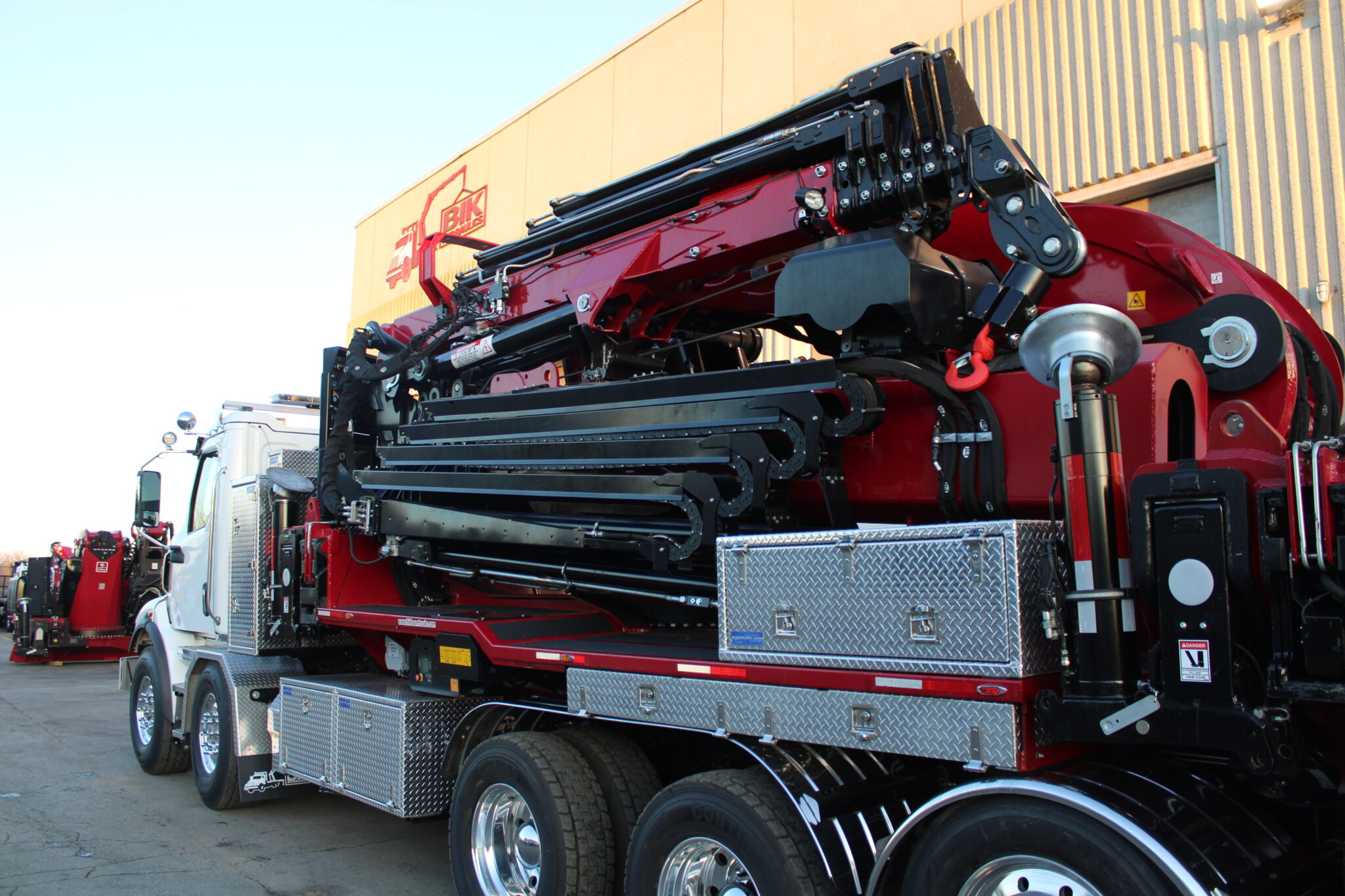

New – BIK Heavy-Lift Series HL 210TJ PM 210 ton/m – Hydraulic Knuckle Boom with Jib fold on top of deck

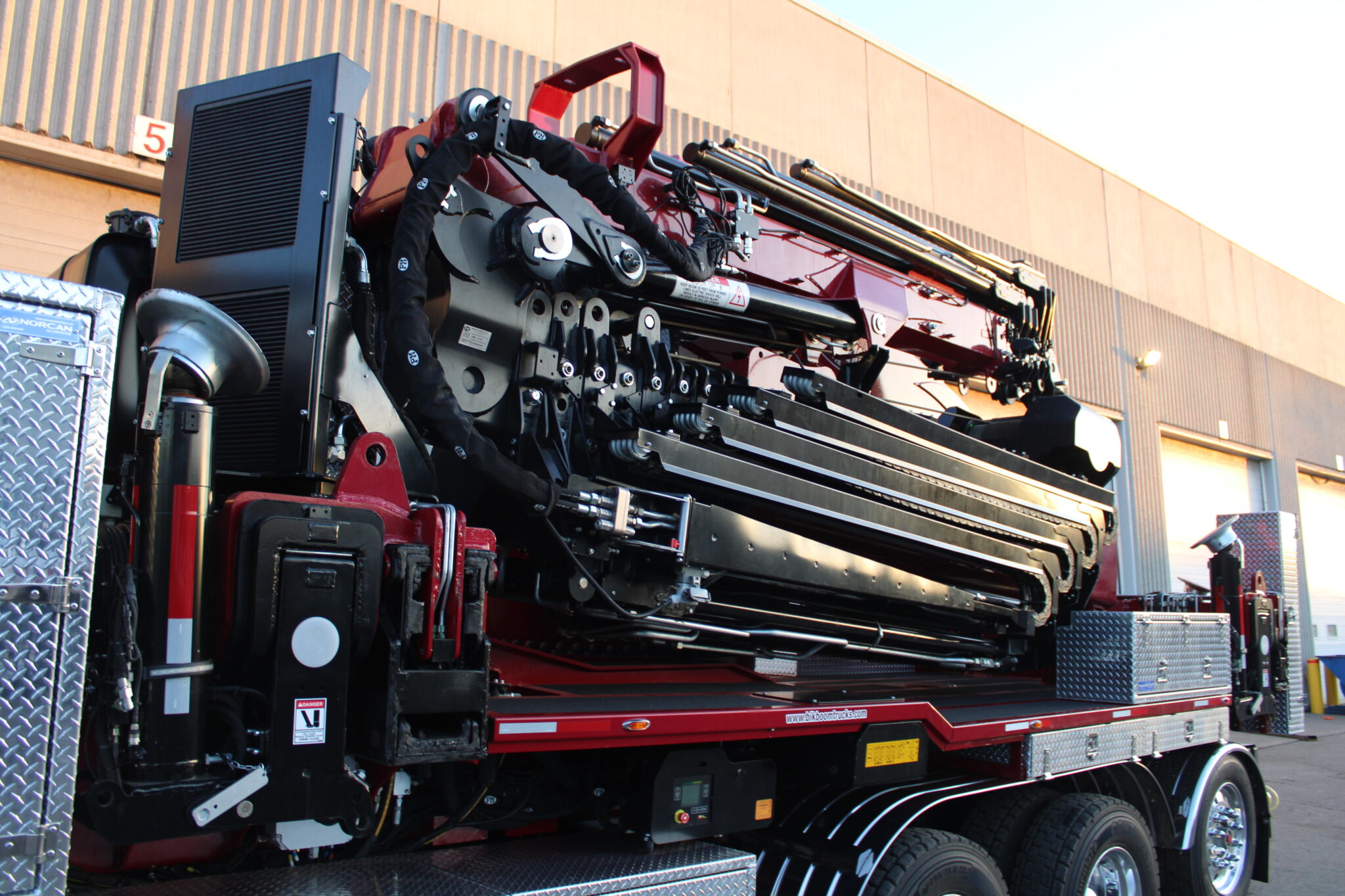

- 8 hyd extensions in main and 6 in jib booms to 148’ horizontal – 160’ hyd vertical reach – 174’ vertical reach with 2-extra manual extensions
- Continuous Rotation and Dual Planetary Gear Rotation, Double pilot-operated on slewing and pilot-operated check valves on all cylinders
- Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
- Dual Main lift and dual knuckle lift cylinders – 86 degree vertical angle – in close tight radius at full vertical reach
- 7 – Stabilizers – Hydraulic Extra Wide Main outriggers at pedestal, triple beam – 40’ span – hydraulic tilting when retracted
- Auxiliary 34’ spread stabilizers at rear drives, 2-hyd out & down rearward & 1-at front bumper, 6,000 lb counter weight at rear of truck frame
- 100% stability with full load chart in all zones when stabilizers are fully deployed
- 2-Functions Plumbed to end of Jib (for possible accessory use, ie: Grapple, Wallboard Forks, Hyd Rotator, etc..)
- Dual Hydraulic Oil Cooler, high-pressure return filter and min. 92-gallon oil tank for boom
- 4-ton single-part line lifting winch plumbed to the end of the jib (custom jib stowe brackets on top of the bed wing to be established)
- DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System, allowing constant crane monitoring & visual display
- Scanreco Radio Remote Control includes: 2 batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
- Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
Truck Details

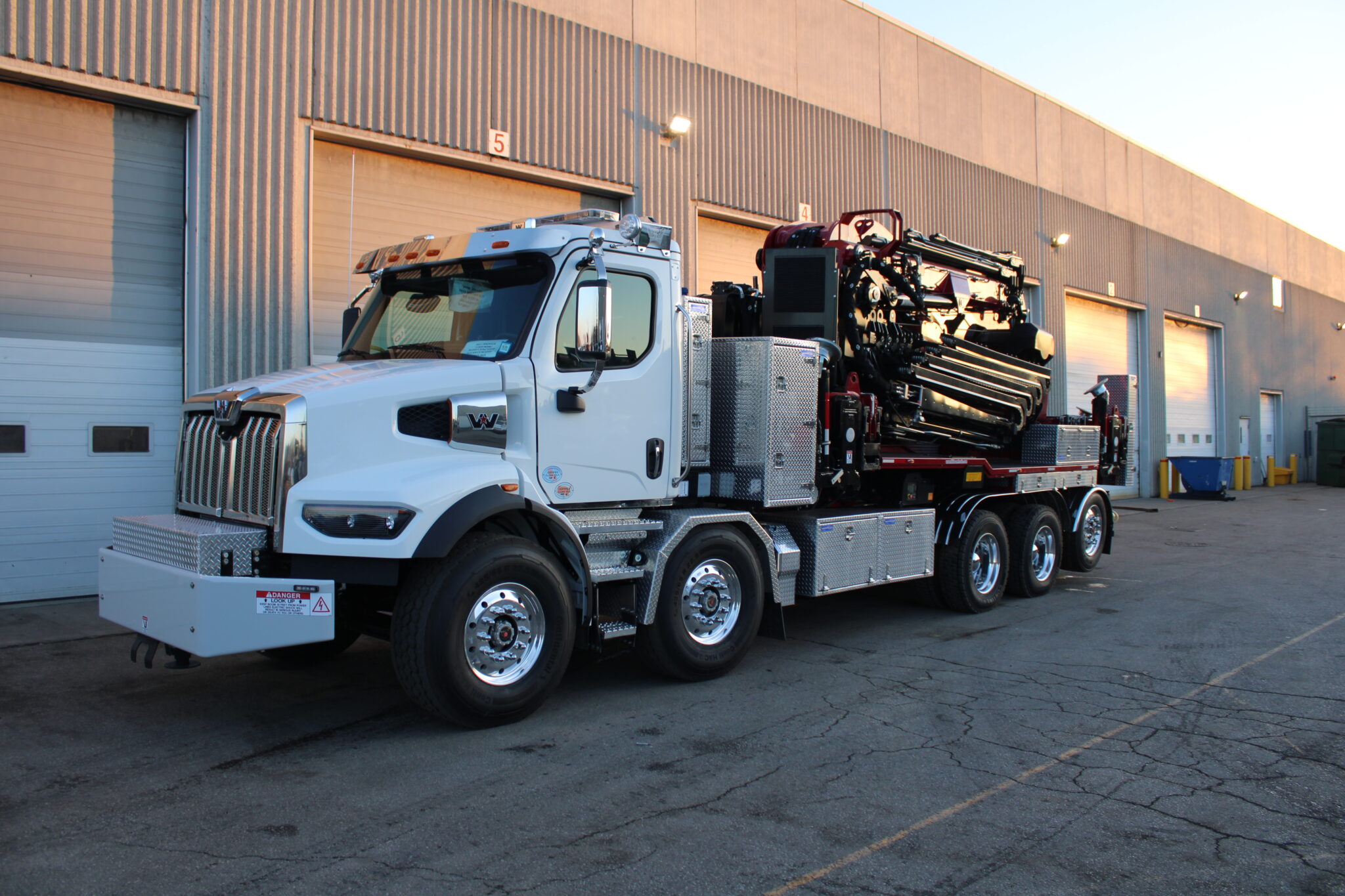

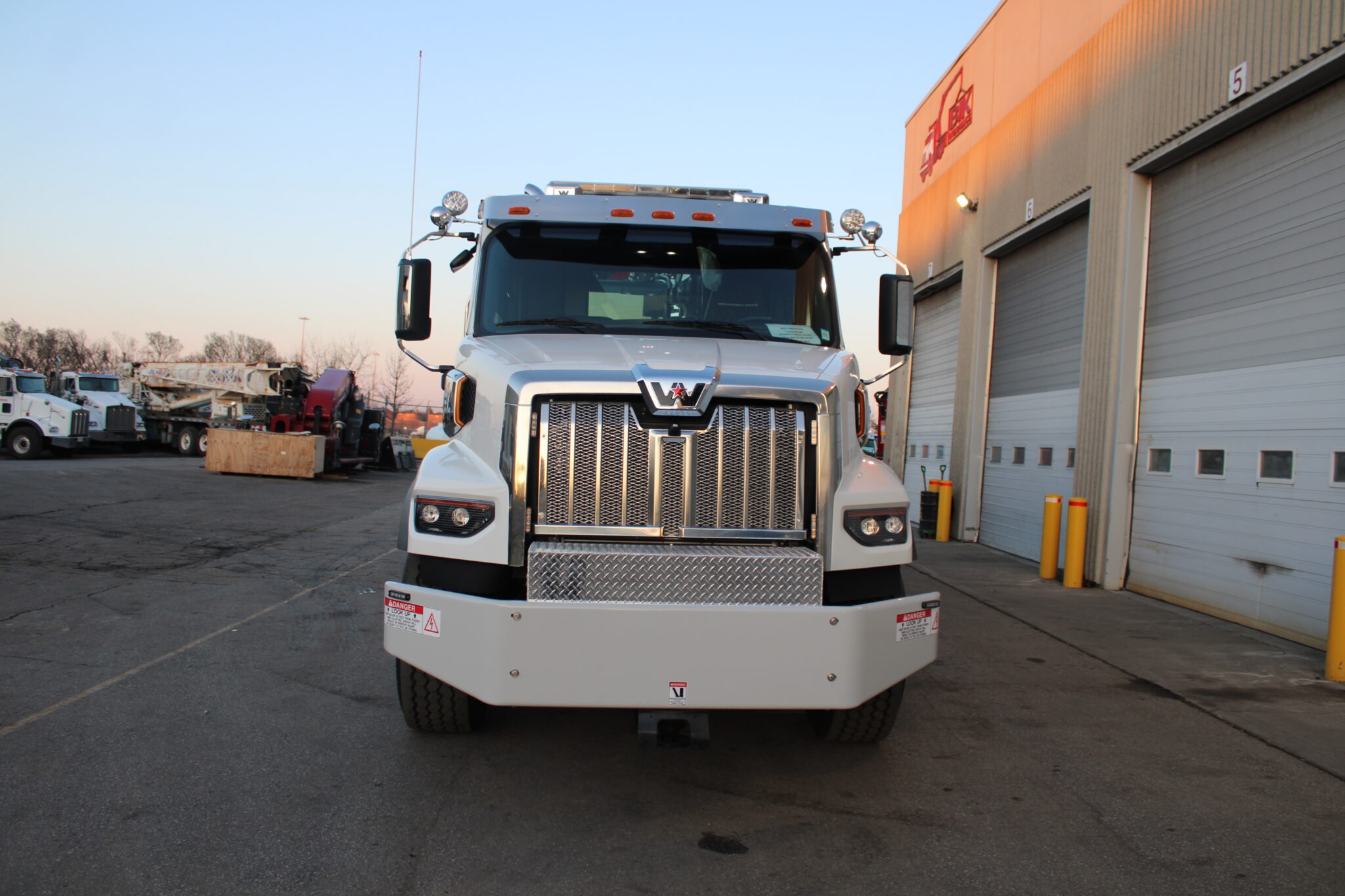

New – Western Star 47X Sloped Short Nose T/A Steer-T/A Rear with Tag axle– 5 Axle: 12L Cummins Diesel – 112,000 lb GVWR 500 hp with Jake,
- Eaton 18spd standard shift trans.
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires
- 52,000 LB Rears on air ride Susp., 20,000 lb self steer tag axle behind t/a’s
- Double Frame
- Polished ALCOA Aluminum Wheels front and outer rear
- Dual Chrome single polished Exhaust, Chrome Grille & Bumper, dual 80-gallon aluminum fuel tank

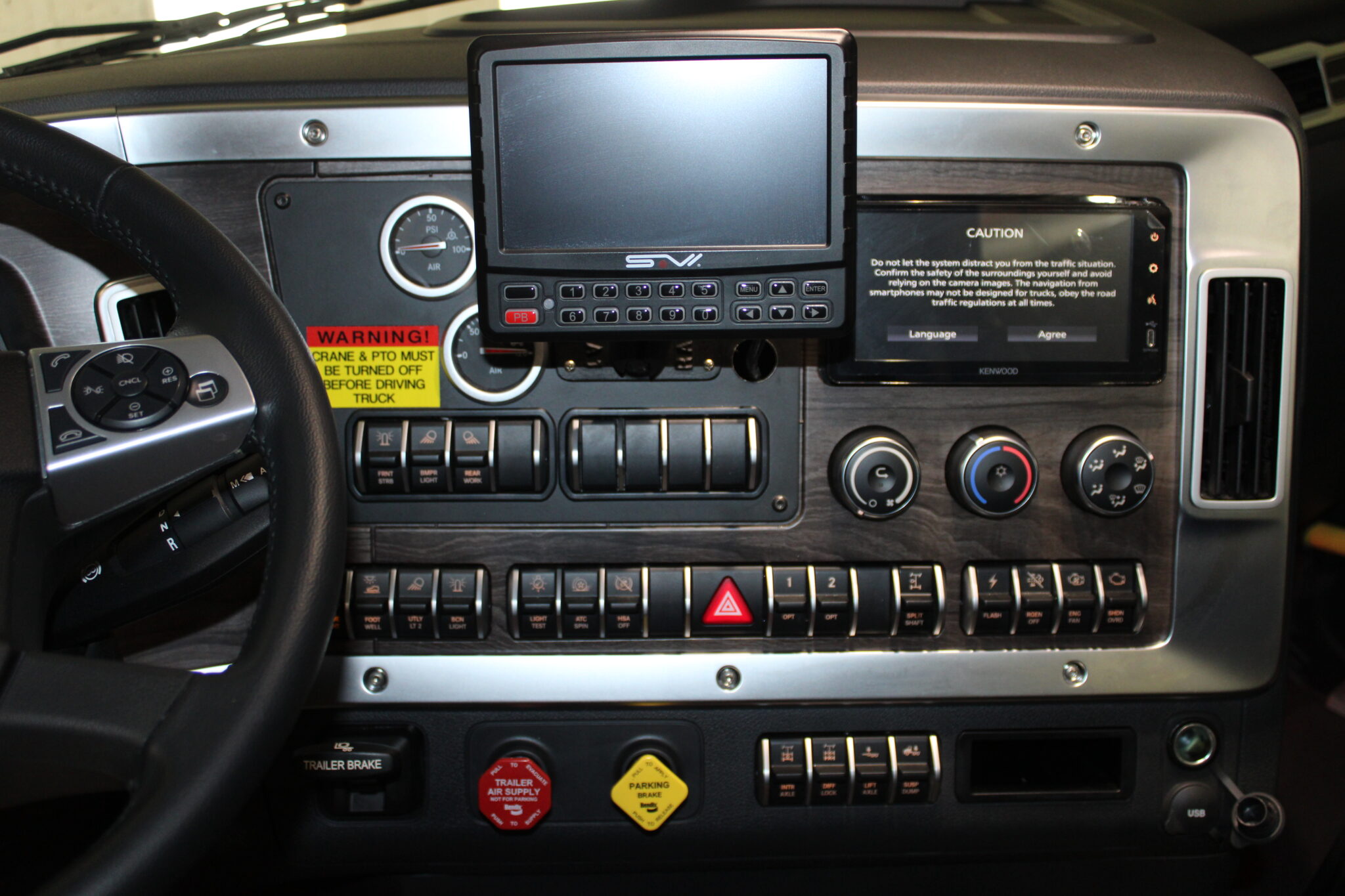

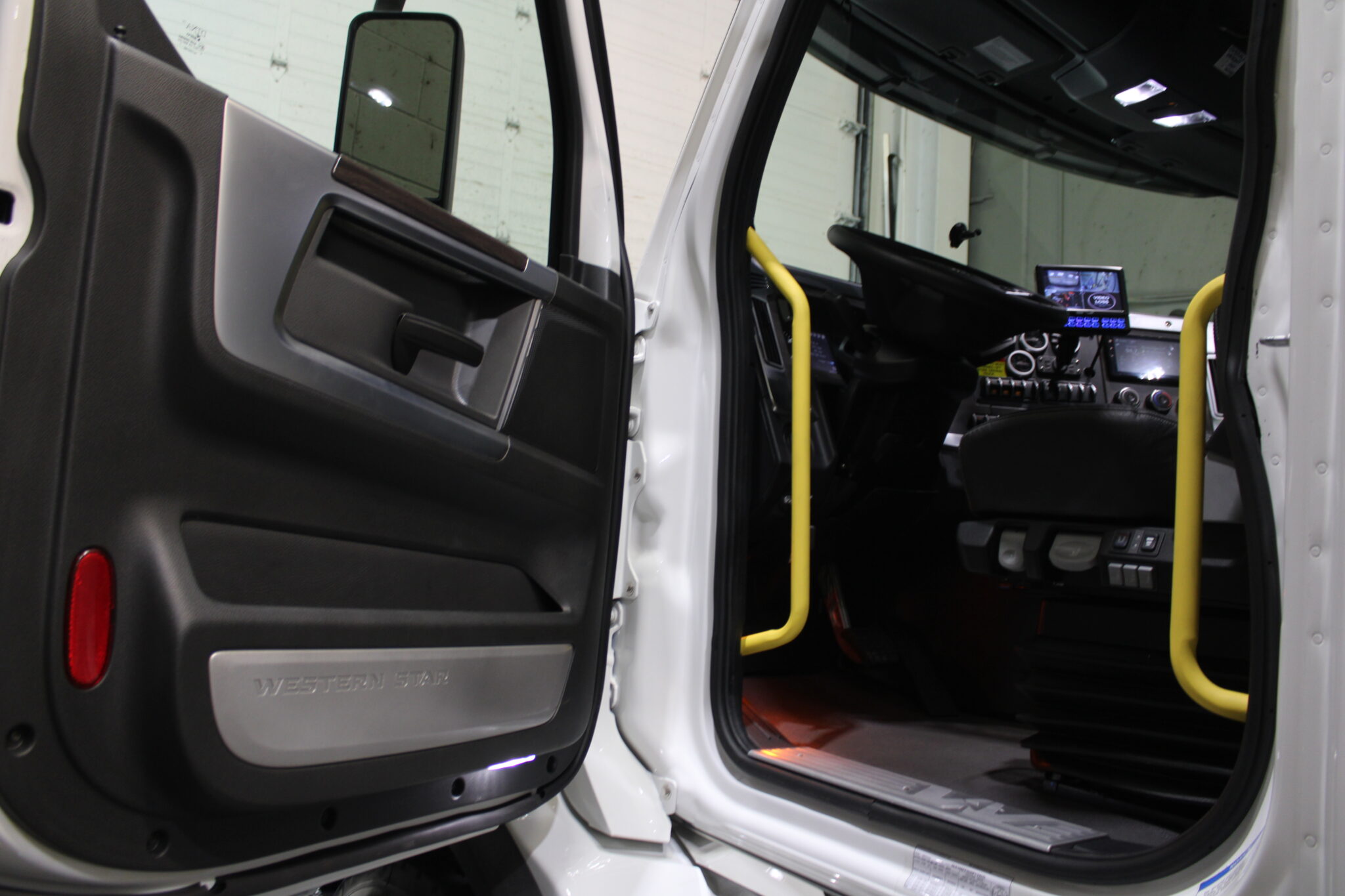

- Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, front steel bumper with fog lights and open top storage box behind bumper both sides, 4 wheel lock-ups, power window both sides, power mirrors & door locks, Air ride cab, full differential locks, trailer air tow package, truck cab white color, Dot bumper, counter weight at rear within truck frame, custom roof/front/bumper and rear bymper strobes, etc…
Also Included:
- (8) pcs – 2” PVC stab pads w/holders
- (5) pcs Alum storage box installed
ADDITIONAL OPTIONS at Extra Cost:
- (1) Aluminum single-man self-levelling basket
- Drawplate at rear with Reese type receiver, backup D-rings and electric brake actuator
- 4-ton Hydraulic Hook Rotator at end of jib (for hydraulically rotating reg load hook to eliminate the use of load guide straps)….
