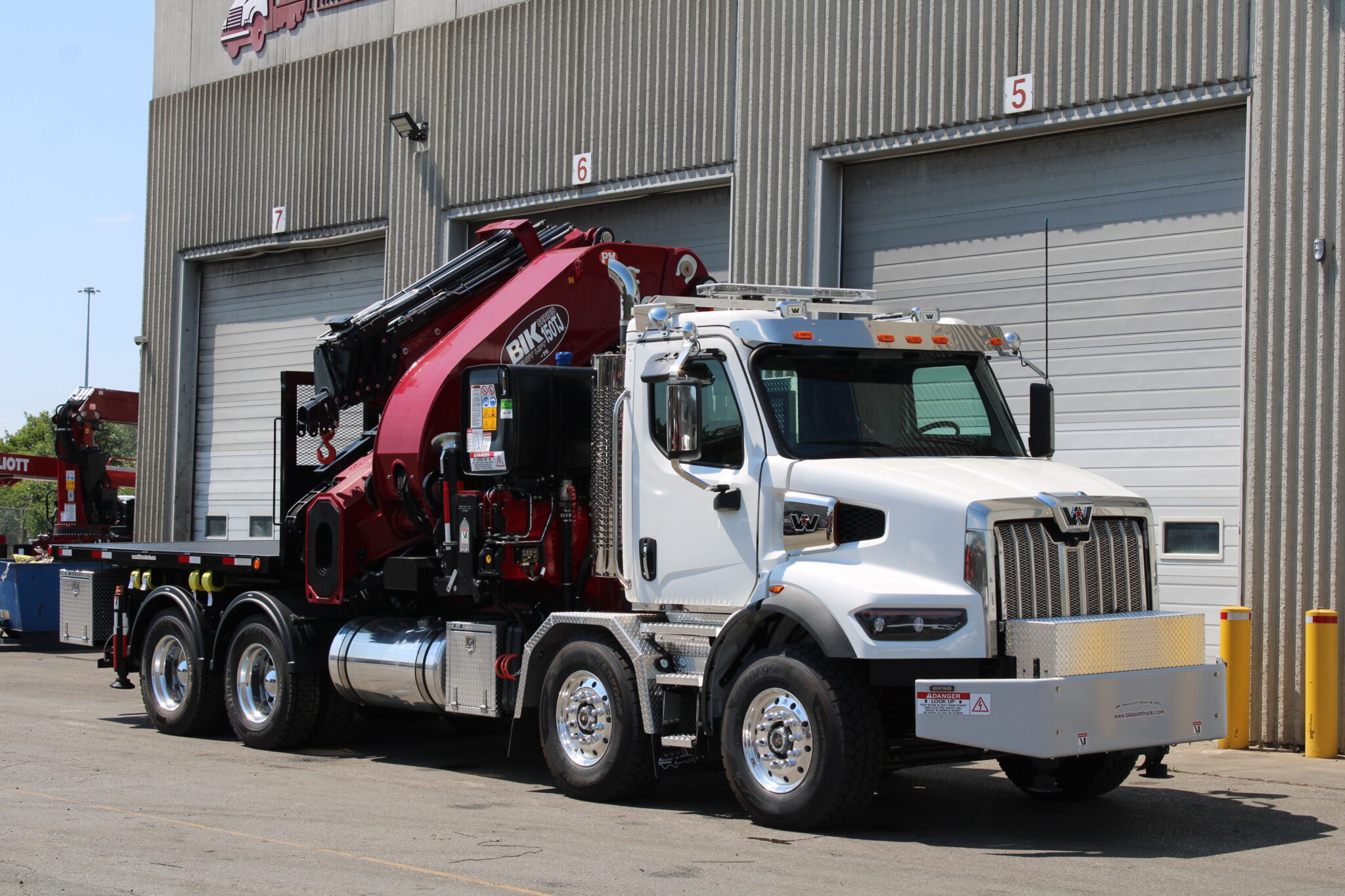

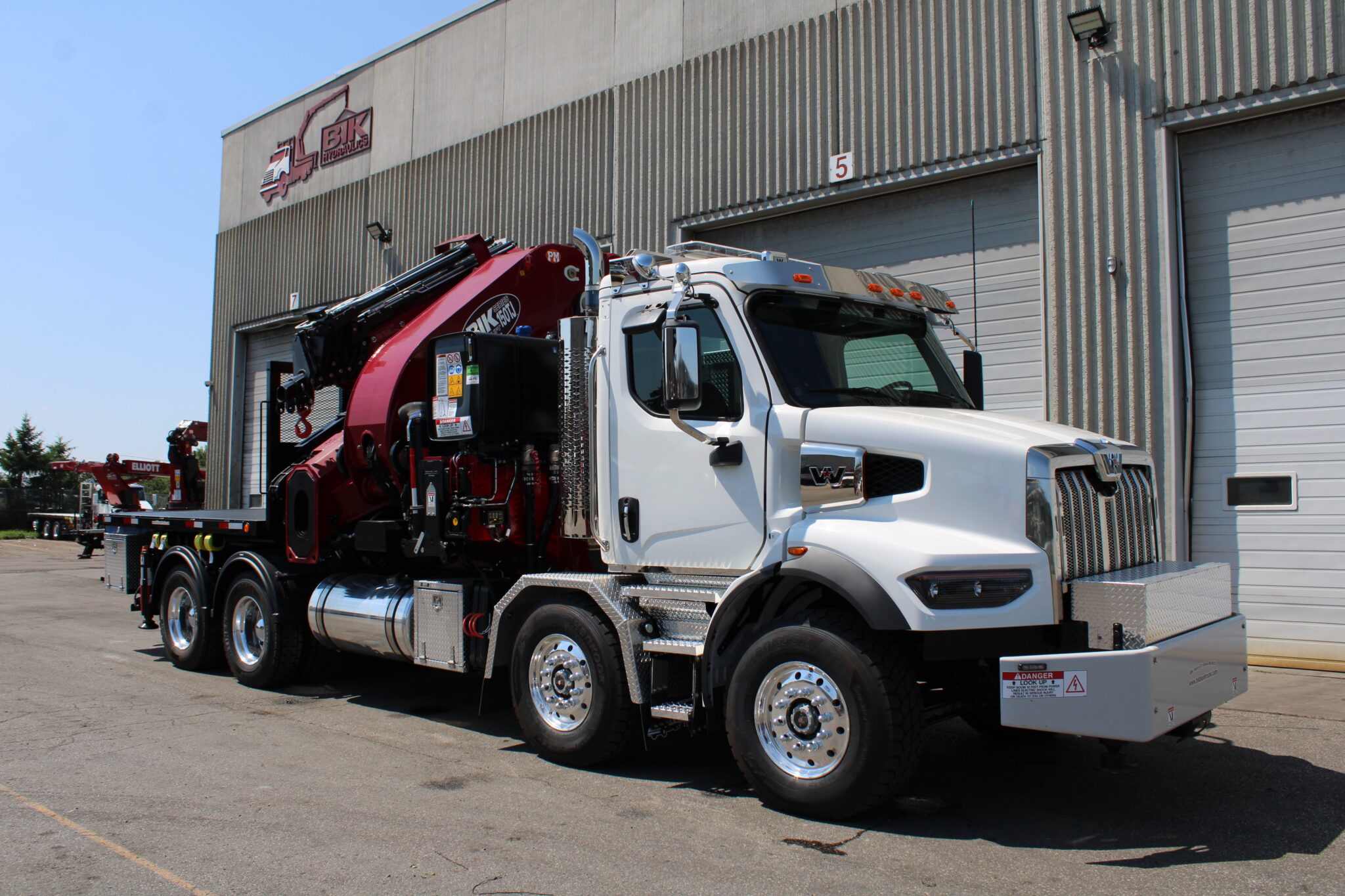

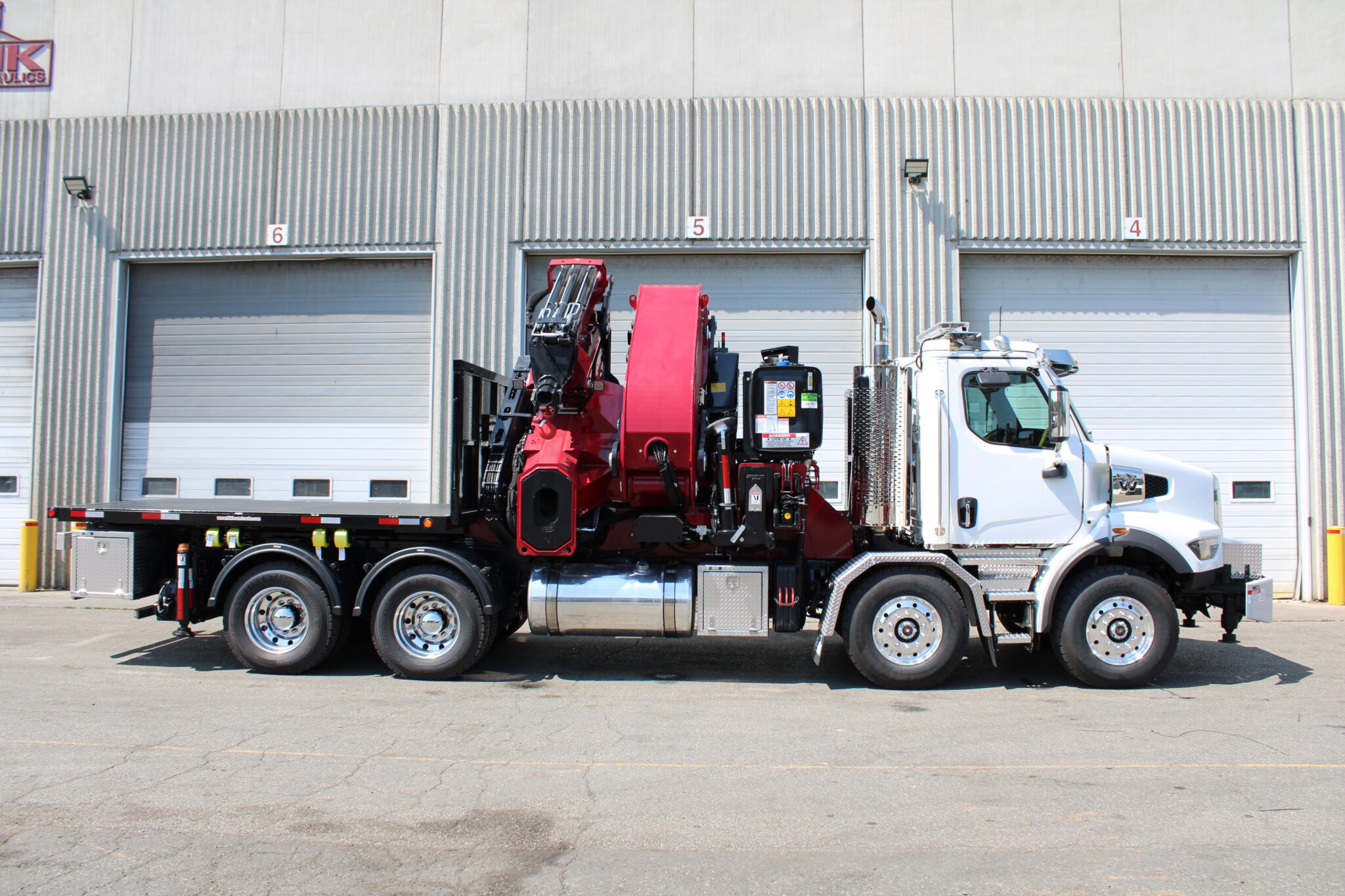

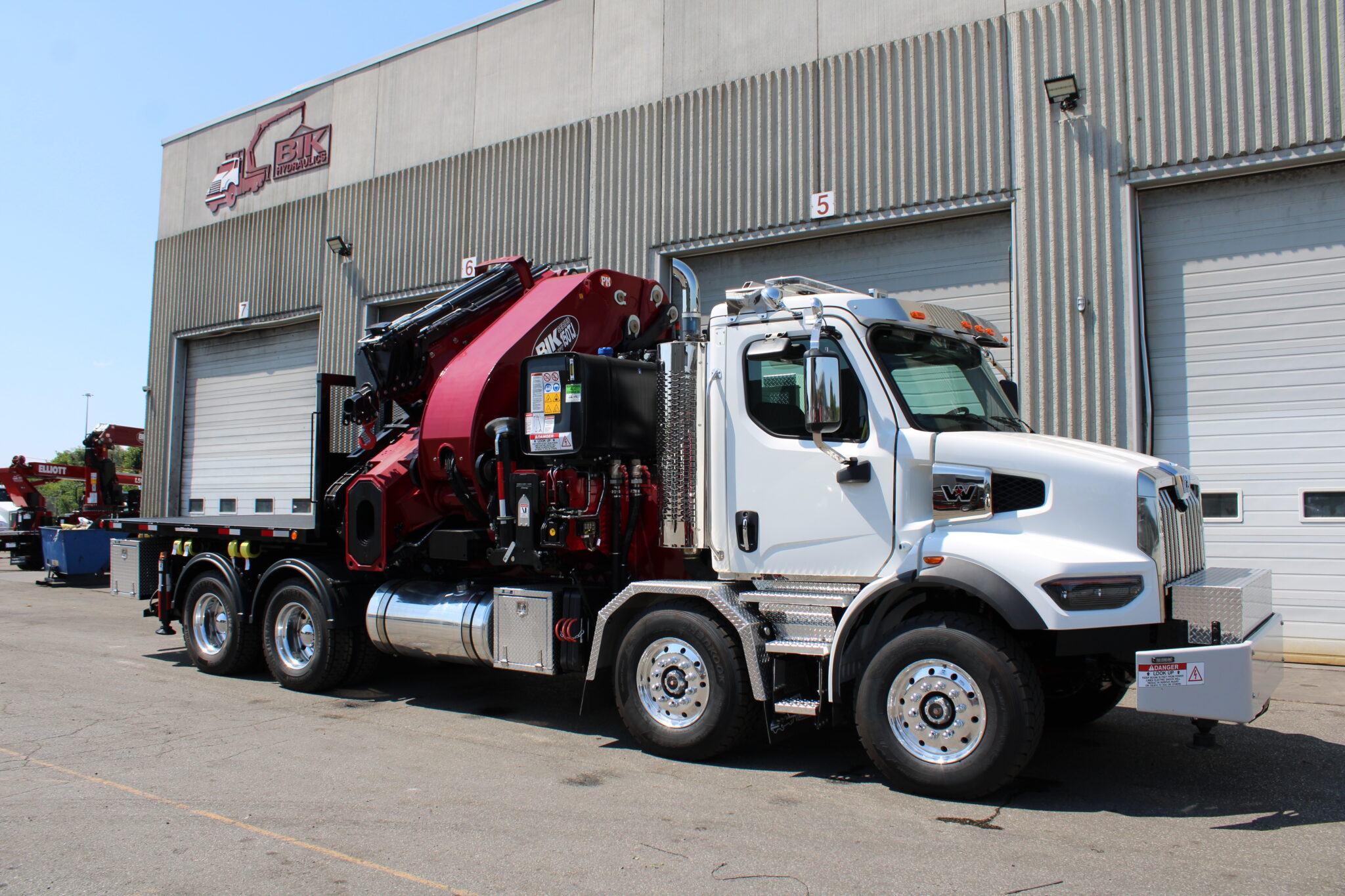

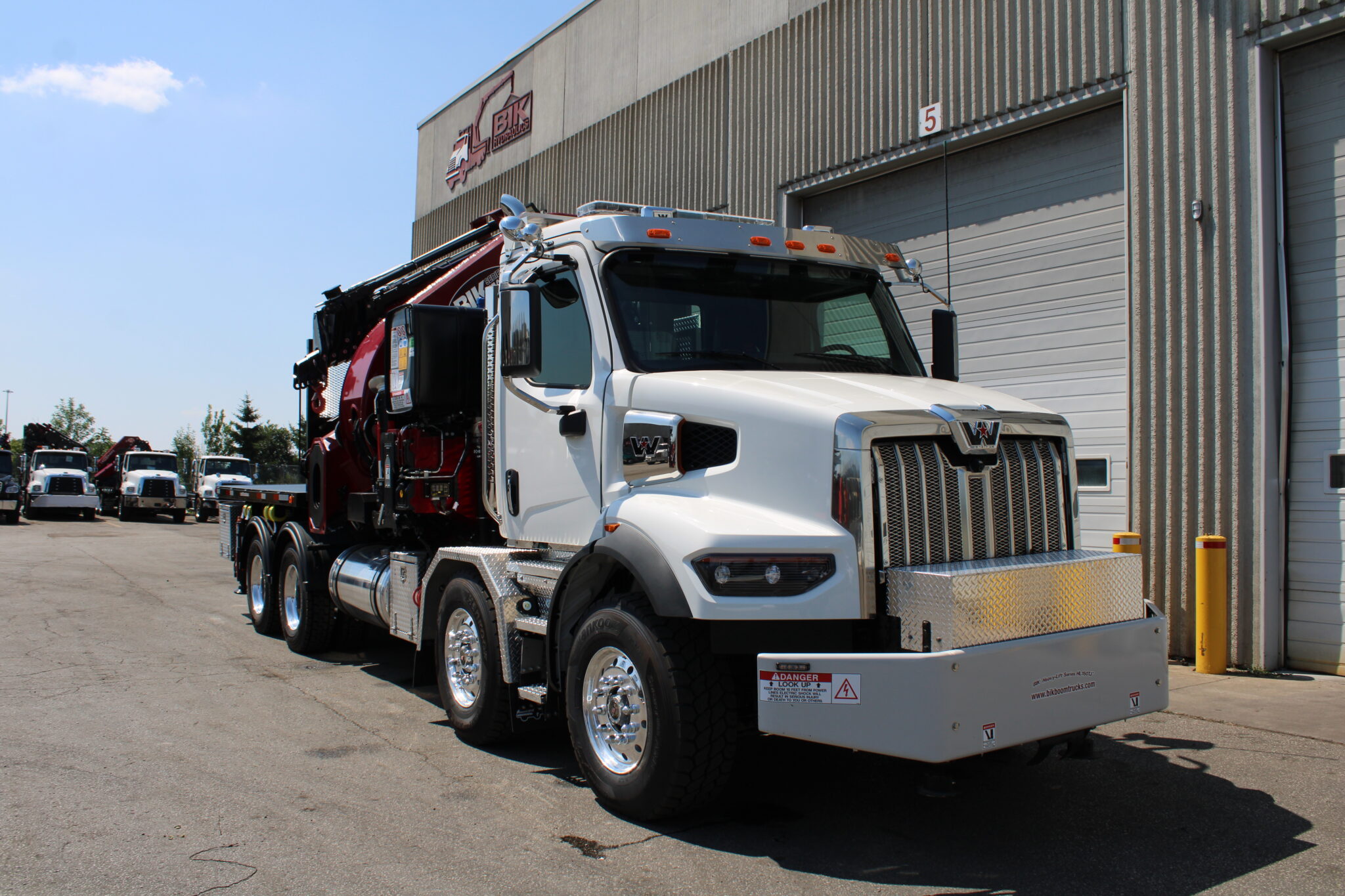

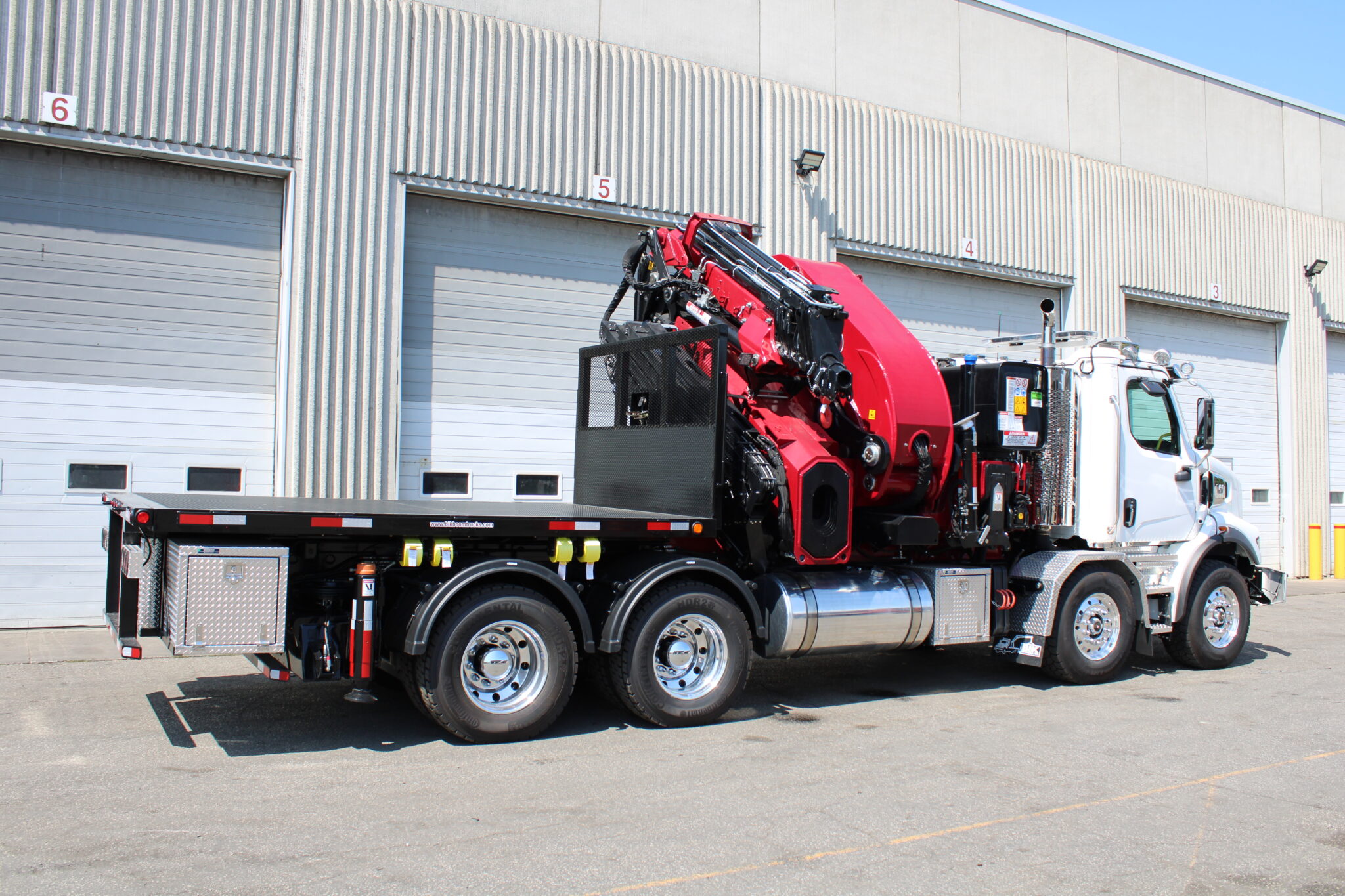

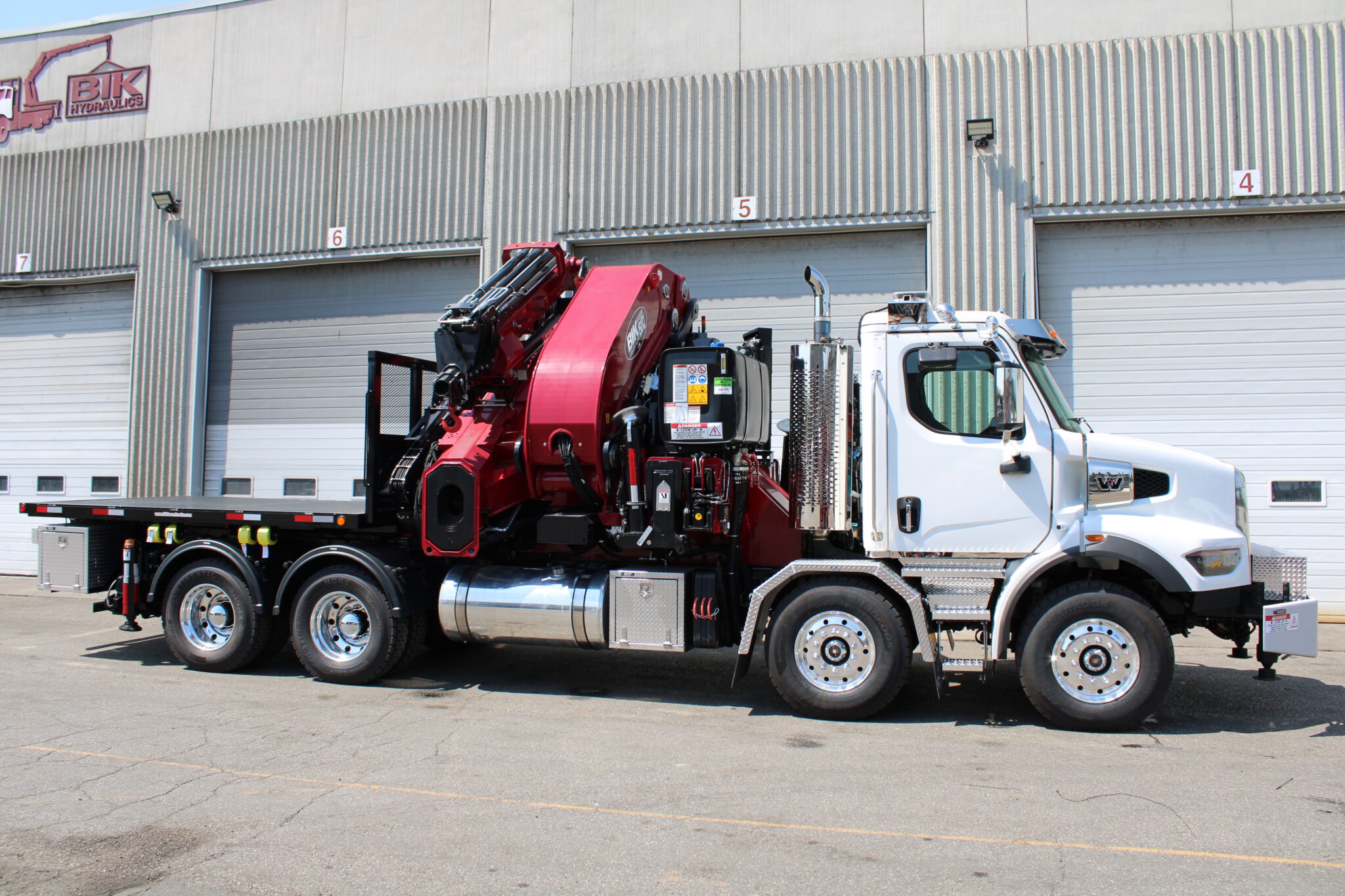

NEW BIK HEAVY LIFT SERIES HL-150TJ ON WESTERN STAR 47X T/A STEER 4-AXLE

 |
NEW BIK HEAVY LIFT SERIES HL-150TJ ON WESTERN STAR 47X T/A STEER 4-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

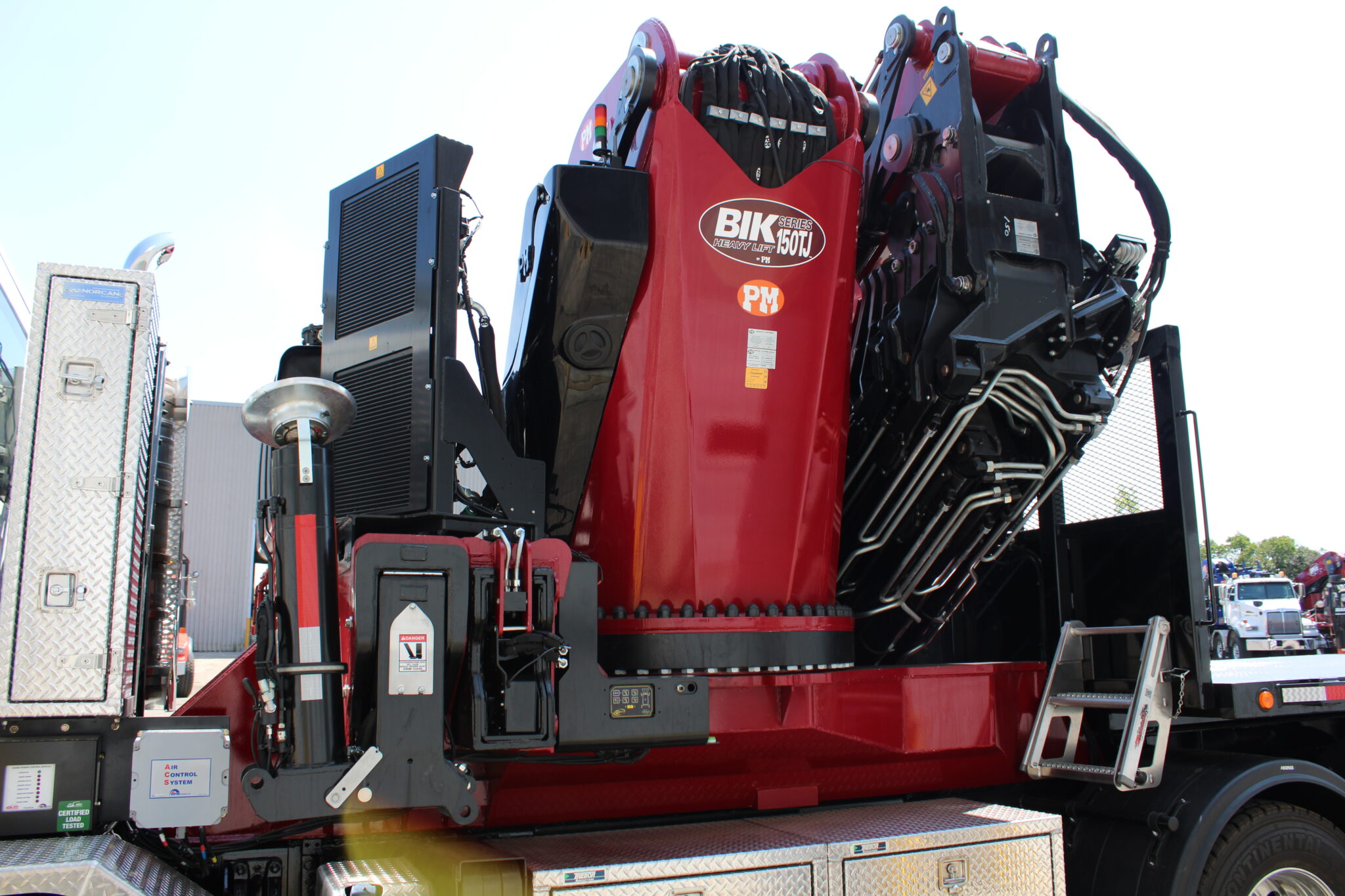

New – BIK Heavy-Lift Series HL 150TJ PM 150 ton/m – Folding Hydraulic Knuckle Boom with Jib
- 8 hyd extensions in main boom to 66’ 7” horizontal (80’ vertical), 6 hyd extensions in jib
- Handles 3,200 lbs @ 106’ horizontal
- 118’ total horizontal reach w/two extra pull-out extension (130’ vertical reach)
- PM connecting rods at First Boom and Knuckle, 15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Double-pilot operated on slewing and pilot-operated check valves on all cylinders
- Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
- Dual Main lift and dual knuckle lift cylinders – greater power and easy access
- Winch on boom plumbed to the end of the jib with removable pulley brackets, anti-two block built into the winch
- Hydraulic Extra Wide Main outriggers at pedestal – 33’ – 6” span – hydraulic tilting when retracted
- Auxiliary 26’ spread stabilizers installed at rear behind drives, unfinished at rear
- Hydraulic Oil Cooler, high-pressure return filter and min. 92-gallon oil tank for boom
- DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System, allowing constant crane monitoring & visual display
- Scanreco Radio Remote Control includes: 2 batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
Truck Details

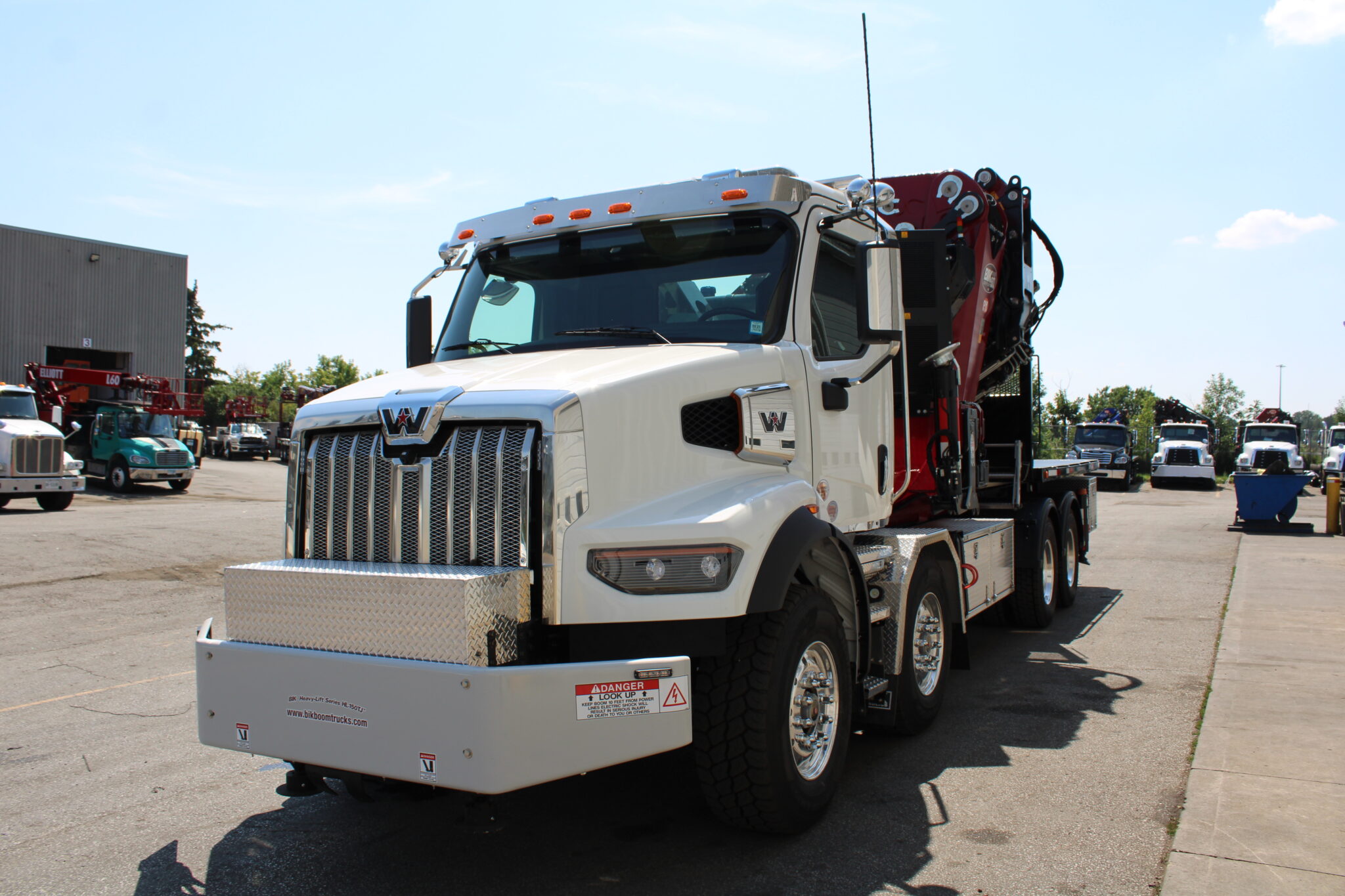

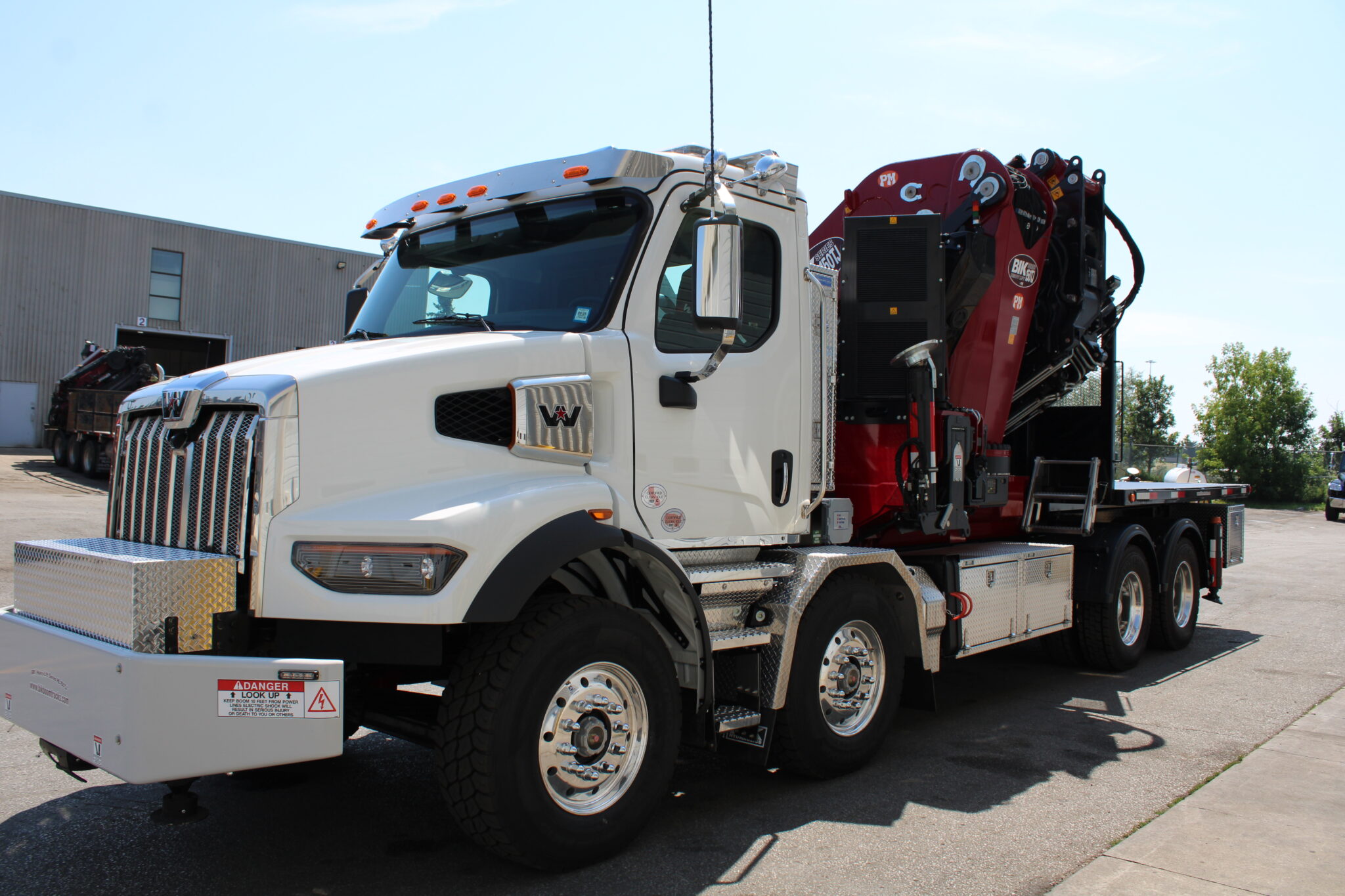

New – 2024 Western Star 47X T/A Steer-T/A Rear 4-Axle Tractor: 94,000 lb GVWR 500 HP Cummins diesel with Jake Brake
- Eaton Ultrashift Automated 18 spd stand trans.
- (2) x 20,000 LB frts with 425 / 65R22.5 tires,
- 52,000 LB Rears on Primax air ride suspension.
- Double Frame, Polished ALCOA Aluminum Wheels front and outer rear
- Dual Chrome single polished Exhaust

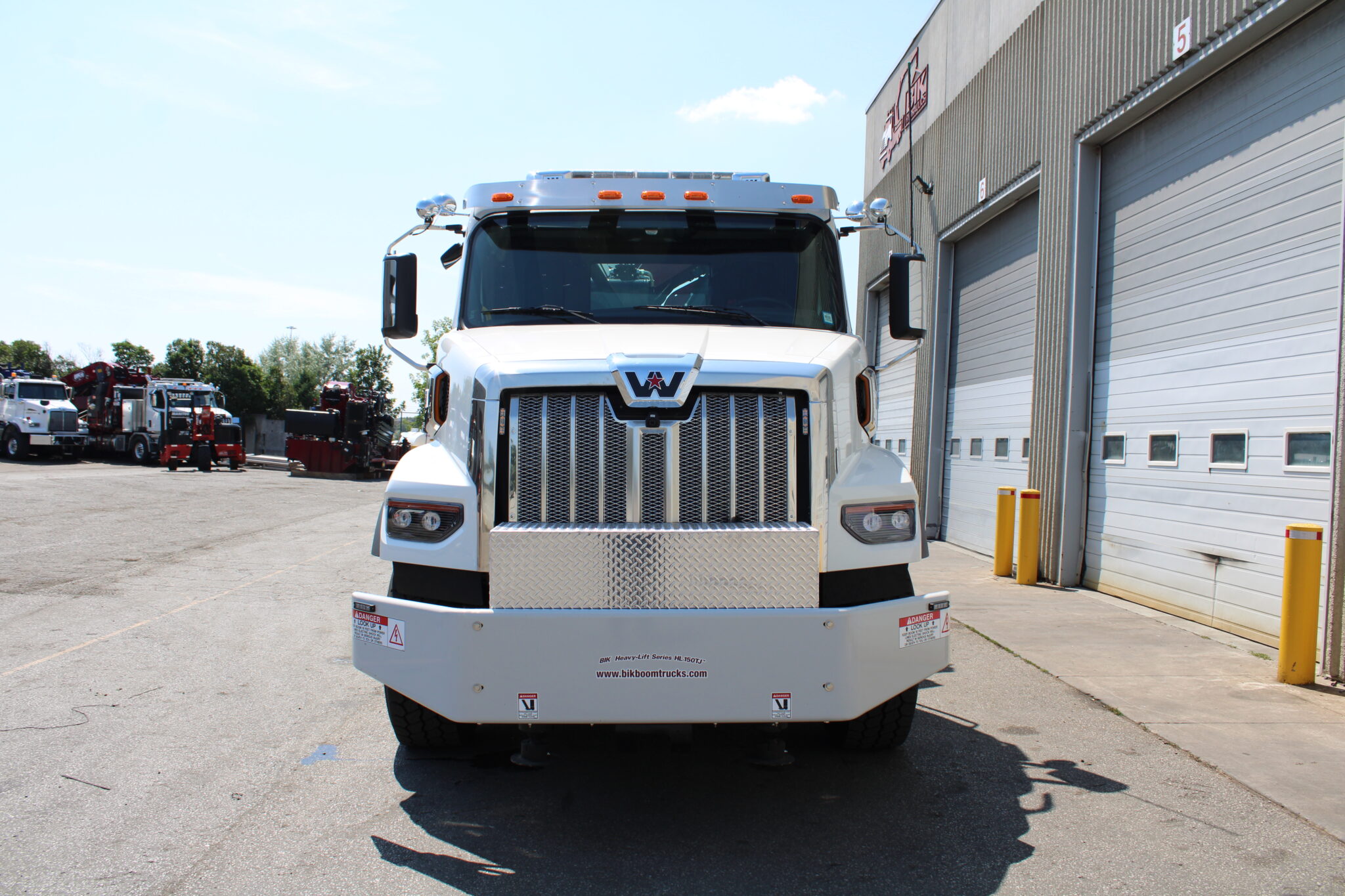

- Chrome Grille & Bumper, 100-gallon alum fuel tank.

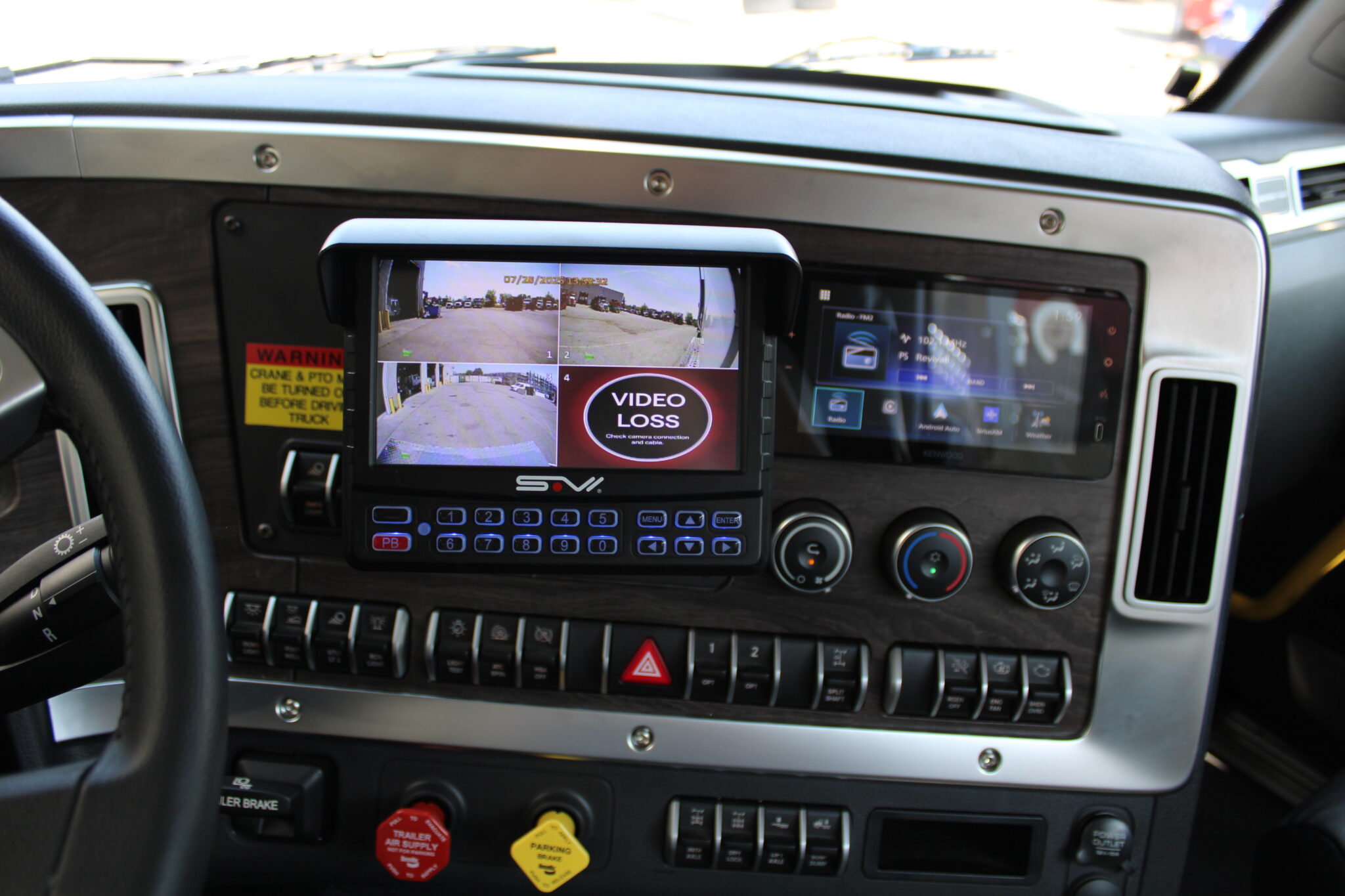

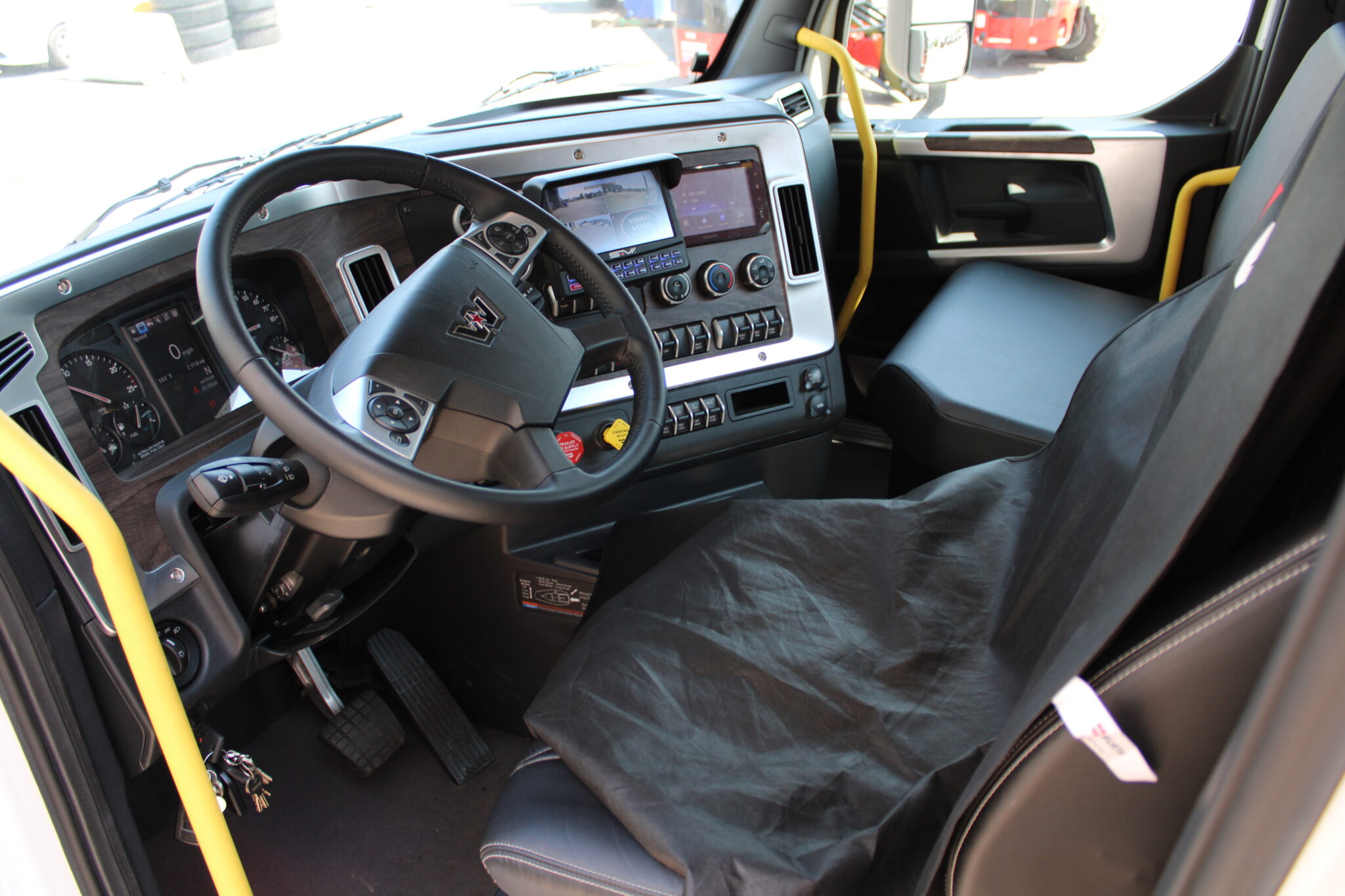

- Loaded with Options including: Air Cond., Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed pass seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power windows/locks/mirrors, Air ride cab, full 4-wheel locks, trailer air tow package, truck cab white color

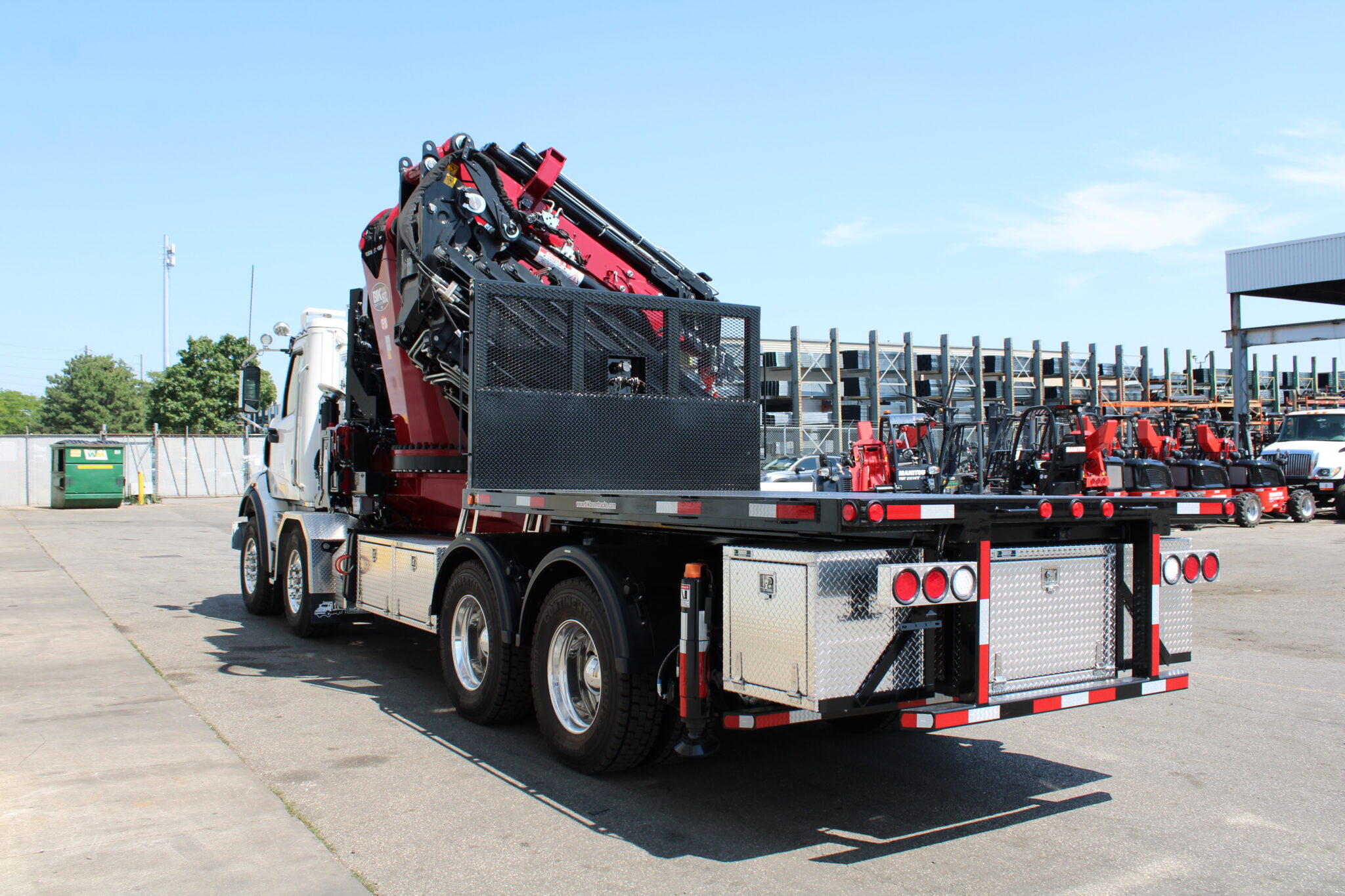

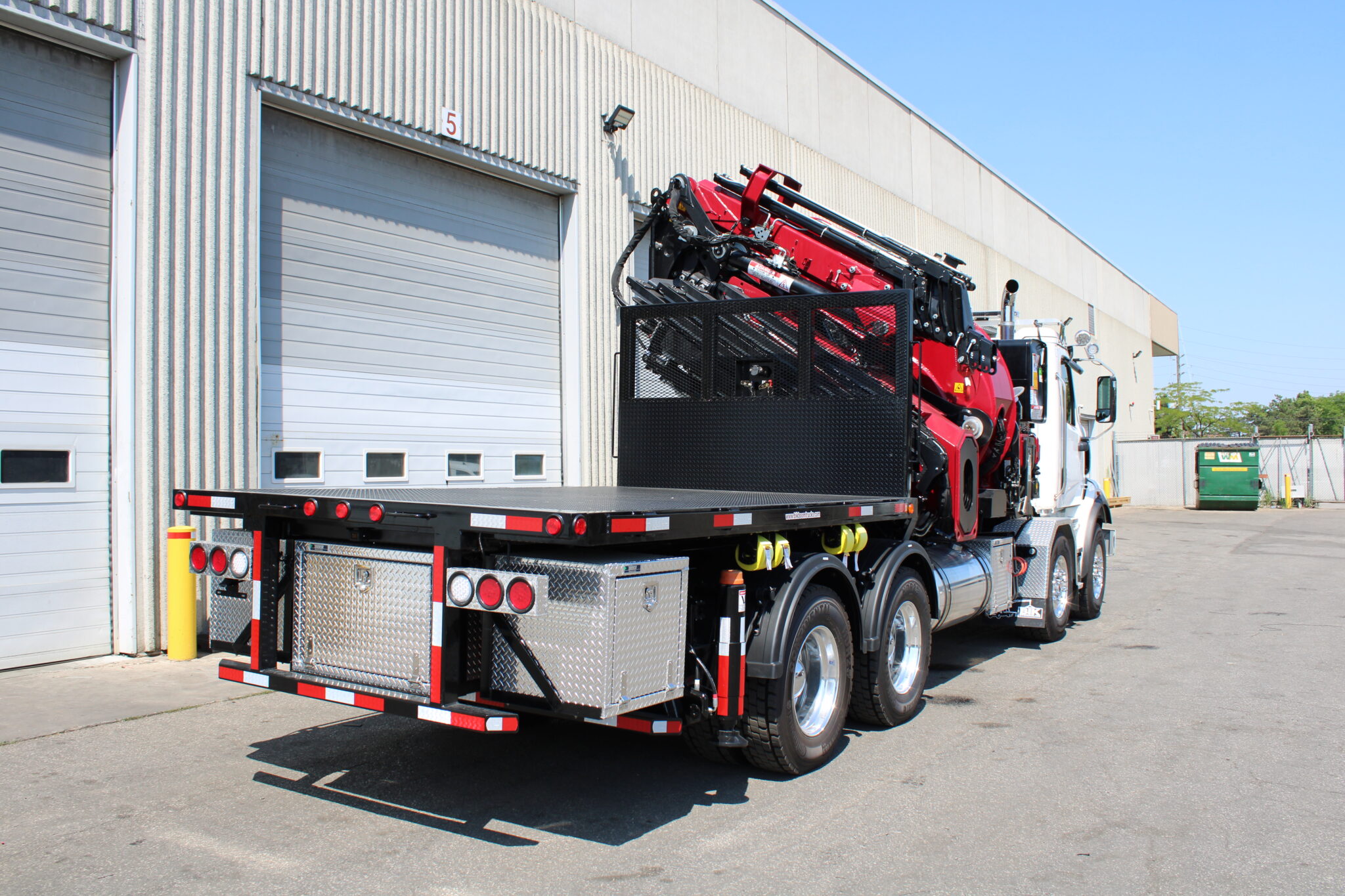

- 5th wheel on at tandems w/ramps, 15’ Removable Flat Deck with Counter Weight
Options:
- 5th wheel installed over tandem with a bracket receiver hook for a removable deck
- 15’ long Removable Flat deck over the 5th wheel with counter weight
- Program the remote control to include engine start/stop and variable engine RPM
- Auxiliary Extra Wide out and down stabilizers mounted at rear under frame – 26’ spread

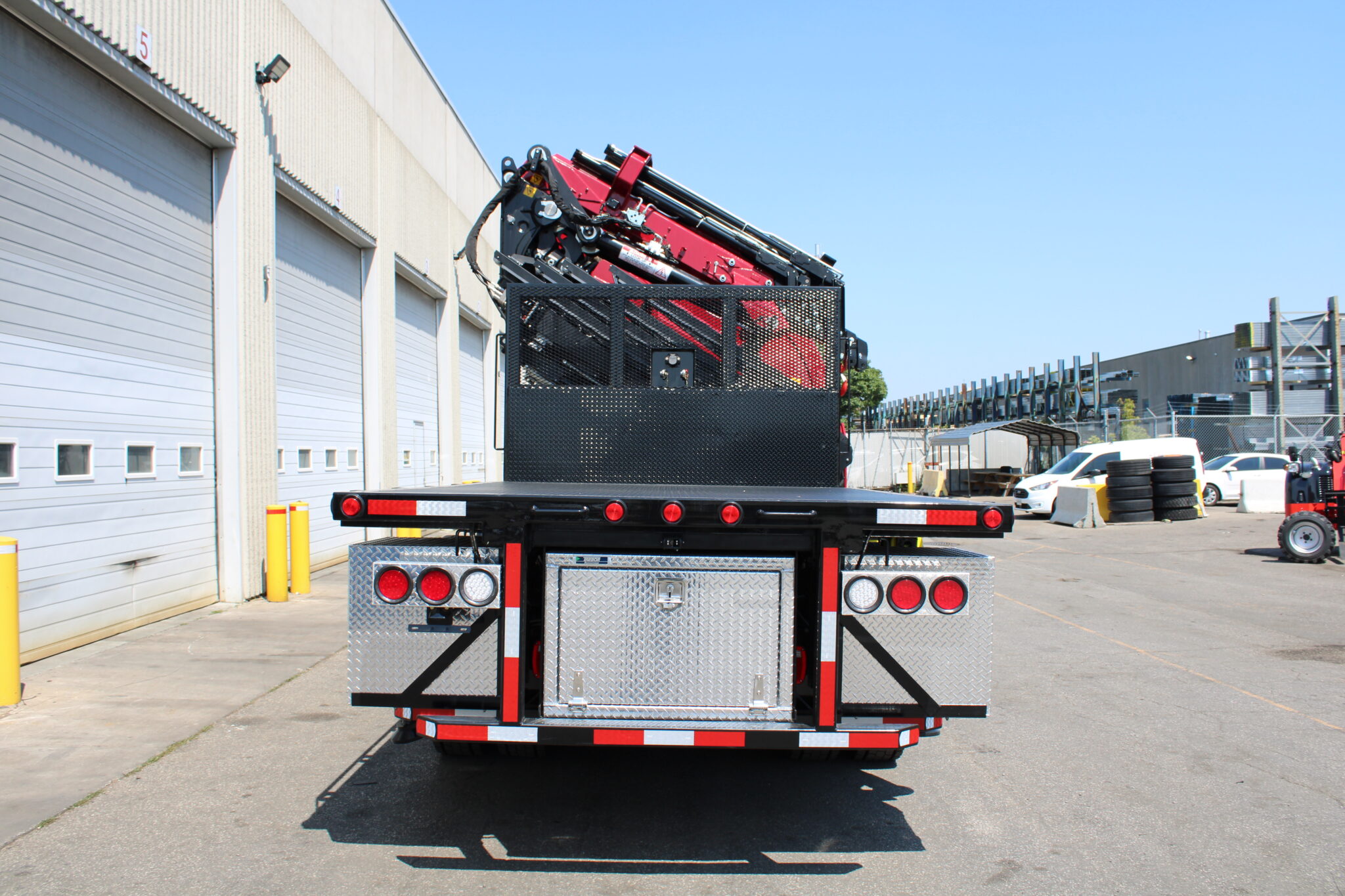

- (1) 36” & (1) 18” Aluminum Tool Boxes under deck
- Winch mounted on the main with remote control functions activated
- 4-ton hydraulic hook rotator installed
