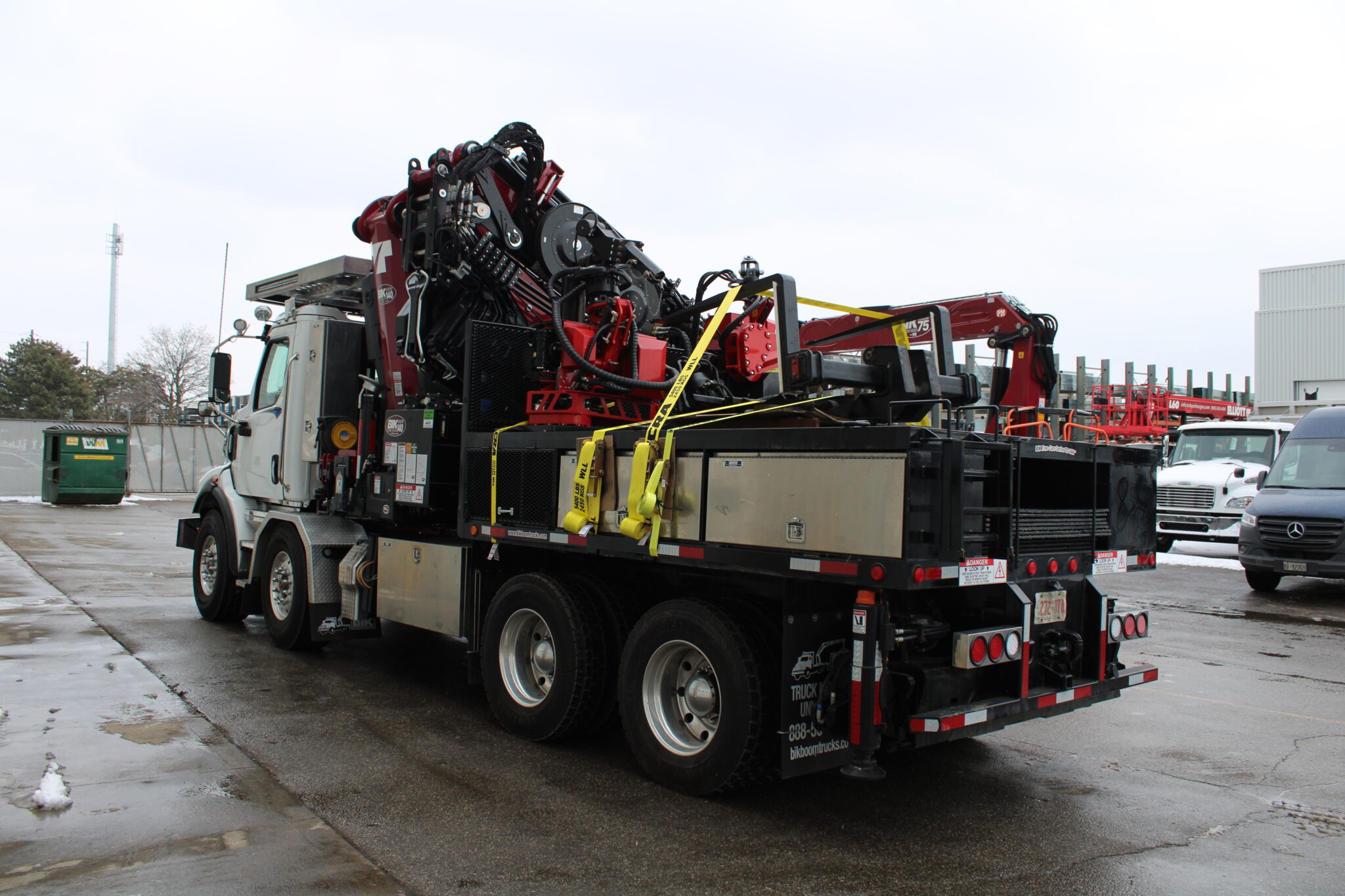

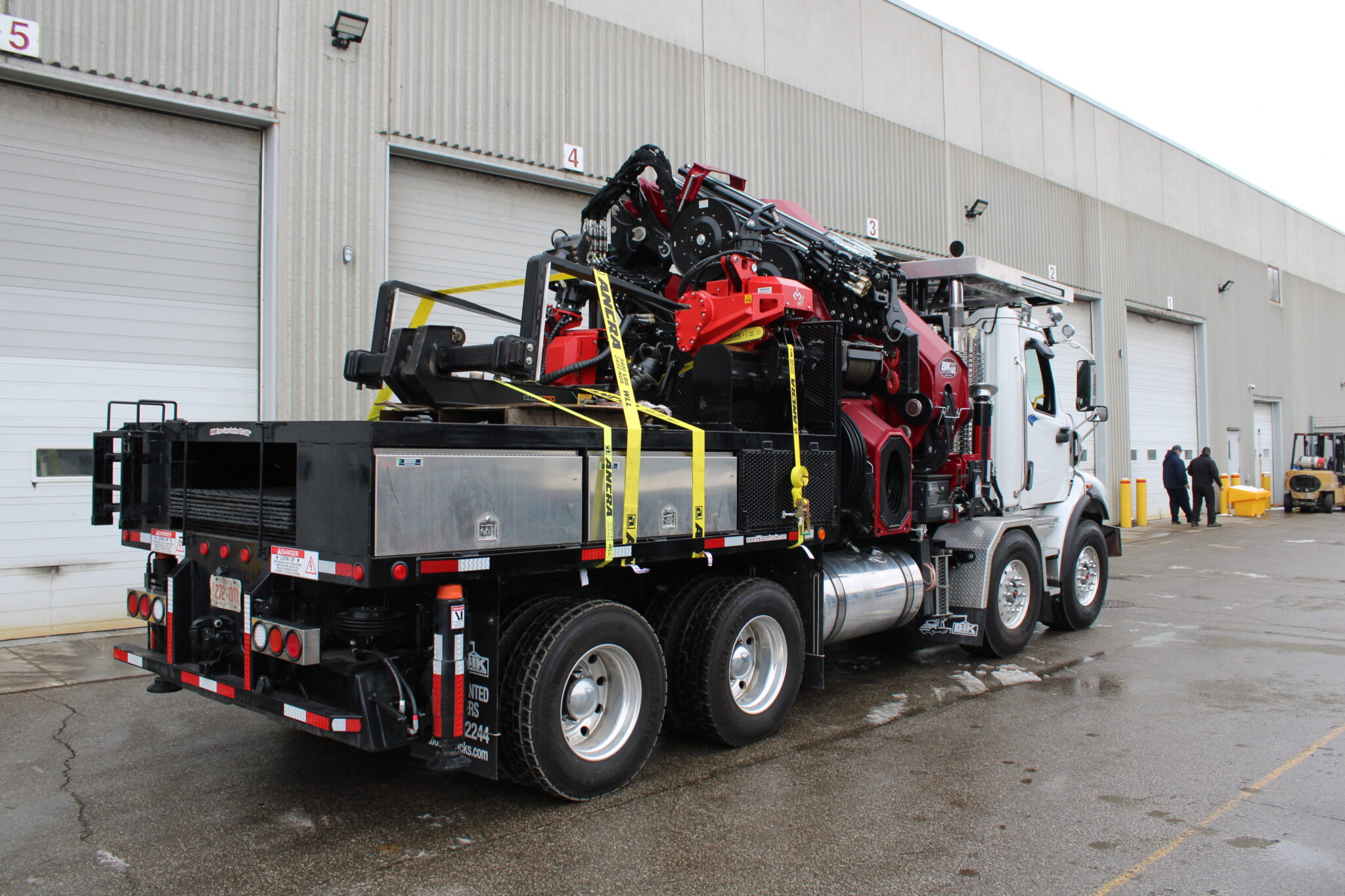

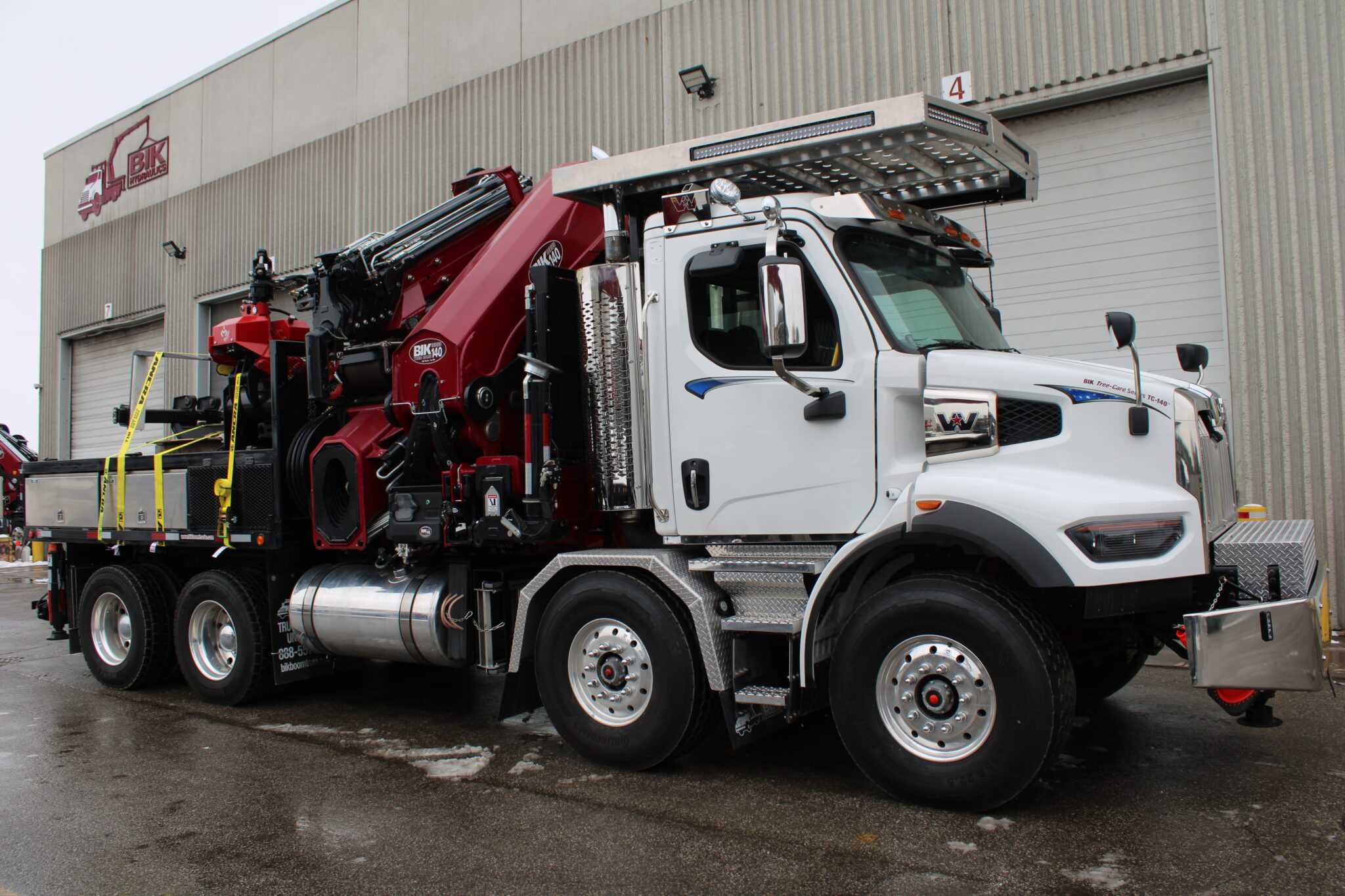

NEW BIK HEAVY LIFT SERIES HL-130TJ ON WESTERN STAR 47X T/A STEER 4-AXLE
 |
NEW BIK HEAVY LIFT SERIES HL-130TJ ON WESTERN STAR 47X T/A STEER 4-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

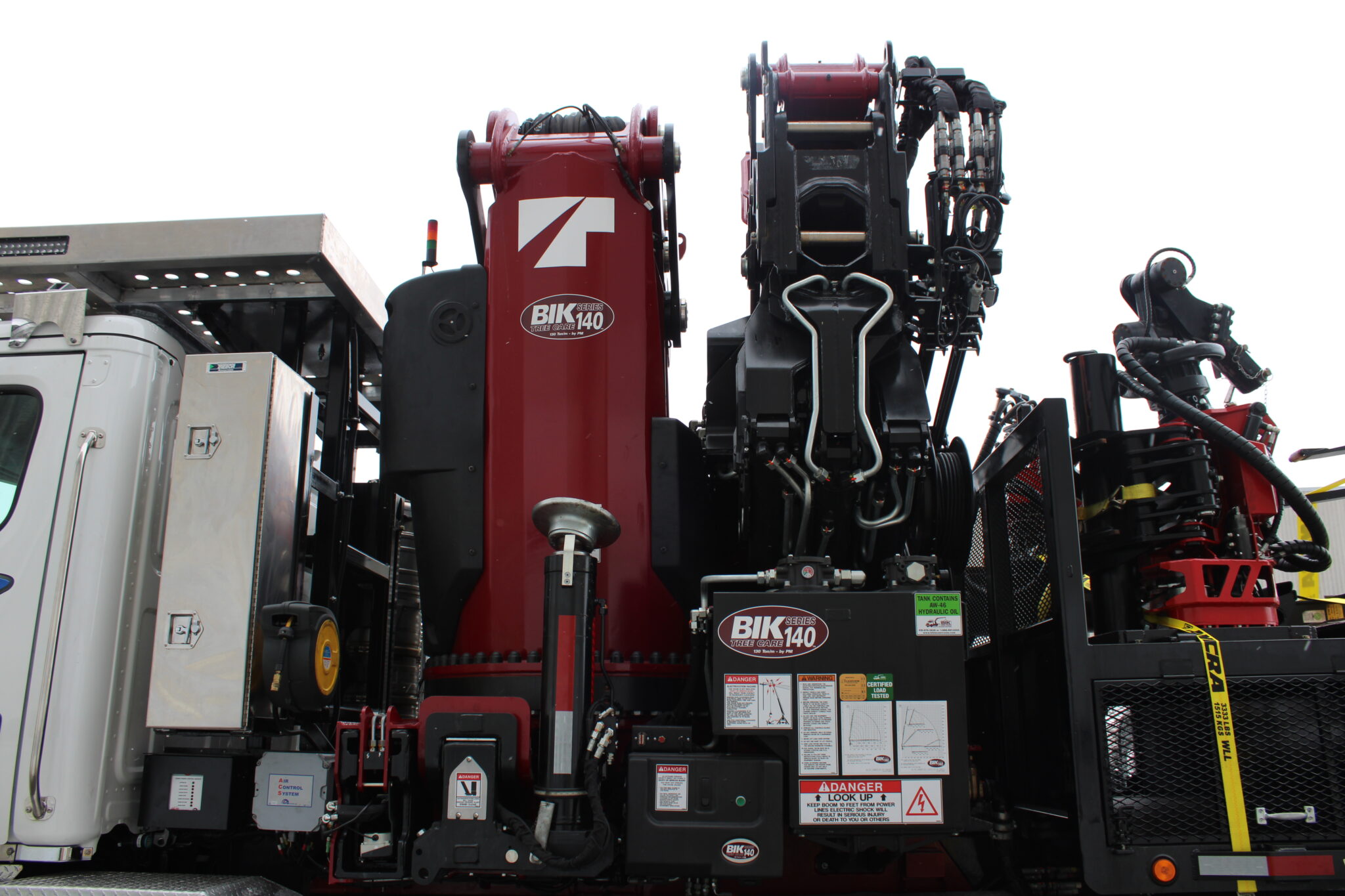

New – BIK Heavy Lift Series HL-130TJ – 130 ton/m Knuckle Boom
- 9 ext Knuckle Boom w/Detachable 7 ext jib + 1-grapple extn
- Including (1) extension in jib, Boom Capacity of 2,260 lbs @ 140’ Vertical Reach
- PM connecting rods at First Boom and Knuckle, 15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 6” span
- Hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high-pressure return filter and min. 92-gallon oil tank for boom
- Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Scanreco Radio Remote Control includes: 2 batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
- Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
- Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Truck Details

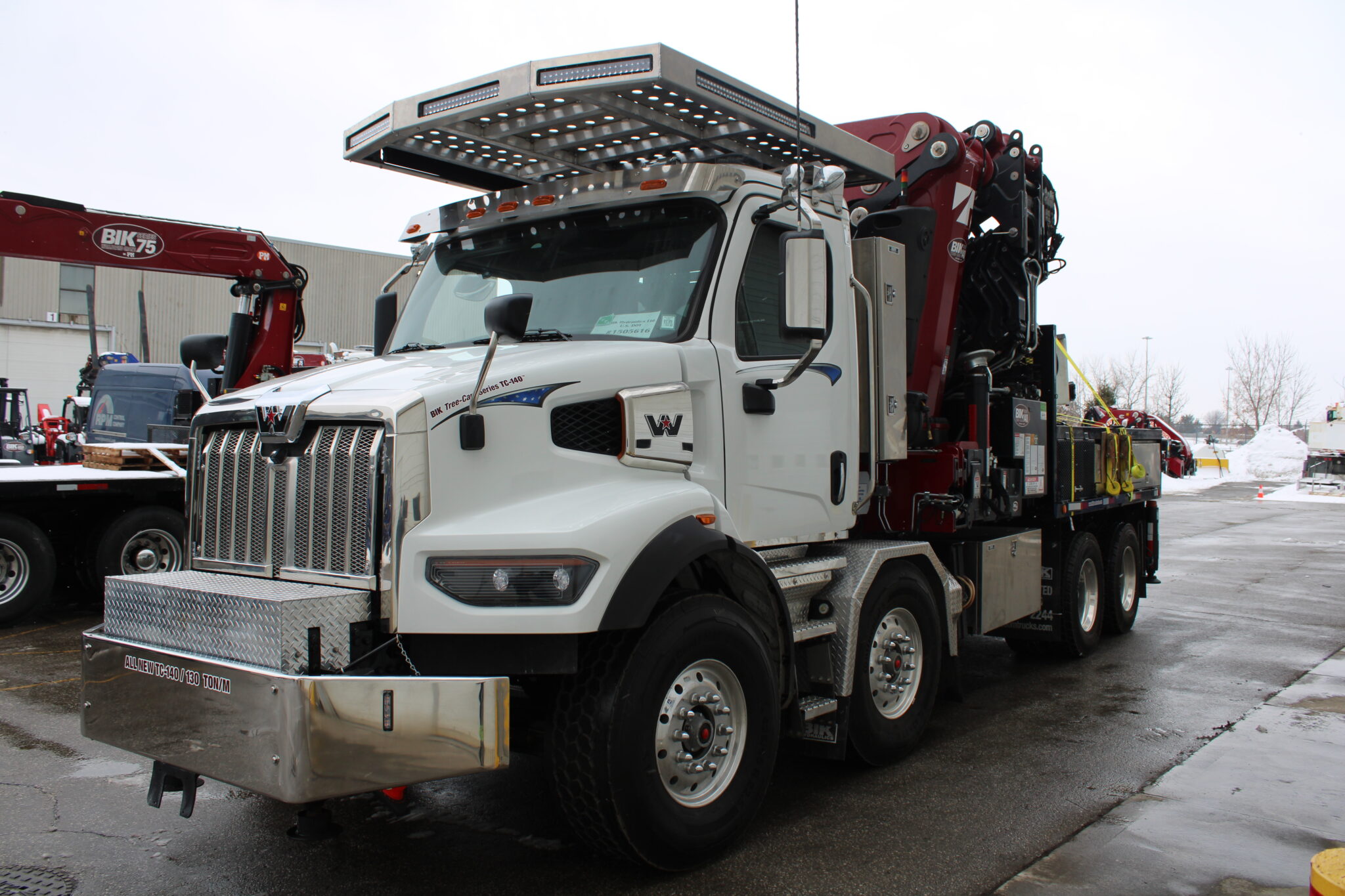

New – Western Star 47X Sloped Short Nose T/A Steer-T/A Rear – 4 Axle: 92,000 lb GVWR
- 500 hp Diesel with Jake Brake, Automated Trans.,
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires
- 52,000 LB Rears on Hendrickson Primax Air-Ride Susp., Double Frame, Polished ALCOA Aluminum Wheels front and outer rear, Dual Chrome single polished Exhaust, Chrome Grille & Bumper, 100 gallon aluminum fuel tank…
- Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/Bluetooth, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides, power mirrors & door locks, Air ride cab, truck cab white
- 13’ long Platform to be customized to hold 2nd jib, saws and mats, etc…
Options Included:
- 6) pcs – 2” PVC stab pads w/holders
- (2) pcs Alum storage boxes installed
- Spot lights on main boom and on jib
