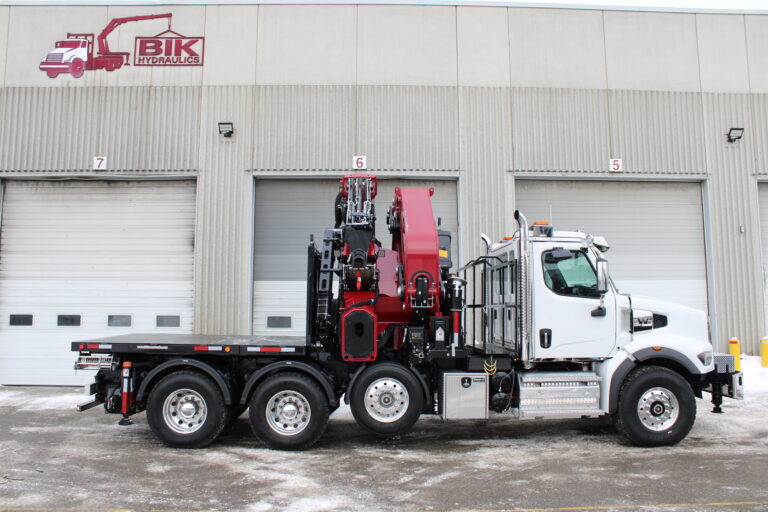

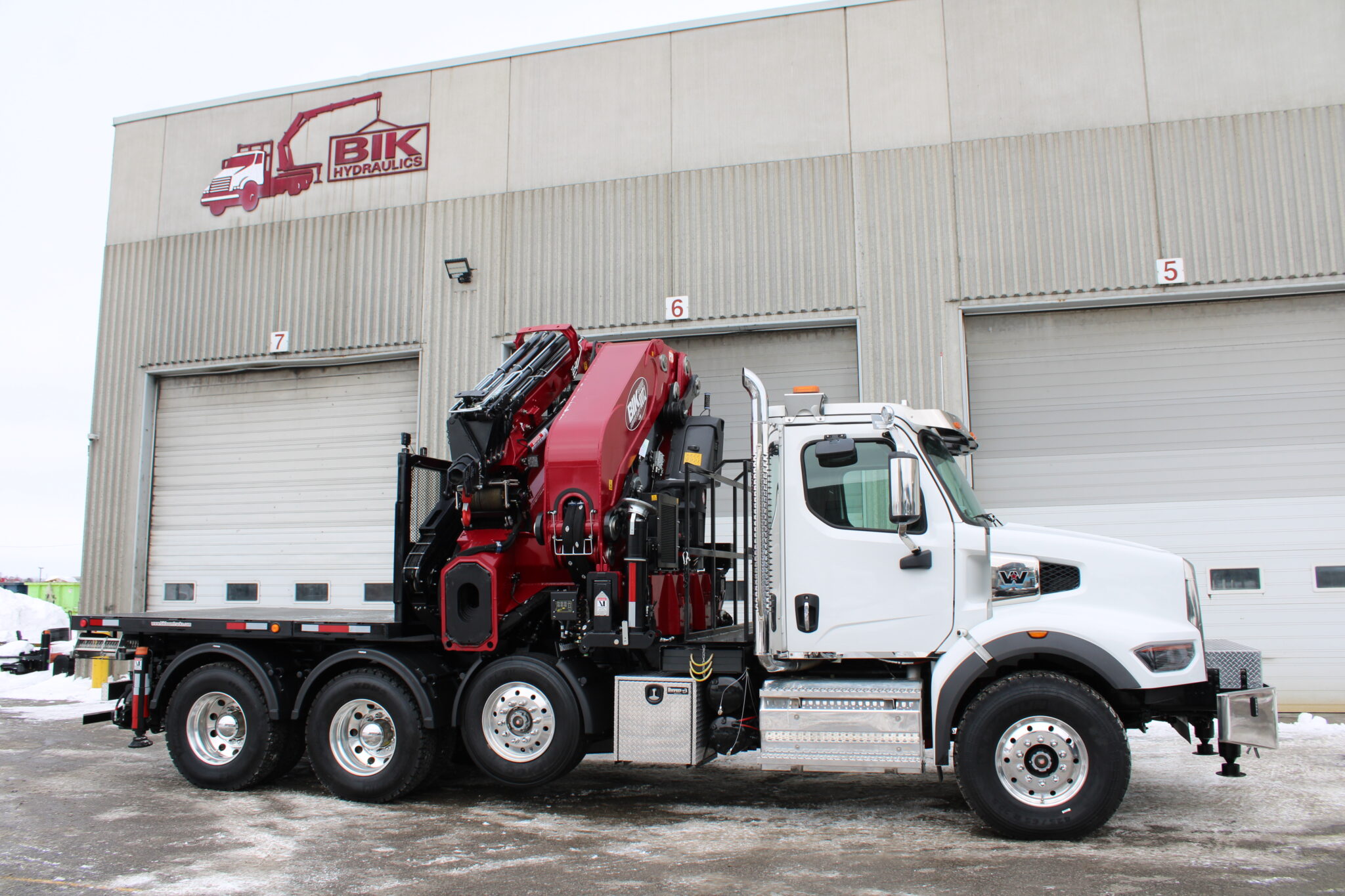

NEW BIK HEAVY LIFT SERIES HL 100TJ ON WESTERN STAR 47X 4-AXLE

 |
NEW BIK HEAVY LIFT SERIES HL 100TJ ON WESTERN STAR 47X 4-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

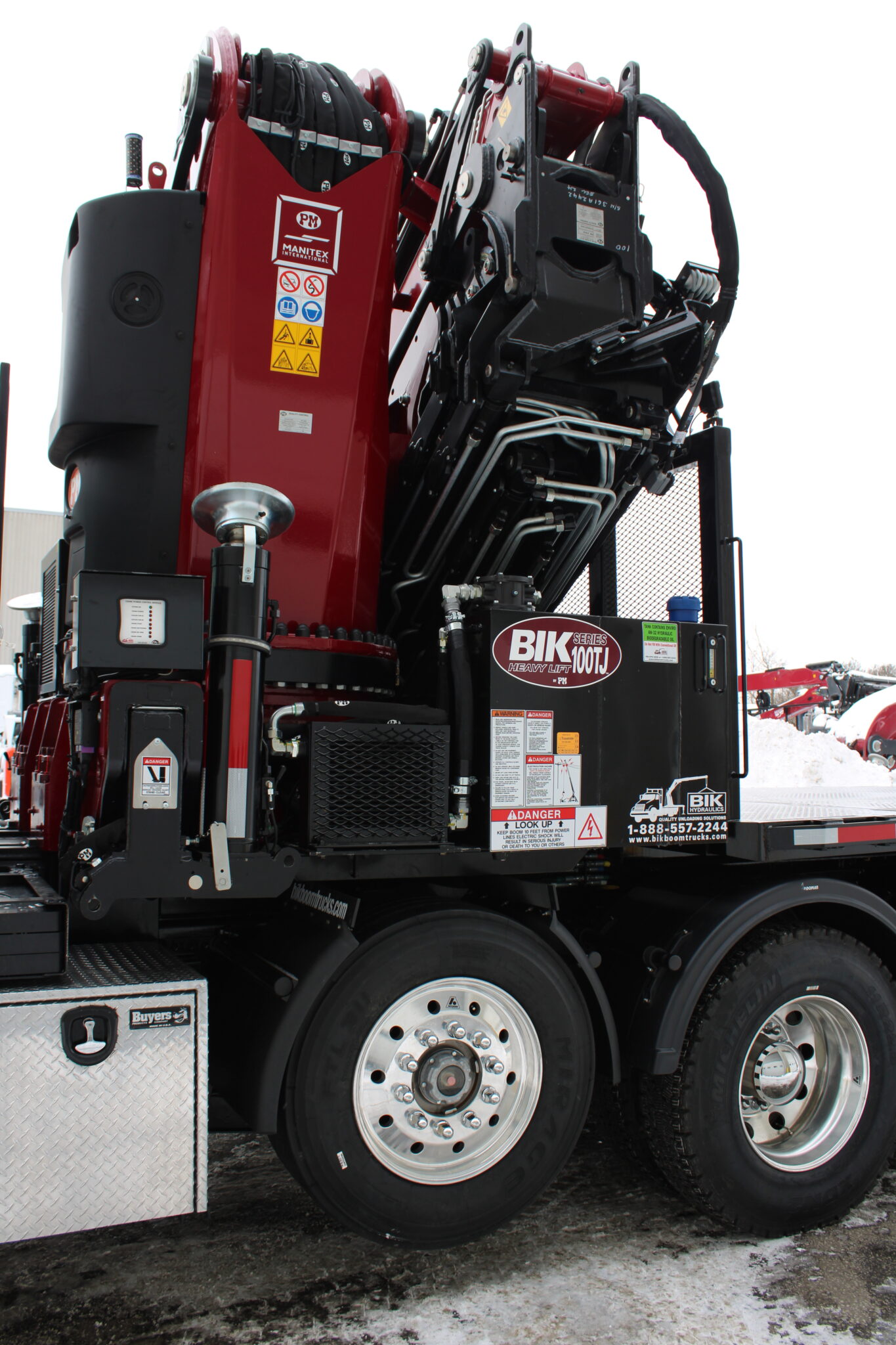

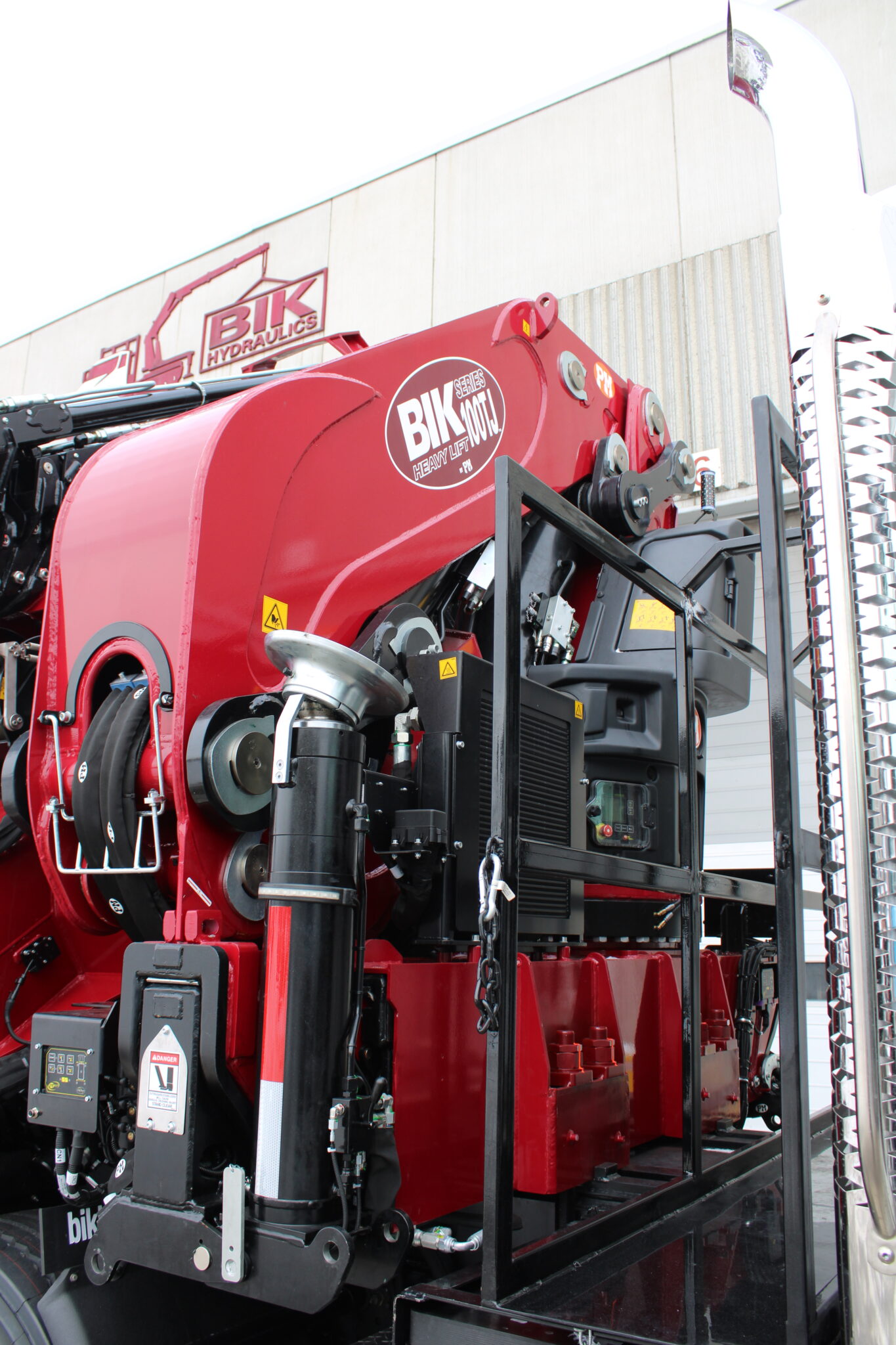

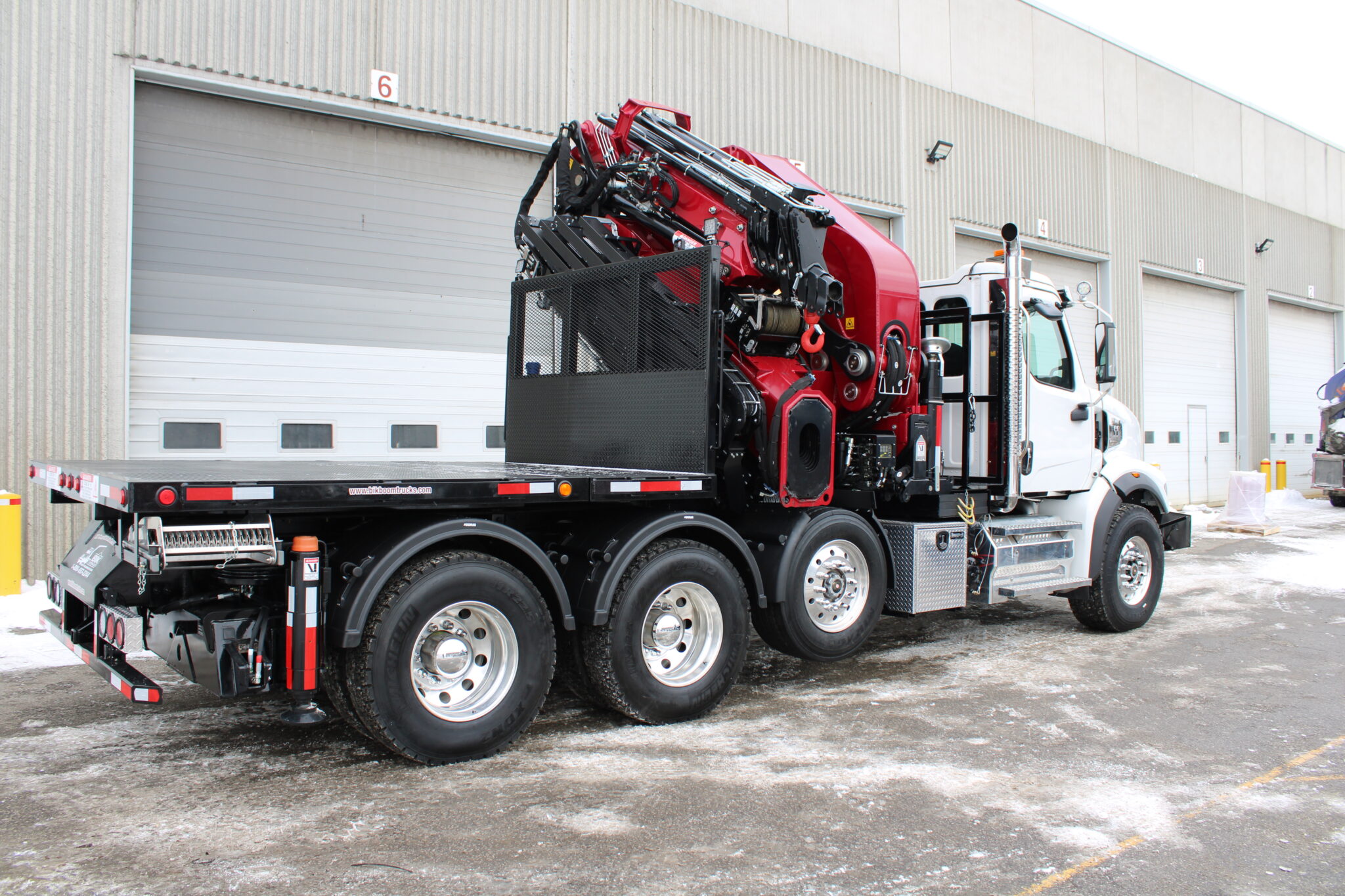

New – BIK “Heavy Lift” Series HL 100TJ – 100 ton/m Knuckle Boom – by PM
- 8 ext Knuckle Boom w/Detachable 6 ext jib+ 2-additional extn’s to 132′ Total Vertical Reach, Boom Capacity of 2,300 lbs@ 124′ Vertical Reach
- Main Boom Horizontal Capacity:
- 36,800 lb@ 16′
- 20,000 lb@ 23′
- 16,000 lb@ 33′
- 11,000 lb@ 47′
- 7,200 lb@67′
- Jib Horizontal Capacity:
- 3,200 lb@ 76′
- 2,200 lb@ 100′
- 2,000 lb@ 104′
- 1,630 lb@ 112′
- Power-Link connecting rods at First Boom, Knuckle & Jib, -15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Motors, – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
- Remote or Side Control Pad Operated 6 Stabilizers
- a) 2- Extra Wide Main outriggers at pedestal- 29′ 10″ span -hyd tilting when retracted

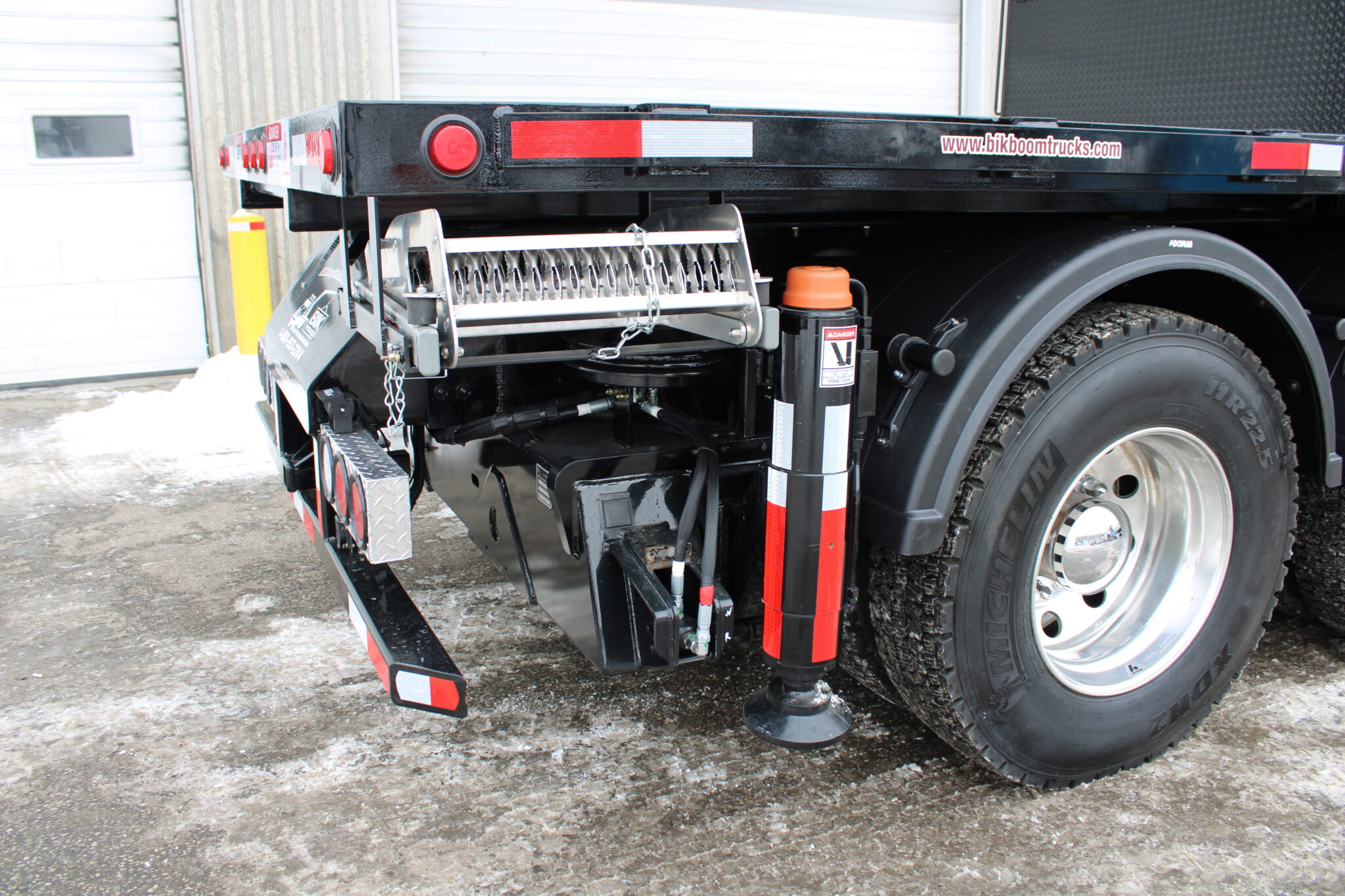

- b) 2- Rear Aux Stabilizers behind t/a drives -26′ Span

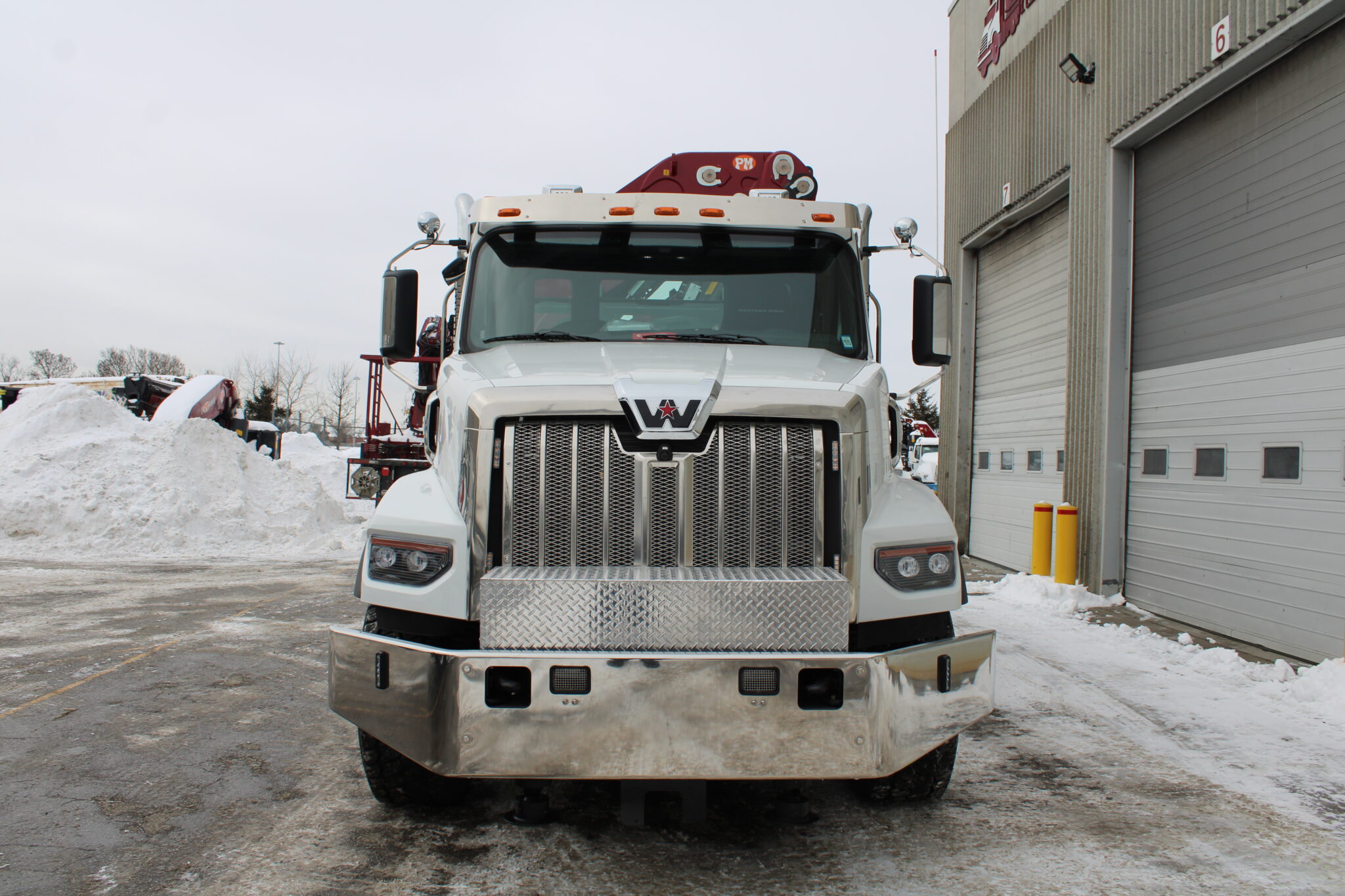

- c) Dual front bumper mtd Stabilizers at front integral truck frame extension
- Dual Hydraulic Oil Coolers, high-pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
- Lifting winch plumbed to jib end of jib -4-ton single part line capacity-Ability to completely fold up the boom without disconnecting the winch
- Power Tronic Electronic System, allowing constant crane monitoring & visual display with a 5-level stabilizer deployment control system
- DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
- Scanreco Remote Control includes: 2 batteries, in-cab charger, backup cord, Boom Factory Painted Dark Red/Burgundy before assembly, installed on the back of the cab, with a custom-engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards, Load Chart in FT. & LBS.
- Engineer Stability tested & Certified for 360 Degree/ 100% load chart capacity in all areas & zones when stabilizers are fully deployed
Truck Details

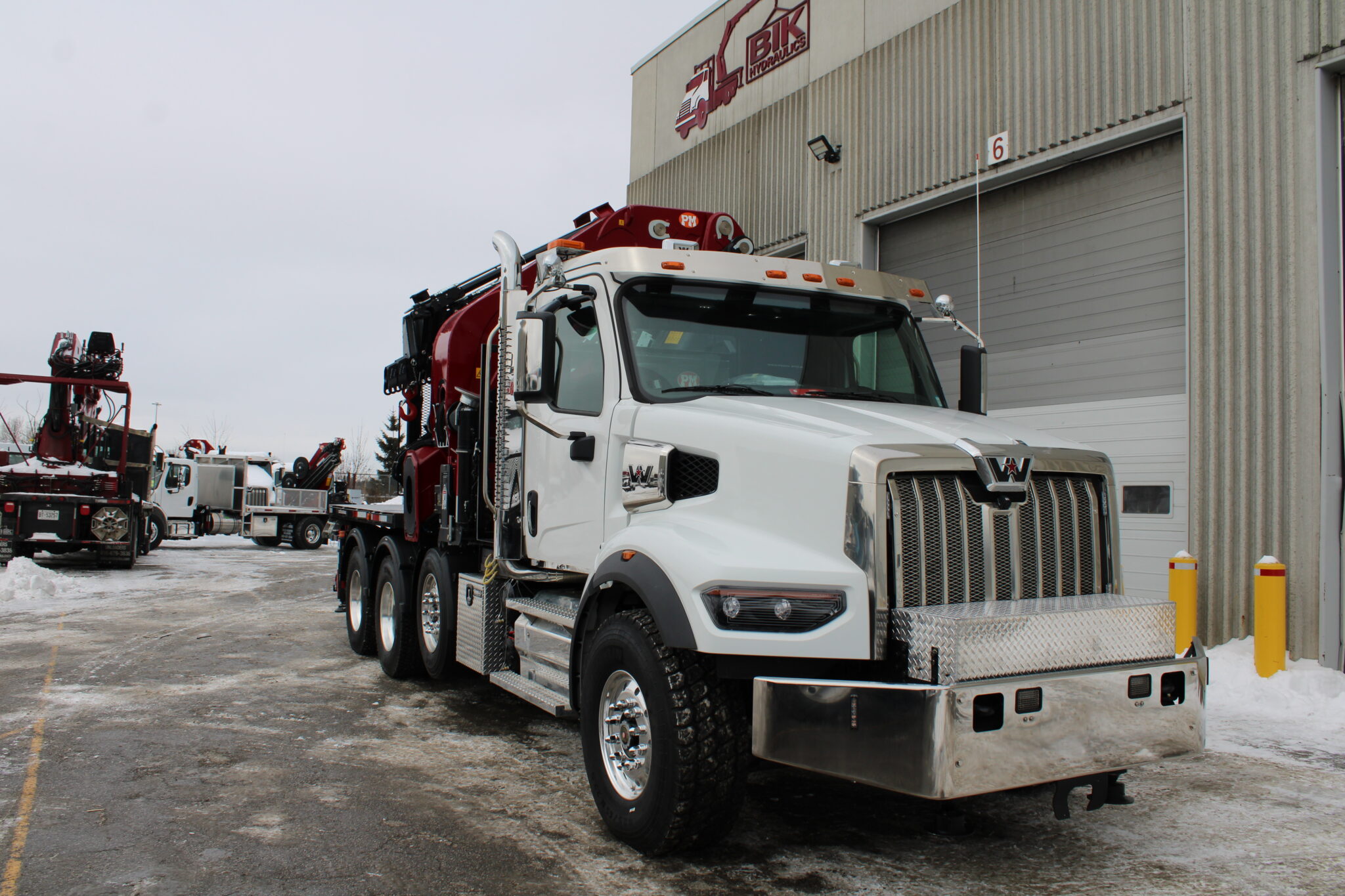

New – Western Star 49X 4-axle Day Cab Tractor: 88,000 lb GVWR
- CUMMINS 12X Diesel· 500 HP
- Jake Brake
- Automated Endurant 12 spd trans.
- 22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- 20,000 lb self steer lift axle ahead of t/a
- 46,000 LB Rears on Neway Air-Ride with 11 R22.5 tires on Aluminum rims
- High RSM Double Frame w/integral front frame extention (for front stabilizer)
- Dual Chrome polished Exhaust on both side of cab
- Chromed Grille & Bumper
- single 100 gallon alum fuel tank

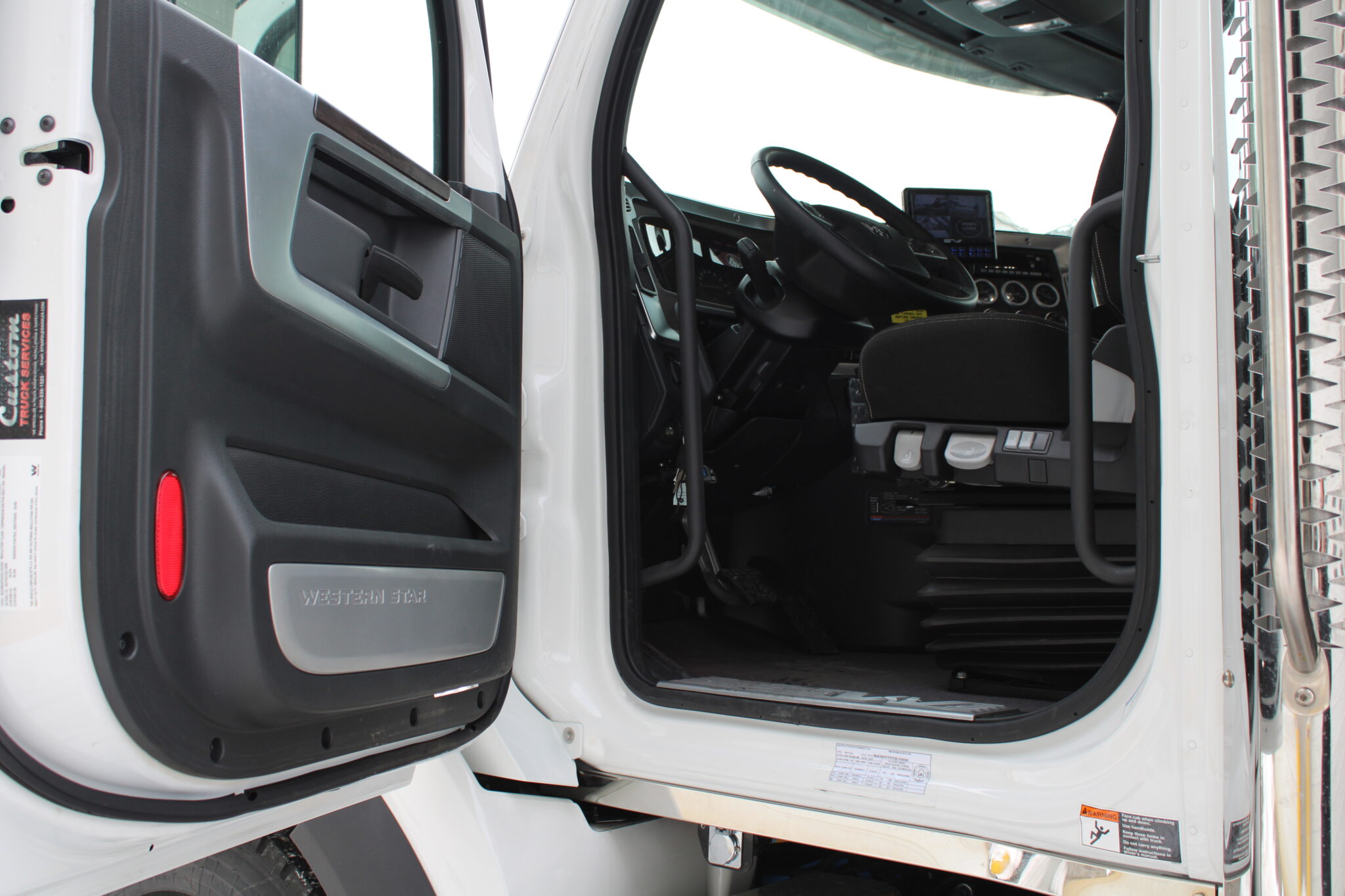

- Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Air ride cab, full differential locks, sliding 5th wheel, spot light, fog lights, exterior sun visor, truck cab white etc …
Options Included:
- (6) pcs – PVC stab pads w/holders
- Custom re-enforced manual extn
- (2)-24″ alum storage boxes frame mounted under boom

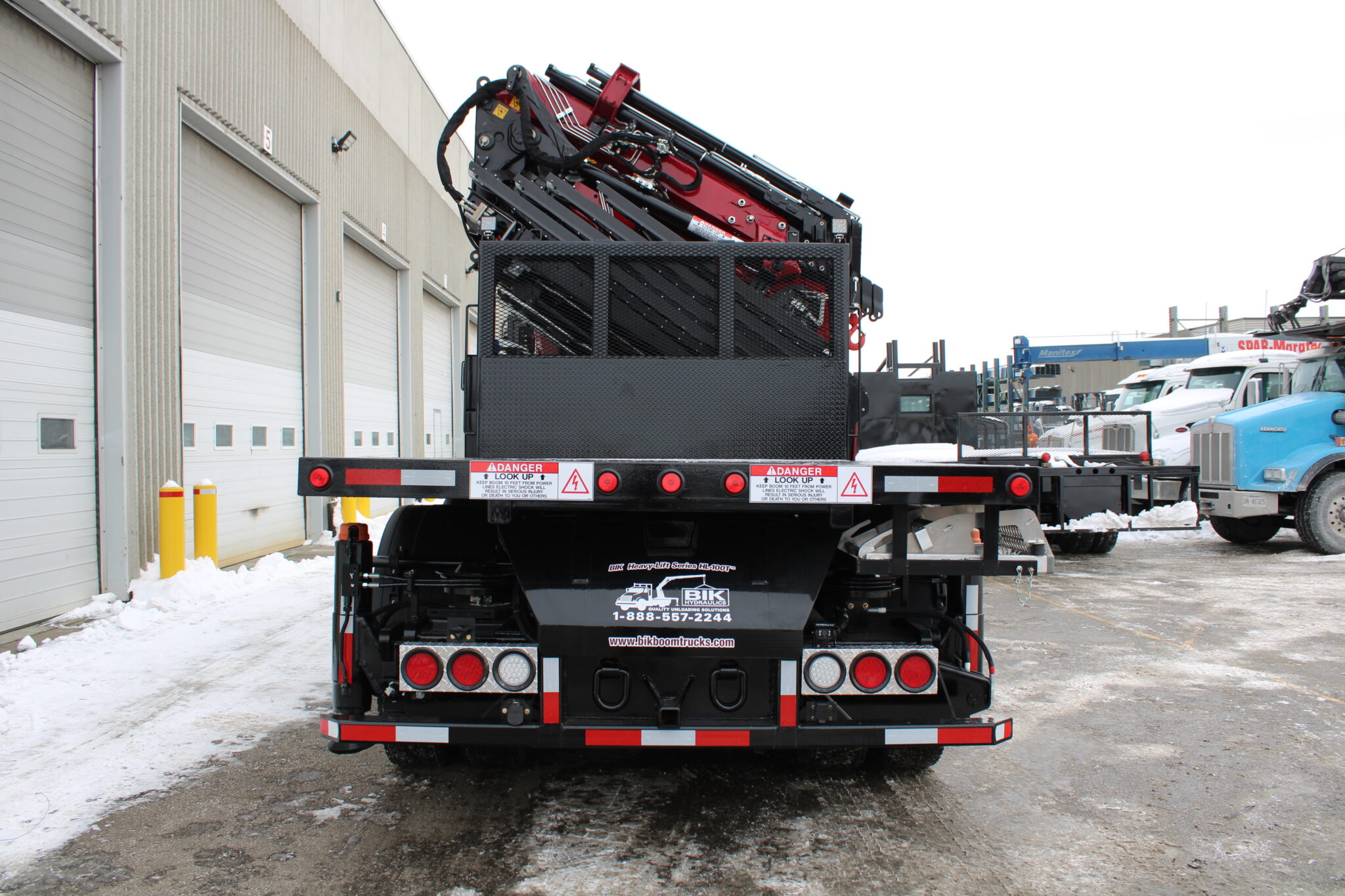

- 10′ or 13′ (your choice) removable Steel Flat Deck with head board mounted to sub base
