NEW BIK HEAVY LIFT SERIES HL-100T – NEW 5 or 6 AXLE MICHIGAN TRAILER
NEW BIK HEAVY LIFT SERIES HL-100T – NEW 5 or 6 AXLE MICHIGAN TRAILER
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

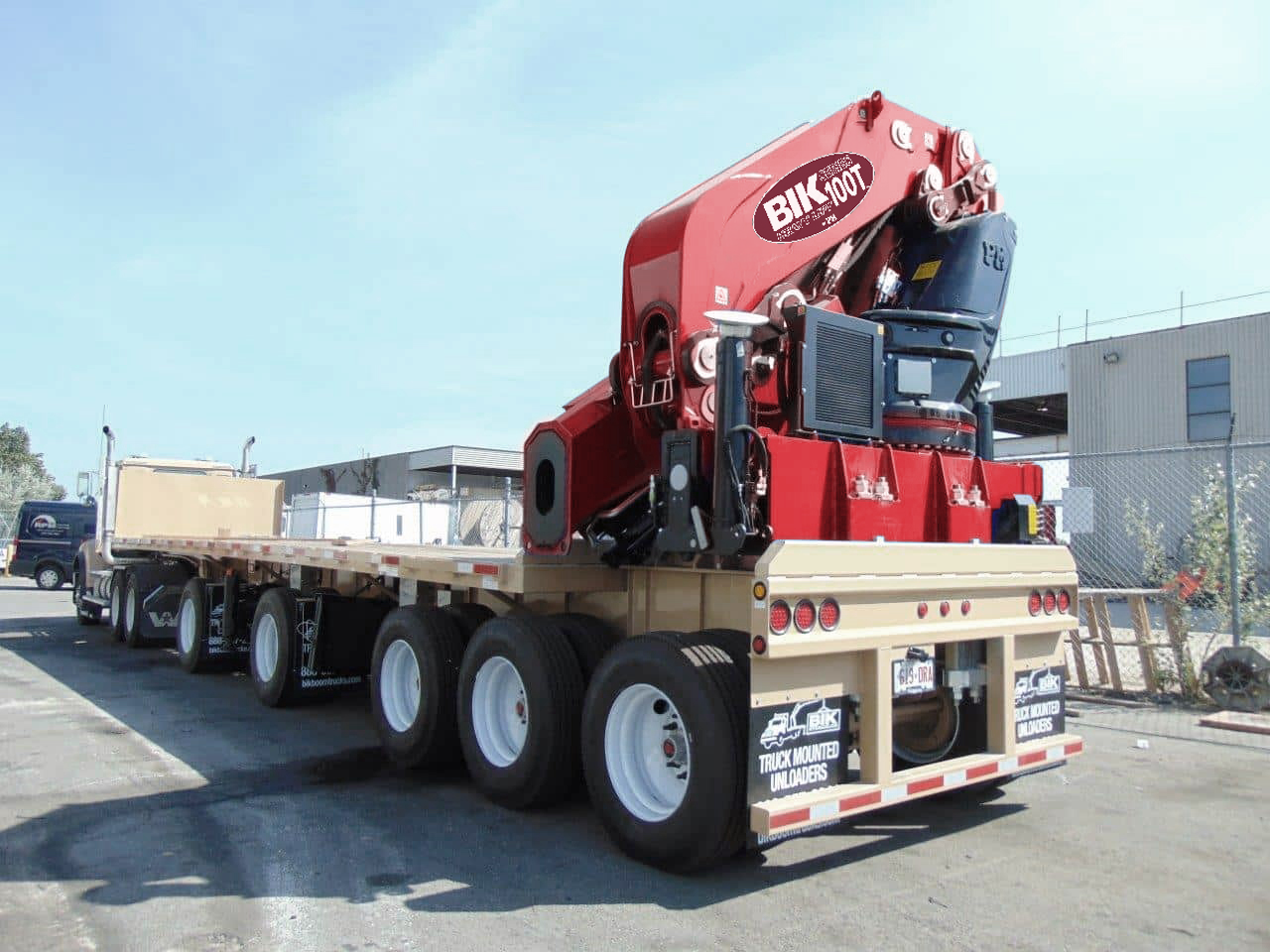

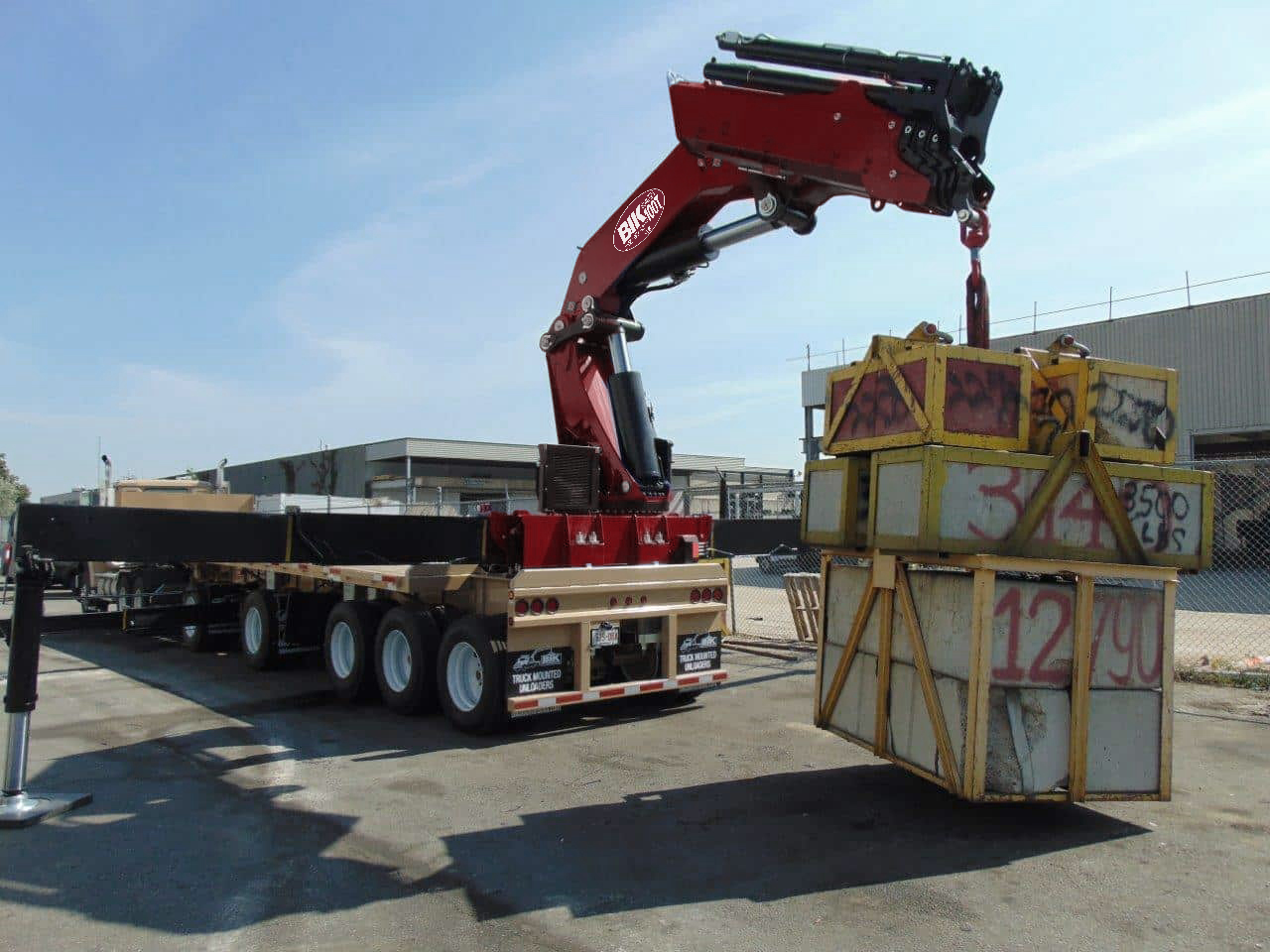

New – BIK Heavy Lift Series HL-100T Knuckle Boom (PM 100024S)

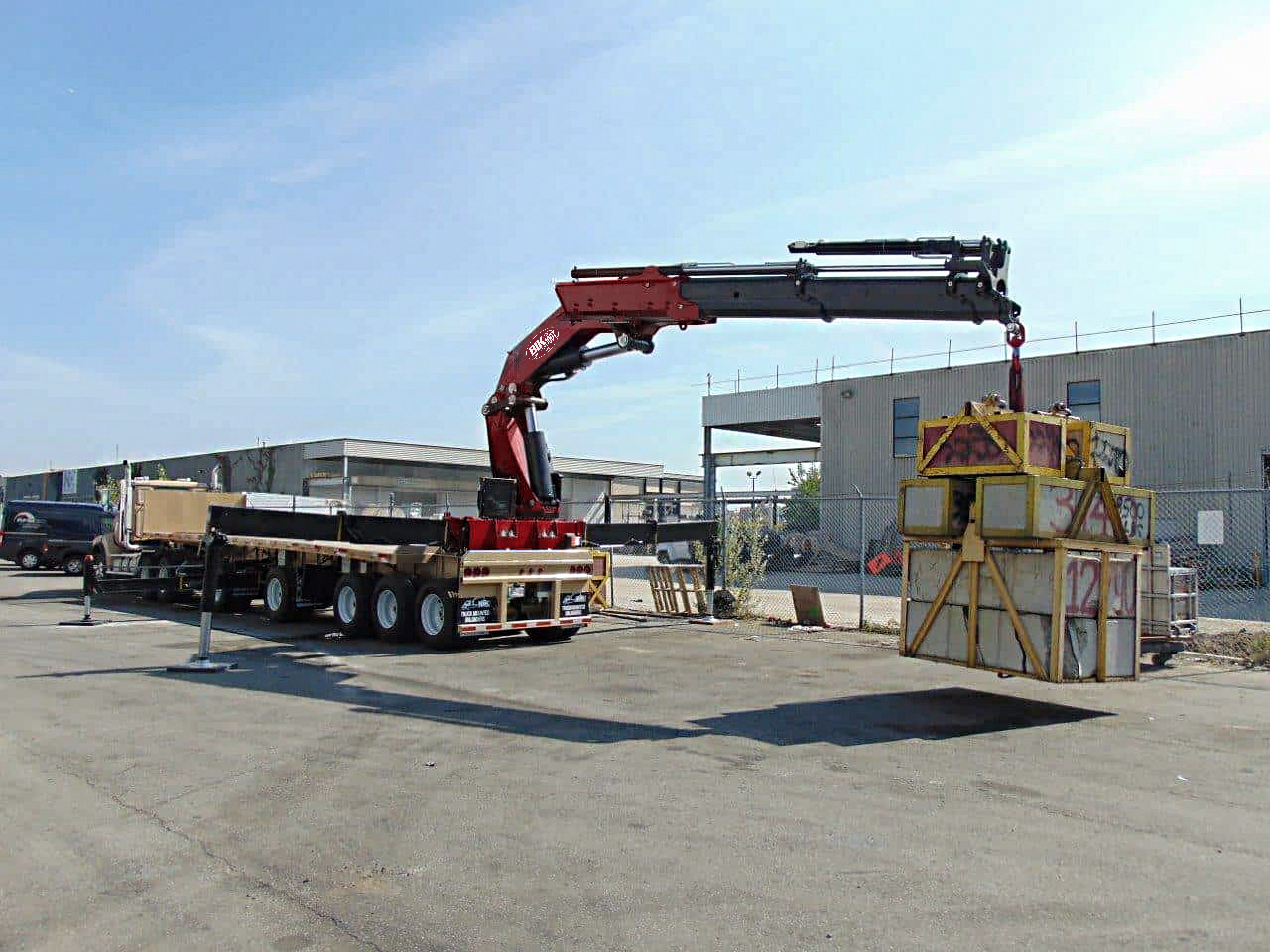

- 4 Hydraulic extensions to 37’ 5” horizontal reach (49’ vertical)
- Main Boom Horizontal Capacity:
- 42,400 lb @ 14’
- 32,100 lb @ 19’
- 24,010 lb @ 25’ 3”
- 20,600 lb @ 30’ 6”
- 16,250 lb @ 37’ 5”
- PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- Double-pilot operated on slewing and pilot-operated check valves on all cylinders

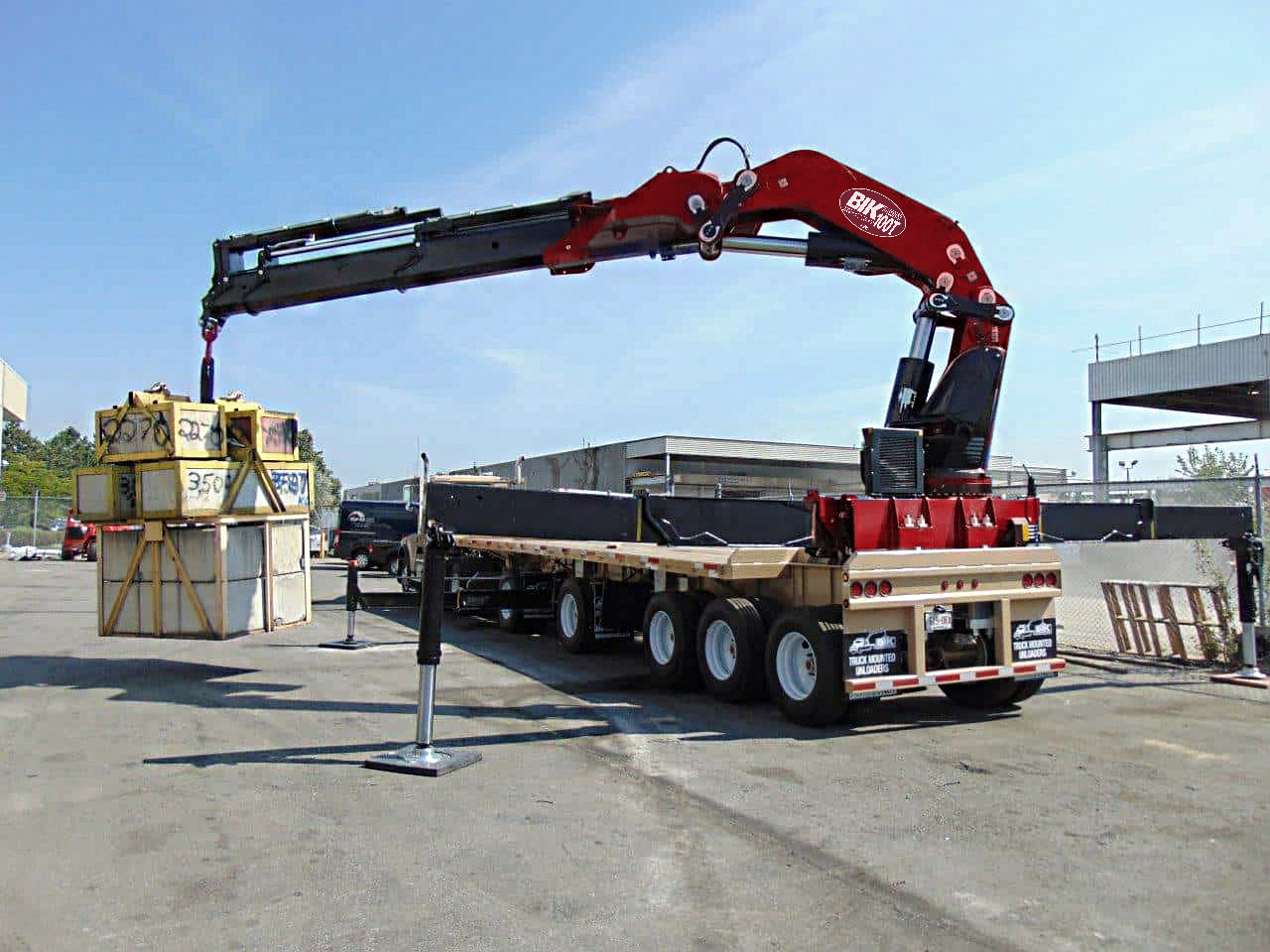

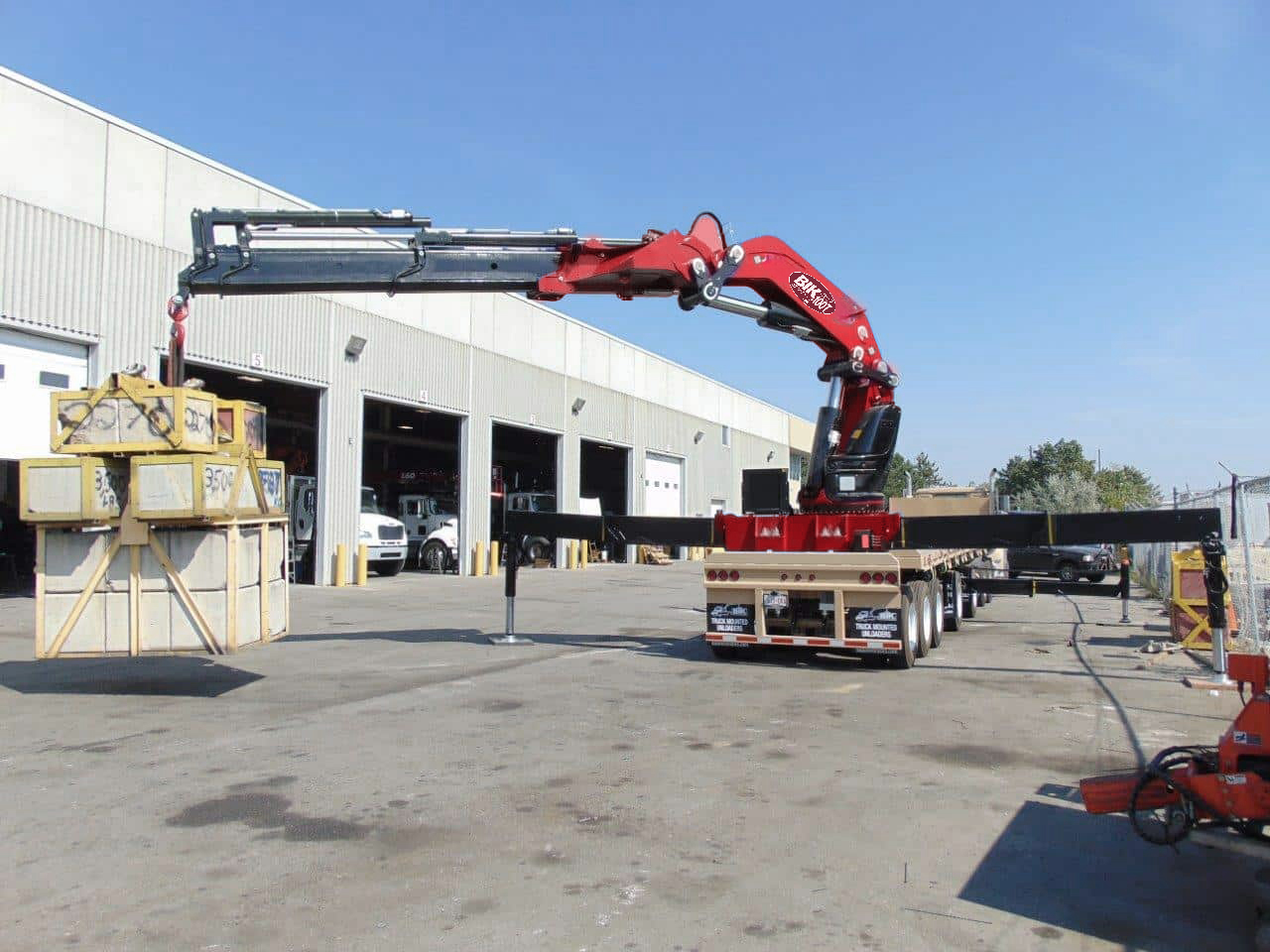

- 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability
- Front Auxiliary Stabilizers Extra wide type – 25’ span – installed under trailer near front
- Hydraulic Oil Cooler, high-pressure return filter
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with backup cord
- Radio Remote includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- PM Power Tronics Electronic monitoring allowing maximized uptime and ease of maintenance
- 4-ton single line winch with the ability to three-art line to handle 24,000 lb with the winch
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
- 24/7 Crane-Tech Support by BIK – 1-Yr. part & labour warranty on entire boom, 3-Yr. on Structural Components
- Mounted end of frame mount on trailer, with hydraulic and electric connections for tractor wet-line operation
Deck Details

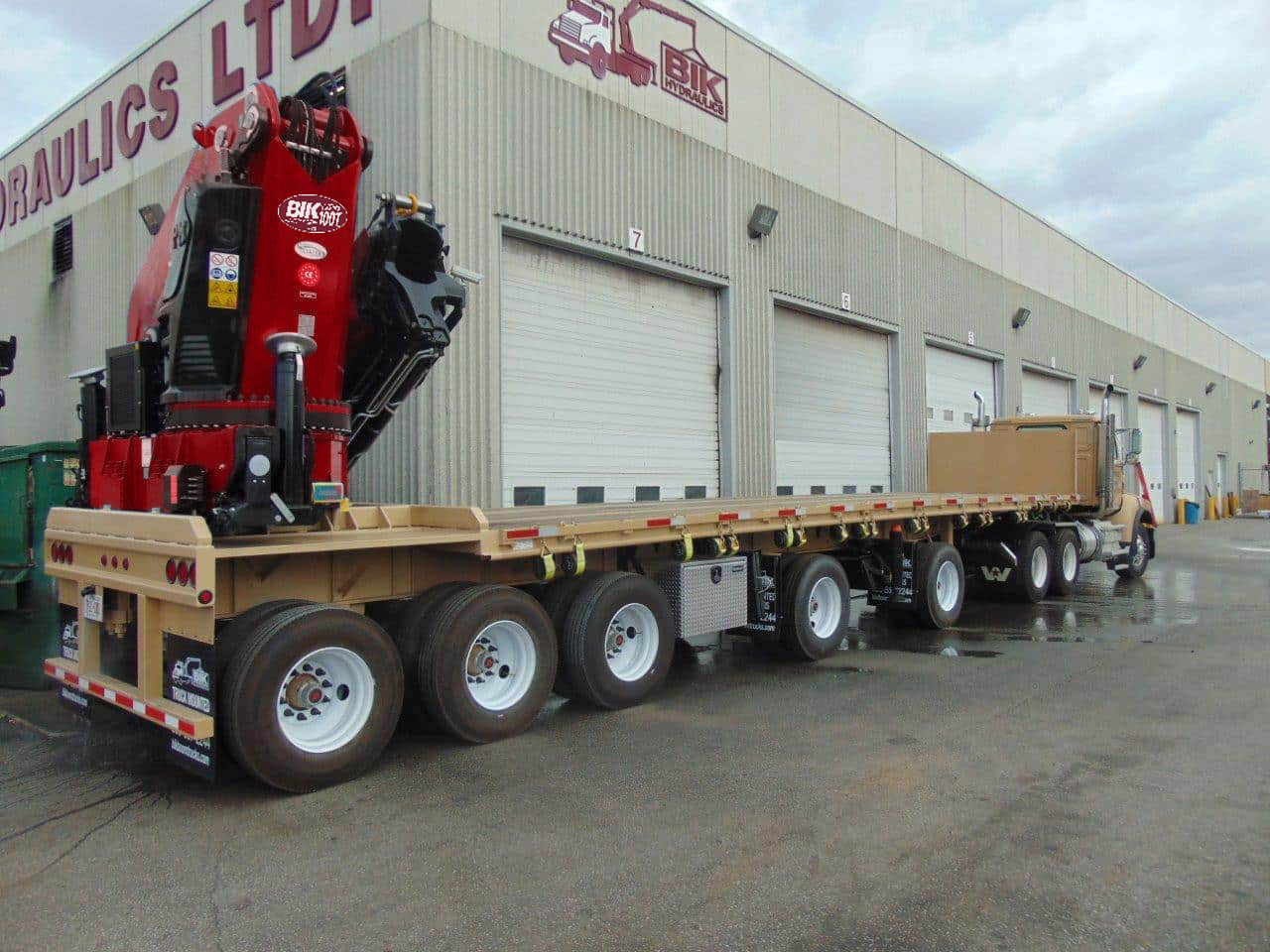

New 5-axle Michigan Trailer
- Tri-Dem (3) axles air ride or spring at rear
- (2) – 20k air lift axles 9’ spread between 1st axle of tri’s & lift
- Wood flooring on 12” centers
- We will need customer owned tractor with its own at end of install to set up pressures on boom
Available Options:
- Lifting winch up to 4-part line cable to handle 24,000 lb lifts
- Aluminum Stabilizer Pads (2x) with holders installed
- (1) 36” Aluminum Tool Box under deck
