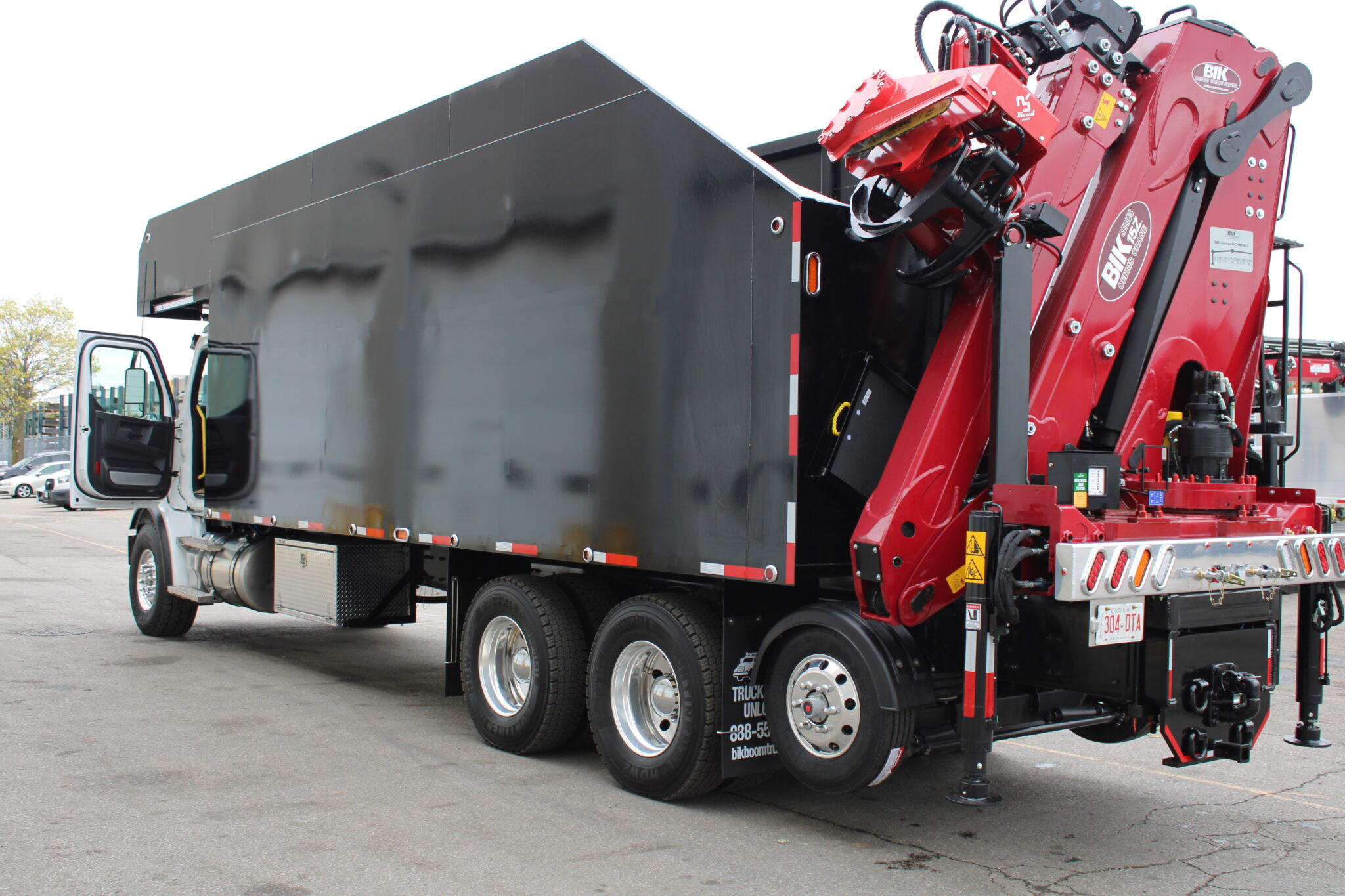

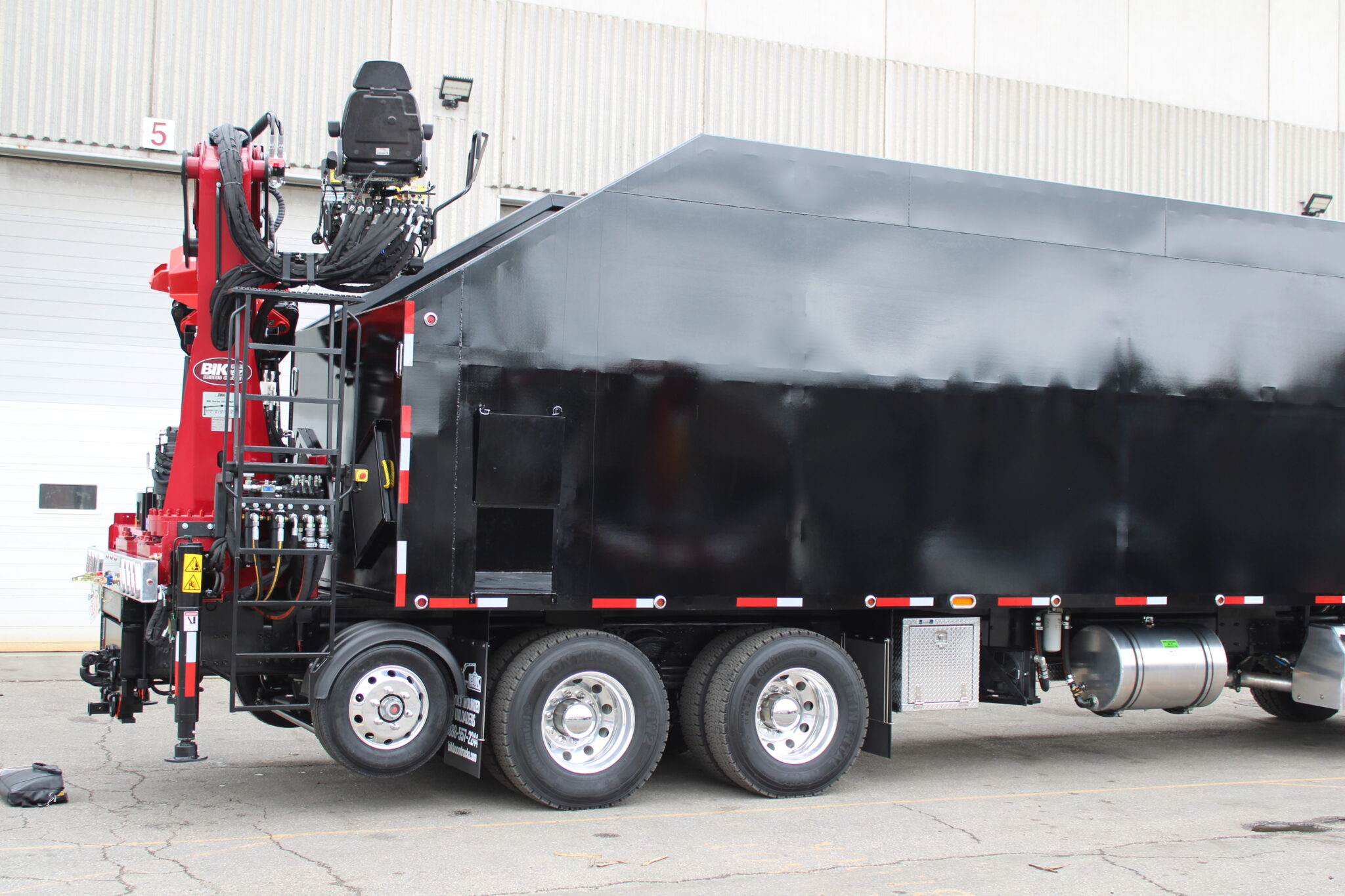

NEW BIK DEBRIS CRANE SERIES DC-15Z ON NEW WESTERN STAR 47X 4-AXLE

 |
NEW BIK DEBRIS CRANE SERIES DC-15Z ON NEW WESTERN STAR 47X 4-AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
New – BIK “Z-Boom” Series ZM-15F – 15 ton/m Folding Z-Boom – Hyd Extending Main Boom Extension with 2-ext in secondary arm

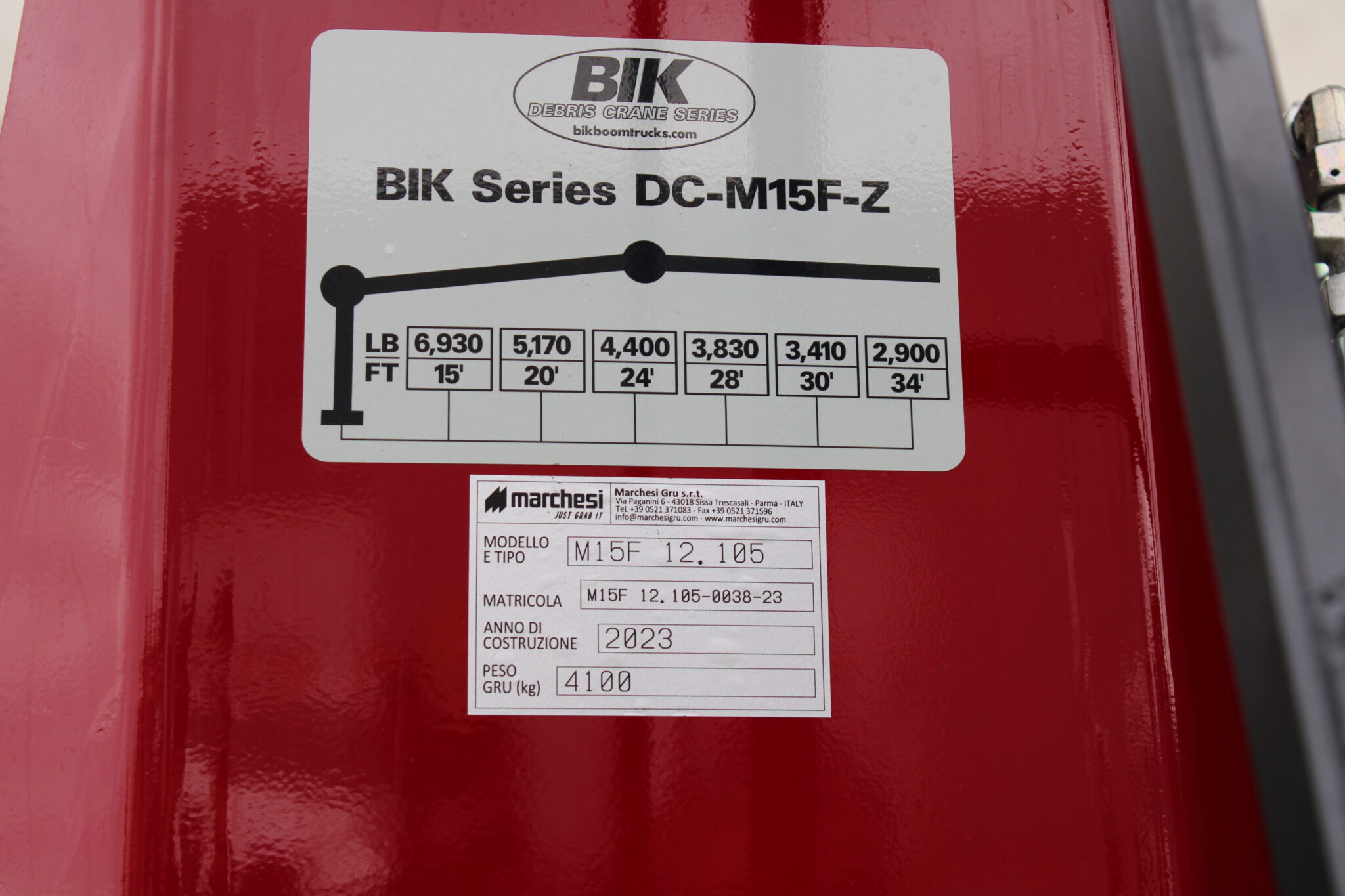

- Horizontal Capacity:
- 6,930 lbs @ 14’
- 4,400 lbs @ 23’
- 6,800 lbs @ 38’ 8”
- 3,400 lbs @ 29’
- 2,600 lbs @ 34’
- Foldable Boom in “Z” type during transport with attachment connected – Maximum Horizontal Outreach: 10.5m (34’)
- Telescopic Main Boom with Double Extension cylinder/chain system on the second boom, – Power Linkage system on Main Boom
- Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability

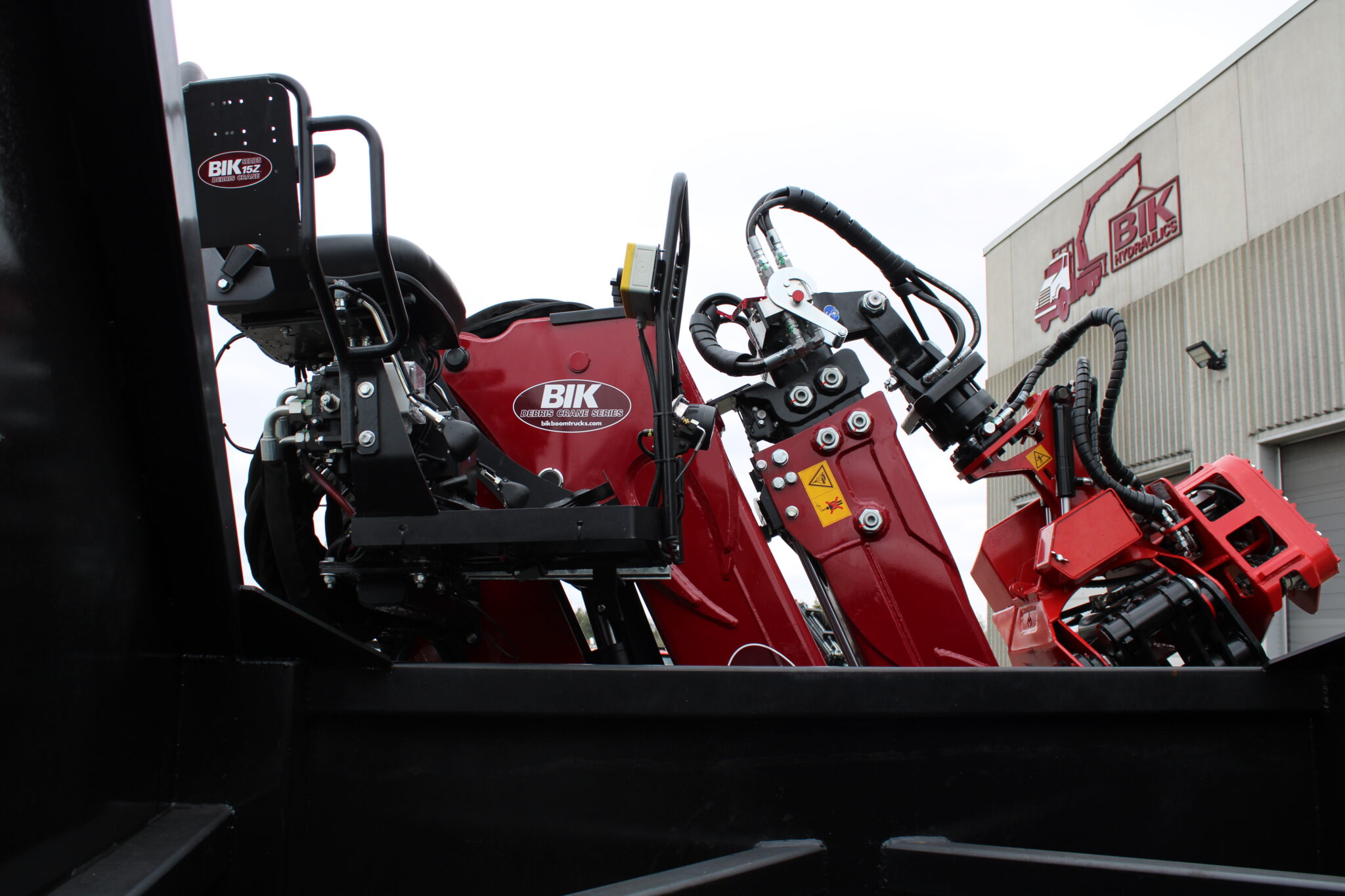

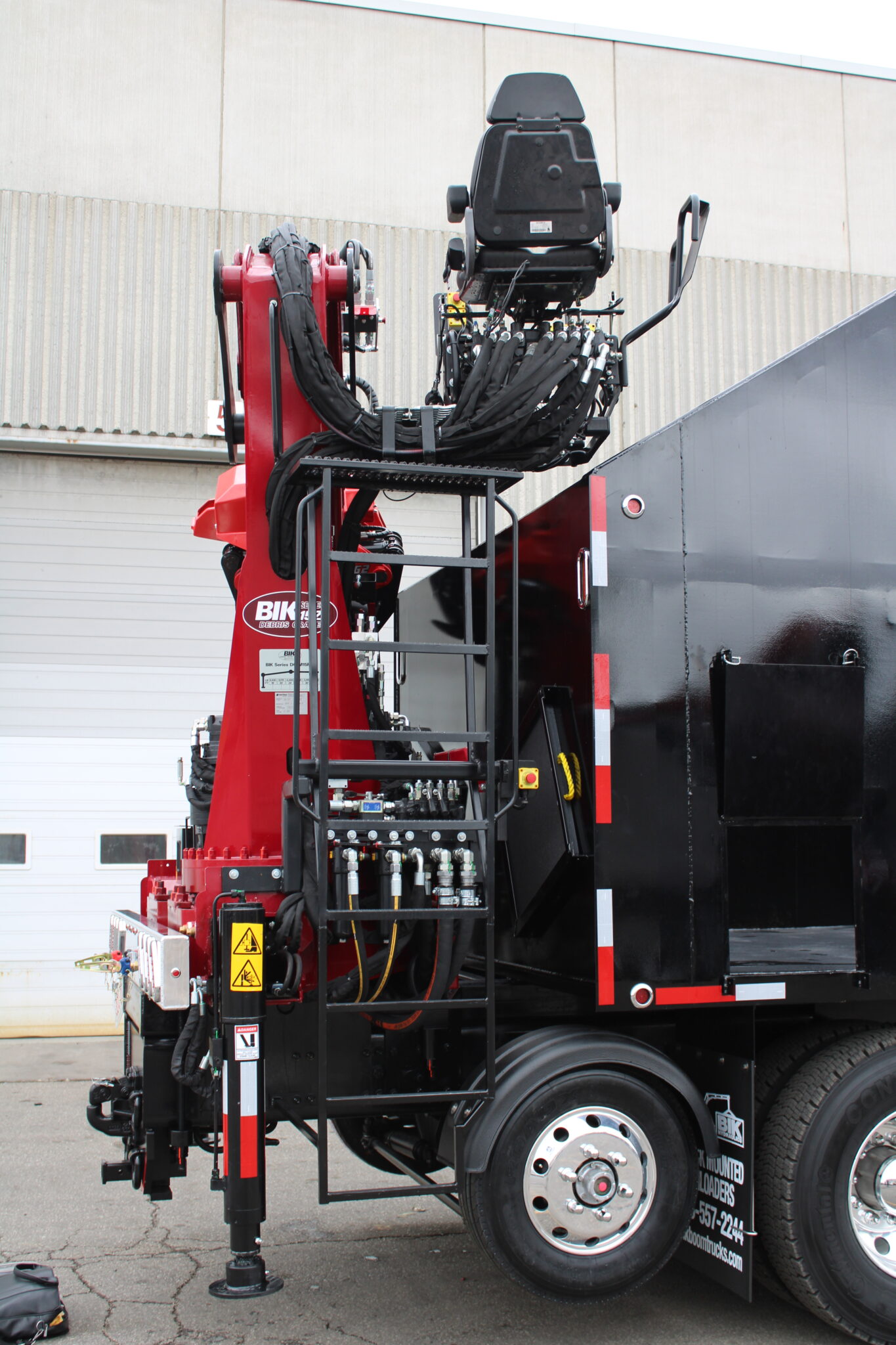

- High Controls from Top Seat with mechanical dual joystock and foot pedals for boom/grapple controls, – GRAPPLE: Heiden HC20 trash grapple
- Flip-Up style Hydraulic Out & Down Stabilizers – 16’ Xtra Wide Spread, Dual-sided ground level controls

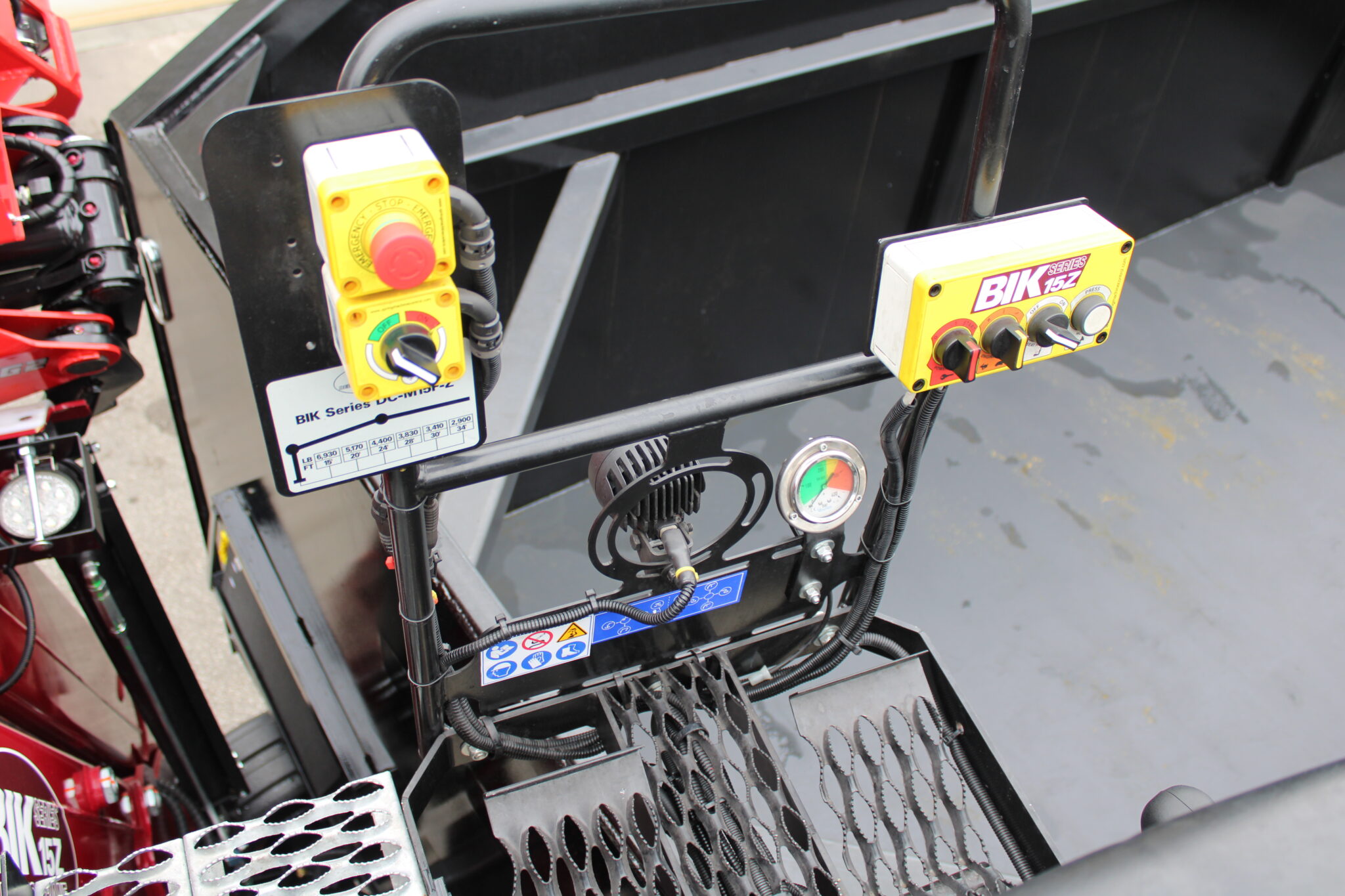

- Control Panel at Top Seat to manage: Heated Seat, Truck Horn alert, Truck Engine on/off and High RPM control
- Top Seat Cover foldable “hood” over seat to shield operator from rain during operation of boom
- Carter Protection on first and second boom cylinders, Hydraulic Load Limiting Device, Boom is Factory painted Burgundy Colour
- Tandem pump / Double Circuit system for optimum speed for simultaneous multi-function use
- Other Features Include: High Pressure Filters, Emergency Stop Button, Manometer with “Traffic Light”, LED spot lights on secondary boom

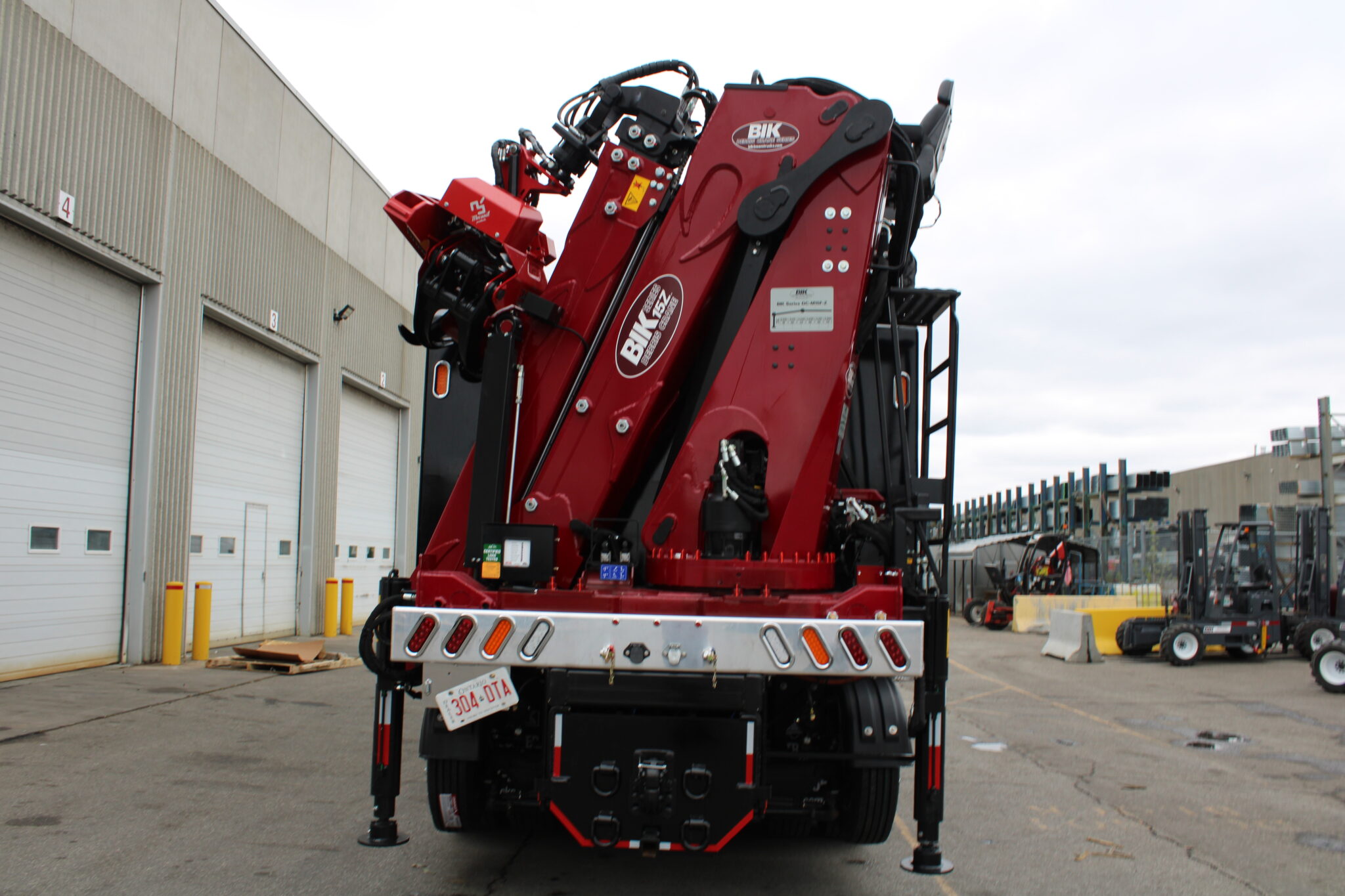

- Installed at Rear on sub base, all hydraulic & electrical connections with AW46 hyd oil, Engineer Stability load tested and certified
Deck Details

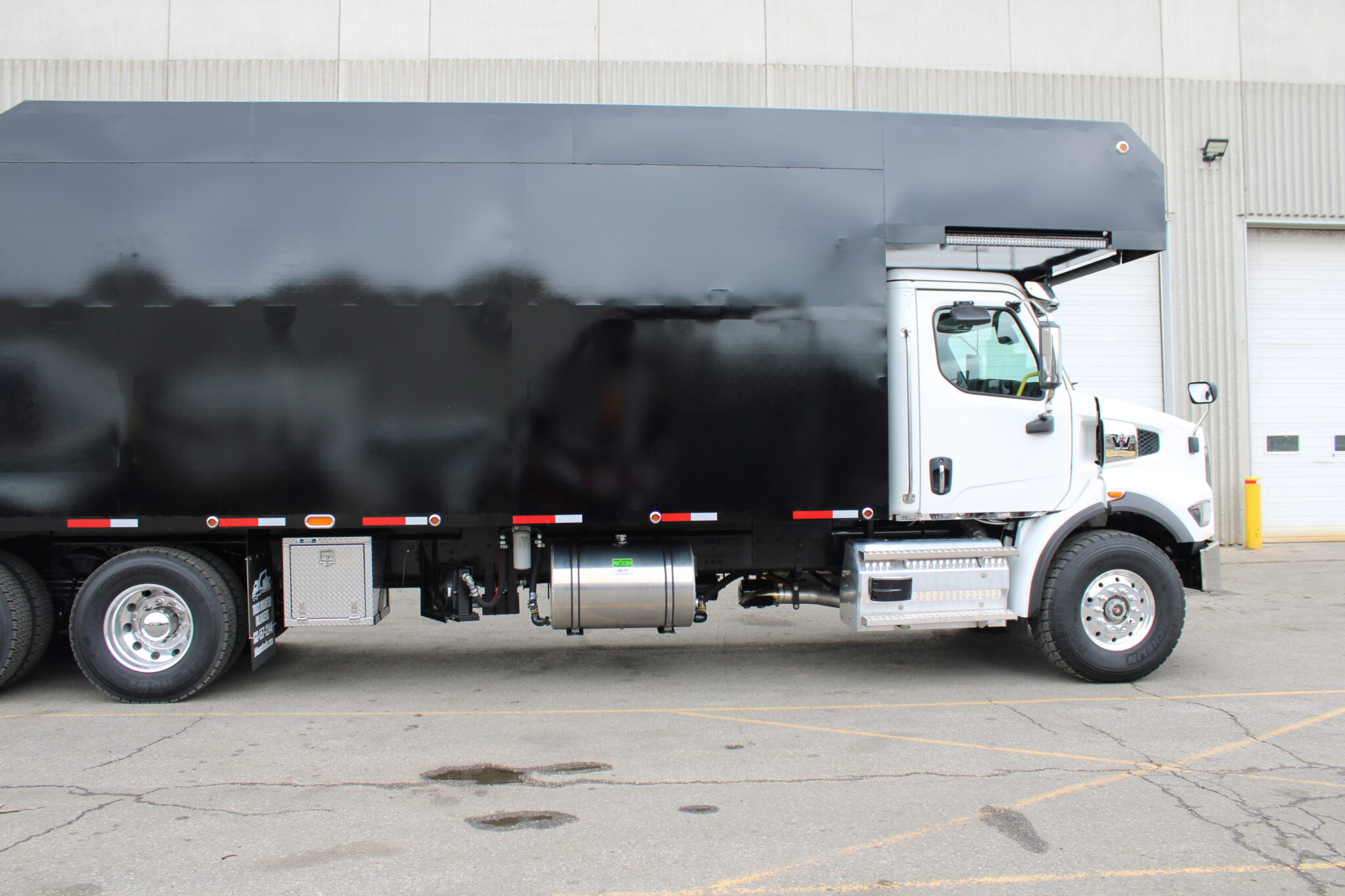

New – 25’ x 102″ 80 Yard Body made with AR 450 Plate 1/4” Steel, 25’ Long x 102” Wide, 8’ High; Ground to Top of Sides
- 3 x 4 x 3/8 Longsills, 4” Heavy I–Beam Crossmembers, 2 x 4 x 1/4 Tubing Inside Body
- 7’ Cab Shield Length; 45° Taper, 45° at Rear of Body for Loader to Swing Past
- Penny Lights Down Sides; Six per Side, 6000 Series Strobes Horizontal Across Face of Cab Shield; Five Total
- Midturn at Bottom, Strobes in Rear of Body, Mud Flap Brackets in Rear with Flaps, Pad Holders on Rear of Body
Truck Details

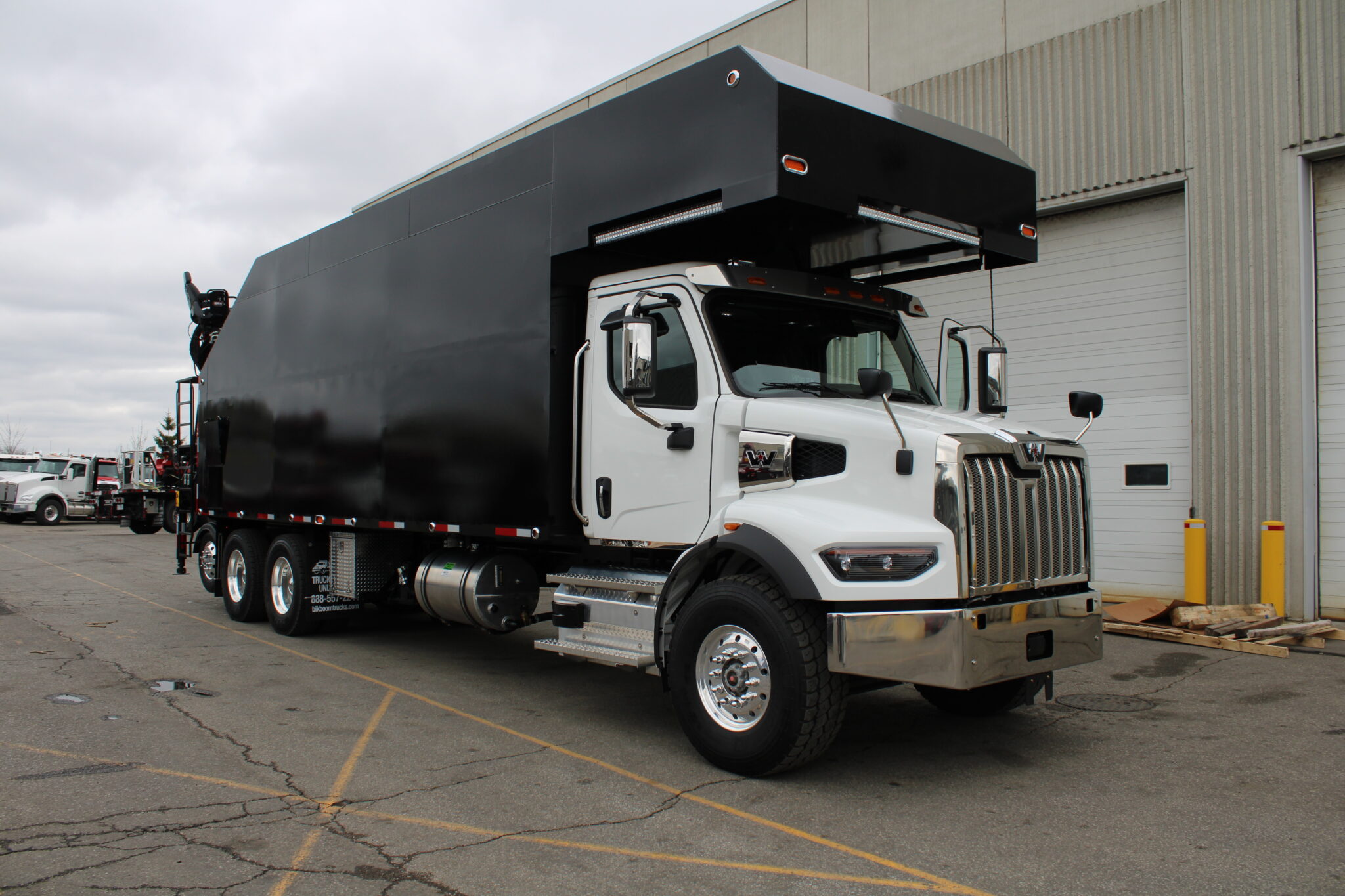

New – 2025 Western Star 47X 4-Axle Diesel Truck: 66,000lb GVWR
- Truck Cab White Colour
- Detroit Diesel 13L Diesel 500 hp
- Detroit DD-13 Automated 12spd trans
- 20,000lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 46,000lb Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims
- double frame chassis
- 54” spread at tandems
- approx. 302” wb
- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, two man pass seat, chrome bumper and grill, power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 100 gal alum fuel tank, trailer air tow package, etc…
Also Included:
- (1) – 36” Aluminum Storage Box Installed under deck
Options at Extra Cost:
- Heavy-duty pintle hook installed at the rear
- (1) Additional Aluminum storage box installed
- Add (1) New Mecanil SG-280 Grapple Saw with a custom quick disconnect lever portion
- Mecanil SG-280 Grapple Saw (instead of the Heiden Trash grapple included above)
- New – Tandem Debris Trailer 26’ long, high sides
