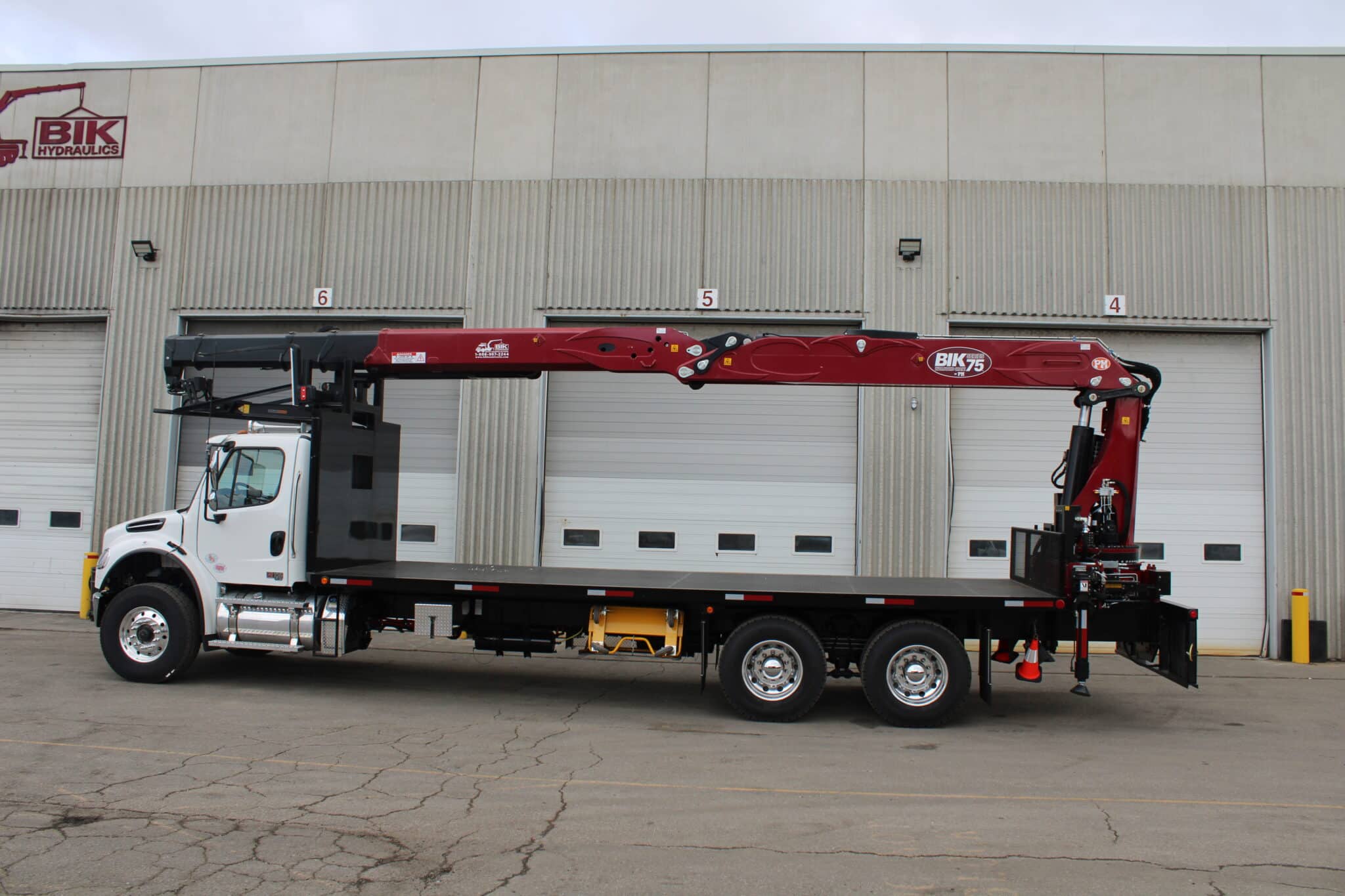

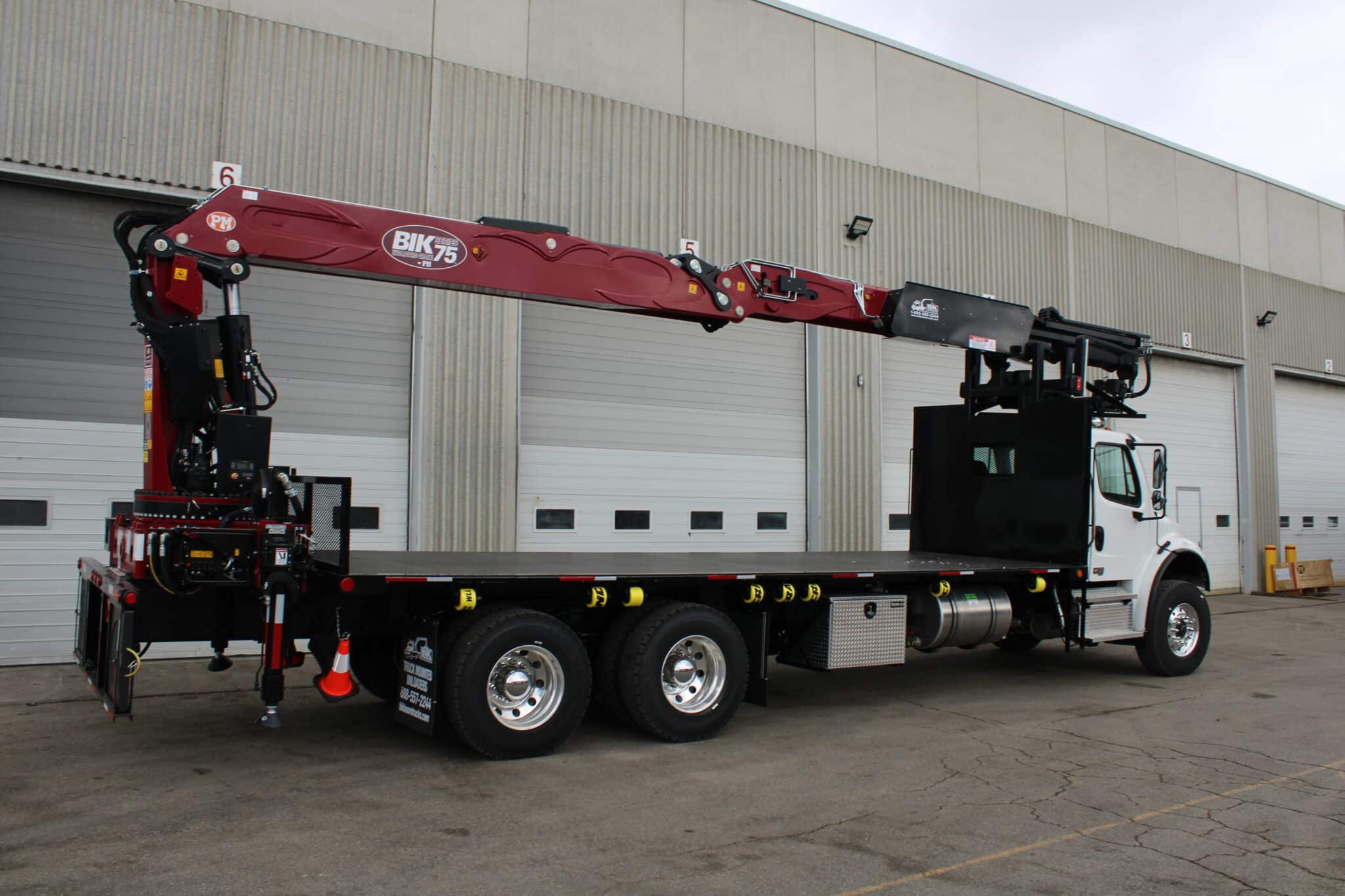

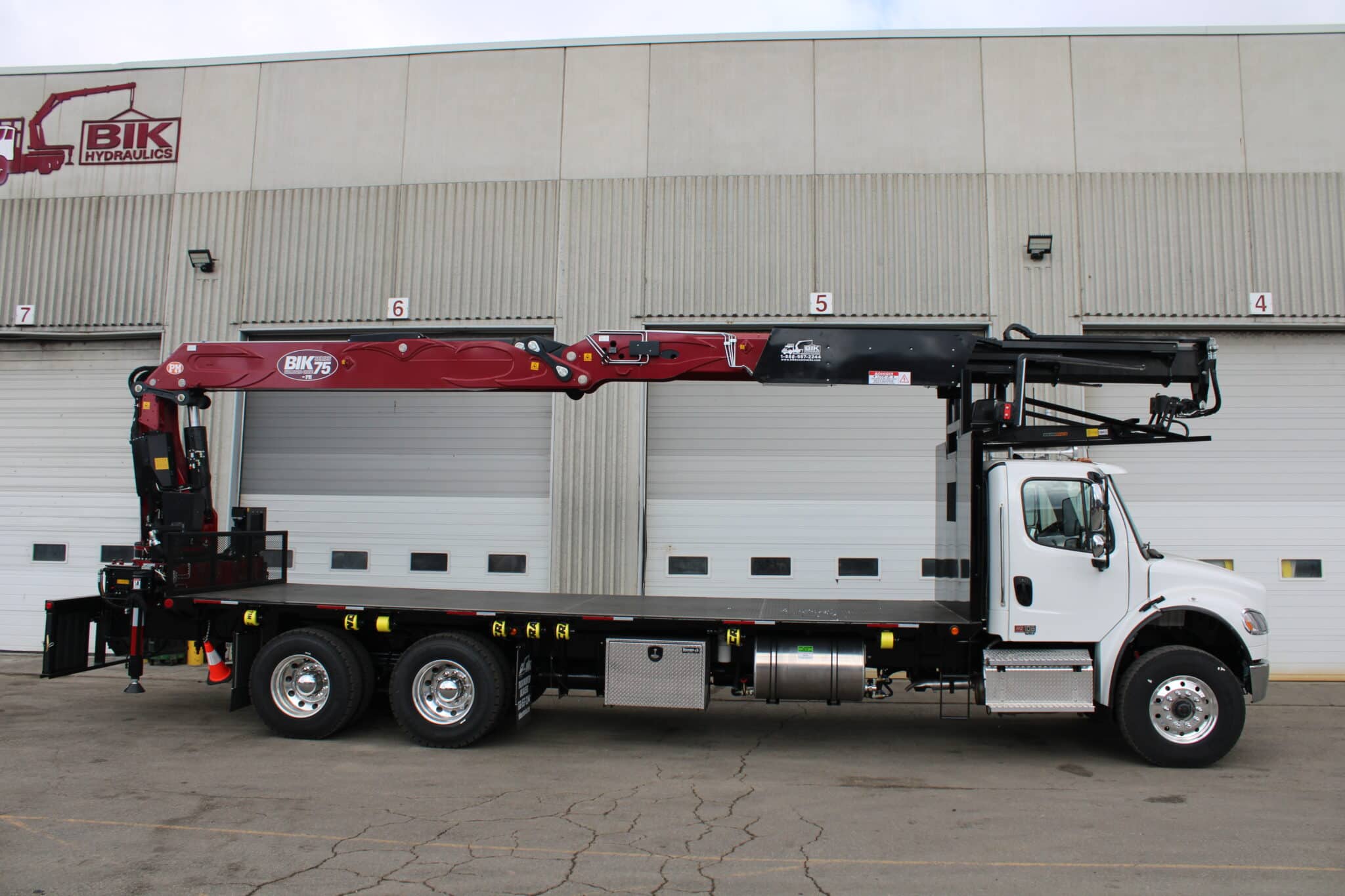

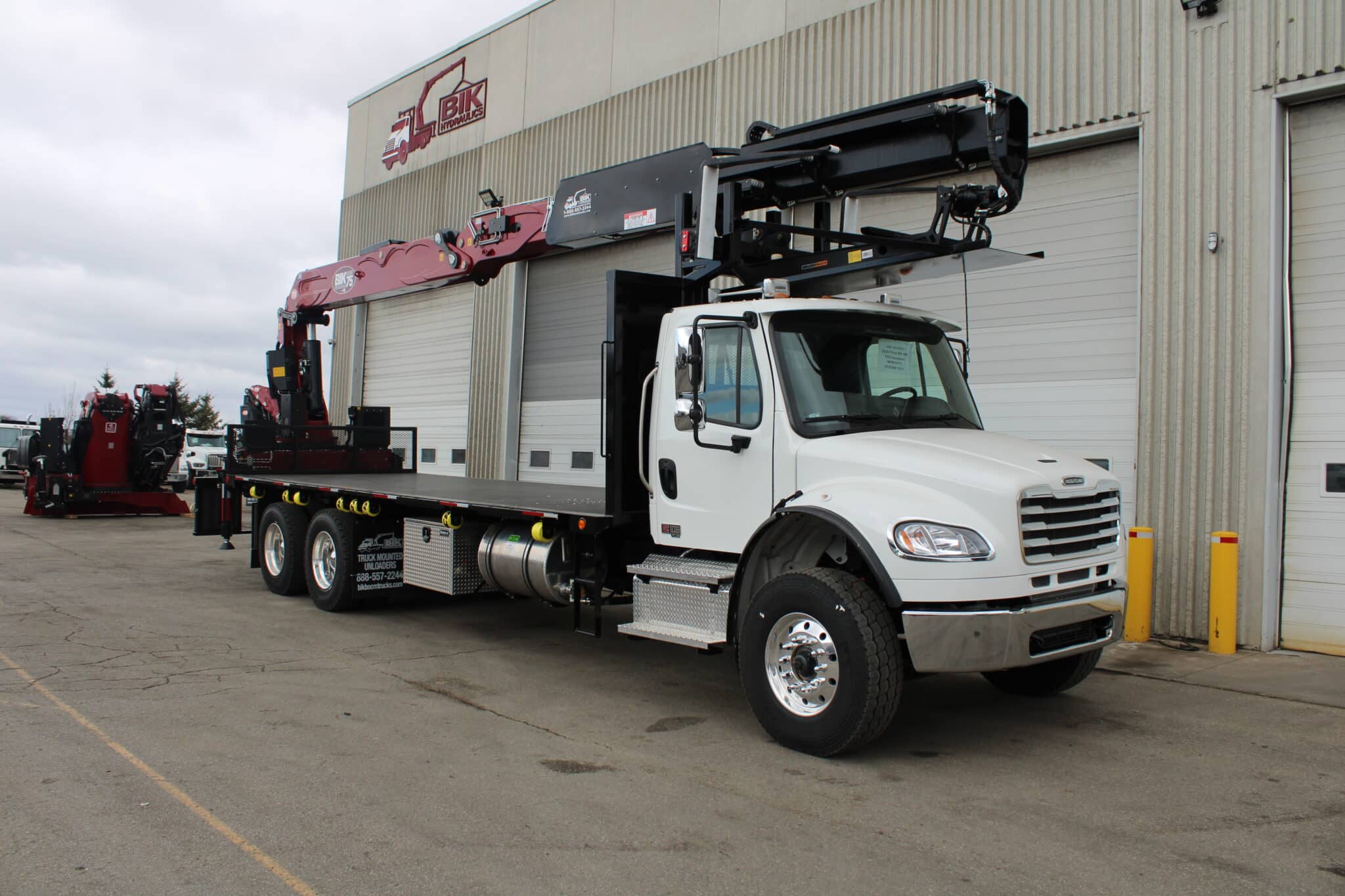

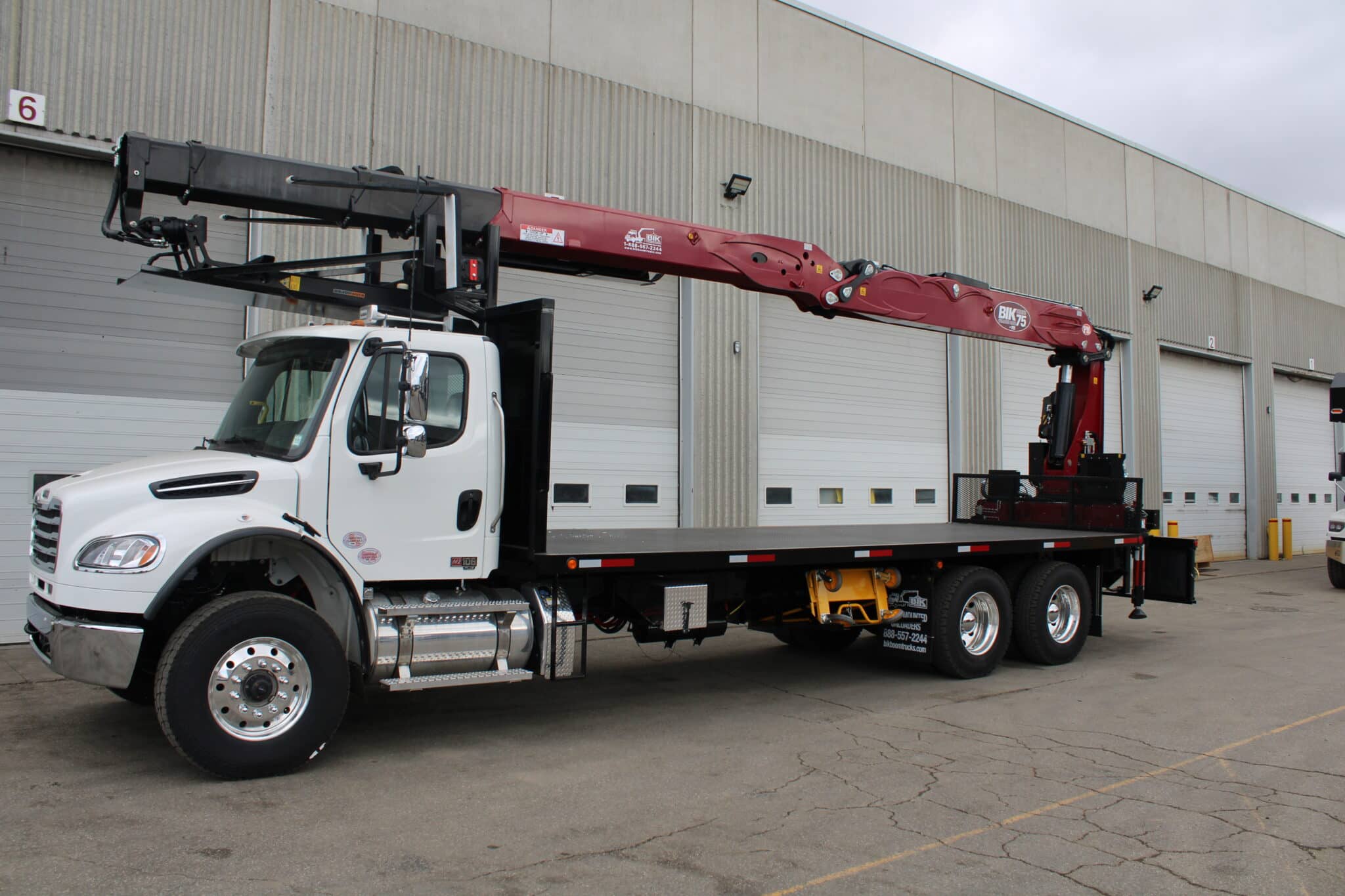

New – BIK “Wallboard-Crane” Series WC-75 by PM

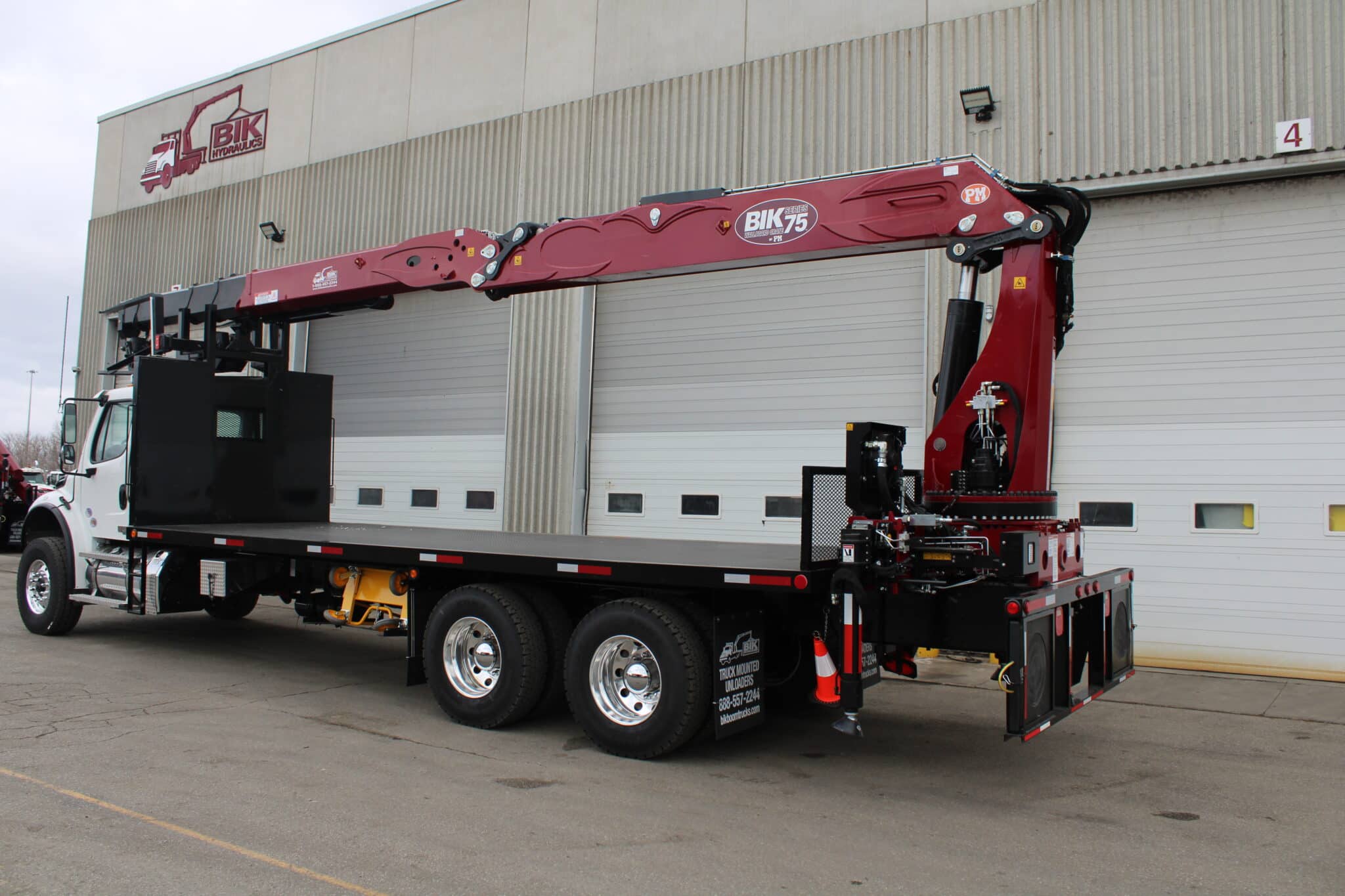

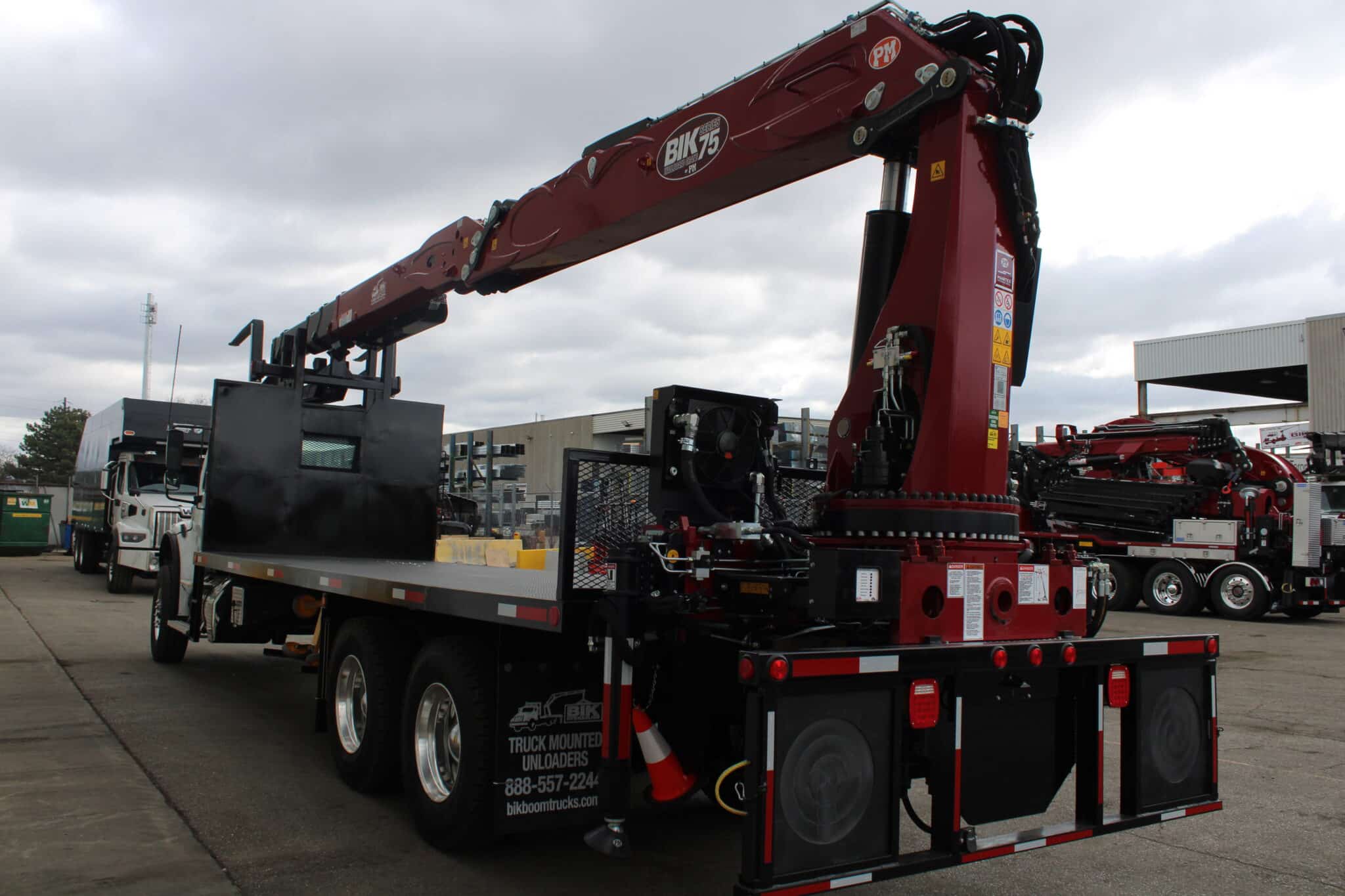

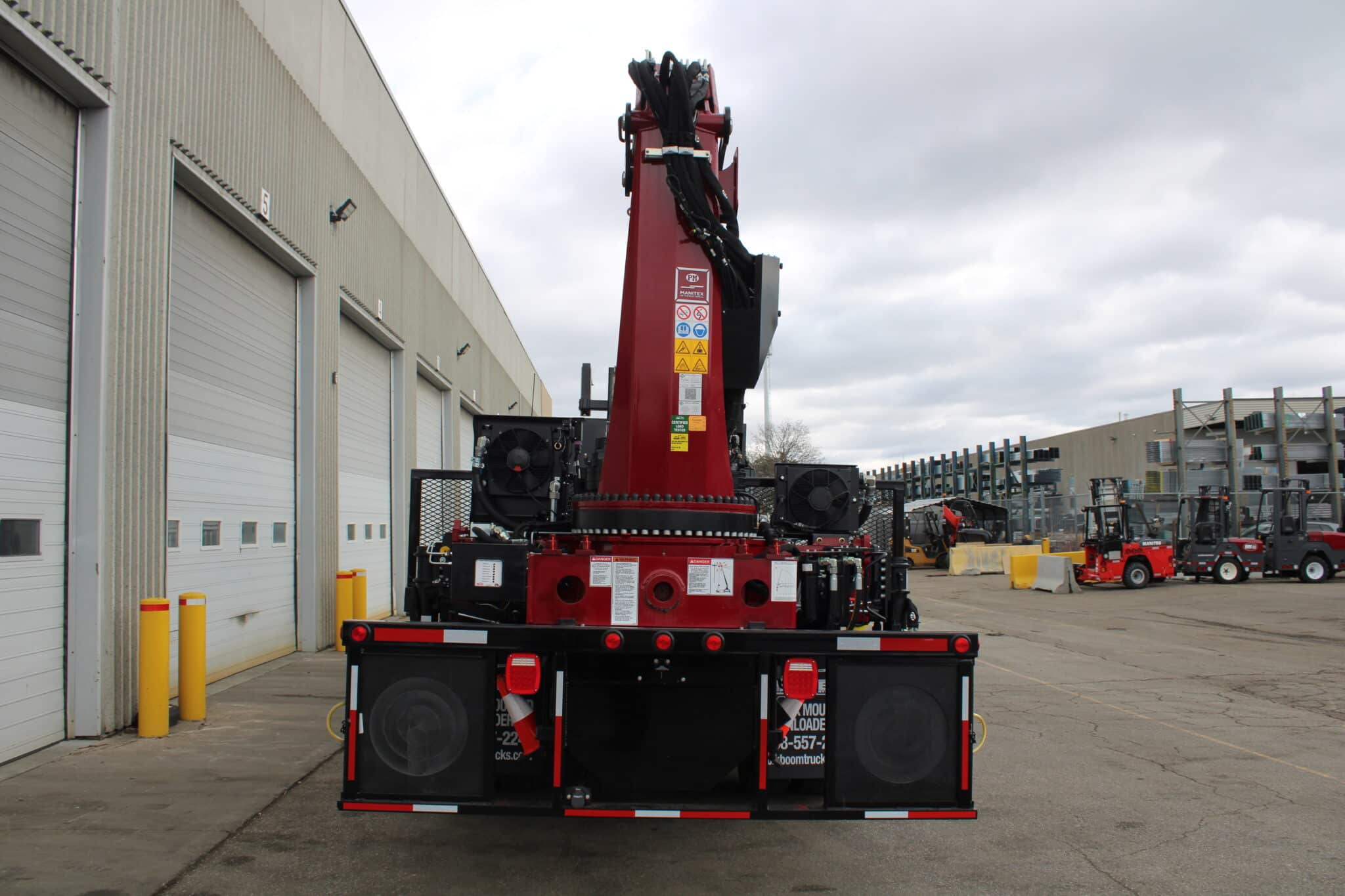

- 8th Floor Lift Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical )
- Vertical Boom Capacity:
- 7,510 lbs – 70’up & 23′ out
- 5,480 lbs – 65’up & 33′ out
- 4,380 lbs – 58′ up & 43′ out
- Internal cylinders on all boom extensions, Outer boom cylinder guard
- 360 Degree Continuous (Endless) Rotation and Dual Planetary Gear Drive Motors – 10 WARRANTY – on Turret Bearing
- Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
- Super Xtra Wide Stabilizers – 27’ span, hydraulic out and down type
- Power Tronic Electronic Safety System allowing constant crane monitoring & visual display
- 5-level stabilizer deployment control system – reduces boom capacity in proportion to shortened stabilizer deployment
- DANFOSS Valve Manual Boom Levers – Located on Boom Column & SCANRECO Proportional Radio Remote Control
- Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks
- Flanged holding valves, double acting check valve for the down movement of the stabilizers
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- Installed back of cab, with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards
Deck Details
New – 24′ 8 X 102″ Steel Flat Deck:
- With hard wood deck surface
- 66″ + headboard with over-cab drywall fork boom rest
- 8 sliding tie down winch straps on passenger side
- Winch bar holder and winch bar
- Ladder
- Reflectors
- 5-side lights as required by ministry standards
Truck Details

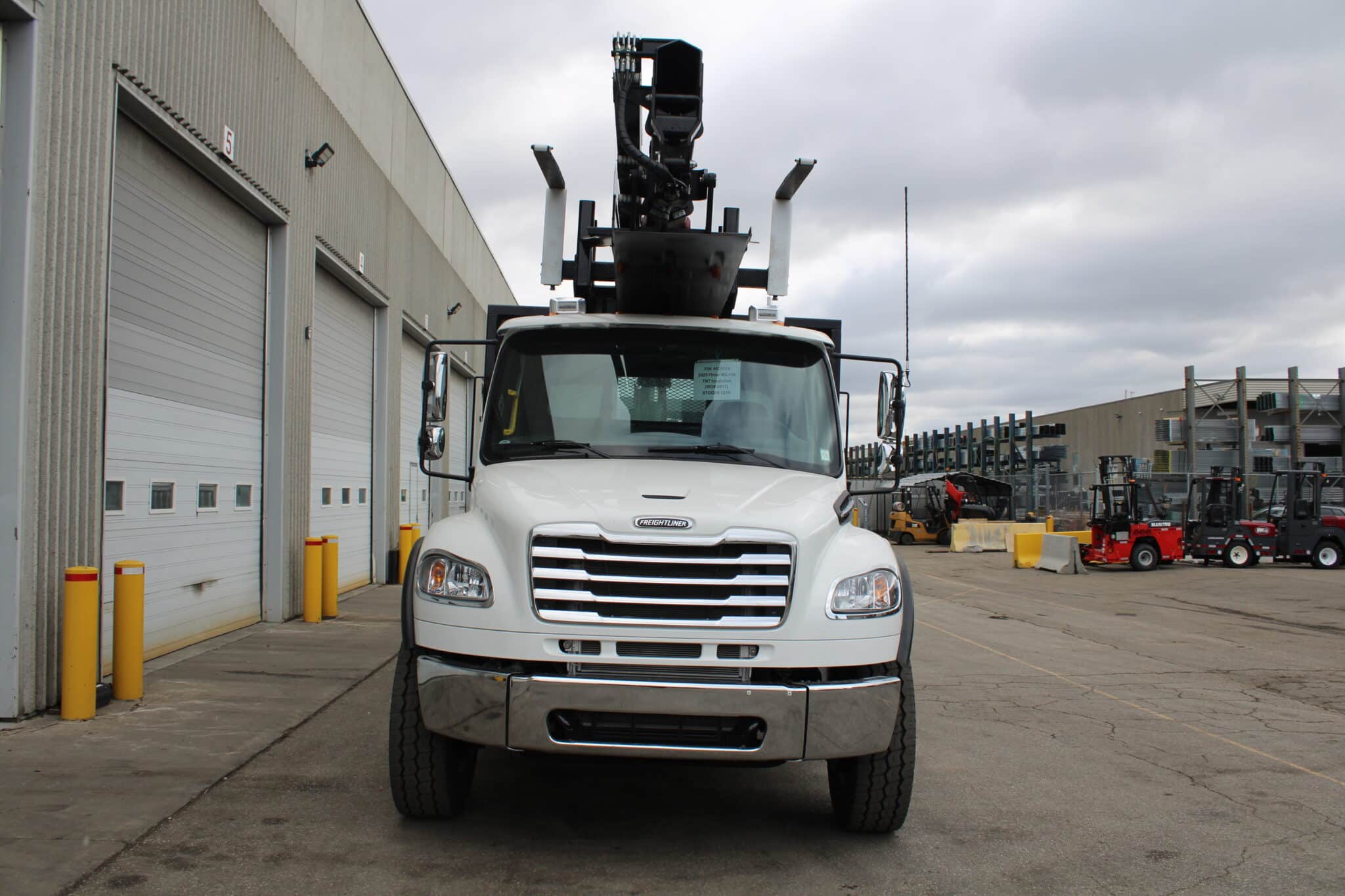

2025 Freightliner M2-106 3-axle Diesel Truck: 60,000 lb GVWR

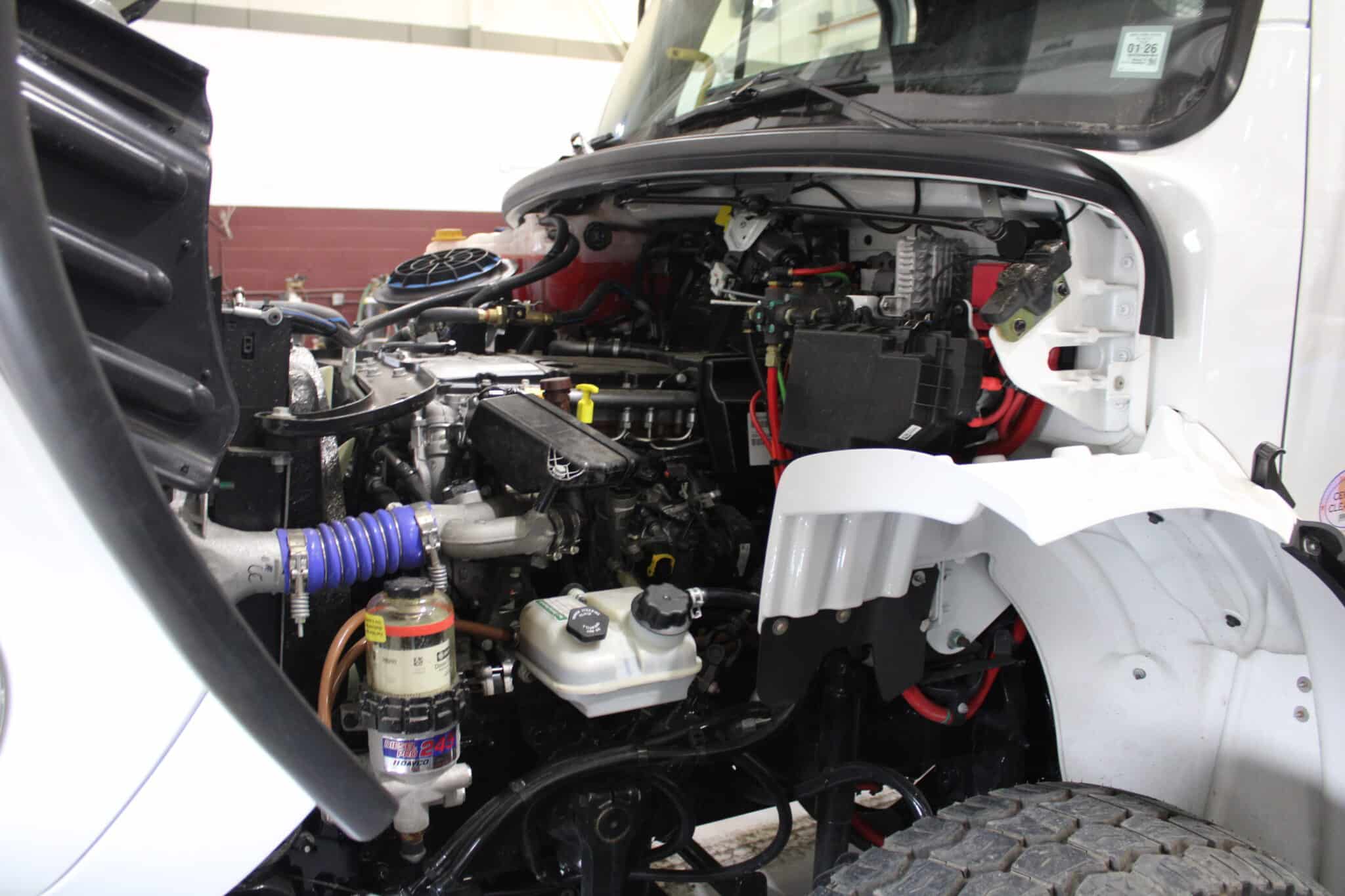

- CUMMINS 350 hp
- Allison automatic transmission
- 20,000lb front axle with 385/65R22.5 Front tires on Steel white rims
- 40,000lb Rears with 11R22.5 tires on Aluminium outer rims – steel inner
- Full double frame chassis
- 288″ wheel base
- 54″ spread at ta

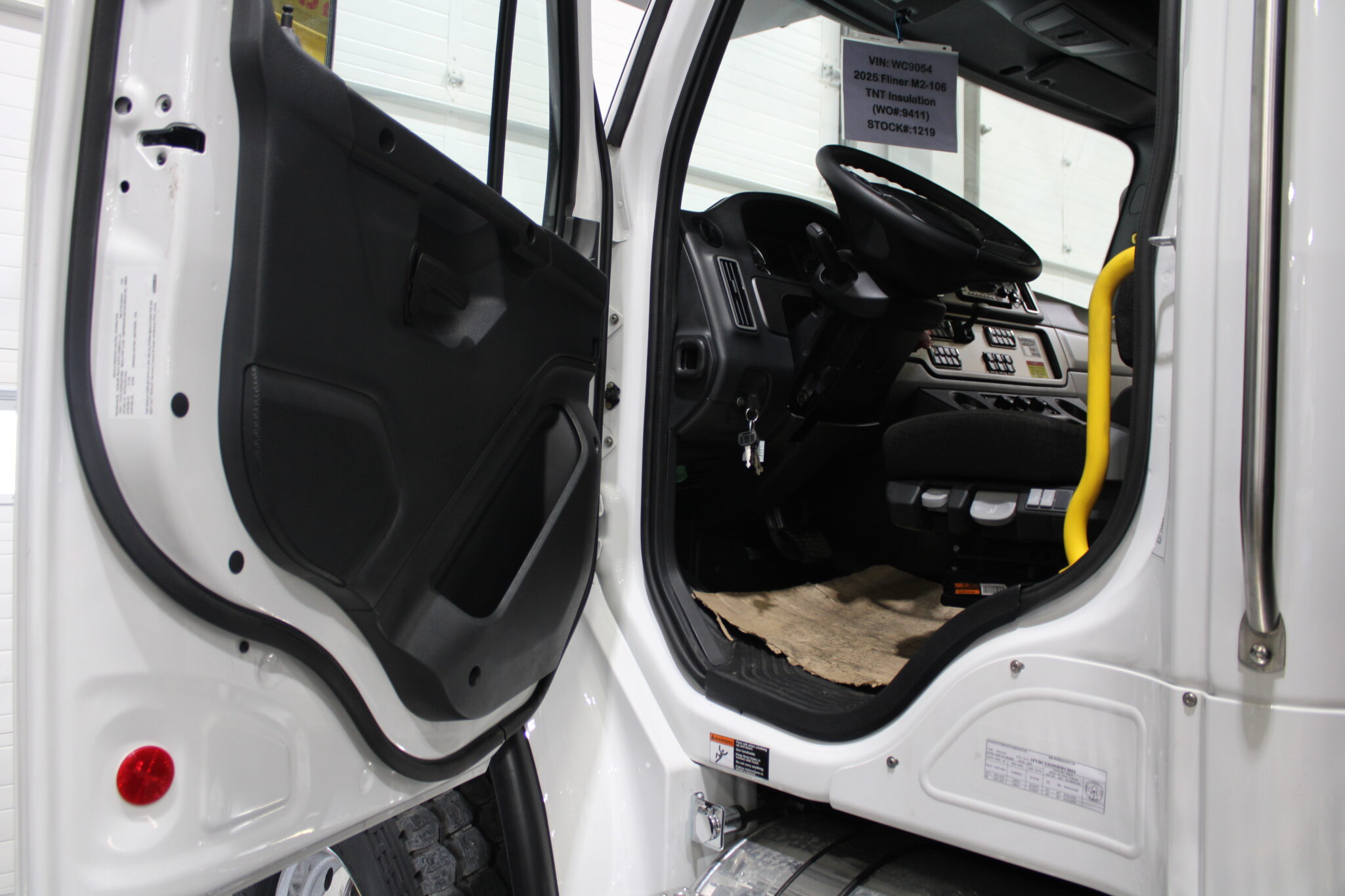

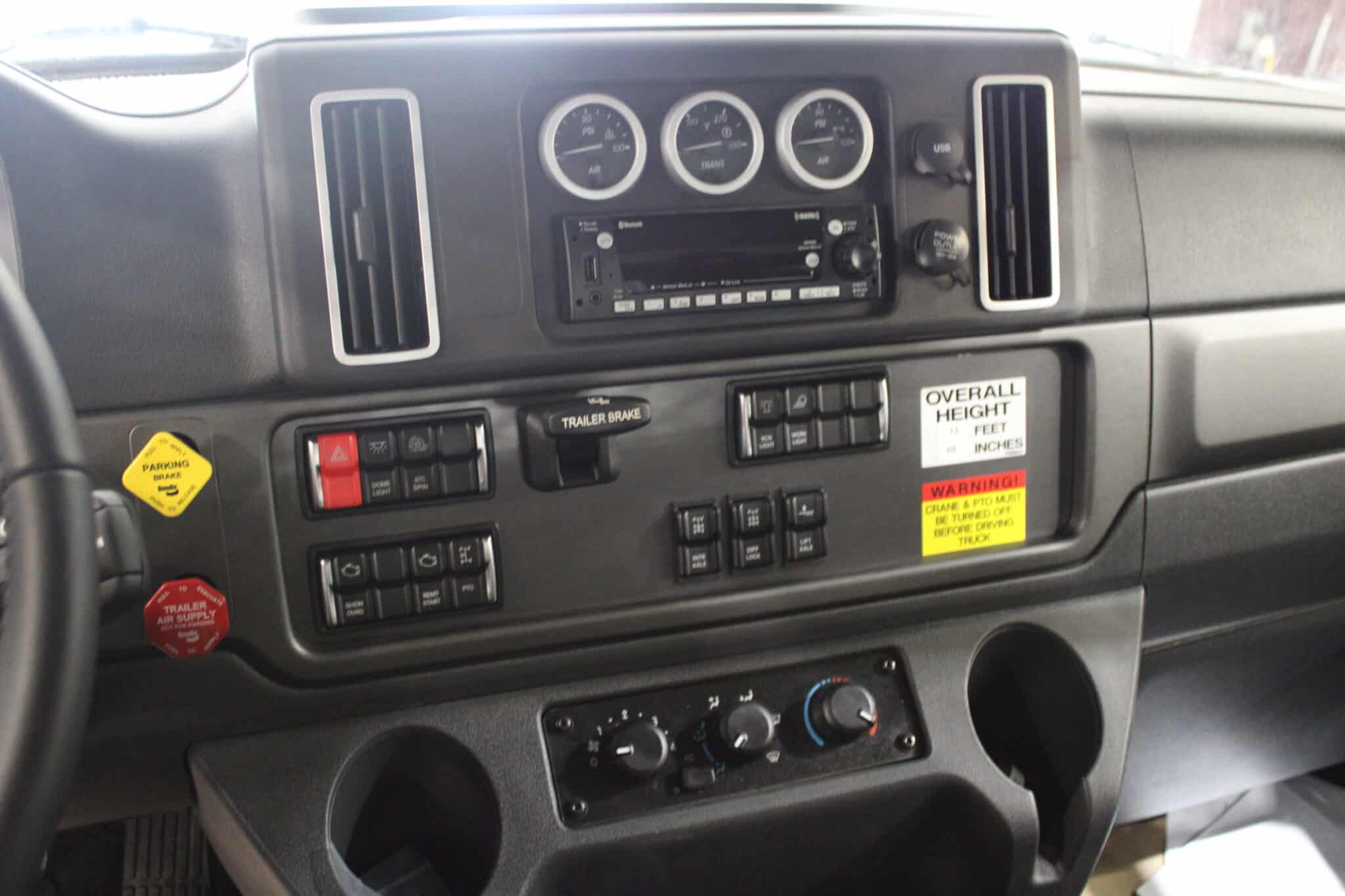

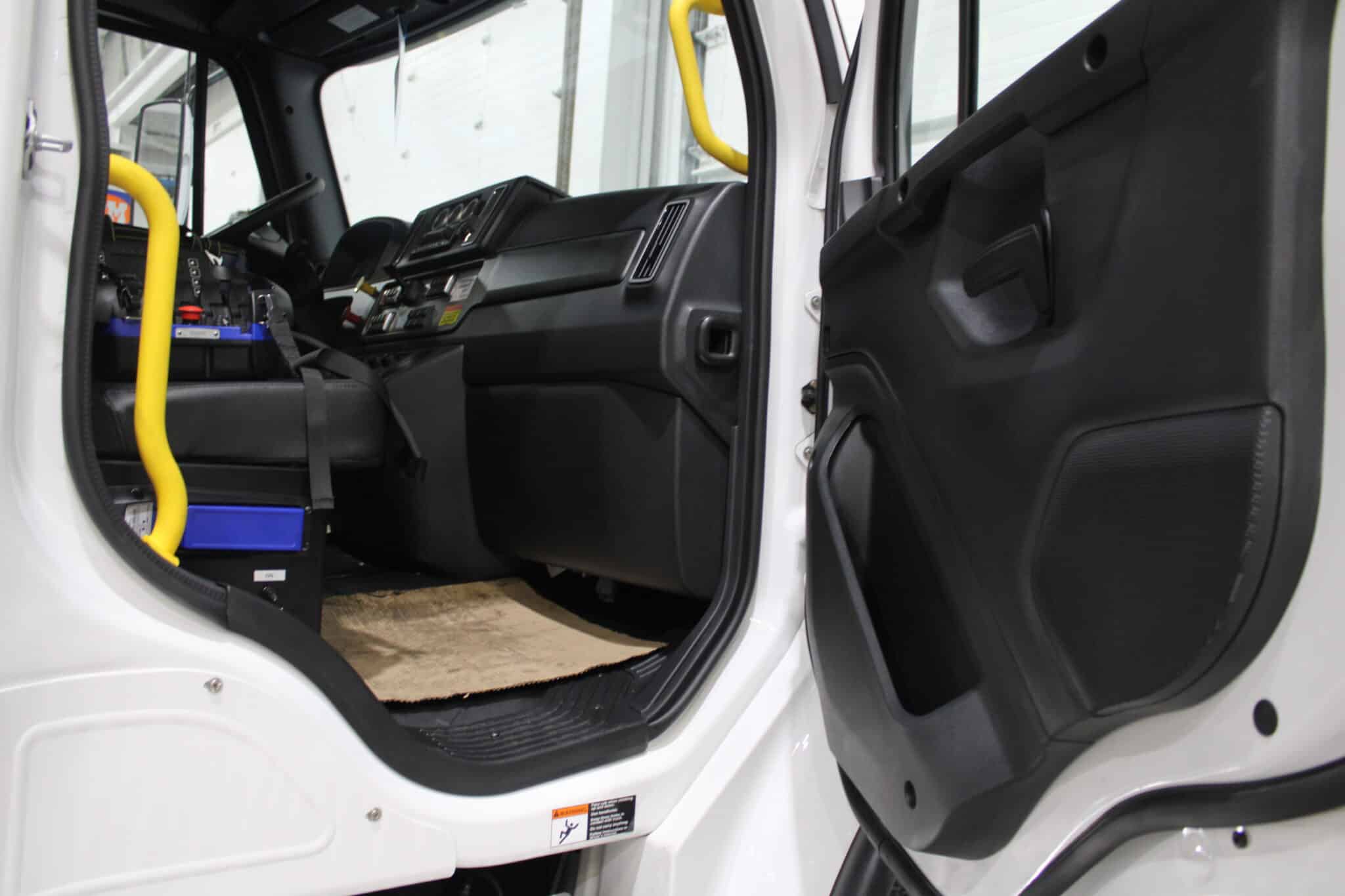

- Truck Features Include: Air cond., AM/FM stereo, power windows/locks, lilt steering, cruise, air ride cab, painted bumper, htd mirrors, eng block heater, inter axle lock ups, single 70 gel alum fuel tank, truck cab white, trailer air tow package with lines to the rear of truck chassis, etc ..
Also Included:
- Activate Extra Remote Features to Operate: Engine & start/stop, RPM & truck horn alert
- (1} pc Alum Storage Box
- (2) PVC stabilizer pads with holders one on each side
- 1″ drawplate at rear (for possible pintle hook)
Alternate Truck Chassis Options:
- New 2025 Freightliner 114SD with 600hp Diesel, Automated trans, Loaded (same specs as above)
- New 2025 Kenworth T880-SH with 510 hp Paccar 13L, Auto 18spd, Air Ride Suspension (otherwise same as above)
- New 2025 Western Star 47X with 510hp Diesel, Automated trans, Loaded (same specs as above)
