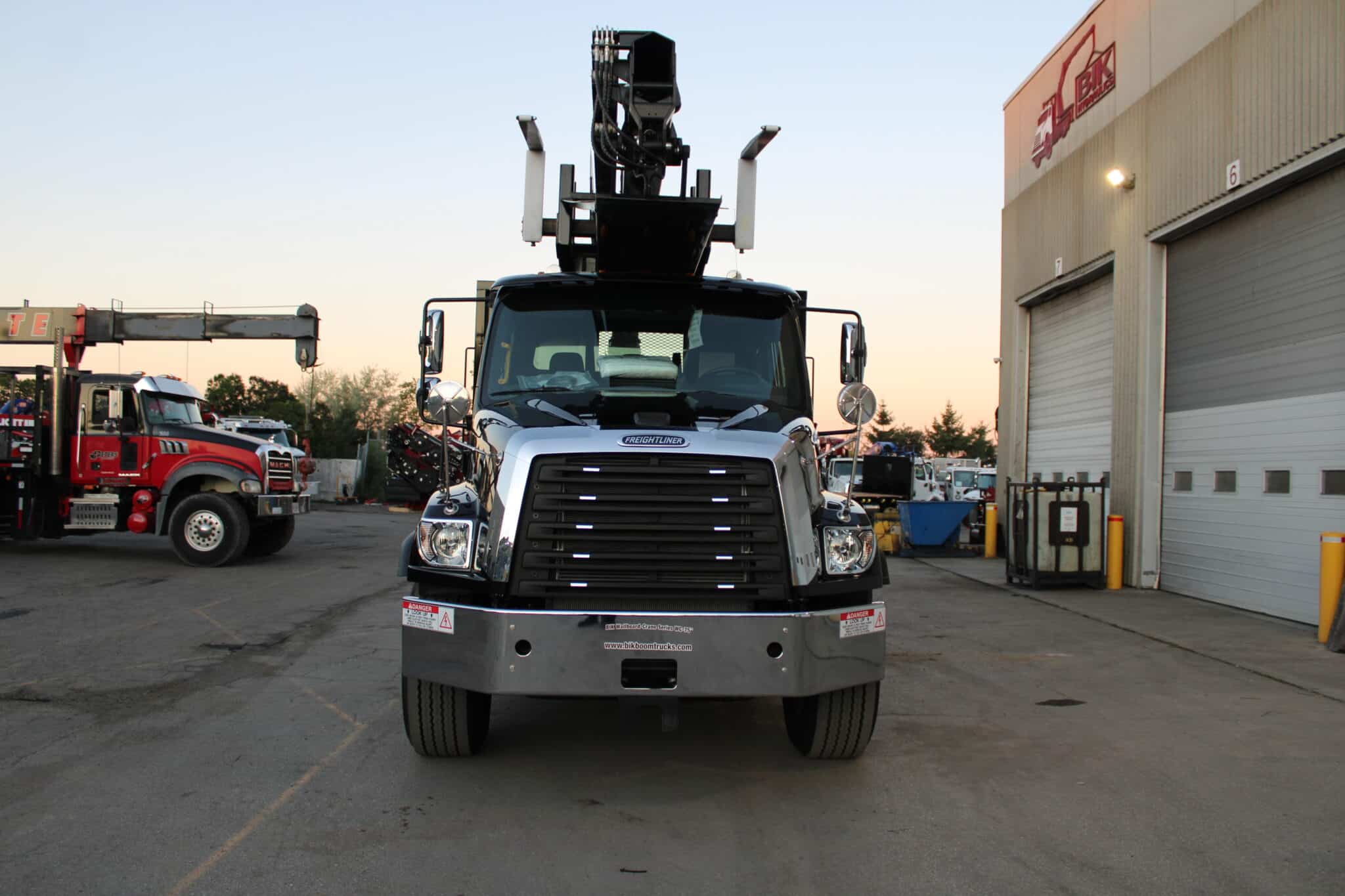

BIK WALLBOARD-CRANE SERIES WC-75 R.M. ON NEW FREIGHTLINER 114SD 4 AXLE

 |
BIK WALLBOARD-CRANE SERIES WC-75 R.M. ON NEW FREIGHTLINER 114SD 4 AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

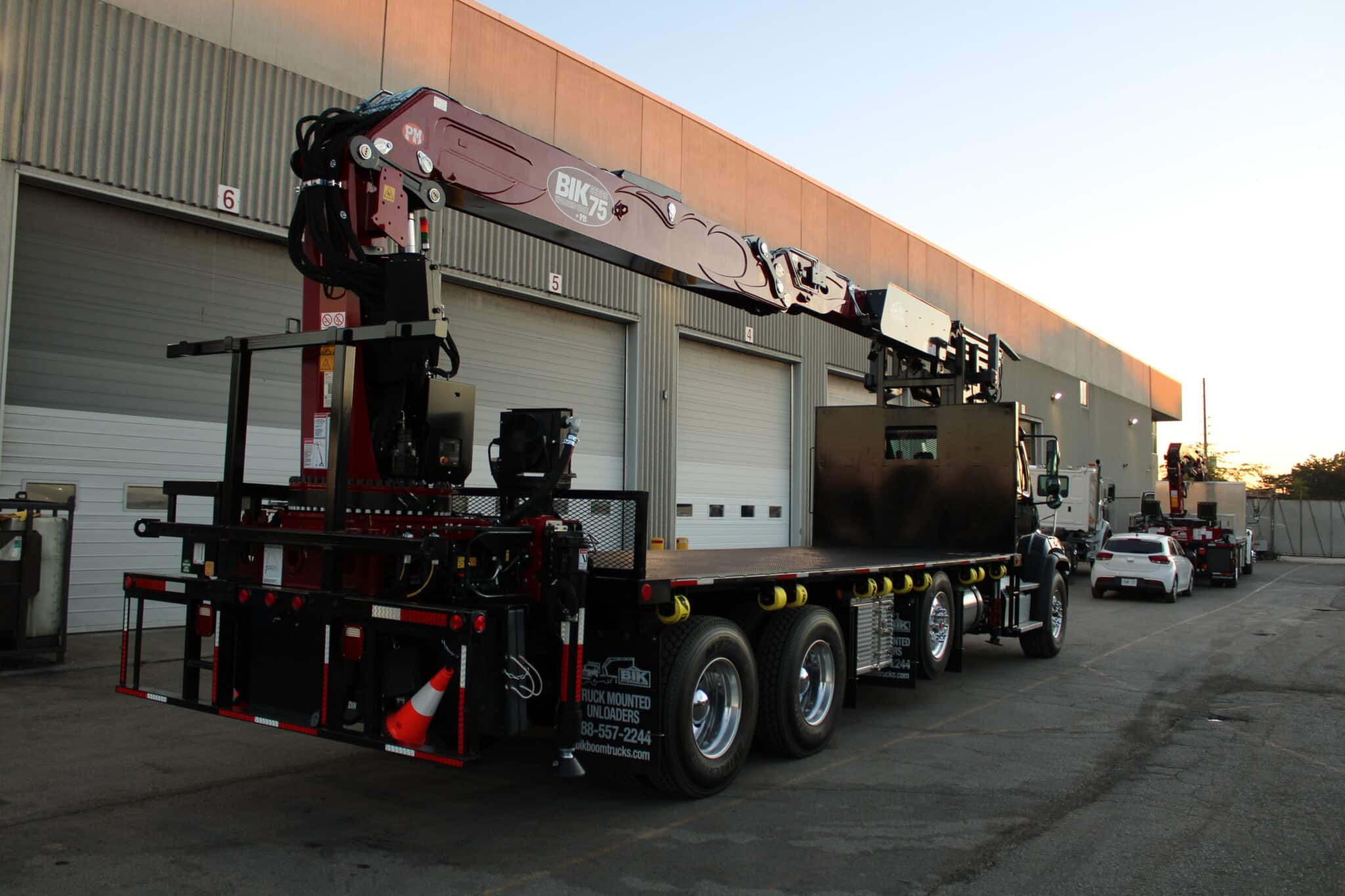

New – BIK “Wallboard-Crane” Series WC-75 by PM

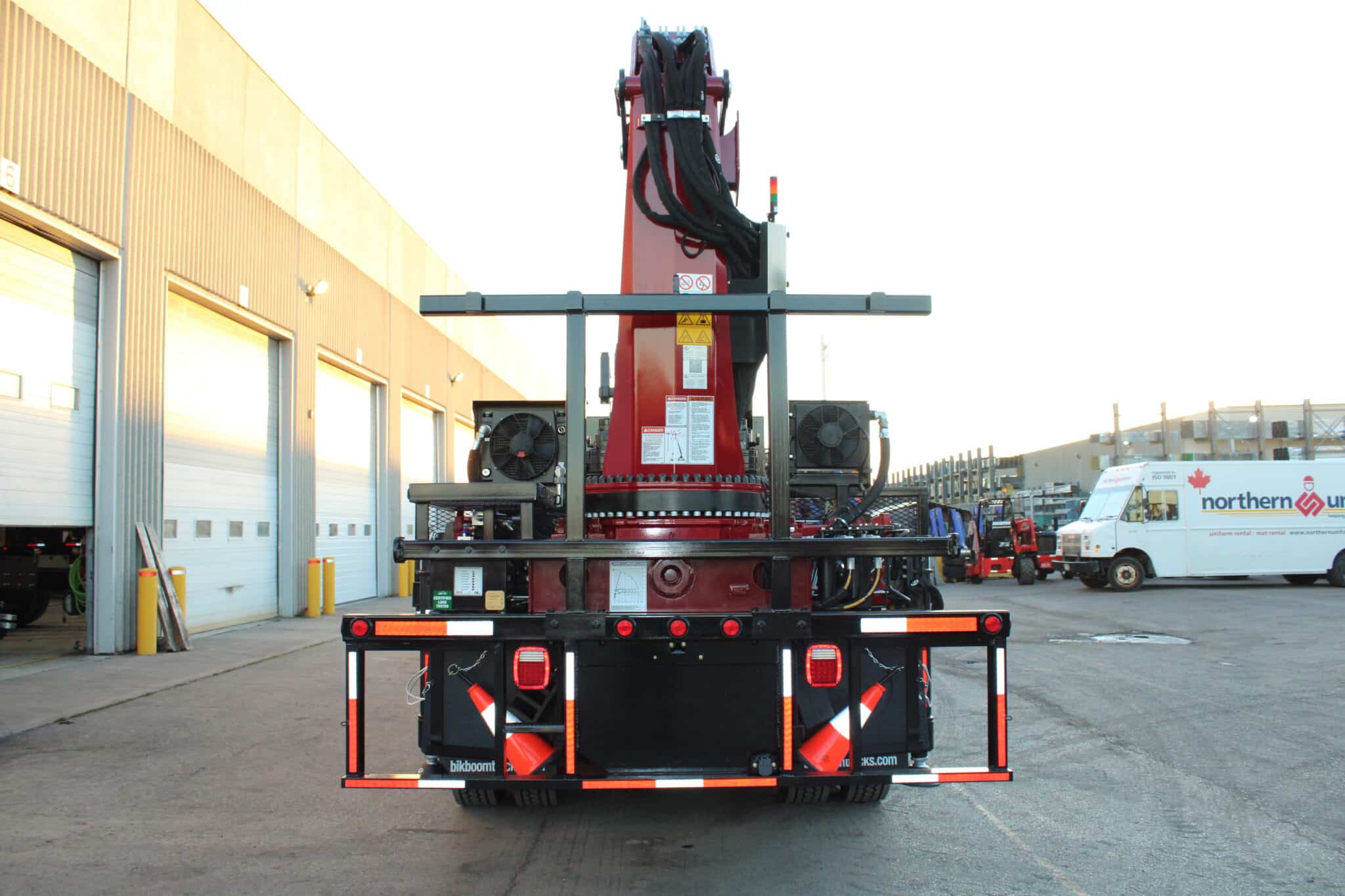

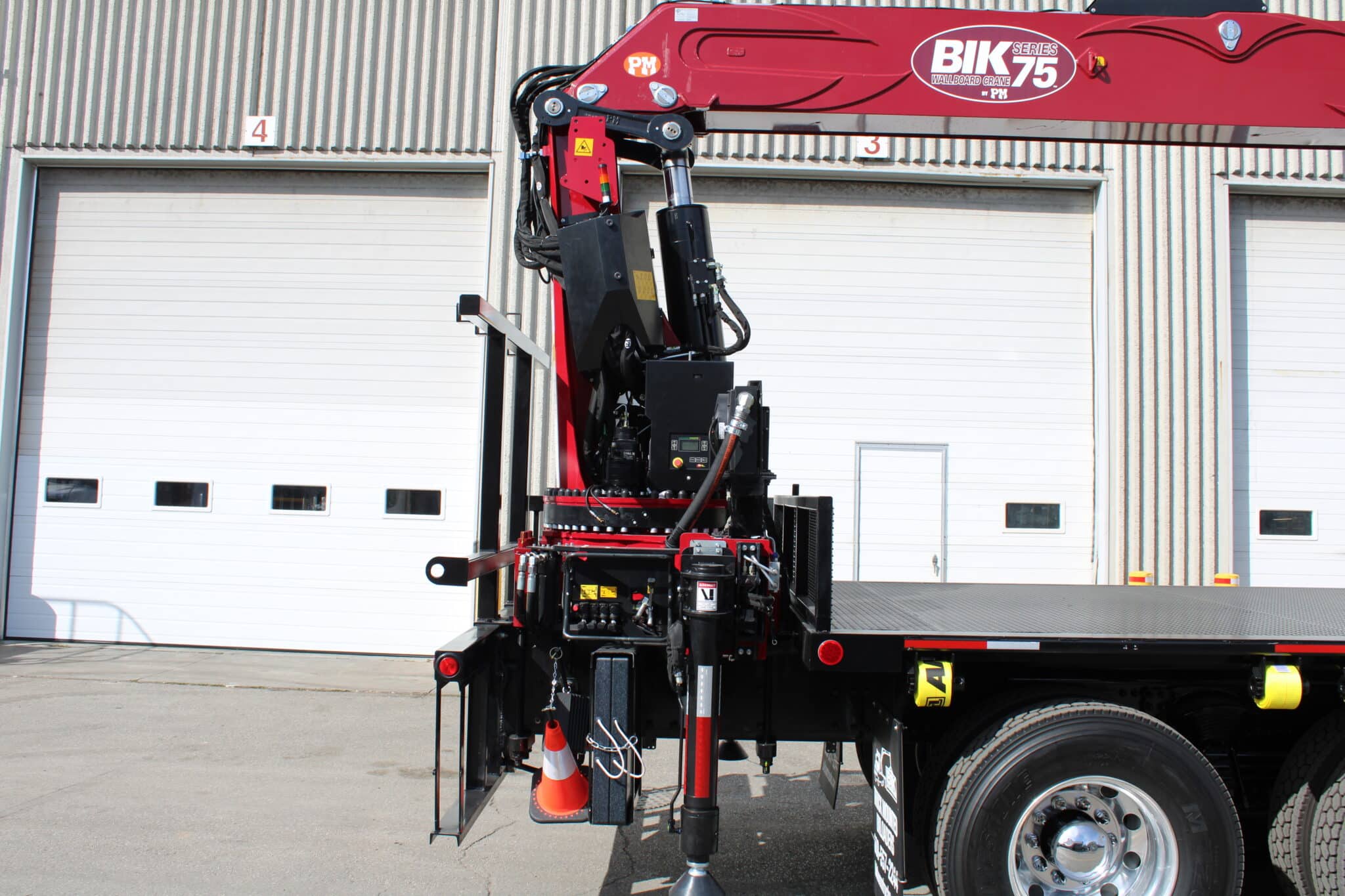

- 8th Floor Lift Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical )
- Vertical Boom Capacity:
- 7,510 lbs – 70’up & 23′ out
- 5,480 lbs – 65’up & 33′ out
- 4,380 lbs – 58′ up & 43′ out
- Internal cylinders on all boom extensions, Outer boom cylinder guard
- 360 Degree Continuous (Endless) Rotation and Dual Planetary Gear Drive Motors – 10 WARRANTY – on Turret Bearing
- Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout

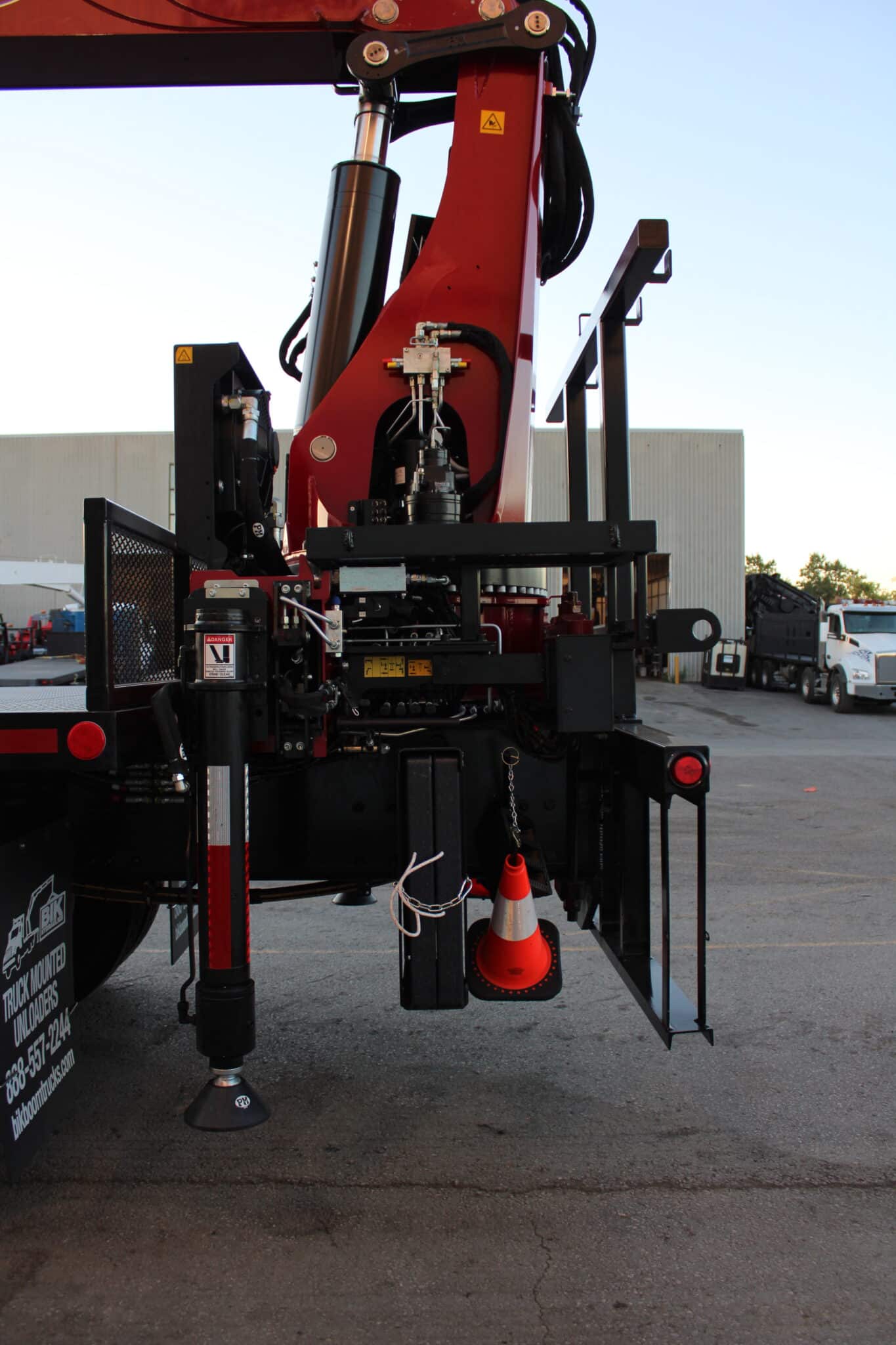

- Super Xtra Wide Stabilizers – 27’ span, hydraulic out and down type
- Power Tronic Electronic Safety System allowing constant crane monitoring & visual display
- 5-level stabilizer deployment control system – reduces boom capacity in proportion to shortened stabilizer deployment
- DANFOSS Valve Manual Boom Levers – Located on Boom Column & SCANRECO Proportional Radio Remote Control
- Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks
- Flanged holding valves, double acting check valve for the down movement of the stabilizers
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- Installed back of cab, with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards
Deck Details

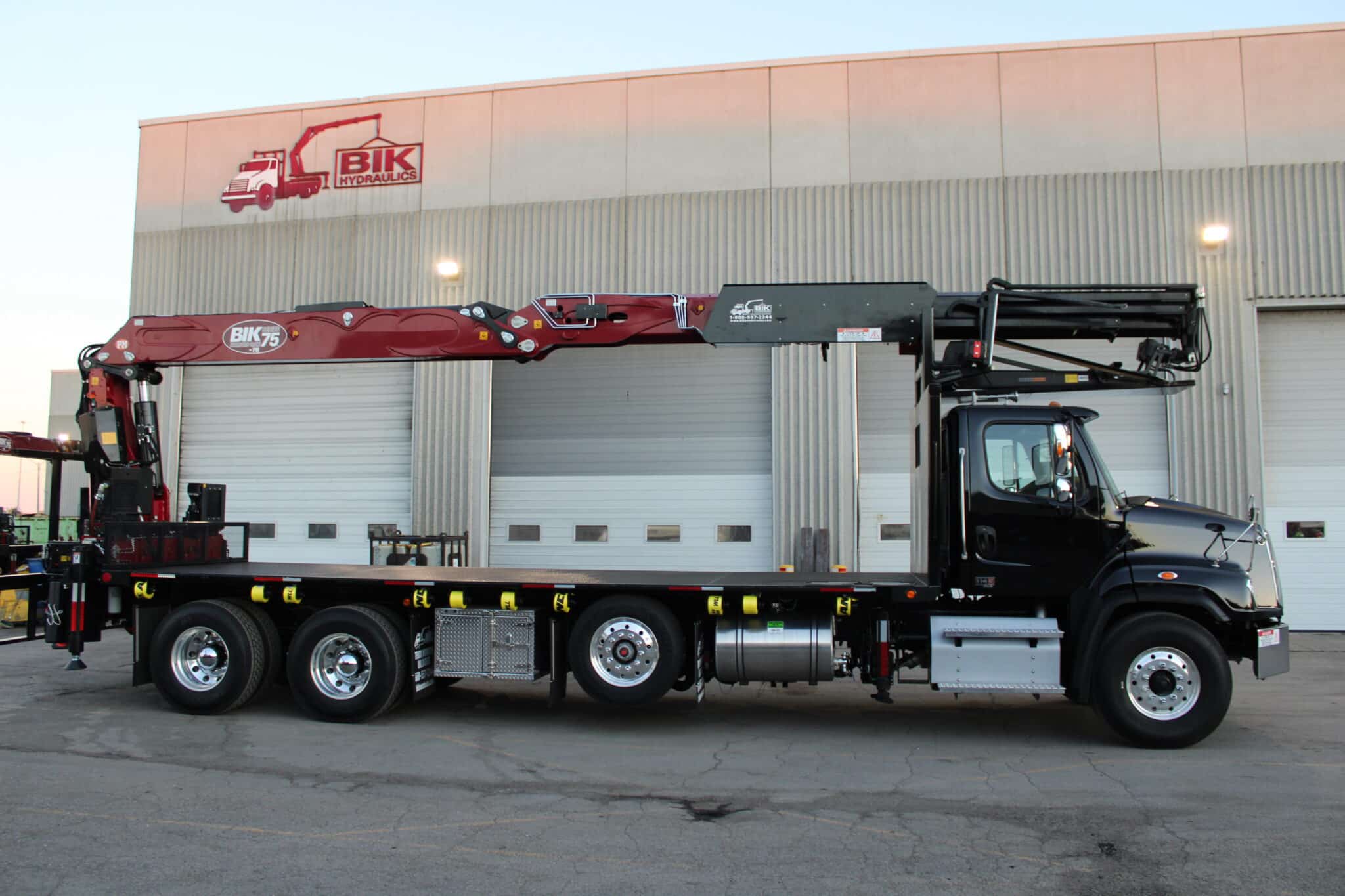

New – 24’ 4” x 102” Aluminum Flat Deck
- installed on top of steel main sill
- 4” aluminum extrusion deck surface
- removable 66” front headboard
- Reverse rail type winch track on both sides with 8 sliding tie-down winch straps on the passenger side that clear over the rear wheels
- winch bar holder and winch bar
- access ladders on both sides at the front
- under deck stabilizer pad/cone/chuck holders
- reflectors and 8-side lights as required
Truck Details

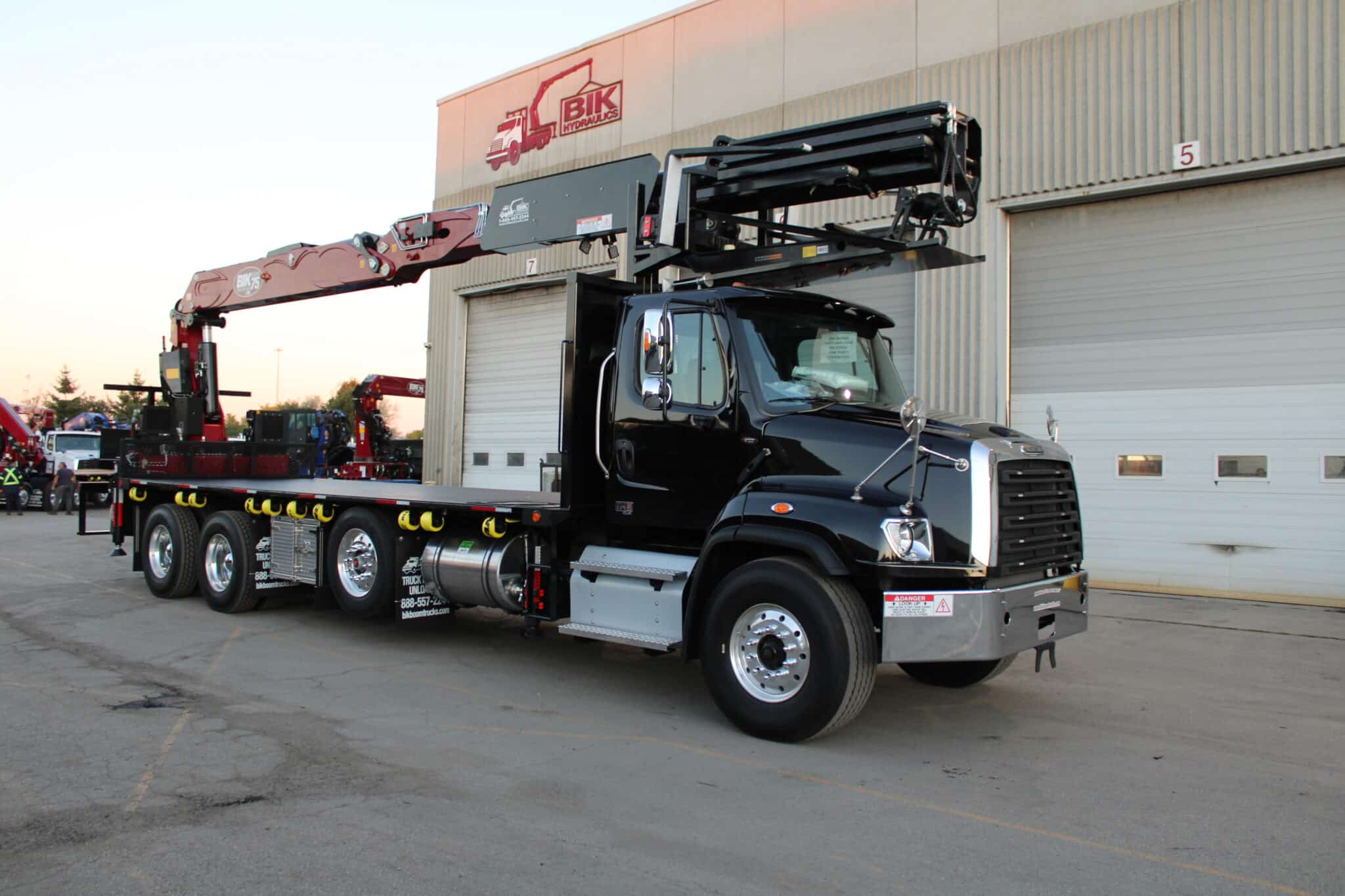

New – 2025 Freightliner 114SD 4-Axle Diesel Truck: 79,000 lb GVWR
- Cab white
- DD-13 Diesel 505 hp
- DT-12spd Automated Trans.
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 46,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims
- 13,000 lb self-steer tag axle (in front of t/a) with low-profile 22.5” tires on alum rims
- double frame chassis
- 54” spread at tandems
- 278” wb

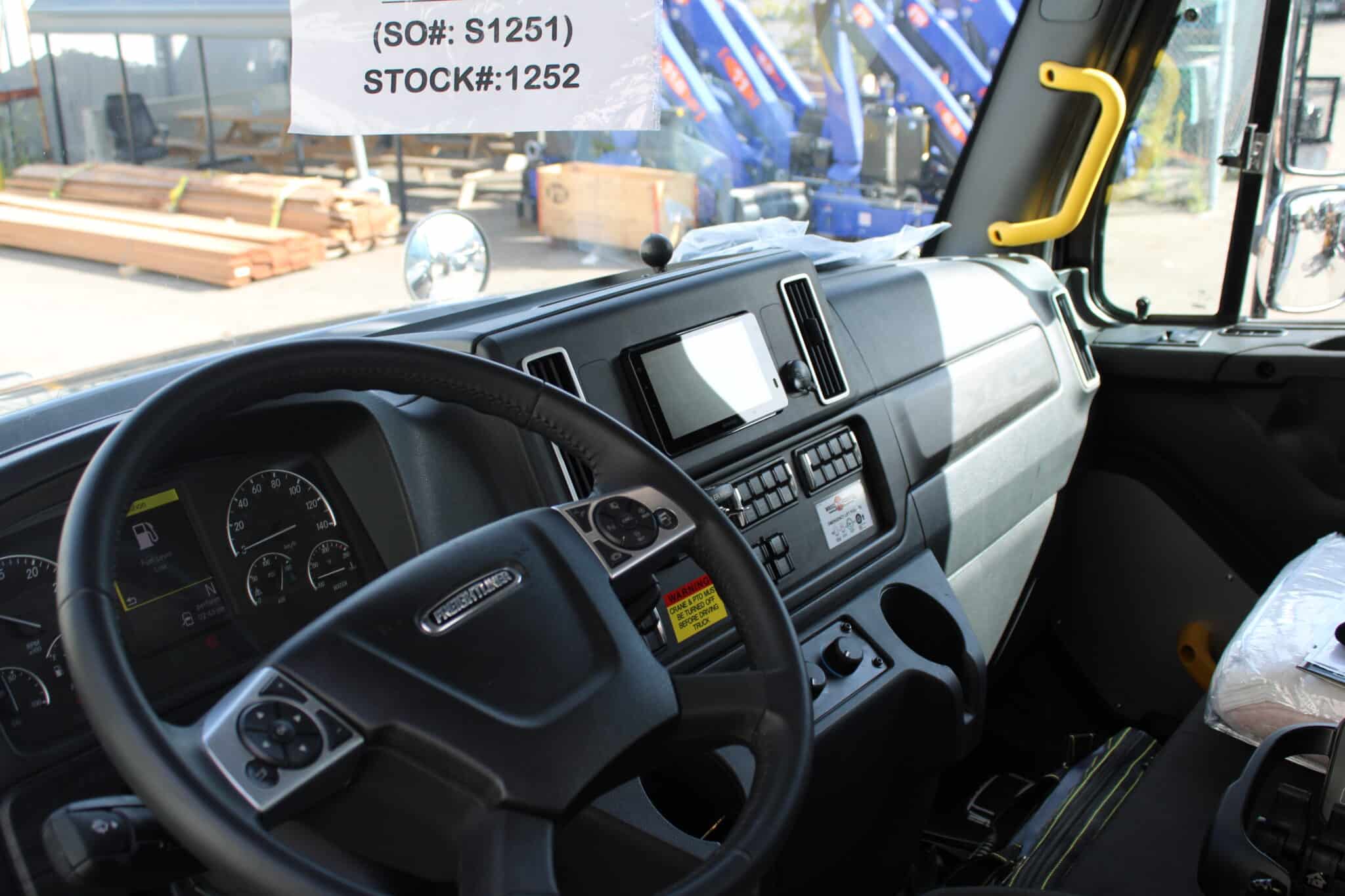

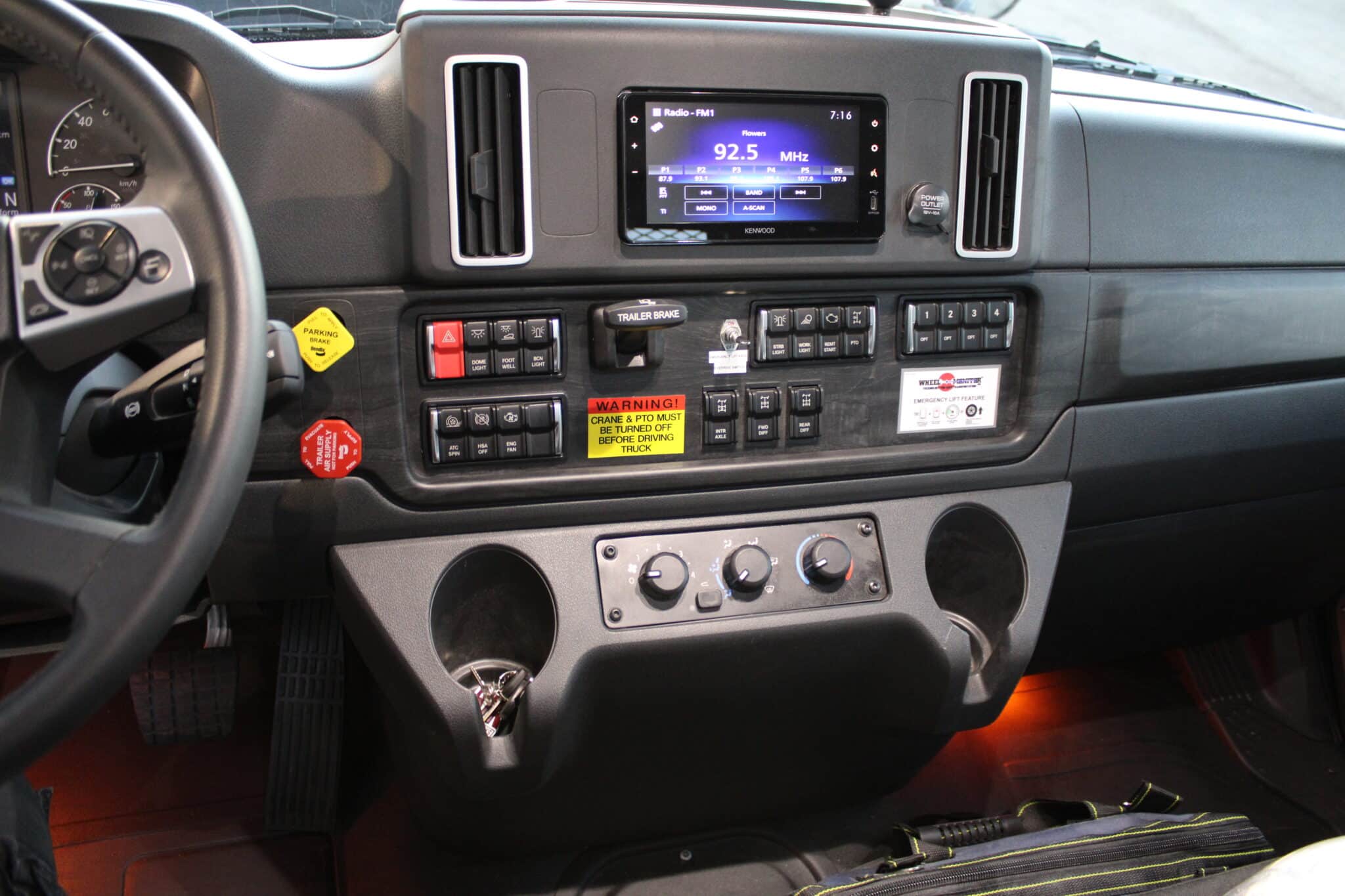

- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power & heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, hood mounted convex mirrors, 80 gal alum fuel tank, collision and lane departure mitigation included, etc…
Also Included Are:
- Activate Extra Remote Features to operate: engine start/stop, variable RPM, truck horn alert
- 48” Under-deck alum storage box
- Safety Cones (6 pcs) w/two holders and wheel chucks
- Backup camera system
- Pair of PVC stabilizer pads w/holders on both sides under the boom
- Under-deck drywall cart holders
- Broom/Shovel holders at the headboard
- Spot lights on the headboard and at the end of the boom
