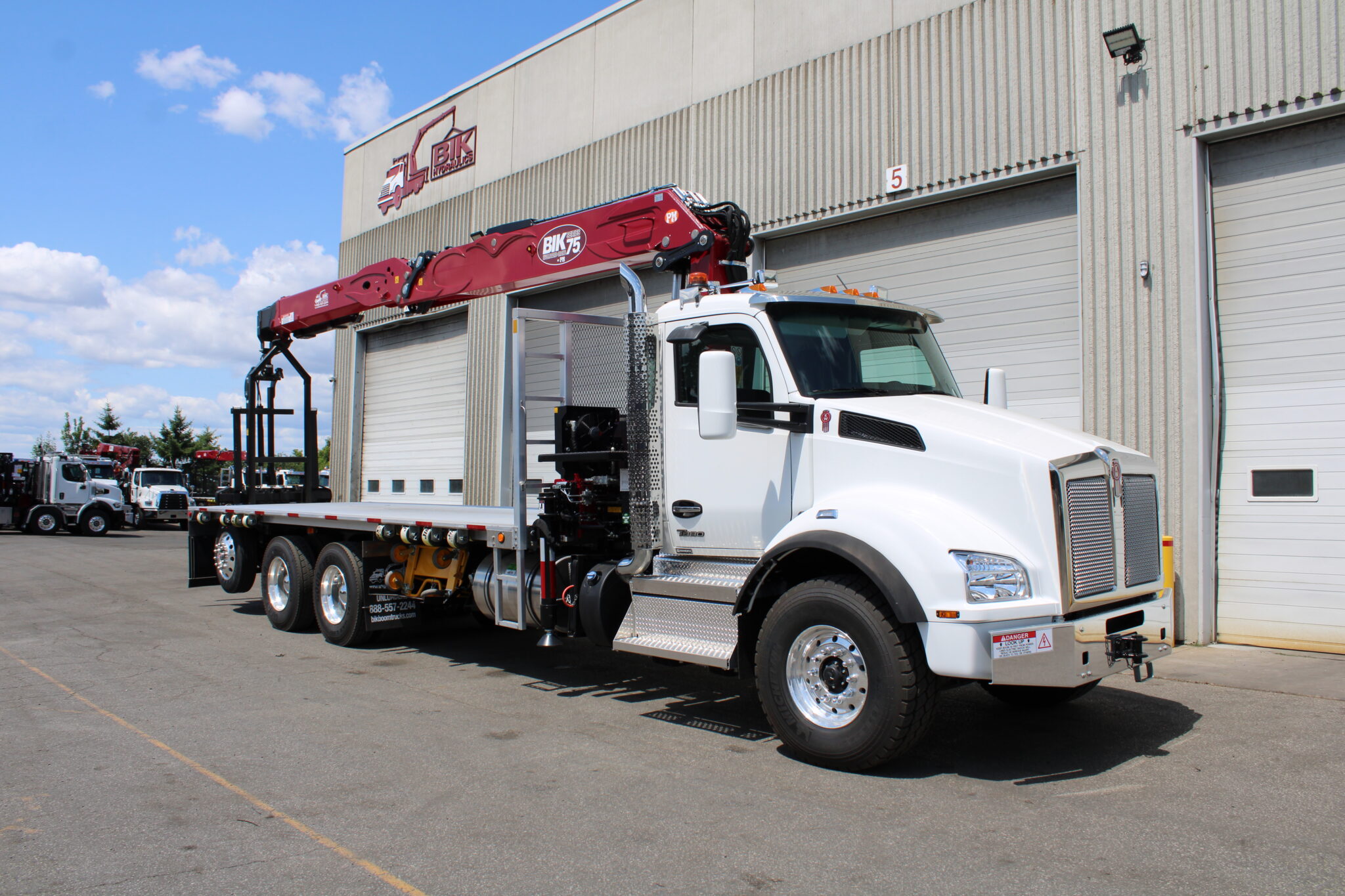

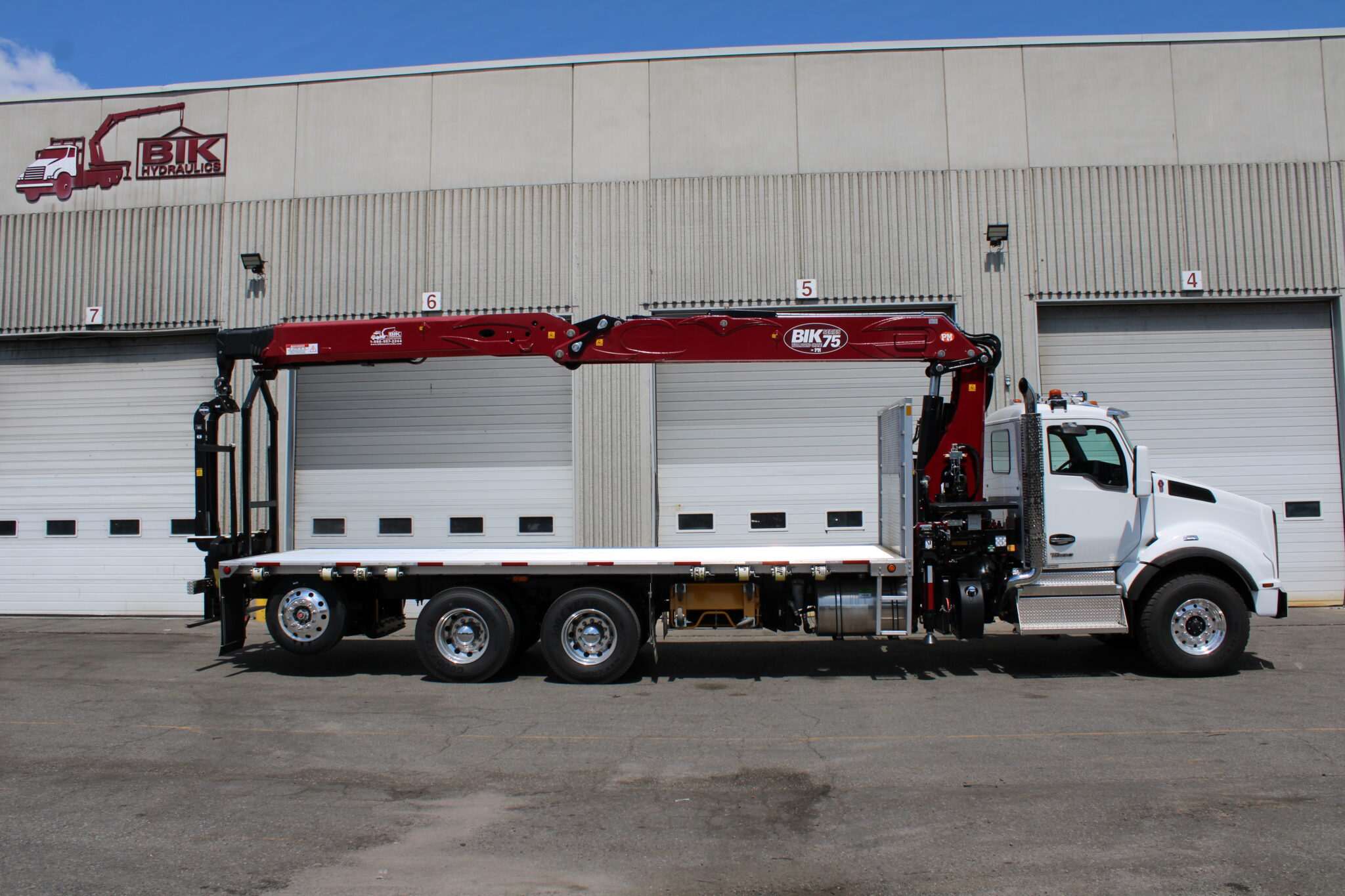

BIK WALLBOARD-CRANE SERIES WC-75 F.M. ON NEW KENWORTH T880 4 AXLE

 |
BIK WALLBOARD-CRANE SERIES WC-75 F.M. ON NEW KENWORTH T880 4 AXLE
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

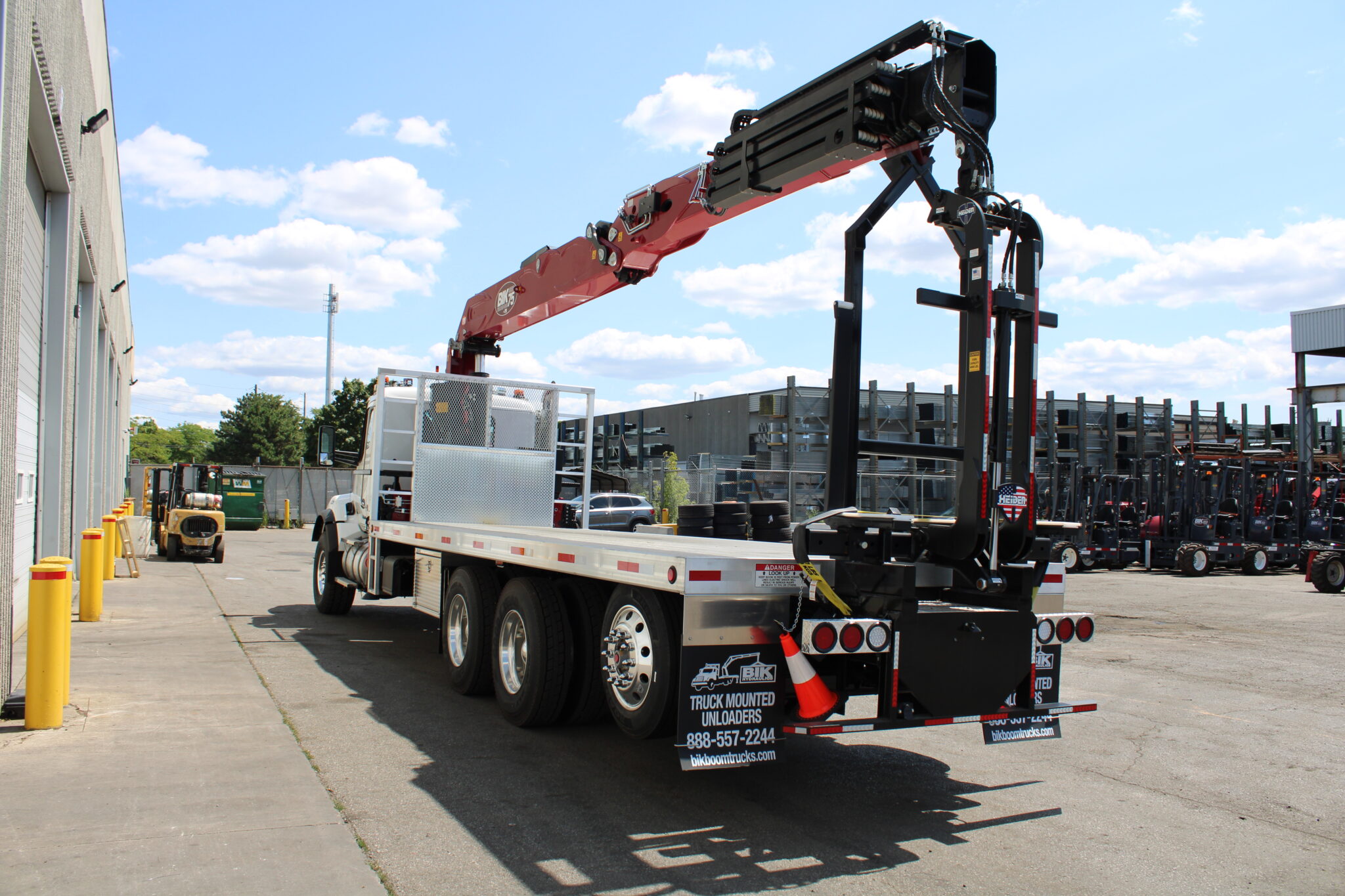

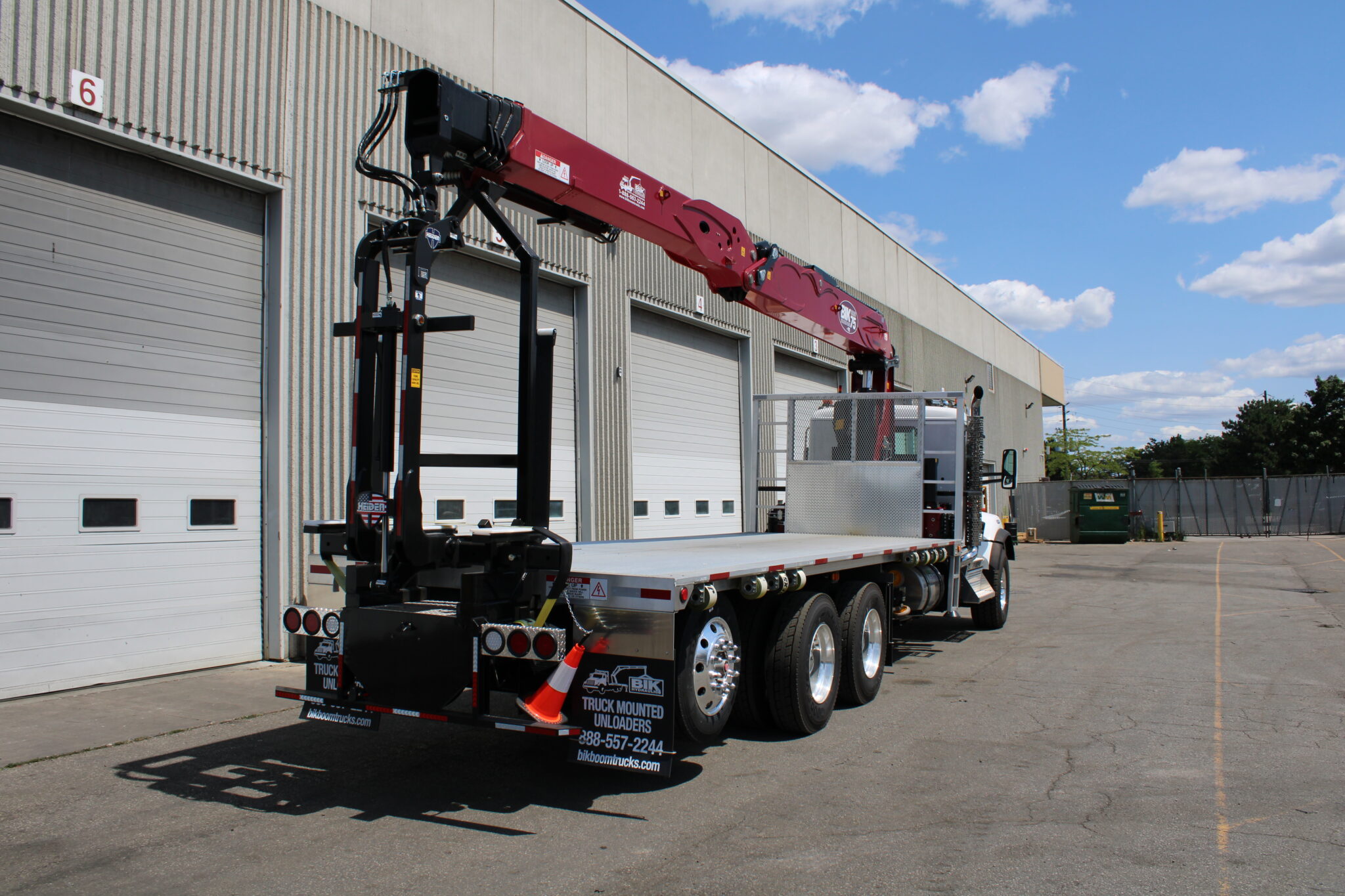

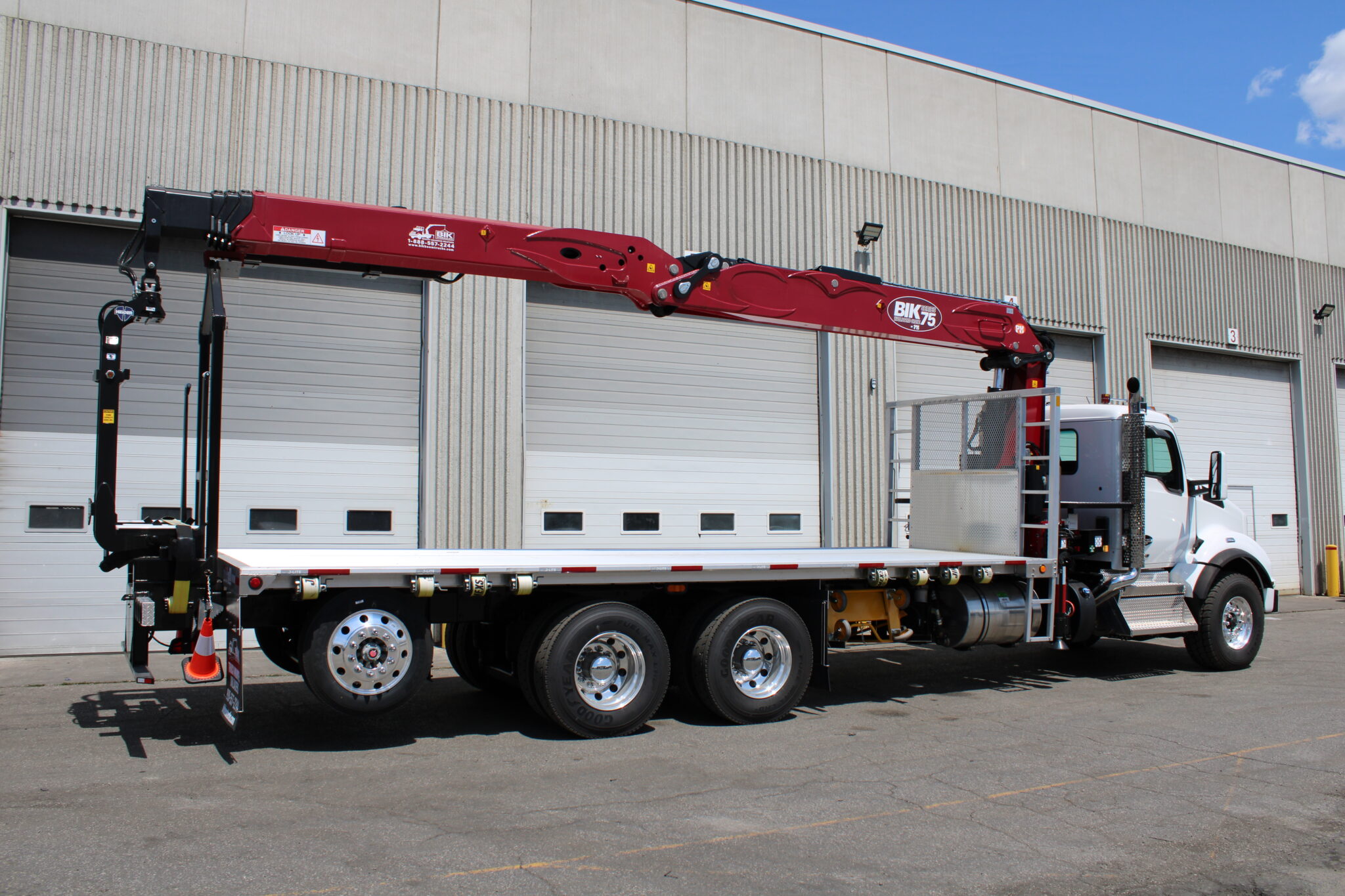

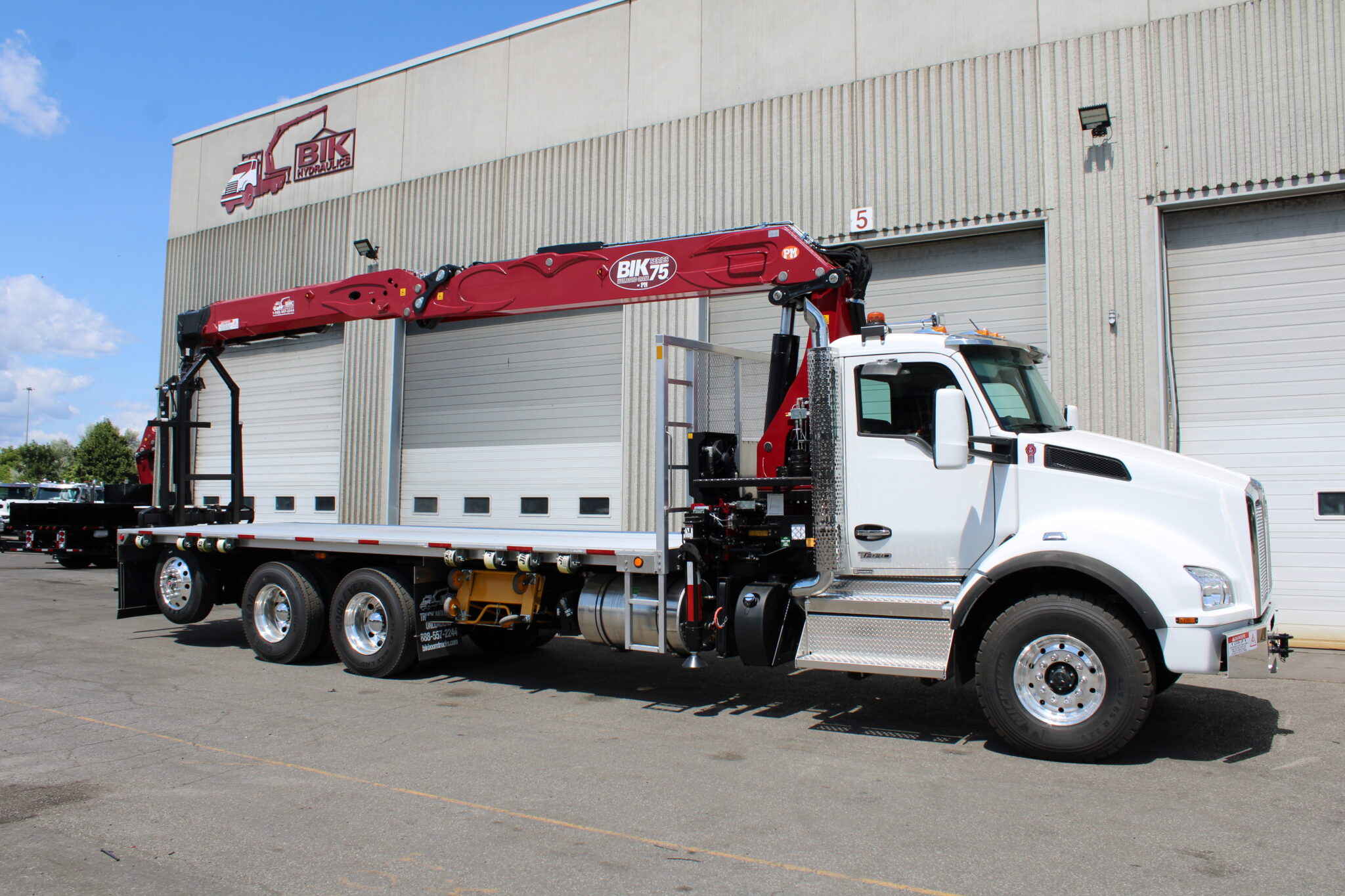

New – BIK “Wallboard-Crane” Series WC-75 by PM
- 8th Floor Lift Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical )
- Vertical Boom Capacity:
- 7,510 lbs – 70’up & 23′ out
- 5,480 lbs – 65’up & 33′ out
- 4,380 lbs – 58′ up & 43′ out
- Internal cylinders on all boom extensions, Outer boom cylinder guard
- 360 Degree Continuous (Endless) Rotation and Dual Planetary Gear Drive Motors – 10 WARRANTY – on Turret Bearing
- Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
- Super Xtra Wide Stabilizers – 27’ span, hydraulic out and down type
- Power Tronic Electronic Safety System allowing constant crane monitoring & visual display
- 5-level stabilizer deployment control system – reduces boom capacity in proportion to shortened stabilizer deployment
- DANFOSS Valve Manual Boom Levers – Located on Boom Column & SCANRECO Proportional Radio Remote Control
- Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks
- Flanged holding valves, double acting check valve for the down movement of the stabilizers
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- Installed back of cab, with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards
Deck Details

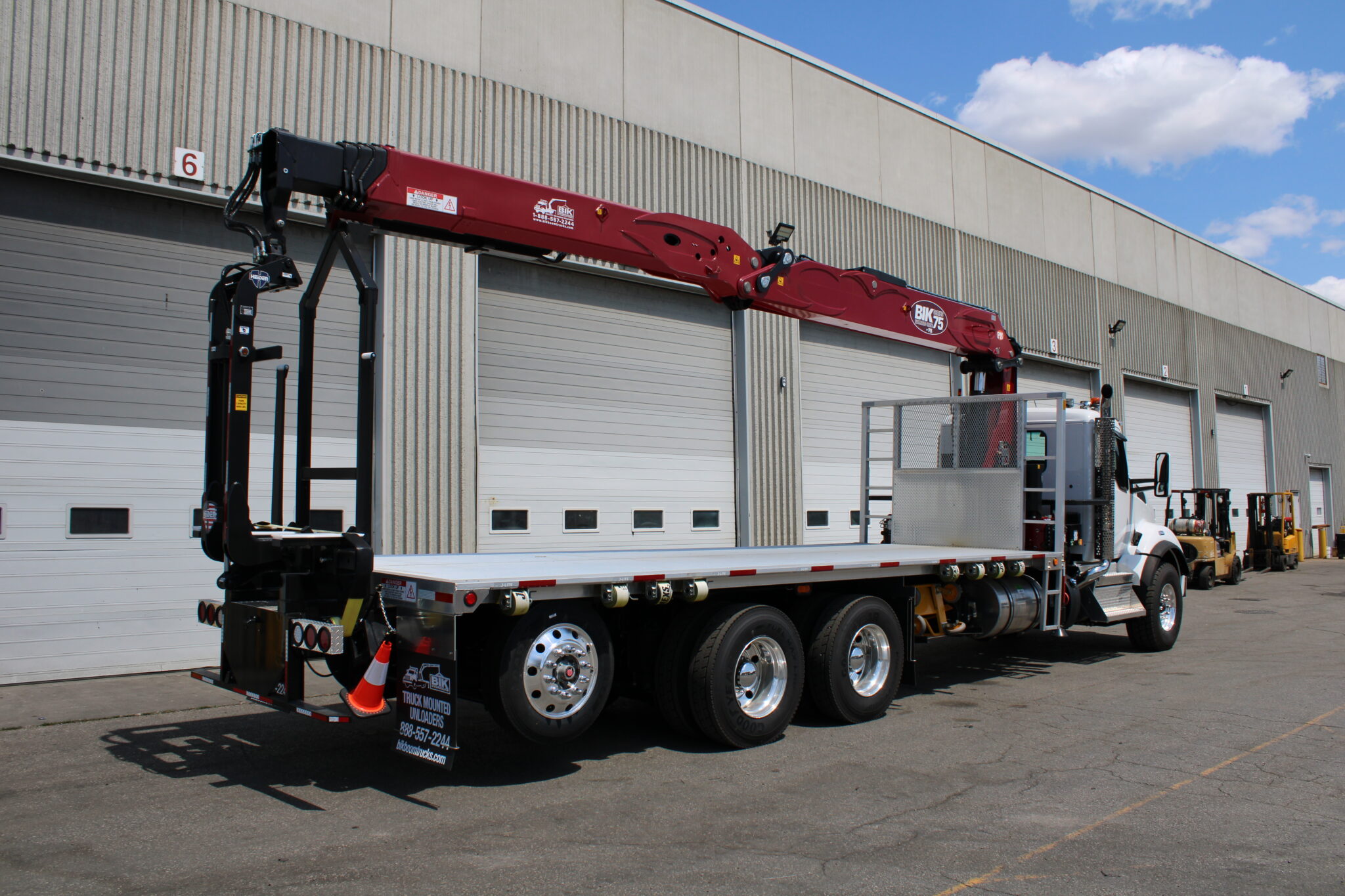

New – 24′ 8 X 102″ Steel Flat Deck:
- With hard wood deck surface
- 66″ + headboard with over-cab drywall fork boom rest
- 8 sliding tie down winch straps on passenger side
- Winch bar holder and winch bar
- Ladder
- Reflectors
- 5-side lights as required by ministry standards
Truck Details

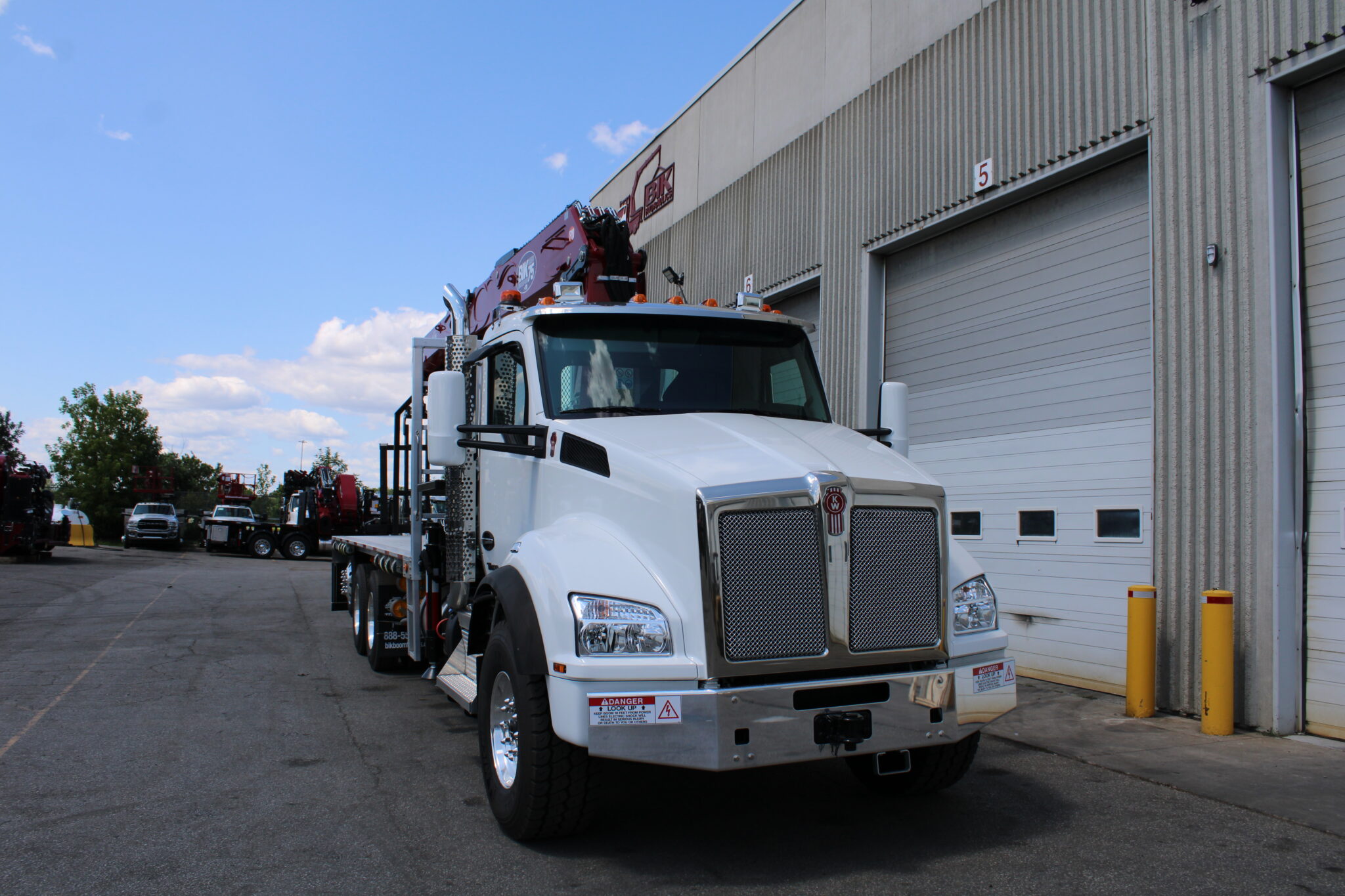

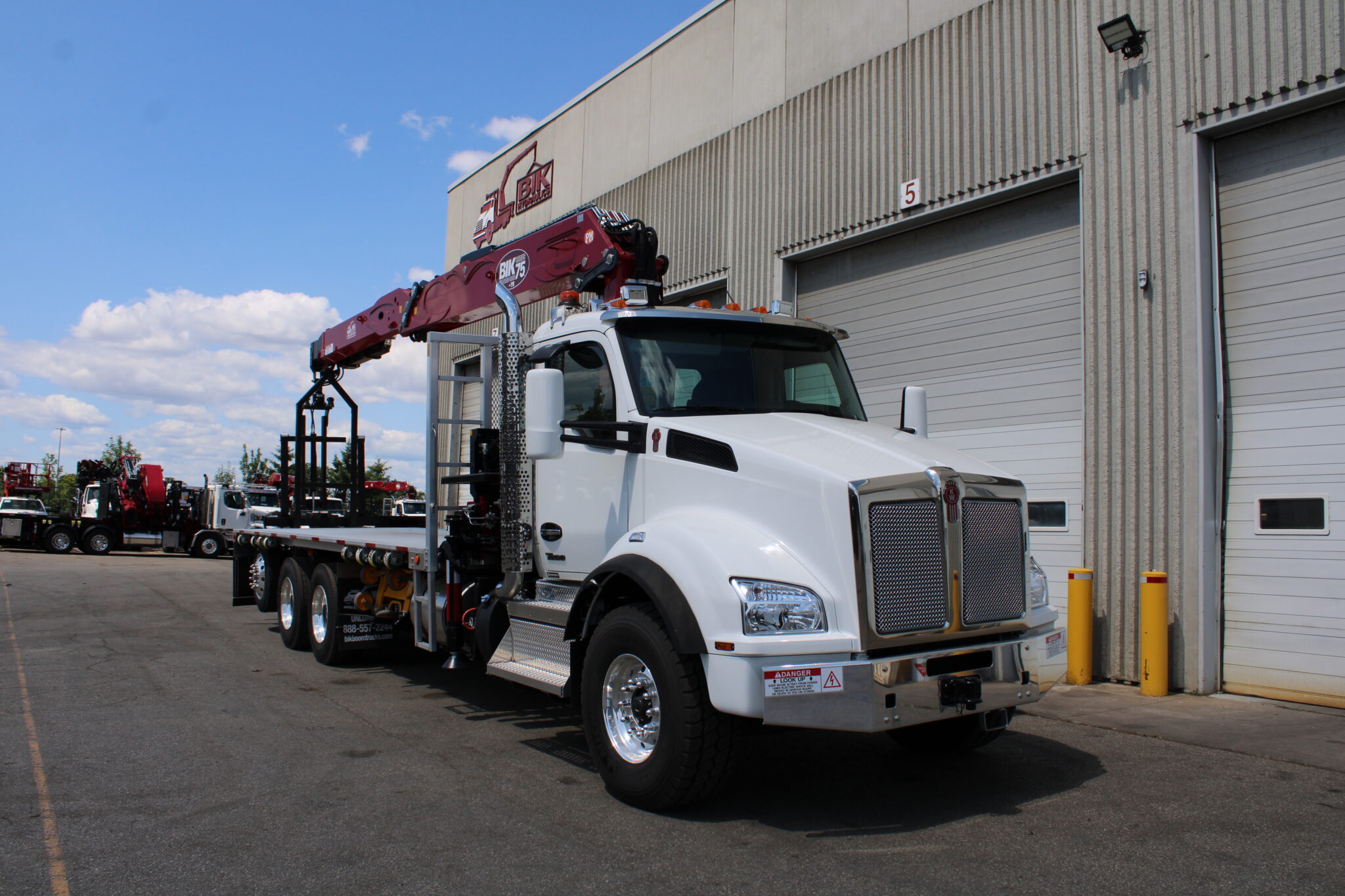

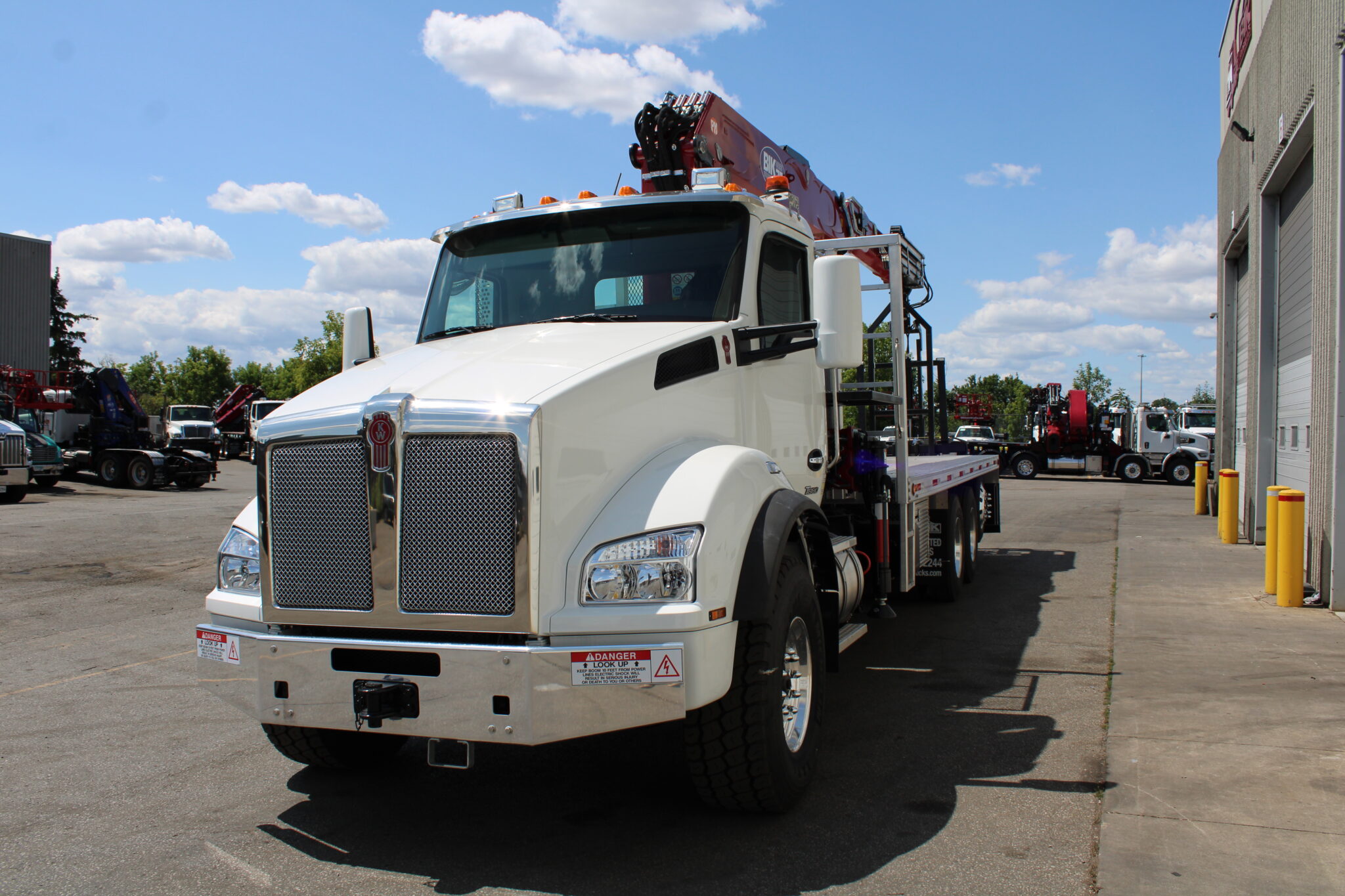

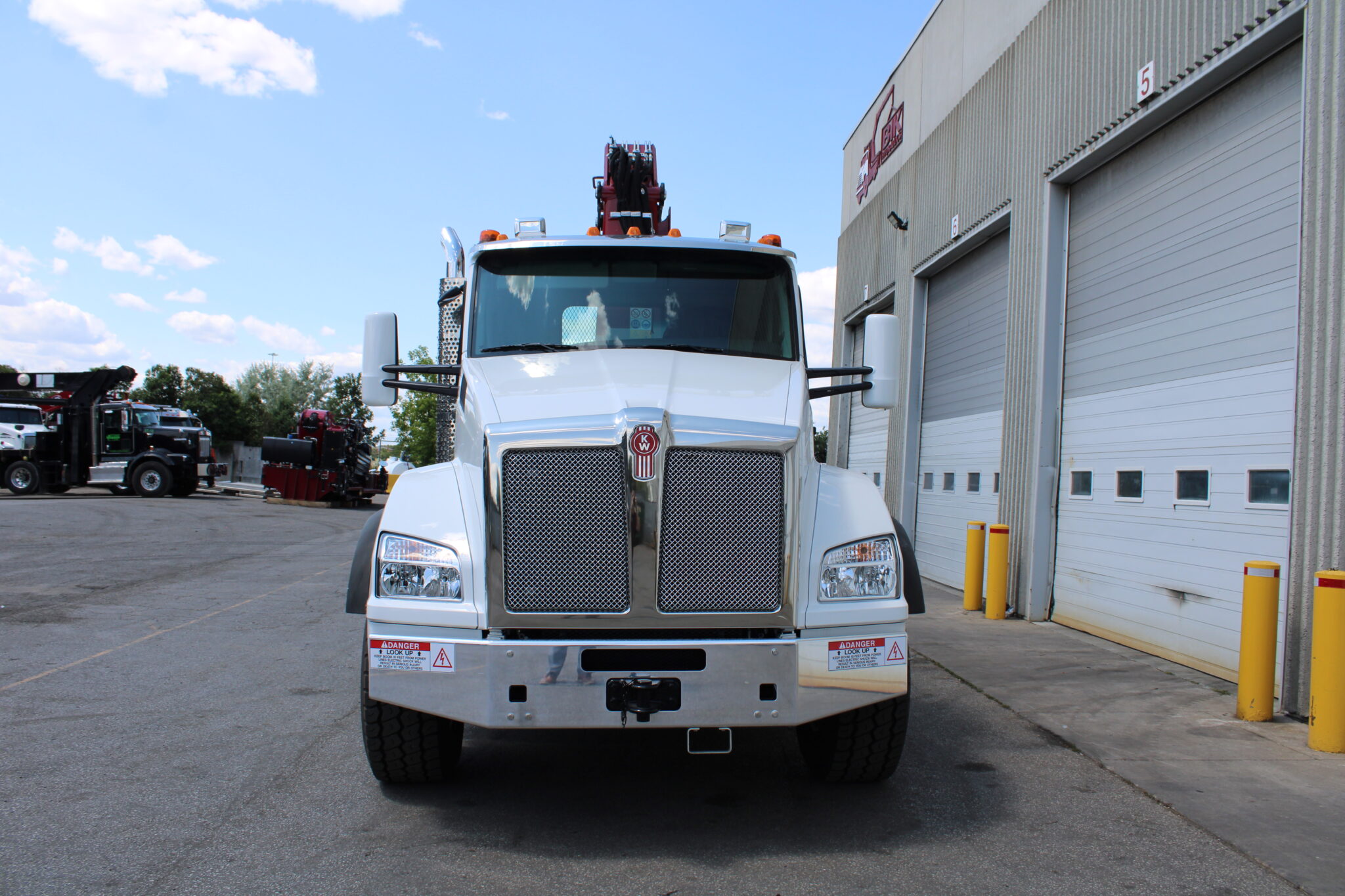

New – Kenworth T880 4-Axle Diesel Truck: 86,000lb GVWR
- Truck Cab White Colour
- Paccar Diesel 13L Diesel – 510 hp
- Auto 18spd trans
- 20,000lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 20,000 lb SPIFF Certified lift axle
- 46,000lb Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims w/steel inners
- double frame chassis
- 54” spread at tandems
- approx. 316” wb

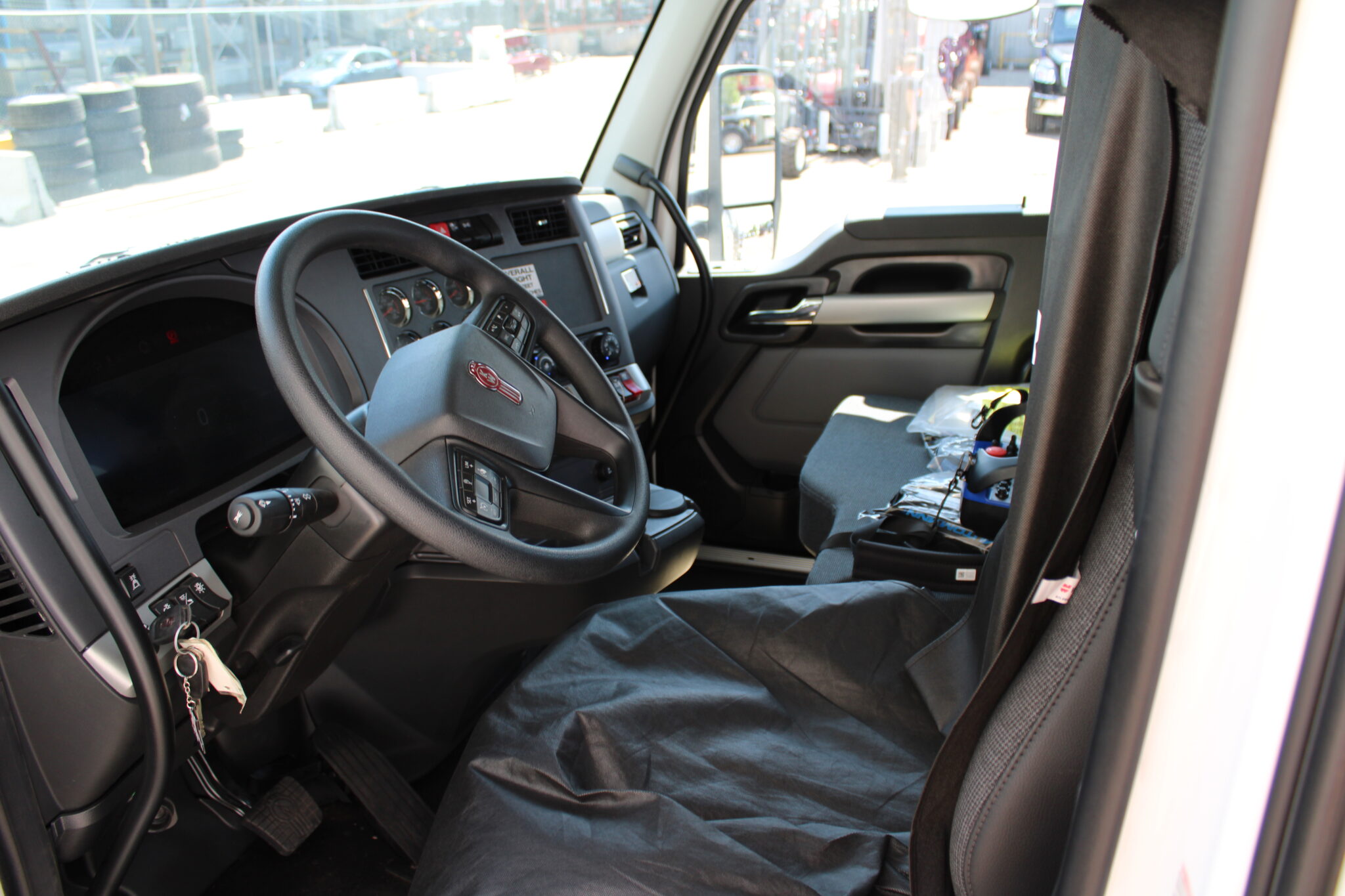

- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, two man pass seat, chrome bumper/grill, power and htd mirrors, block heater, painted ext visor, trailer air tow package, 4-wheel wheel lock ups, 100 gal alum fuel tank, etc…
Also Included:
- Activate Extra Remote Features to Operate: – Engine start/stop
- RPM & truck horn alert
- (1) pc Alum Storage Box
- (2) PVC stabilizer pads with holders one on each side

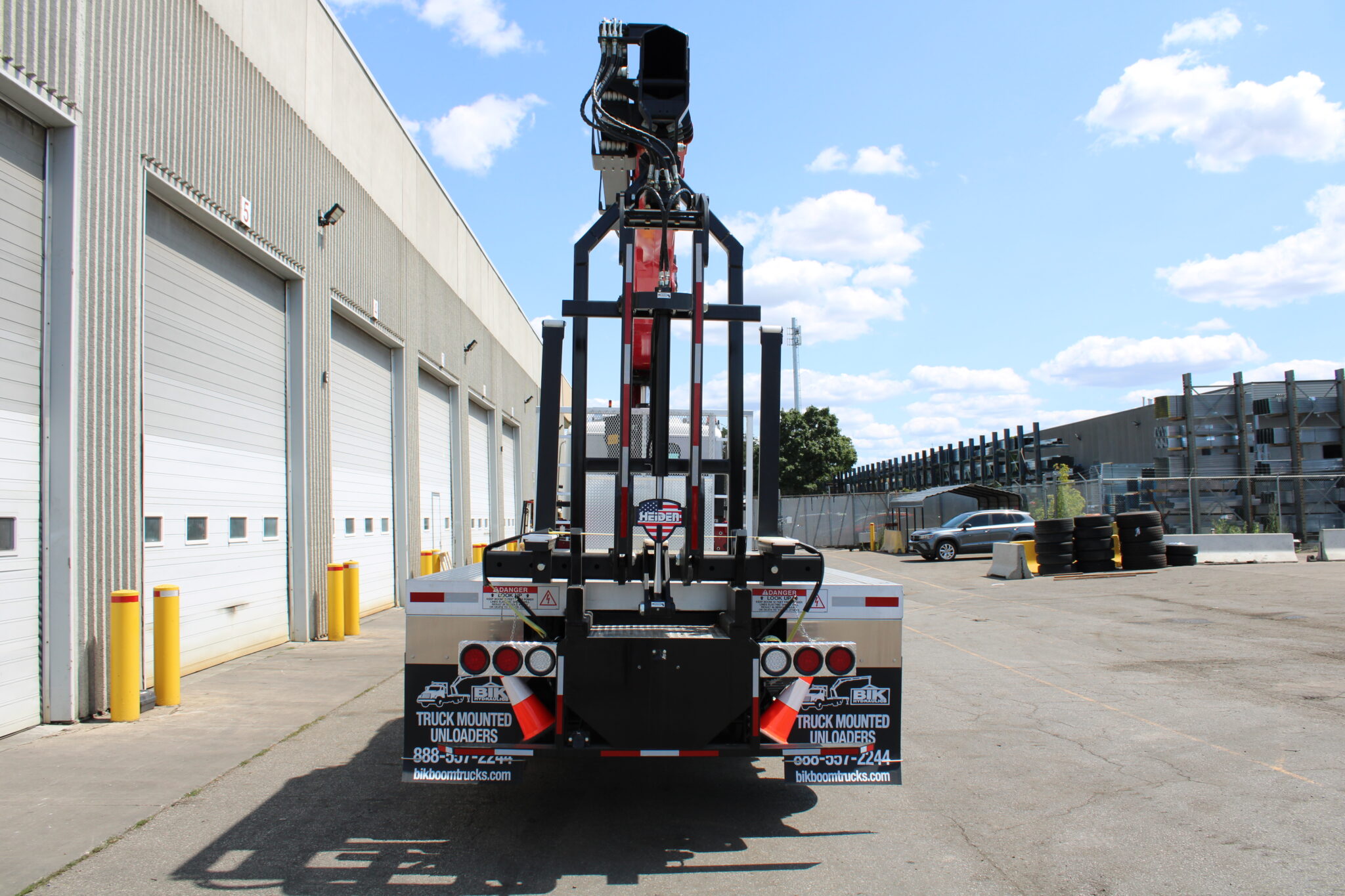

- 1” drawplate at rear (for possible pintle hook)
- Dolley cart holder
