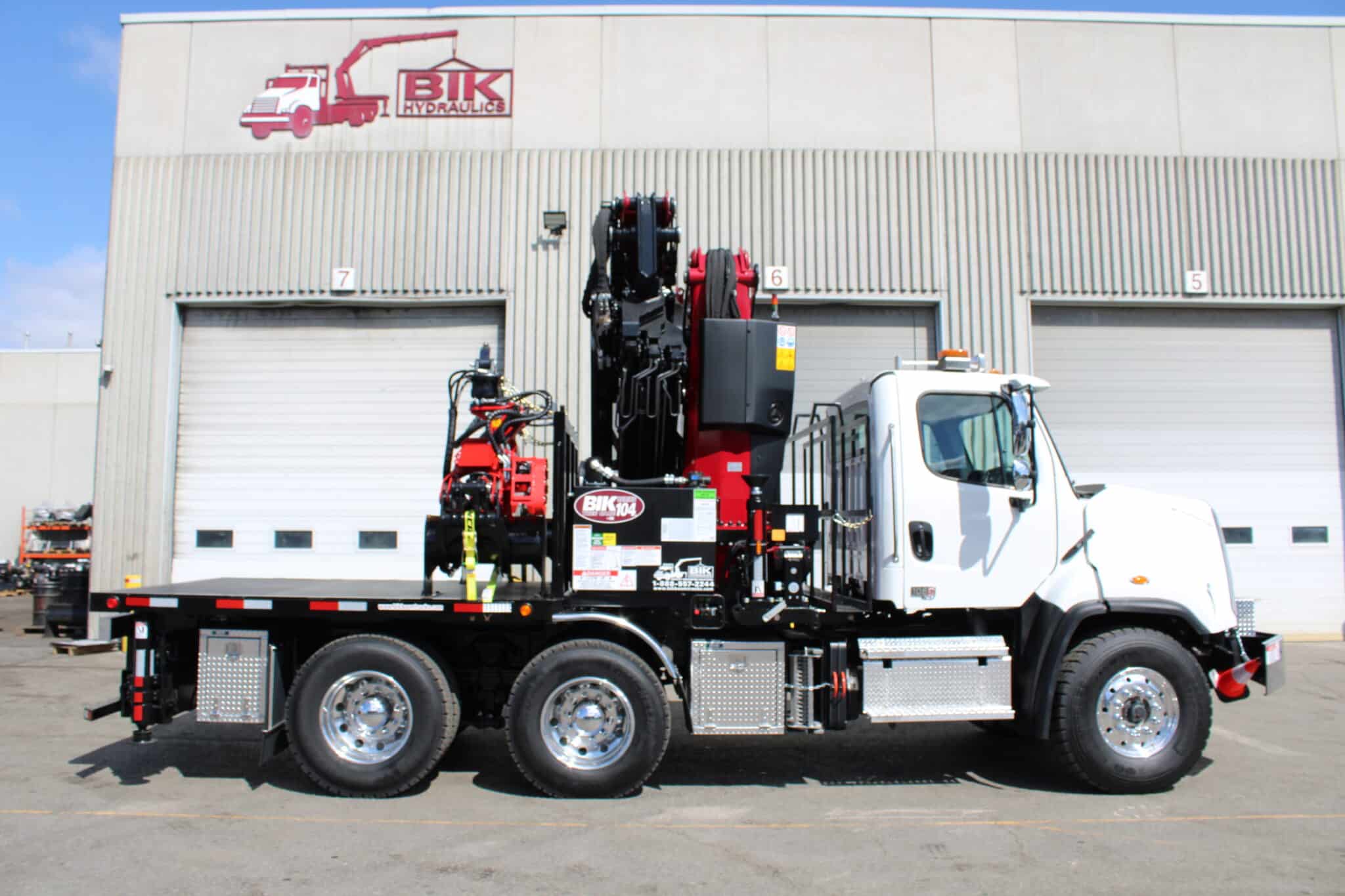

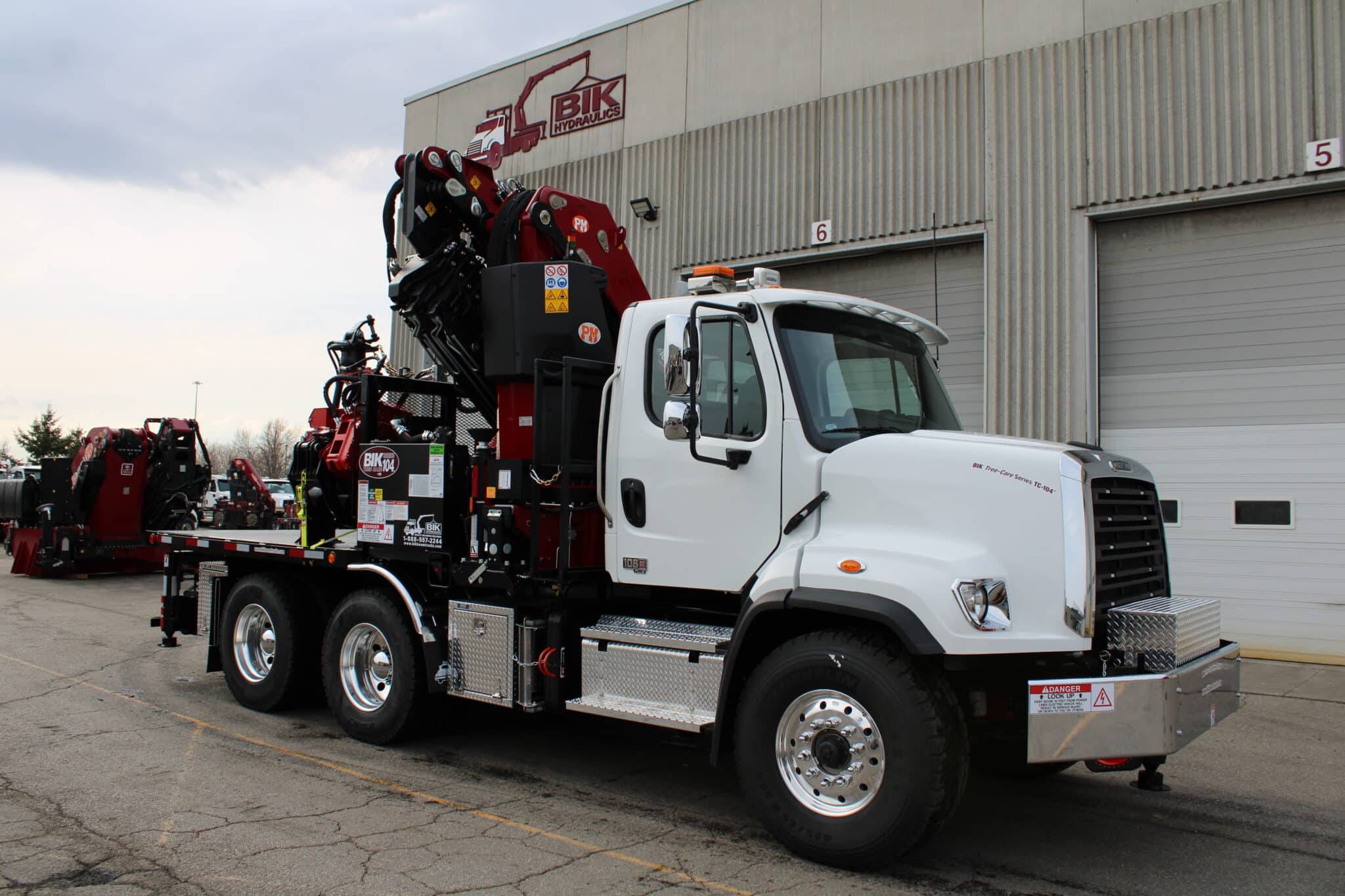

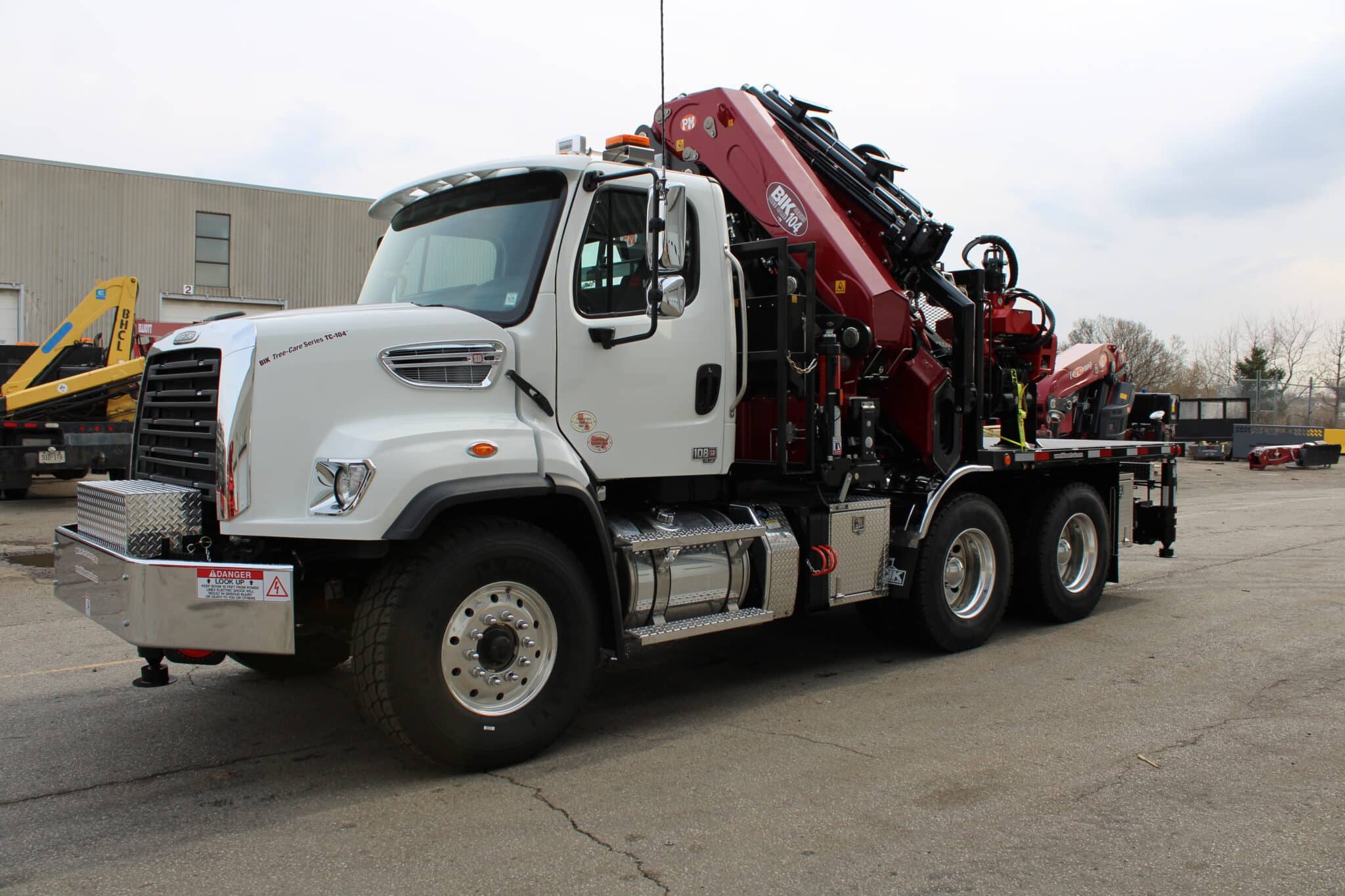

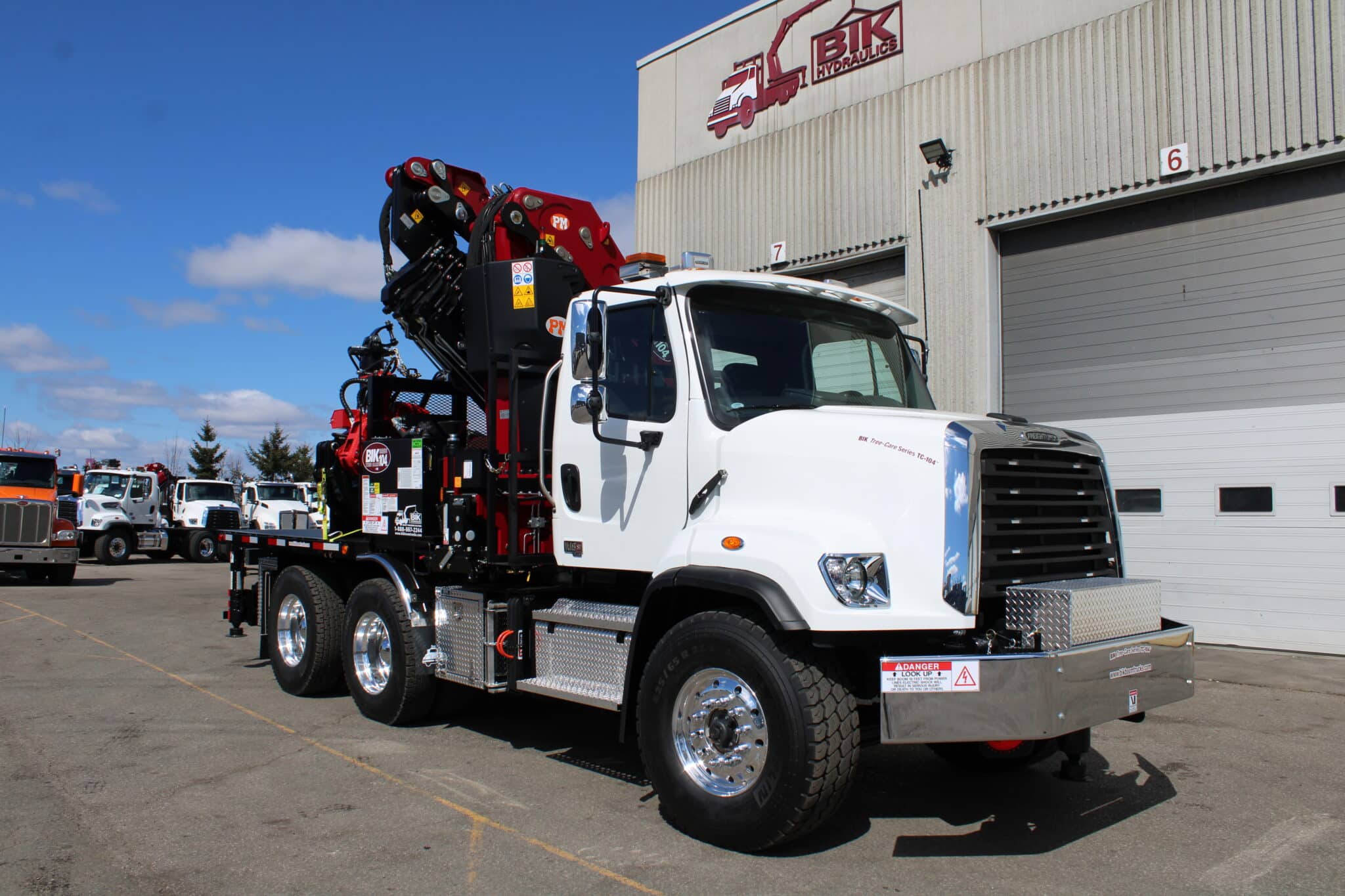

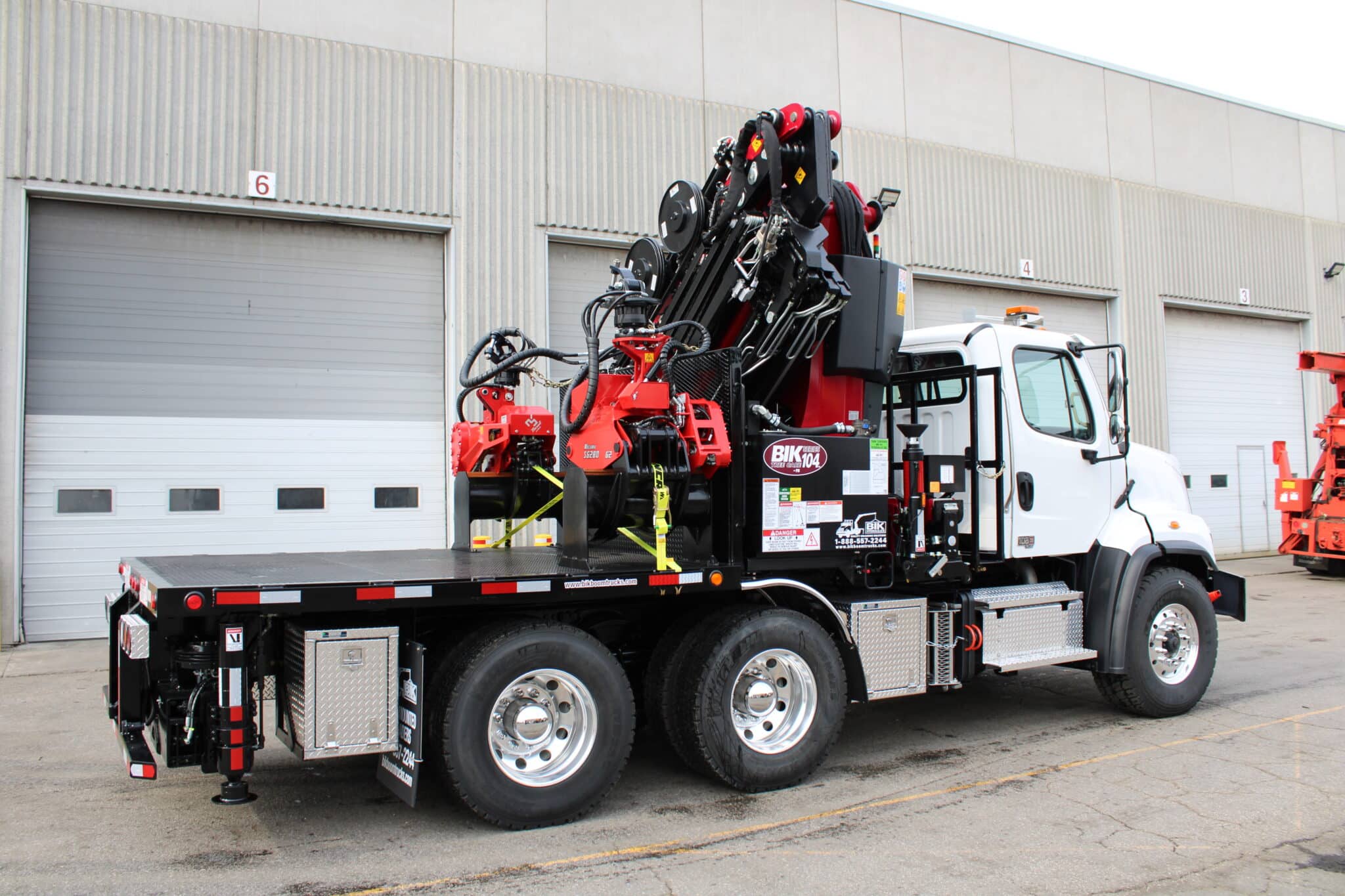

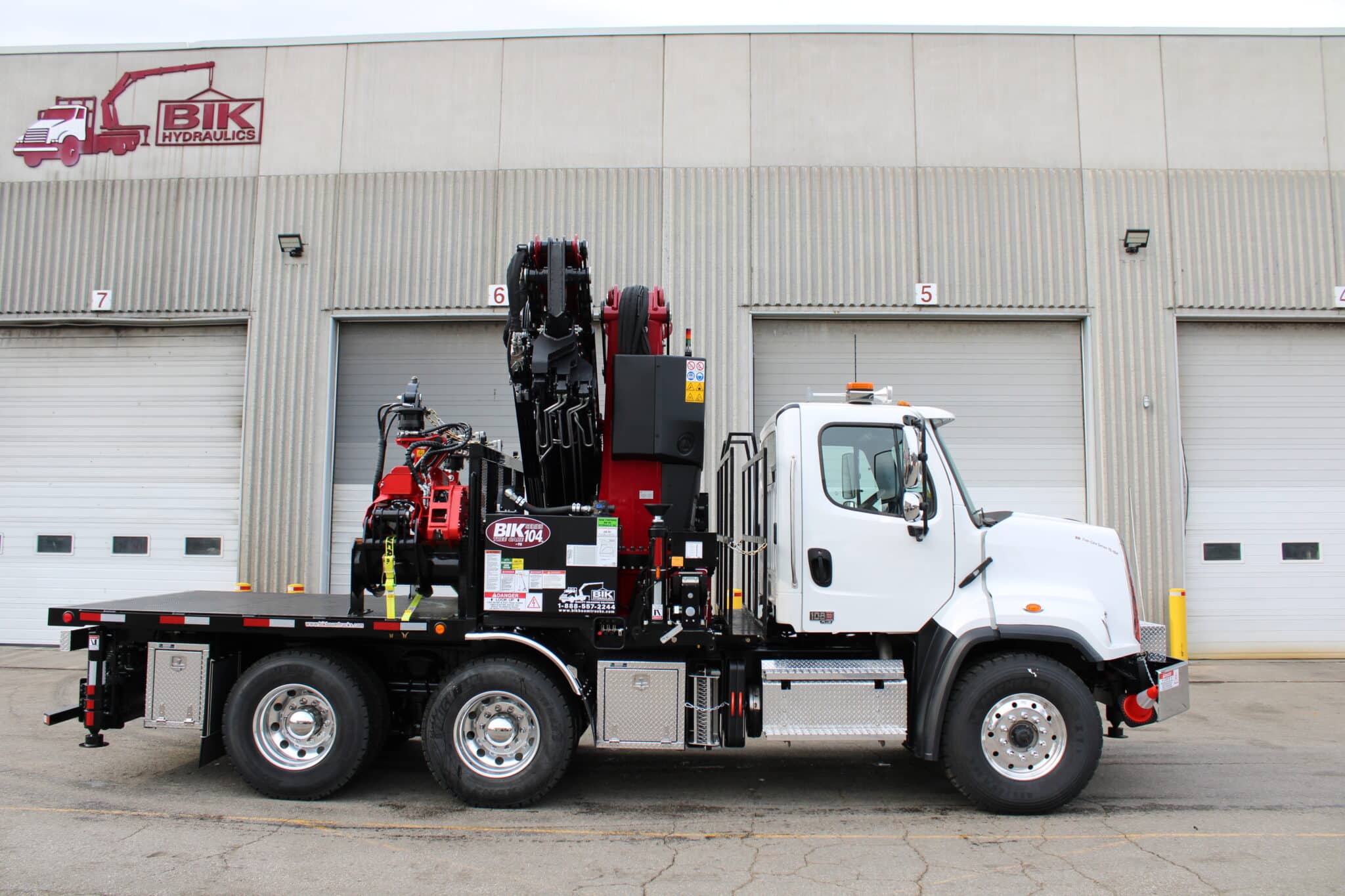

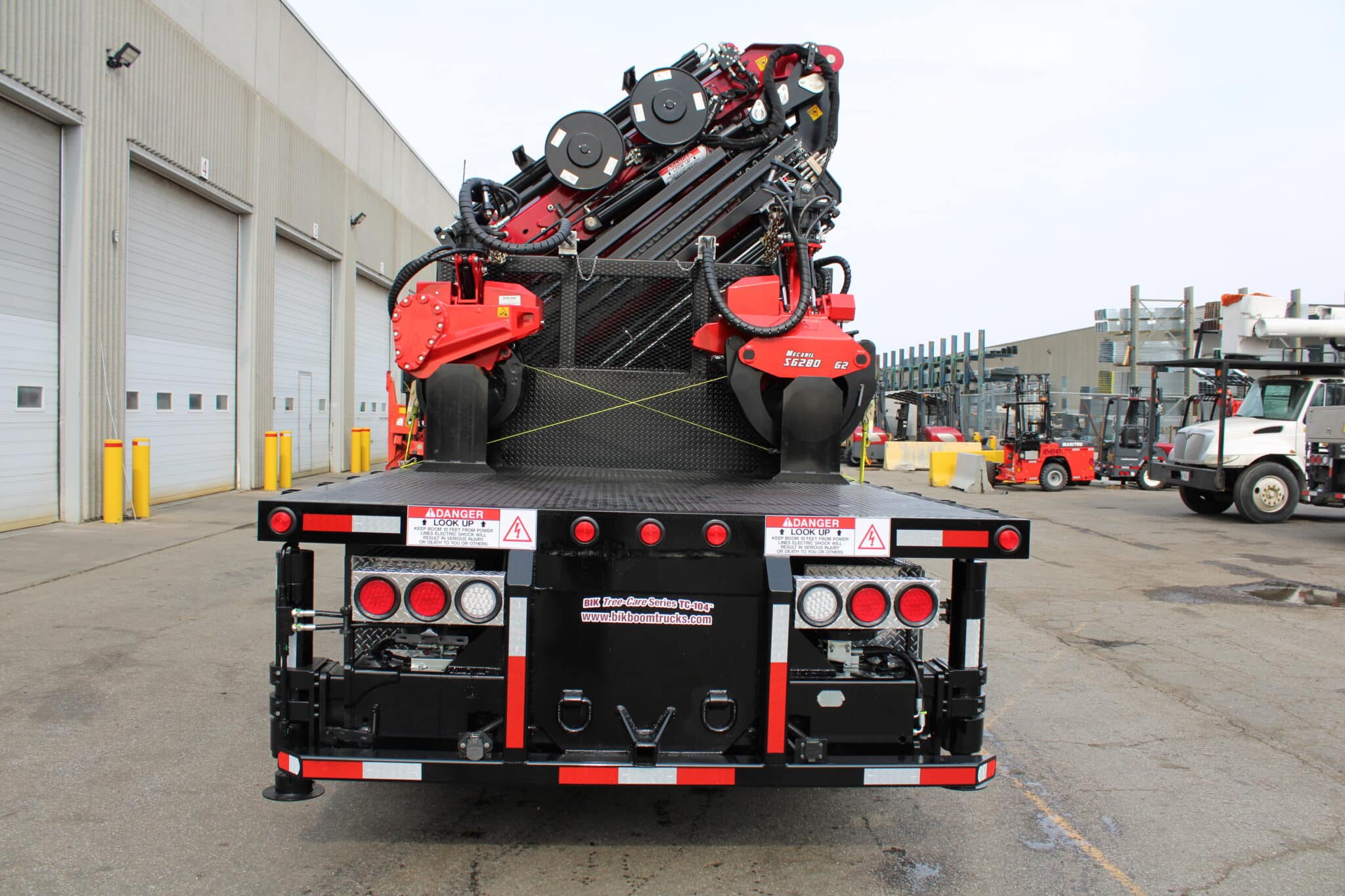

NEW BIK TREE-CARE SERIES TC-98/104 ON NEW FREIGHTLINER
NEW BIK TREE-CARE SERIES TC-98/104 ON NEW FREIGHTLINER
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
New – BIK Tree-Care Series TC-98 – 54.5 ton/m Knuckle Boom
- 6 ext Knuckle Boom w/Detachable 3 ext jib + 1-grapple extn Including (1) Grapple extension in jib,
- Boom Capacity of 2,230 lbs @ 98’ Vertical Reach
- Main Boom Horizontal Capacity:
- 21,000 lbs @ 14’
- 10,900 lbs @ 25’ 8”
- 6,800 lbs @ 38’ 8”
- 4,830 lbs @ 53’ 6”
- Jib Horizontal Capacity:
- 2,100 lbs @ 63’
- 1,850 lbs @ 75’ 4”
- 1,700 lbs @ 82’
- Grapple main extension to 86’
- “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
- Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability
- 15 Degree negative angle on main knuckle, 20 degree negative angle on jib – Hyd Extra Wide Main outriggers at base – 25’ 7” total span
- Auxiliary Stabilizers – Extra wide type – 21’ span, hyd out & down type at rear – Front Bumper Hyd Stabilizer – 100% stability 360 degrees
- Two Hydraulic Oil Coolers, high pressure return filter and 100 gal custom hydraulic oil tank with Enviro-Friendly AW-46 weight Hyd Oil
- Tandem pump / split valve pressure system for optimum speed for simultaneous multi function use
- DANFOSS Proportional Control Valve at Top Seat
- SCANRECO Proportional Radio Remote Control w/2 batteries, charger
- Engineer Stability load tested and certified
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
Deck Details

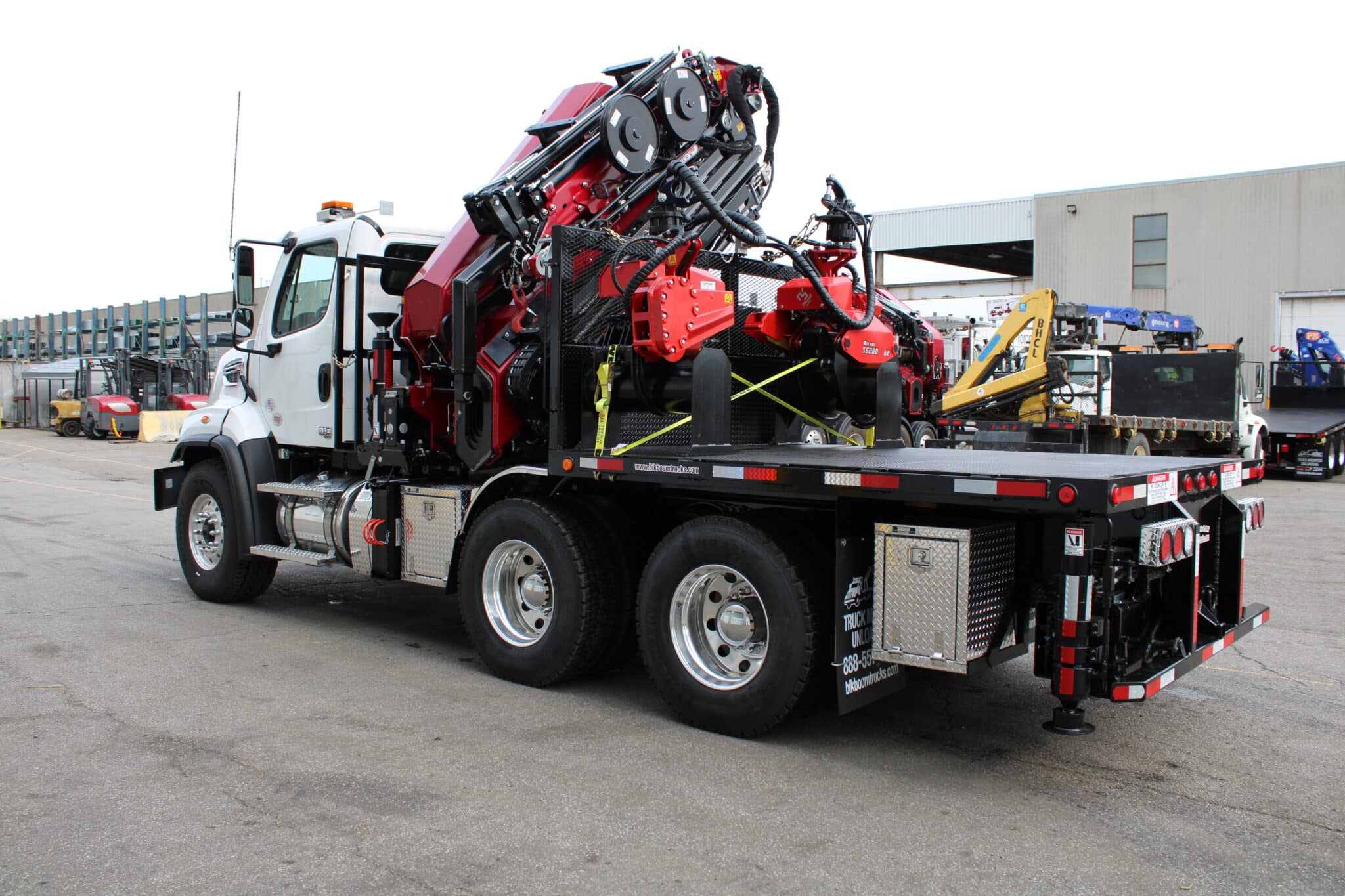

New – 10’ 8” x 102” Steel Checker plate Flat Deck
- Checker plate steel deck surface
- 48” head board, sliding winch straps
- Rub rail & pockets on side
- Dual sided access ladders
- Primed & painted gloss black
Truck Details

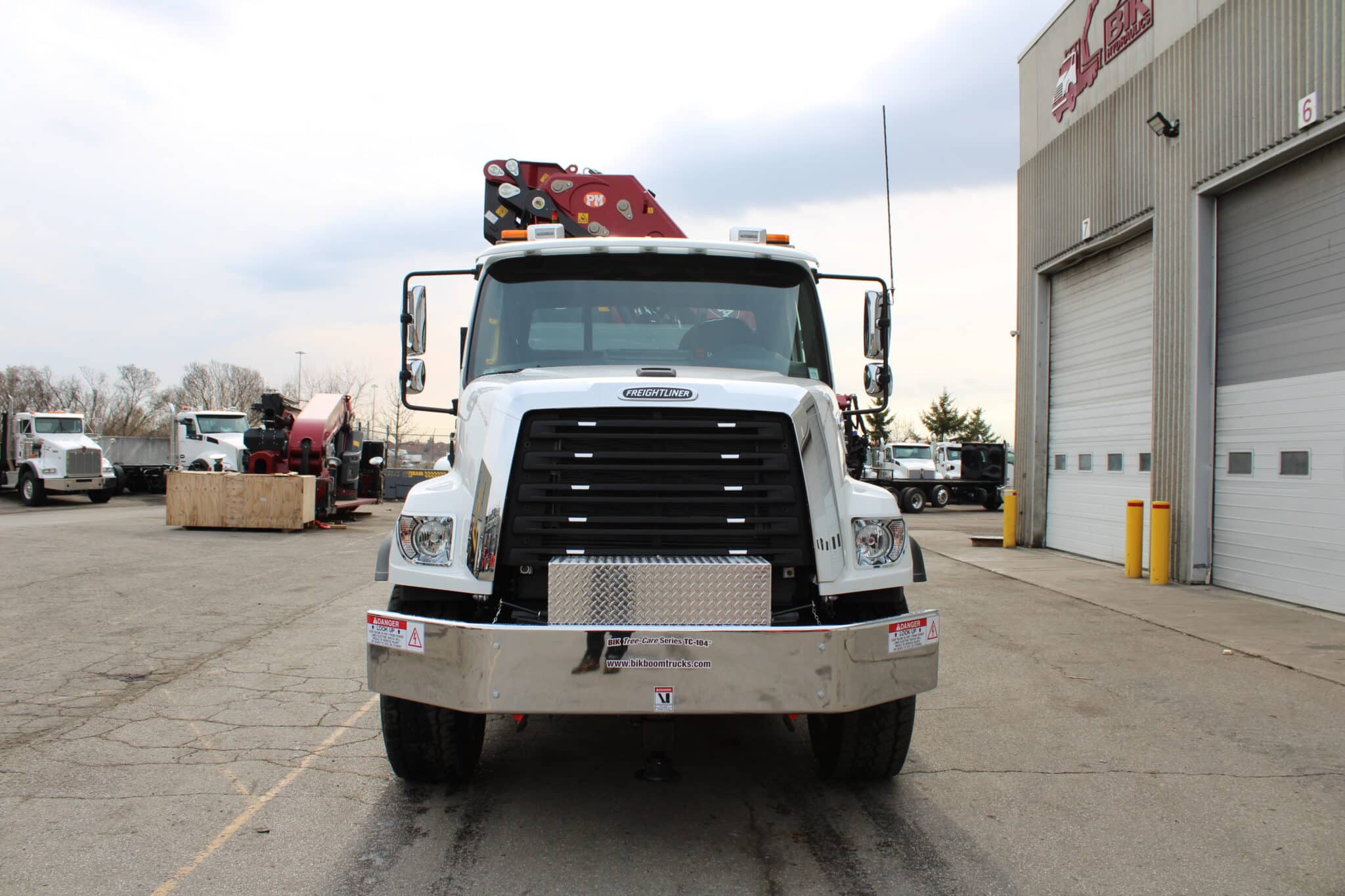

New – Freightliner 108SD 4-axle Day Cab Truck: 69,000 lb GVWR
- CUMMINS Diesel
- 380 HP – Allison Automatic Trans.
- 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- 40,000 LB Rears on Tuftrac suspension with 11R22.5 tires on Aluminum outer rims
- 9,000 lb self steer tag axle behind t/a with 17.5” tires/alum rims
- 166” wheel base
- Double Frame with integral front bumper frame extension (for front stabilizer)
- Chrome single polished Exhaust pipe side of cab

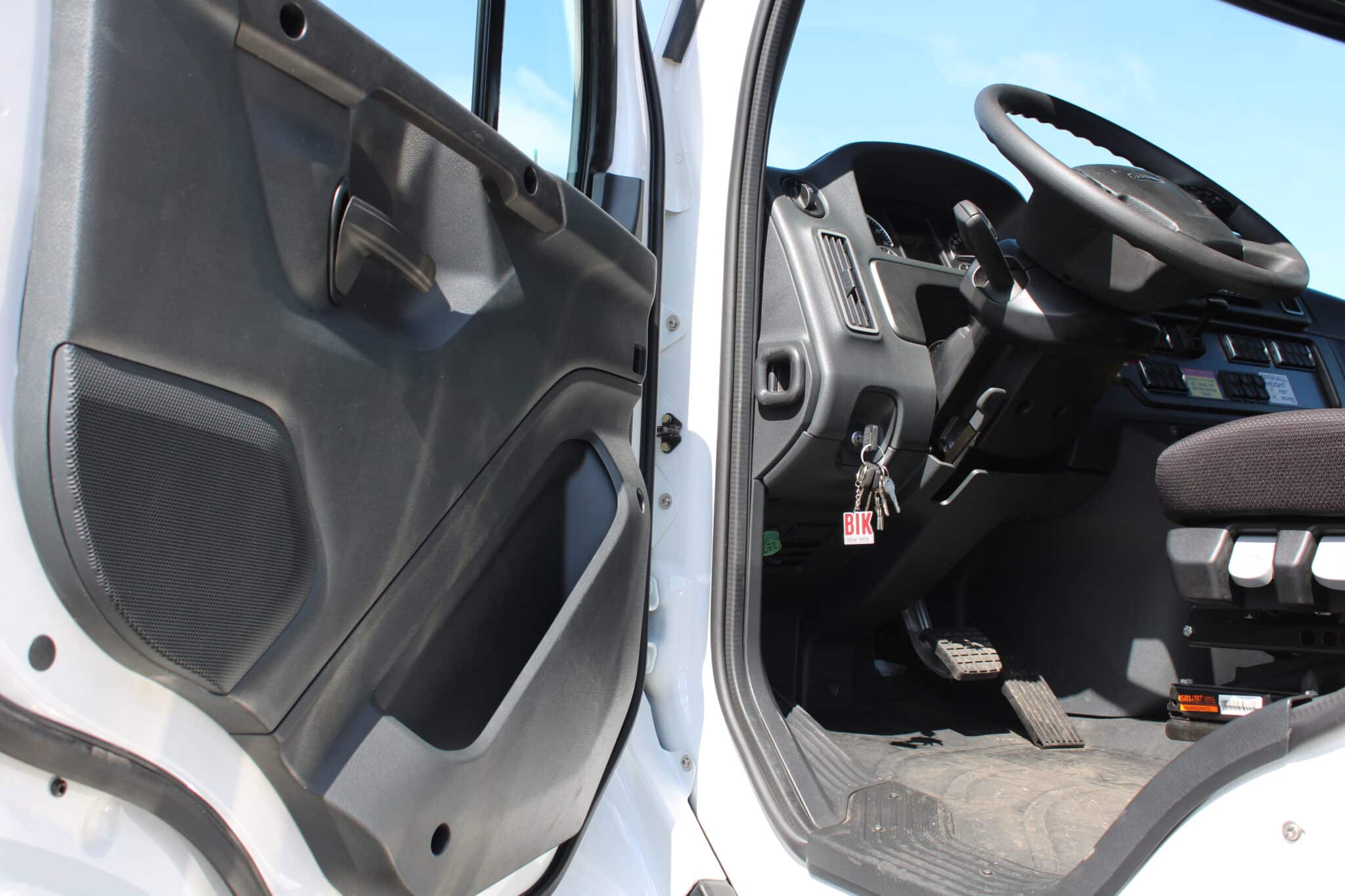

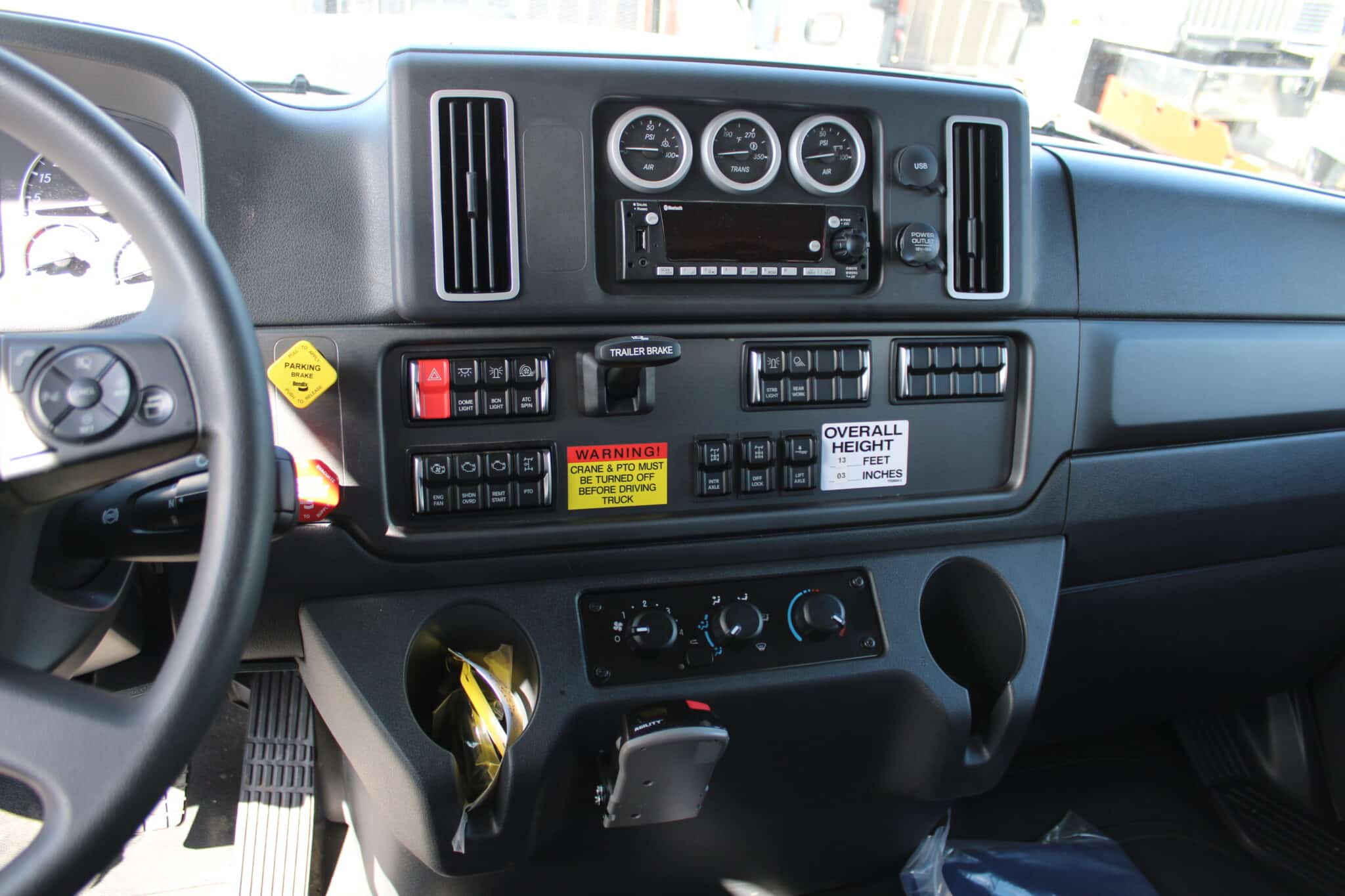

- Chromed Grille & Bumper, single 80 gallon alum fuel tank, A/C, Tilt/Telescopic steering, AM/FM radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, exterior sun visor, etc…
Also Included Are:
- (5) pcs – 2” PVC stab pads w/holders
- (2) pc Alum storage boxes installed
- Custom re-enforced manual extn for grapple,
- New Mecanil SG-280 Grapple saw with spare parts
- 2 to 3 day on site boom feature/function familiarization by a BIK tech
Options at Extra Cost:
- Additional grapple saw – Mecanil SG 160 Grapple saw with spare parts kit and holder on deck
- Front Wheel Drive conversion – to be able to have 6-wheel drive for off-road use
- Draw plate at rear of truck frame with Heavy Duty air pintle hook and Reese receiver w/brake actuator (dual hitches)
- Aluminum single man self-levelling basket
- Mat rack behind the cab or mounted on top of deck at rear a
- TC-104 – 104’ Vert Reach Version – with Mecanil SG-220 (instead of SG-280)
