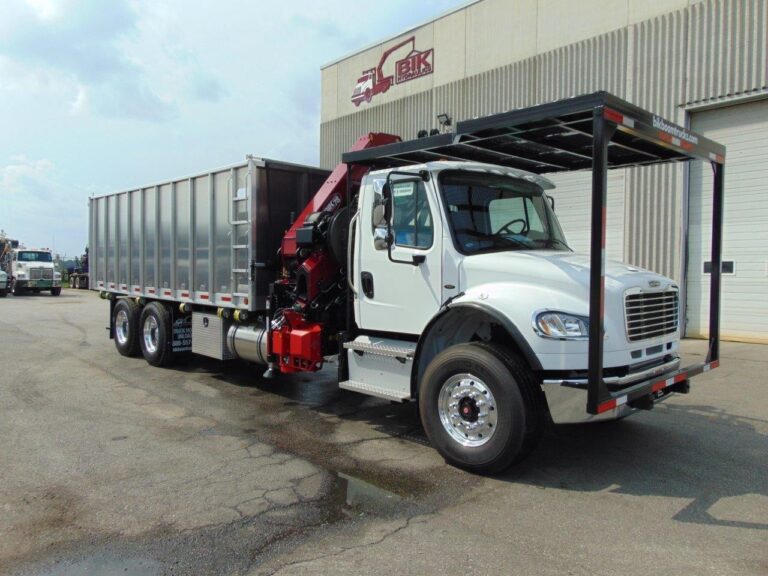

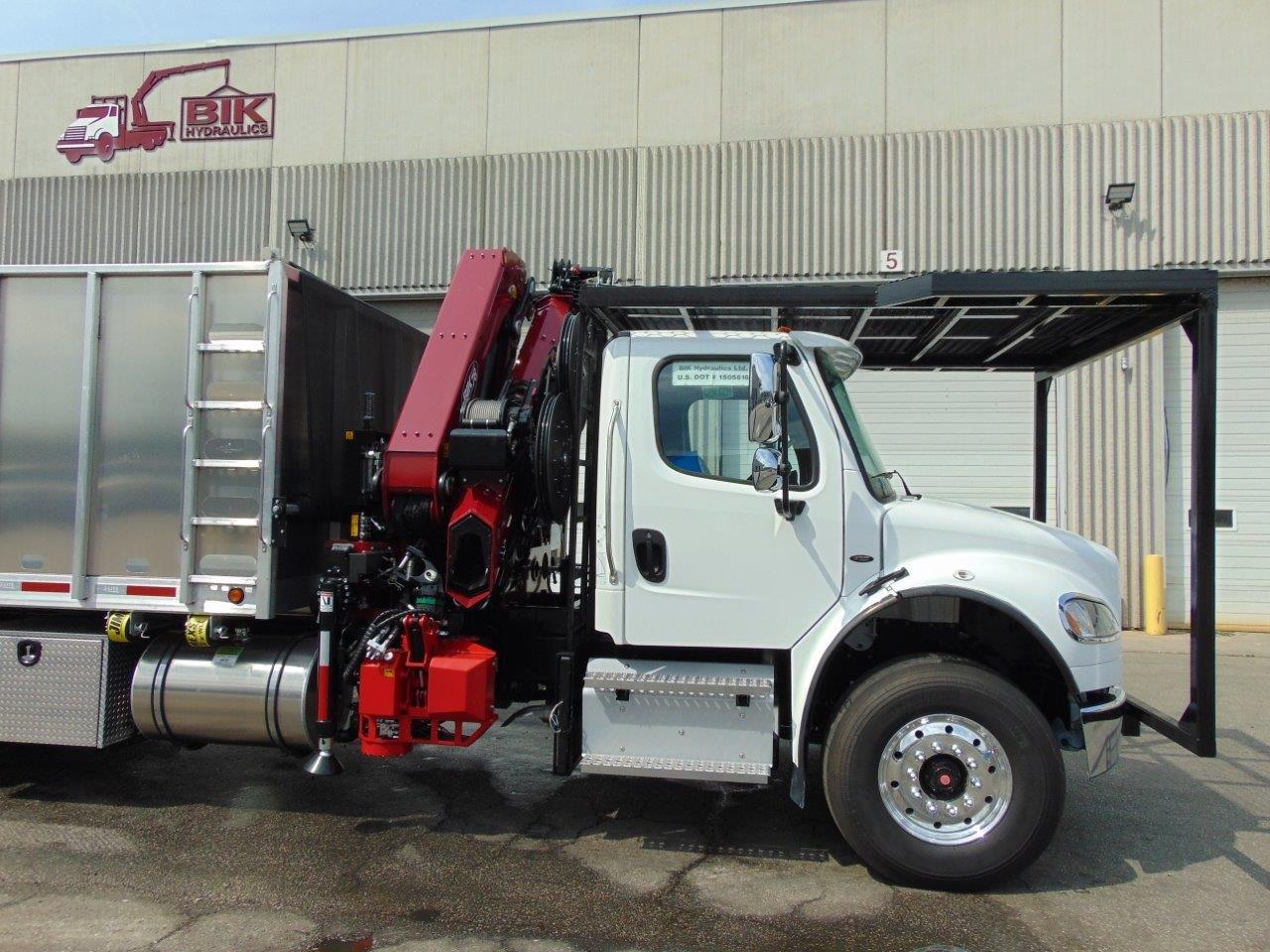

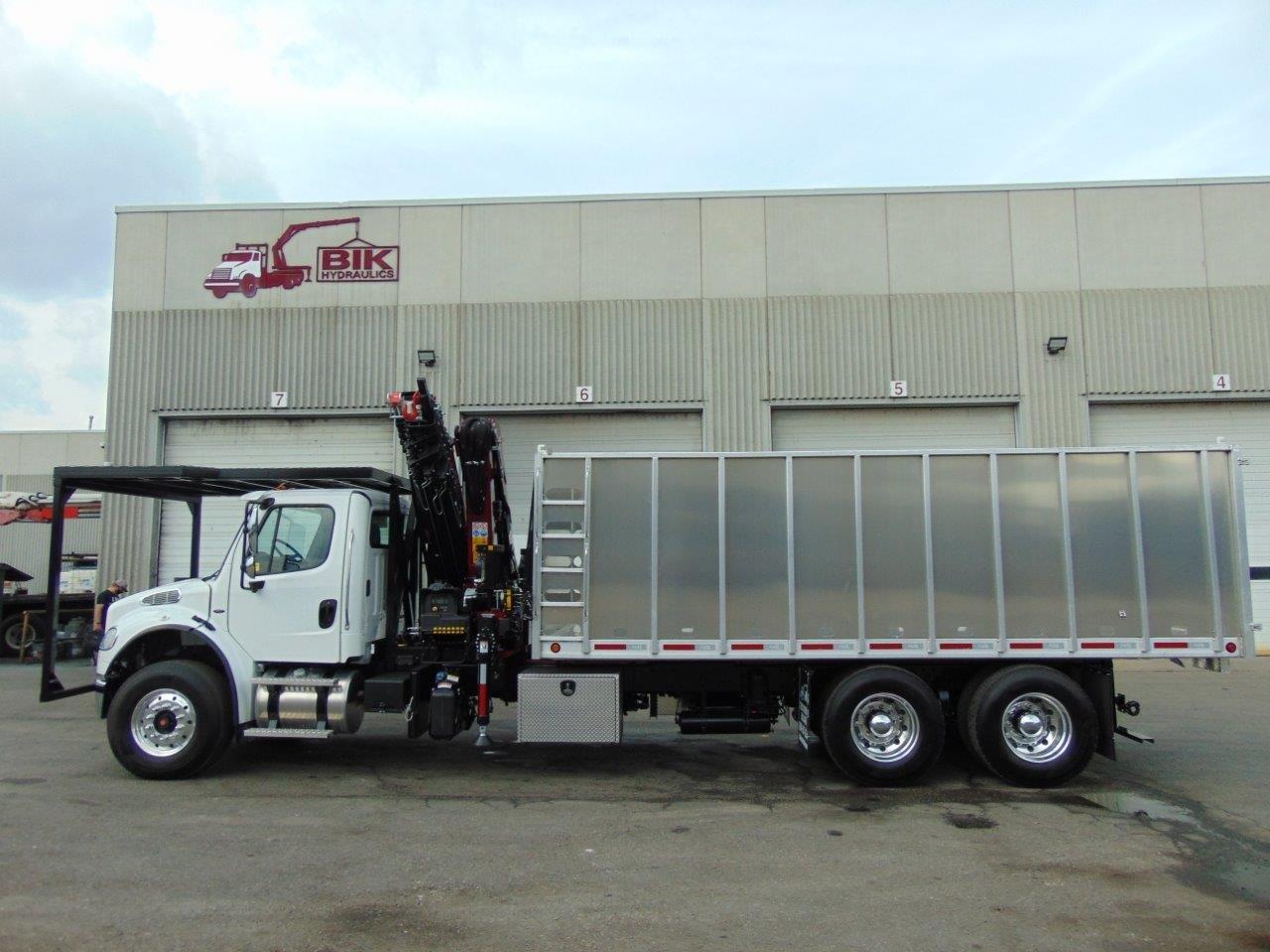

NEW BIK TREE-CARE SERIES TC-78 ON NEW FREIGHTLINER
 |
NEW BIK TREE-CARE SERIES TC-78 ON NEW FREIGHTLINER WITH 20’ ALUMINUM DUMP & SG-220 SAW
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
New – BIK Tree-Care Series TC-78 (23.5 ton/m)
- 7-hydraulic extensions to 78’ vertical) w/extra grapple extn
- Vertical Capacity: 2,900 lb at 78’ vertical reach
- HORIZONTAL Capacities:
- 8,500 lb @ 14’
- 5,600 lb @ 20’
- 4,020 lb @ 26’
- 2,230 lb @ 40’
- 1,500 lb @ 55’
- 1,250 lb @ 66’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station, Load Holding Valves on all cylinders
- PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
- SCANRECO Radio Remote Control
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
- 15 degree negative angle on folding arm – Hydraulic Overload Protection – simplified system that prevents boom from overload
- Two functions plumbed to end of 6th extn,
- Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
- Load Tested & Installed behind cab, with integral sub-frame to meet or exceed all CMVSS Standards
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components

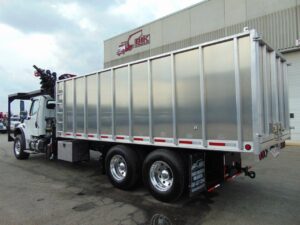

Deck Details
New – 20’ long x 96” Aluminum Dump Body:
- 6’ sides , solid sides
- Smooth floor
- Rear barn doors (removable)
- Nordic Scissor
- Attached ladder on both sides
- Cylinder hydraulic dump system under body
- Manual roll tarp at front.

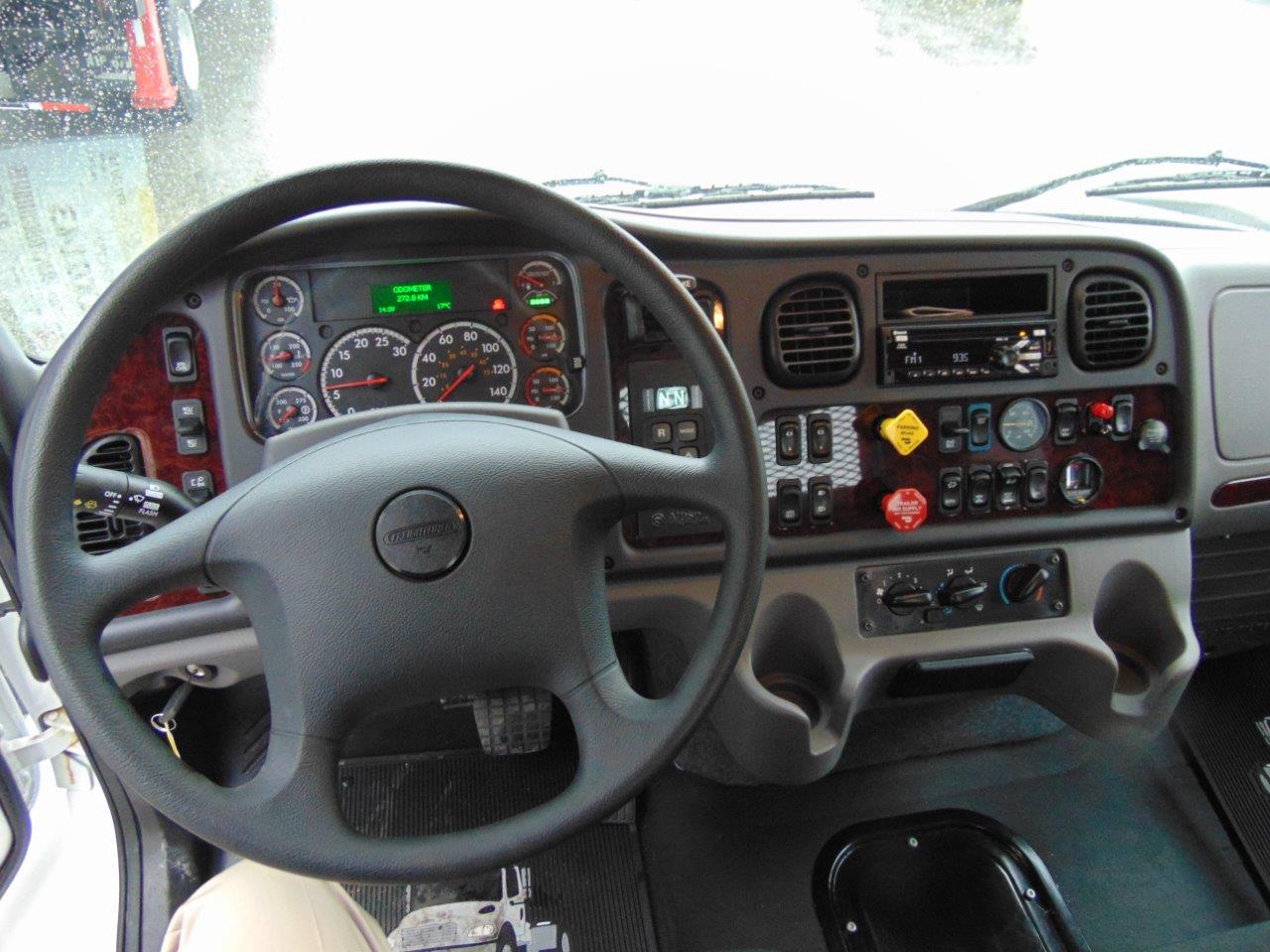

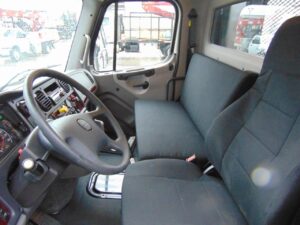

Truck Details
New – Freightliner M2-106 Tandem Diesel Truck: 60,000 lb GVWR
- Truck Cab White
- CUMMINS 350 hp
- Allison auto trans.
- 20,000 lb 385/65R22.5 Front tires on Aluminum rims
- 40,000 LB Rears on air ride Suspension with 11R22.5 tires on steel white rims – steel inner
- Full double frame chassis, 54” spread at ta
- Truck Features Include: Air cond., AM/FM stereo, power windows/locks, tilt steering, cruise control, air ride cab, 2-man pass seat, painted bumper, heated mirrors, engine block heater, inter axle lock ups, single 70 gal aluminum fuel tank, etc…
Also Included:
- (2) pcs – 2” PVC stabilizer pads – with holders
- 36” Alum storage boxes installed
- Mecanil SG160 Grapple saw with spare parts kit Grapple saw holder/stowe bracket on side of frame near boom
- BIK tech to familiarize boom operation at your facility
