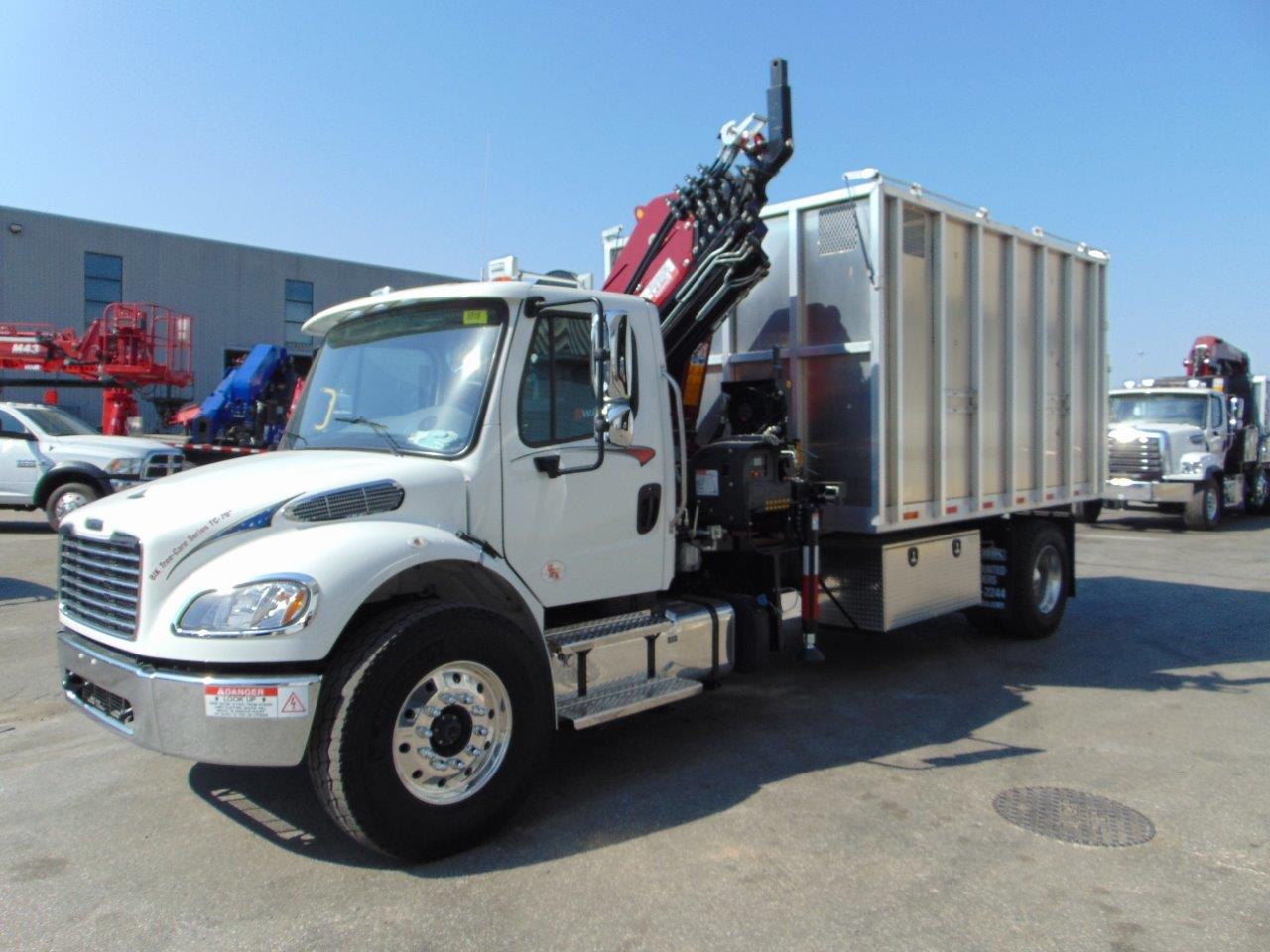

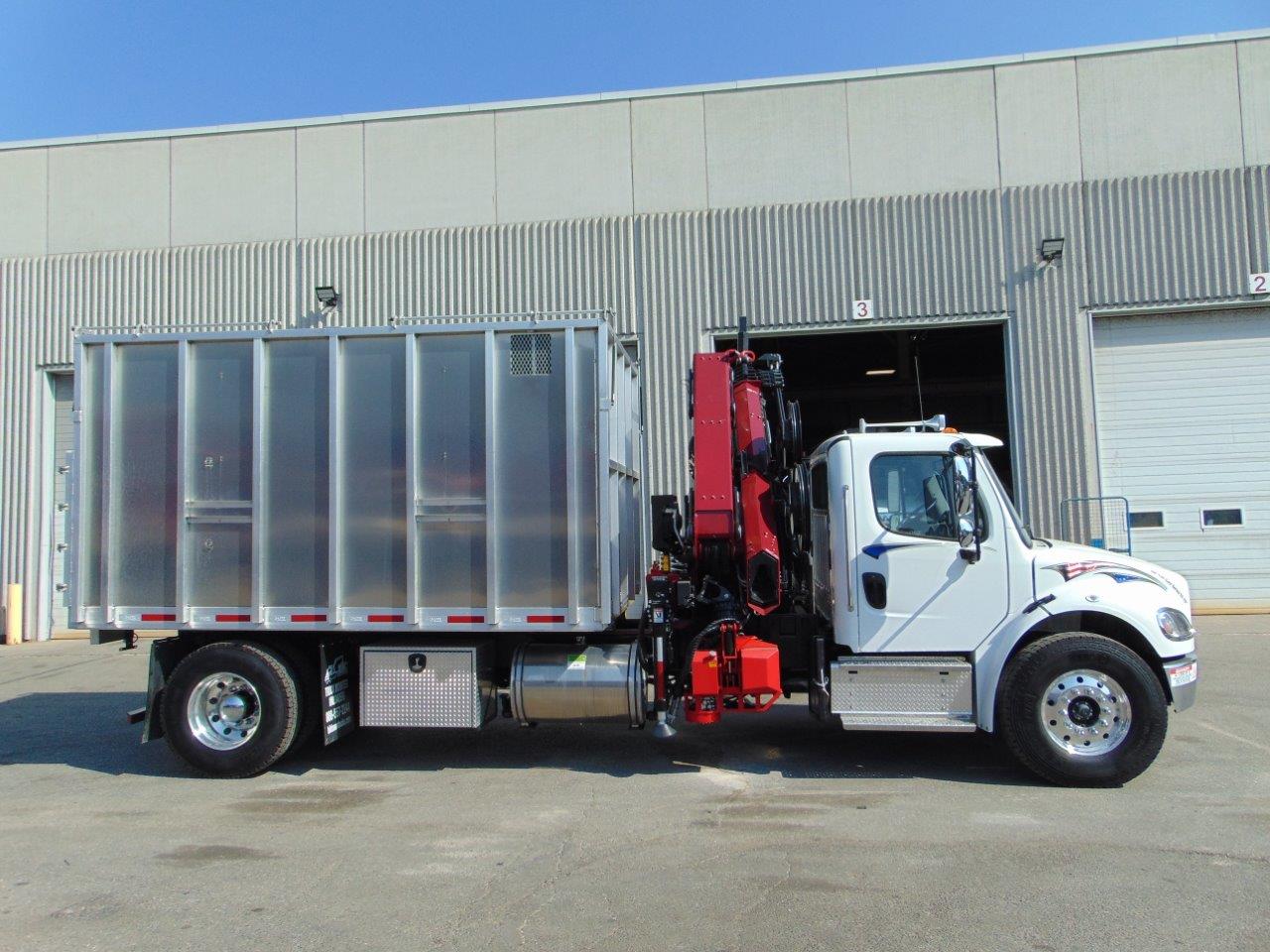

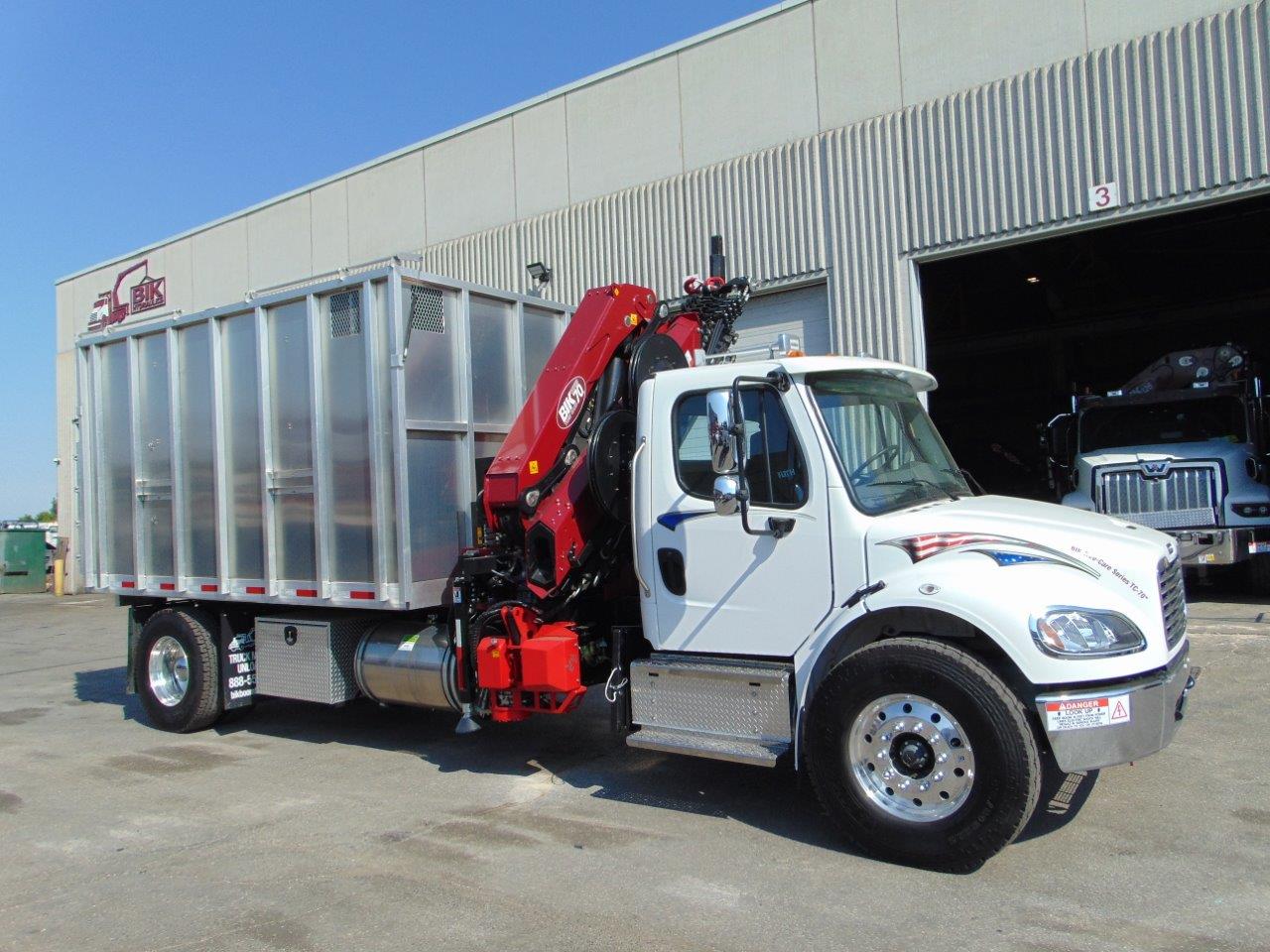

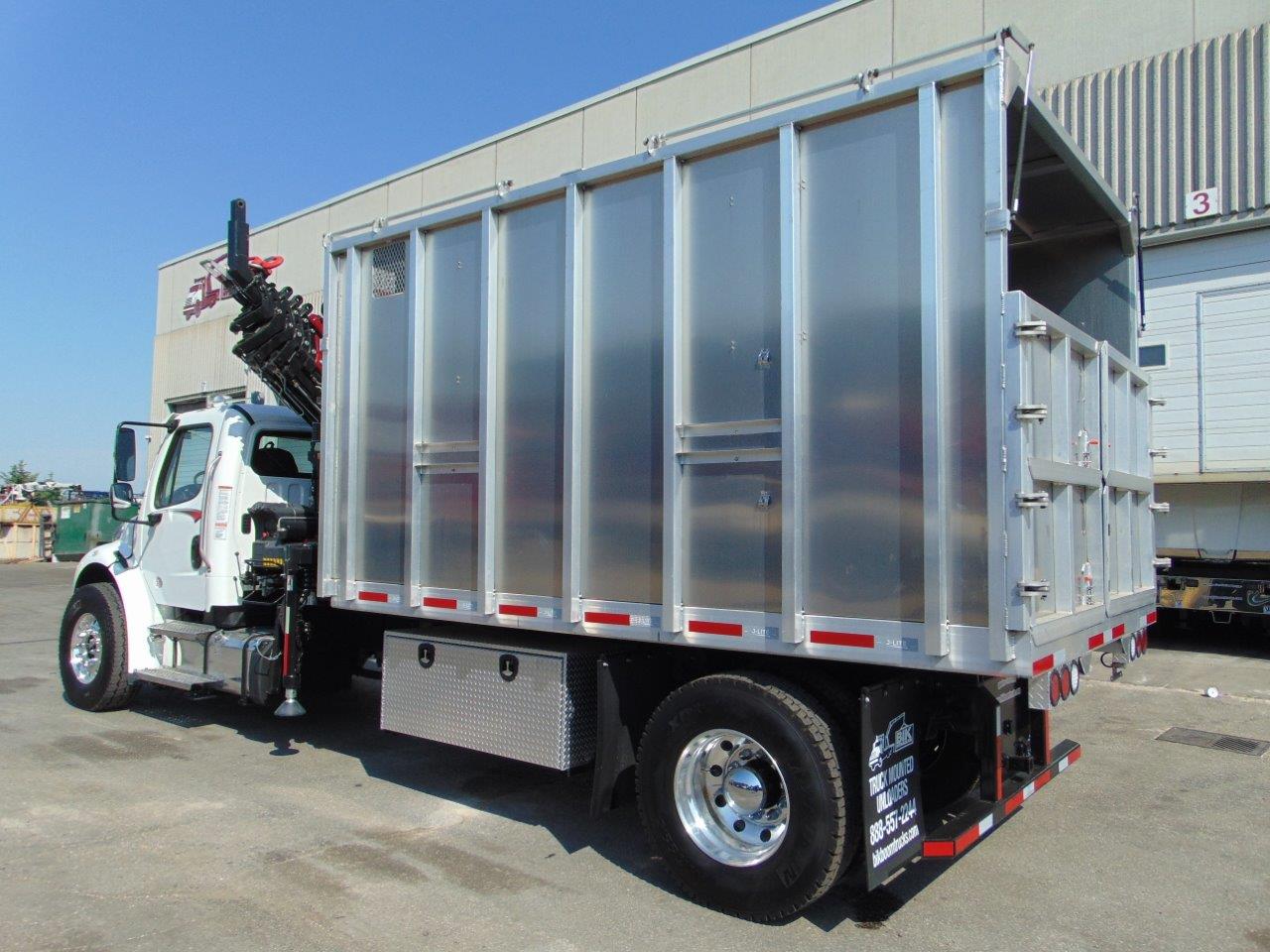

NEW BIK TREE-CARE SERIES TC-70/78 ON NEW FREIGHTLINER
NEW BIK TREE-CARE SERIES TC-70 ON NEW FREIGHTLINER
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.
Boom Details
New – BIK Tree-Care Series TC-70 (PM 23.5 ton/m)
- 6-hydraulic extensions & one manual grapple extn
- Vertical Reach of 70’
- Handles 3,800 lbs @ 70’ Vertical
- HORIZONTAL Capacities:
- 9,800 lb @ 14’
- 5,900 lb @ 20’
- 4,330 lb @ 26’
- 2,560 lb @ 40’
- 1,750 lb @ 55’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station
- Load Holding Valves on all cylinders
- PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
- SCANRECO Radio Remote Control
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
- 15 degree negative angle on folding arm – Hydraulic Overload Protection – simplified system that prevents boom from overload
- Two functions plumbed to end of 6th extn, – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
- Installed at rear on integral sub base / torque box, Engineer certified stability inspection & certificate,
Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components
Deck Details
New – 14’ long Steel Flat Deck:
- 4’ head board
- 8’ wide usable deck + stake pockets with rub rail
- Steel checker plate Deck surface
- 5-sliding tie down winch straps on pass side
- Dual access ladders at front& winch bar with holder
- Integral sub-base / torque box To maximize torsion strength
- DOT stickers and clearance lights as required.
Truck Details
New – Freightliner M2-106 2- axle Truck – NON-CDL with 33,000 max GVWR
- 300 hp Cummins Diesel
- Allison Auto Trans
- 12,000 lb fronts w/315 type 22.5 tires
- 21,000 lb rears, polished aluminum rims
- Air Cond, 2-man pass seat, cruise, power windows/locks, tilt/tele steering, stereo, chrome bumper/grille, white color cab, etc…
Also Included:
- (2) pcs – 2” PVC stabilizer pads – with holders
- 36” Alum storage boxes installed
- Mecanil SG-220 Grapple saw with spare parts kit
- Grapple saw holder/stowe bracket on side of frame near boom
- BIK tech to familiarize boom operation at your facility for 2-3 days
Other Options at Extra Cost:
- (1) Aluminum self evelling man basket
- Drawplate with reese type pintle hook receiver with electric trailer brake actuator installed
- (6) pcs removable log bunks to fit deck pockets
- TC-78 version – with 8’ extra reach and comes with SG-160 Grapple saw, Handling 2,800 lbs @ 78’ Vertical Reach
