Boom Details

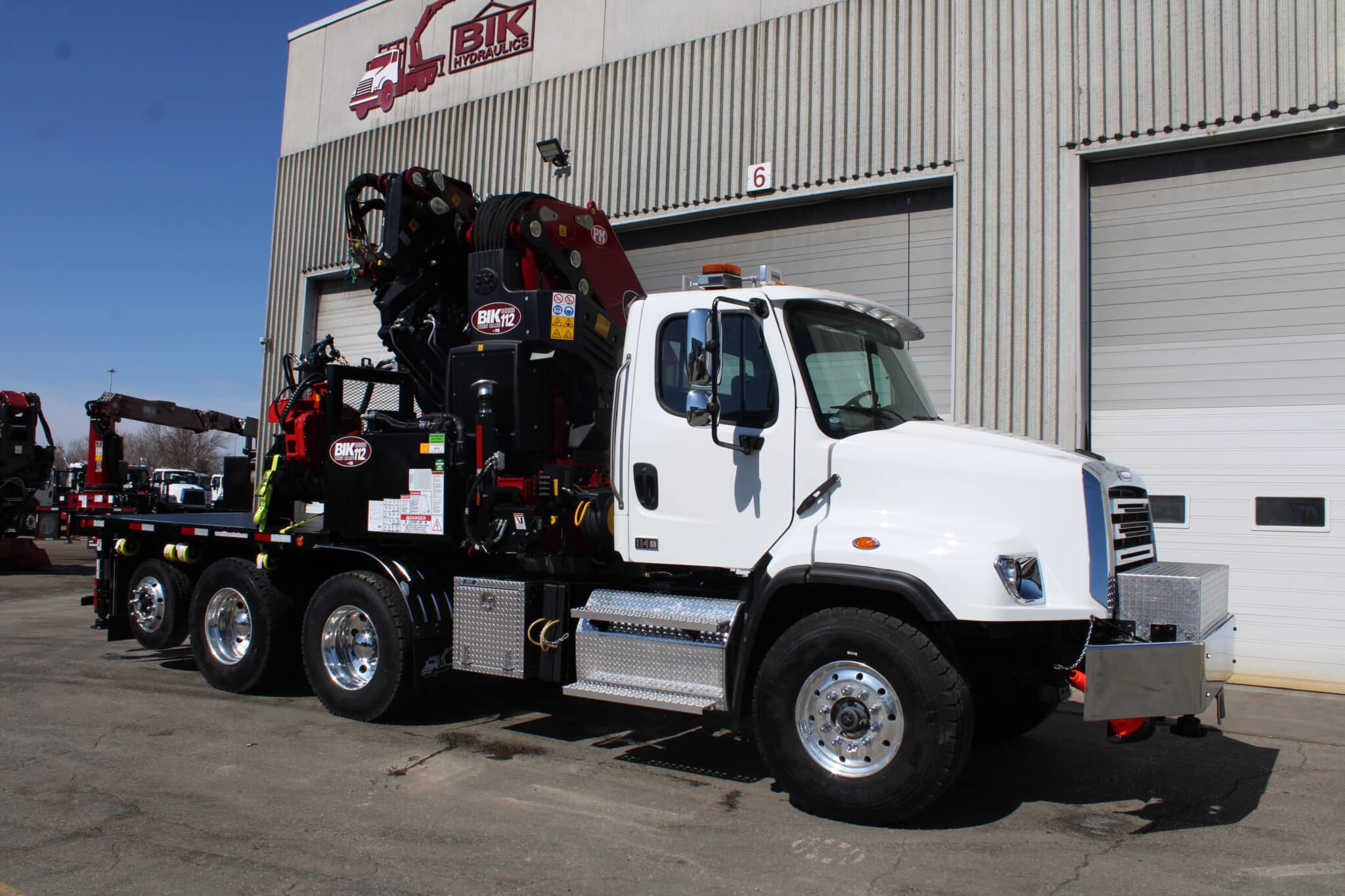

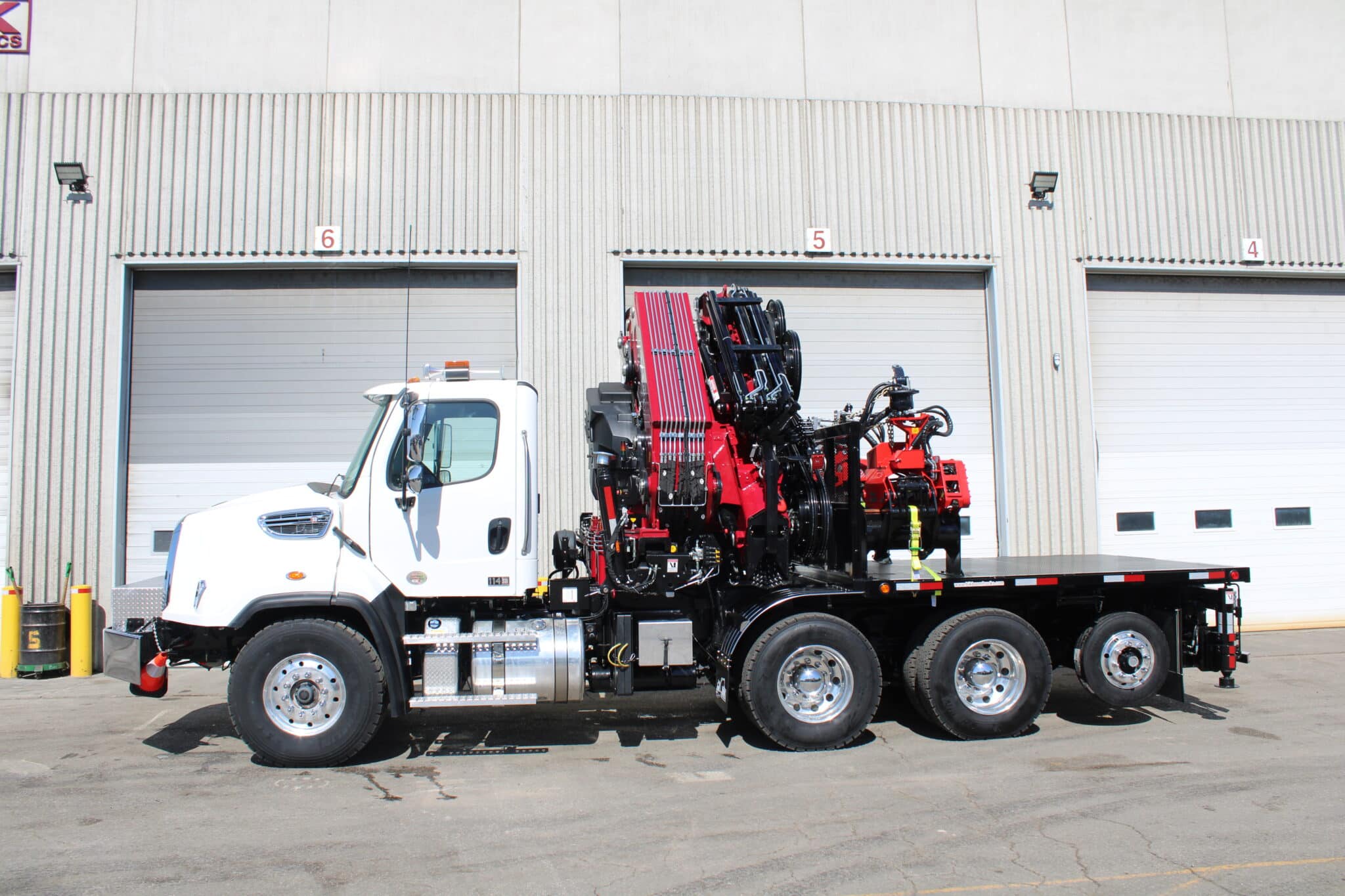

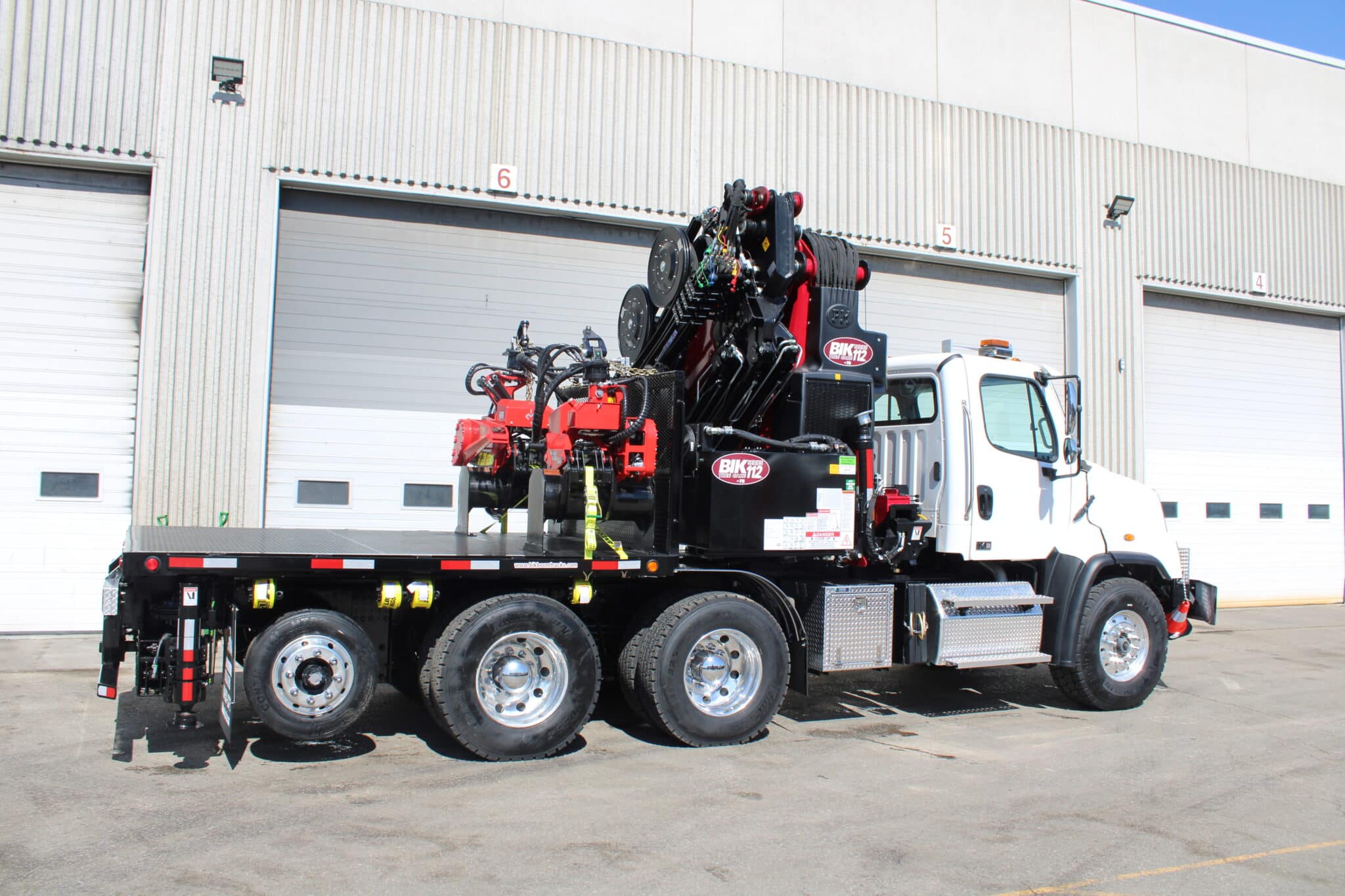

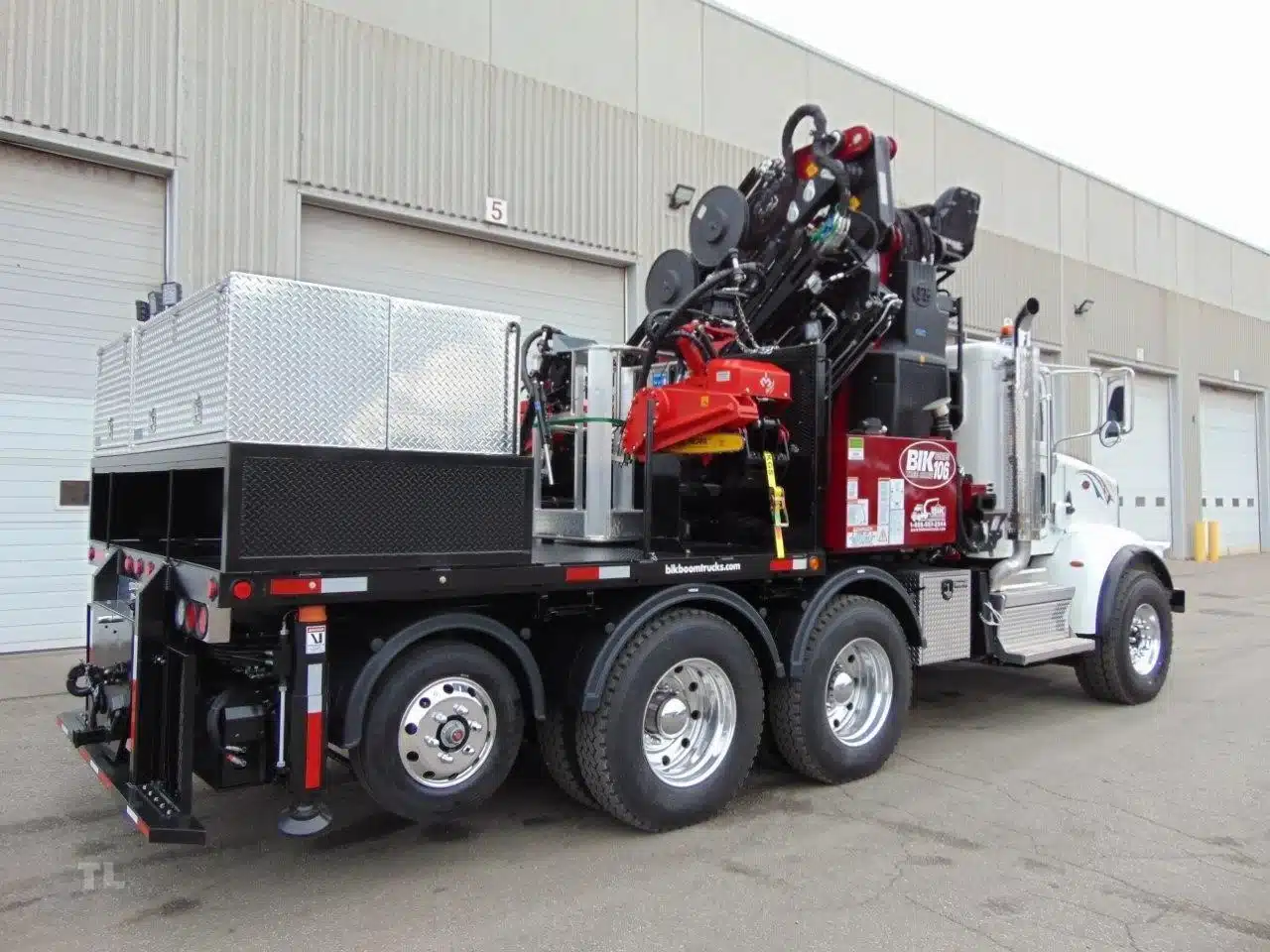

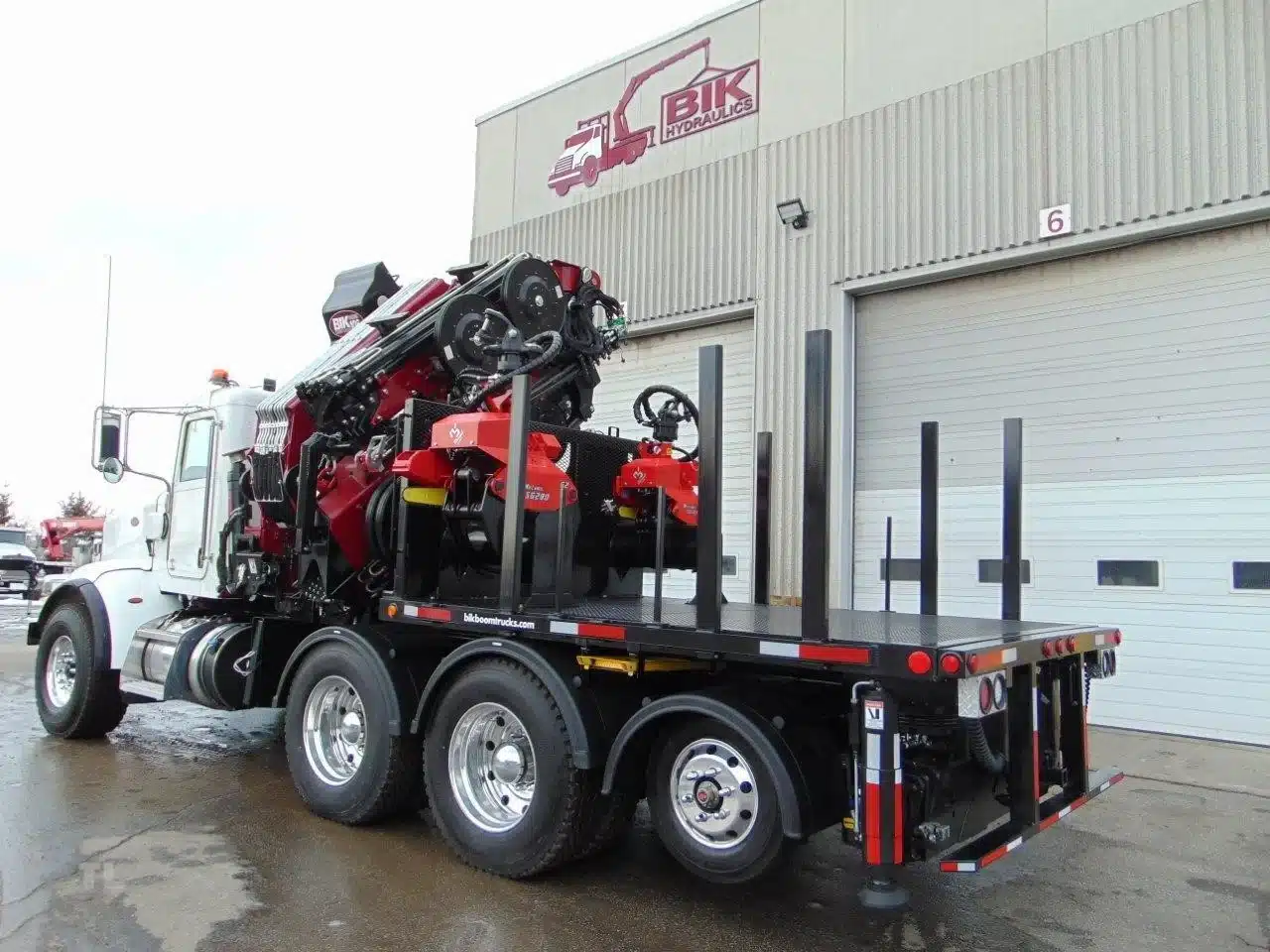

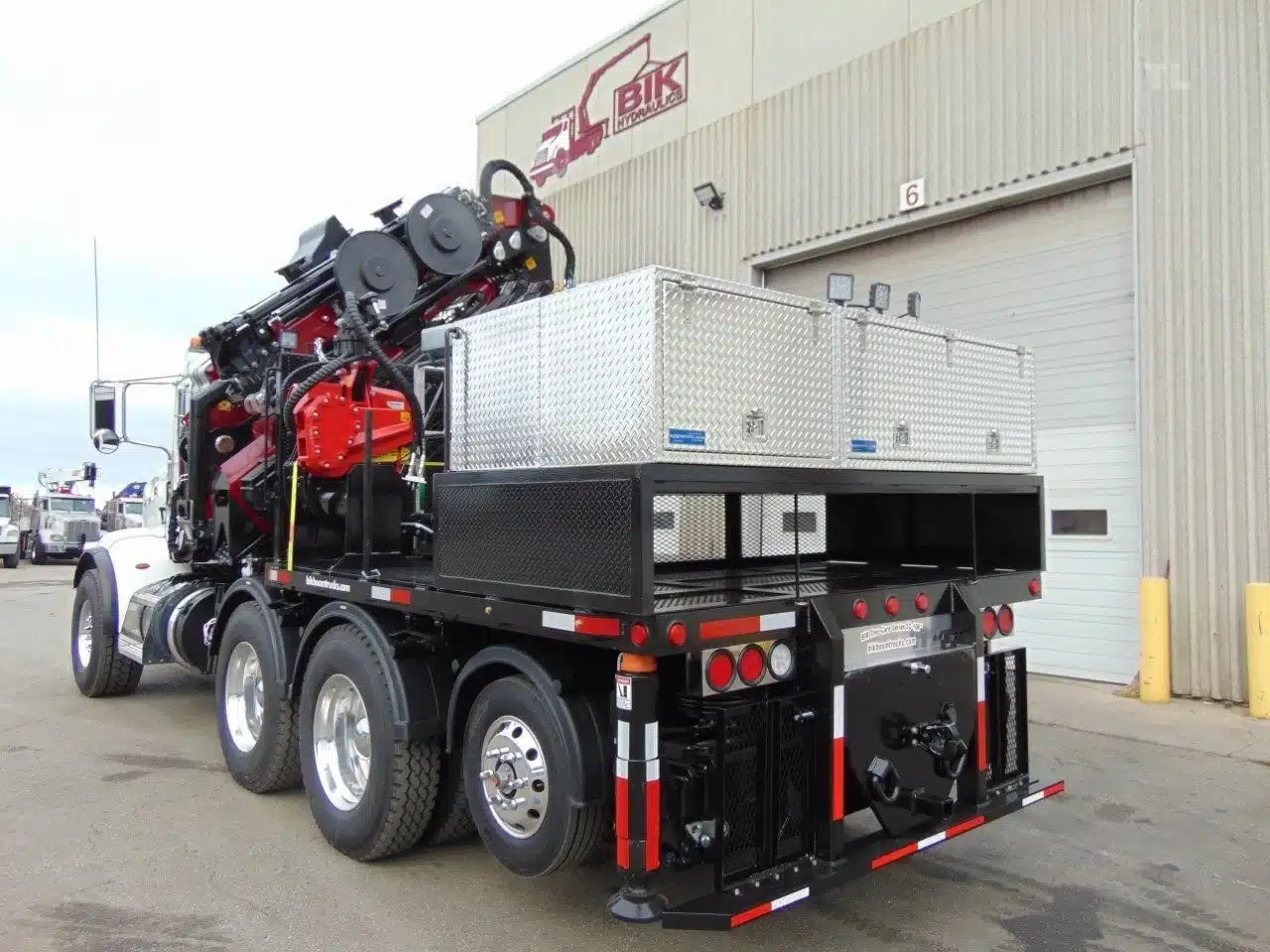

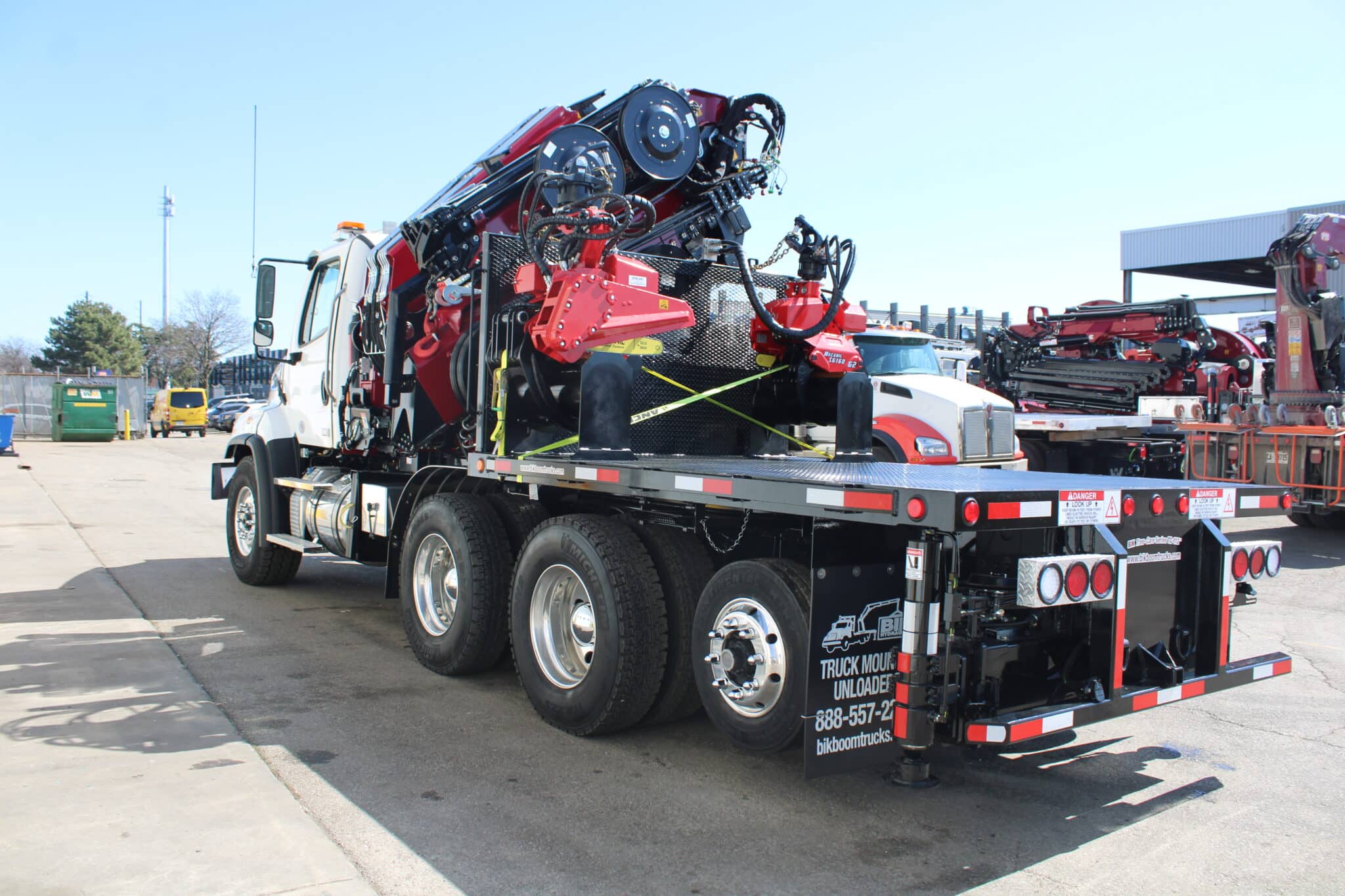

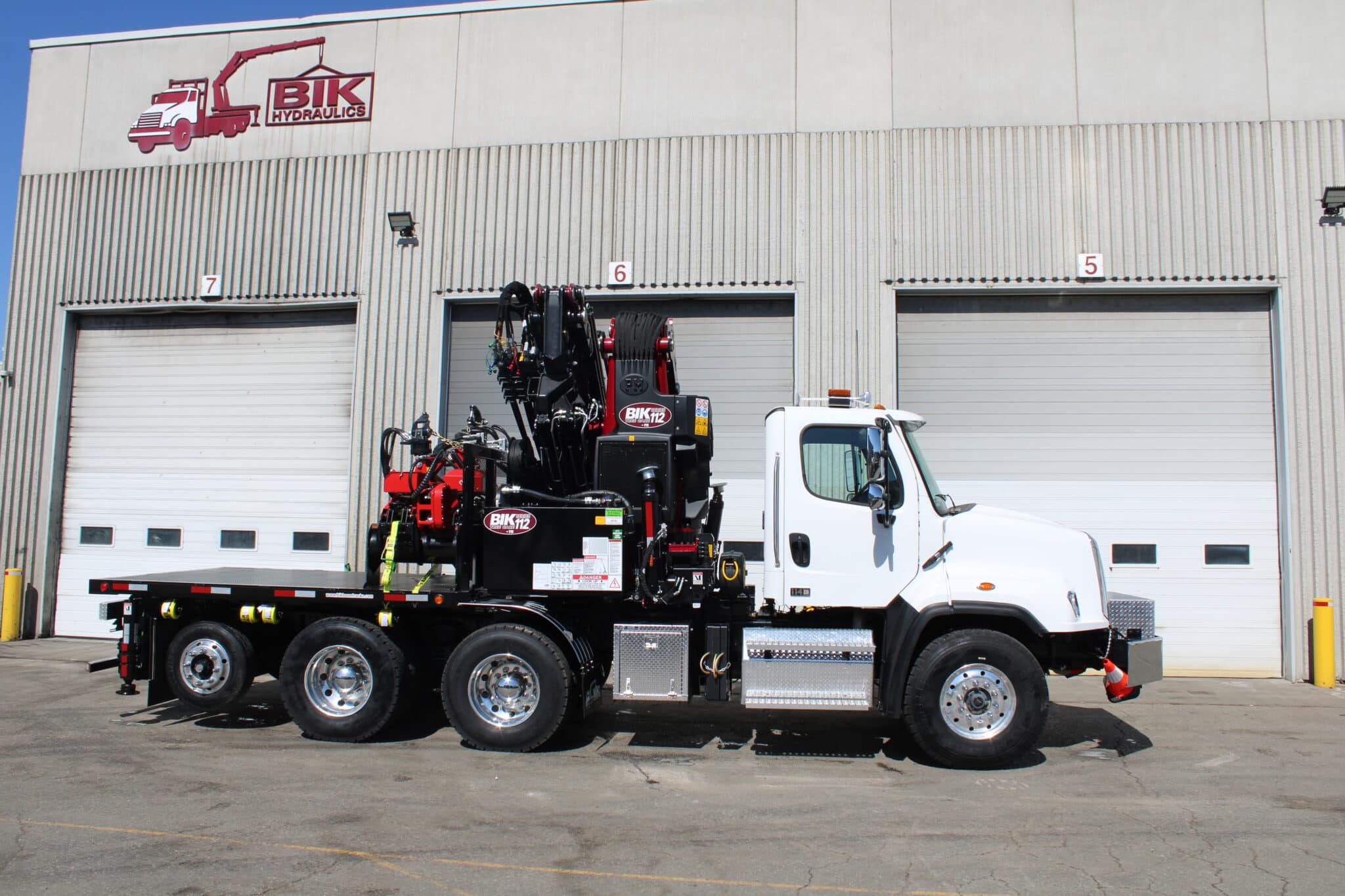

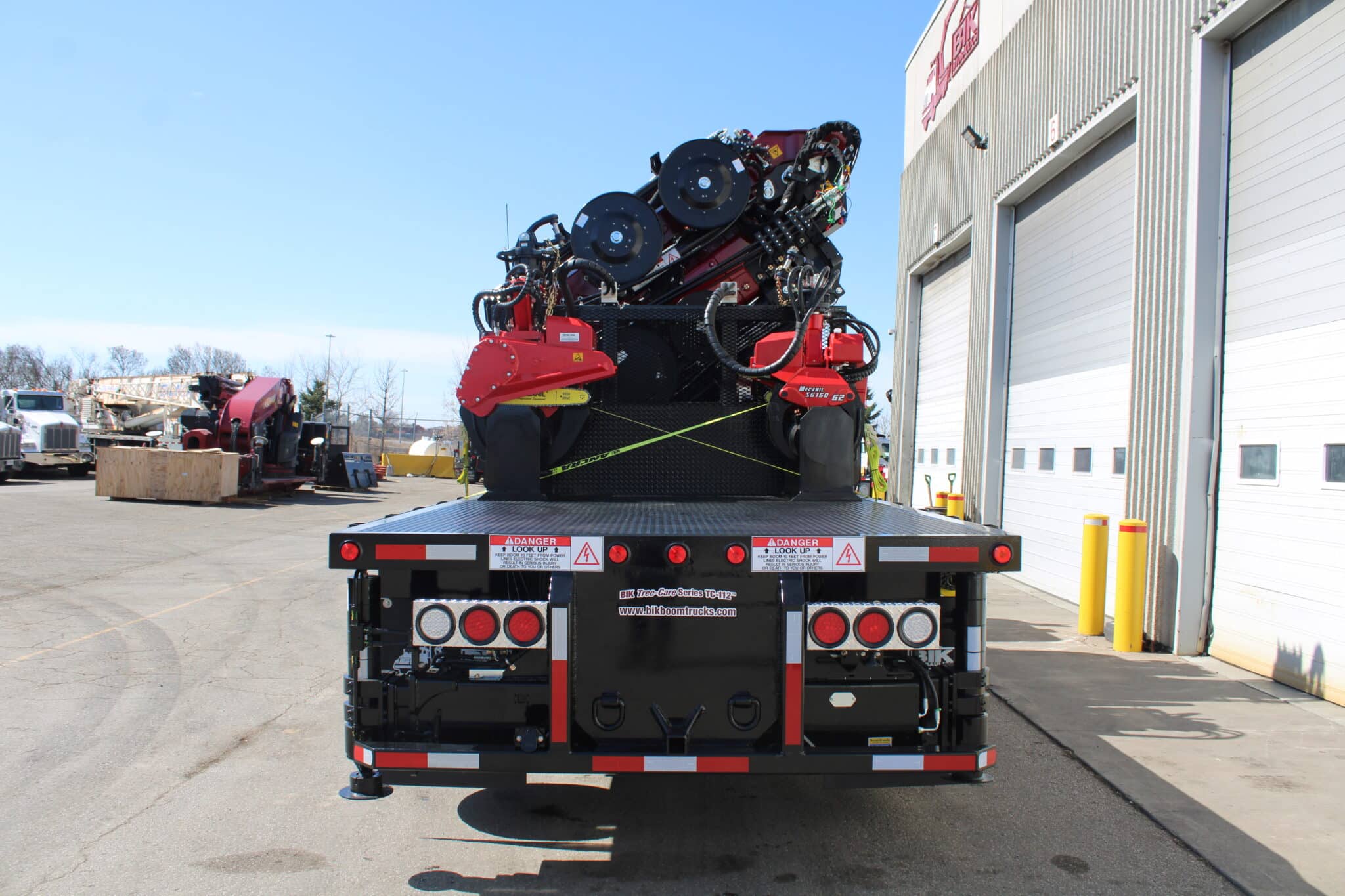

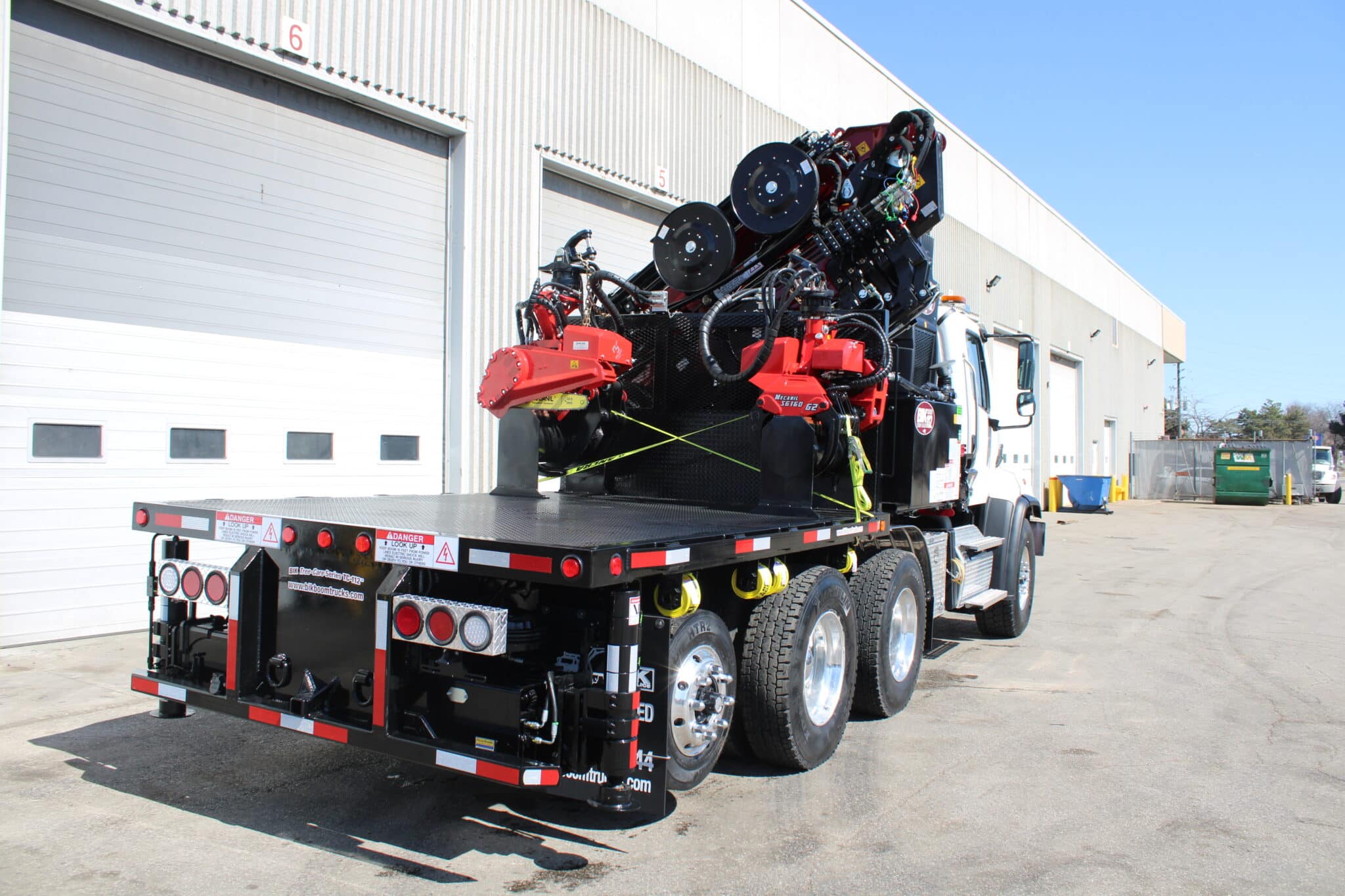

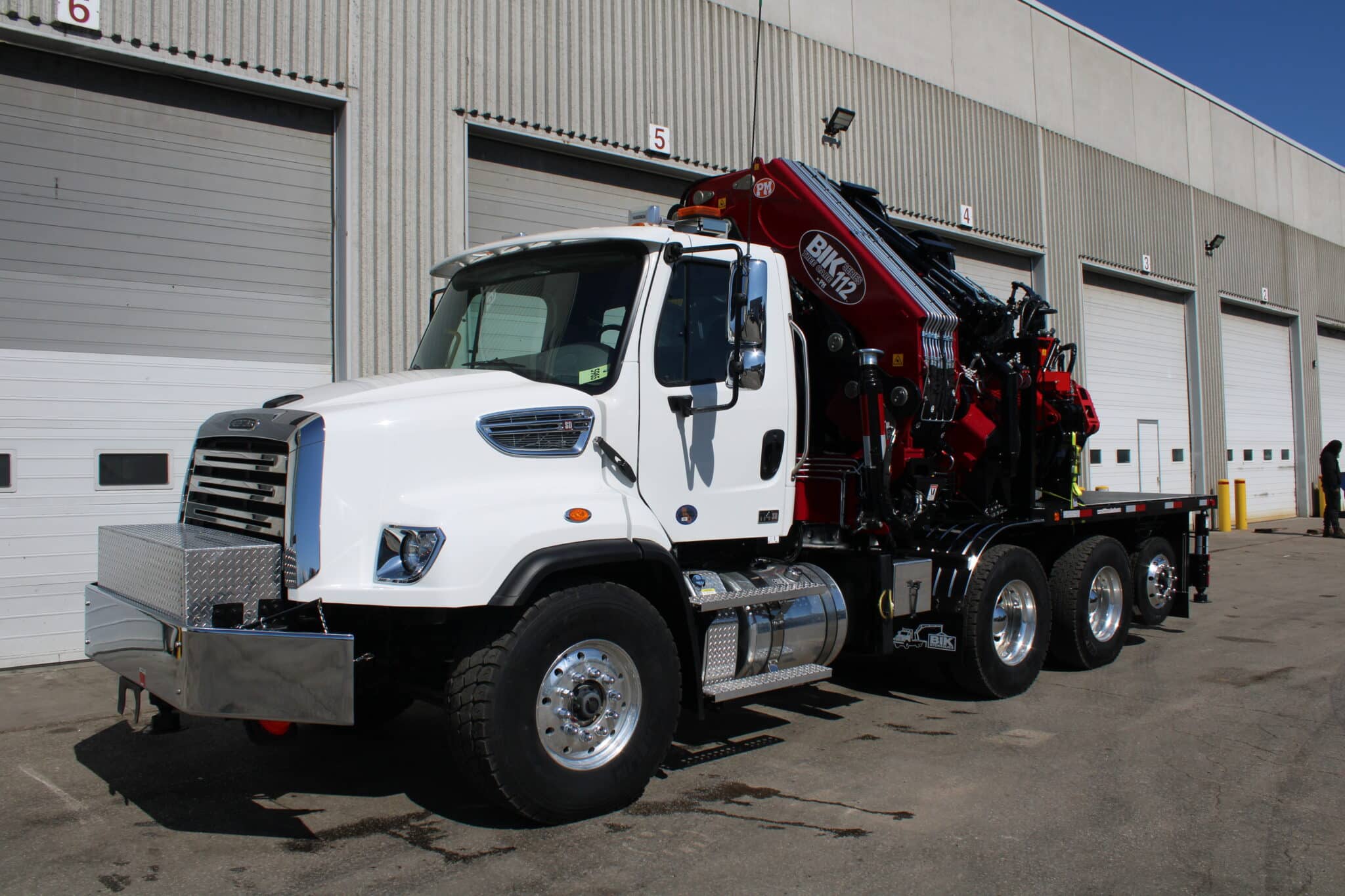

New – BIK Tree-Care Series TC-106 – PM 65 ton/m Knuckle Boom

• 6 ext Knuckle Boom w/Detachable 5 ext jib + 1-grapple extn
• Including (1) Grapple extention in jib
• Boom Capacity of 2,100 lbs @ 106’ Vertical Reach
• Main Boom Horizontal Capacity:
  • 48,500 lb @ 8’ 2”
  • 28,260 lb @ 14’ 5”
  • 15,340 lb @ 25’ 3”
  • 10,000 lb @ 37’
  • 7,210 lb @ 50’ 2”
• Jib Horizontal Capacity:
  • 3,850 lb @ 59’ 1”
  • 3,000 lb @  74’ 6”
  • 2,340 lb @  81’ 1”
  • 2,100 lb @ 87’,
  • Grapple extn to  94’
• PM Power-Link connections at Main, Knuckle & Jib Cylinders,  Dual Planetary Gear Motors & Continuous Boom RotatioN
• 5 pcs – Stabilizers for 100%  chart 360 degrees – 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
• Single Front Bumper Stabilizer and rear aux Hyd out & Down type – 21’ span
• Two Hyd Oil Coolers, high pressure return filter and min. 100 –gallon hyd  aluminum oil tank with gate valves mounted at front under deck
• 7 – Section DANFOSS Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO Proportional  Radio Remote Control
• Power Tronic onboard  load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
• Installed behind cab, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
• Engineer Stability load tested and certified
• BIK tech to familiarize boom and grapple saw operation  at your location and (or) on site for approx. 2 -3 days

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

Deck Details

New – 10’ 8” x 102”  Steel Checker plate Flat Deck

• Checker plate steel deck surface
• 48” head board, sliding winch straps
• Rub rail & pockets on side
• Dual sided access ladders
• Primed & painted gloss black
