BIK ROOFING-CRANE SERIES RC-31TJ BY PM
 |
BIK ROOFING-CRANE SERIES RC-31TJ BY PM
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

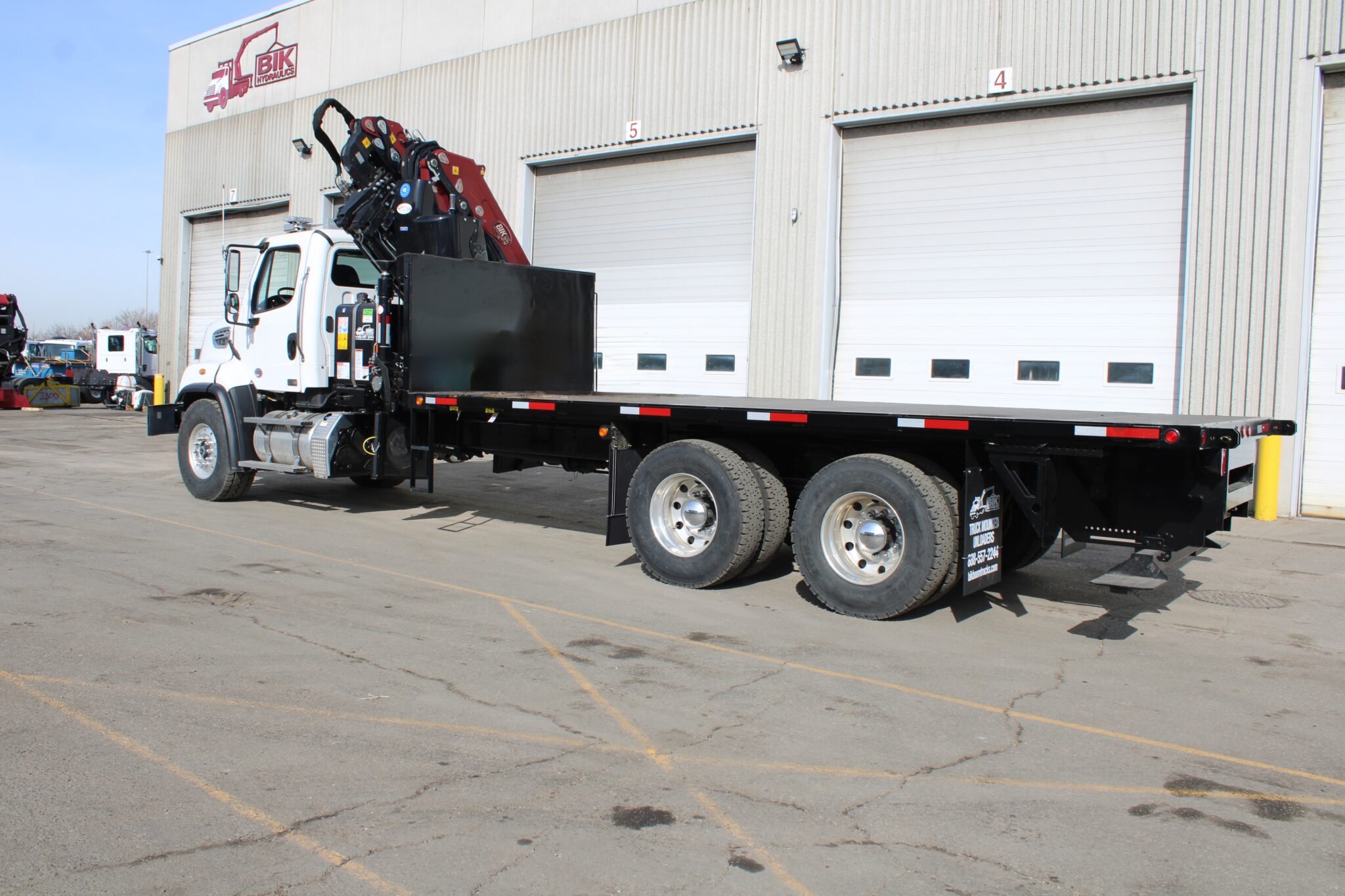

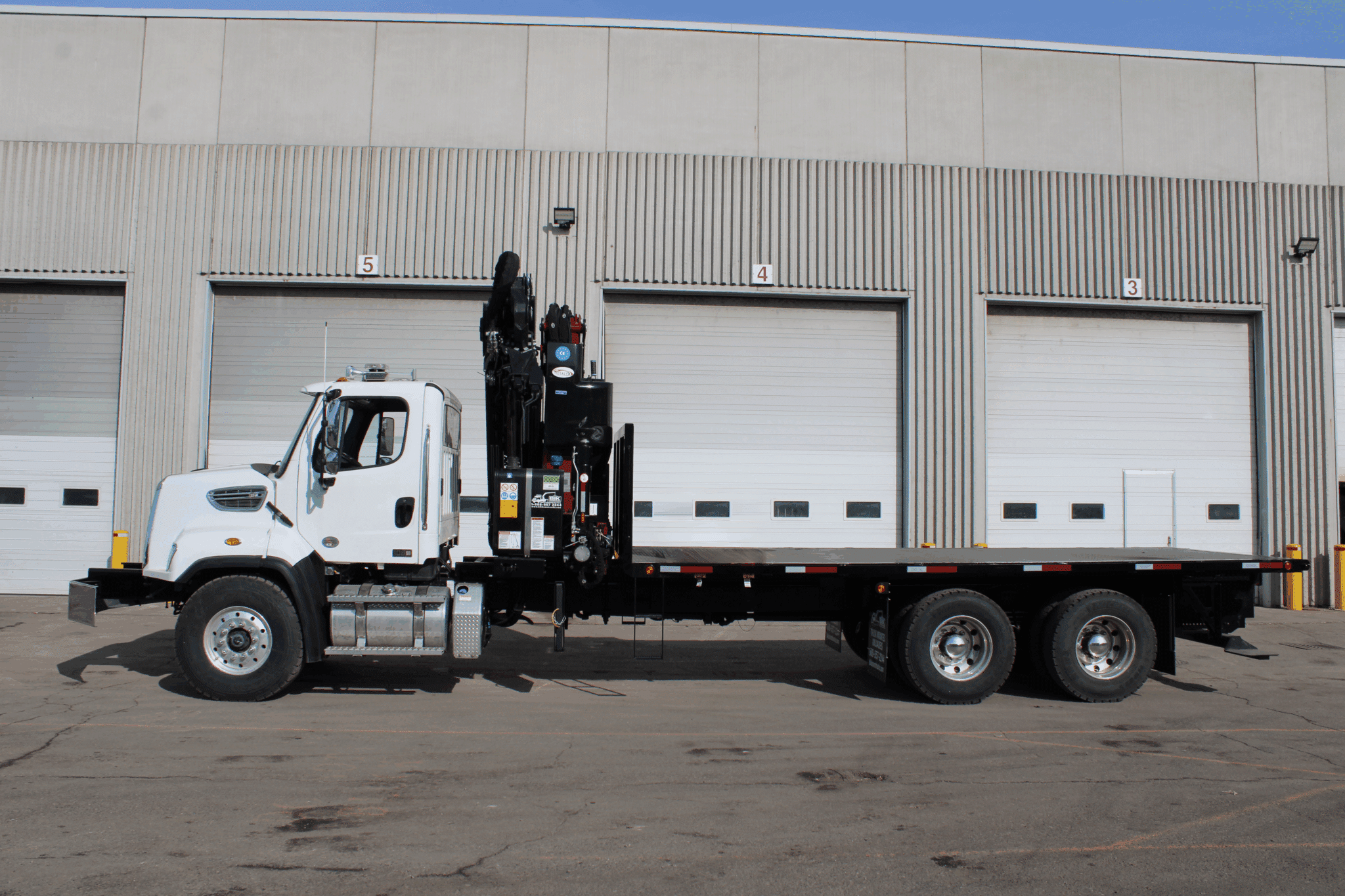

New – BIK Roofing-Crane Series RC-31-TJ – 31 ton/m Knuckle Boom with Jib – by PM
- Folding Hydraulic 4 extn Knuckle Boom with Detachable 3 extn jib – 66’ Horizontal reach – 78’ Vertical Reach
- Main Boom Horizontal Capacity:
- 12,300 lb @ 14’
- 8,600 lb @ 20’
- 6,300 lb @ 27’
- 5,000 lb @ 33’
- 4,000 lb @ 40’
- Main w/Jib Horizontal Capacity:
- 2,000 lb @ 50’
- 1,670 lb @ 55’
- 1,500 lb @ 60.5’
- 1,340 lb @ 66’
- Jib Capacity in “Cobra” Position:
- 42’ up / 40’ out – 3,240 lbs
- 42’ up / 45’ out – 2,500 lbs
- 42’ up / 55’ out – 2,140 lbs
- 55’ up / 12’ out – 6,400 lbs
- 55’ up / 20’ out – 3,850 lbs
- 55’ up / 30’ out – 2,360 lbs
- PM “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
- Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability
- 15 Degree negative angle on main boom, 20 degree negative jib angle – Hyd Extra Wide Main outriggers at base – 5’ total span
- Two Hydraulic Oil Coolers, high pressure return filter and hydraulic oil tank on boom
- One Extra Hyd Functions pkumbed to end of jib for possible hydraulic hook rotator device
- Painted PM Blue – load chart on boom in FT. & LBS. – All OSHA required safety decals
- Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components – Engineer Stability, load tested and certified
- Installation – install new boom as described above, back of cab (or at rear) with New PTO and New Hyd pump, fresh hyd oil.
Deck Details

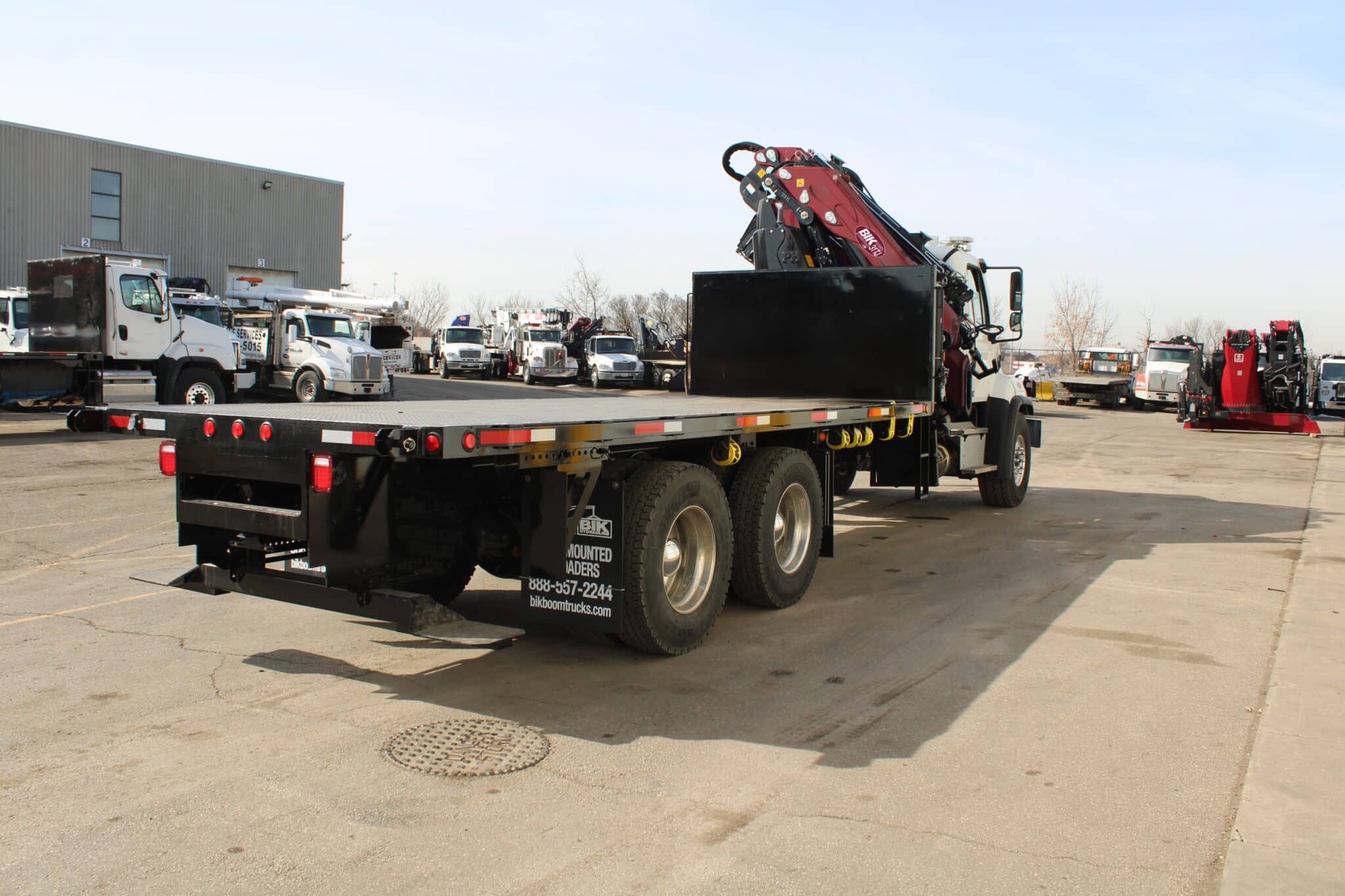

New – 22’ long x 102” Deck
- Installed on Truck
- Pockets/rub rails
- 54” of main sill overhang for the Sub-Frame of Knuckle Boom
- Steel Checker plate Deck surface
- 48” Headboard
- Reverse Rail sliding track on the driver’s side
- 12 winches and straps (30’) with required Conspicuity and Reflectors
- Forks storage bracket at rear
- All steel painted Gloss Black.
Truck Details

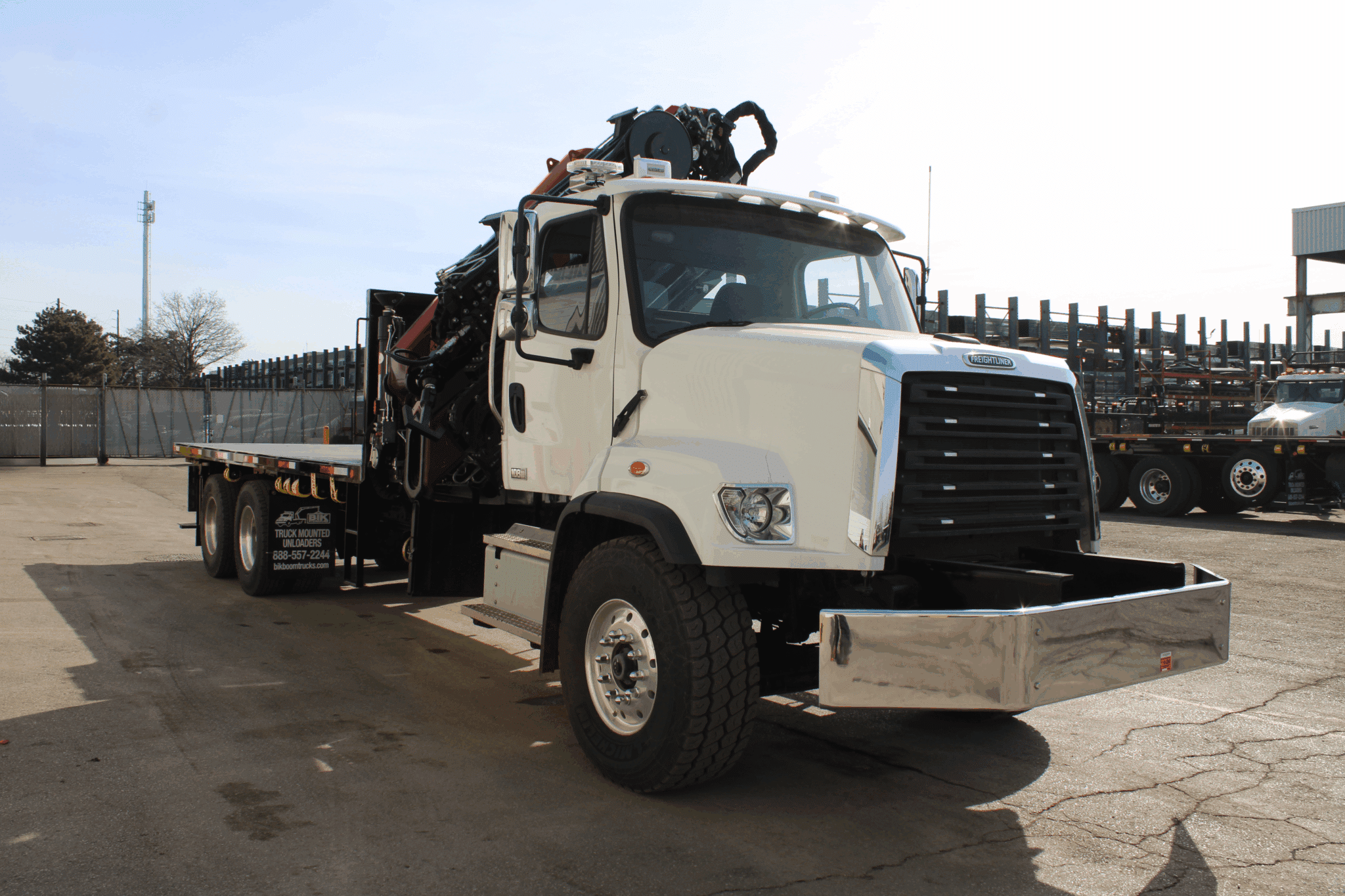

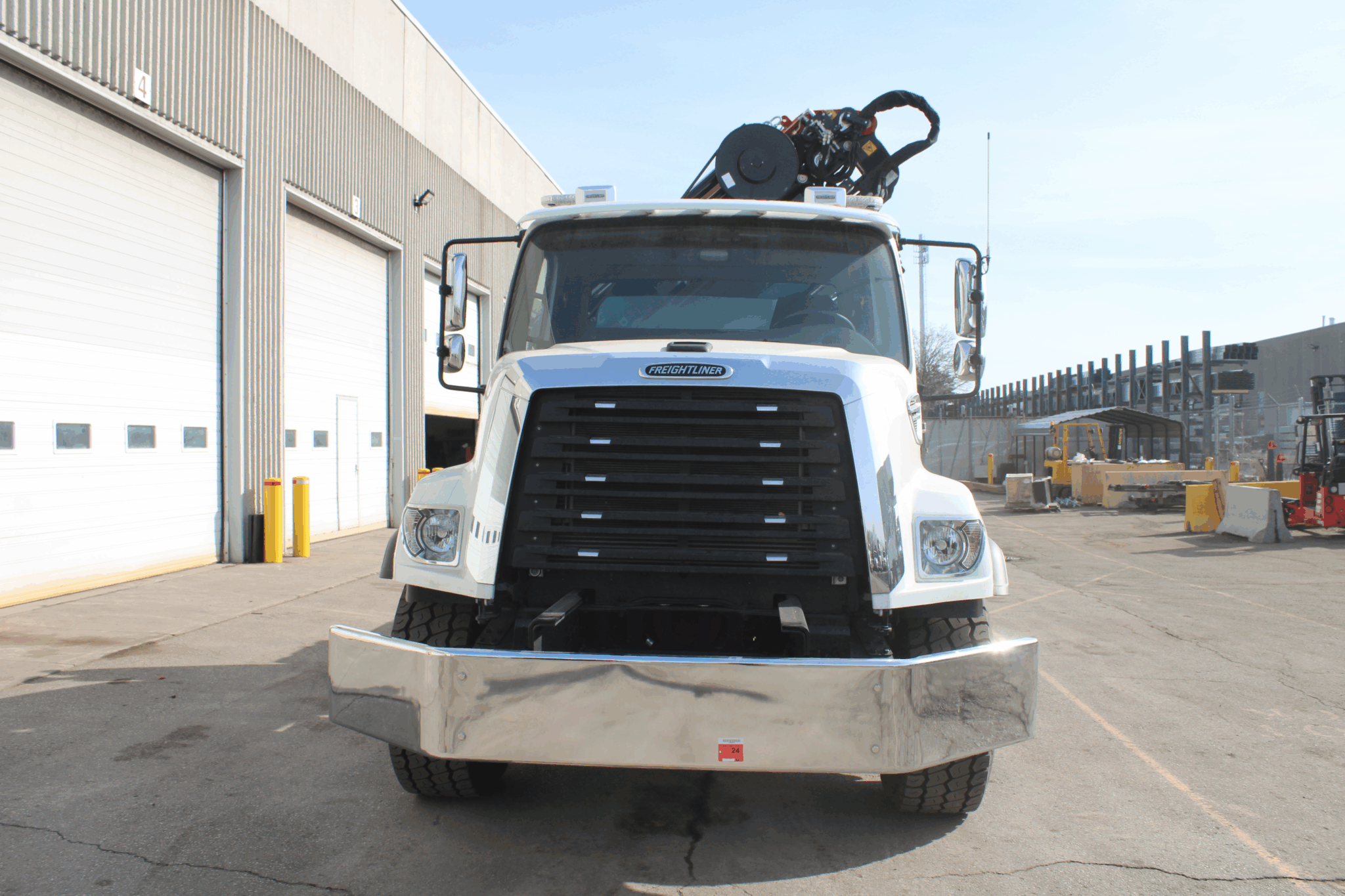

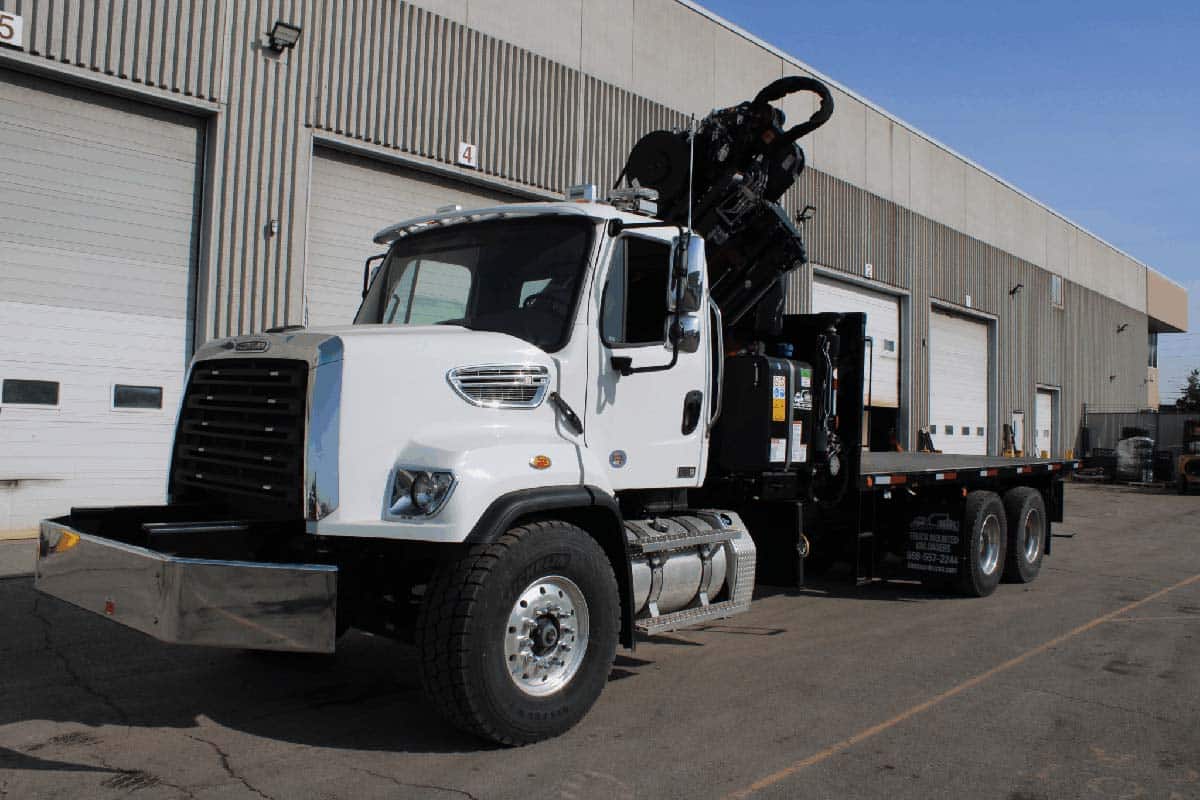

New – Freightliner 108SD 3-Axle Diesel Truck: 60,000 lb GVWR
- Truck cab white
- 9L Cummins Diesel
- 380 hp
- Allison 3000 Series Auto Trans.
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims
- Double frame chassis
- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo w/bluetooth, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, block heater, two man pass seat, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc…
Other Options at Extra Cost:
- (2) pcs – PVC stabilizer pads with holders at rear
- (1) pc – 36” aluminum Storage Boxes installed
- 1” drawplate installed at rear with heavy-duty pintle hook and trailer hook-ups
- Hydraulic Hook rotator w/hook (ability to rotate hook/pallet forks from boom remote
- Self-Levelling Pallet Forks with Height Adjustment
- 13,000 lb self-steer lift axle installed ahead of t/a with 22.5” Alum Rims & low profile tires
Alternate Truck Chassis:
- New 2025 F-Liner 114SD – 12L Diesel 470 hp, Automated Trans, 20F/46R – 66k GVWR, Loaded w/Options
- New 2025 Western Star 47X 4-axle, 500 hp Diesel, Automated Trans (same specs as above)
- New 2025 Kenworth T880 4-axle, 510 hp Diesel, Automated Trans (same specs as above)
CALL FOR DETAILS AT: 1-888-557-2244 OR 416-679-3838
