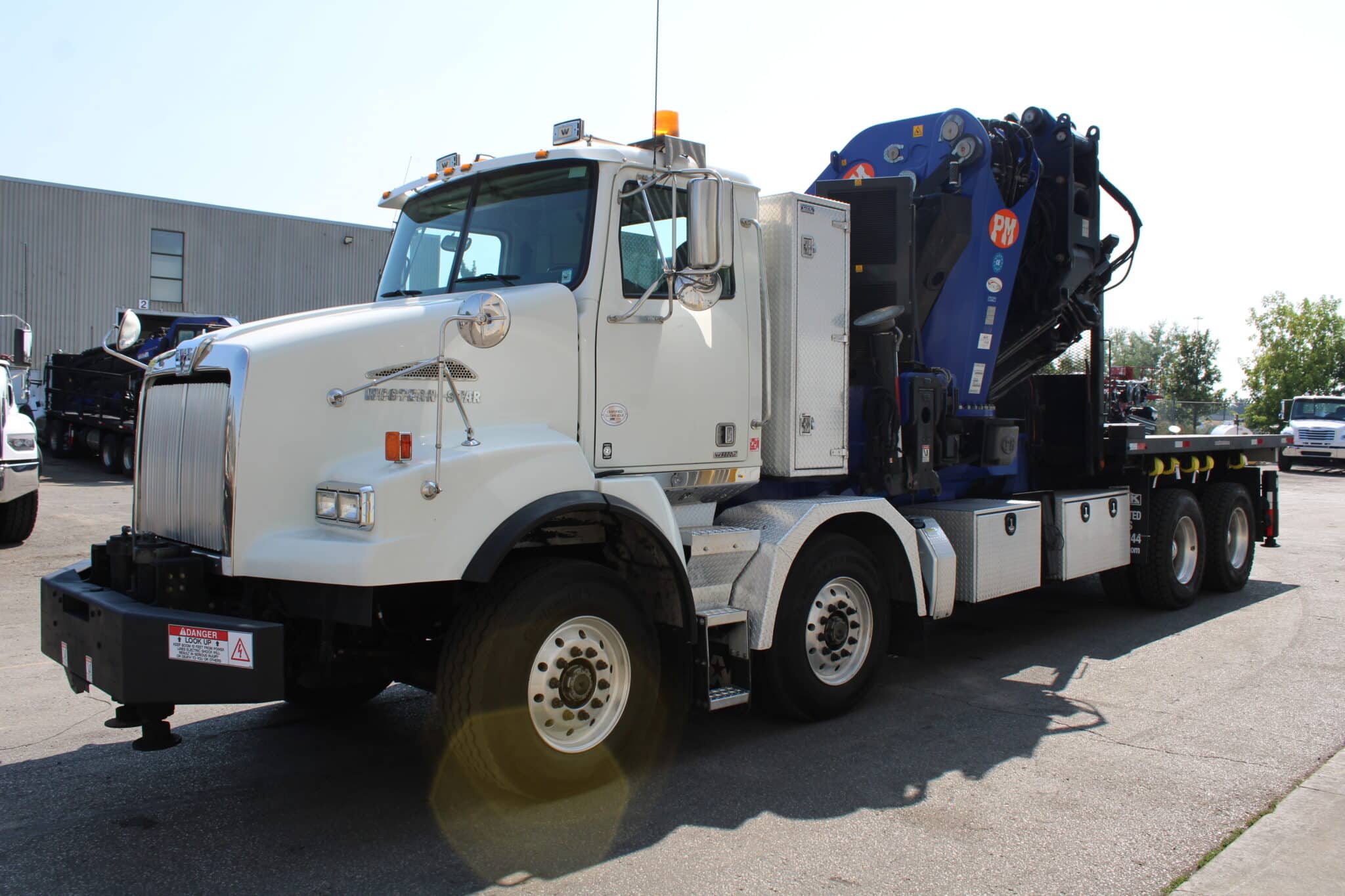

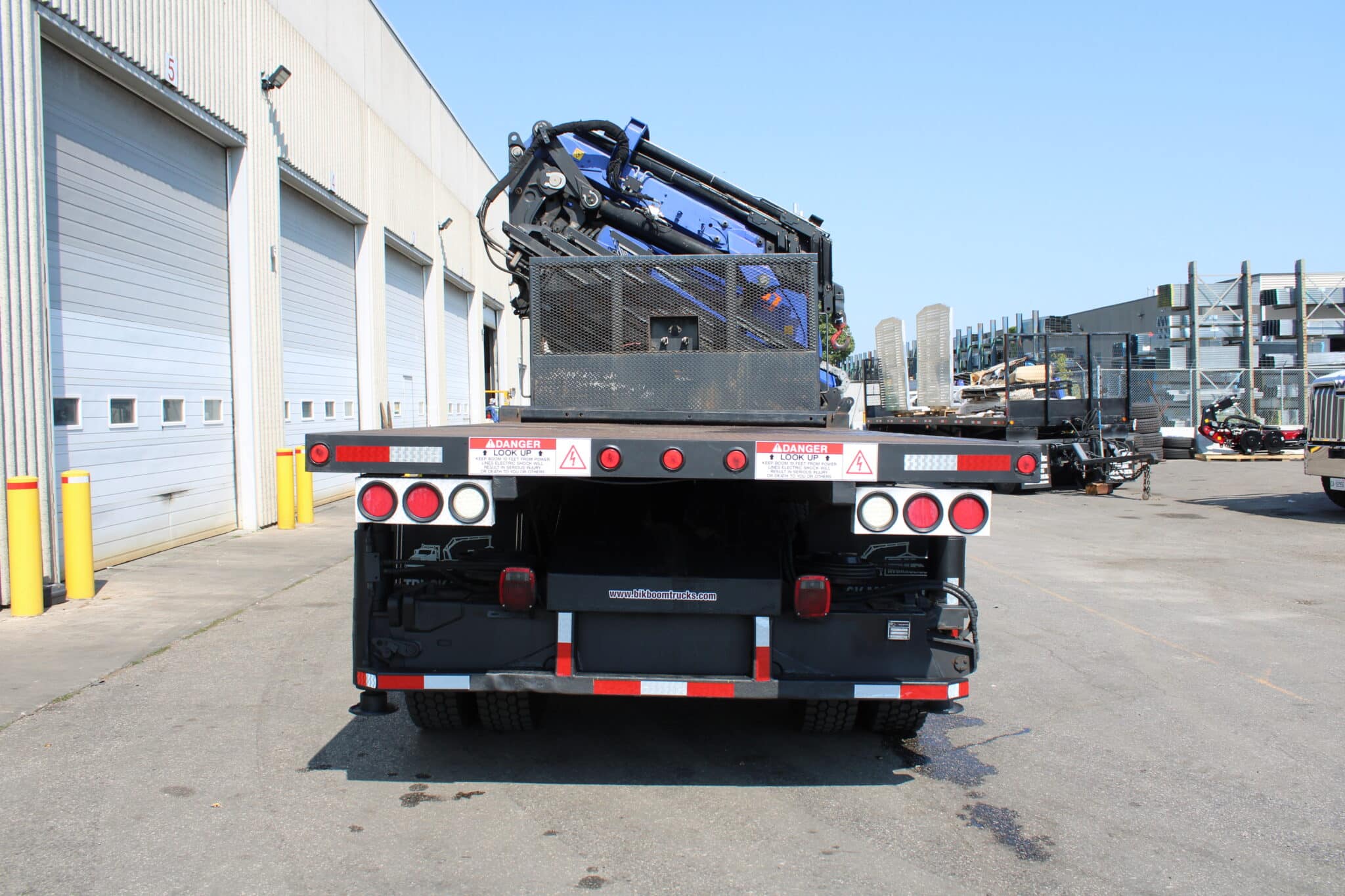

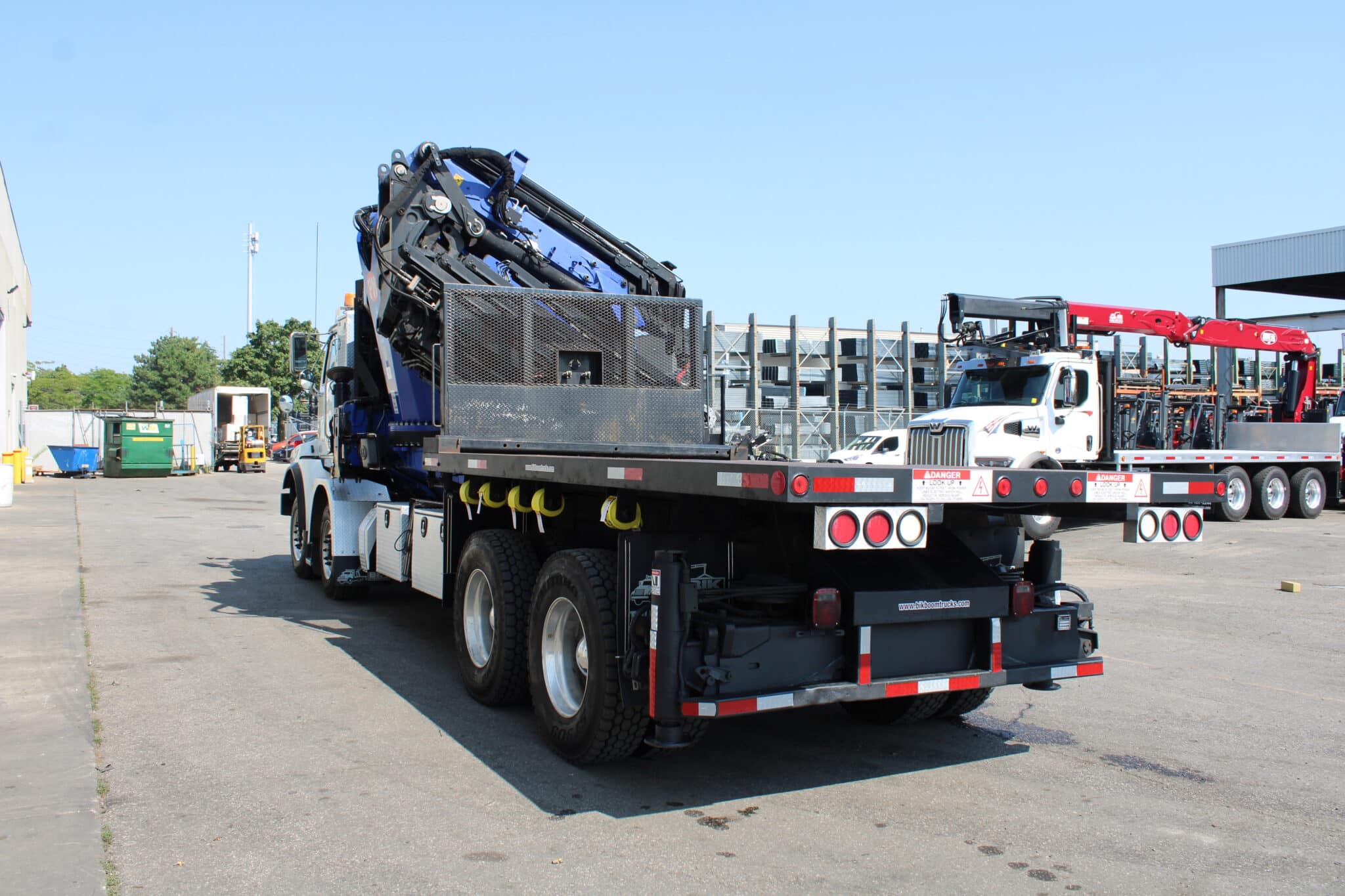

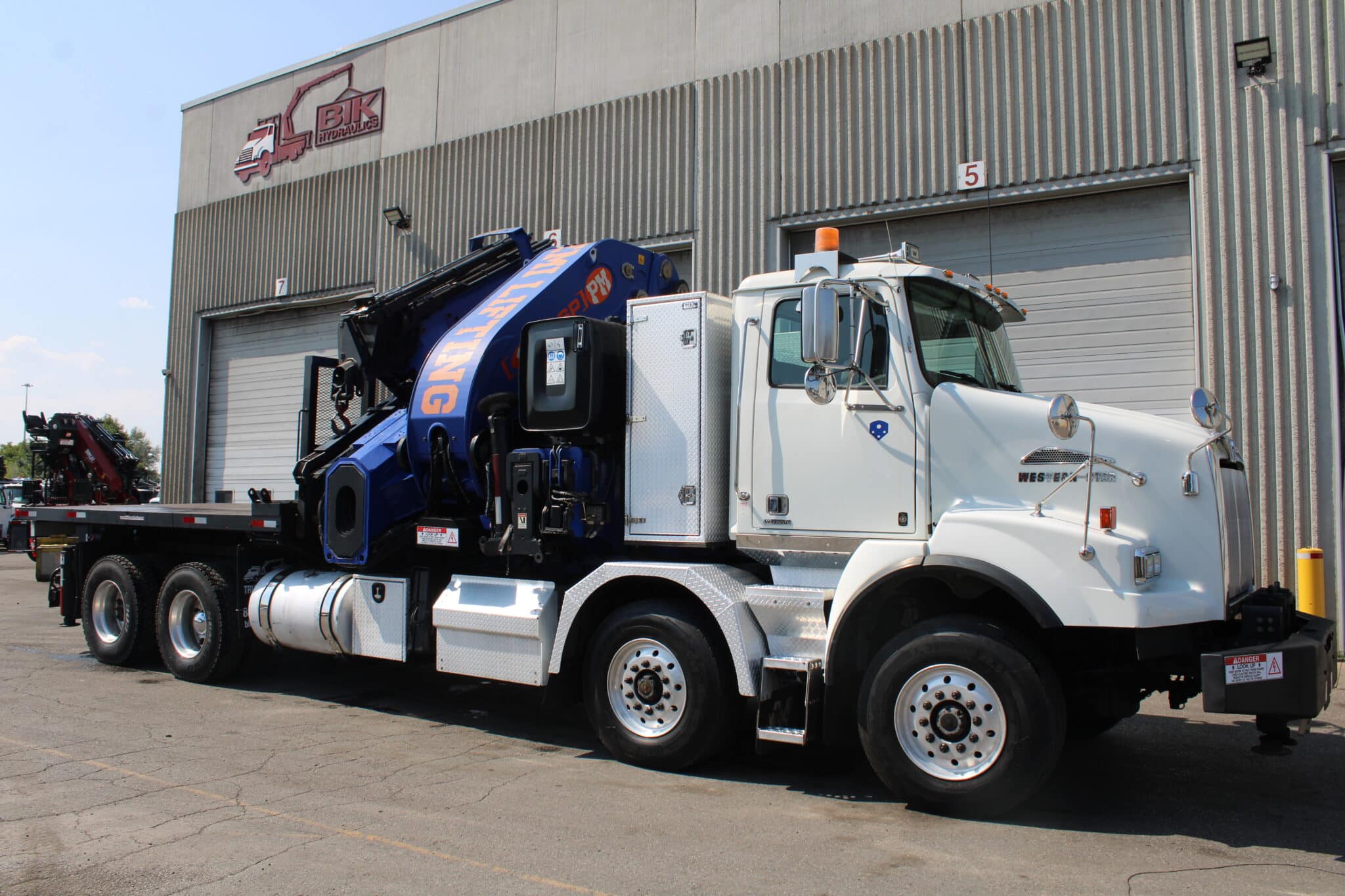

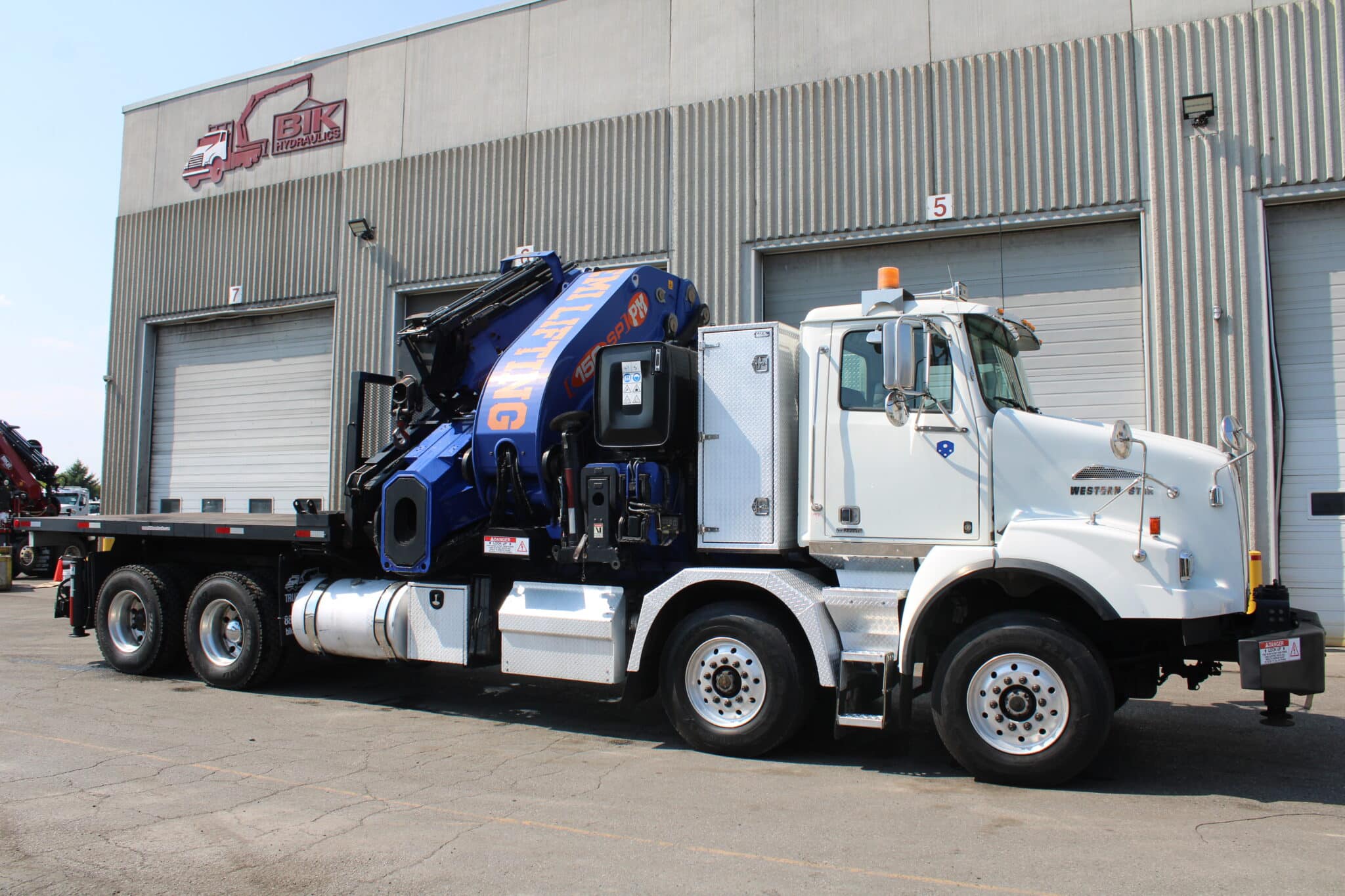

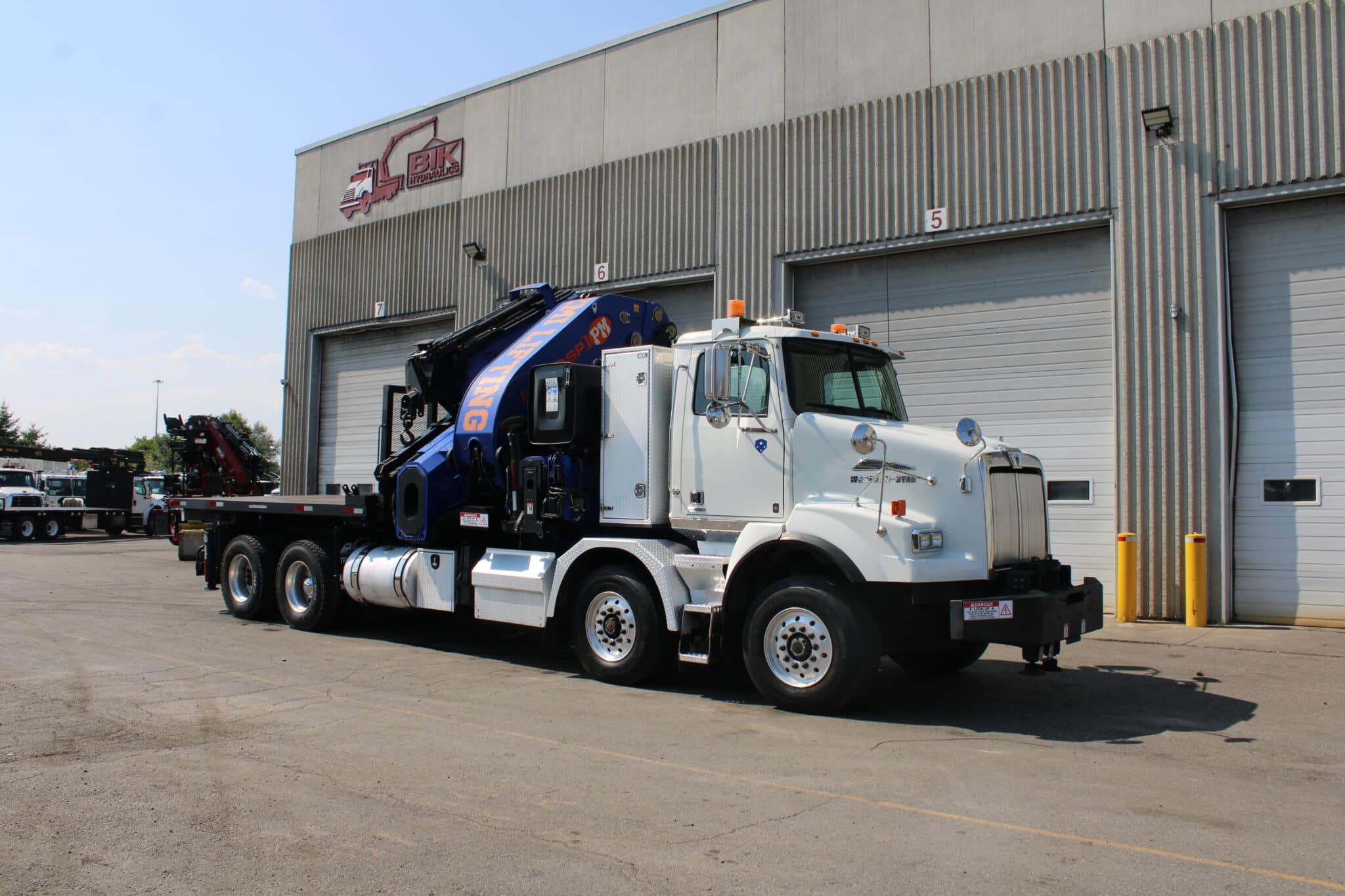

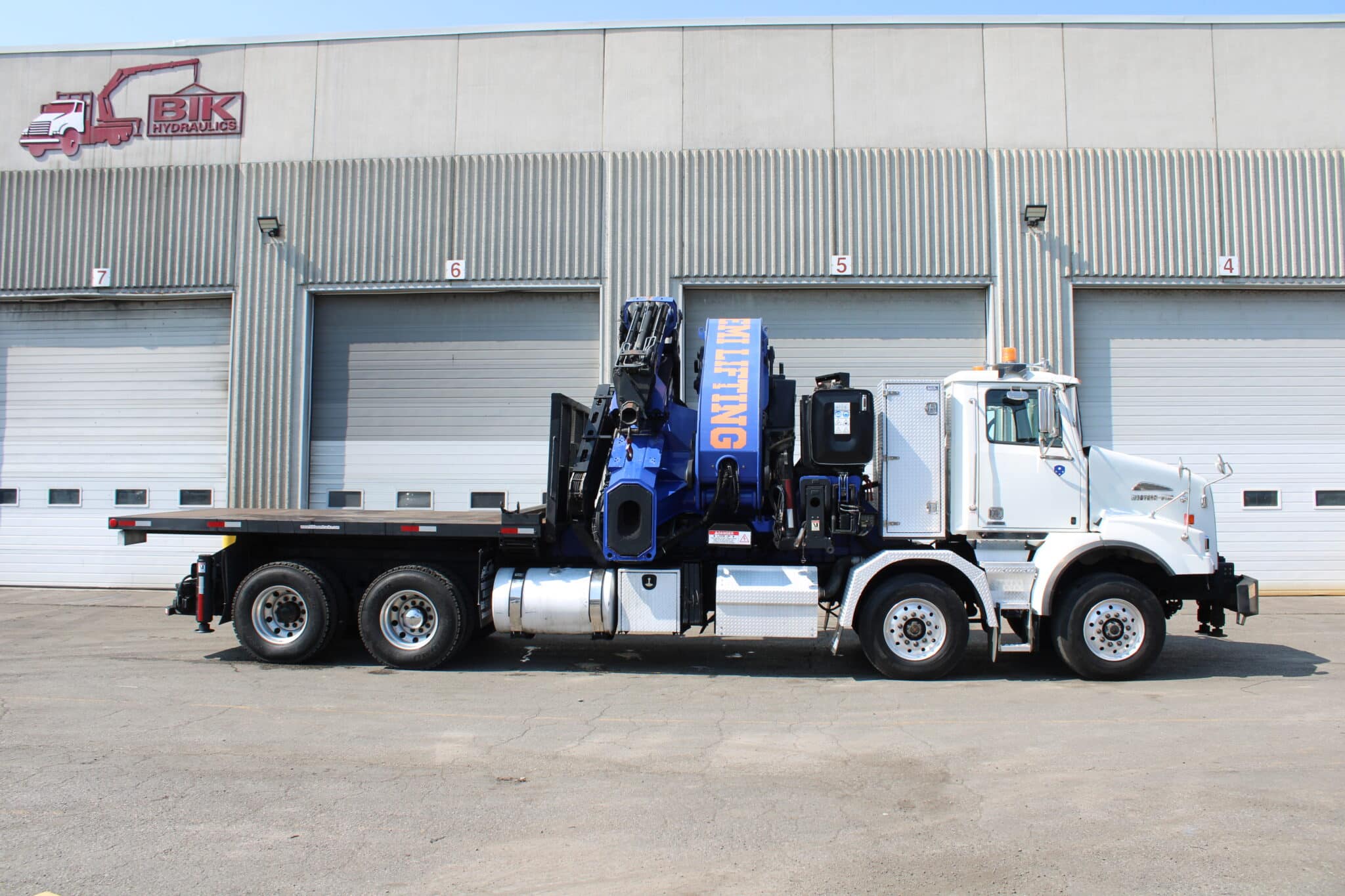

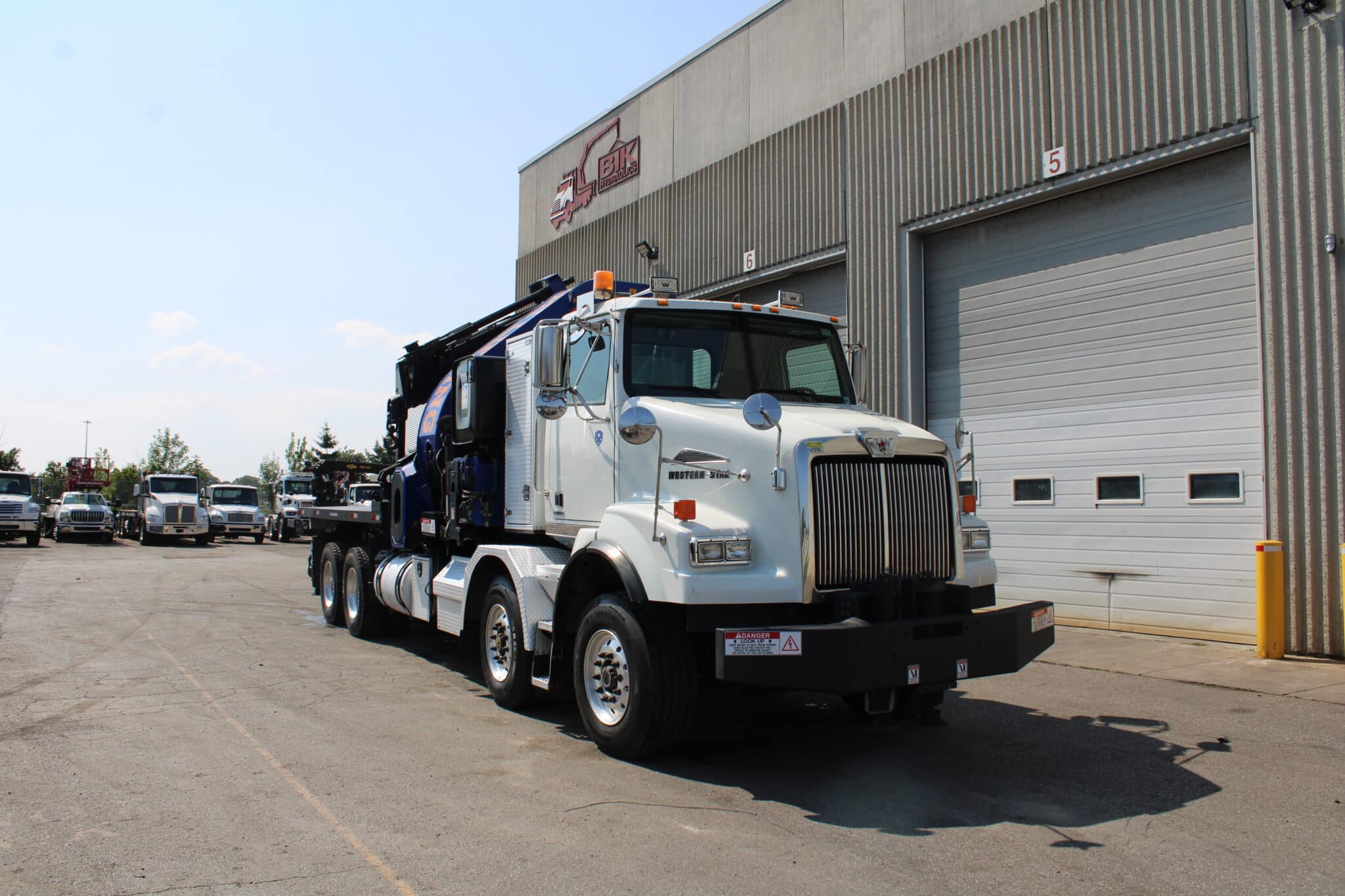

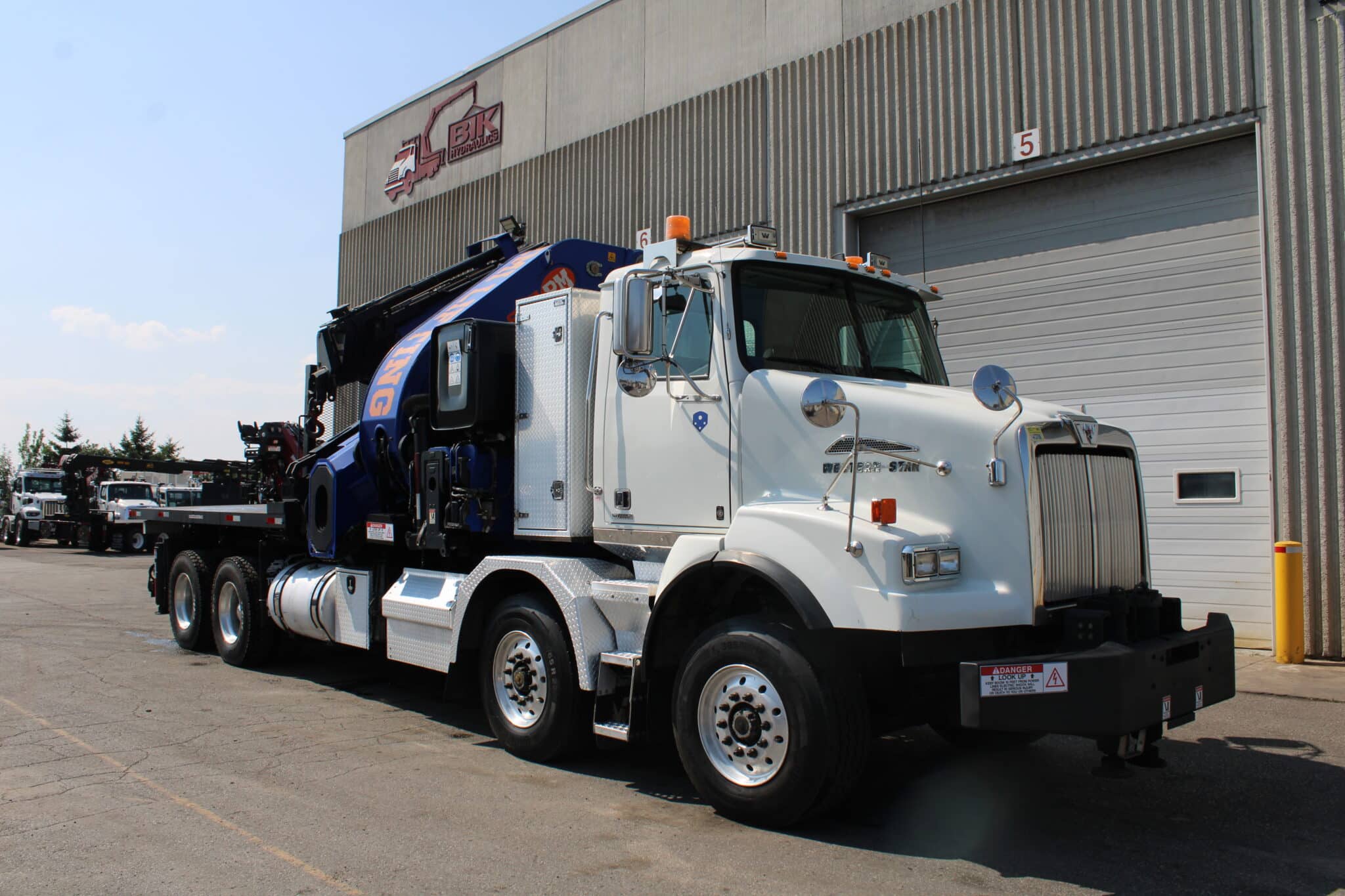

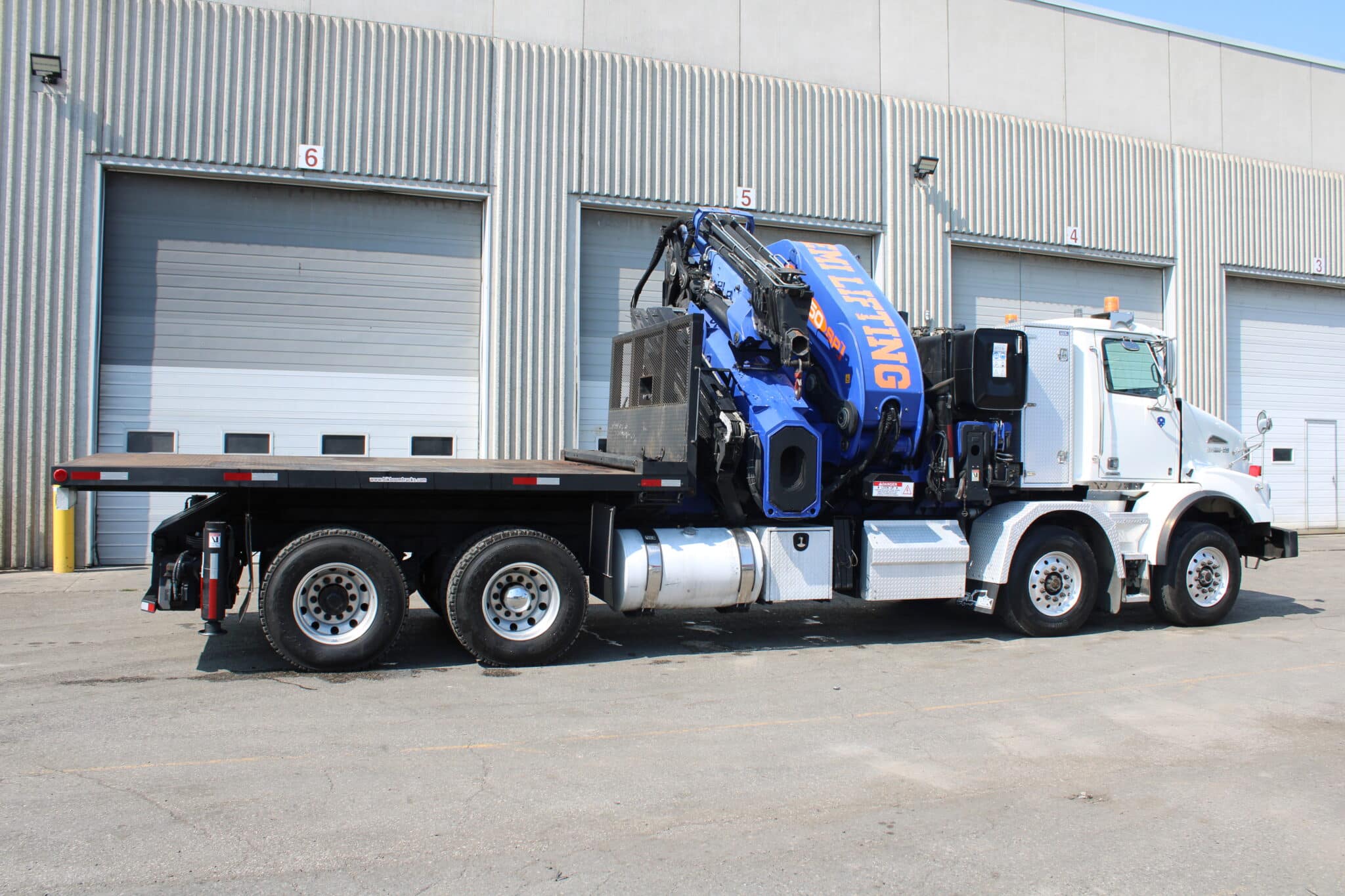

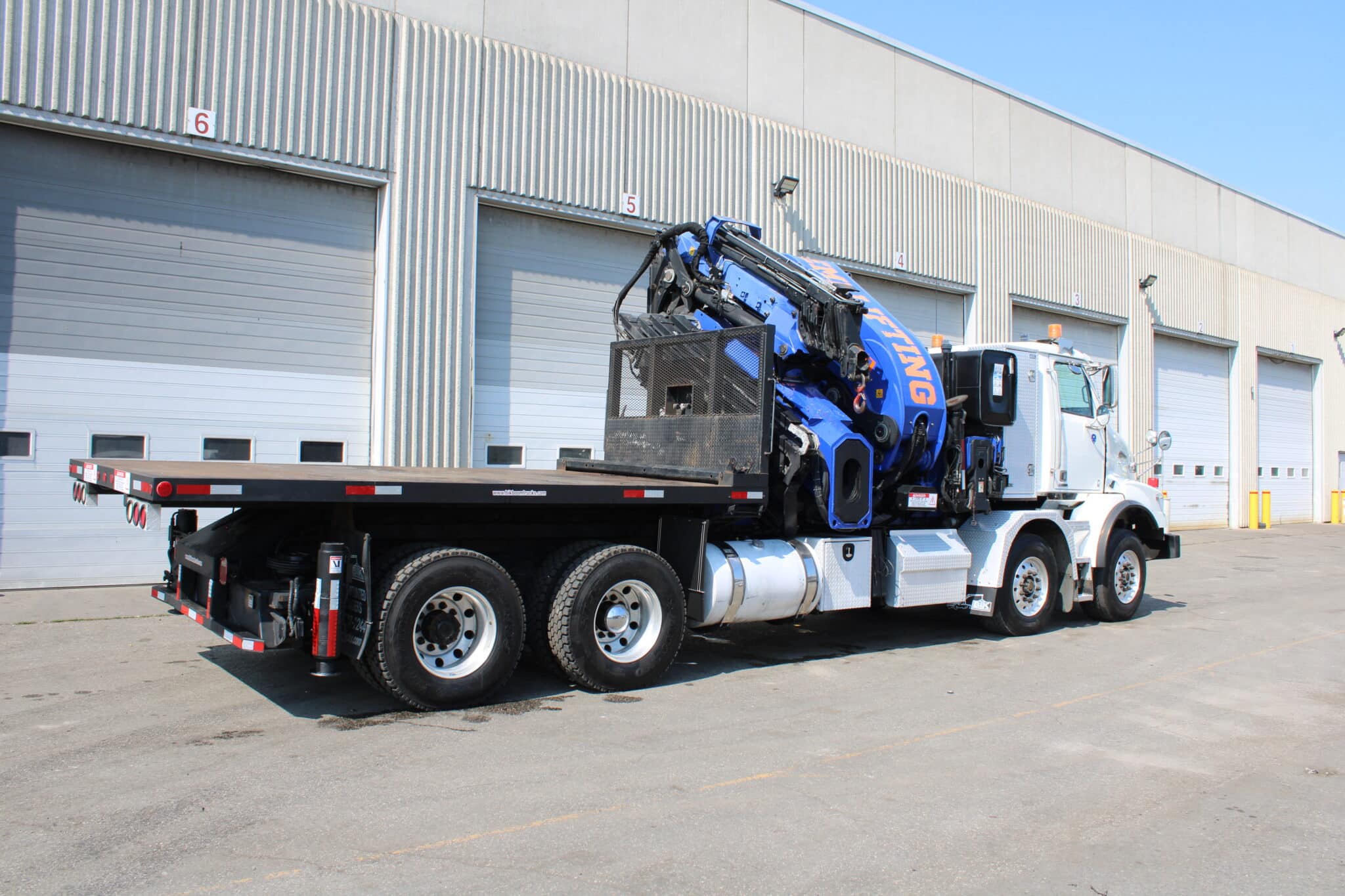

A USED 2018 WESTERN STAR 4-AXLE WITH PM 150 w/JIB

Crane:

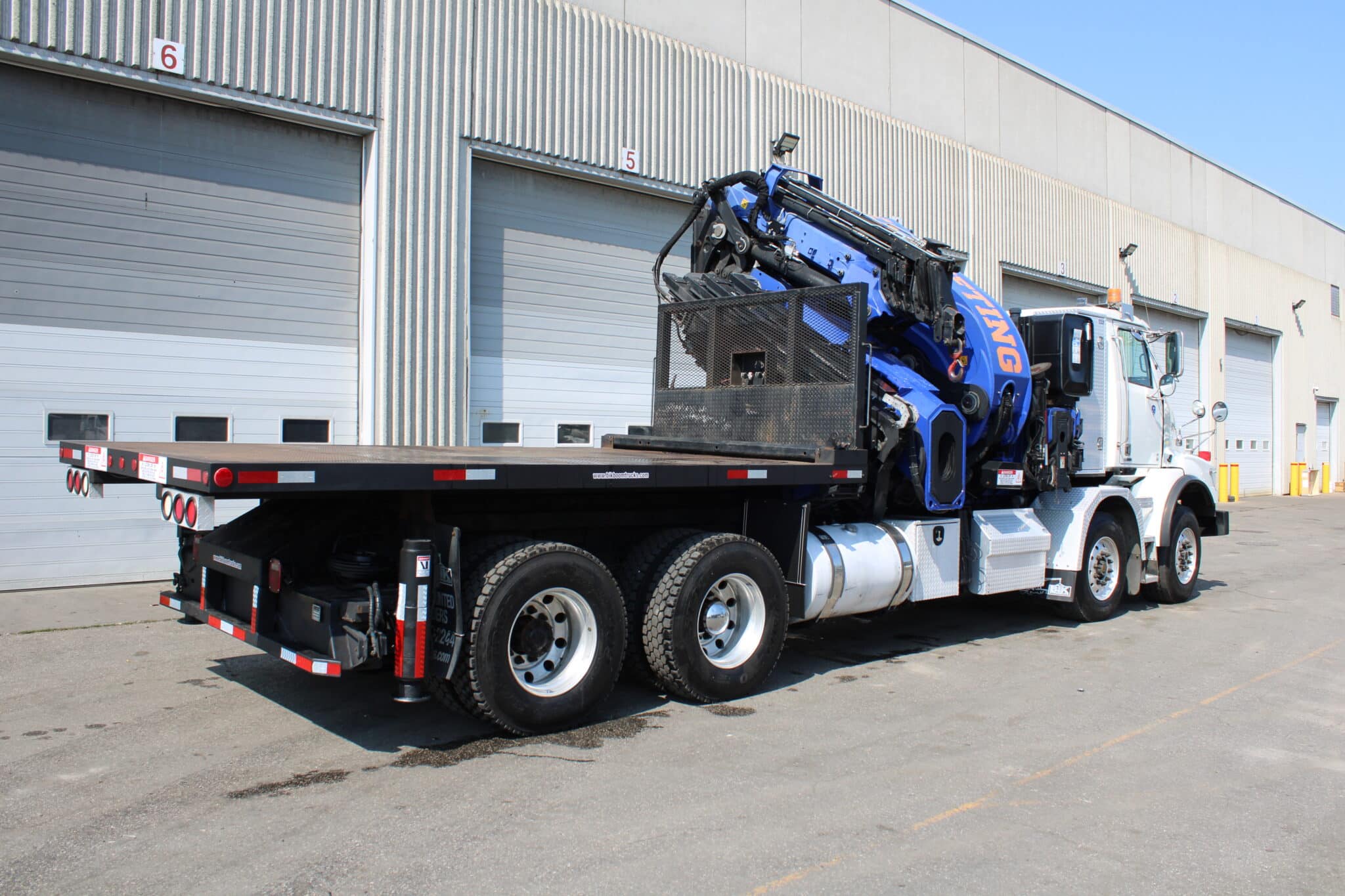

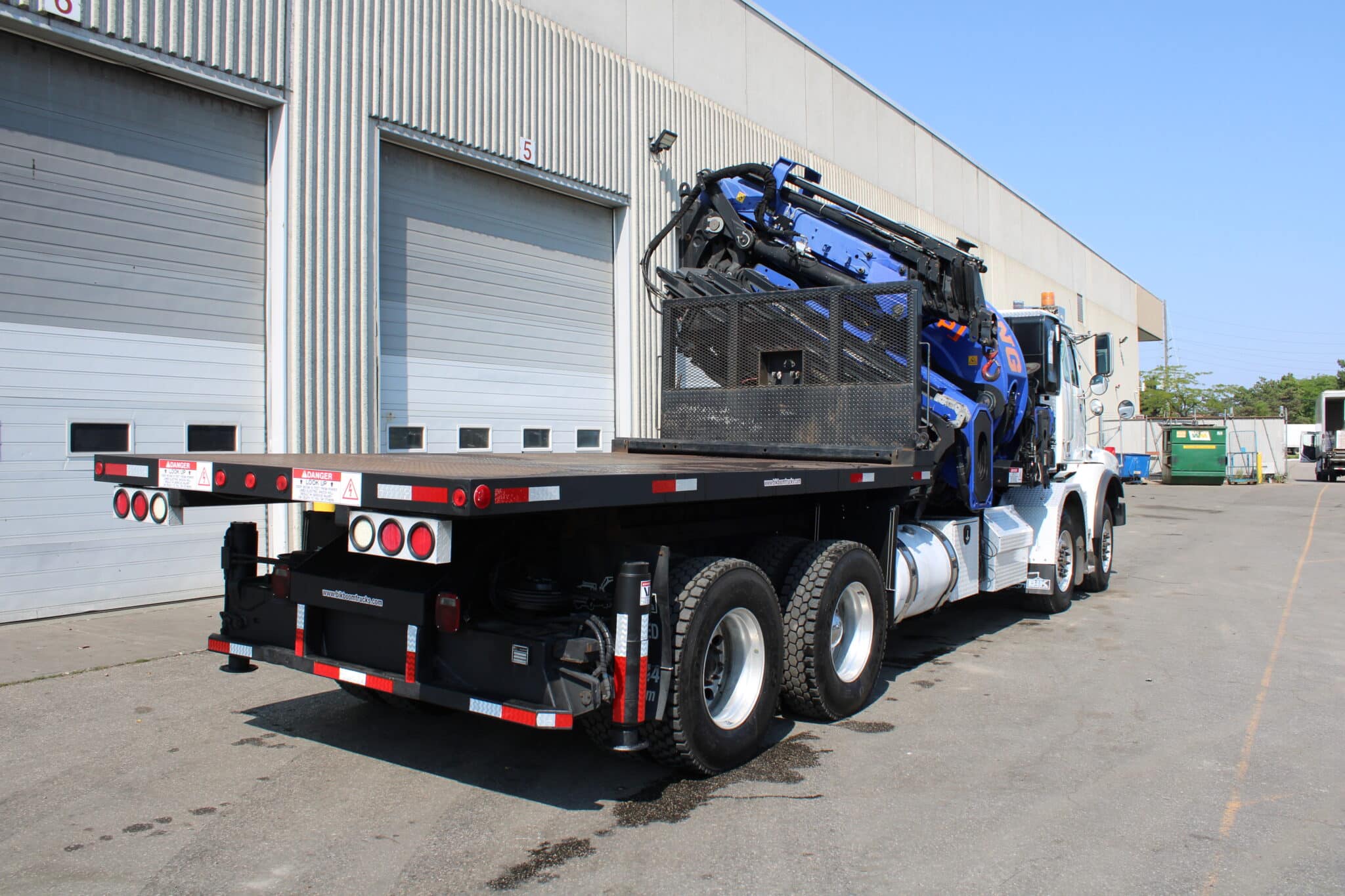

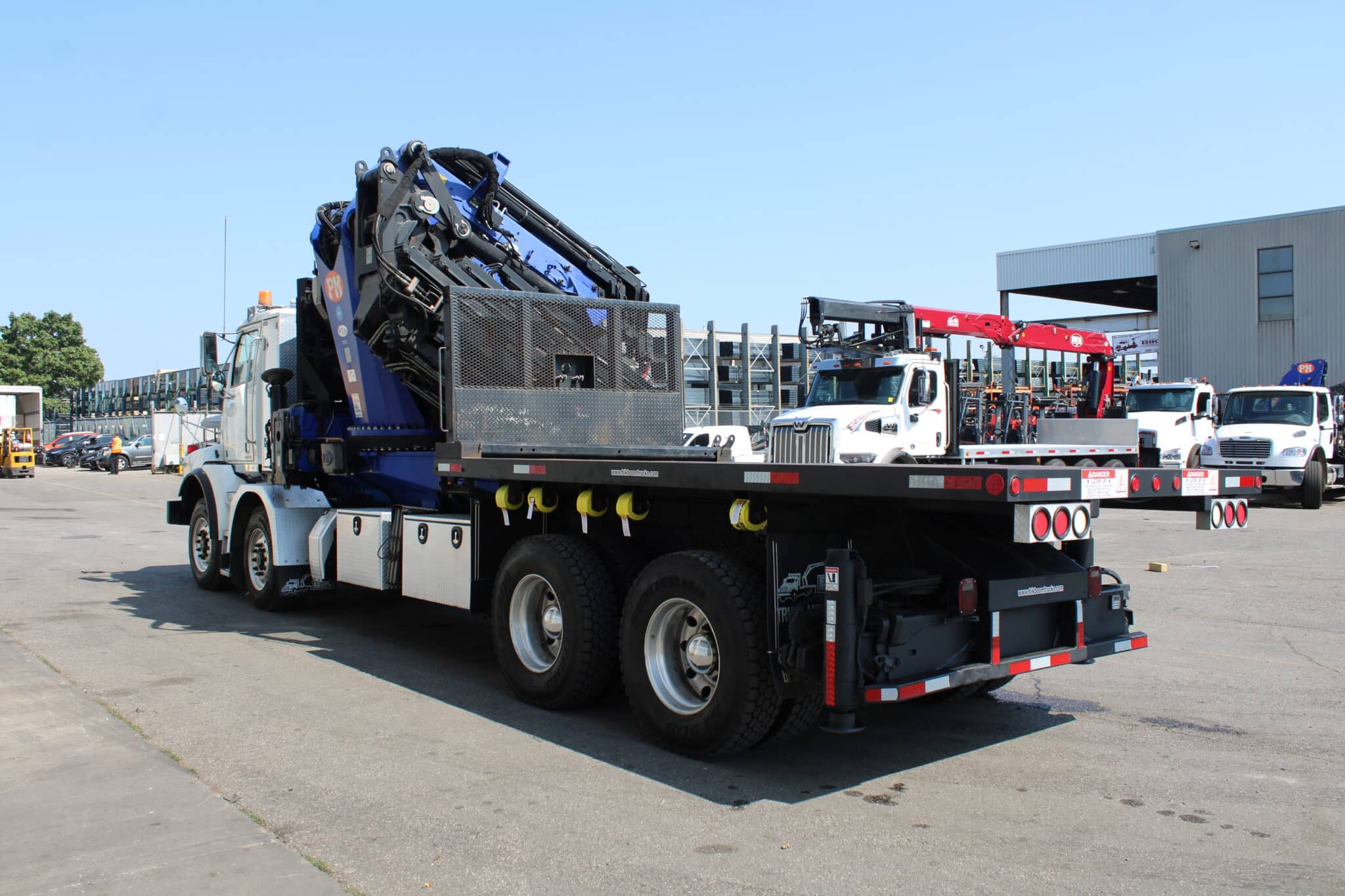

USED PM 150028SP+J2416  Knuckle Boom   Folding Hydraulic Knuckle Boom with Jib,  8 hyd extensions in main boom to 66’ 7” horizontal  (80’ vertical),  6 hyd extensions in jib  –

Handles  3,200 lbs @ 106’ horizontal   – 118’ total horizontal  reach w/two extra pull-out extn  (130’ vertical reach)

• PM connecting rods at First Boom and Knuckle, 15 degree negative angle at 1^st knuckle, 25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Rotation
• Double pilot operated on slewing and pilot operated check valves on all cylinders
• Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
• Dual Main lift and dual knuckle lift cylinders – greater power and easy access
• Winch on boom plumbed to end of jib with removable pulley brackets, anti two block built into winch
• Hydraulic Extra Wide Main outriggers at pedestal – 33’ – 6” span – hydraulic tilting when retracted
• Auxilary 26’ spread stabilizers installed at rear behind drives, unfinished at rear
• Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
• DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional Radio Remote Control
• PM Power Tronic Electronic System allowing constant crane monitoring & visual display

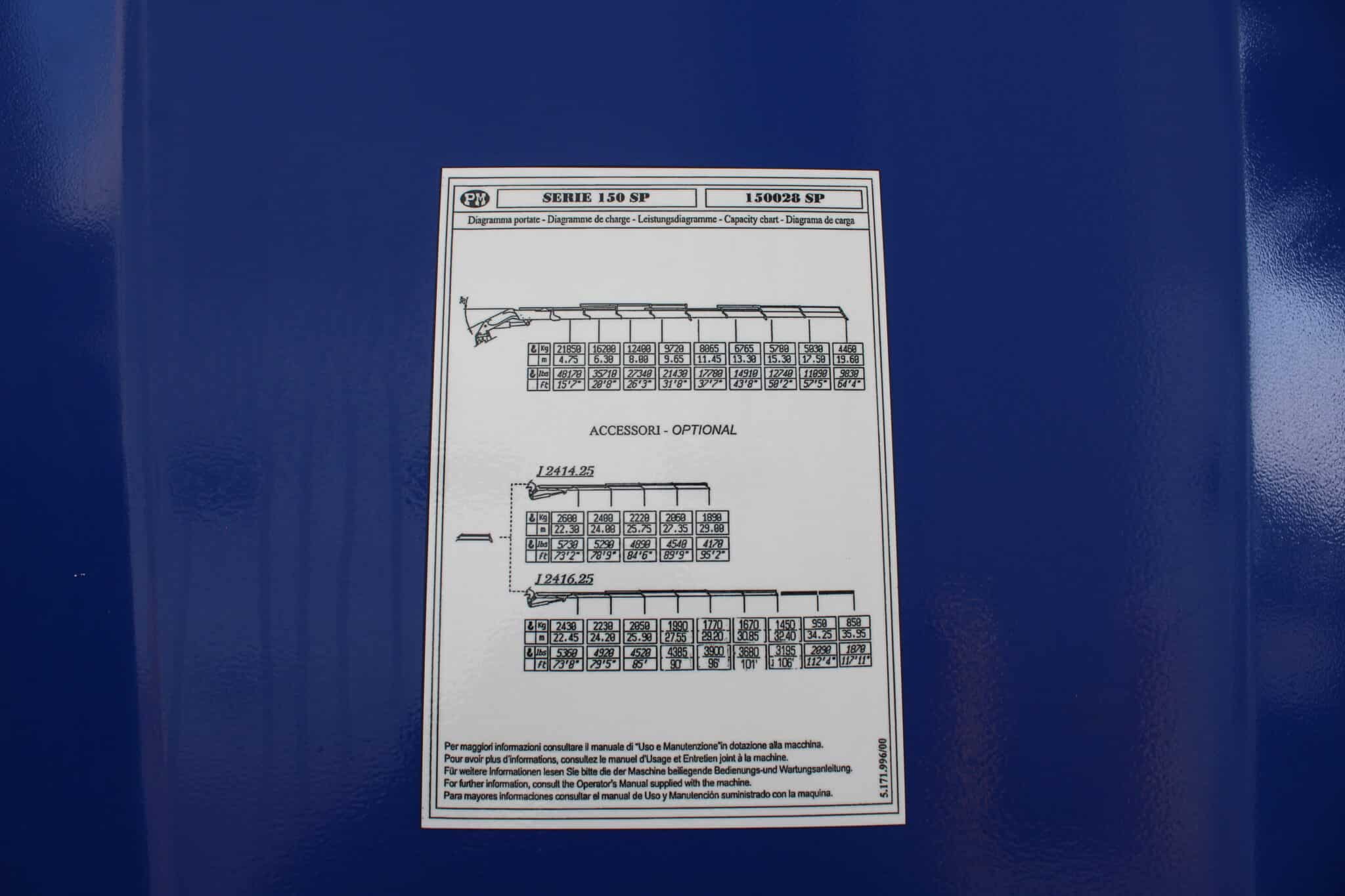

• Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart  in FT. & LBS.

Truck:

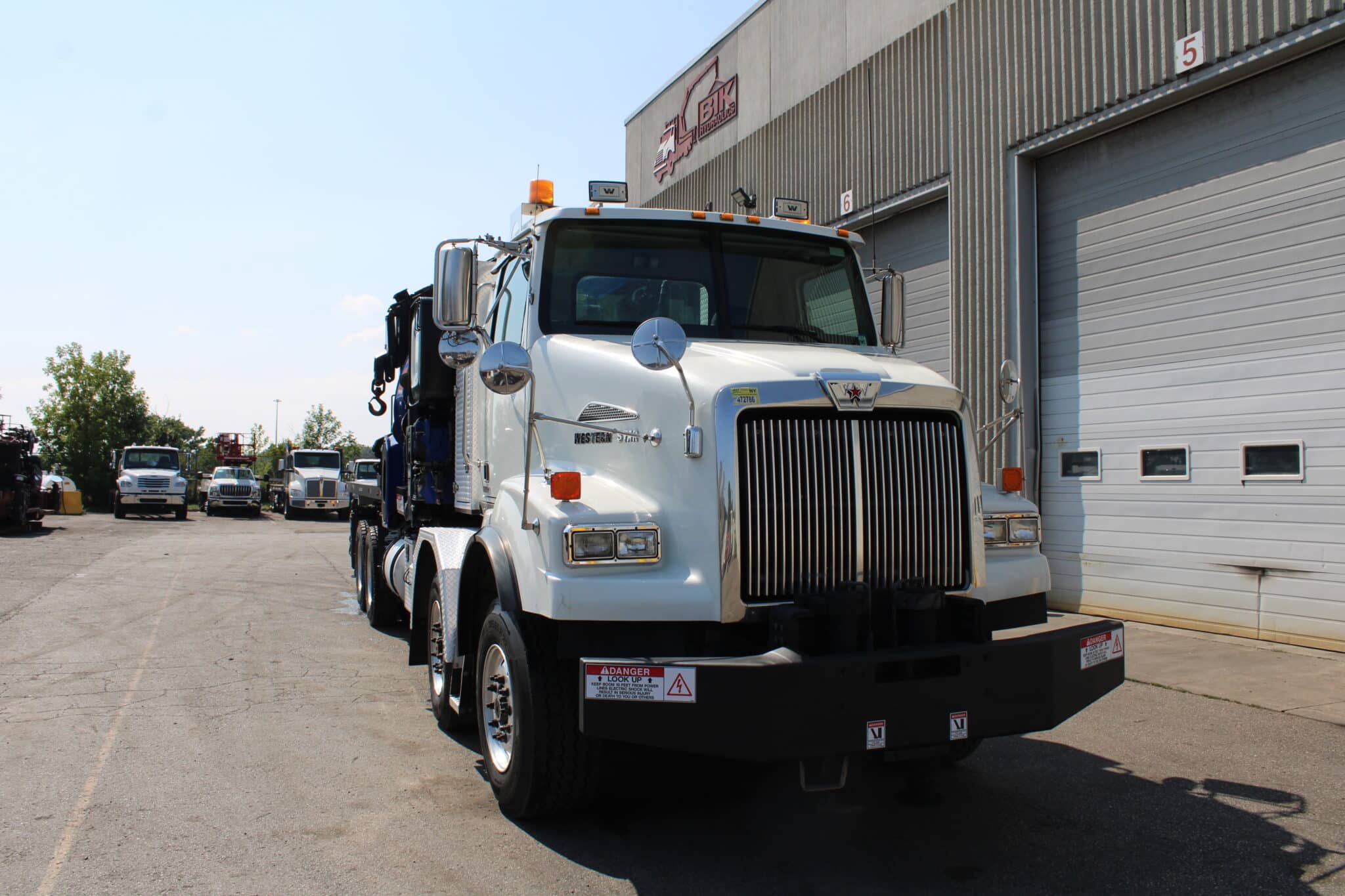

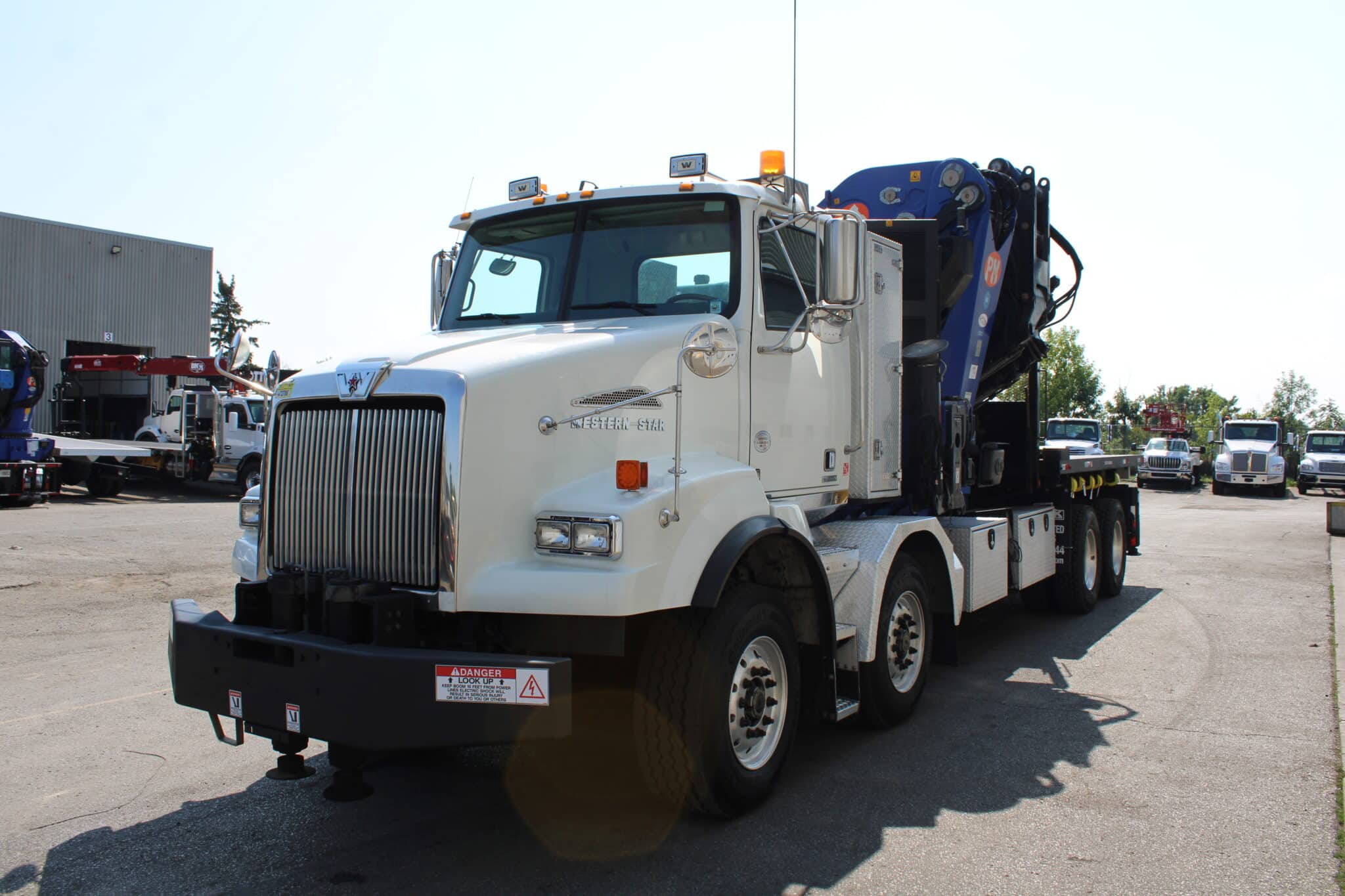

USED 2018 Western Star 4900  T/A Steer-T/A Rear 4-Axle Tractor :  94,000 lb GVWR

• Detroit 15L
• 525 hp with Jake Brake
• Eaton Ultrashift
• Automated 18 spd stand trans .
• (2) x 20,000 LB fronts with 425 / 65R22.5 tires
• 54,000 LB Rears on  air ride Susp.
• Double Frame
• Polished ALCOA Aluminum Wheels front and outer rear
• Dual Chrome single polished Exhaust
• Chrome Grille &  Bumper
• 100 gallon alum fuel tank

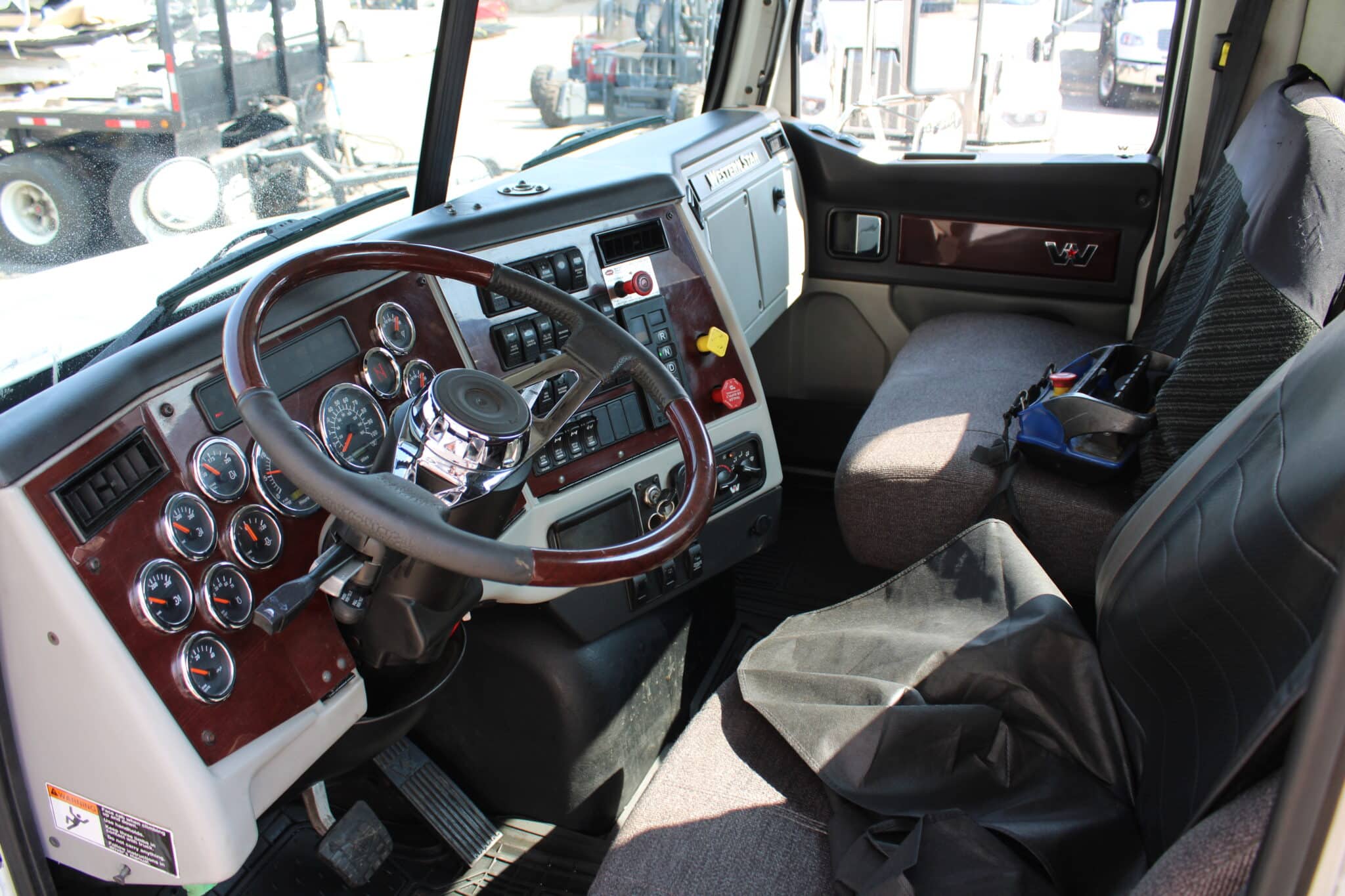

• Loaded with Options including:  Air Cond., Tilt/Telescopic steering, top level  Interior,  AM/FM/CD,   air driver’s seat,   fixed pass seat, cruise, heated mirrors, exterior S/S sun visor,  4 wheel lock-ups, power windows/locks/mirrors,  Air ride cab, full 4-wheel locks, trailer air tow package,  truck cab white color,  5^th wheel on at tandems w/ramps,  15’ Removable Flat Deck with Counter Weight, etc…

CALL FOR DETAILS: 1-888-557-2244  OR  416-679-3838
