Boom Details

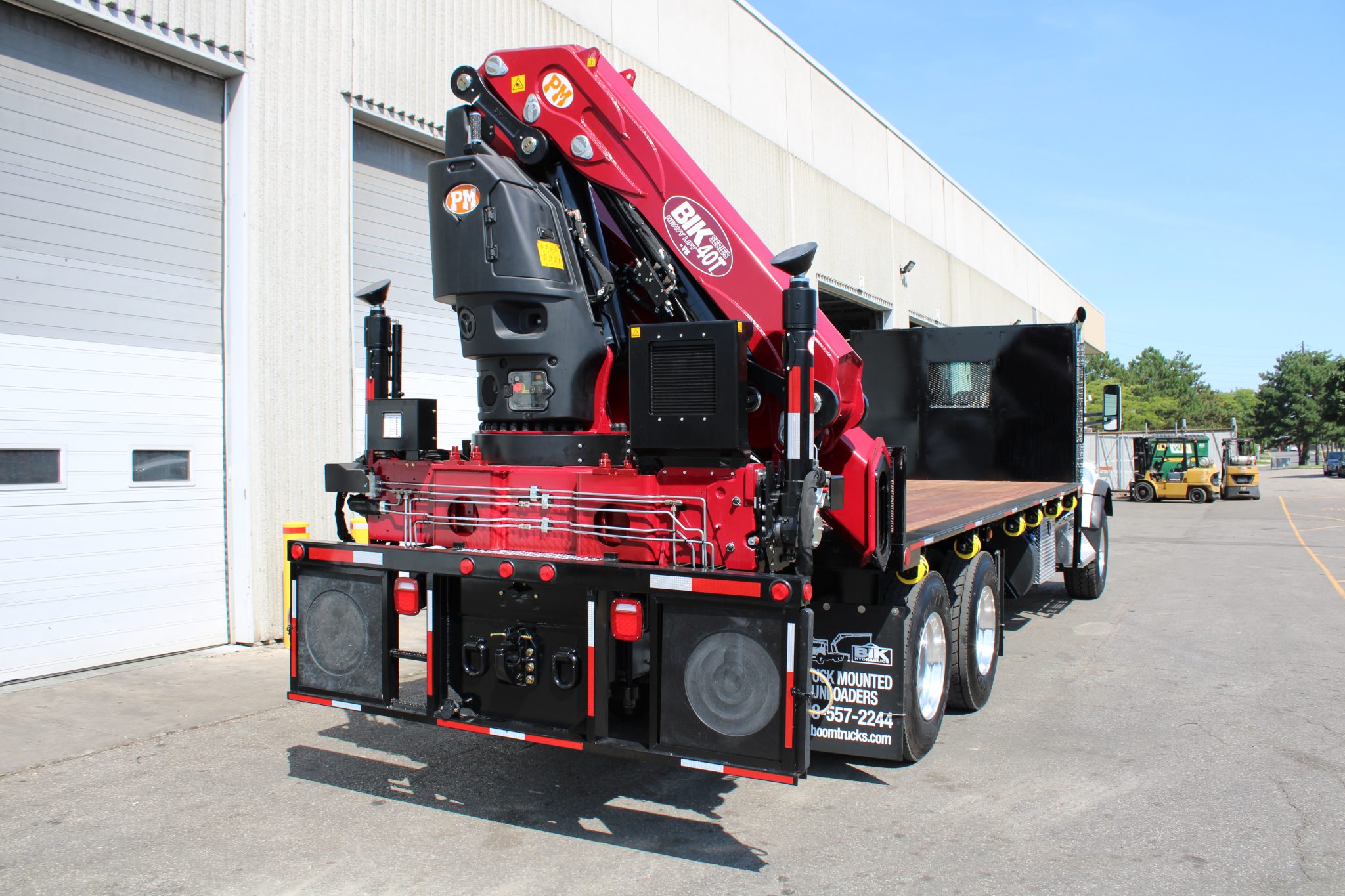

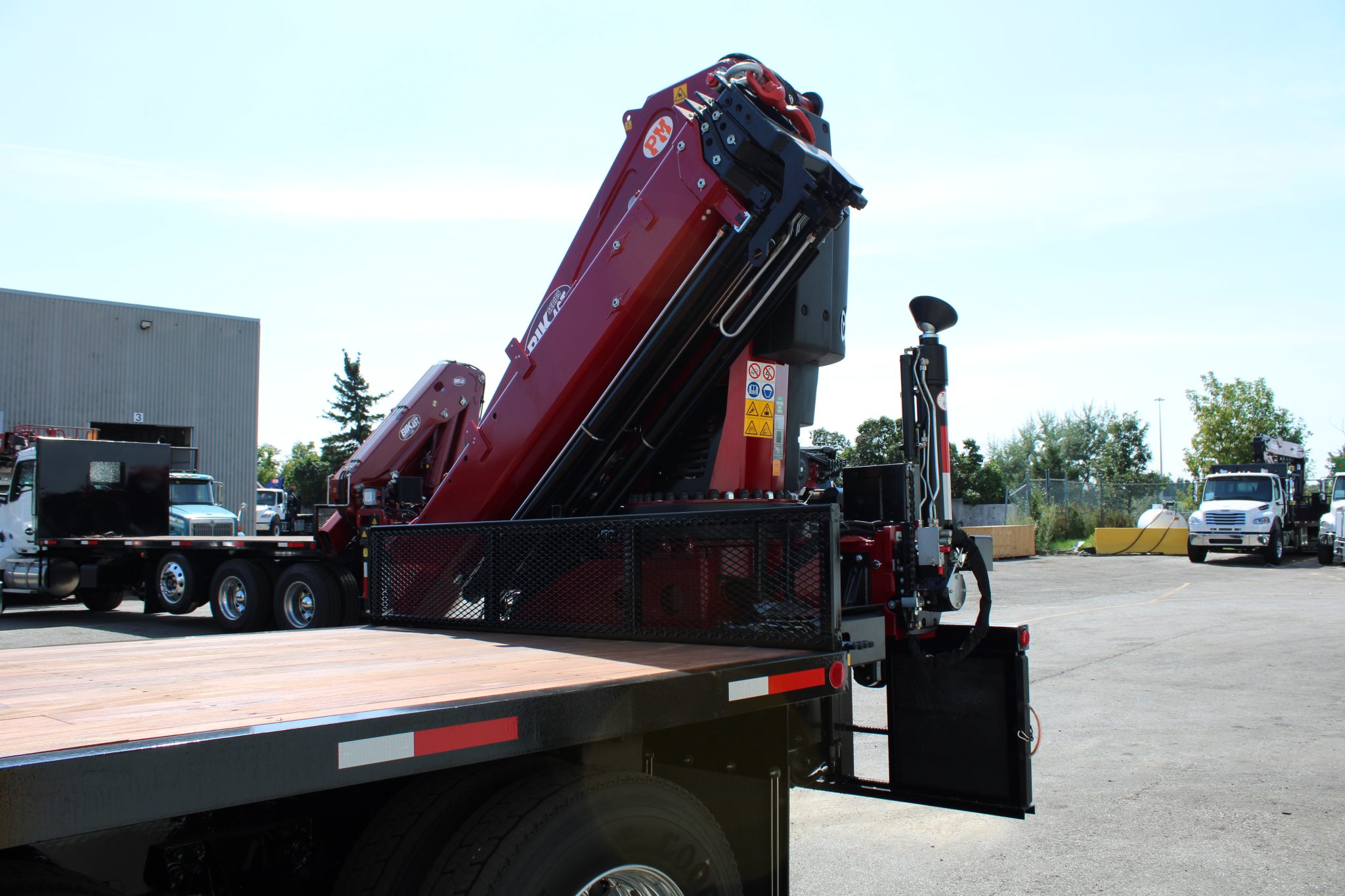

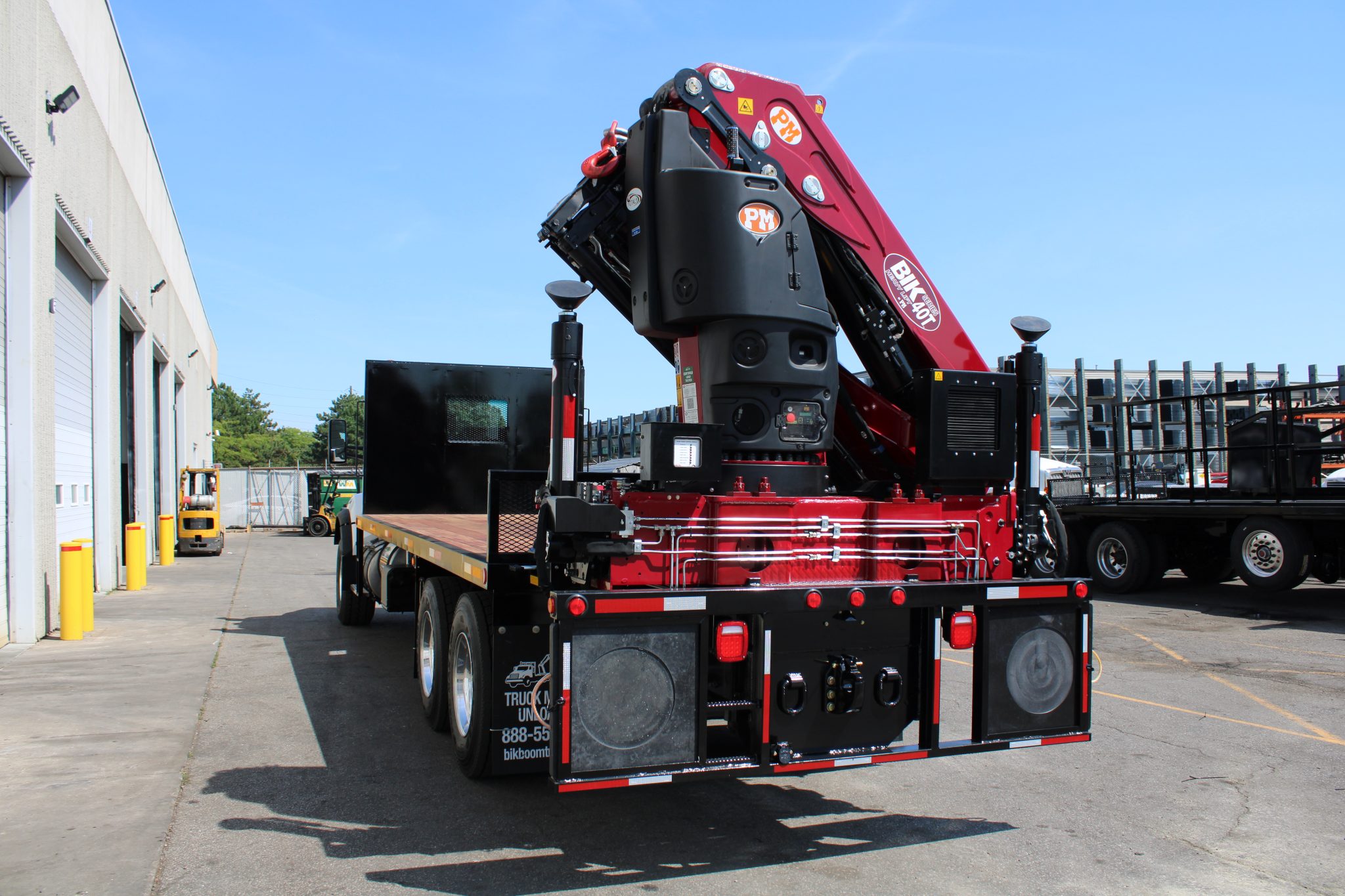

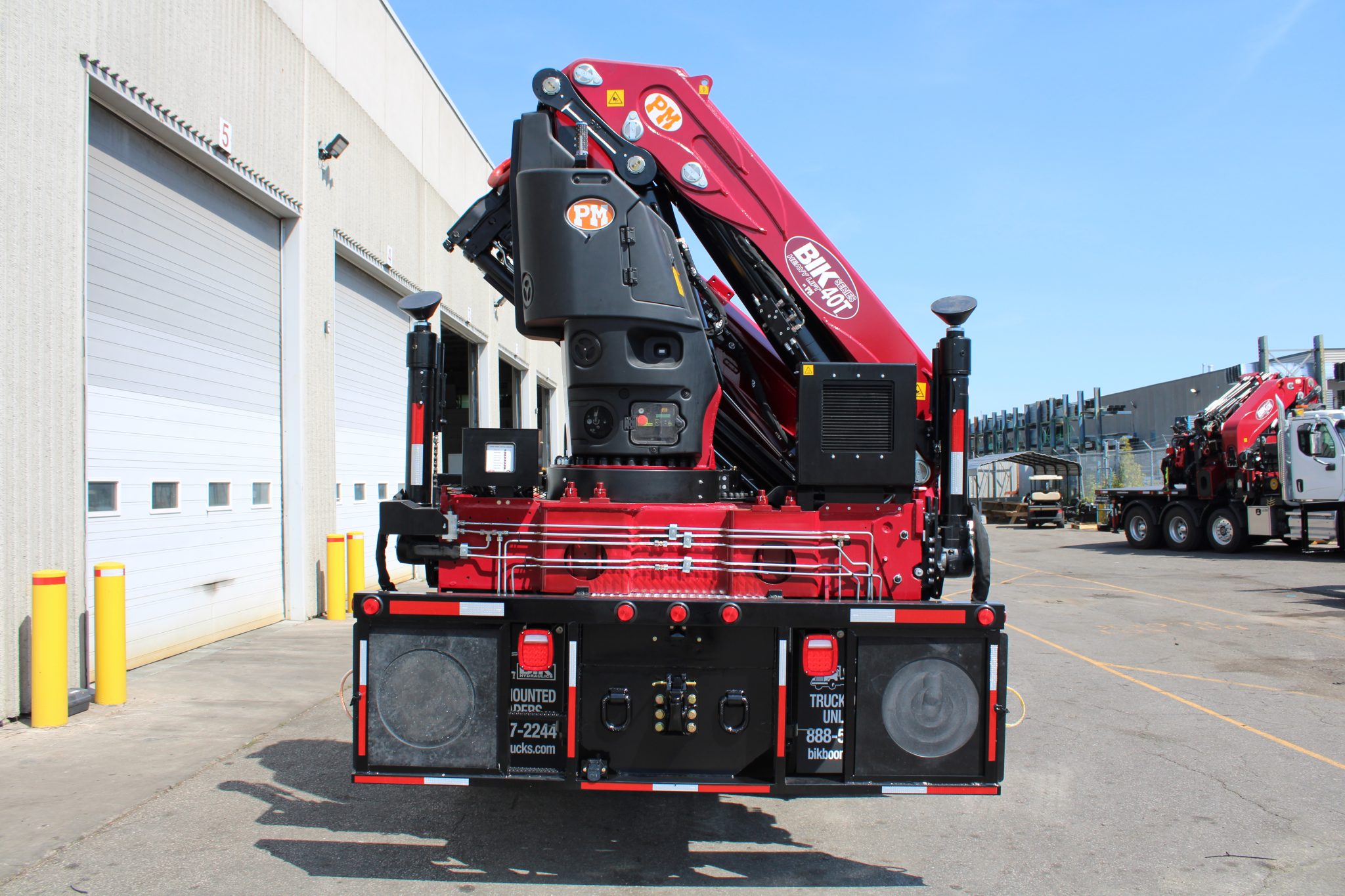

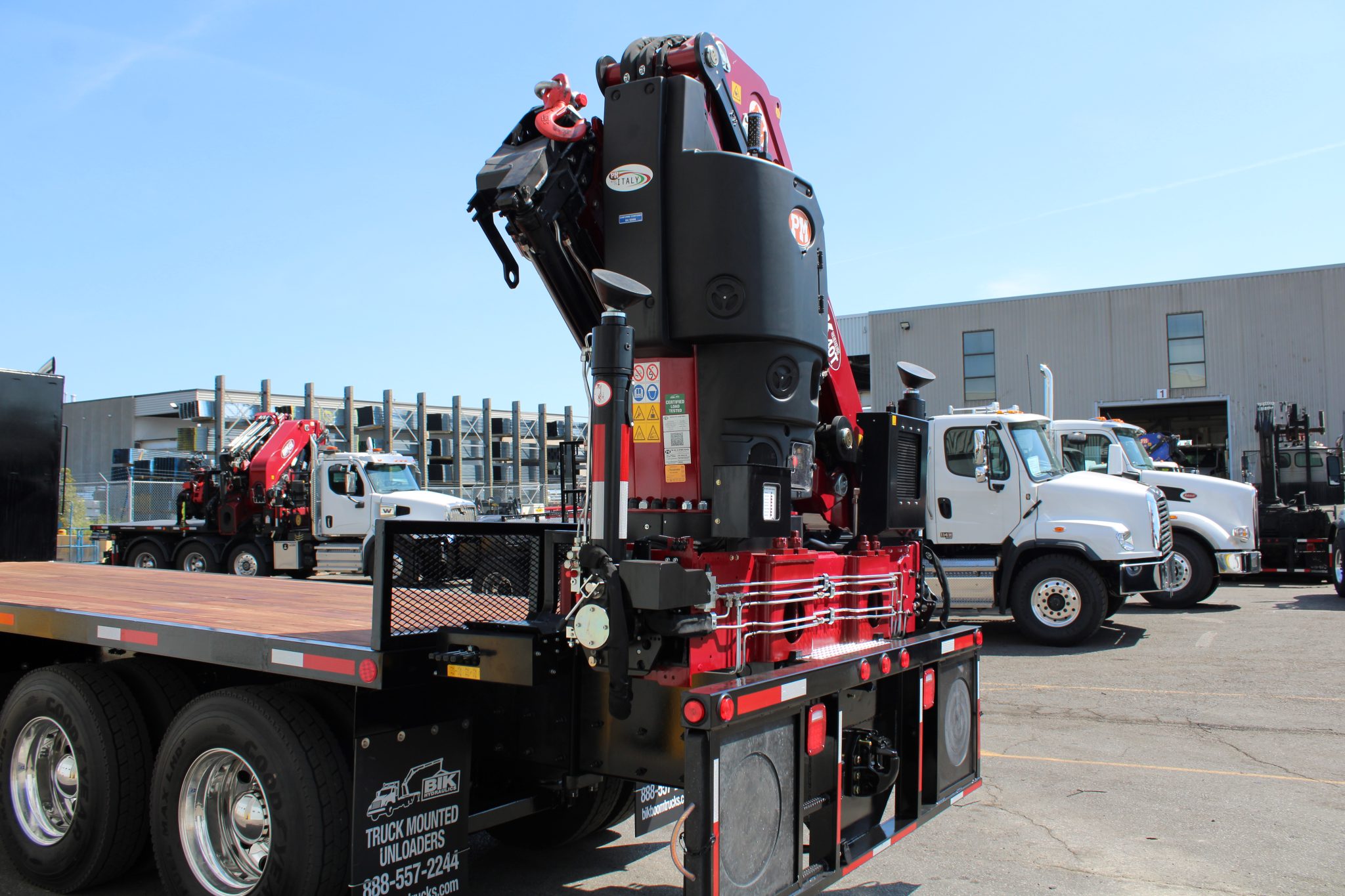

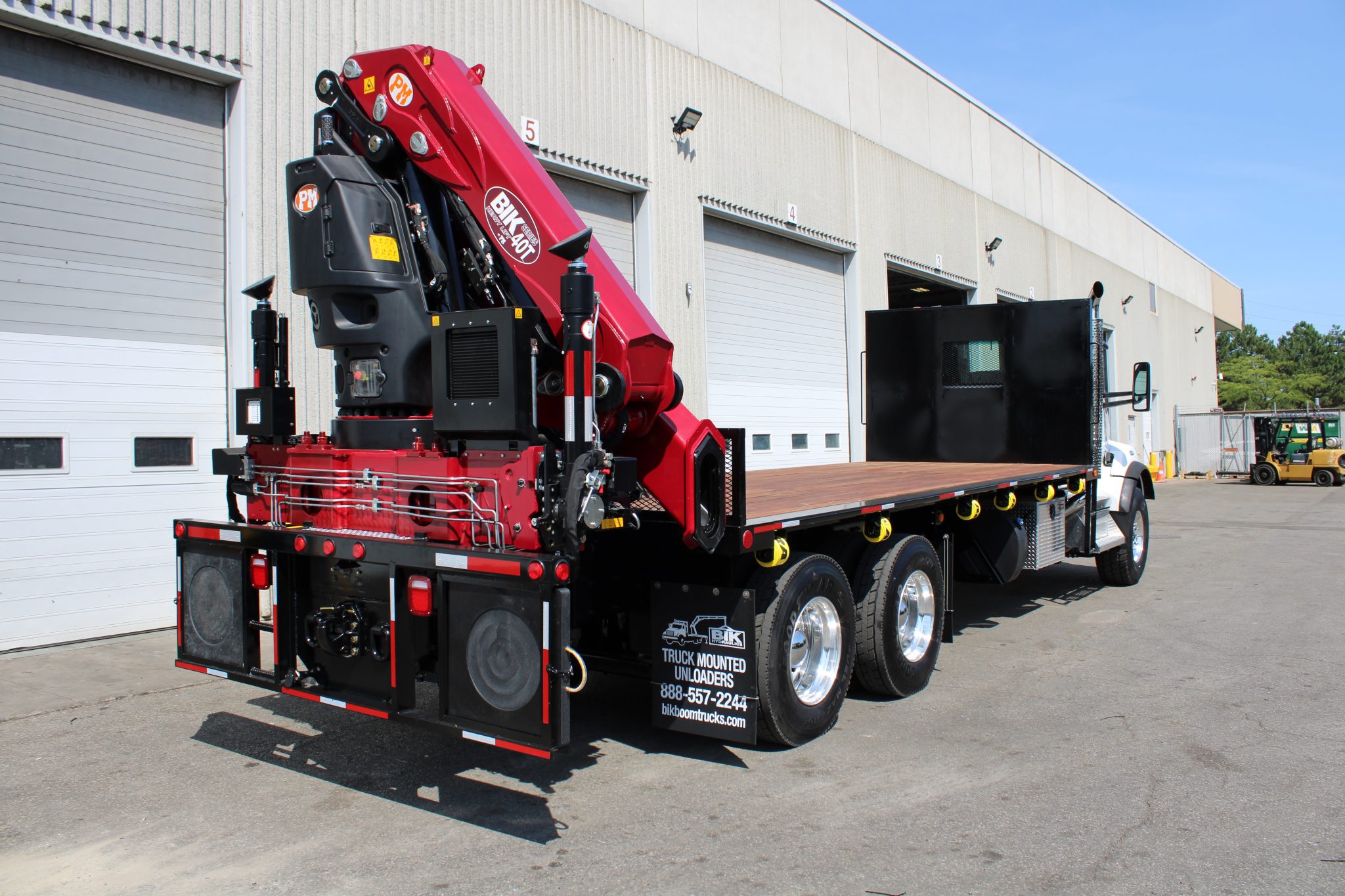

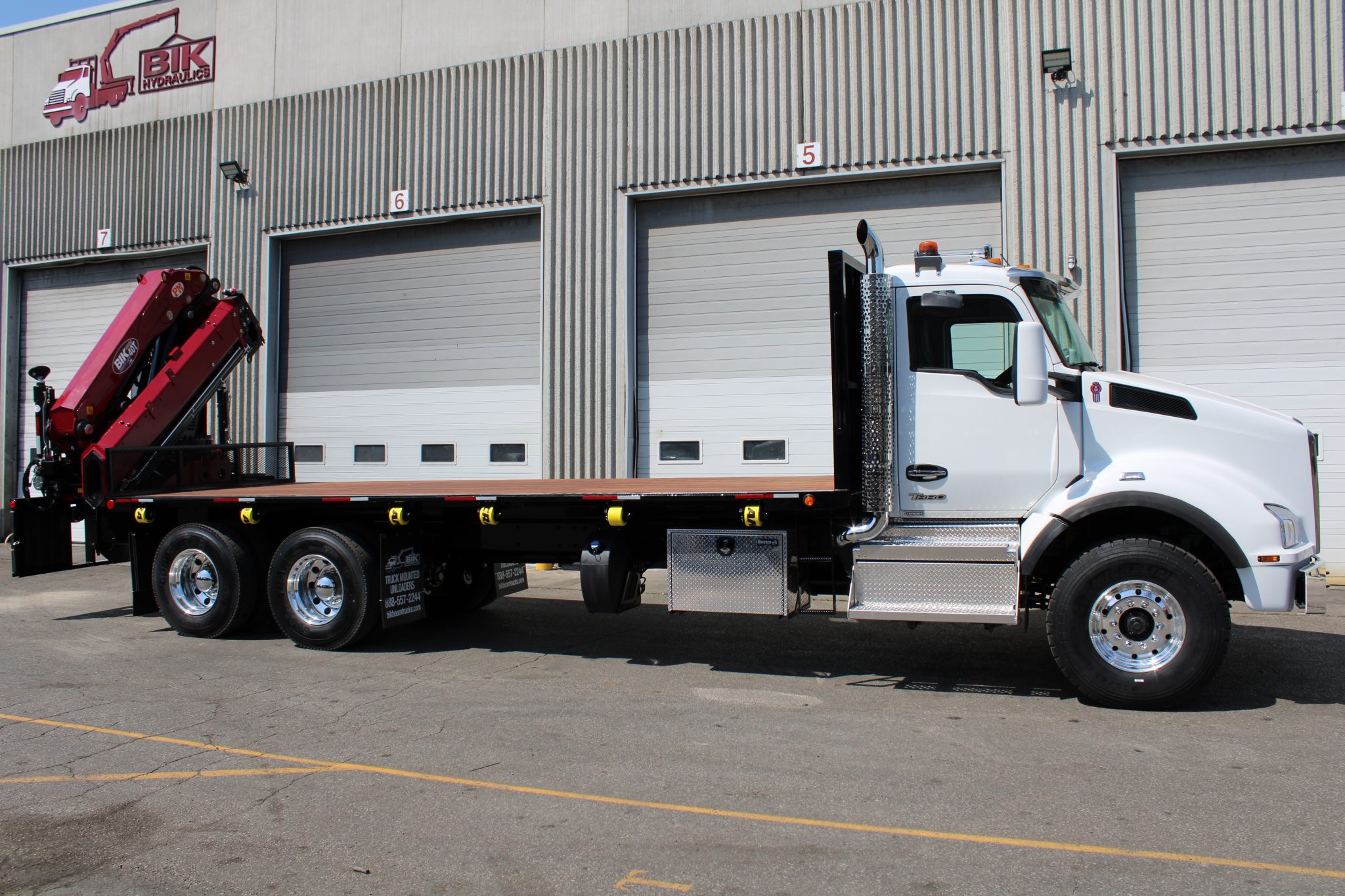

New – BIK “Heavy Lift” Series HL 40T

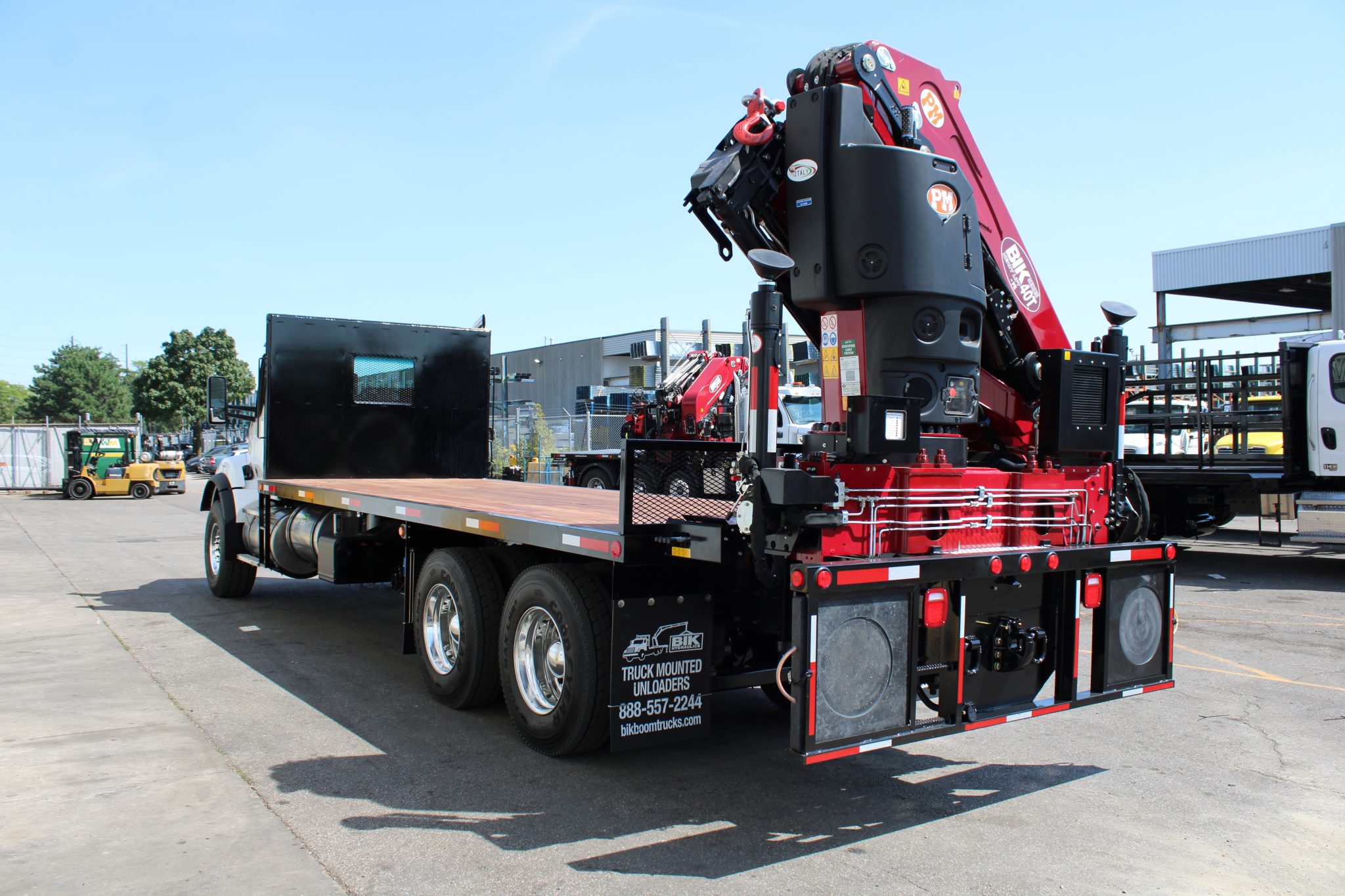

- PM 40 ton/m – Knuckle Boom, 3 – Independent hyd extensions to 34’ horizontal reach (45’ vertical)
- Horizontal Capacity
- 17,800 lbs @ 14.5′
- 12,200 lbs @ 20′
- 9,100 lbs @28′
- 7,150 lbs @ 34′
- Horizontal Capacity
- PLANETARY GEAR CONTINUOUS ROTATION – Superior Control & Turning Torque to 10 deg angle – low maintenance
- Hydraulic Extra Wide Main outriggers at pedestal – 25’ 7” span
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station
- SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
- Radio Remote includes: 5-micro speed reducing settings from handheld unit, emergency stop, 2-batteries with charger, 50’ back-up cord
- Hydraulic OUT and Hydraulic DOWN 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
- Simplified Hydraulics – Hyd overload LLD protection – Offers Simplicity, Reliability & low maintenance
- Load Holding Valves on each cylinder for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
- Load Tested & Installed at rear, with integral sub-frame to meet or exceed all CMVSS Standards
Deck Details

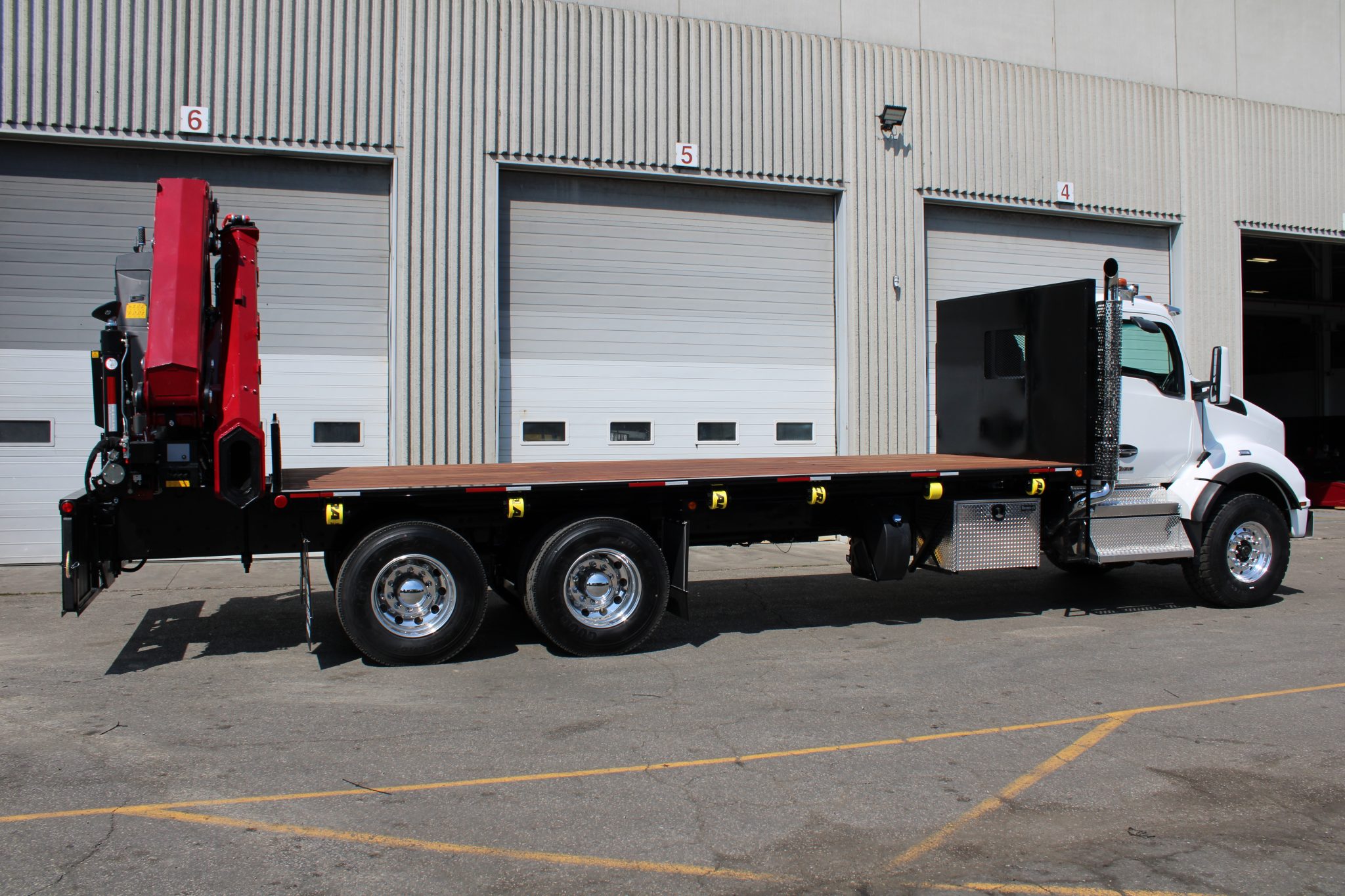

New – 21.5′ Long x 102″ Hardwood Deck
- Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom
- Hardwood Deck surface
- 66” Headboard
- Reverse Rail sliding track on passenger side
- 8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black.
Truck Details

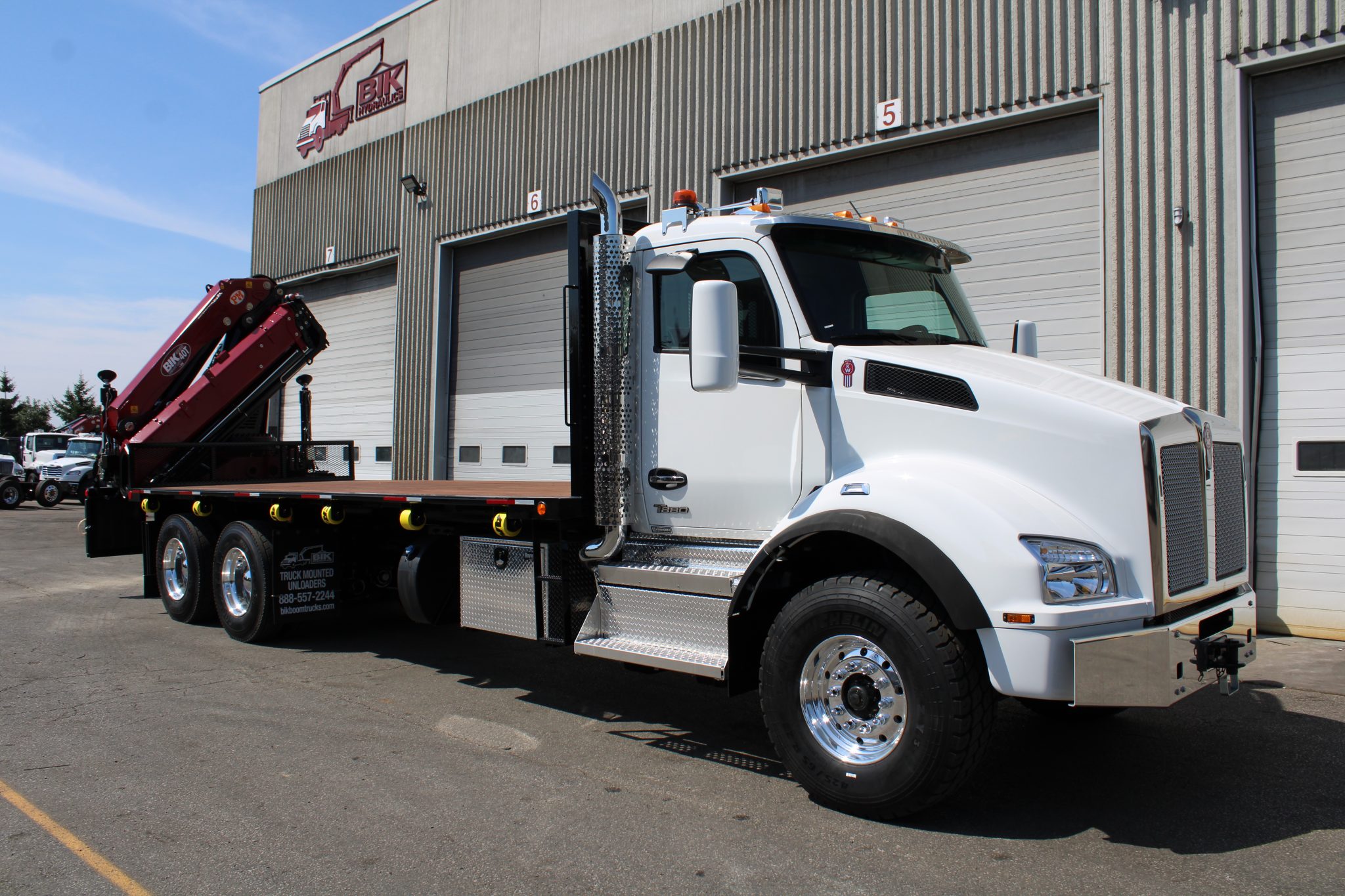

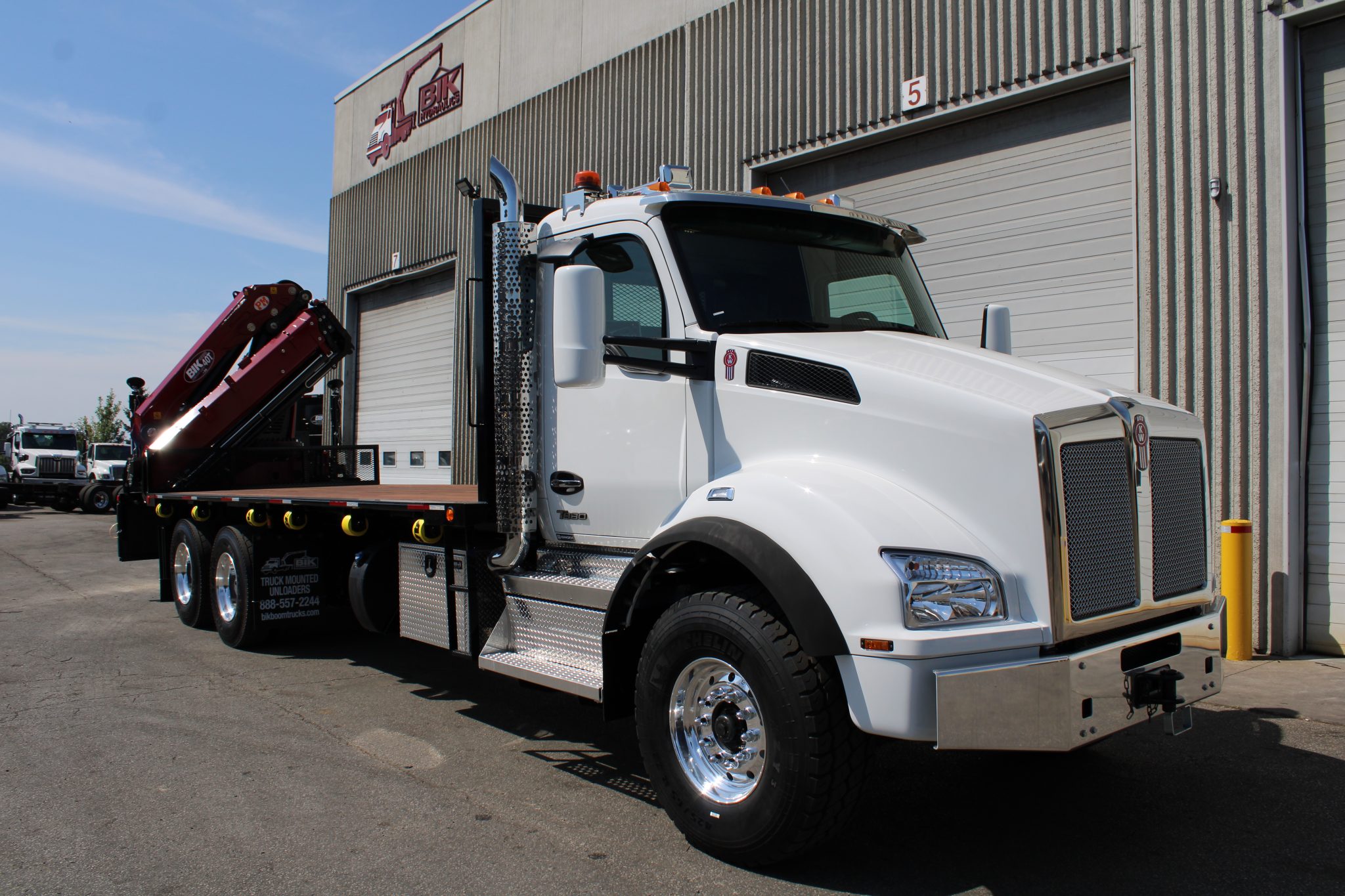

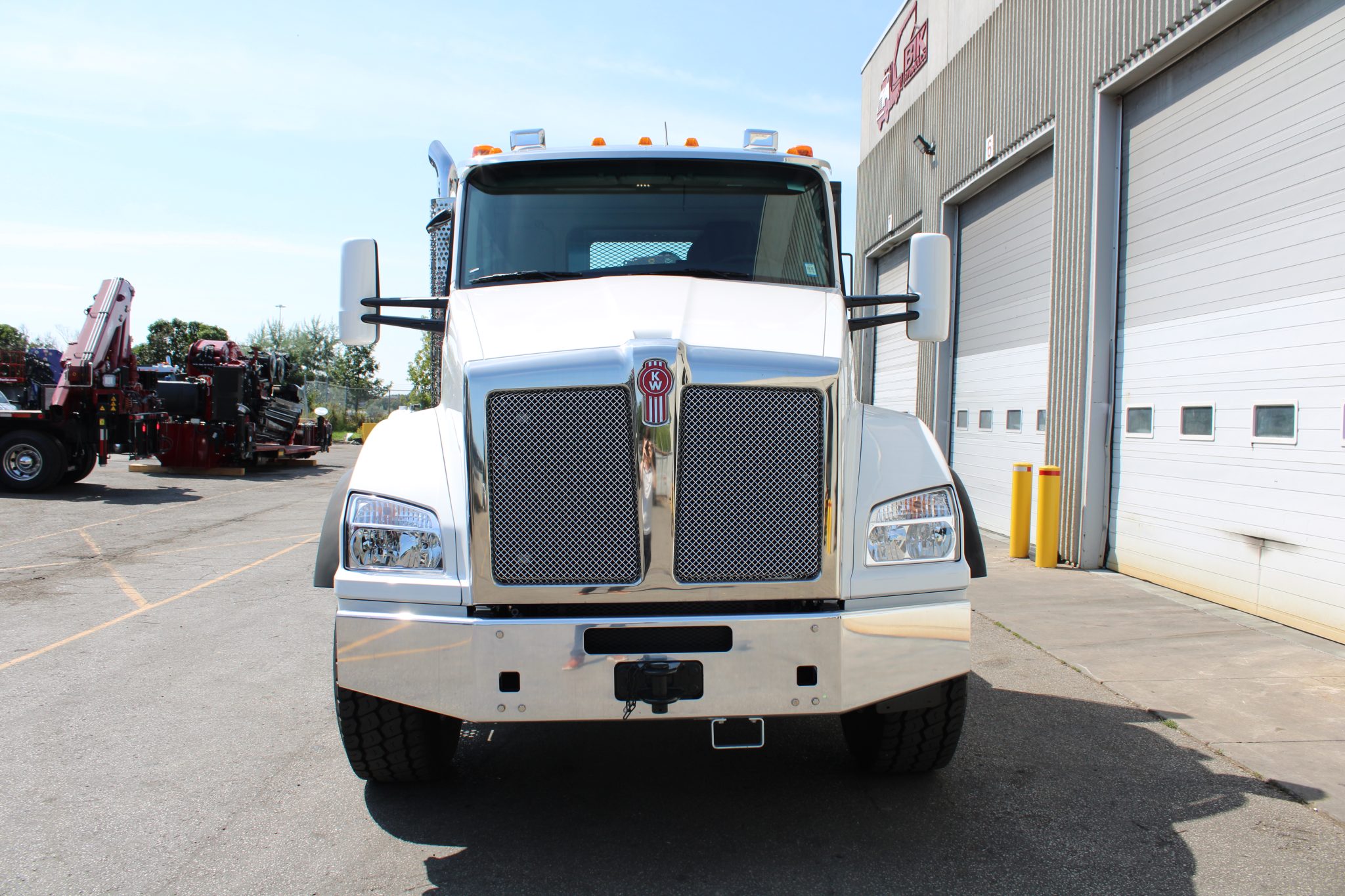

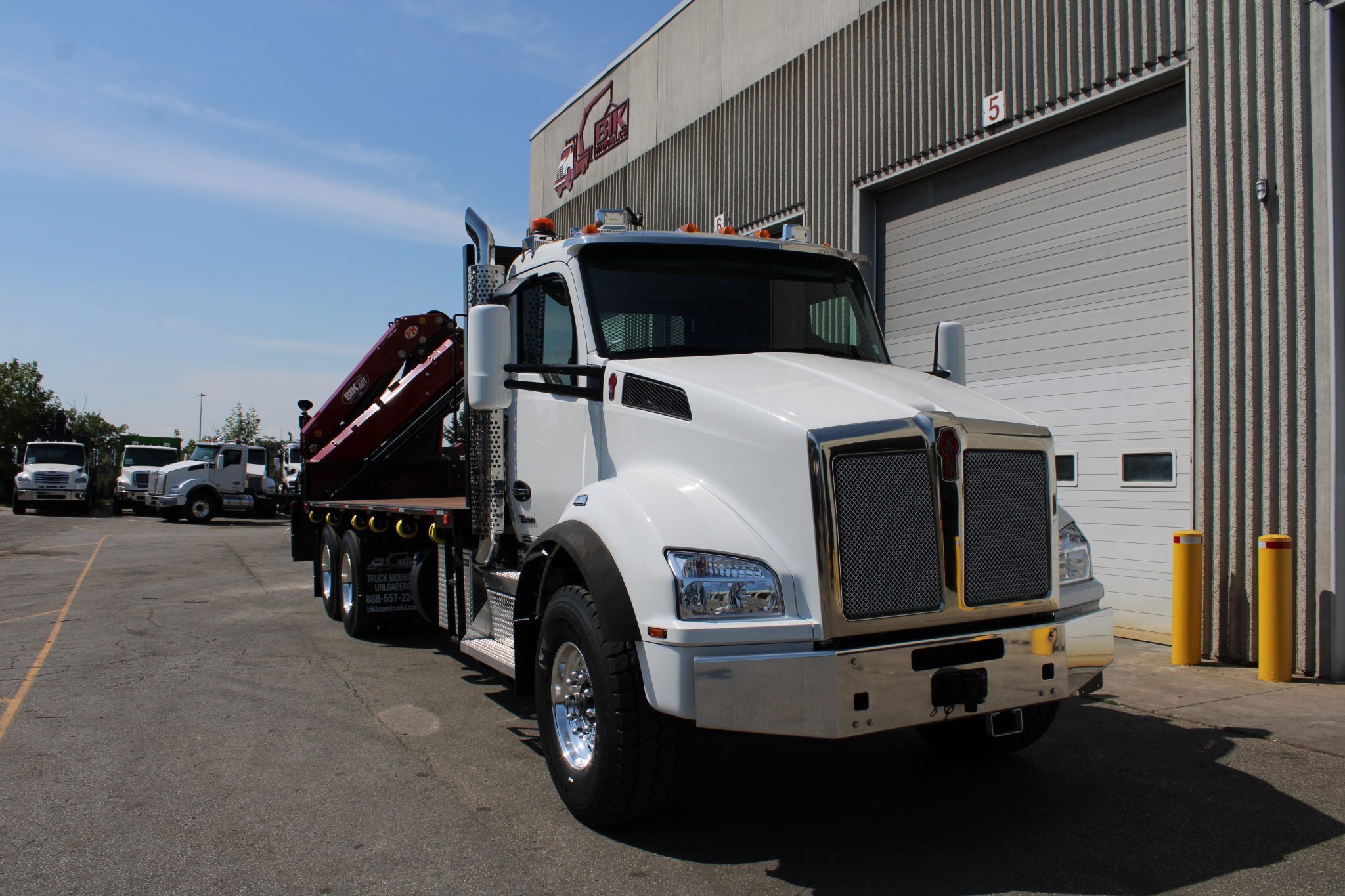

New – Kenworth T880 3- axle Truck – 70,000 lb GVWR
- PACCAR 505 HP / 1,850 ft/lb torque
- Eaton Ultrashift 18 spd AutoTrans
- 20,000 LB fronts with 425 / 65R22.5 tires
- 46,000 LB Rears on air ride
- Double Frame, Polished ALCOA Alum Wheels front and rear
- Chrome single polished Exhaust
- Chromed Grille & Bumper
- Single 100 gallon aluminum fuel tanks
- Options including: Dual roof mounted strobe lights, A/C, Tilt/Telescopic steering, AM/FM/CD player , Jake Brake, air driver’s seat, fixed passenger seat, cruise, heated mirrors, painted sun visor, All-way inter-axle and diff lock-ups, Cab Painted White, Air ride cab, full differential locks, trailer air tow package, etc…
Also Included Are:
- (2) pcs – Aluminum stabilizer pads with holders at rear
- Program radio remote control for engine stop/start and truck shut off
- 1” drawplate installed at rear w/Heavy duty pintle hook
- 1- Alum box installed under deck
