**SOLD** 2013 KENWORTH T800 WITH HEILA HLR 55000-3s & 22' FLAT DECK - 500 HP

SOLD 2013 KENWORTH T800 WITH HEILA HLR 55000-3s & 22′ FLAT DECK – 500 HP

SOLD 2013 KENWORTH T800 4-AXLE WITH HEILA HLR 55000-3s & 22′ FLAT DECK – 500 HP – 18 SPD STAND – LOADED – IDEAL HEAVY LIFT PRECAST TRUCK

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Truck Details

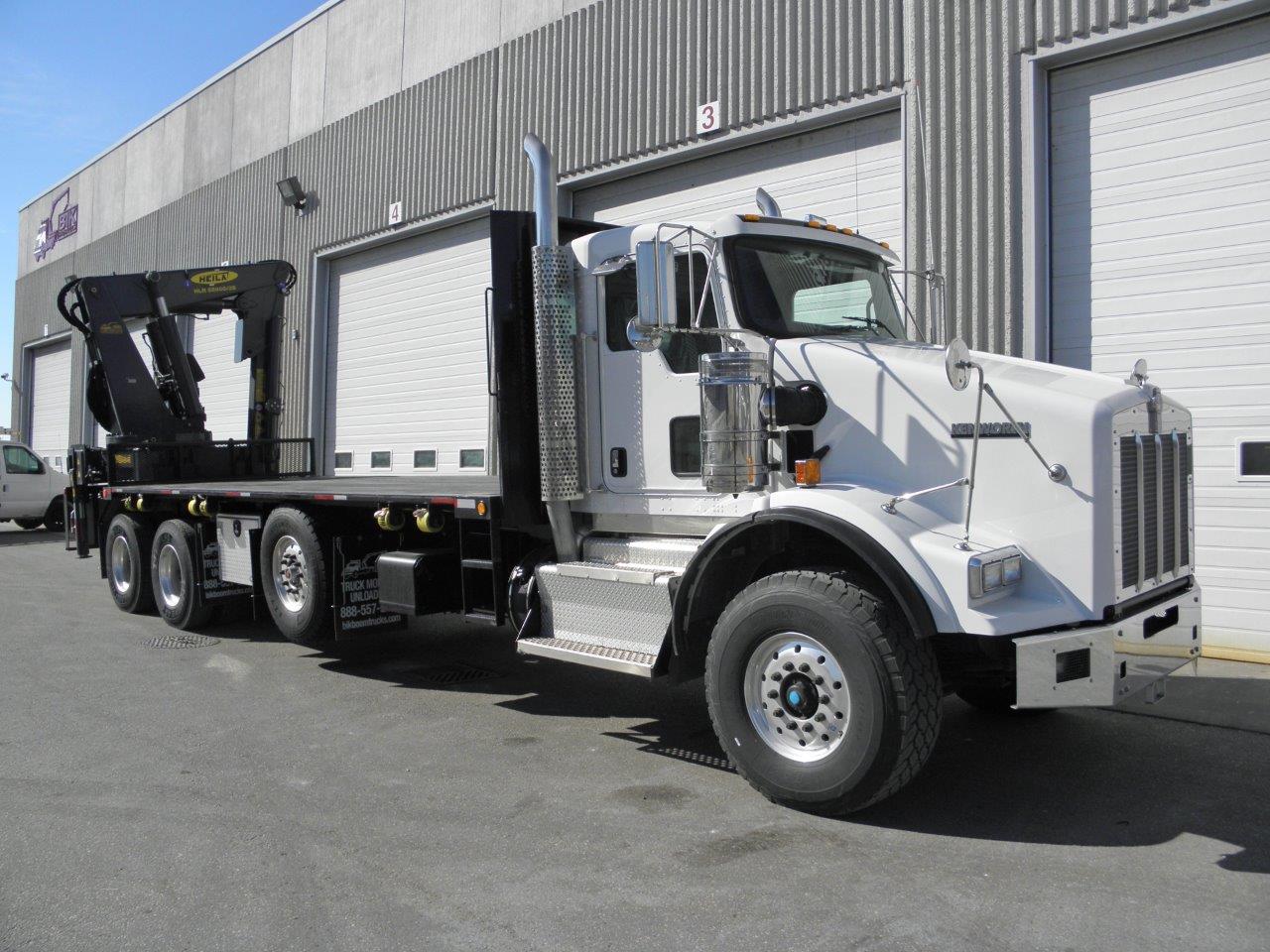

P2013 KENWORTH T800 TRI-AXLE TRUCK: 88,000 lb GVWR
ISX 15L Cummins – 500 hp – with Jake Brake
18 Speed Fuller Trans., Approx. 135,000 Miles
4.10 Rear Axle Ratio, Truck Cab White
22,000 lb Fronts with 425/65R22.5 Tires
20,000 lb Self-Steer Lift Axle Installed Ahead of T/A
46,000 lb Rears on Chalmers Suspension
Double Frame, 312” Wheel Base, Polished ALCOA Aluminum Wheels Front & Rear
Chrome Single Polished Exhaust, Chrome Grill & Bumper
Single 120-Gallon Aluminum Fuel Tank
Loaded with Options Including: A/C, Tilt/Telescopic Steering, AM/FM/CD Player with Weather Band, Air Ride Driver’s and Fixed Pass. Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, Top Level Interior w/GPS, Power Windows & Locks, Power Mirrors, Dual Stainless Air Breathers, Air Ride Cab, Stainless Steel Below Door Valence with Lights, 4 Wheel Lock-ups, Trailer Air Tow Package, etc…

Deck Details

22’ X 102” DECK
Installed on Truck with 54” of Main Sill Overhang for Sub-Frame of Knuckle Boom
Hard Wood Deck
66” Headboard
Reverse Rail Sliding Track on Passenger Side
6 Winches and Straps (30’) with Required Conspicuity Tape and Reflectors
All Steel Painted Gloss Black

Boom Details

HEILA HLR 55.000-3S KNUCKLE BOOM: 3 Hydraulic Extensions to 28’ of Hyd Reach + 2 Manual Extensions to 38’
Horizontal Capacities: 46,725 lb @ 8-1/2’; 28,652 lb @ 13-1/2’; 20,497 lb @ 18’; 14,436 lb @ 22-1/2’; 10,469 lb @ 28’
Installed End of Frame on Sheer-Plated Sub-Frame by BIK, Prepped, Primed and Painted
New Air Operated PTO, Hydraulic Pump, Supply and Return Lines
Hydraulic Tank Mounted on Truck Frame w/Shut-off Valve
12 V Connections to Radio Remote Control
Load Testing and Operator Orientation
Standard Features Include:
Danfoss Proportional Valve Controls – Single-Sided Operator Control Station w/Fully Proportional Operator Control
Scanreco Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
Centered Knuckle – No Offset, Dual Main Lift Cylinders and Dual Extension Cylinders for Unmatched Performance for Heavy Lifting
Planetary Pedestal – Continuous Boom Rotation – Superior Control & Turning Torque, with Reduced Lifetime Maintenance & Wear
Hydraulic Out & Down 2-Sided, Independently Controlled Stabilizers Beneath Pedestal
Radio Remote Includes: 6 Micro Speed-Reducing Settings from Handheld Unit, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
JIC North American Standard Hydraulic Fittings Throughout
