Boom Details

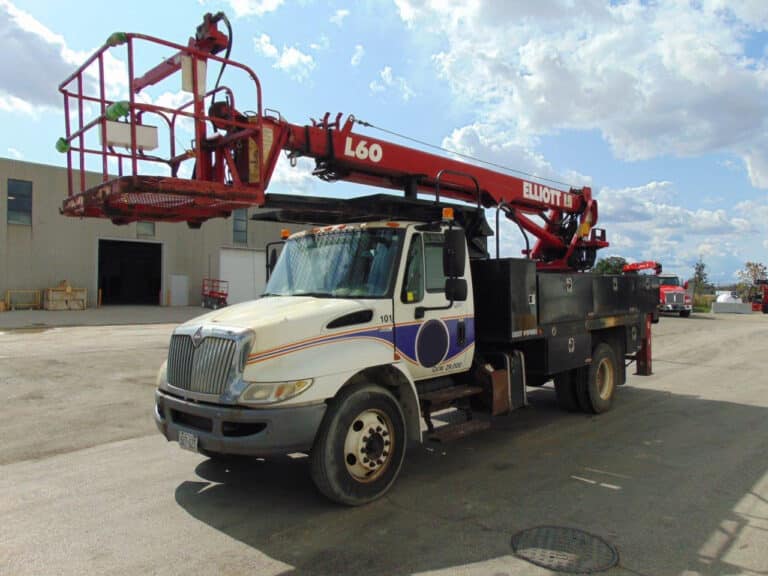

Elliott L60 R HiReach: Hydraulic reach to 62’ vertical working height and 56’ horizontal

Standard Features include:

• Three individual proportional electronic controllers.  Boom ground controls located on roadside of turret, remote controls for boom operations                                           from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).
• Work platform is  40” high rails, with safety attachment loops.
• One double acting 6” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
• Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
• Hydraulic OUT and DOWN driver side controls with a 18’ spread.Load Holding Valves on each cylinder for Safety and Security of Operator and Load.

Also Included Are:

• 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
• Platform mounted jib with hydraulic winch drum mounted on horizontal arm
• 110 V power supply to work platform,   Sign forks on platform  (2 pcs)
• 14’ x 96” steel bed,    Truck cab windshield guard,  steel carrier cover
• Several boxes mounted on top and below deck
• Drawplate with Trailer Hitch
