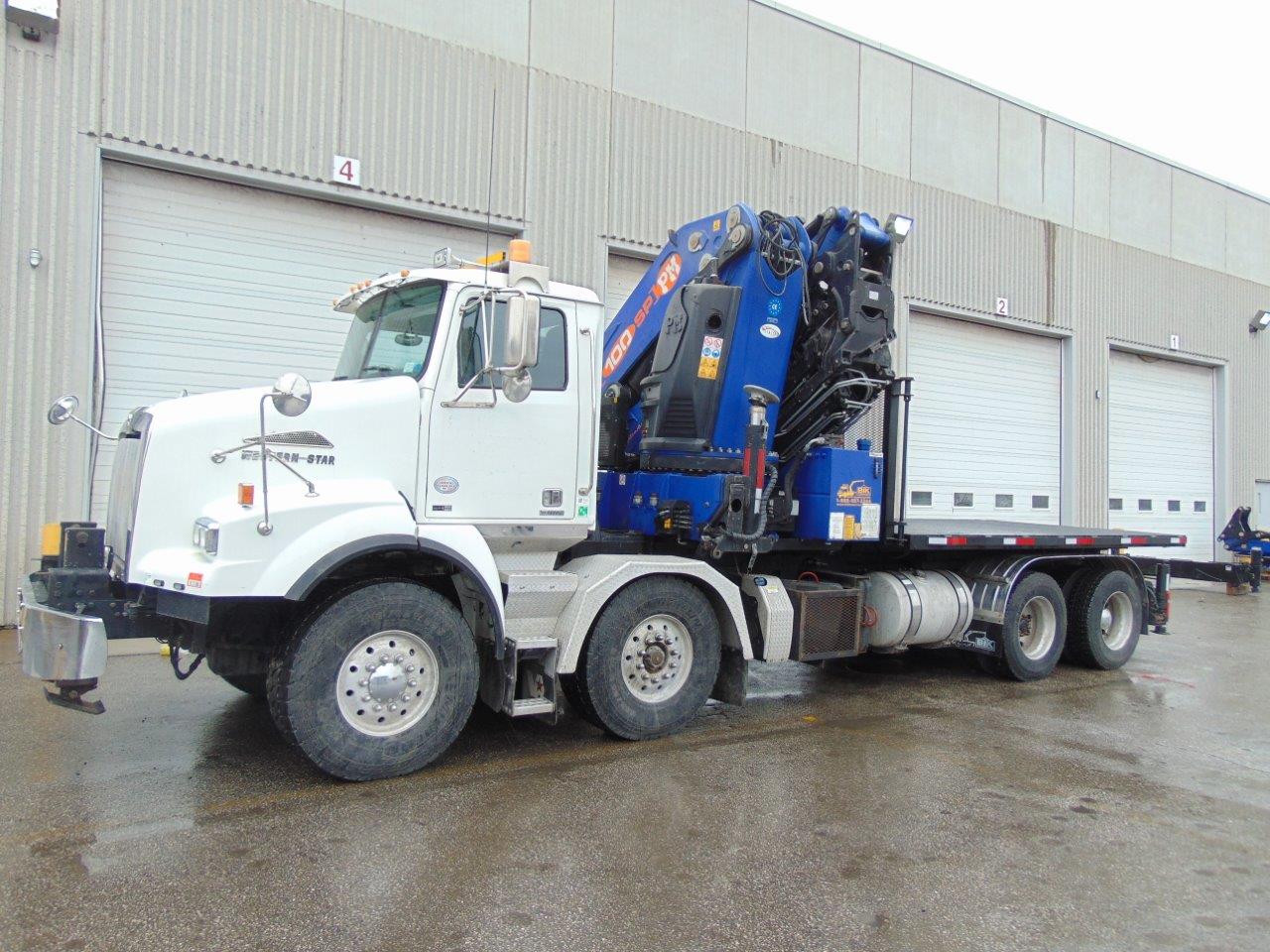

SOLD* USED 2014 WESTERN STAR 4800 W/REMOVABLE 17′ DECK – PM 100+JIB

SOLD*  USED 2014 WESTERN STAR 4800 TA-TA TRACTOR W/REMOVABLE 17′ DECK – PM 100+JIB-124′ – 470 HP – 18-SPD STD

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Truck Details

  • USED 2014 WESTERN STAR 4800 SLOPED SHORT NOSE T/A STEER – T/A REAR TRACTOR – 4 AXLE
  • DDC-13 Diesel – 470 hp with Jake, Only 32,000 Miles
  • 18-Speed Standard Trans.
  • (2) X 20,000 lb Fronts with 425/65R22.5 Tires
  • 46,000 lb Rears on Air Ride Susp., Double-Frame
  • Polished ALCOA Aluminum Wheels – Front and Outer Rear
  • Dual Chrome Single Polished Exhaust
  • Chrome Grill & Bumper
  • Dual 80-Gallon Aluminum Fuel Tank

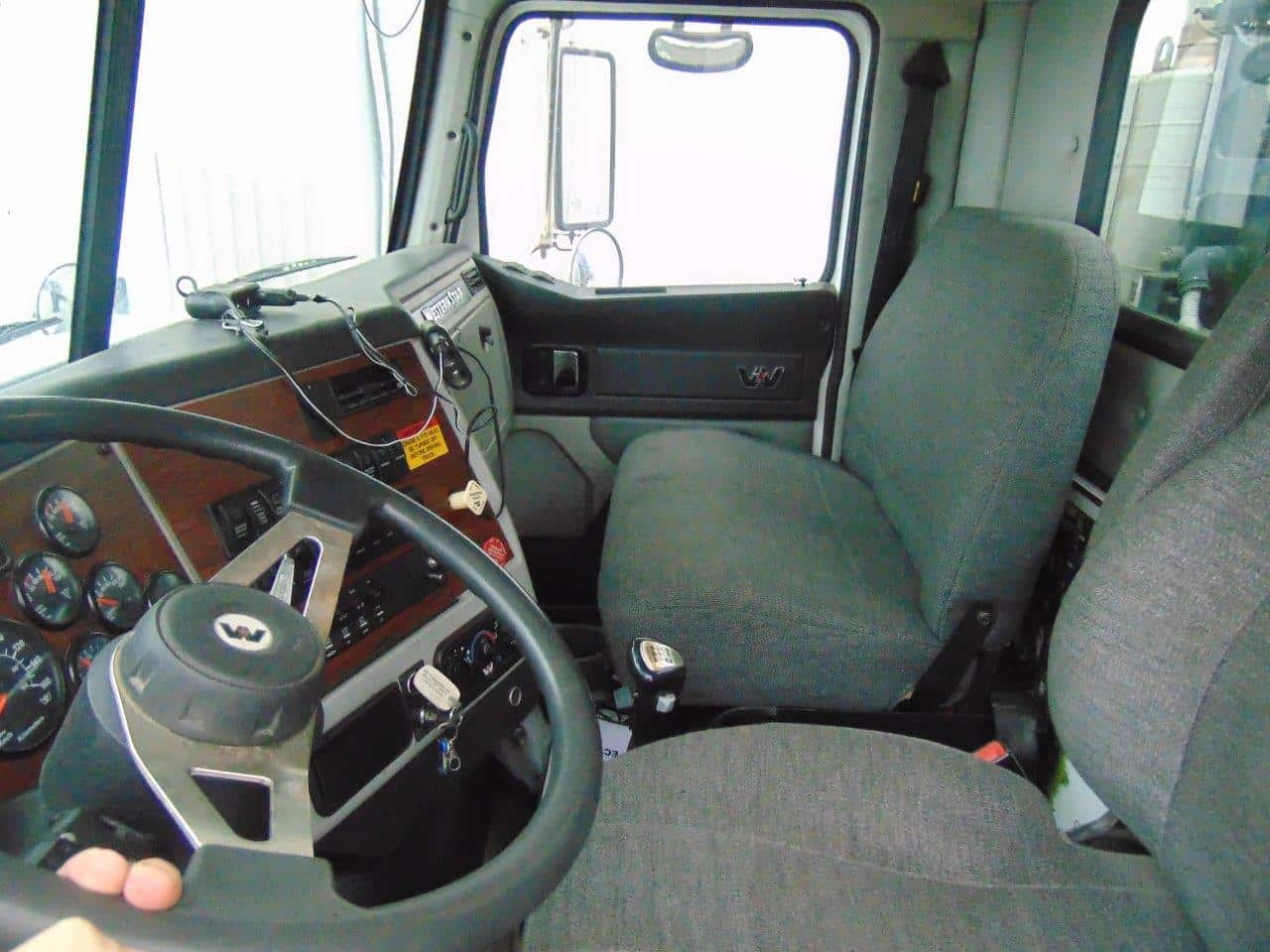

  • Loaded with Options Including:  A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Window both sides, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, Dual Chrome Air Breathers, 5th Wheel on at Tandems, etc…

Deck Details

  • 17′ X 102″ REMOVABLE STEEL CHECKER PLATE FLAT DECK
  • Checker Plate Steel Deck Surface
  • Winch Bar Holder and Winch Bar
  • Ladder, Reflectors and 5-Side Lights
  • 48″ Headboard Mounted on Sub-Base with 5th Wheel Hook-ups

Boom Details

  • PM 100028SP+J1616 KNUCKLE BOOM
  • Folding Hydraulic Knuckle Boom with Jib
  • 8 Hyd. Extensions in Main Boom to 66′ 7″ Horiz (80′ Vert), 6 Hyd. Extensions in Jib to 110′ Horiz (122′ Vert)
  • PM Connecting Rods at First Boom and Knuckle, 15-Degree Negative Angle at 1st Knuckle, 25-Degree Negative Angle at Jib
  • Continuous Rotation and Dual Planetary Gear Rotation
  • Double Pilot Operated on Slewing and Pilot Operated Check Valves on all Cylinders
  • Special Extra High Tensile Steel Structure (Unit Weighs only a Few Hundred Pounds More Than PM 85 Version)
  • Hydraulic Extra-Wide Main Outriggers at Pedestal – 29′ 6″ Span – Hydraulic Tilting when Retracted.  Radio Controlled
  • Hydraulic Oil Cooler, High Pressure Return Filter and Min. 92-Gallon Oil Tank for Boom
  • DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
  • PM Power Tronic Electronic System Allowing Constant Crane Monitoring & Visual Display
  • SCANRECO Radio Remote Control Includes:  2 Batteries, In-Cab Charger, Back-up Cord
  • Crane Painted PM Blue
  • Load Chart in FT. & LBS.
  • Also Included:
  • 5th Wheel Installed Over Tandem with Bracket Receiver Hook for Removable Deck
  • Program Remote Control to Include Engine Start/Stop and Variable Engine RPM
  • Auxiliary Extra-Wide Out and Down Stabilizers Mounted Behind T/A Under Frame – 26′ Spread
  • (2)  36″ Aluminum Tool Boxes Under Deck
  • (6)  PVC Stabilizer Pads with Holders
  • Dual Front Bumper Stabilizer

Extra Clean Unit in Excellent Working Order

Boom & Truck Certified – Ready to Go
