NEW PM 100024 ON KENWORTH T880 – 22′ 6″ DECK

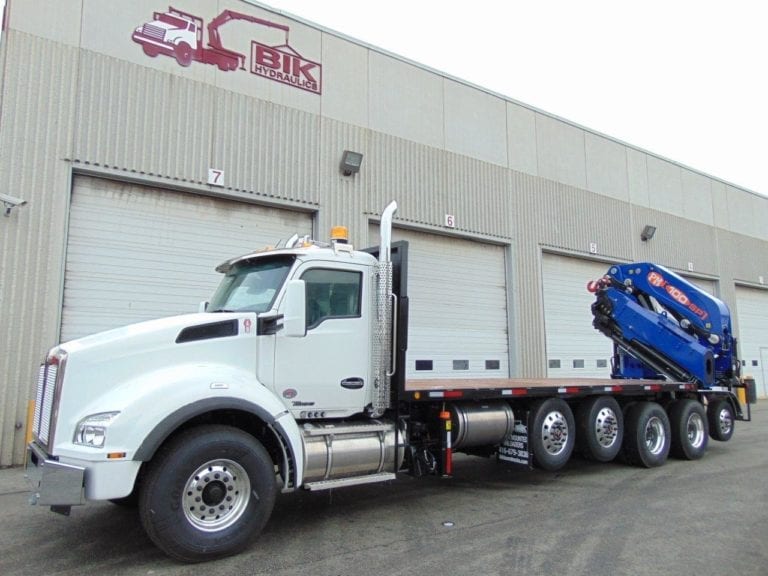

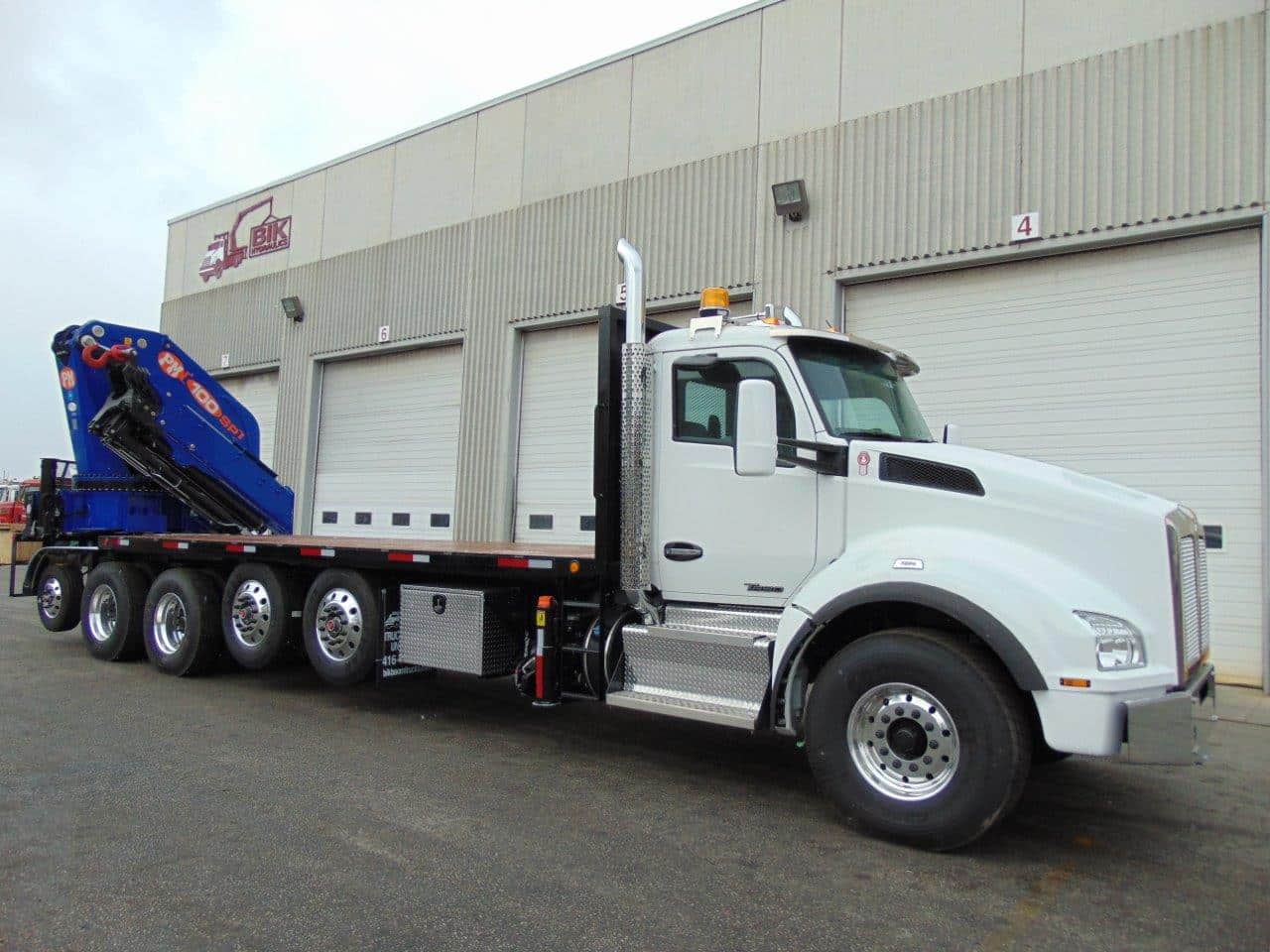

NEW PM 100024 KNUCKLE BOOM ON KENWORTH T880 6-AXLE TRUCK – 22′ 6″ DECK – 600 HP – AUTO 18 SPD – IDEAL HEAVY PRECAST HANDLER
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM 100024S KNUCKLE BOOM
- 4 Hydraulic Extensions to 37′ 5″ Horizontal Reach (49′ Vertical)
- Main Boom Horizontal Capacity:
- 42,400 lb @ 14′
- 32,100 lb @ 19′
- 24,010 lb @ 25′ 3″
- 20,600 lb @ 30′ 6″
- 16,250 lb @ 37′ 5″
- PM Power-Link Connections at Main, Knuckle & Jib Cylinders
- Dual Planetary Gear Motors & Continuous Boom Rotation
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- 180 Degree Flip-up Hydraulic Extra-Wide Main Outriggers at Pedestal – 28′ 7″ Span – 360 Degree Full Load Chart Stability
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100-Gallon Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with Back-up Cord
- Radio Remote Includes: 2 Batteries, In-Cab Charger, and Back-up Cord – 5 Level Turtle (Micro) Slow Down Mode
- Simplified Hydraulic Overload System Allowing Maximized Uptime and Ease of Maintenance
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
- Warranty: 1 Year Parts & Labor on Entire Boom, 3 Year on Structural Components by PM – 24/7 Crane-Tech Support by BIK
- Installed End-of-Frame, with Integral Sub-Frame, 3/8″ Front and Center -1/2″ Sheer Plating at Crane for Maximized Torsion Strength

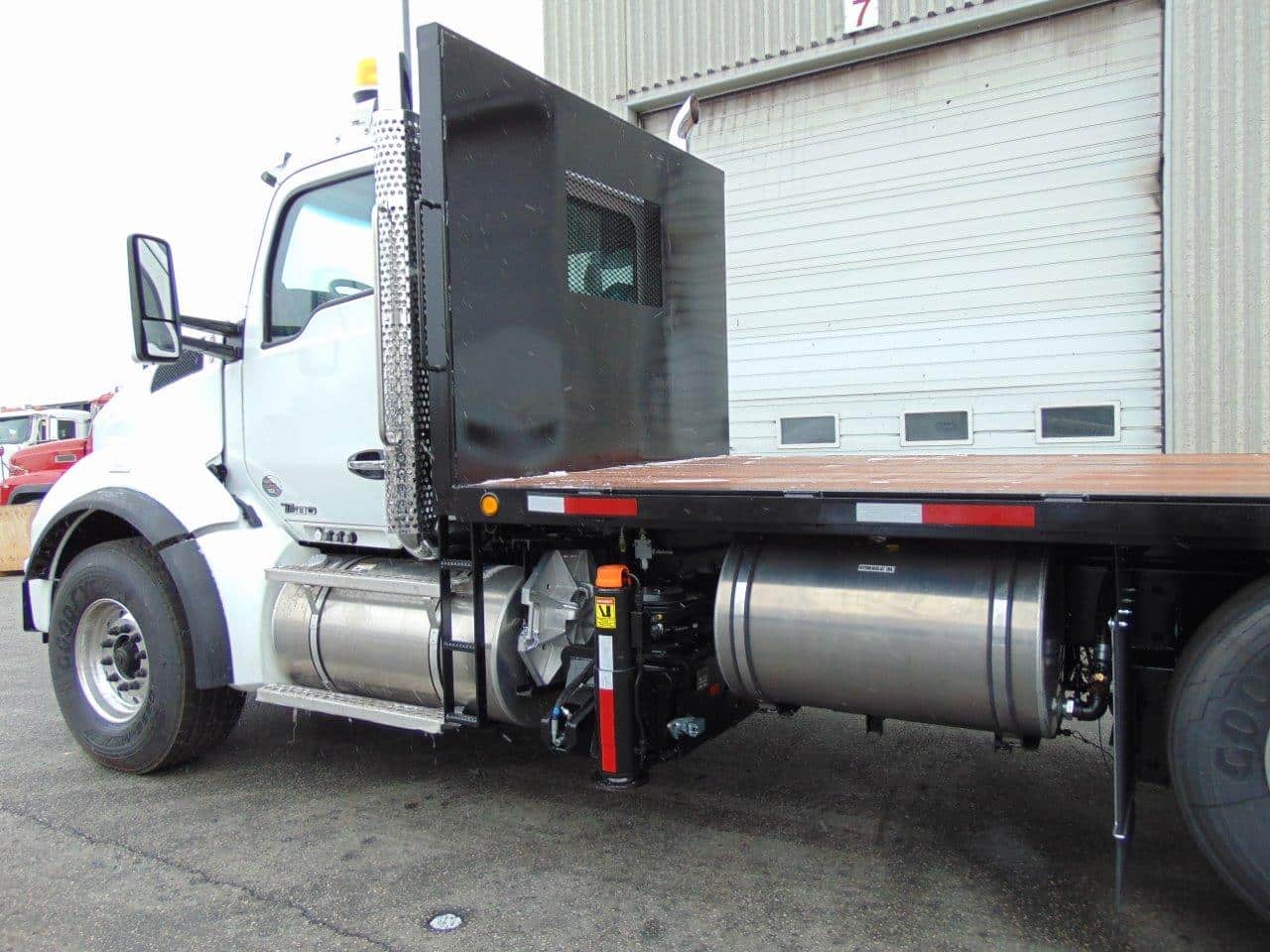

Deck Details
NEW – 22′ 6″ X 102″ FLAT DECK Hardwood Deck Surface
- 66″ Steel Headboard with 18″ Rear Removable Tail Board
- Winch Bar and Holder
- Integral 6″ Sub-Frame and Extension at Rear with Custom Engineered X-Bracing/Sheer Plating at Torque Box for Maximized Side Stability
- Deck Primed and Painted Black
- 2 Deck Access Ladders at Front
- Reflectors, Conspicuity Tape, and Mud Flaps
- 8 Winches on Sliding Track Under Deck
Truck Details
NEW – KENWORTH T880 6-AXLE TRUCK – 105,000 LB GVWR
- Cummins 15L – 600 hp with Jake Brake
- Eaton Ultrashift 18 Spd Automated Trans.
- 22,000 lb Fronts with 425 / 65R22.5 Tires on Aluminum Rims
- 46,000 lb Rears on Air Ride Suspension with 11R22.5 Tires on Aluminum Outer Rims
- 2 – 13,000 lb Self-Steer Lift Axle in Front of Tandems with Low Profile Tires on Alum. Rims
- 11,000 lb Self-Steer Tag Axle Behind T/A
- Double Frame 4.3m RBM Rating
- Chrome Dual Polished Exhaust & Chrome Grill & Bumper
- Single, 120-Gallon Aluminum Fuel Tank
- Loaded with Options, Including: A/C, Tilt/Telescopic Steering, Top Level Diamond Interior, AM/FM/CD, GPS/Navigation/Bluetooth System, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Windows, Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, etc…
Also Included:
- Auxiliary XX-Wide Hydraulic Outriggers 26′ Spread at Front
- 1″ Draw Plate at Rear with Air Lines with Pintle Hook
- 36″ Aluminum Locking Checker Plate Toolbox Installed
- 4 Aluminum Stabilizer Pads – With Holders (4 pcs)
Options Available:
- 4-Ton Single Part Line Winch Detachable Pulley & Shackle at Tip for 2-Part Line to Lift 8 Ton, Installed
- Each Additional Hydraulic Extension (up to 5 more) to 9 Hyd. Extensions up to 72′ Reach
