NEW PM 100024 KNUCKLE BOOM REAR-MTD ON NEW 42′ T/A TRAILER

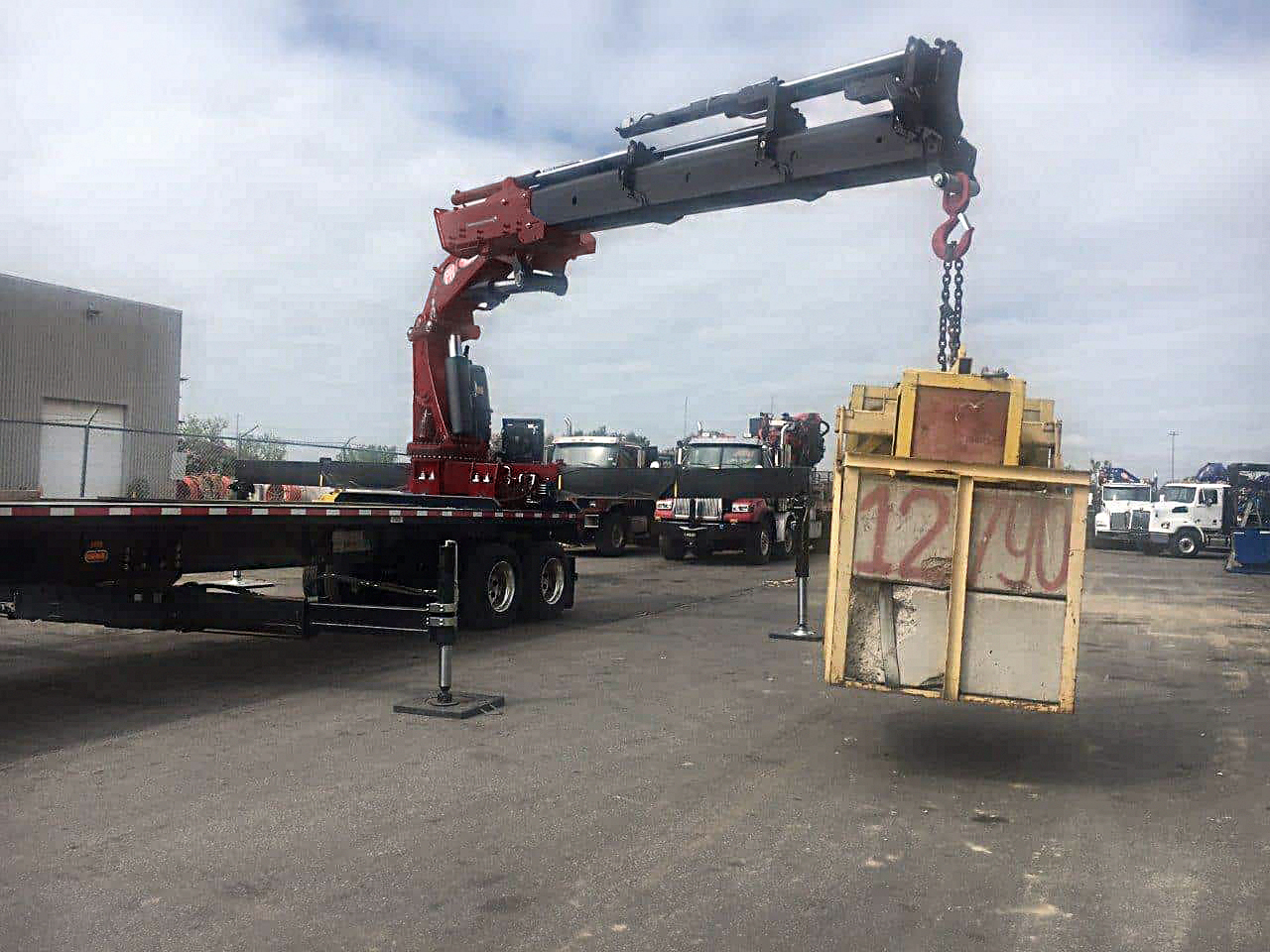

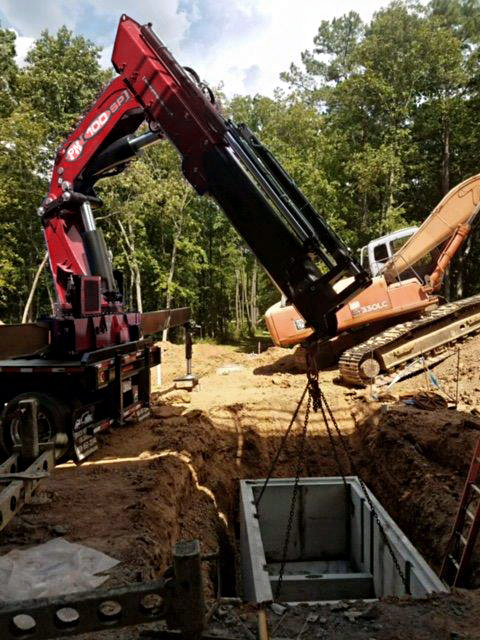

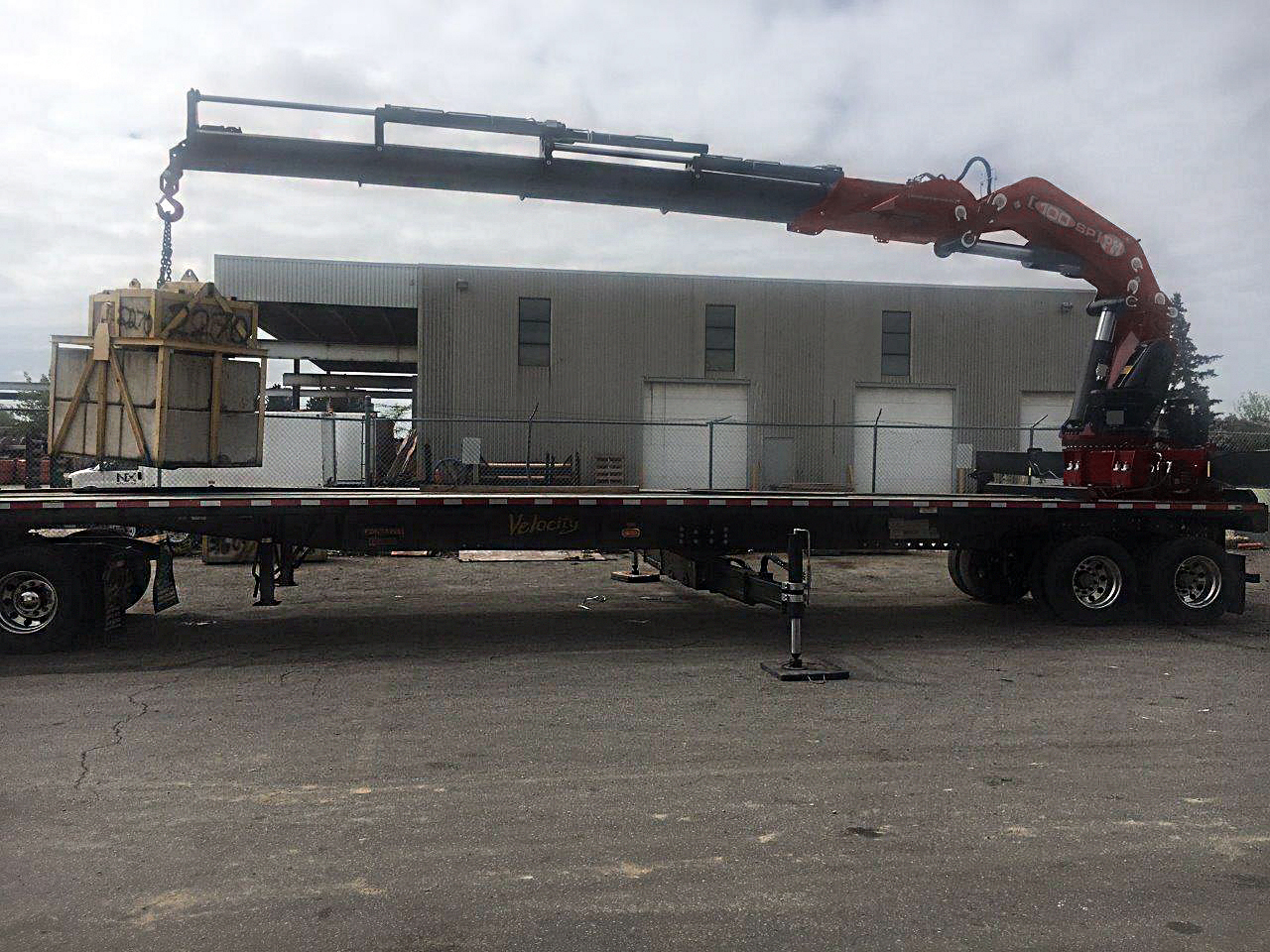

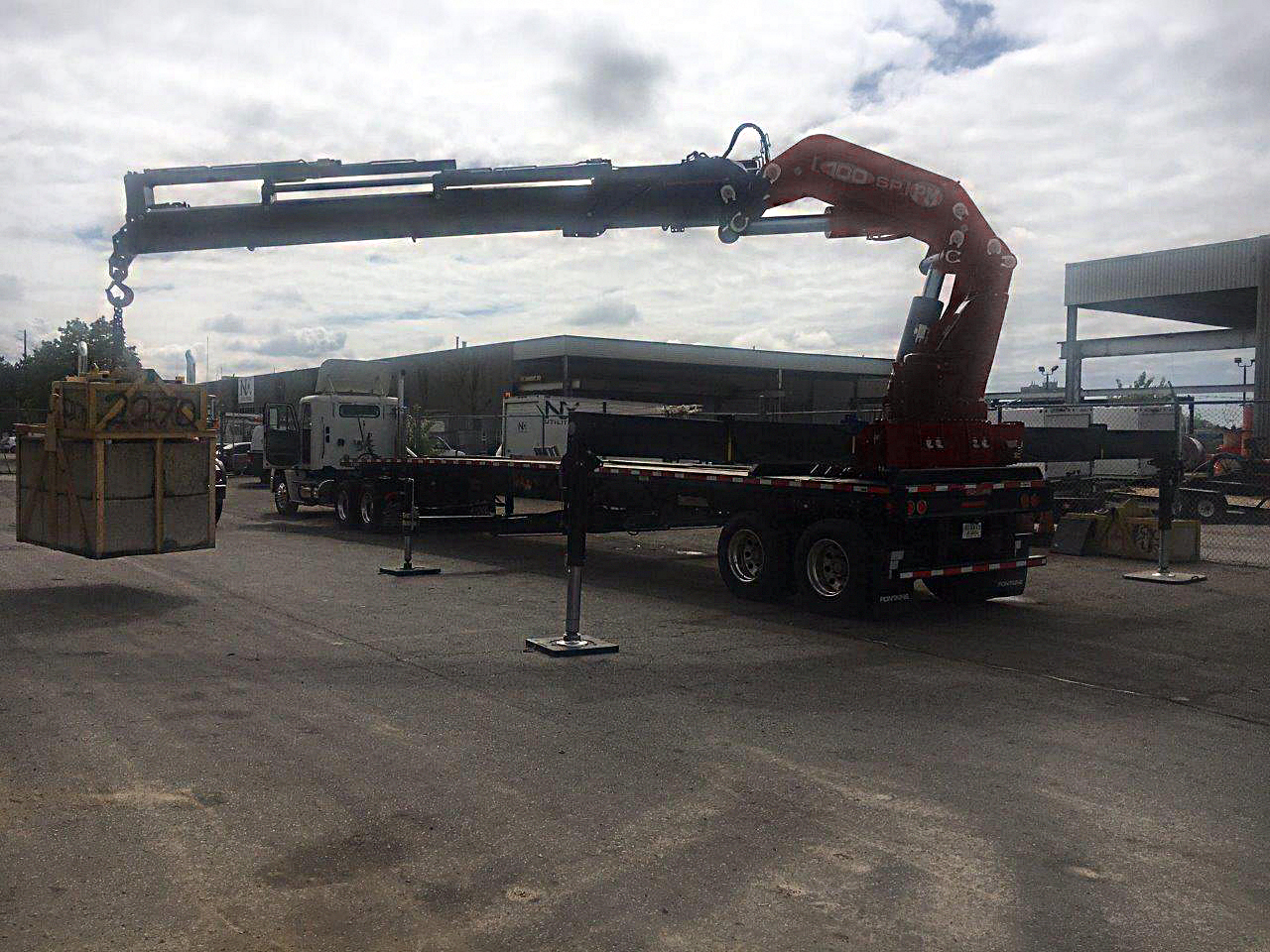

NEW PM 100024 (100 TON/M) KNUCKLE BOOM REAR-MTD ON NEW 42′ T/A TRAILER – IDEAL PRECAST UNLOADER
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

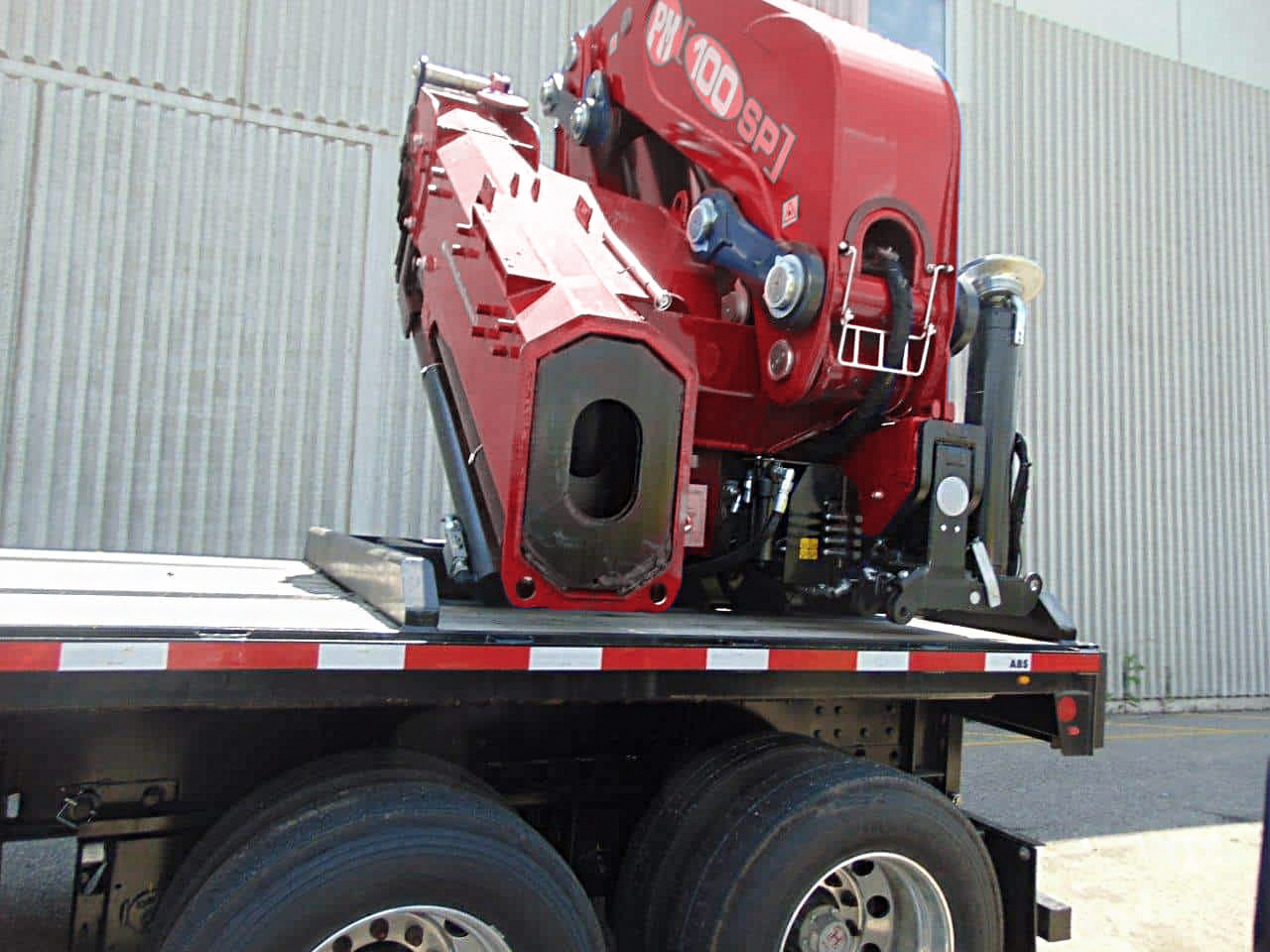

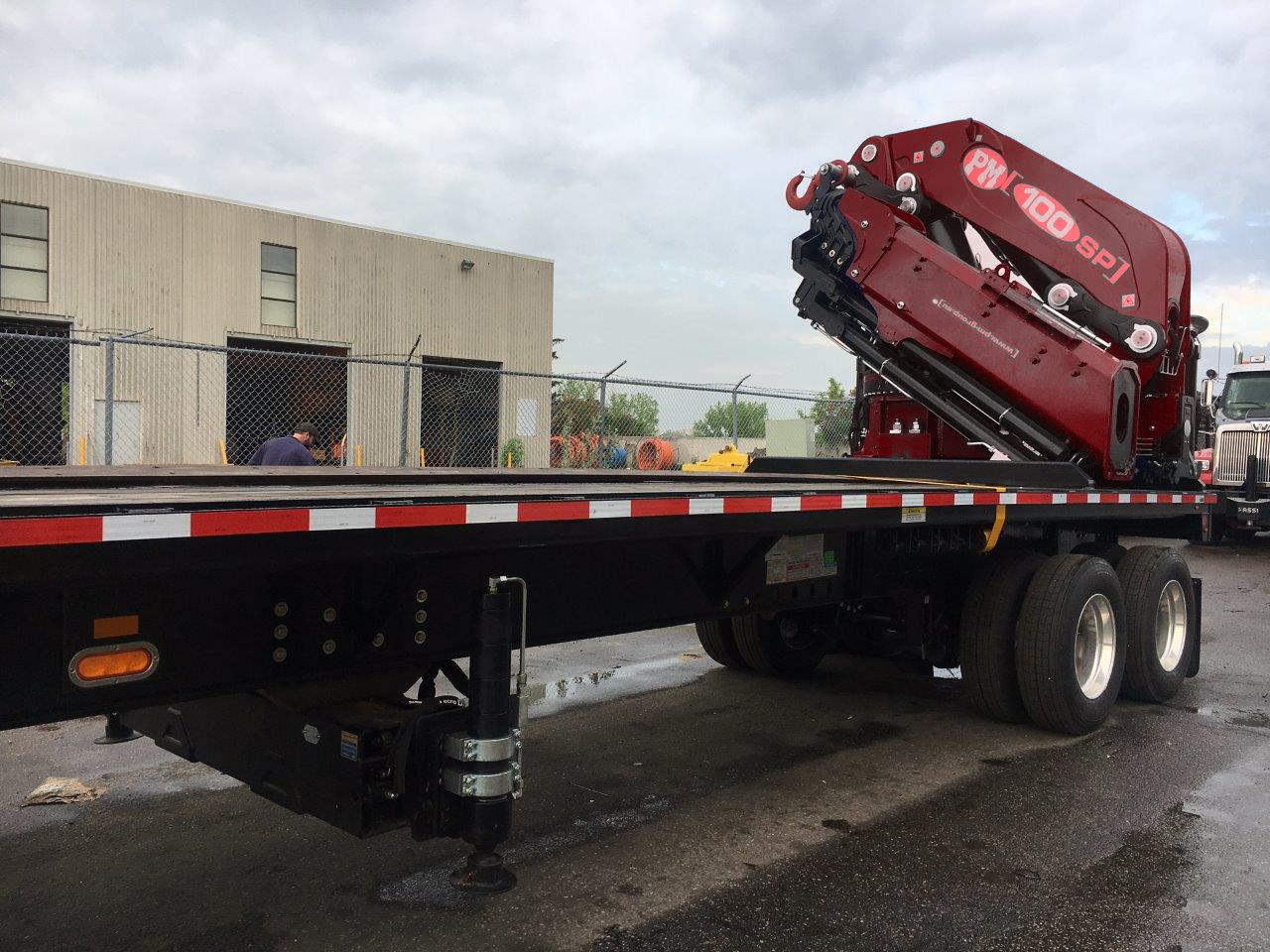

NEW – PM100024S KNUCKLE BOOM
- 4 Hydraulic Extensions to 37’ 5” Horizontal Reach (49’ Vertical)
- Main Boom Horizontal Capacity:
- 42,400 lb @ 14’
- 32,100 lb @ 19’
- 24,010 lb @ 25’ 3”
- 20,600 lb @ 30’ 6”
- 16,250 lb @ 37’ 5”
- PM Power-Link Connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- 180 Degree Flip-up Hydraulic Extra-Wide Main Outriggers at Pedestal – 28’ 7” Span – 360 Degree Full Load Chart Stability
- Front Auxiliary Stabilizers – 23’ Spread – Extra-Wide Type at Midway Point of Trailer
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100–Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with Back-up Cord
- Radio Remote Includes: 2 Batteries, In-Cab Charger, and Back-up Cord – 5 Level Turtle (micro) Slow Down Mode
- Simplified Hydraulic Overload System Allowing Maximized Uptime and Ease of Maintenance
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
- Warranty: 1-Yr. Part & Labor on Entire Boom, 3-Yr. on Structural Components
- Mounted End of Frame Mount on Trailer, with Hydraulic and Electric Connections for Tractor Wet-Line Operation
- NOTE: Longer Reach Available – Up to 9 Hyd Extensions with Main Boom Reach up to 72’ Horizontal
Trailer Details

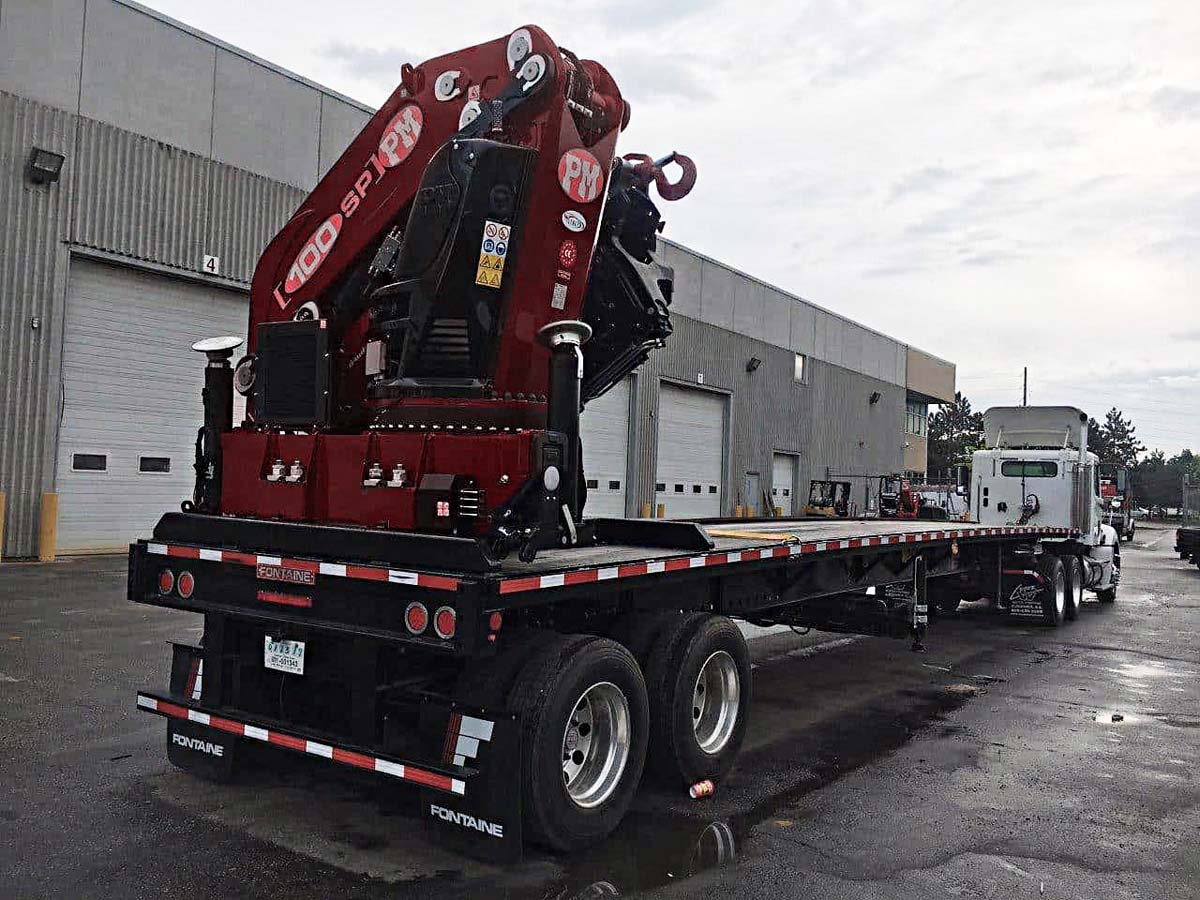

NEW – FONTAINE – 42’ x 102” TRAILER
- Sliding Hendrickson Air Ride Tandem Axle, 60” Adjustable
- 1-1/8” Wood Flooring on 12” Centers
- 49” Axle Spread with 295/75R22.5 Tires and Aluminum Rims
Available Options:
- Aluminum Stabilizer Pads (2x) with Holders Installed
- (1) 36” Aluminum Tool Box Under Deck
- Lifting Winch on Boom
