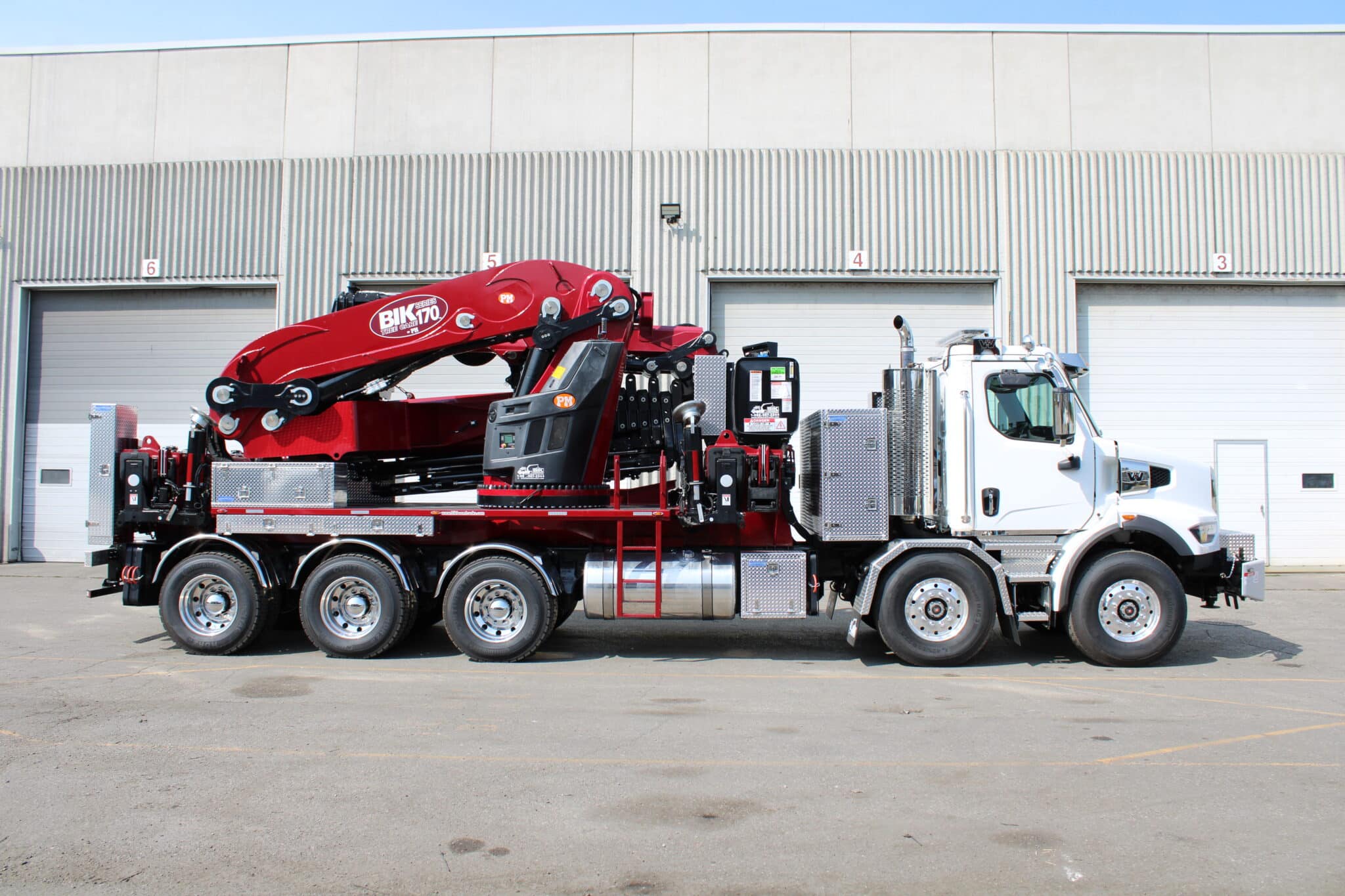

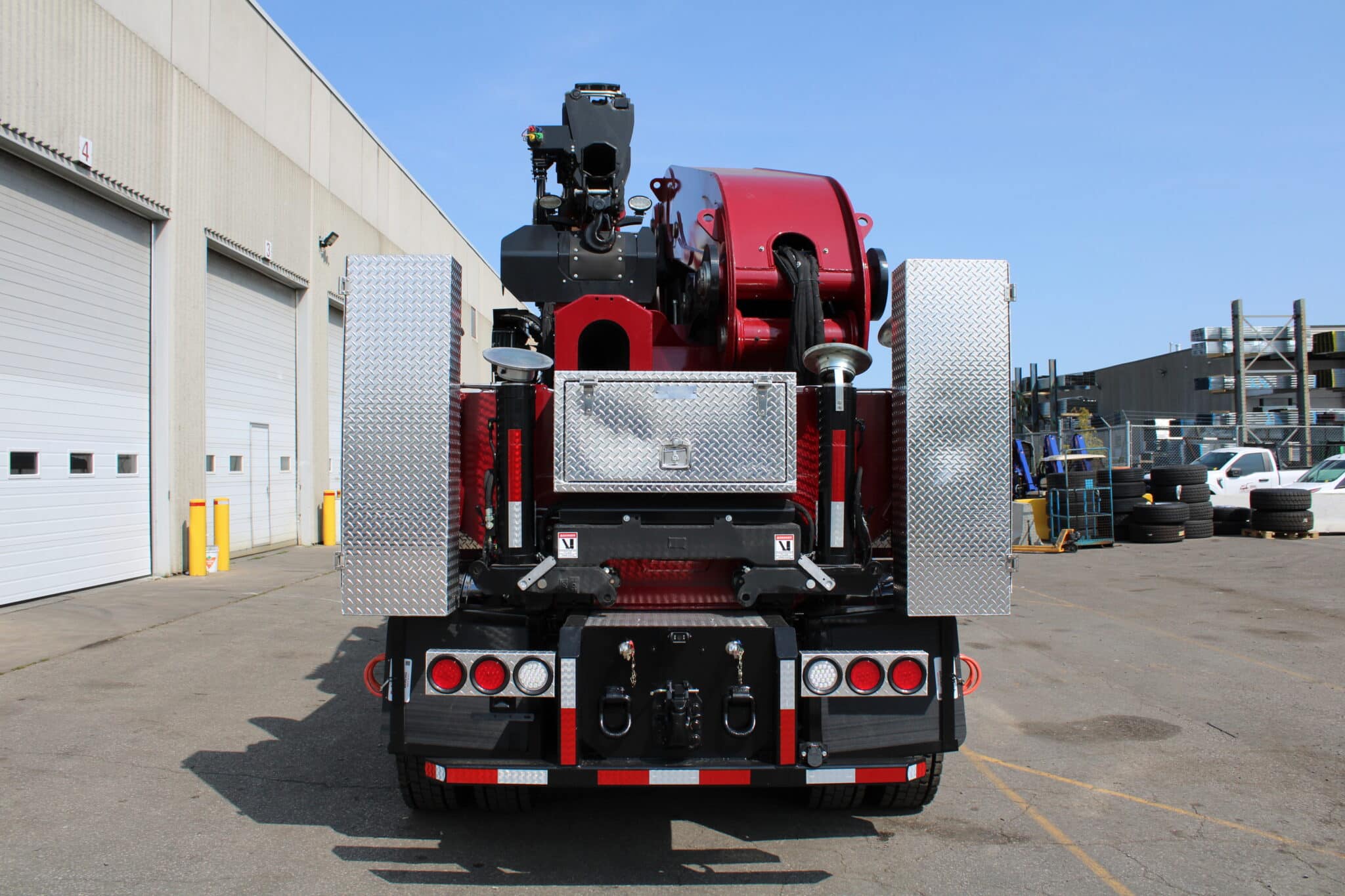

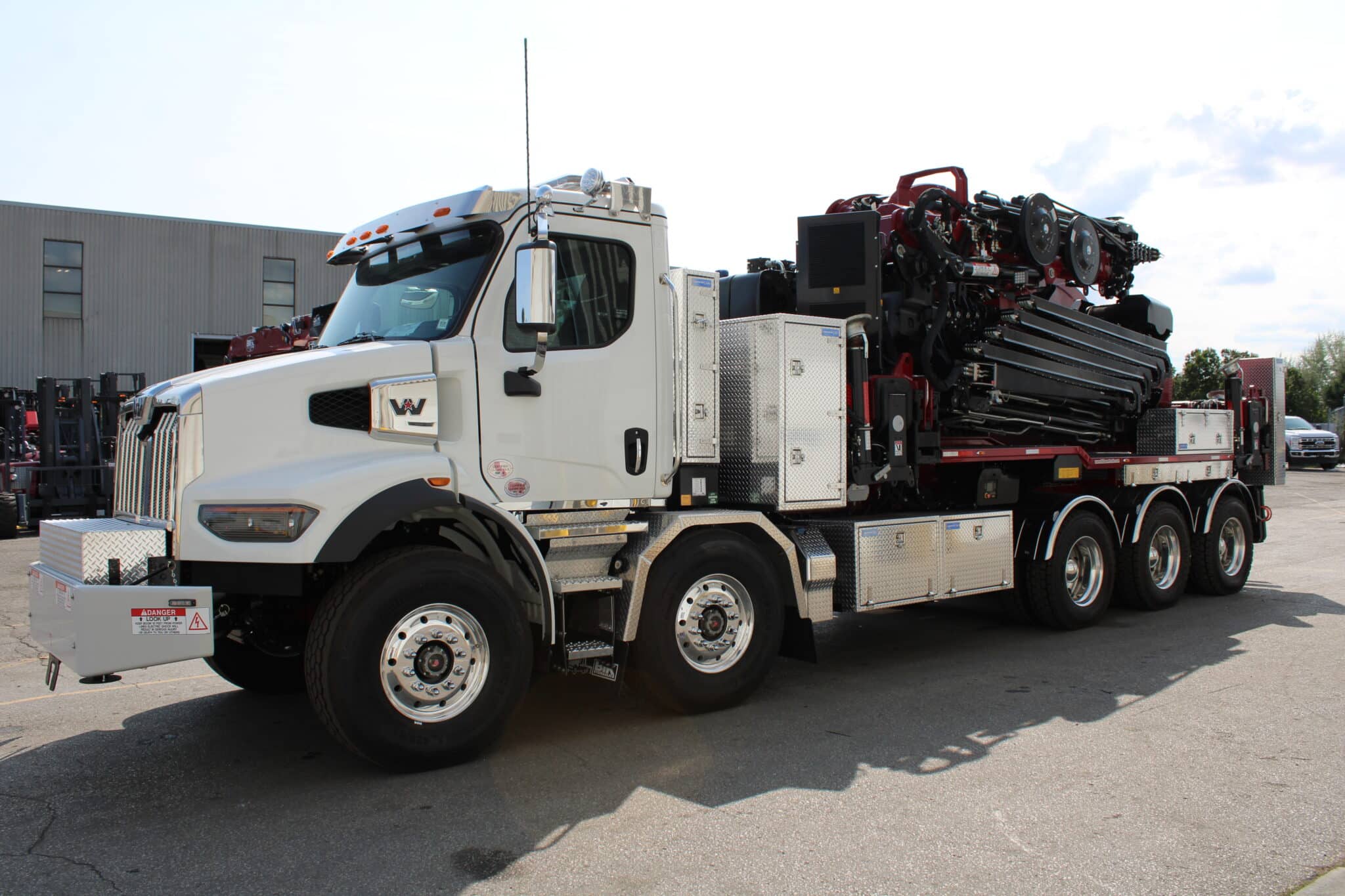

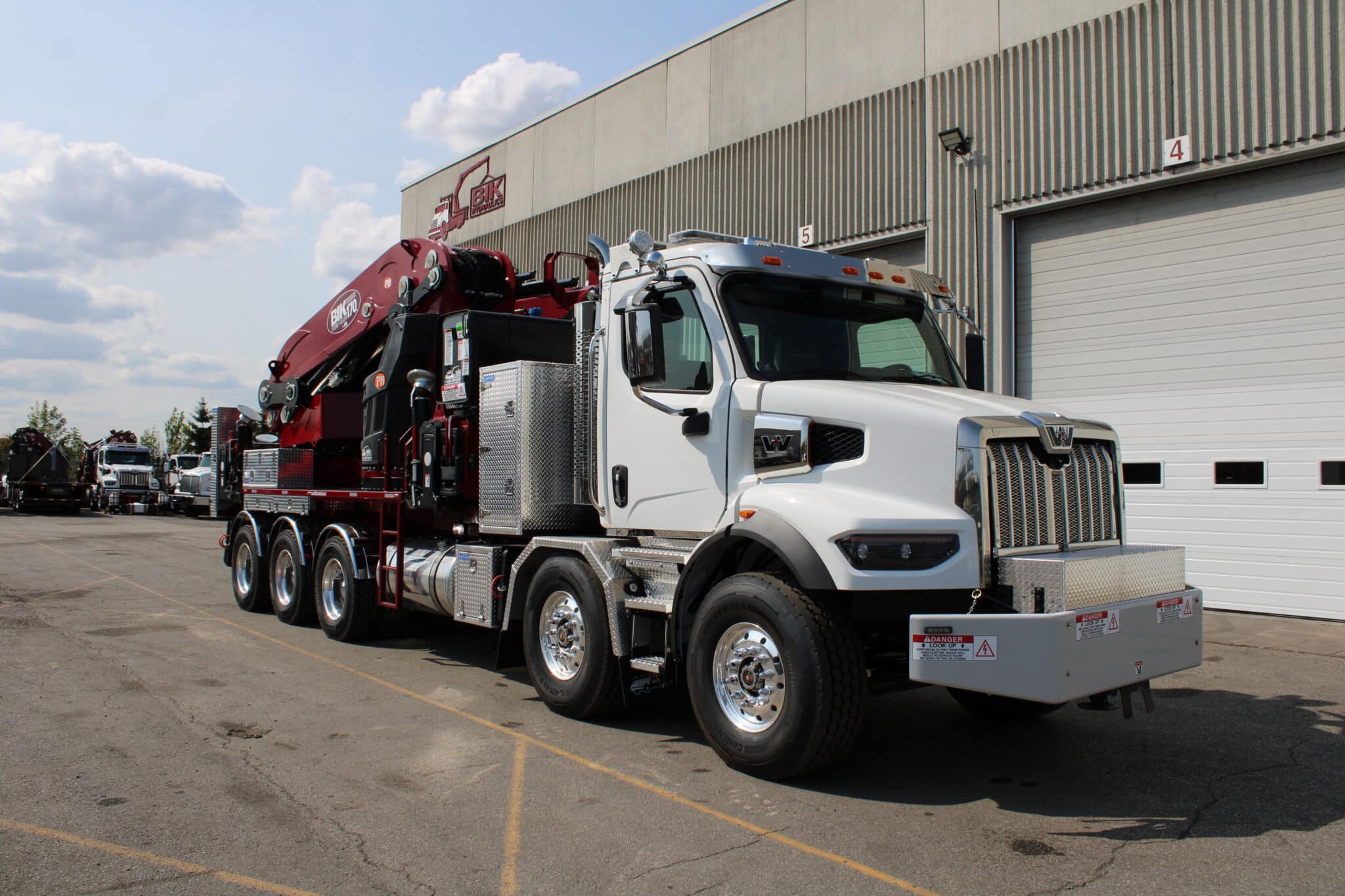

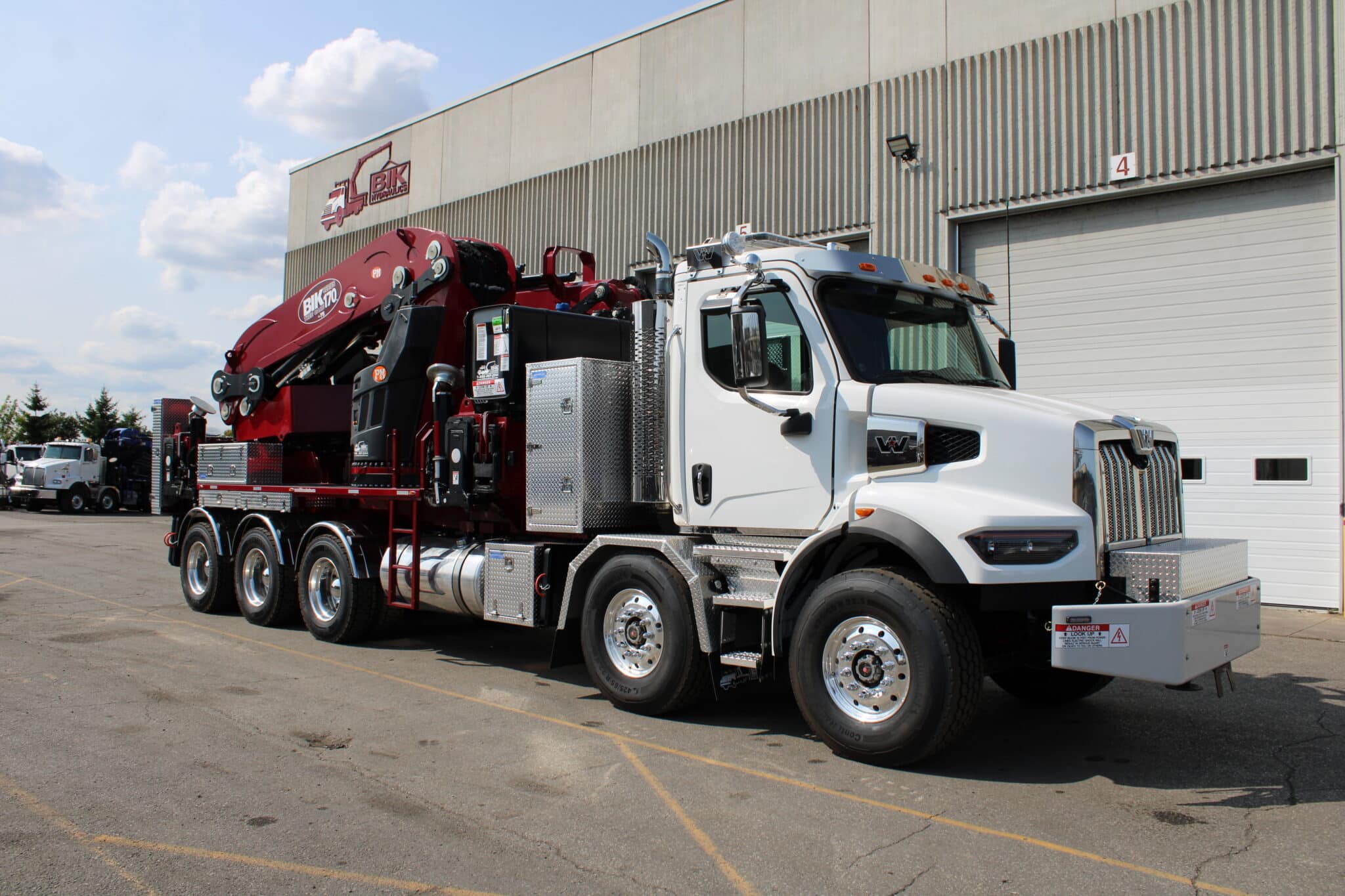

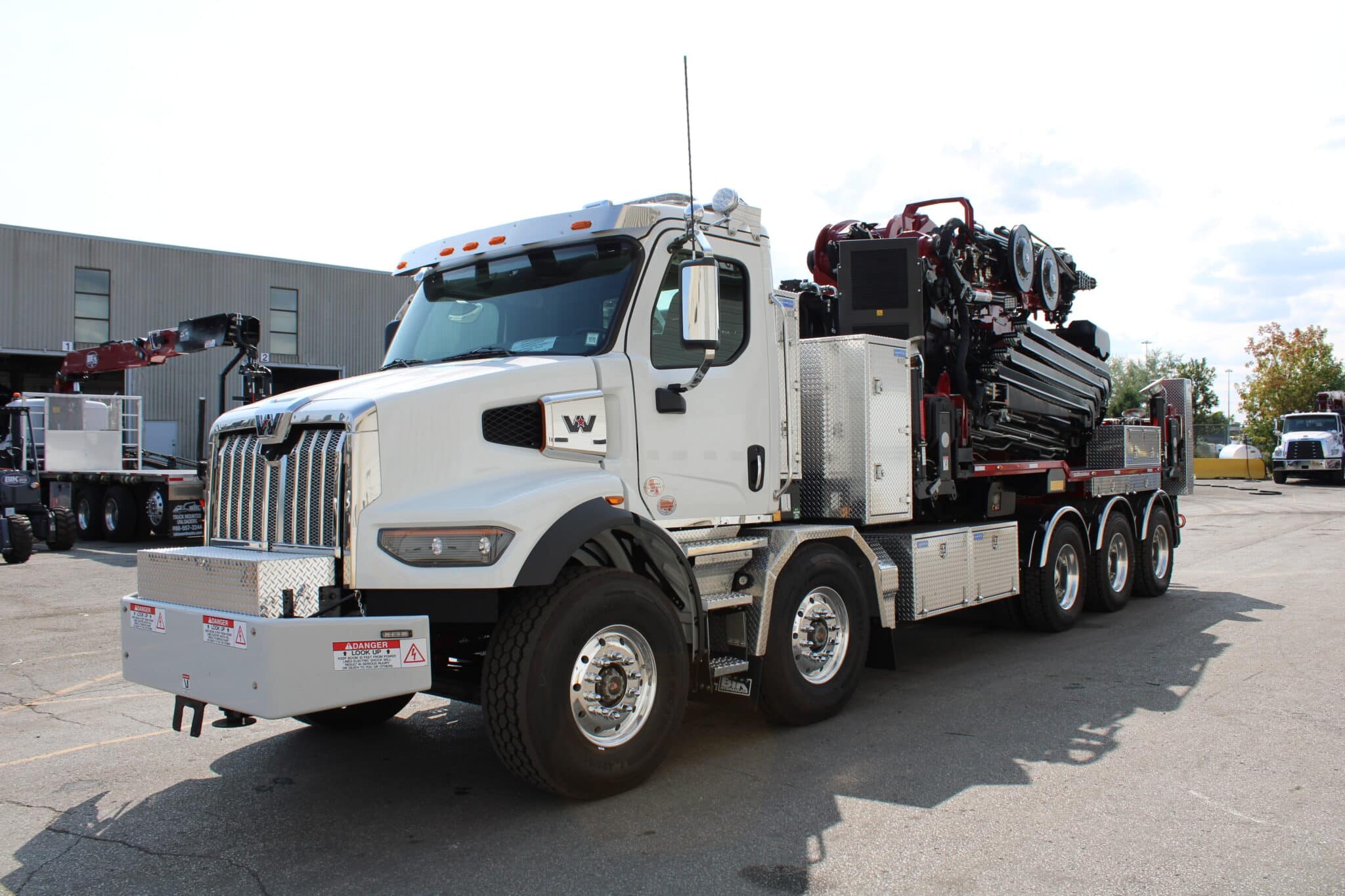

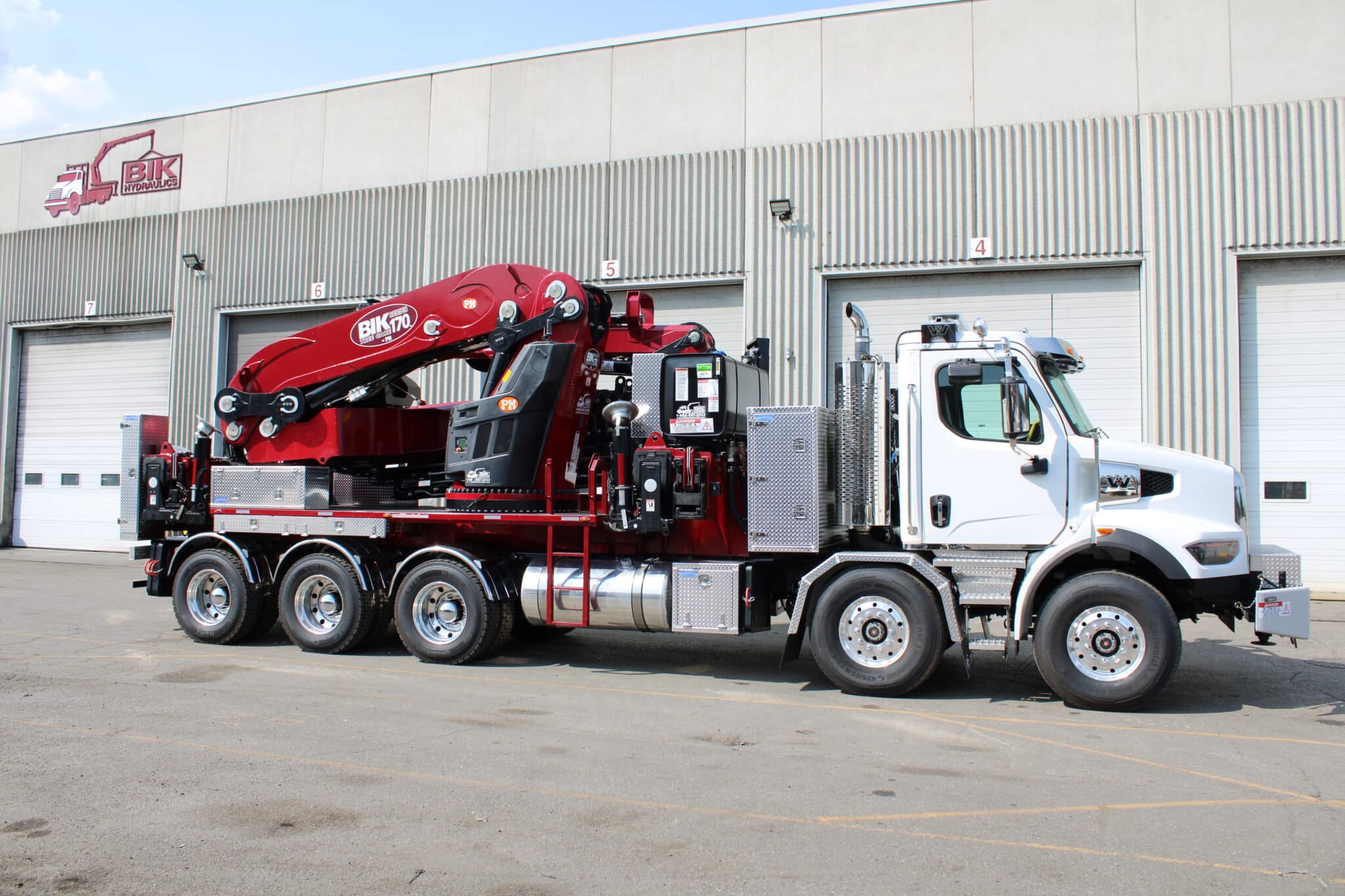

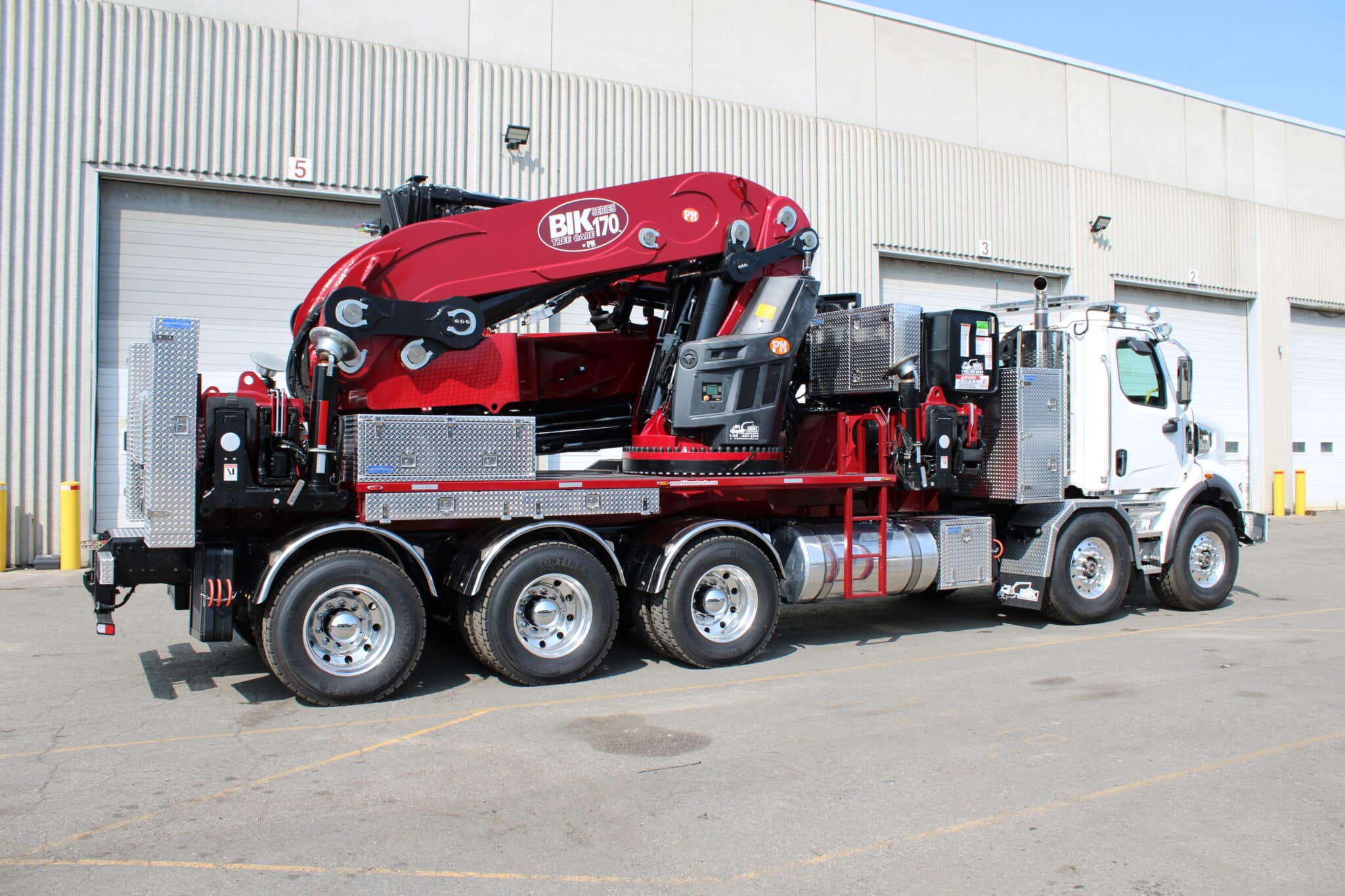

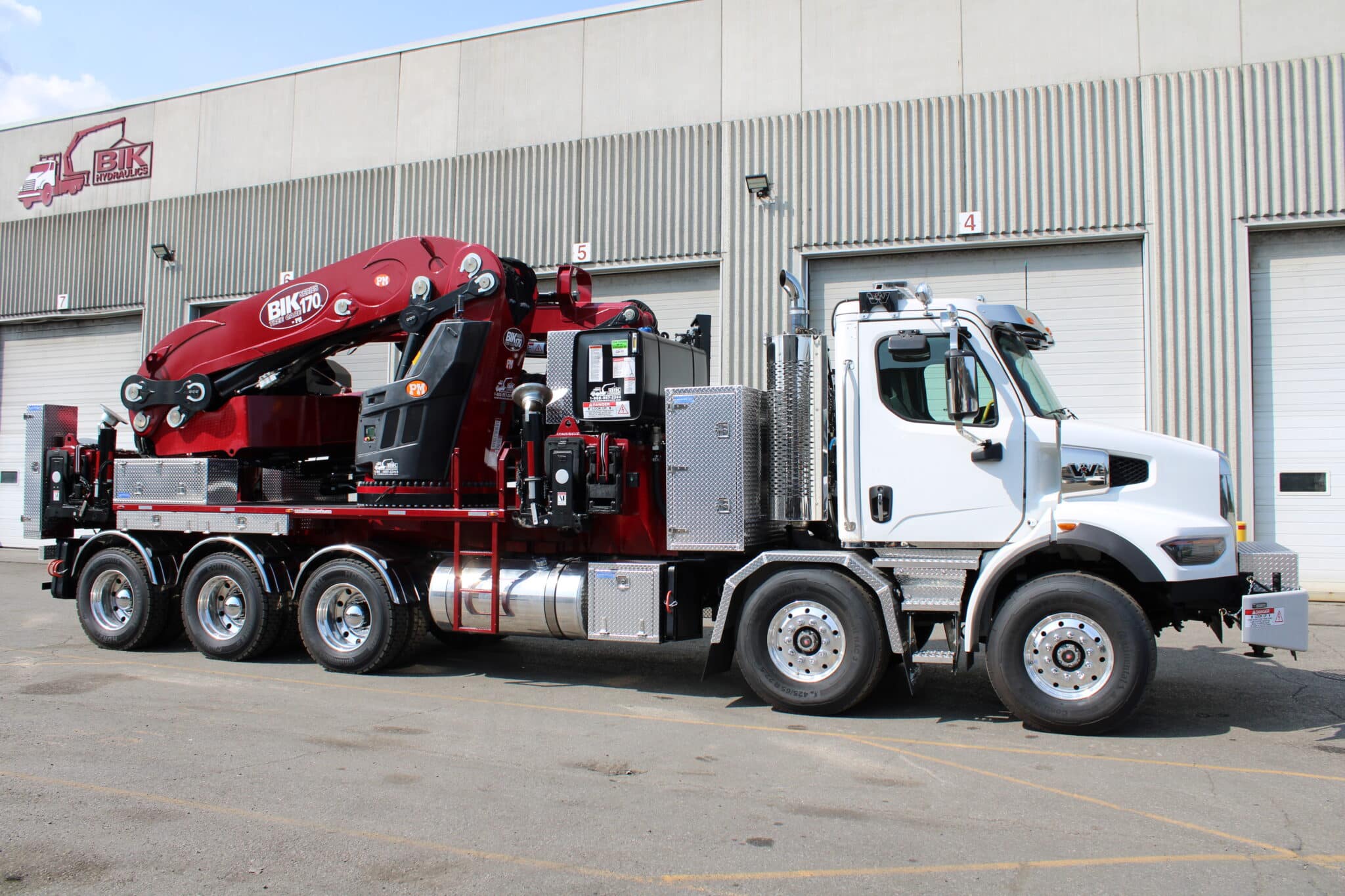

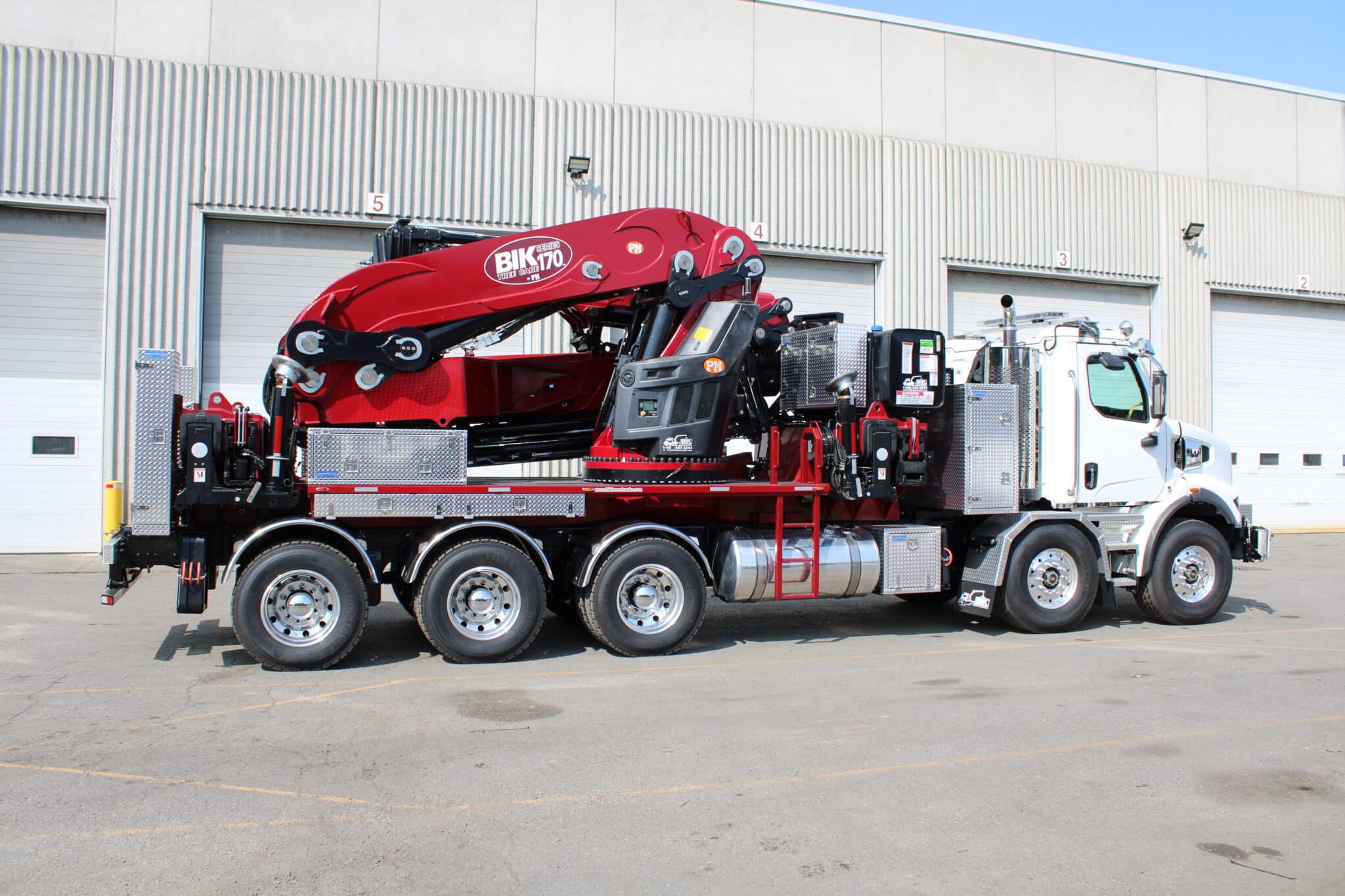

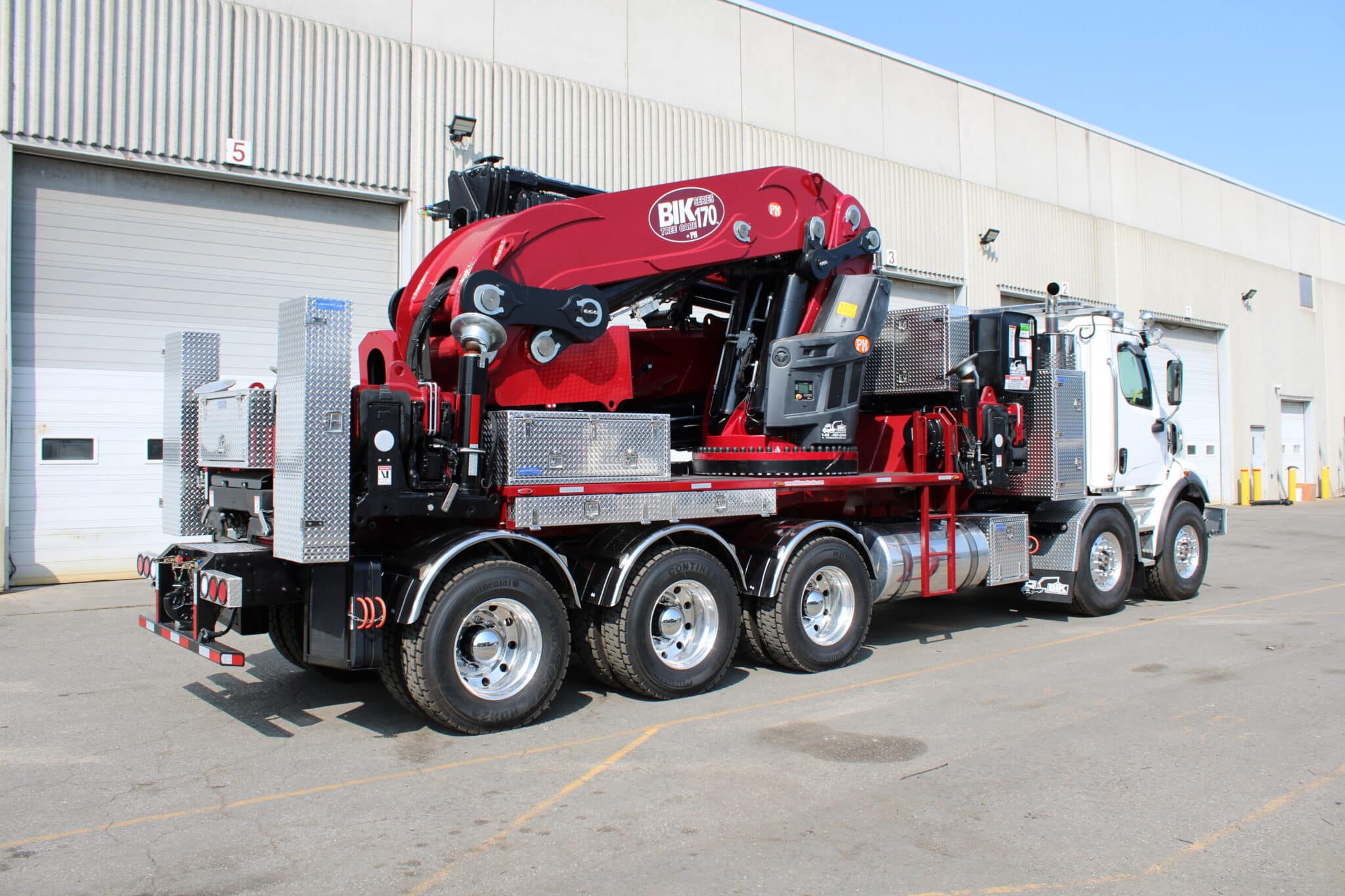

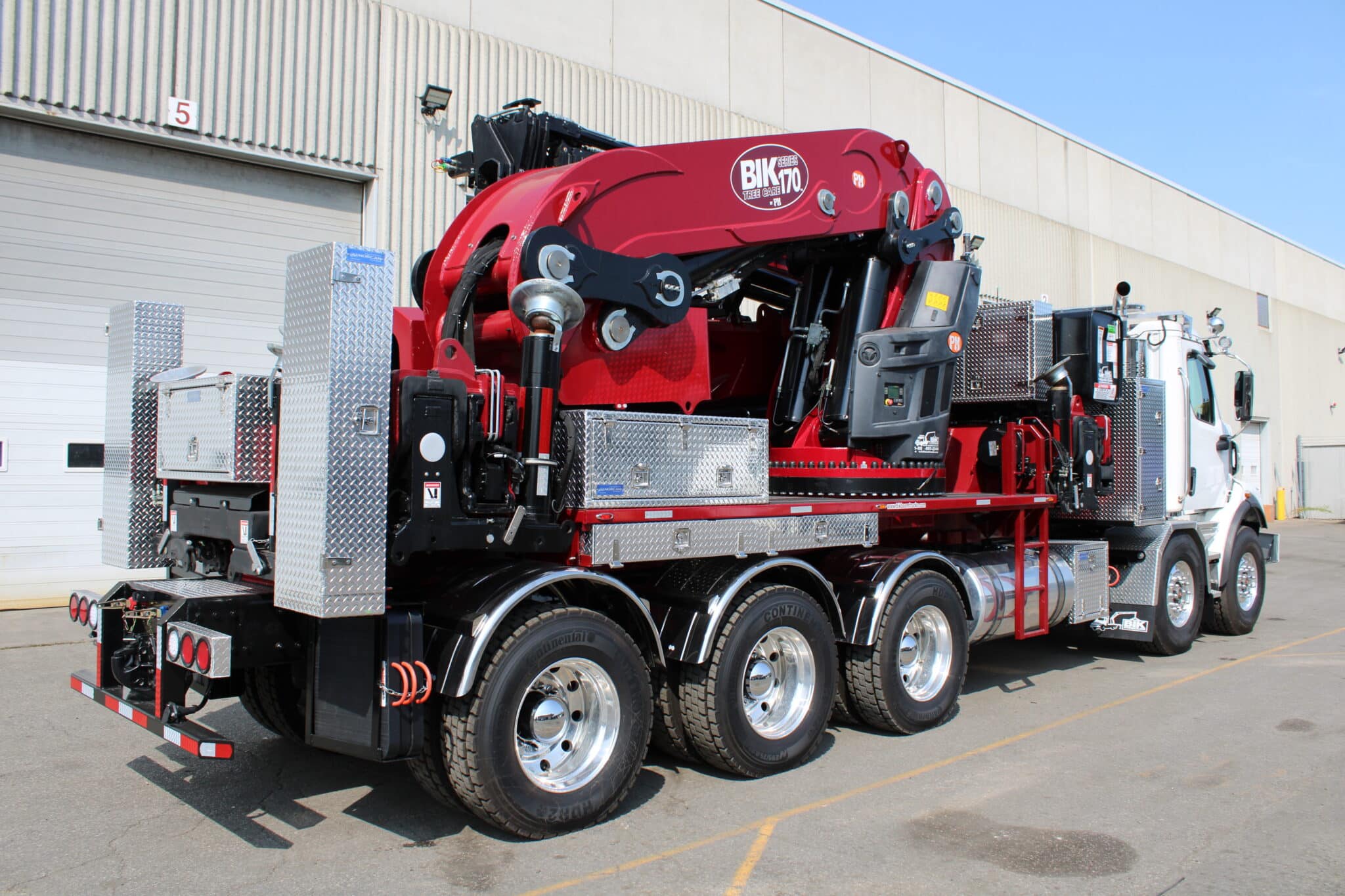

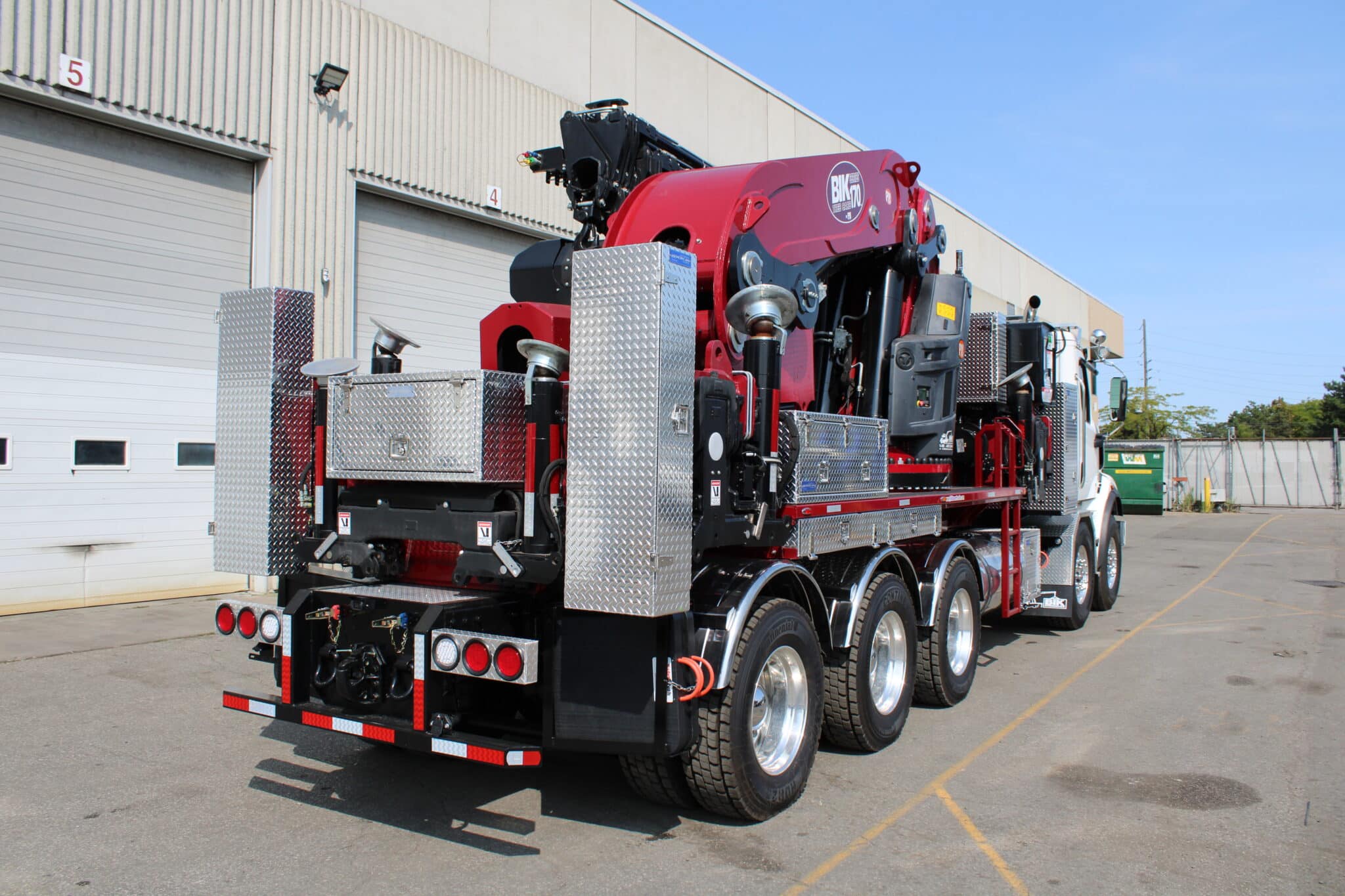

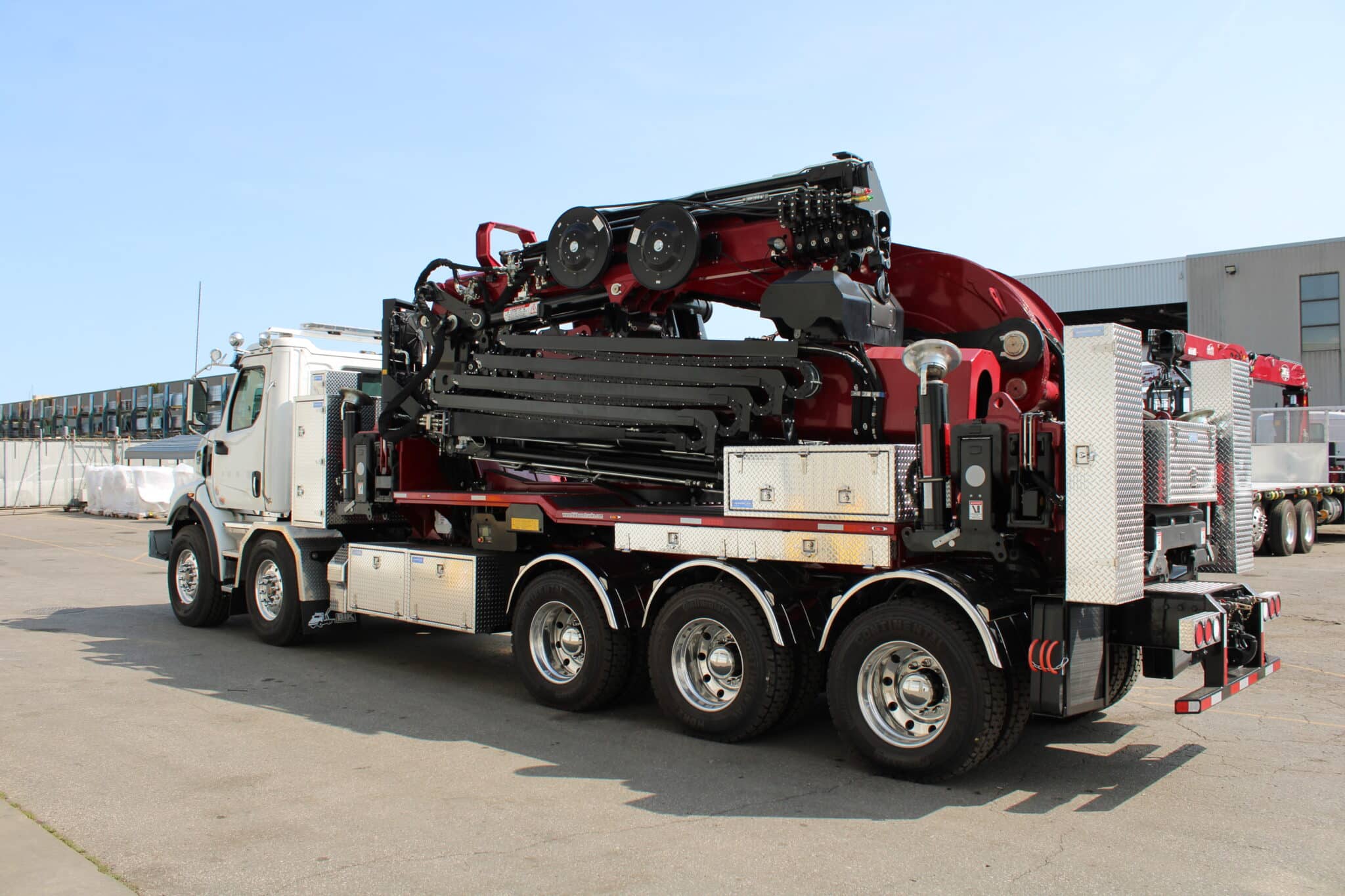

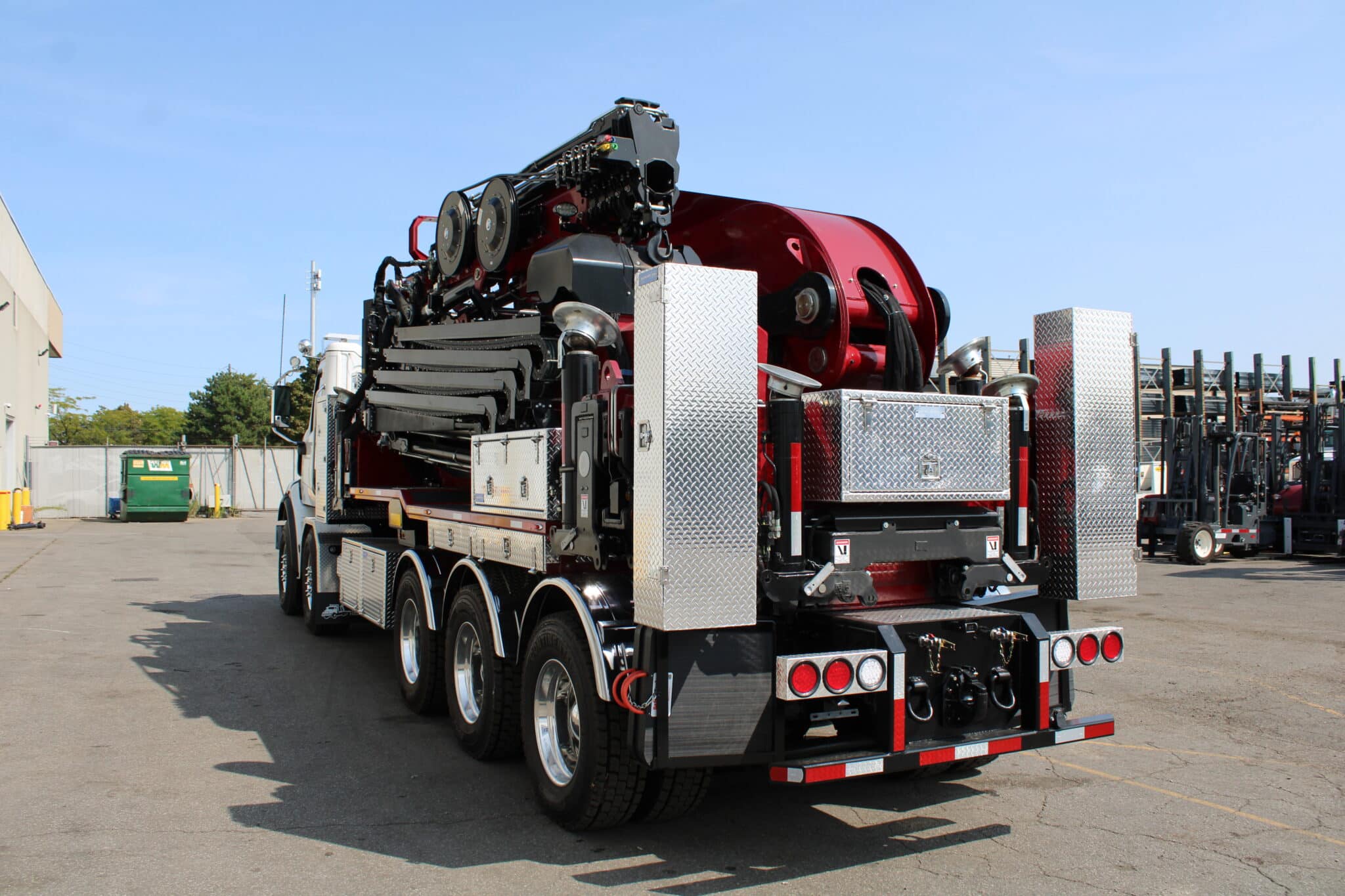

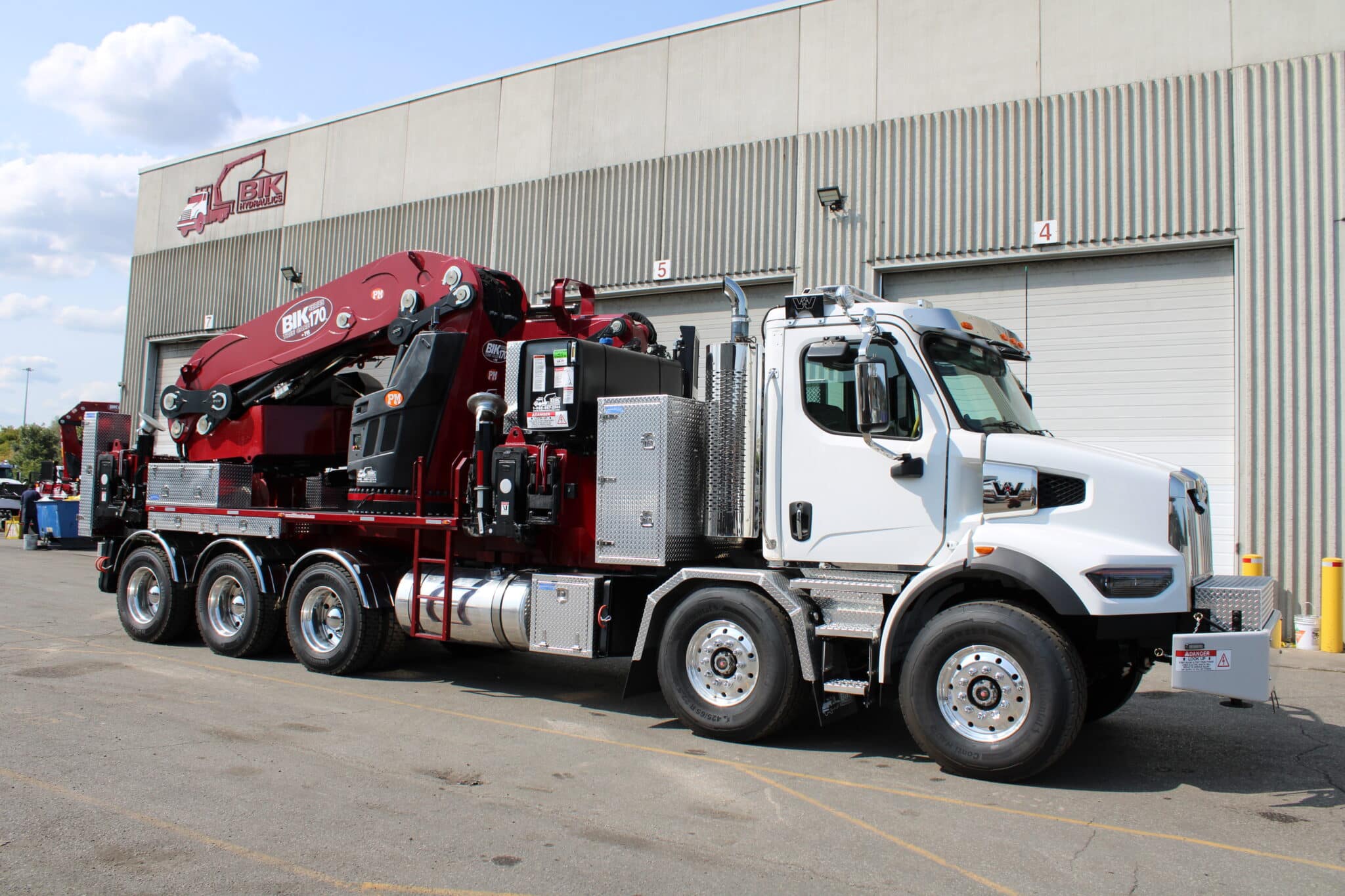

NEW BIK TREE-CARE SERIES TC-170 ON NEW WESTERN STAR 4800 – 5-AXLE

Boom Details

New – BIK Tree-Care Series TC-170 – PM 210 Knuckle Boom

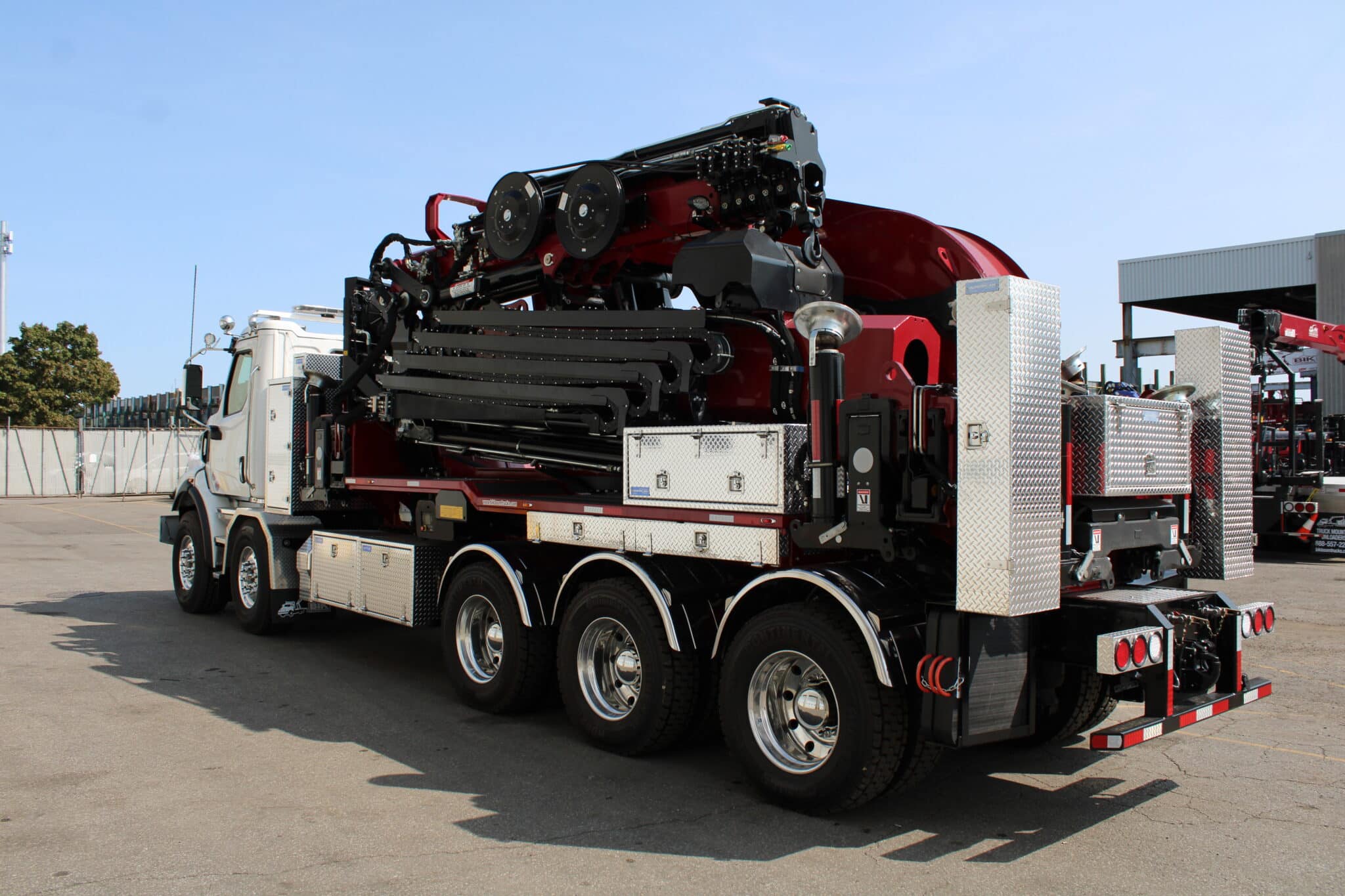

• Hydraulic Knuckle Boom with Jib fold on top of deck
• 8 hydraulic extensions in main and 6 extension in jib with one manual grapple extension
• 170’ total vertical reach (158’ horizontal)
• Continuous Rotation and Dual Planetary Gear Rotation
• Double pilot operated on slewing and pilot operated check valves on all cylinders
• Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
• Dual Main lift and dual knuckle lift cylinders – greater power and easy access , Boom / bed wings painted your colour Red
• Hydraulic Extra Wide Main outriggers at pedestal – 40’  – hydraulic tilting when retracted

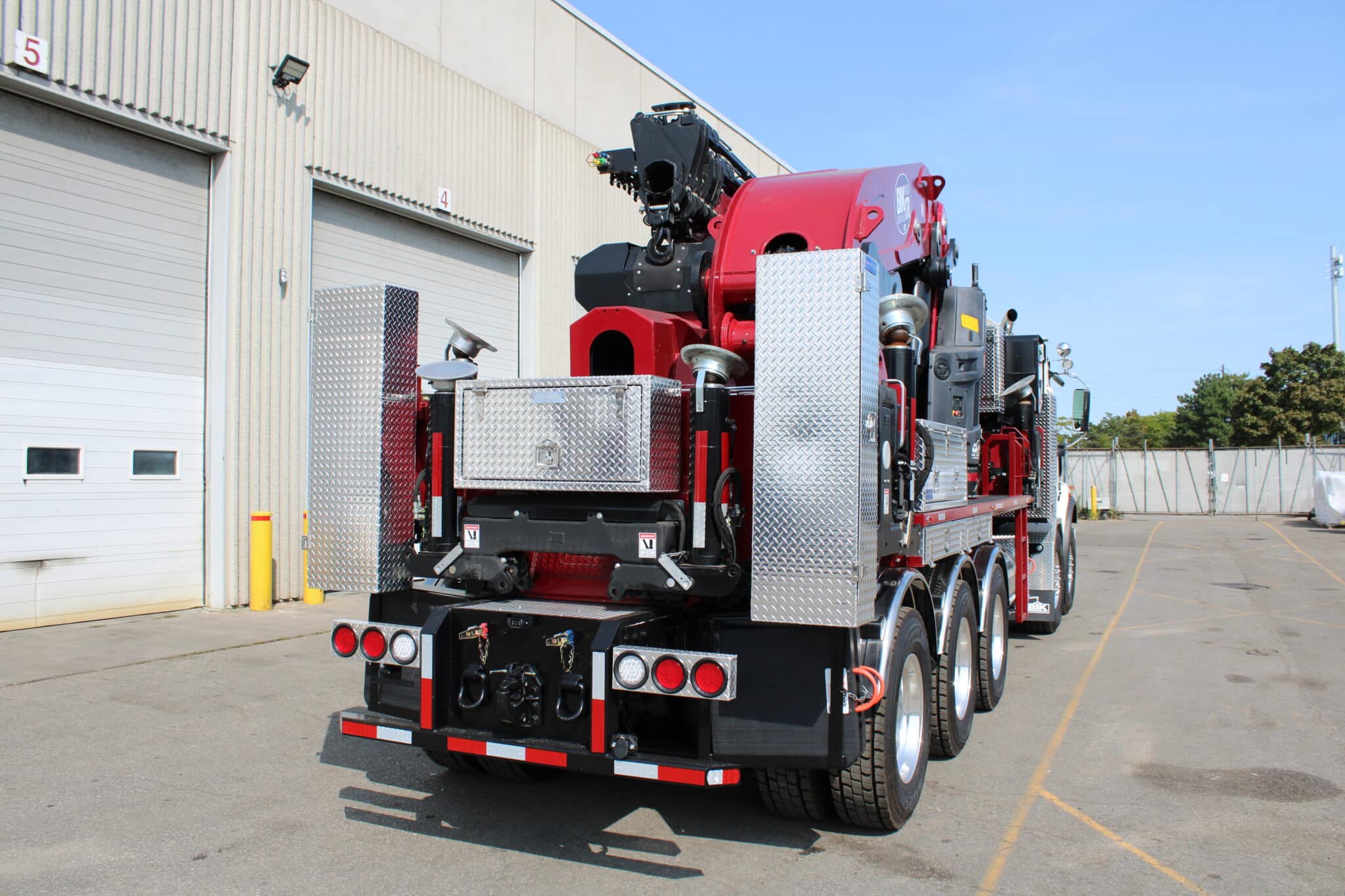

• Auxilary  34’ spread stabilizers installed at rear behind drives, 2-hyd out & down rearward & 1-at front bumoer
• Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
• 2.7 ton single part line lifting winch plumbed to the end of jib (custom jib stowe brackets on top of bed wing to be established)
• DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional  Radio Remote Control
• PM Power Tronic Electronic System allowing constant crane monitoring & visual display
• Scanreco Radio Remote Control includes: 2-batteries, in-cab charger,  back-up cord, Crane Painted PM Blue, load chart  in FT. & LBS.

Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components

Truck Details

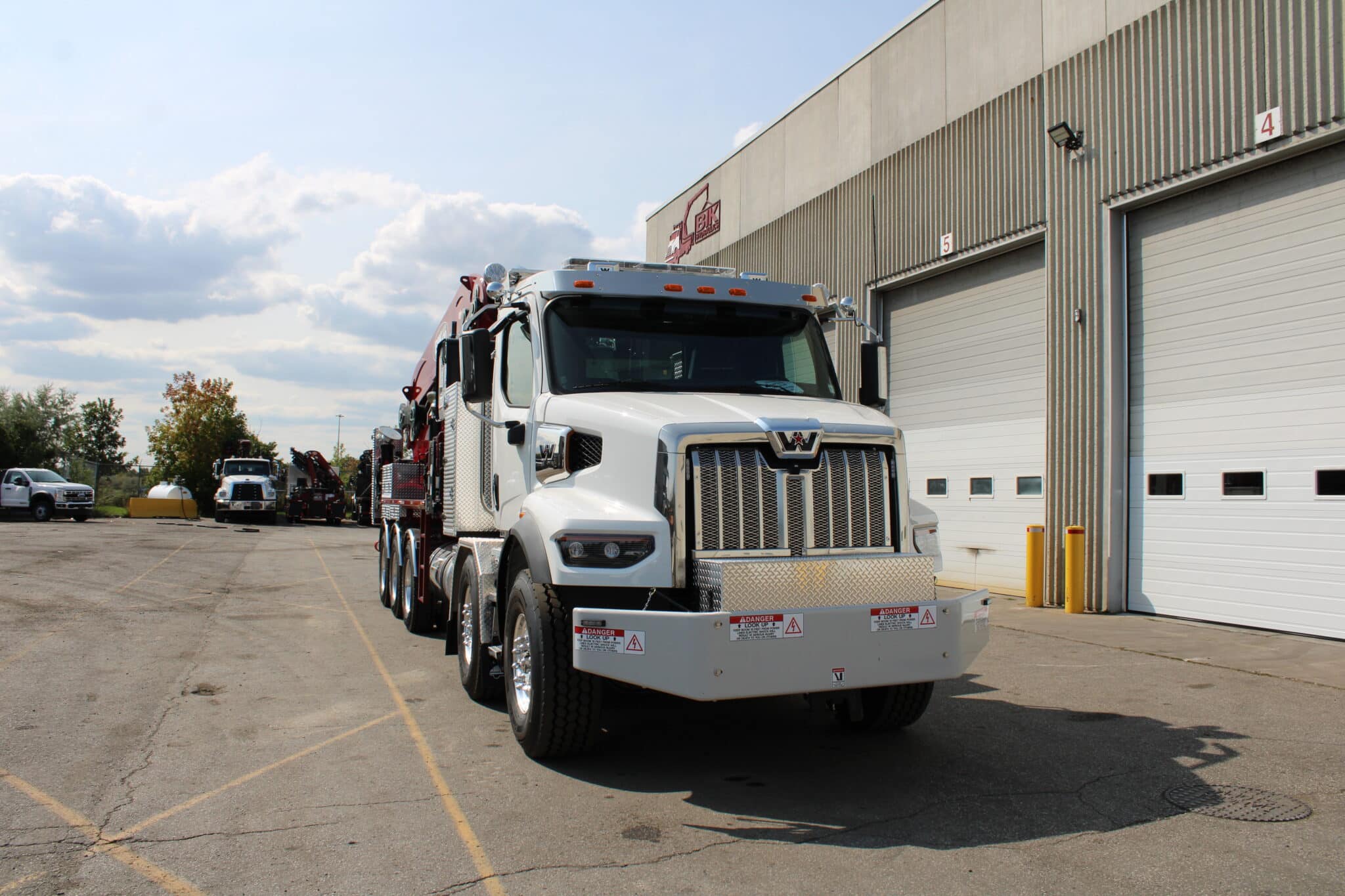

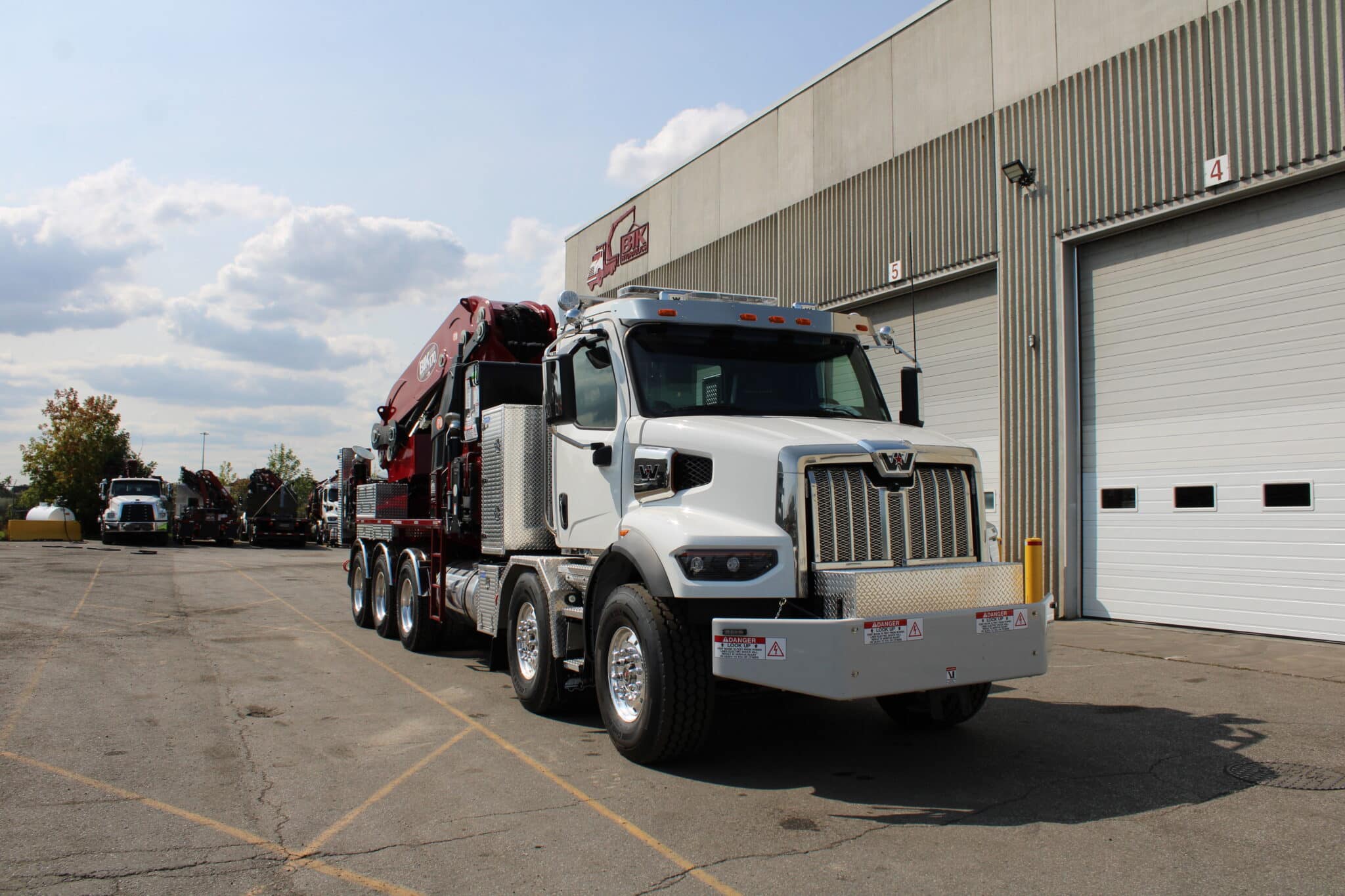

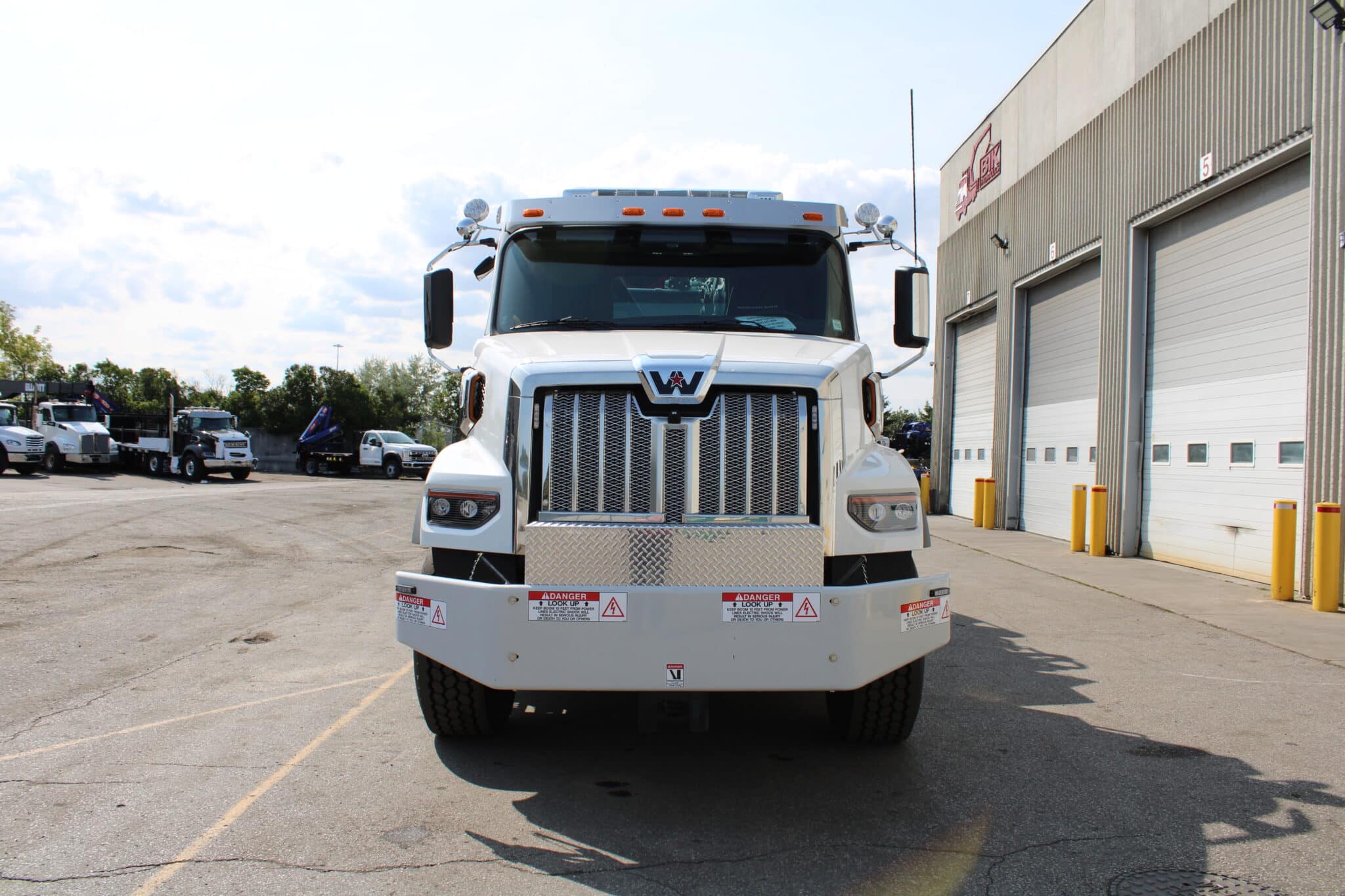

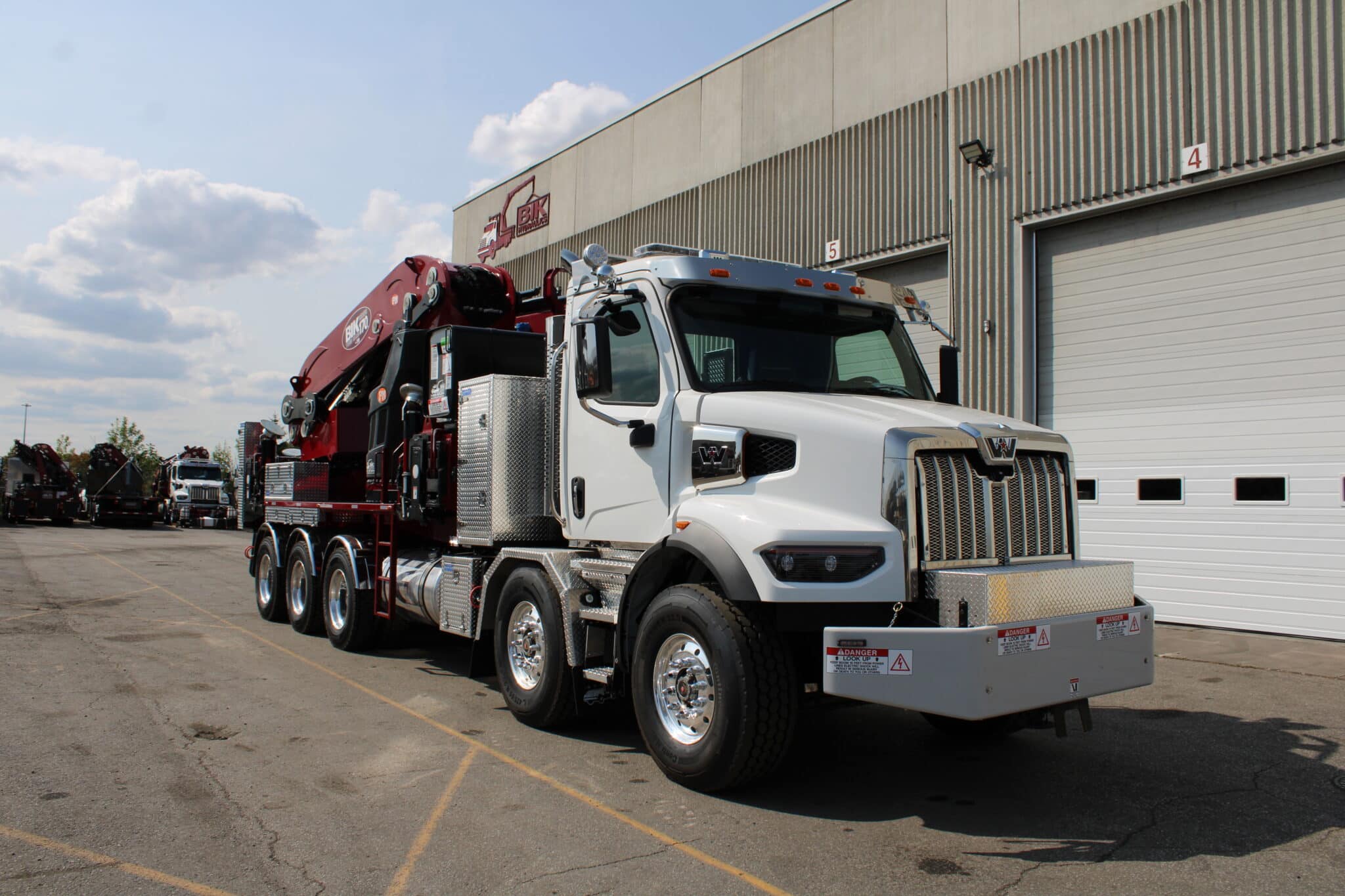

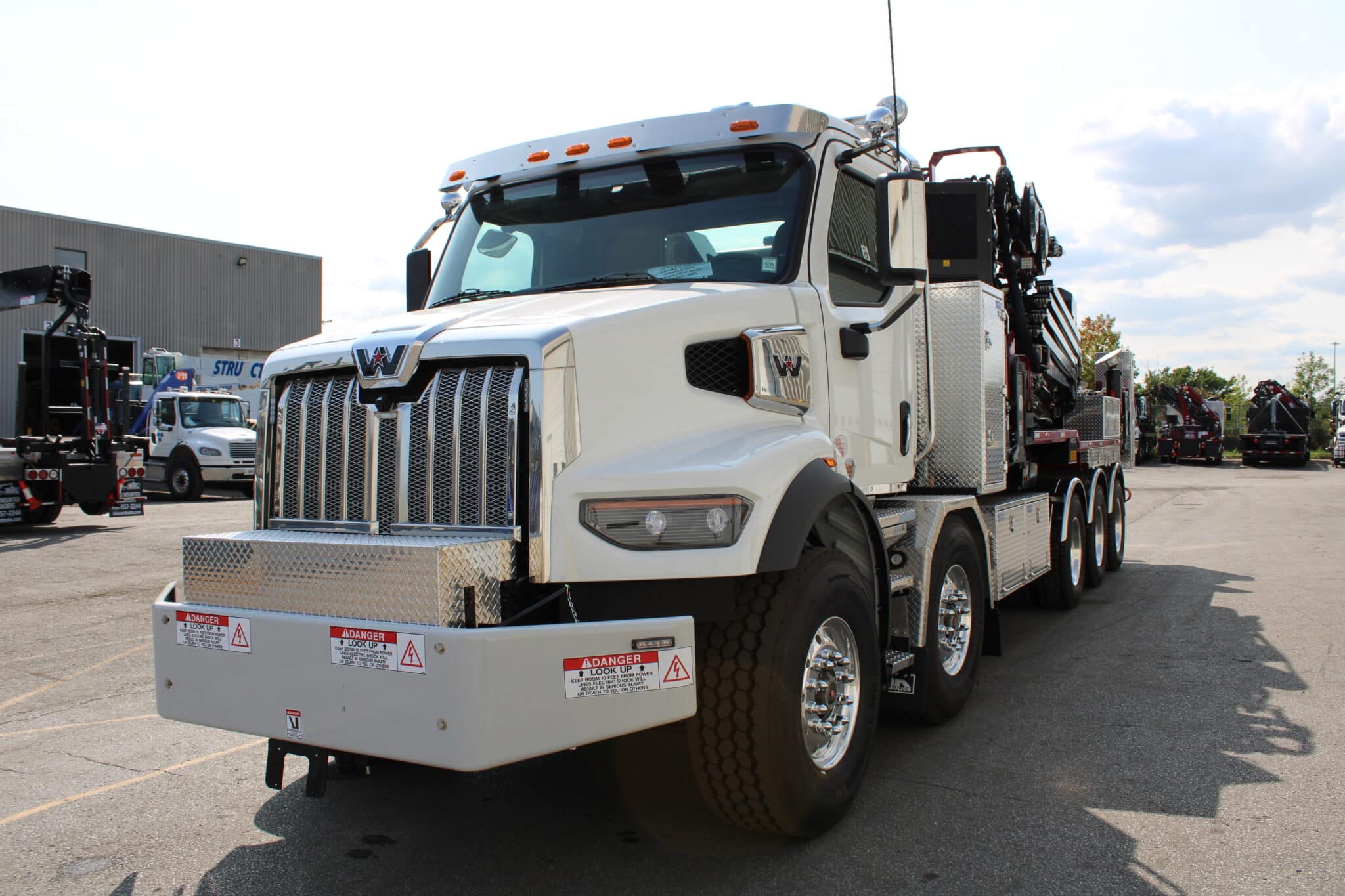

New –  Western Star 4800 Sloped Short Nose  T/A Steer-T/A Rear with Tag axle– 5 Axle

• DDC-13 Diesel –  102,000 lb GVWR 470 hp with Jake
• Eaton Ultrashift 18 spd trans.
• (2) x 20,000 LB fronts with 425 / 65R22.5 tires
• 46,000 LB Rears on  air ride Susp.
• 20,000 lb self steer tag axle behind t/a’s
• Double Frame
• Polished ALCOA Aluminum Wheels front  and outer rear
• Dual Chrome single polished Exhaust, Chrome Grille &  Bumper
• Dual 80 gallon aluminum fuel tank

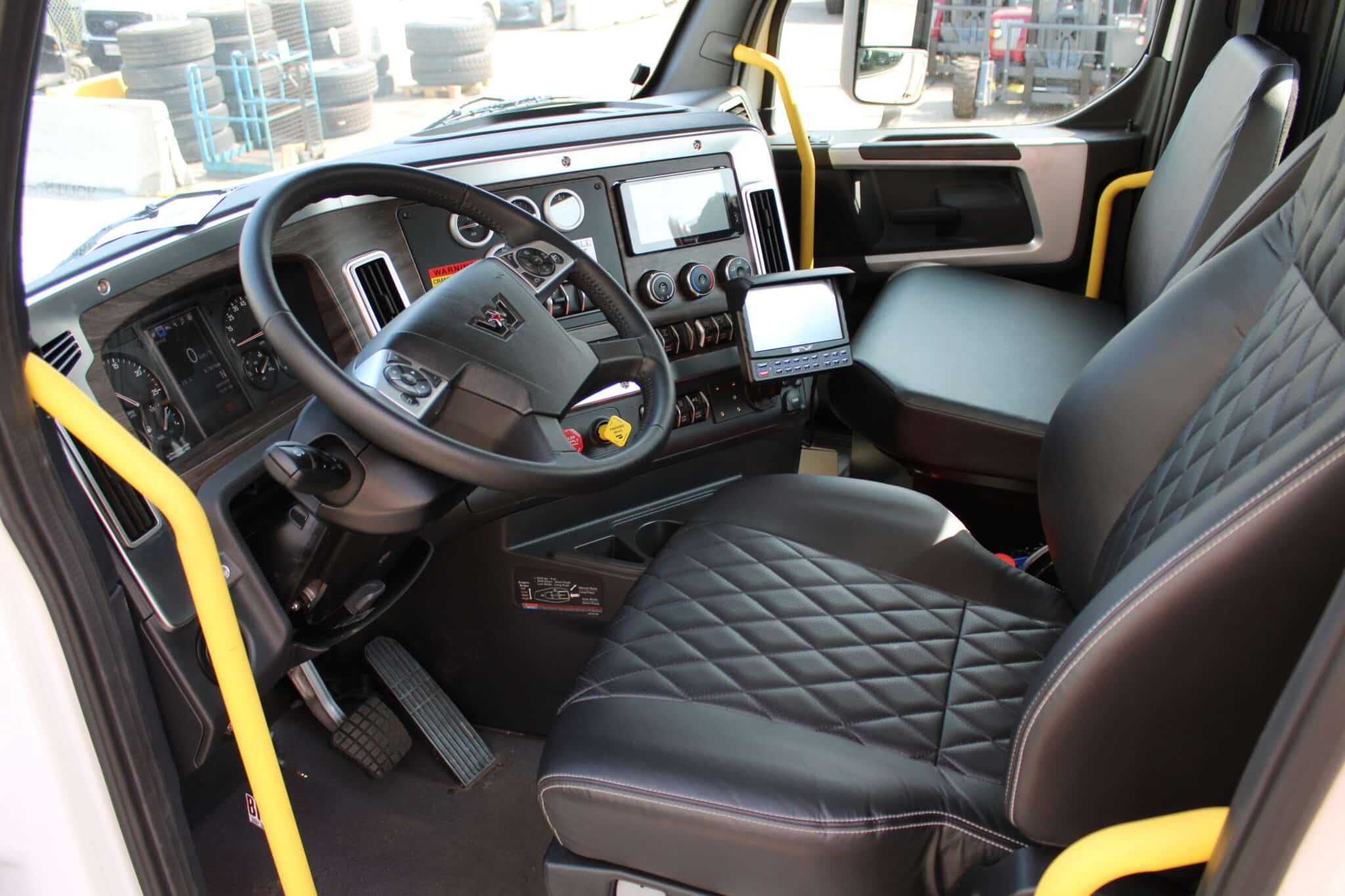

• Loaded with Options including:  A/C, Tilt/Telescopic steering, top level  Interior,  AM/FM/CD,   air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, front steel bumper with fog lights and open top storage box behind bumper both sides, 4 wheel lock-ups, power  window both sides , power mirrors &  door locks,   Air ride cab, full differential locks, trailer air tow package,  truck cab white color, truck painted your colours as requested, rear half fender from checker plate (similar to 2^nd steer axle curves), rear 3-section lights to be in checke rplate material and rear truck frame cover, Dot bumper,  etc…

Options Included:

• (4) pcs – 2” PVC stab pads w/holders
• (7)  Alum storage box installed
• Custom re-enforced manual extension for grapple
• Mecanil SG-280 Grapple Saw with spare parts kit
• On site boom feature/operation familiarization by BIK tech for 2-3 days

Additional Options Available:

• Dump deck or Chip Box type dump body (instead of flat deck or 5^th wheel)
• (2) Additional Manual  pull out boom extensions for regular lifting hook to end of hydraulic reach (adds  11’ more reach)
• (1) Aluminum single man self-levelling basket
• Mecanil SG160 grapple saw with spare parts kit
