BIK WALLBOARD-CRANE SERIES WC-75 BY PM

NEW BIK WALLBOARD-CRANE SERIES WC-75 BY PM

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

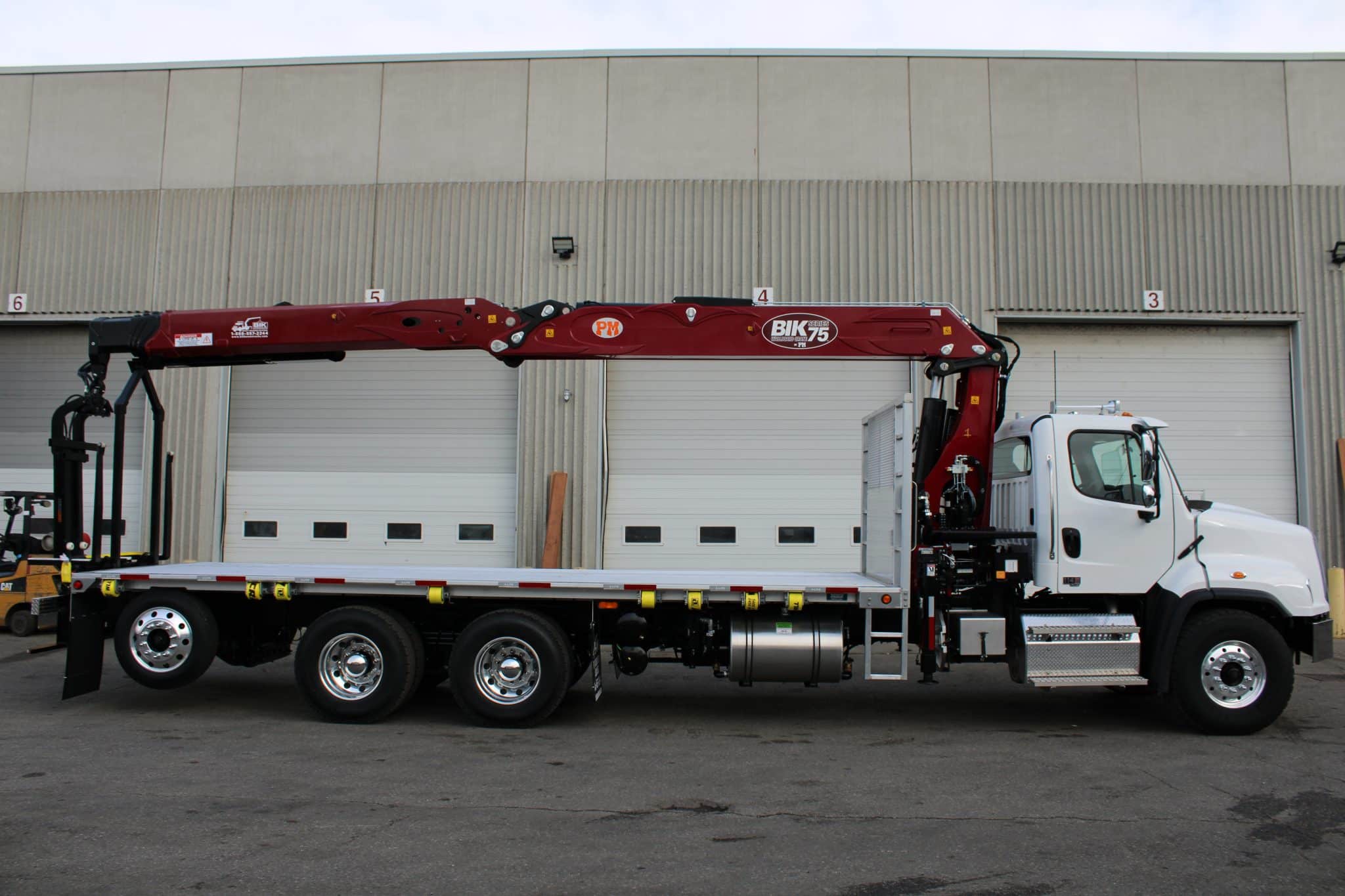

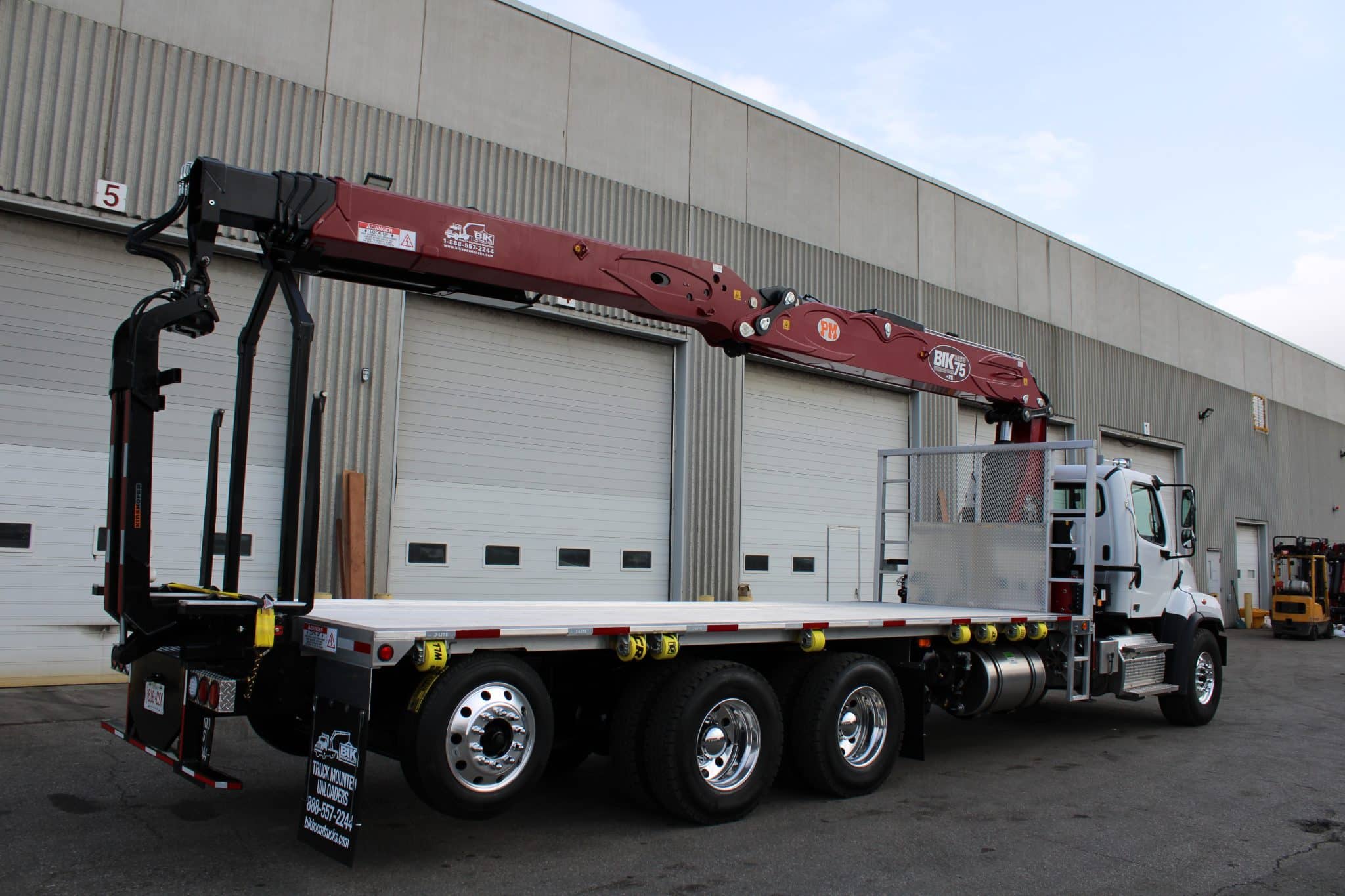

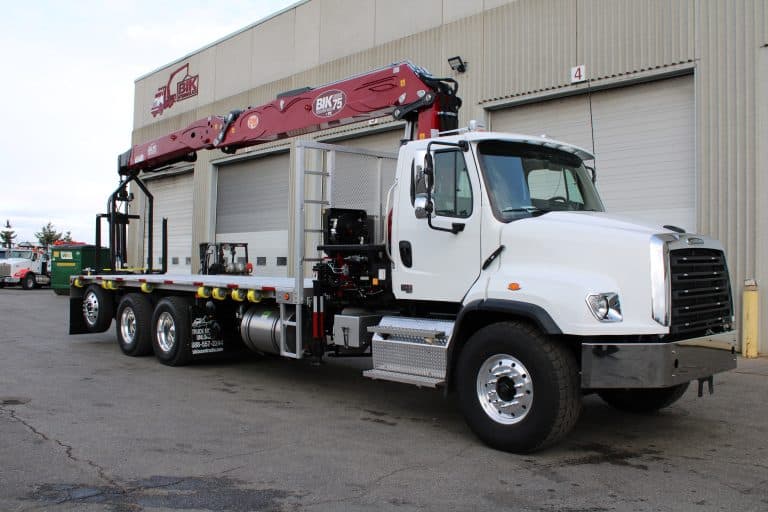

New – BIK “Wallboard-Crane” Series WC-75 by PM

  • 8th Floor Lift Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical )
  • Vertical Boom Capacity:
    • 7,510 lbs – 70’up & 23′ out
    • 5,480 lbs – 65’up & 33′ out
  • Internal cylinders on all boom extensions, Outer boom cylinder guard
  • 360 Degree Continuous (Endless) Rotation and Dual Planetary Gear Drive Motors – 10 WARRANTY – on Turret Bearing
  • Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
  • Super Xtra Wide Stabilizers – 27’ span, hydraulic out and down type
  • Power Tronic Electronic Safety System allowing constant crane monitoring & visual display
  • 5-level stabilizer deployment control system – reduces boom capacity in proportion to shortened stabilizer deployment
  • DANFOSS Valve Manual Boom Levers – Located on Boom Column & SCANRECO Proportional Radio Remote Control
  • Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks
  • Flanged holding valves, double acting check valve for the down movement of the stabilizers
  • Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
  • Installed back of cab, with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards

Deck Details

New  – 24’4″  x 102” Aluminum Flat Deck:

  • Installed on top of steel main sill
  • 4” aluminum extrusion deck surface
  • Removable 66” front headboard
  • 8 sliding tie-down winch straps on passenger side
  • Winch bar holder and winch bar
  • Access ladders on Both sides at front
  • Under deck stabilizer pad/cone/chuck holders, reflectors and 5-side lights as required.

Truck Details

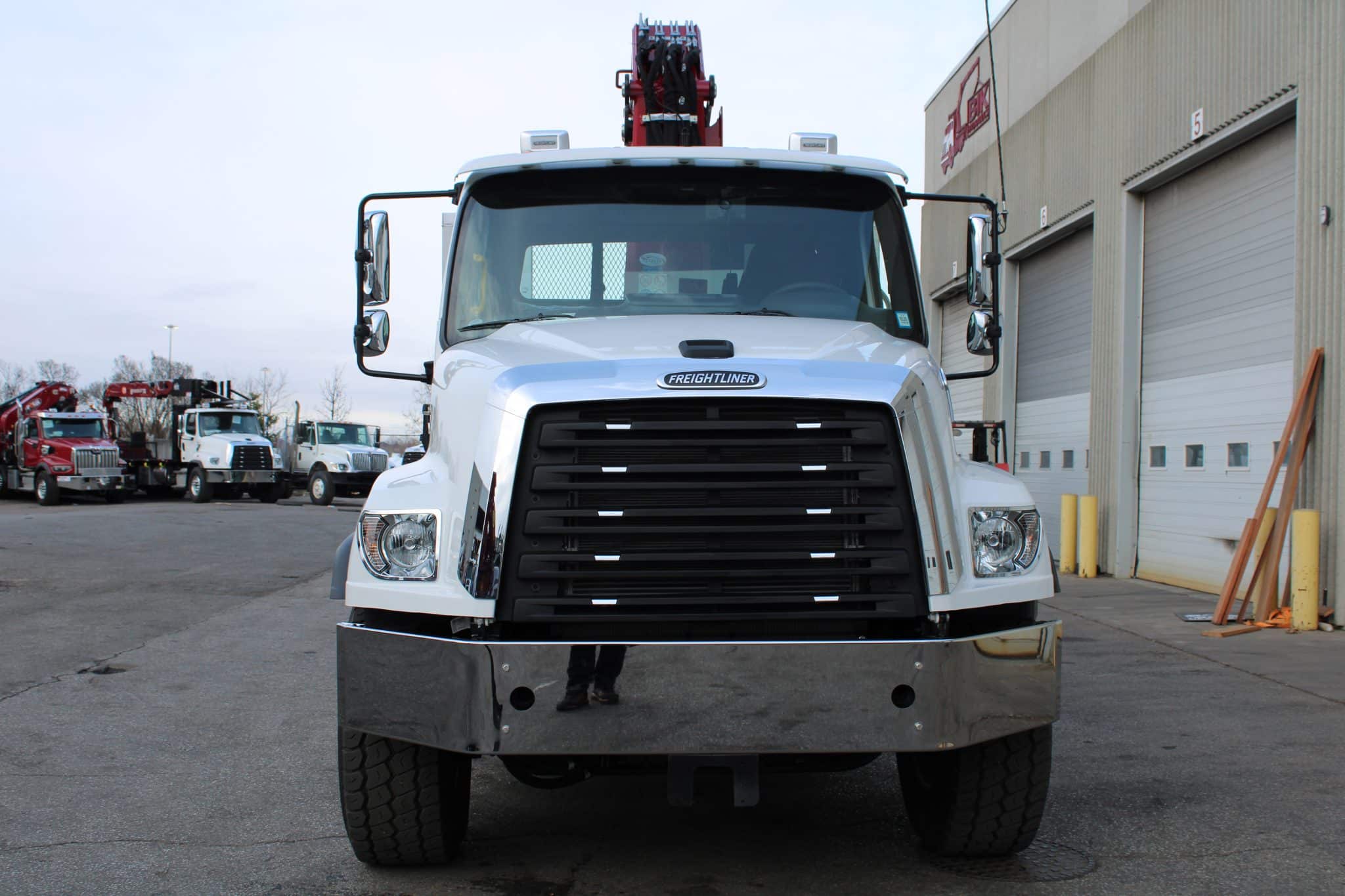

New -2024 Freightliner 114SD 3-Axle Diesel Truck:   79,000 lb GVWR

  • Truck cab white colour
  • 12L Cummins Diesel 500 hp
  • Eaton Ultrashift Plus Automated 18spd trans.
  • 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
  • 46,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims
  • 13,000 lb self steer tag axle behind t/a with low profile 22.5” tires on Alum rims
  • double frame chassis
  • 54” spread at tandems, 278” wb
  • Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power & heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc

Also Included:

  • Activate Extra Remote Features to operate: engine start/stop
  • Variable RPM
  • Truck horn alert
  • 36” aluminum storage box
  • Safety Cones (2 pcs) w holders and wheel chucks
  • Pair of Aluminum stabilizer pads with holders on each side at front of deck.

Options at Extra Cost:

  • Additional 36” aluminum storage box installed
  • 13,000 lb self-steer lift axle installed behind t/a with low profile 22.5” Tires on Alum Rims

Alternative Truck:

  • New 2024 West Star 47X w/500 hp 12L Cummins & Auto 18spd (same features as Fliner)

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
