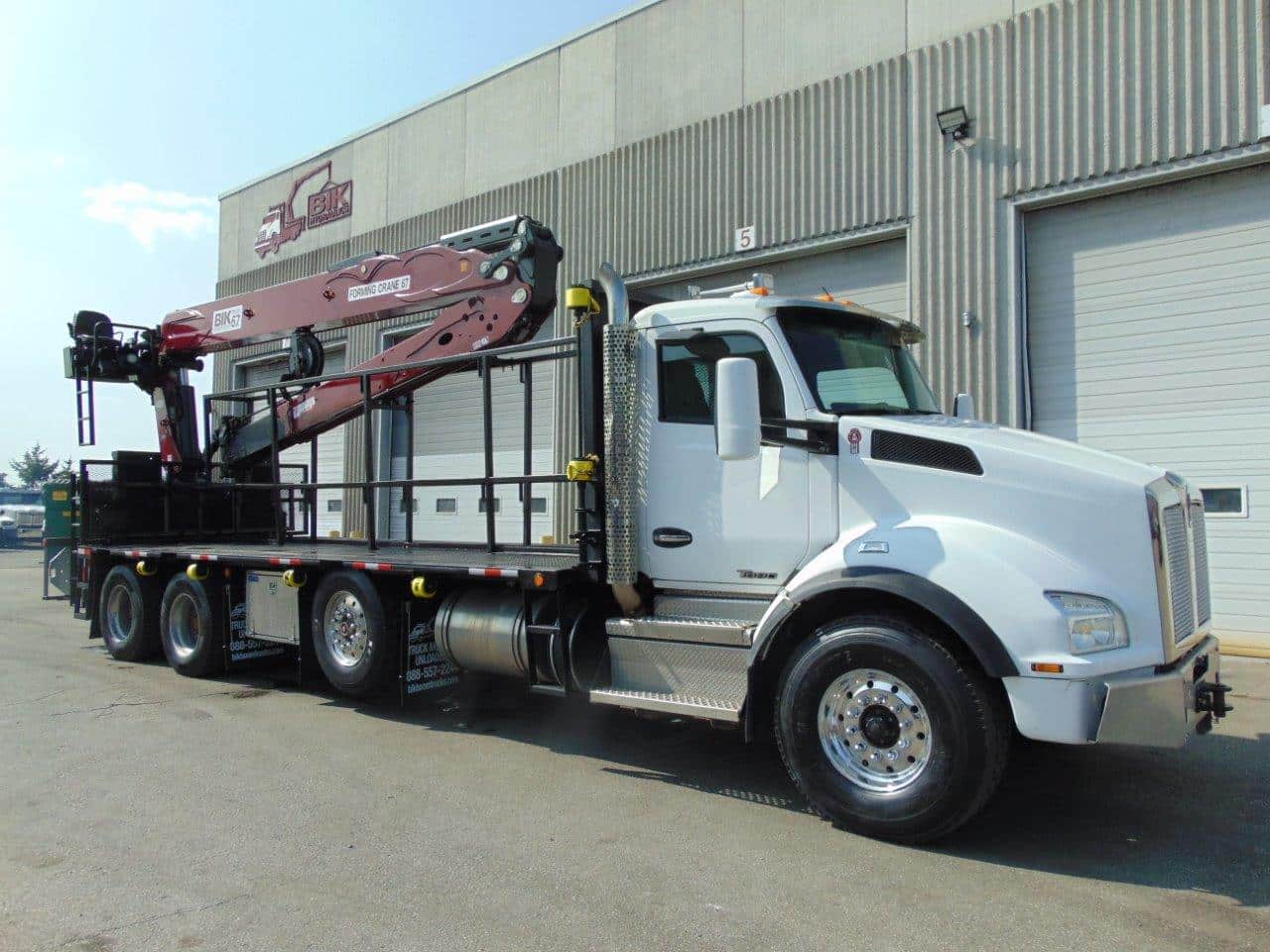

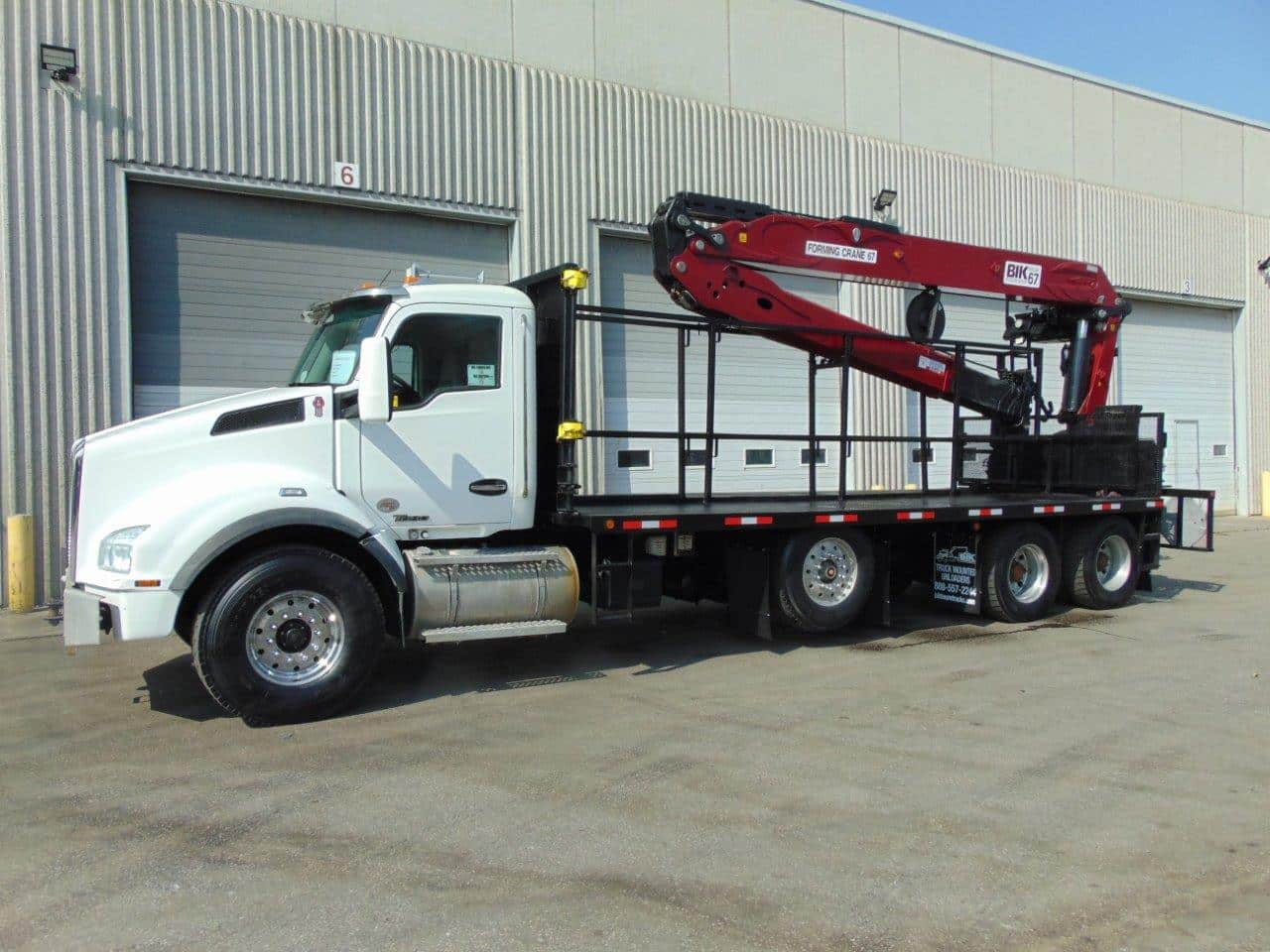

Used 2018 Kenworth T880 with FC-67

Used 2018 Kenworth T880 with FC-67

The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering  a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

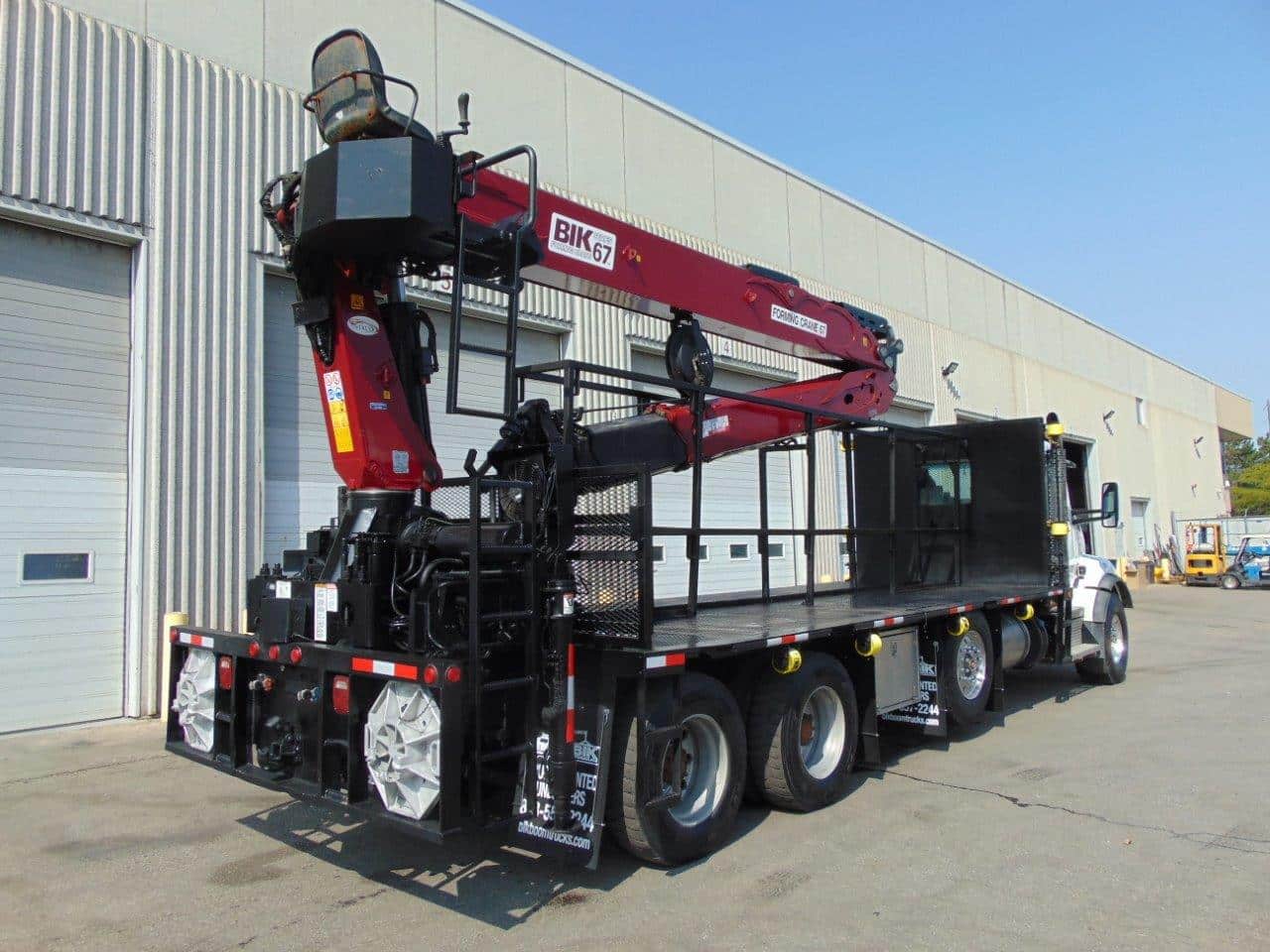

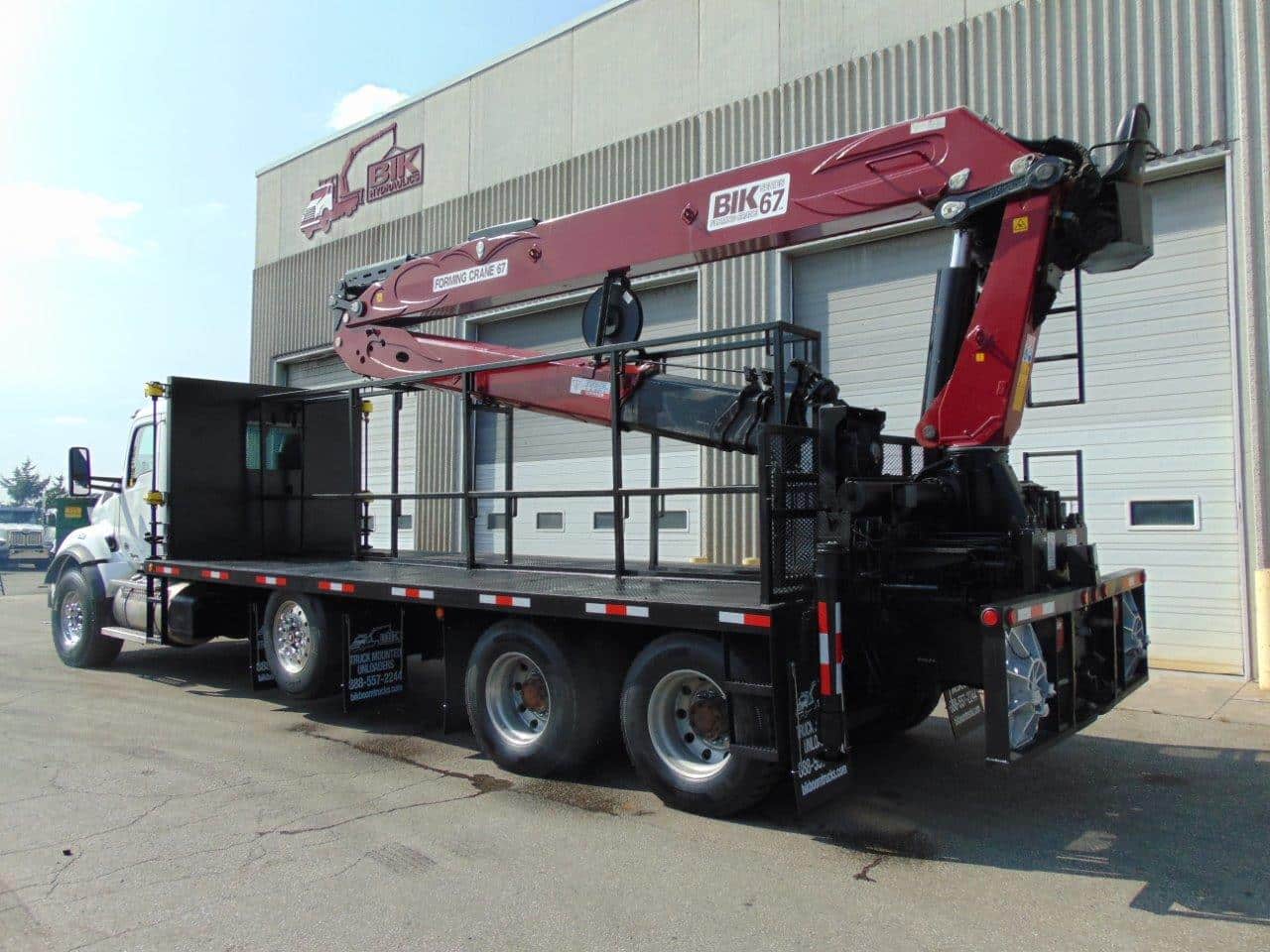

Boom Details

BIK Series Froming Crane FC-67 Unloader (was new in 2018)

  • 4- Hyd Extensions to 67’ horizontal reach

Horizontal Capacities:

    • 7,400 lb @ 28’
    • 3,100 lb @ 55’
    • 2,600 lb @ 62’
    • 2,300 lb @ 67’
  • Internal cylinders on all boom extensions, Outer boom cylinder guard
  • Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
  • Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
  • Extra Wide Stabilizers – 24’ 3” span, hydraulic out and down type
  • Flanged holding valves, double acting check valve for the down movement of the stabilizers
  • Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
  • DANFOSS Valve – At Top Seat Level controls with access ladder
  • Hydraulic hook rotator with T-hook at end of boom, Spot light at top seat is included
  • SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord,

Also Included:

  • (4) pcs PVC stabilizer pads installed with holders
  • (1) – 36” aluminum storage box
  • 1” drawplate at rear of truck frame (for possible pintle hook)

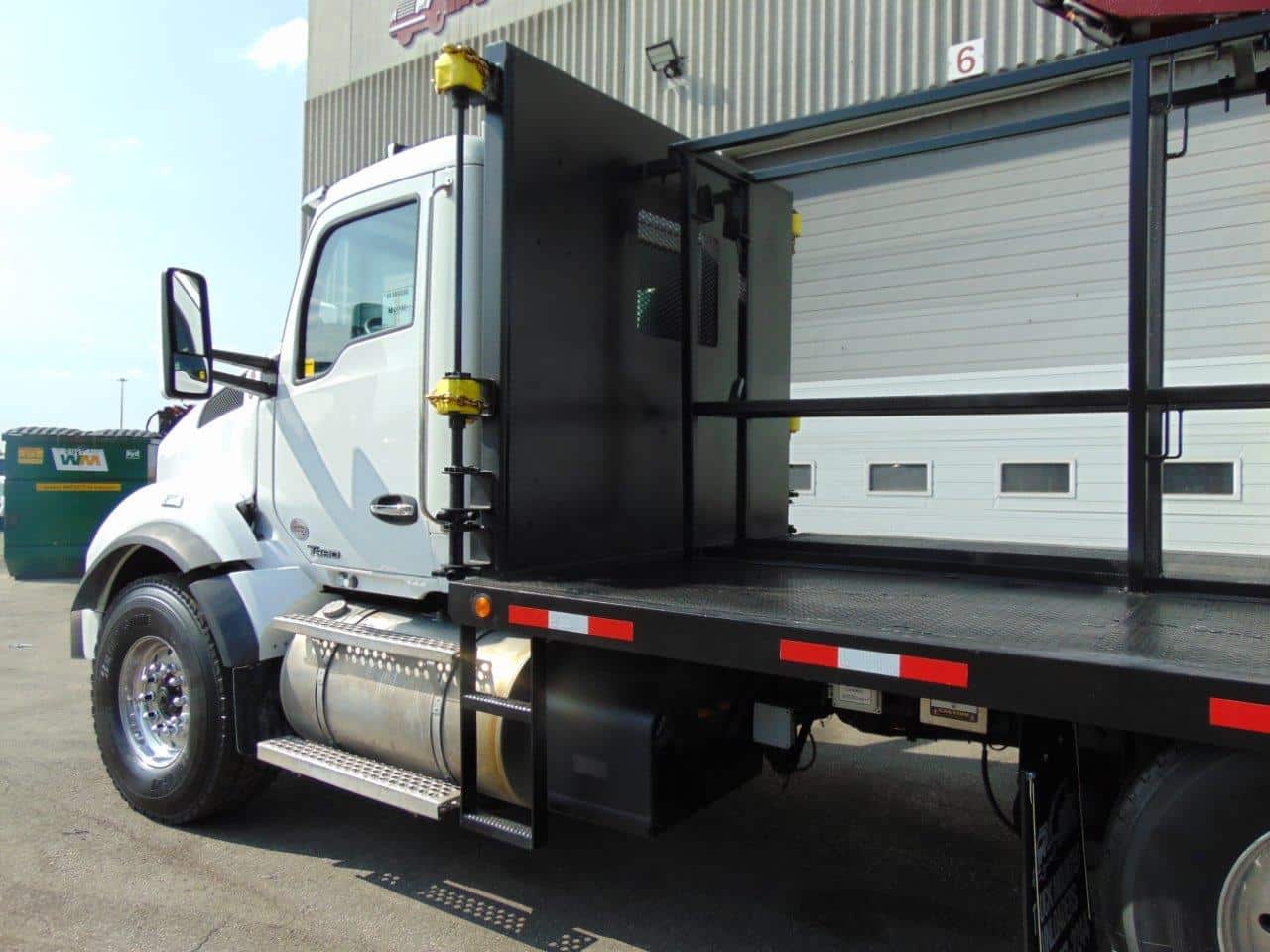

Deck Details

22 ½’ x 102” Steel Checker plate  – LOW PROFILE: to accommodate up to 9’2” tall Form Cages

  • Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear
  • aluminum deck surface
  • 60” + headboard
  • Center Divider with 4-vertical mounted winch straps to wrap around cages for transport
  • 6 – under deck sliding tie-down winch straps on passenger side, winch bar holder and winch bar, dual ladder access,                                      reflectors and side lights  as required by DOT standards.

Truck Details

Used – 2018 Kenworth T880-SH  T/A Truck:  86,000 lb GVWR –   Paccar MX – 485 hp with Engine Brake

  • Eaton Ultrashift Plus – Automated 18 spd Trans.
  • Approx 98,000 miles
  • 4.10 rear axle ration, truck cab white
  • 20,000 LB fronts with 425 / 65R22.5 tires
  • 20,000 lb lift axle 100” ahead of 1st drive wheel
  • 46,000 LB Rears on  Hendrickson Pri-Max Air Ride Susp, Double Frame
  • Polished ALCOA Aluminum Wheels front and rear,  Chrome Grille and bumper
  • Single 120-gallon alum fuel tank

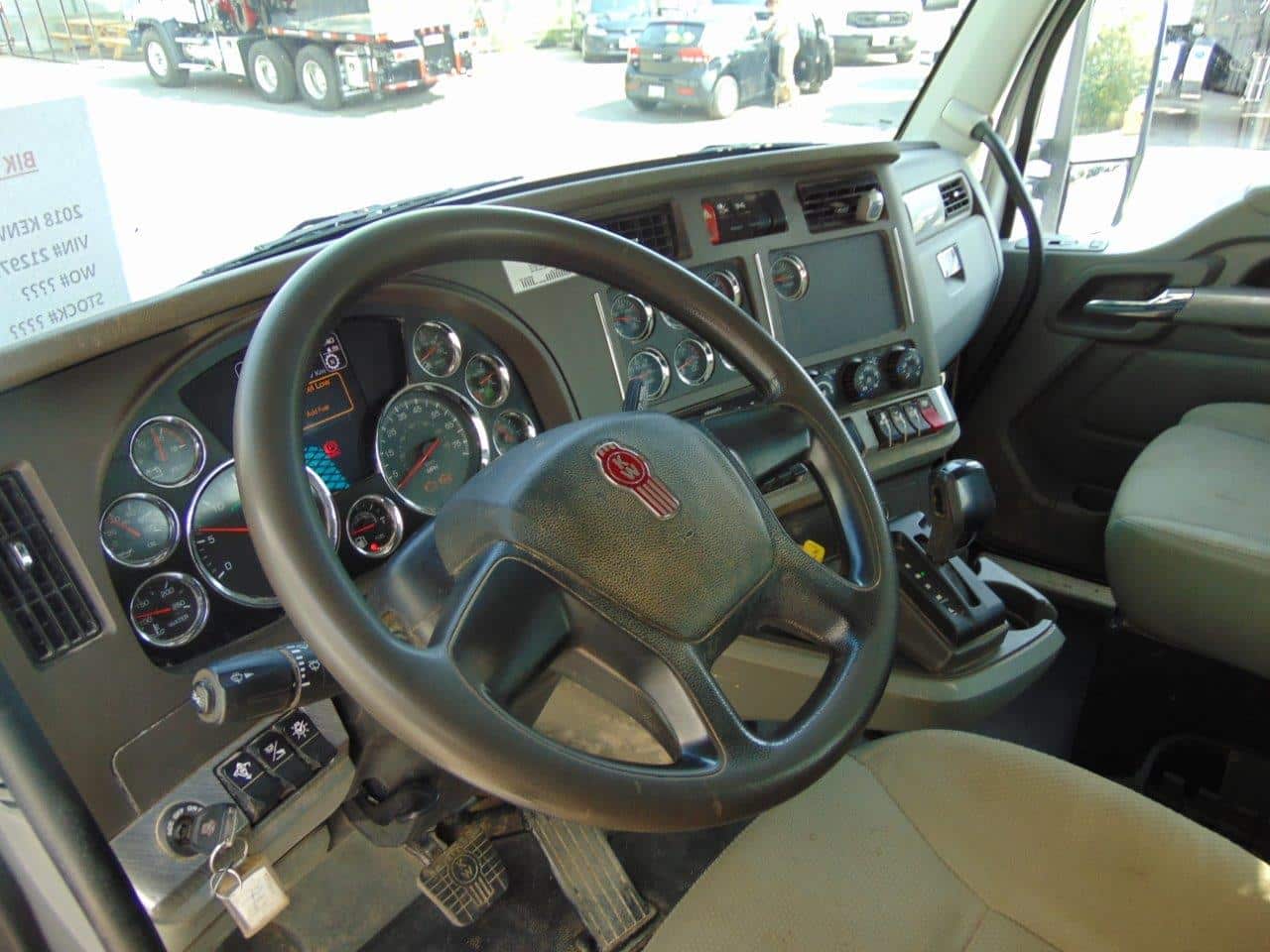

  • Options include: A/C, Tilt/Telescopic steering, AM/FM  with bluetooth weather-band,  air ride driver’s and fixed pass seat, cruise, heated & power mirrors, painted ext sun visor, 4- wheel lock-ups, power windows/locks, Air ride cab, trailer tow package, etc…

 Complete unit sold with fresh boom and truck inspections, serviced and cleaned

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
