NEW BIK HEAVY LIFT SERIES HL 65T

NEW BIK HEAVY LIFT SERIES HL 65T

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

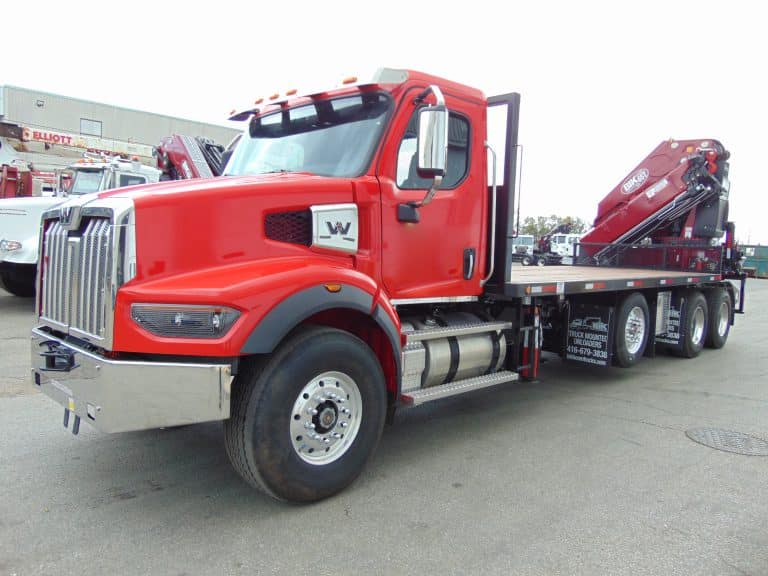

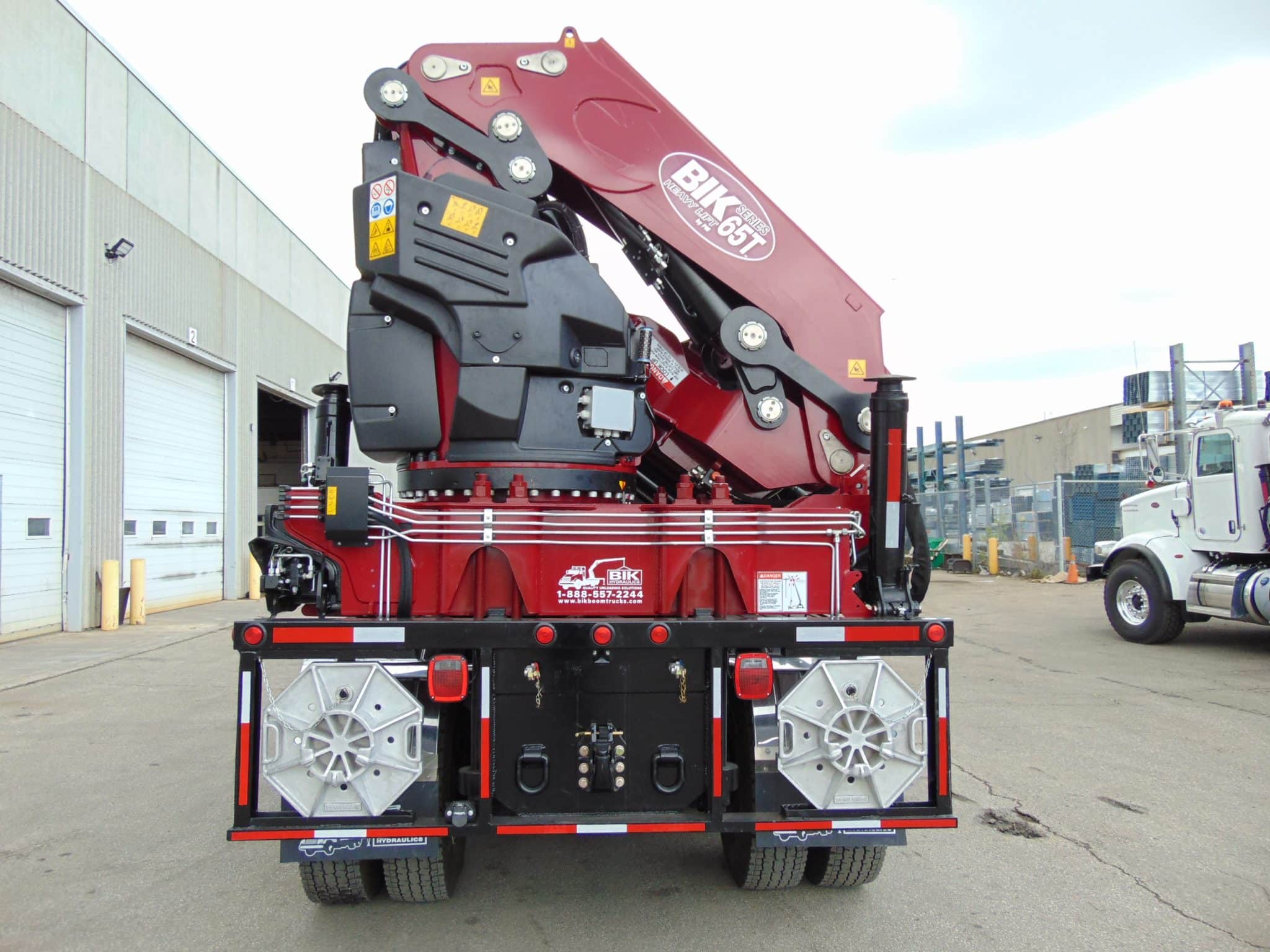

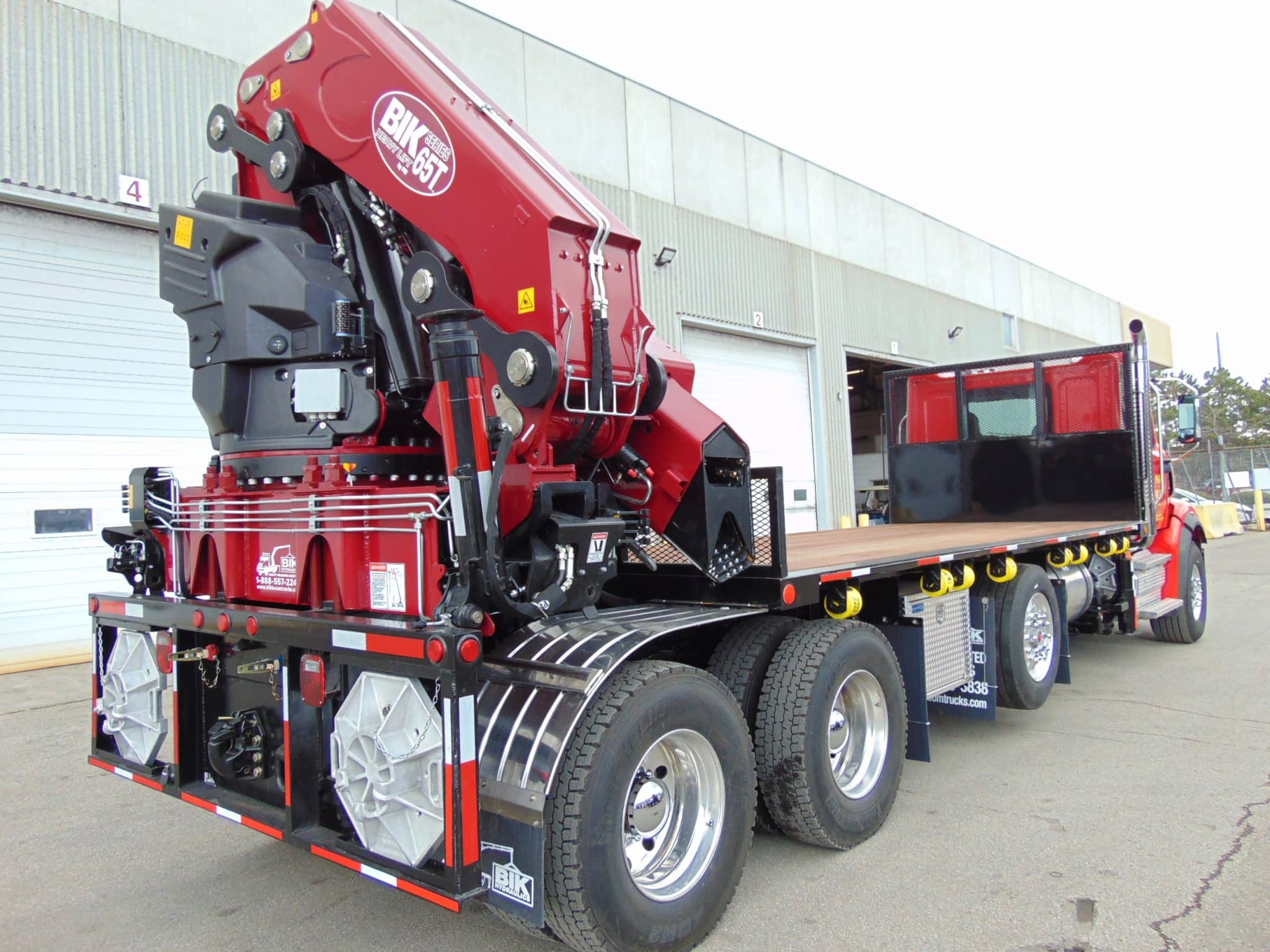

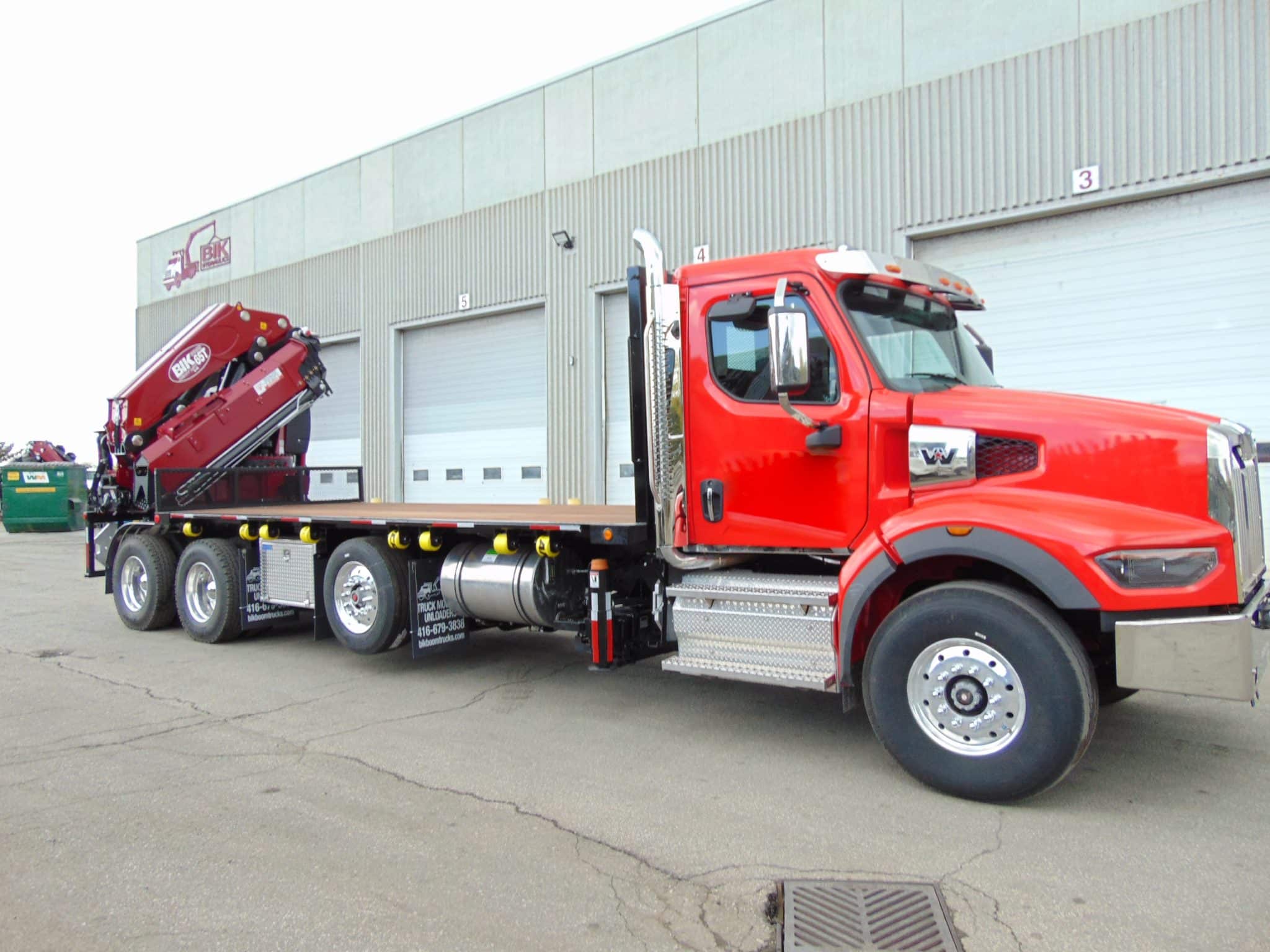

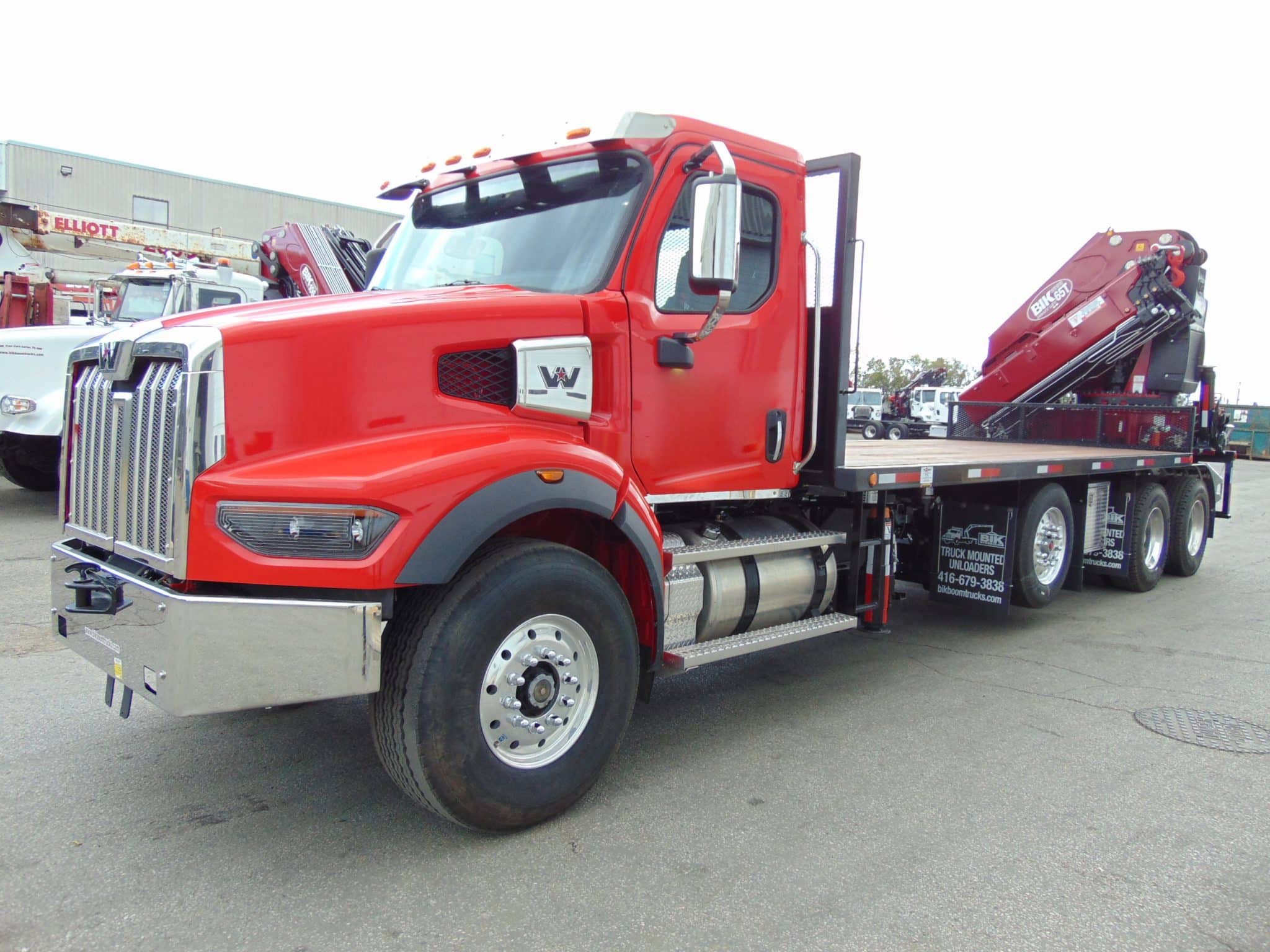

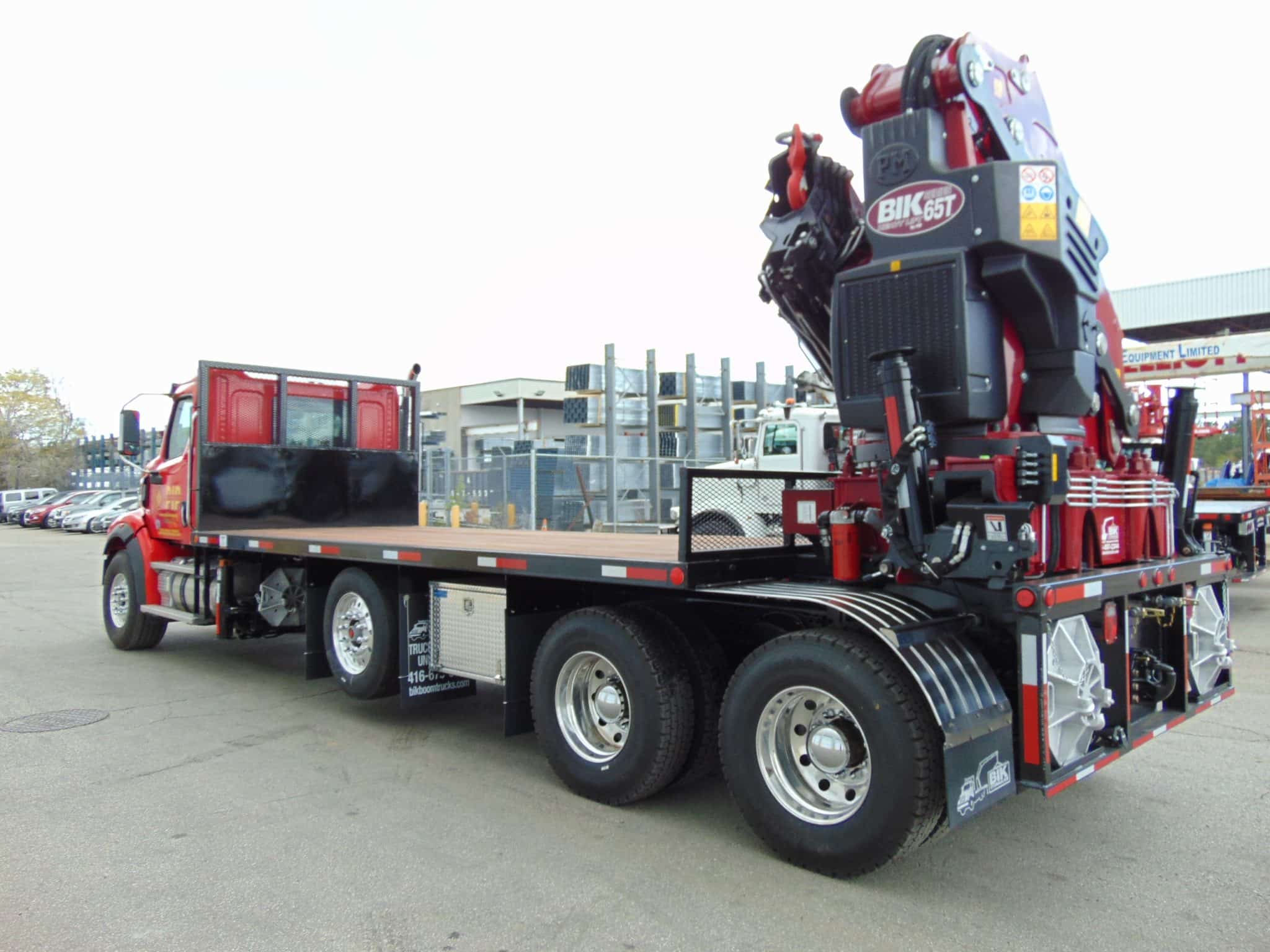

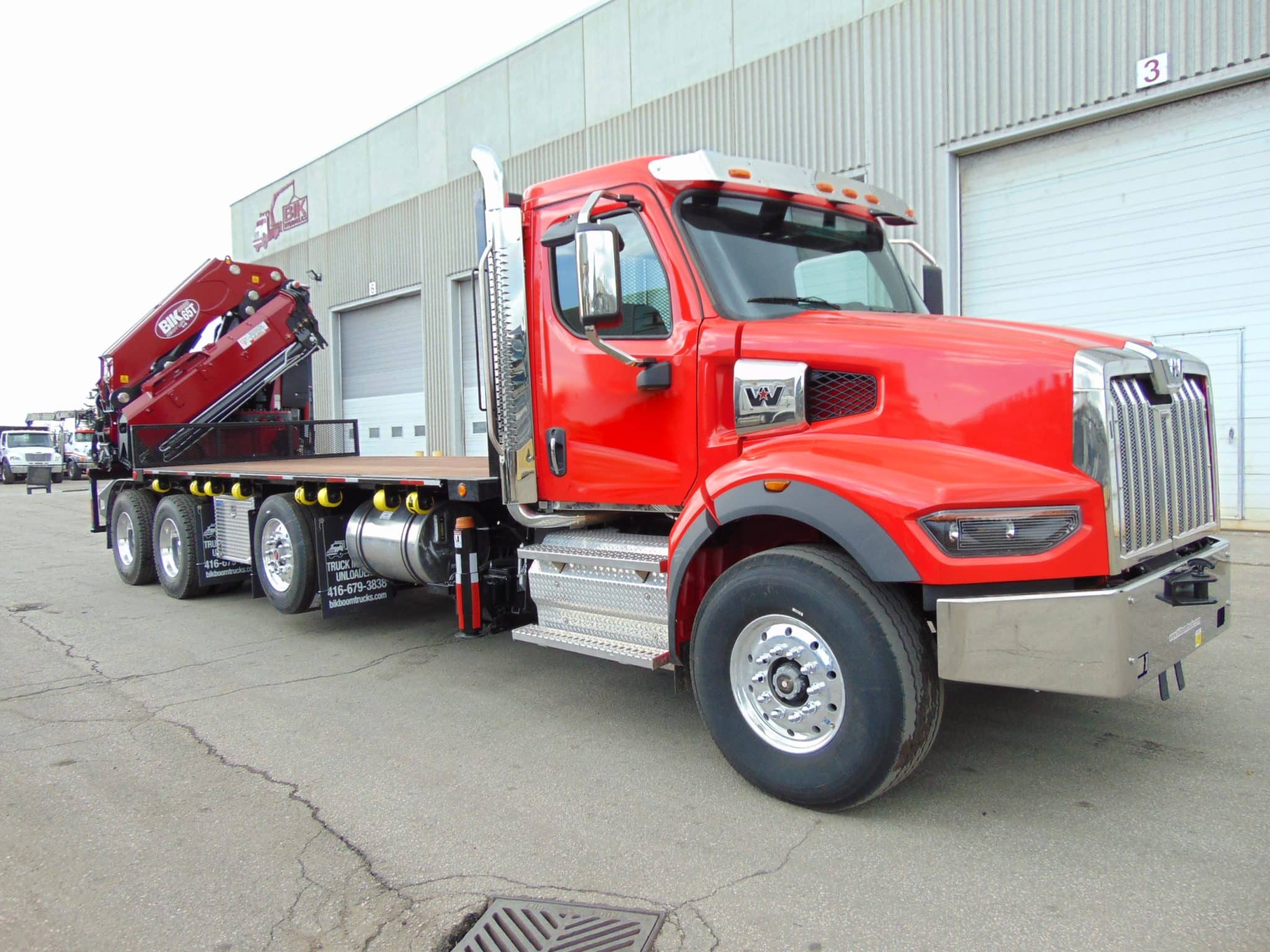

New – BIK “Heavy Lift” Series HL 65T

  • Folding Hydraulic Knuckle Boom – 4 hyd extensions to 37’  Horizontal reach
  • Horizontal Capacity
    • 30,370 lbs @ 14′
    • 23,000 lbs @ 20′
    • 16,500 lbs @ 25′
    • 13,450 lbs @ 31′
    • 11,240 lbs @ 36’9″
  • 4-Independent Extensions, PM connecting rods at First Boom and Knuckle,  Continuous Rotation and Dual Planetary Gear Rotation
  • Double pilot operated on slewing and pilot operated check valves on all cylinders
  • Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – hydraulic tilting when retracted
  • Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
  • DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
  • Simplified Hydraulic Overload System allowing maximized uptime crane and easy maintenance
  • Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart  in FT. & LBS.
  • Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
  • Load Tested & Installed at end of frame, with integral sub-frame to meet or exceed all CMVSS Standards

Deck Details

New – 22′ x 102″ Steel Platform with Wood Surface

  • Steel  with wood surface
  • 66” steel headboard with 18” rear steel removable tail board
  • Rub rails with pockets, winch bar and holder
  • Steel 6” high strength boxed in sub-frame and extension at rear with custom engineered X-bracing/shear plating as torque box for maximized side stability
  • 2-steel Deck access Ladders at front, reflectors, conspicuity tape, and Mud-flaps, 8 -Winches

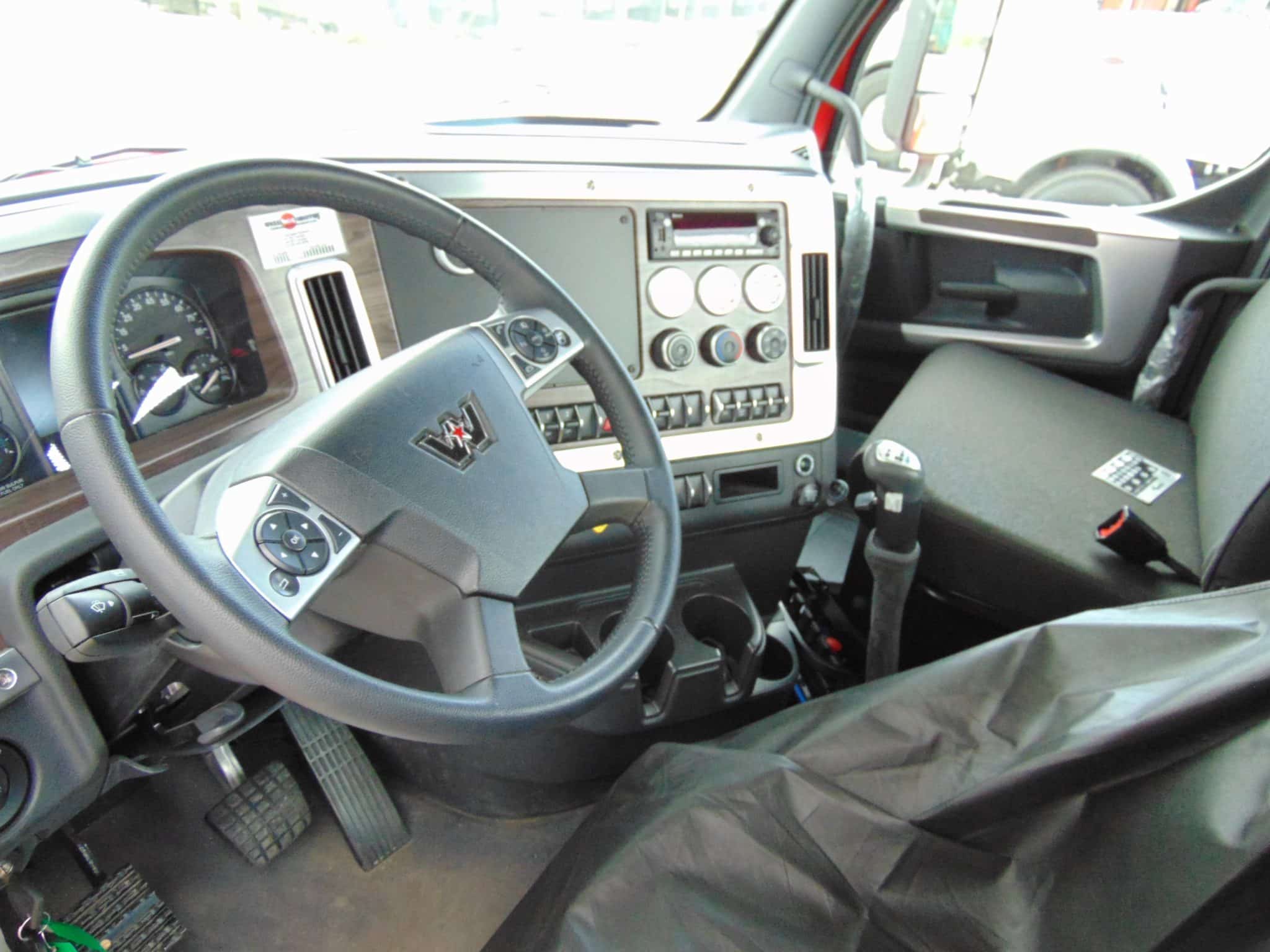

Truck Details

New Western Star 49X 4-Axle Truck :

  • 88,000 lb GVWR
  • Truck Cab white in colour
  • 12L Cummins Diesel 500 hp Eaton 18 spd Standard Shift Trans.
  • 20,000 lb front steer axle with 425/65R22.5 Front Floatation tires on Alum rims
  • 20,000 lb self steer lift axle ahead of t/a SPIF Cetified
  • 46,000 LB Rears on Tuftrac Susp with  11R22.5 tires with steel white rims
  • Full double frame chassis
  • Truck  Features Include: Two Stage Engine Brake, Air Cond., AM/FM  stereo,  power windows & locks, cruise, tilt/telescopic steer column, chrome bumper & grill, htd mirrors and eng block heater,  painted ext sun visor, diff locks w/rear wheel lock ups, 100 gal alum fuel tank,  etc

Options Included:

  • Program Remote control to include engine start/stop and variable engine RPM
  • Aluminum Stabilizer Pads (2x) with holders installed at rear and at front
  • 1” steel draw plate with heavy duty hutch, air, electric and D ring connections
  • (2) x 36″ Aluminum storage box installed under deck.

Options at Extra Cost:

  • Hydraulic Oil Tank Heater

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
