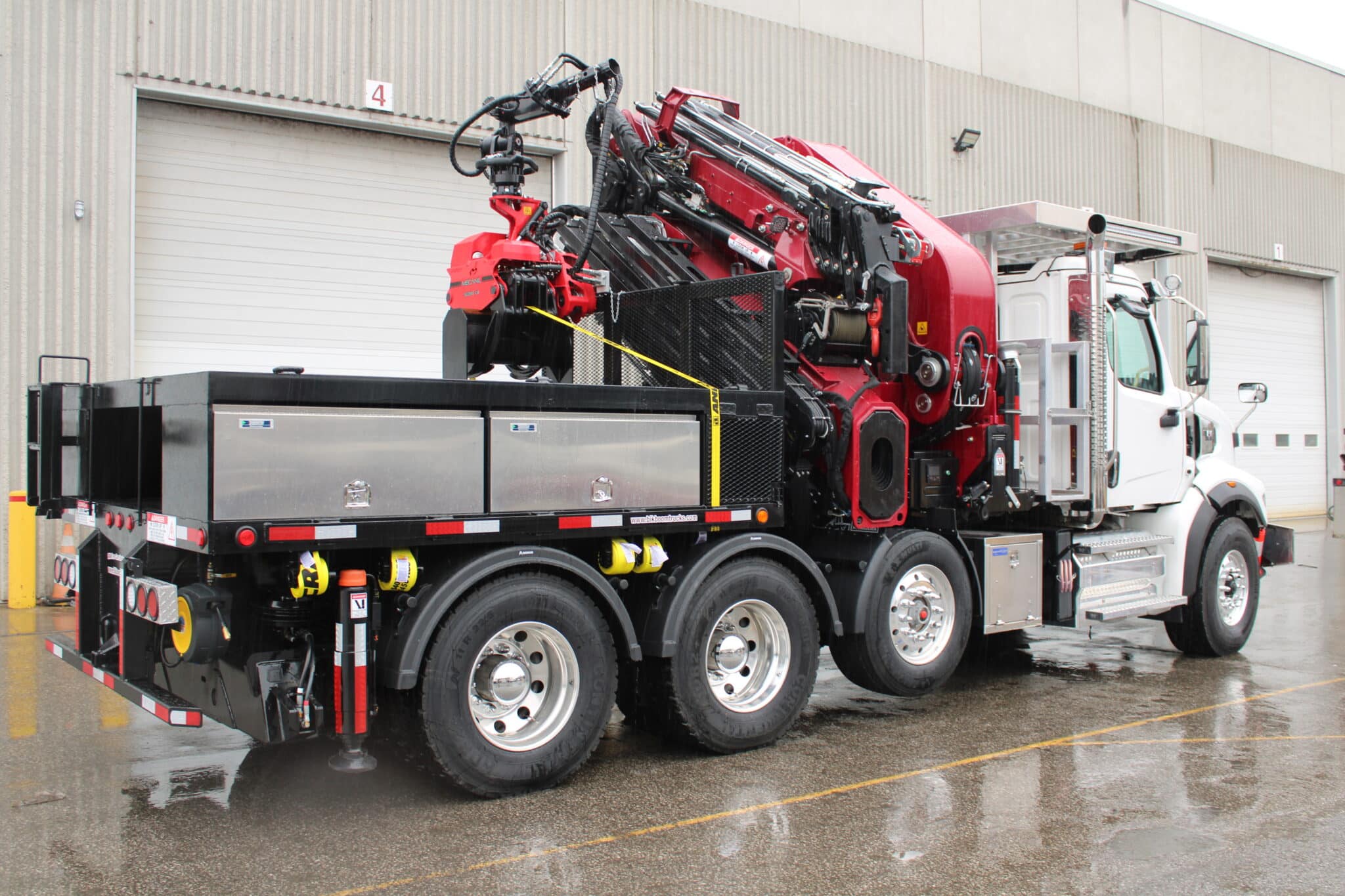

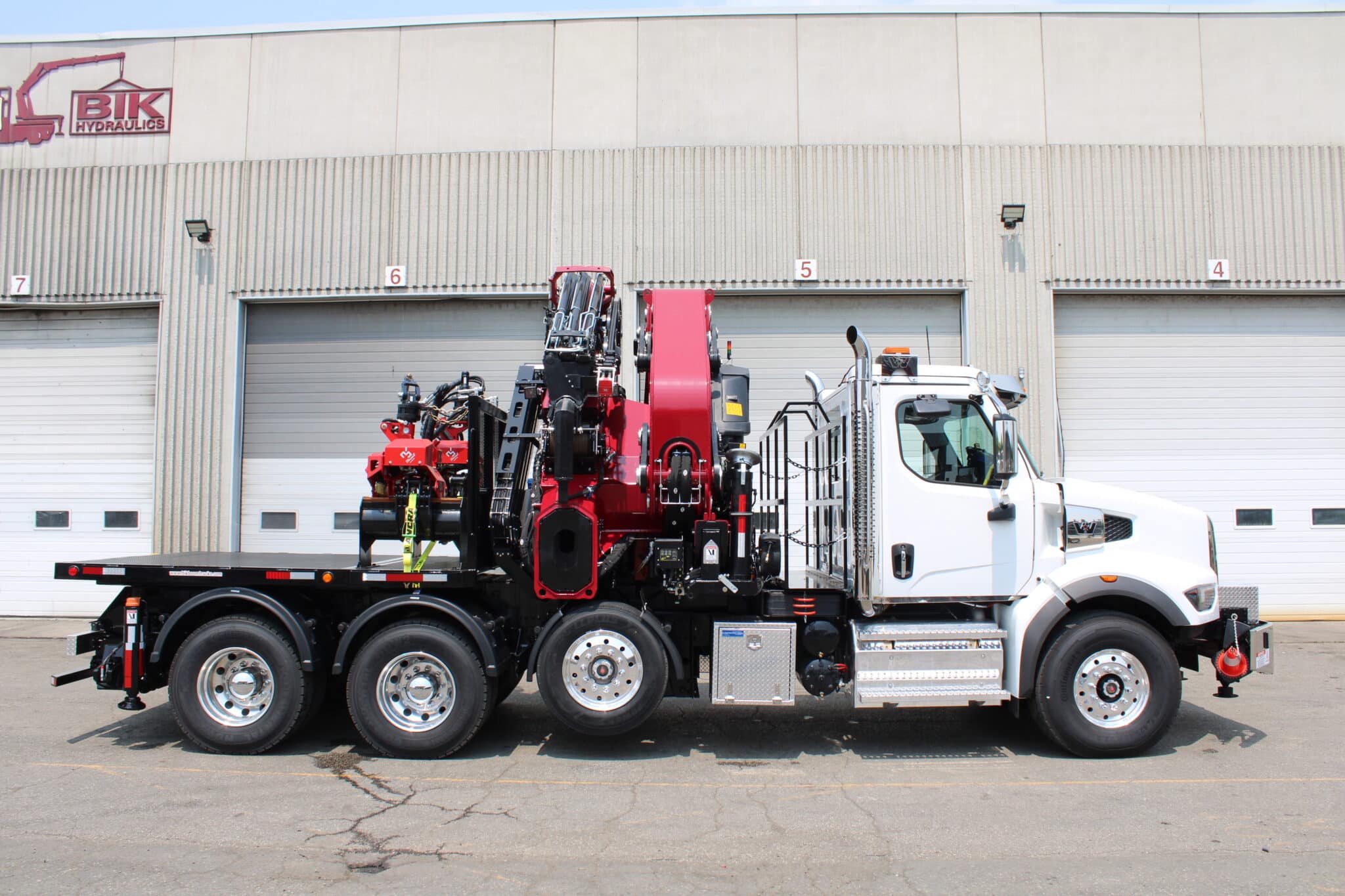

NEW BIK TREE-CARE SERIES TC-126 ON NEW WESTERN STAR 49X

NEW BIK TREE-CARE SERIES TC-126 ON NEW WESTERN STAR 49X

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

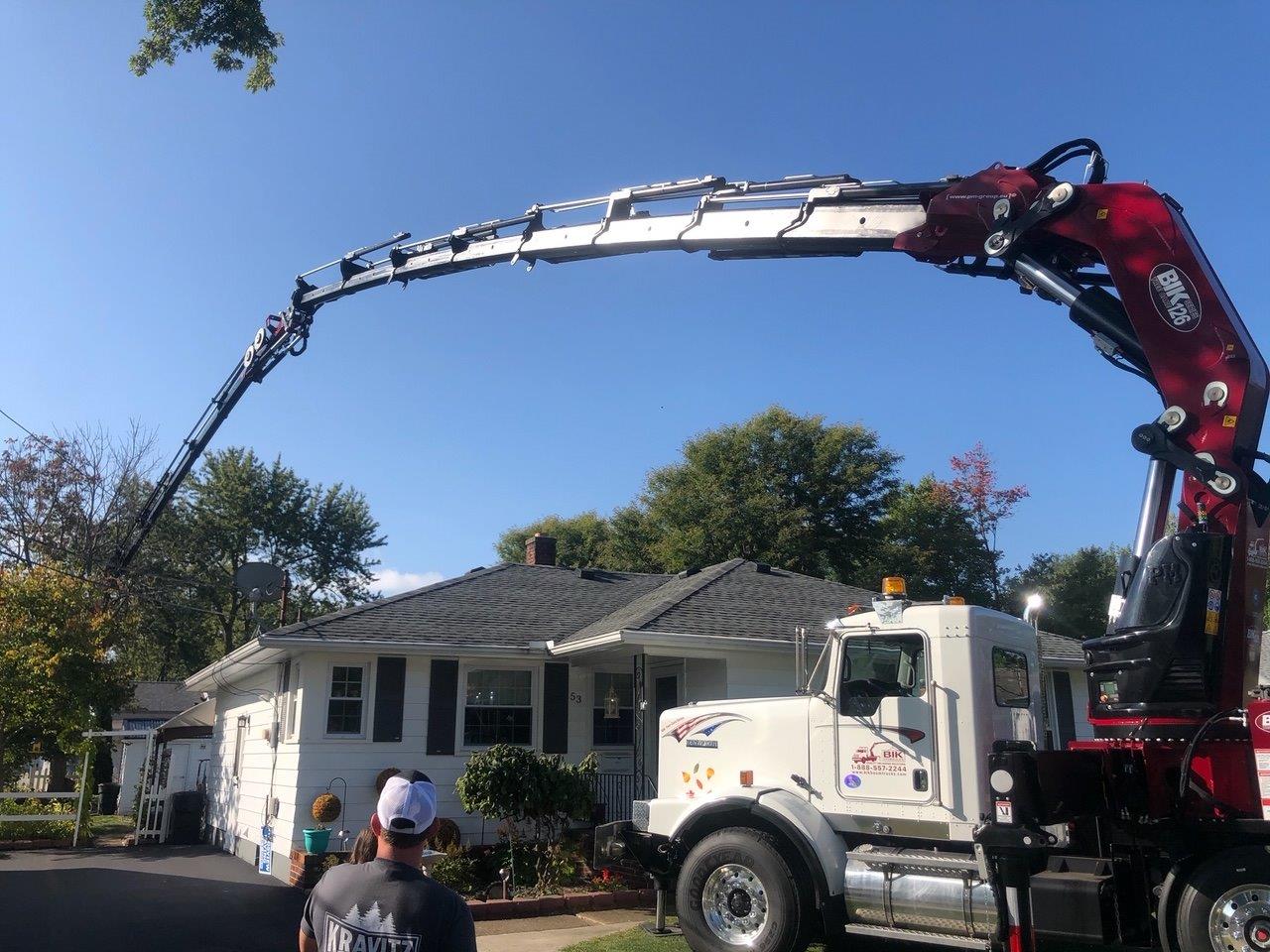

New – BIK Tree-Care Series TC-126 –  100 ton/m  Knuckle Boom

  • 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
  • Including (1) Grapple extention in jib
  • Boom Capacity of  2,050 lbs @ 126’ Vertical Reach
  • Main Boom Horizontal Capacity:
    • 36,800 lb @  16’
    • 20,000 lb @  23’
    • 16,000 lb @  33’
    • 11,000 lb @  47’
    • 7,200 lb @ 67’
  • Jib Horizontal Capacity:
    • 3,200 lb @  76’
    • 2,200 lb @ 100’
    • 2,000 lb @ 104’
    • 1,630 lb @  110’
    • w/Grapple extn to  114’
  • Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
  • Continuous Rotation and Dual Planetary Gear Motors,  – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
  • Remote or Side Control Pad Operated  6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
  • 2- Rear Aux Stabilizers behind t/a drives – 26’ Span
  • Dual front bumper mtd Stabilizers at front integral truck frame extension
  • Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
  • Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
  • Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
  • DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
  • Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
  • Boom Factory Painted Dark Red/Burgundy prior to assembly
  • Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards
  • Load Chart in FT. & LBS.
  • Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed

Truck Details

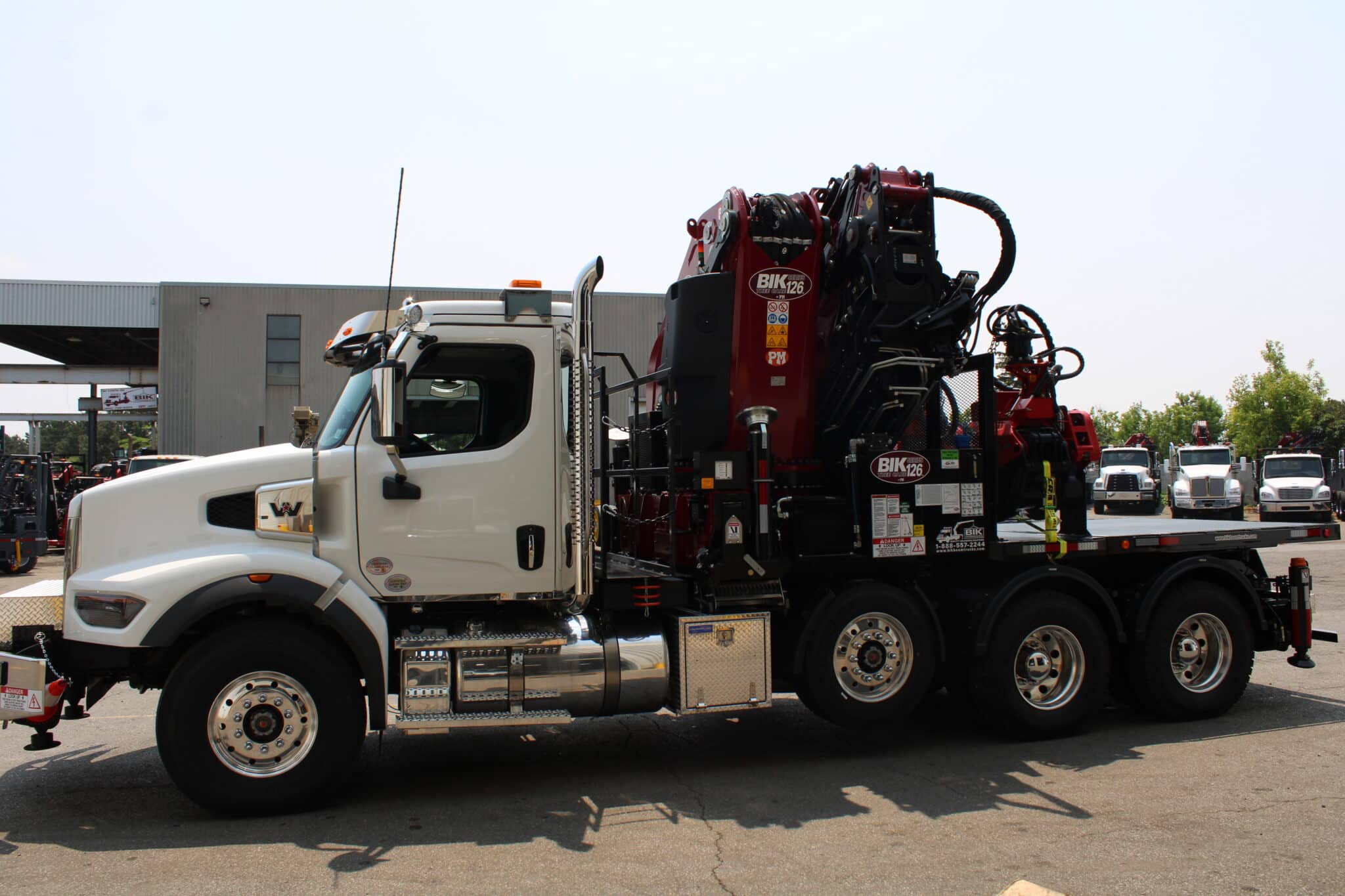

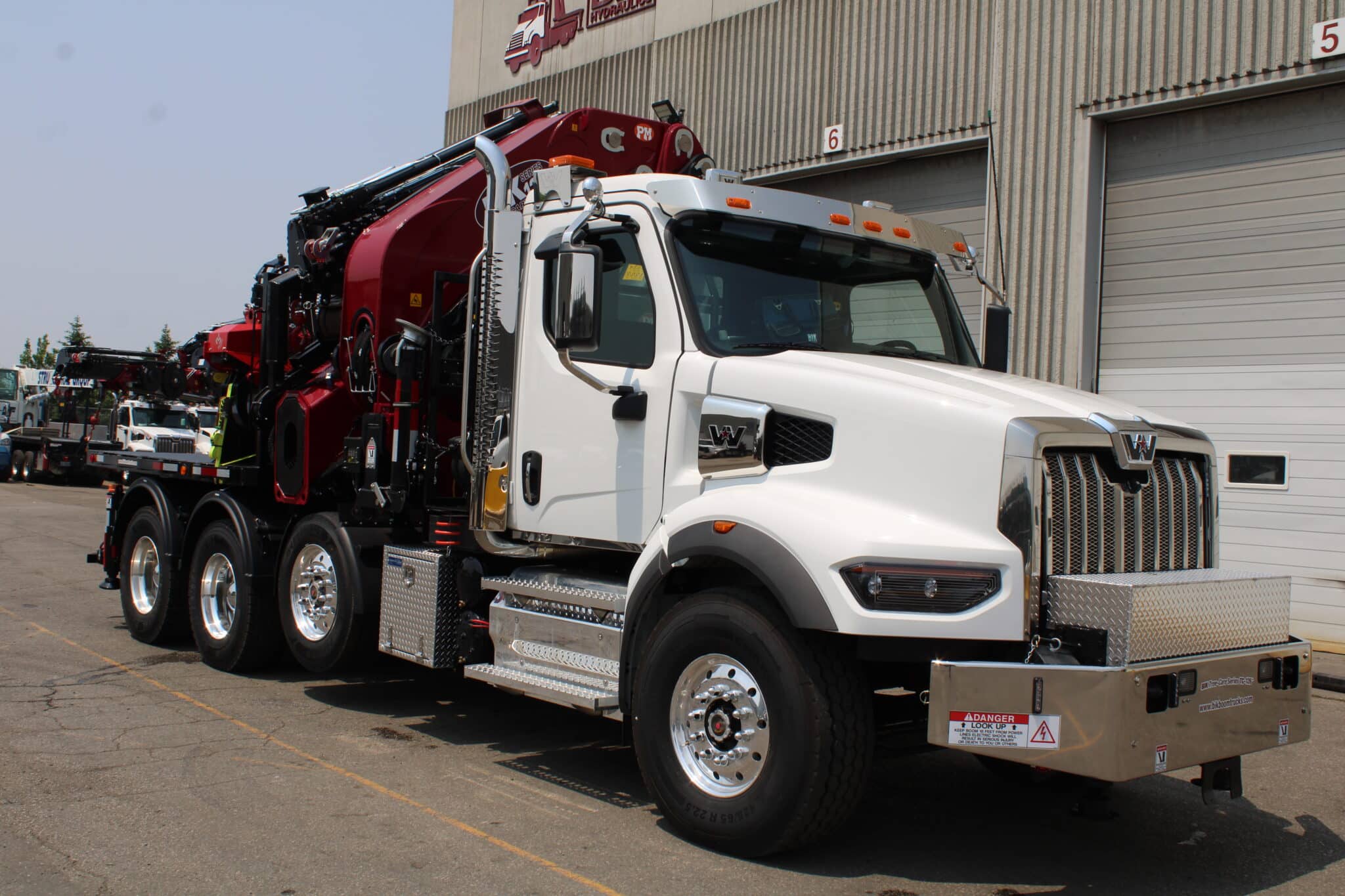

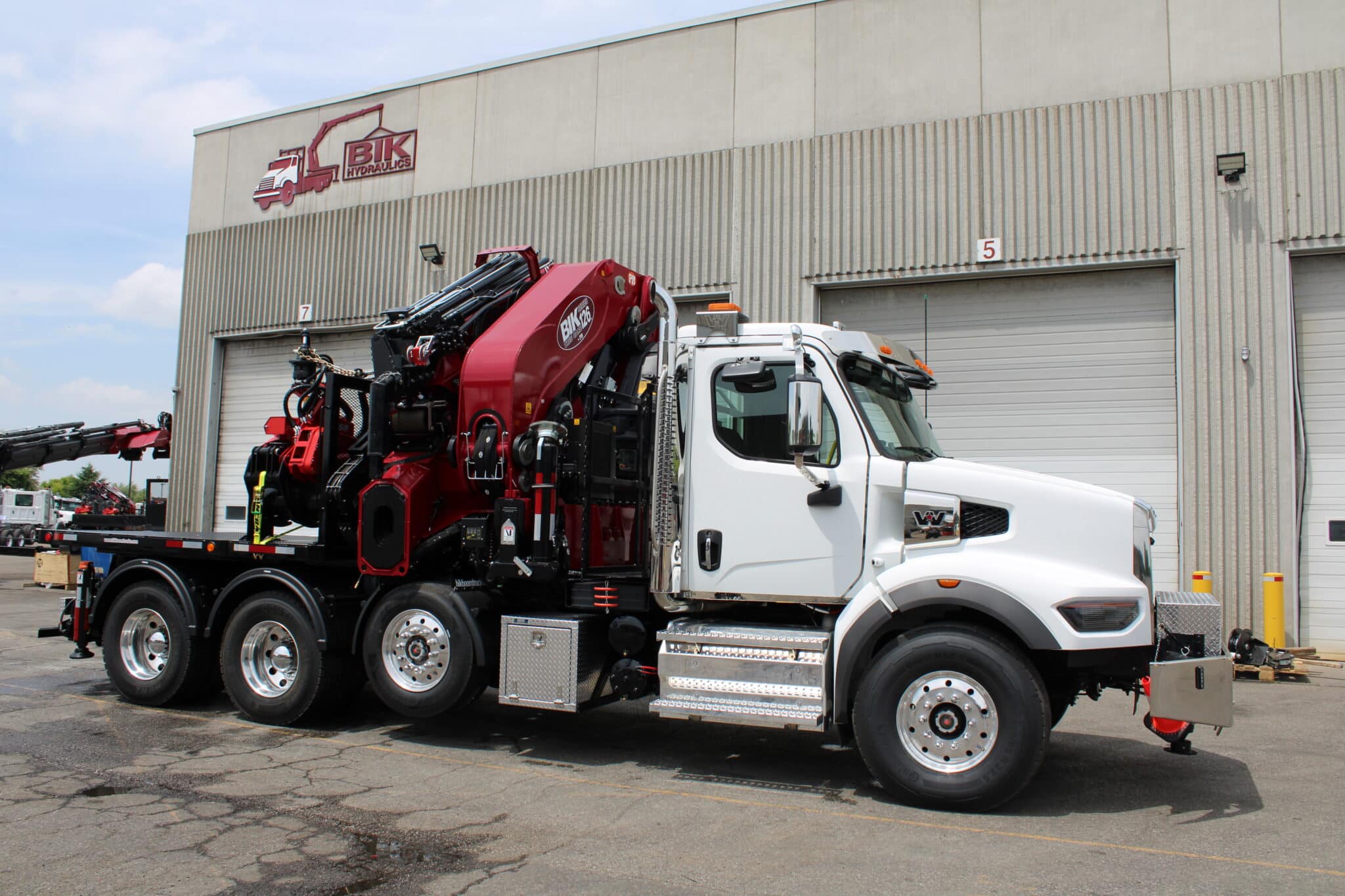

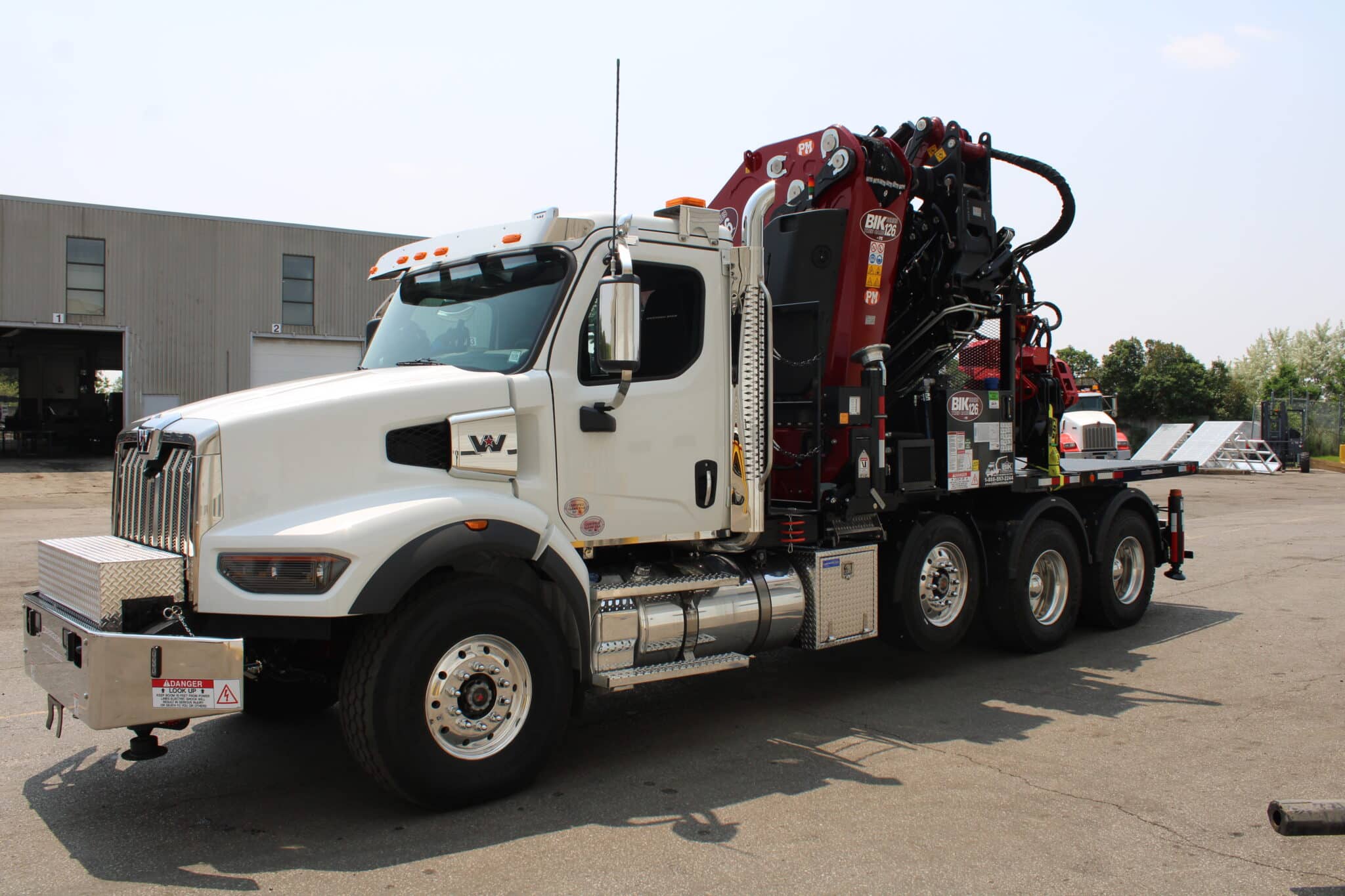

New – Western Star 49X  4-axle  Day Cab Tractor  :   88,000 lb GVWR

  • CUMMINS 12X Diesel – 500 HP
  • Jake Brake,Automated Endurant 12 spd trans.
  • 22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
  • 20,000 lb self steer lift axle ahead of t/a
  • 46,000 LB Rears on Neway Air-Ride with 11R22.5 tires on Aluminum rims
  • High RBM Double Frame w/integral front frame extention (for front stabilizer)
  • Dual Chrome polished Exhaust on both side of cab

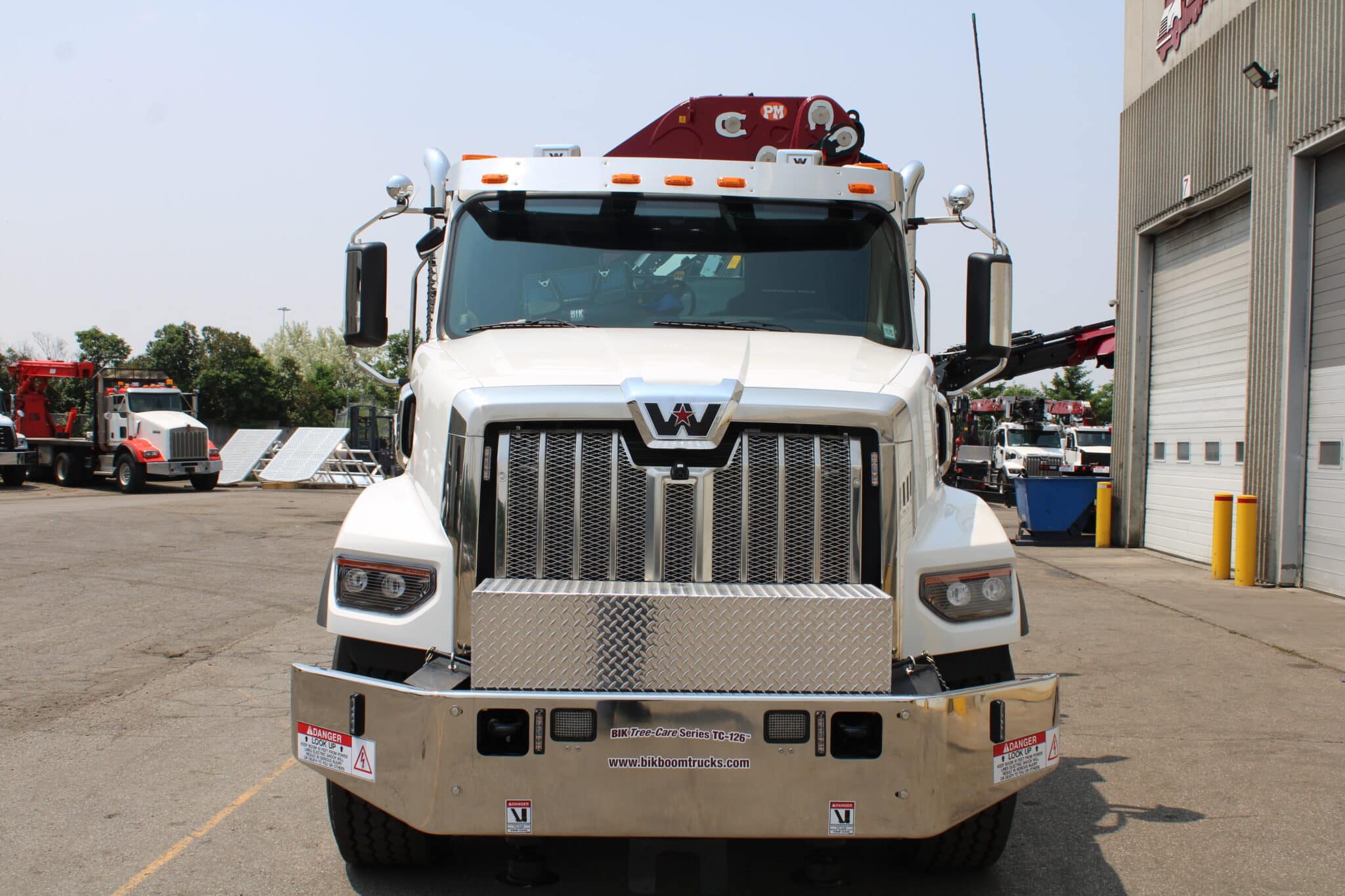

  • Chromed Grille & Bumper, single 100 gallon alum fuel tank

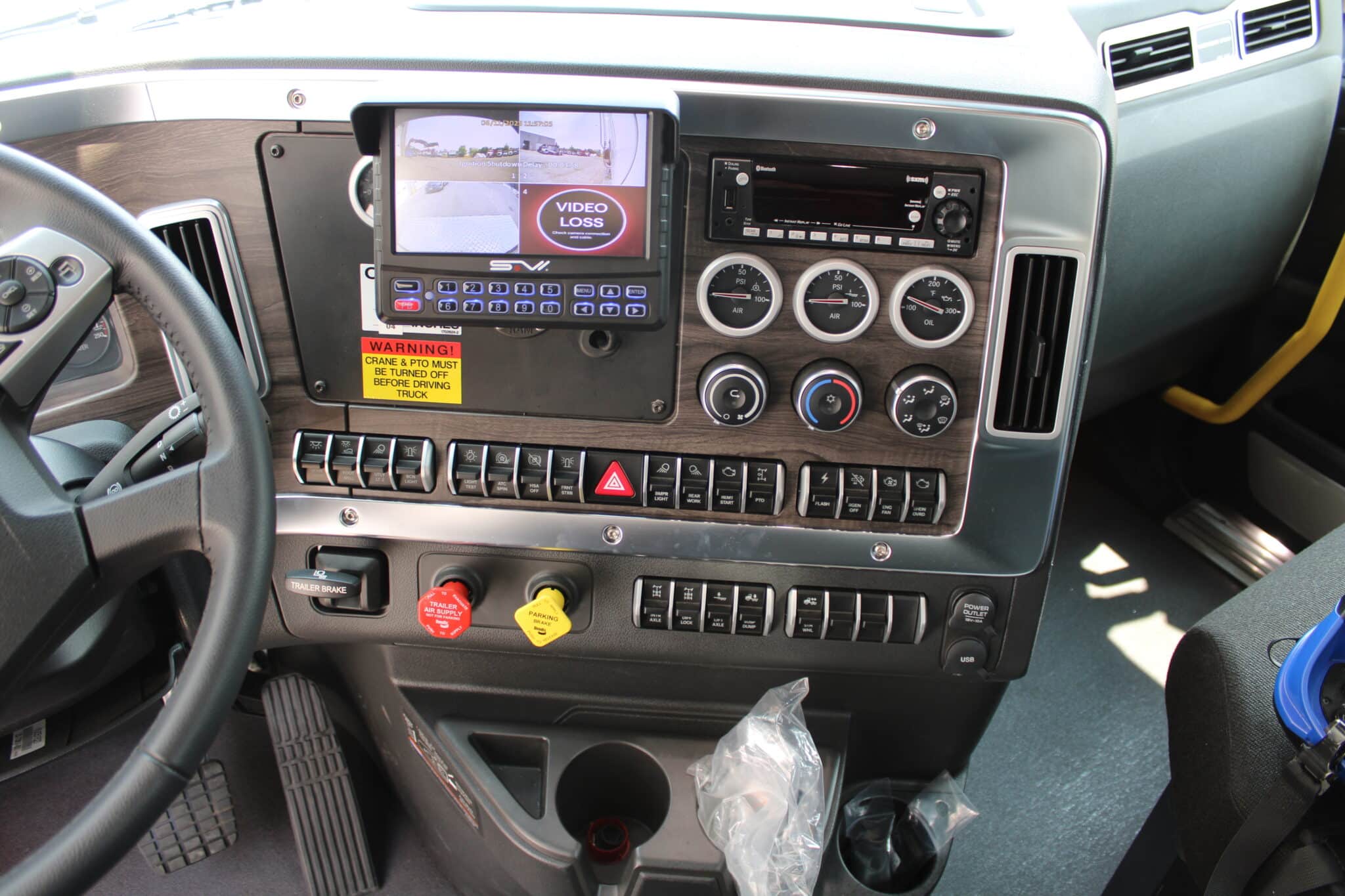

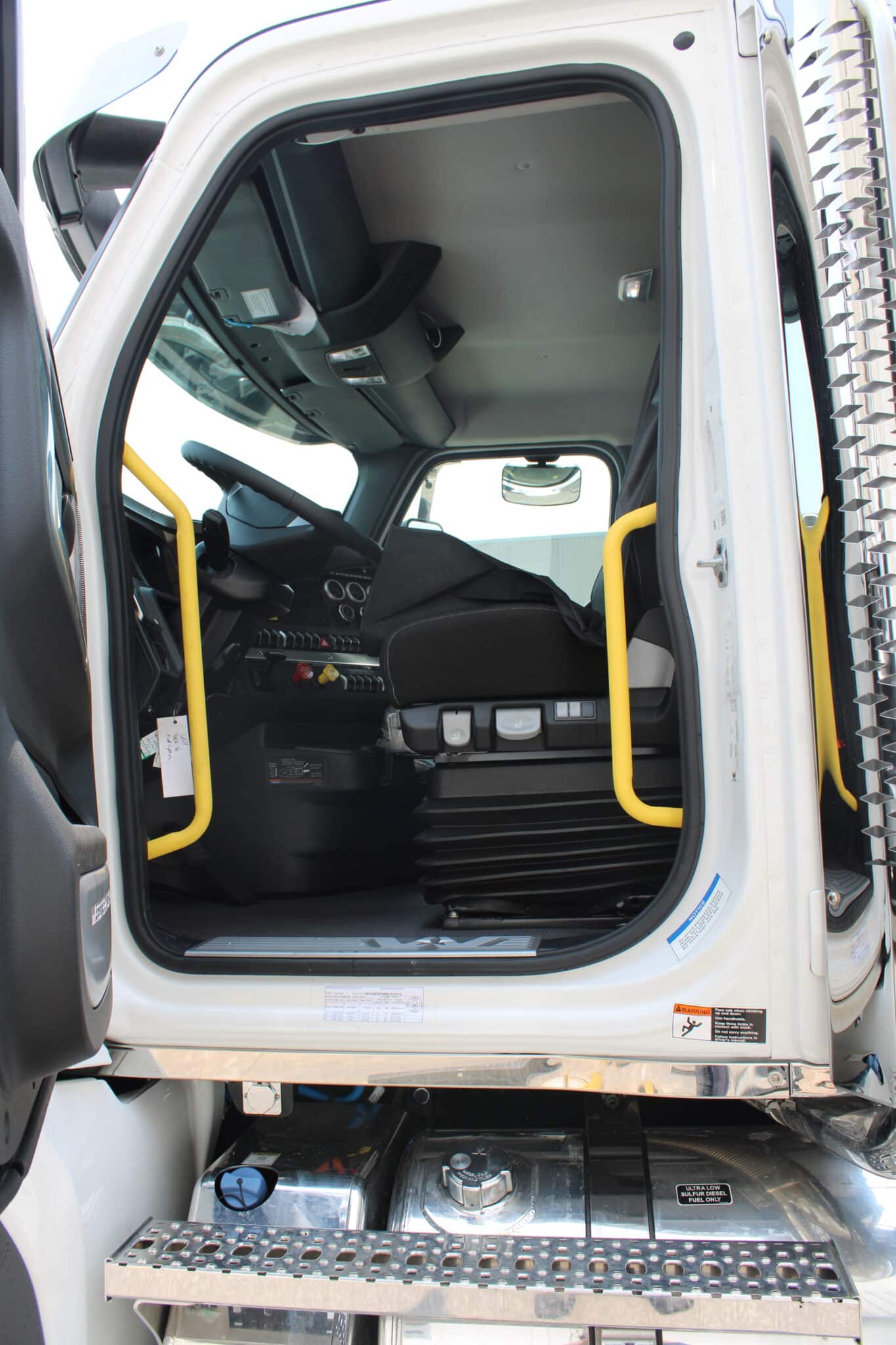

  • Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM  CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups,  Air ride cab, full differential locks, sliding 5th wheel,  spot light, fog lights, exterior sun visor, truck cab whiteetc…

Options Included:

  • (6) pcs – PVC stab pads w/holders
  • Custom re-enforced manual extn for grapple

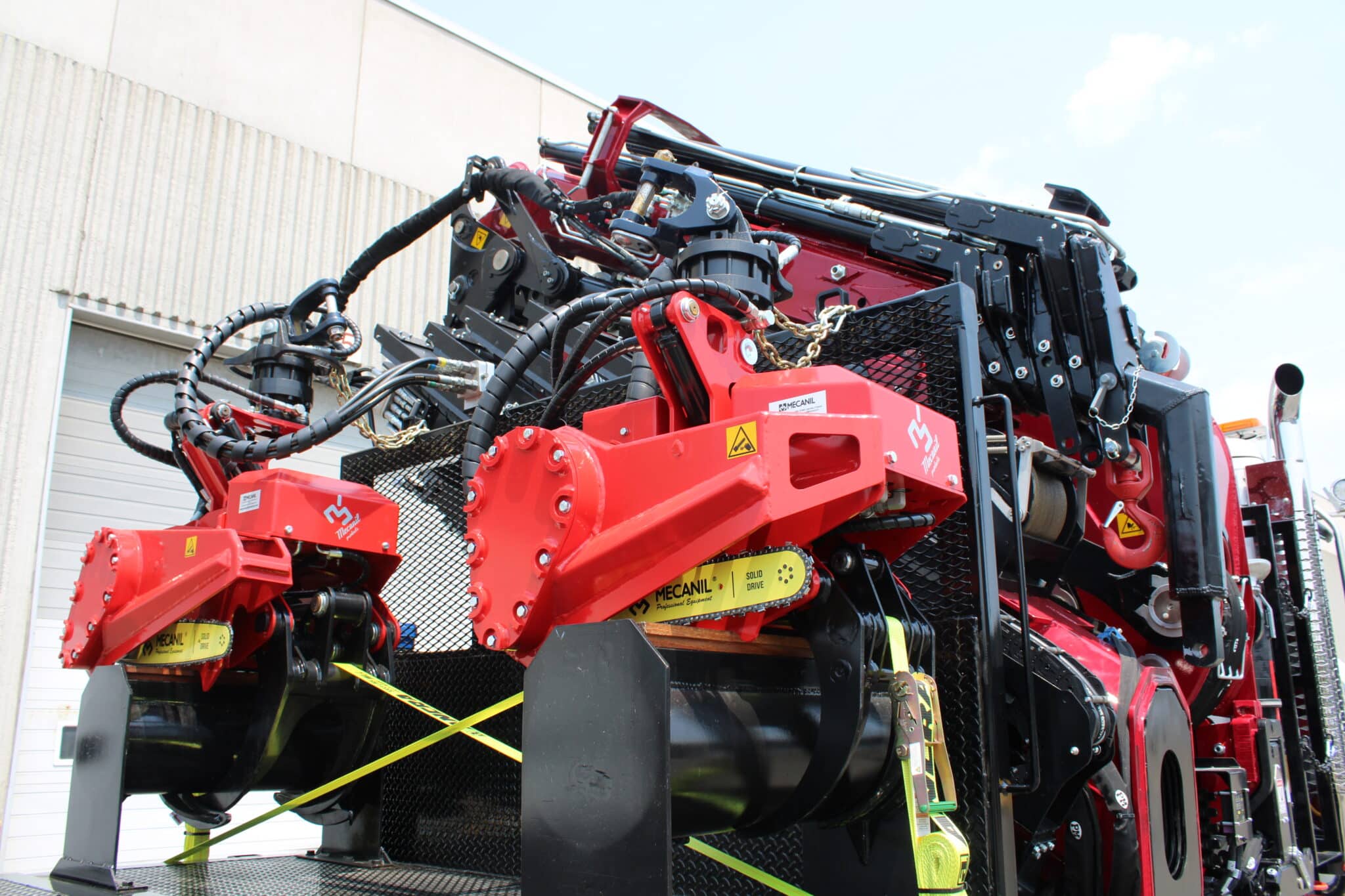

  • New Mecanil SG-280 Graple saw

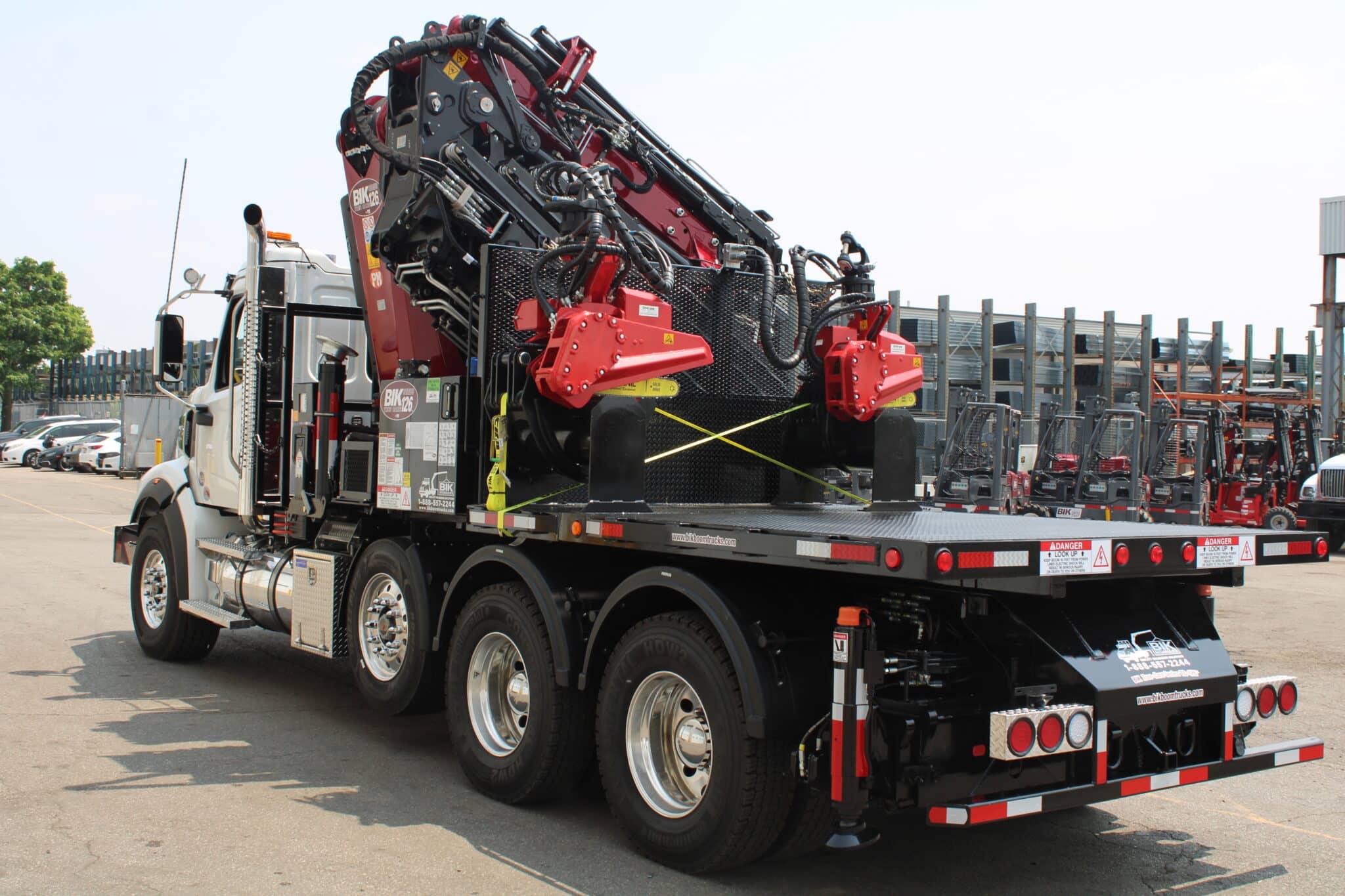

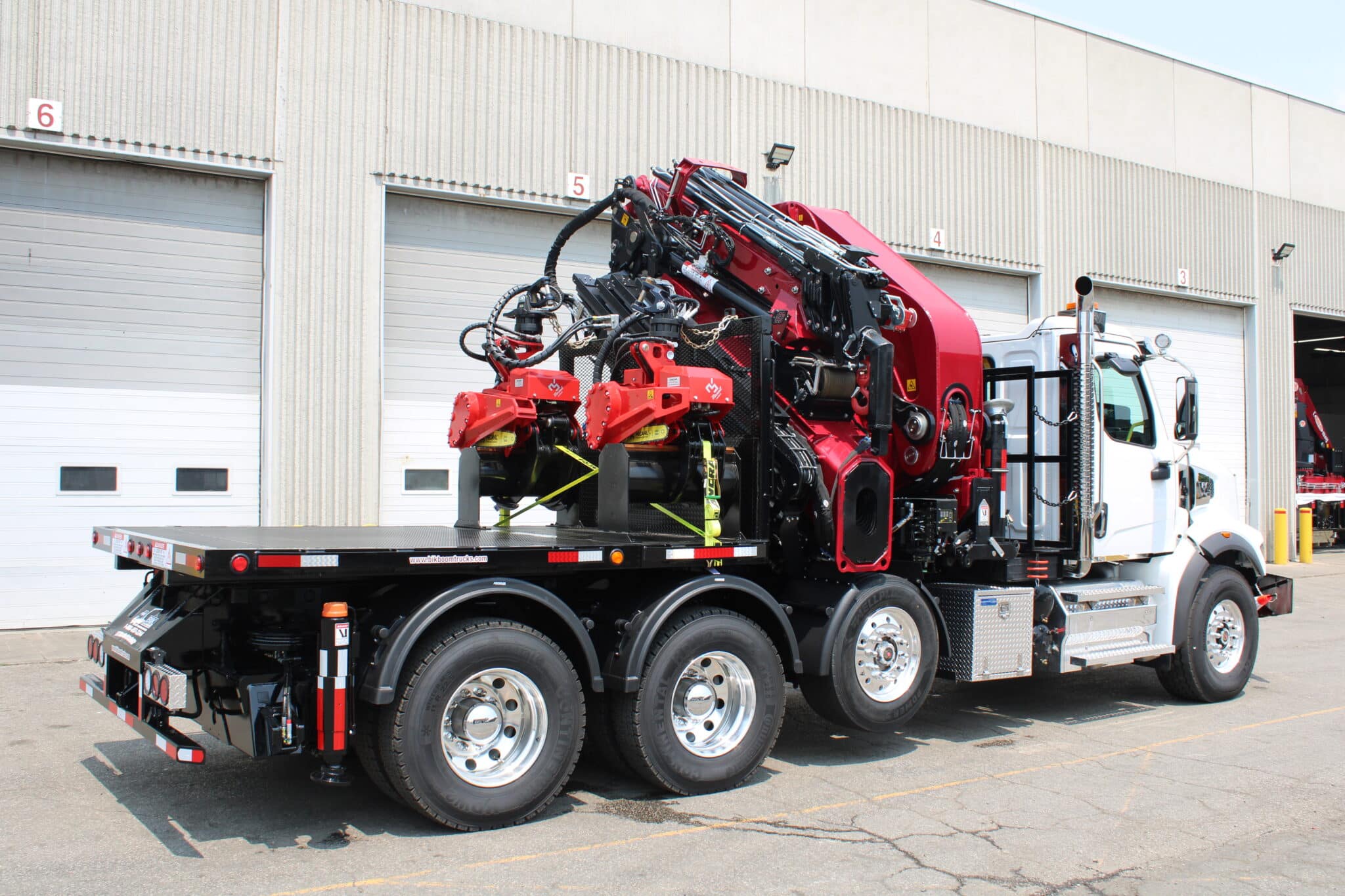

  • Custom 2’ deck behind boom with grapple saw holder (plus) 7.5’ long Removable Deck (over 5th wheel)
  • Mat rack behind cab of truck
  • 2 to 3 day on site boom feature/function familiarization by a BIK tech

 Other Options Also Available:

  • (additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
  • (1) Additional Manual  pull out boom extention for regular lifting hook (adds 5.5’ more reach )
  • (1) Aluminum single man self-levelling basket
  • Hook Lift Deck removal system or Dump Body (instead of 5th wheel or flat deck)

360 degrees Full Capacity

Shortest Wheel Base Truck with 100 ton/m Boom in its Class – only by BIK

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
