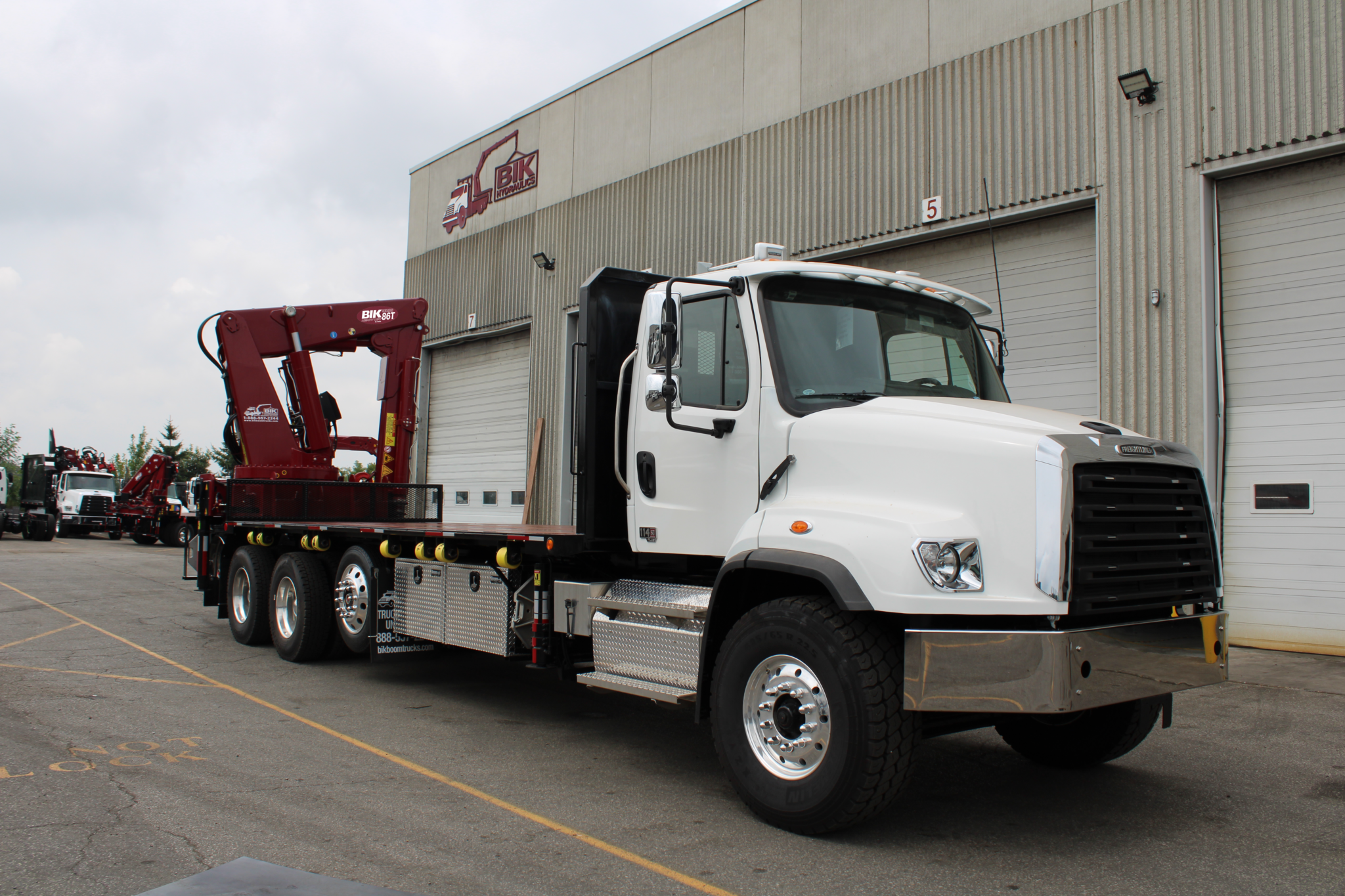

BIK Heavy Lift Series 86T

NEW BIK HEAVY LIFT SERIES HL 86T

BIK Heavy Lift Series 86T
BIK Heavy Lift Series 86T

NEW BIK HEAVY LIFT SERIES HL 86T

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

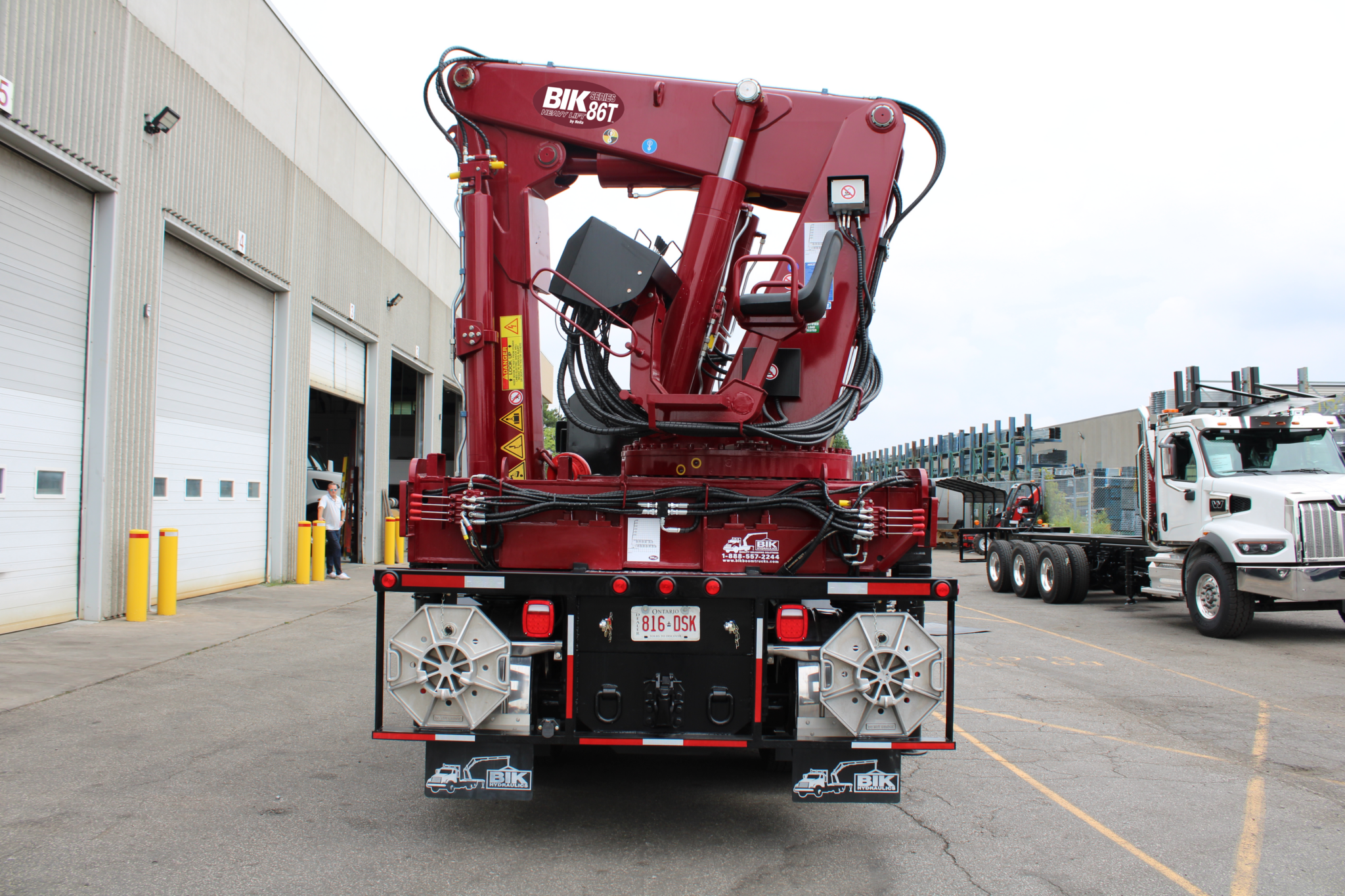

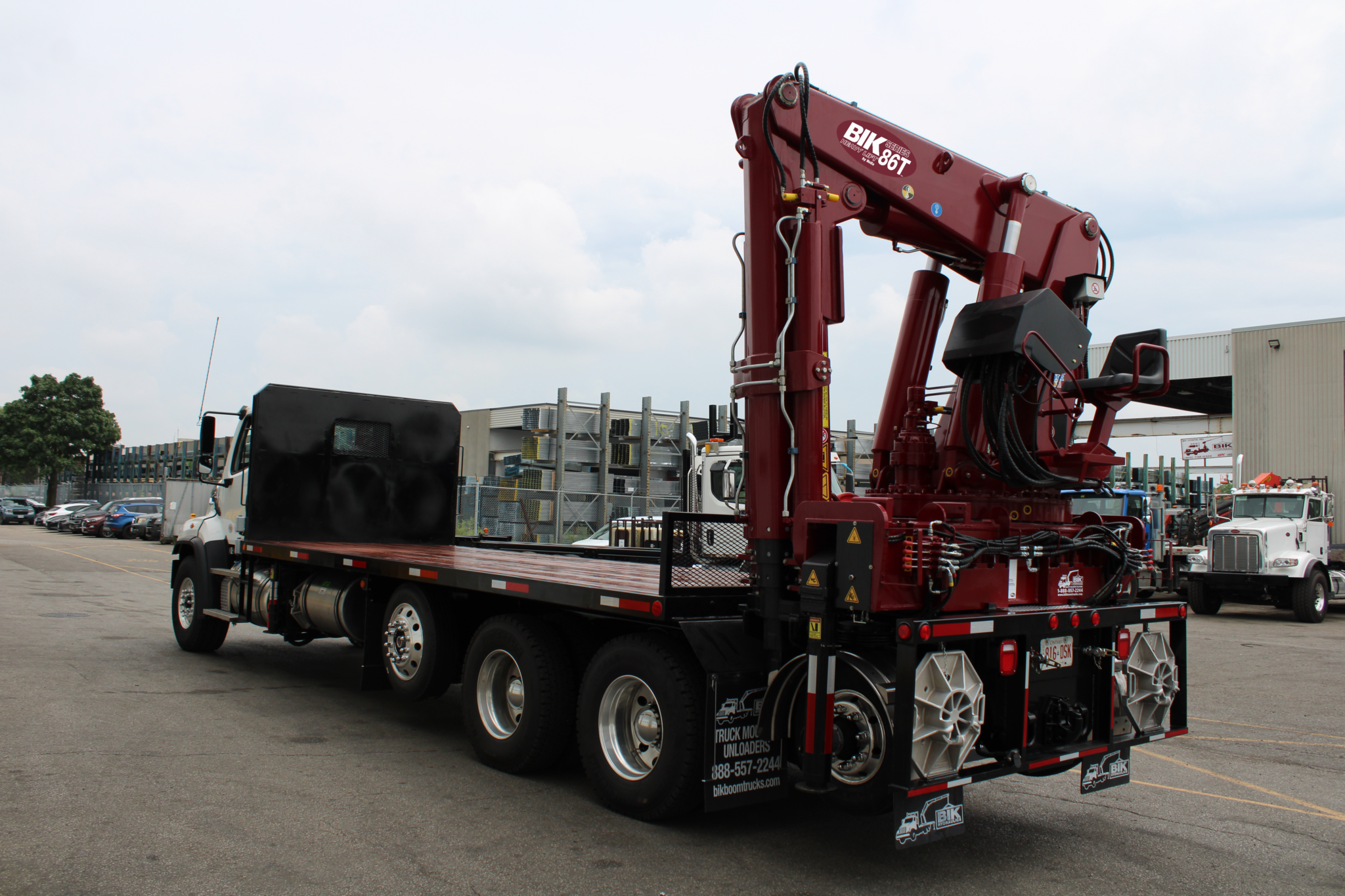

Boom Details

New – BIK “Heavy Lift” Series HL 86T

  • Heila 70 ton/m – Knuckle Boom: 3 -hydraulic extensions to 28’ of hyd reach
    • Horizontal Capacity
      • 60,000 lbs @ 8′
      • 37,000 lbs @ 13.5′
      • 27,500 lbs @18.5′
      • 20,000 lbs @ 23′
      • 14,300 lbs @ 28′
  • Installed END OF FRAME on shear-plated Sub Frame by BIK, prepped, primed and painted. New Air Operated PTO, Hydraulic Pump, Supply and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve, 12V connections to radio remote control. Load Testing and operator orientation.
  • DANFOSS Proportional Valve Controls – single sided operator control station w/ fully proportional operator control
  • SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
  • CENTERED KNUCKLE / No off-set, DUAL MAIN LIFT CYLINDERS and DUAL EXTENSION CYLINDERS: for un-matched performance for Heavy Lifting
  • PLANETARY PEDESTAL – CONTINUOUS BOOM ROTATION – Superior Control & Turning Torque, with reduced lifetime maintenance and wear
  • Hydraulic OUT and DOWN 2-sided, independently controlled stabilizers beneath pedestal.
  • Radio Remote includes: 6-micro speed reducing settings from handheld unit, emergency stop, 2-batteries with in-cab charger, 50’ back-up cord
  • Load Holding Valves on each cylinder for Safety and Security of Operator and Load, JIC North American standard hydraulic fittings throughout.
  • Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components by PM  –  24/7 Crane-Tech Support by BIK
  • Installed END OF FRAME, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength

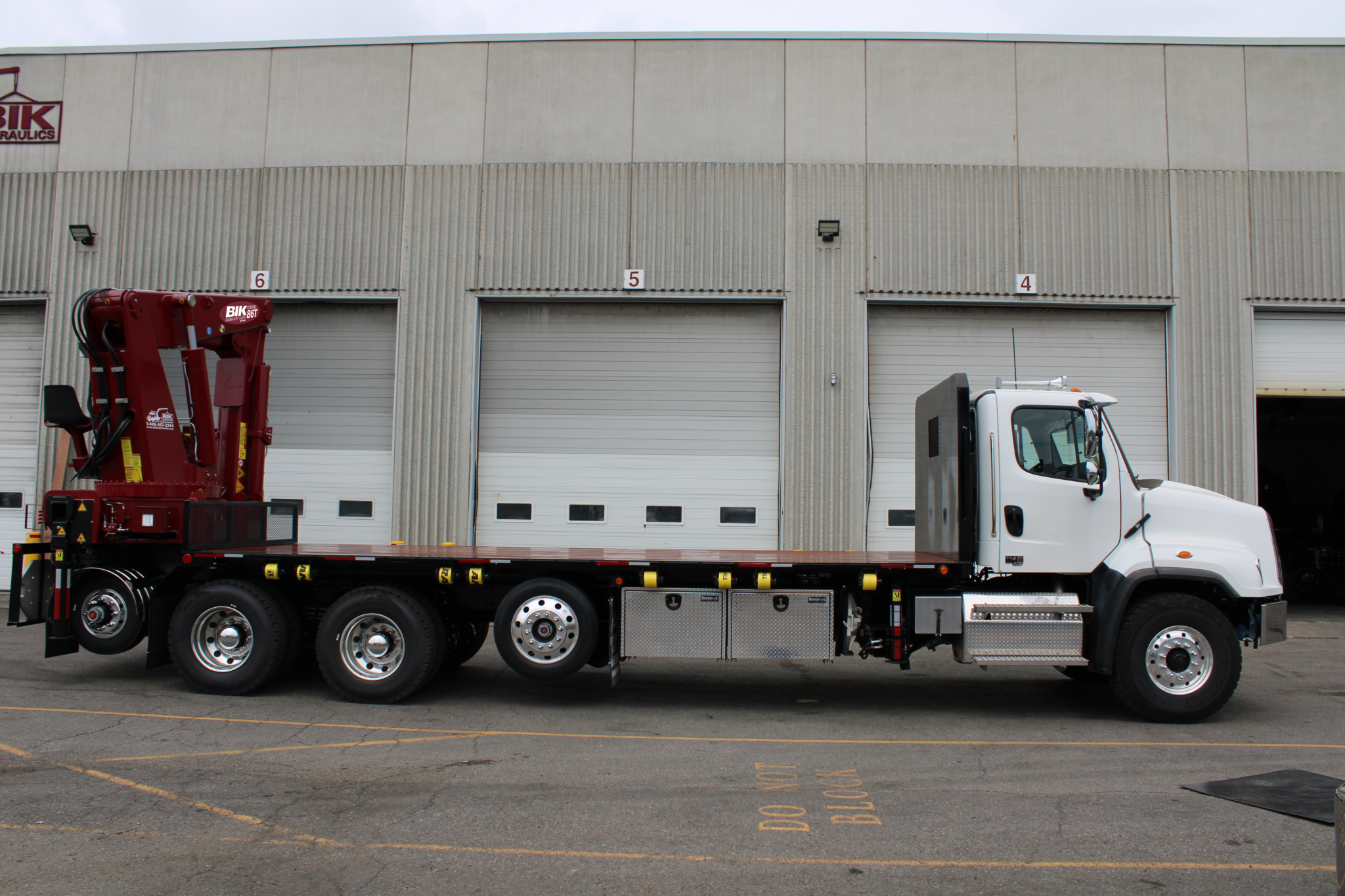

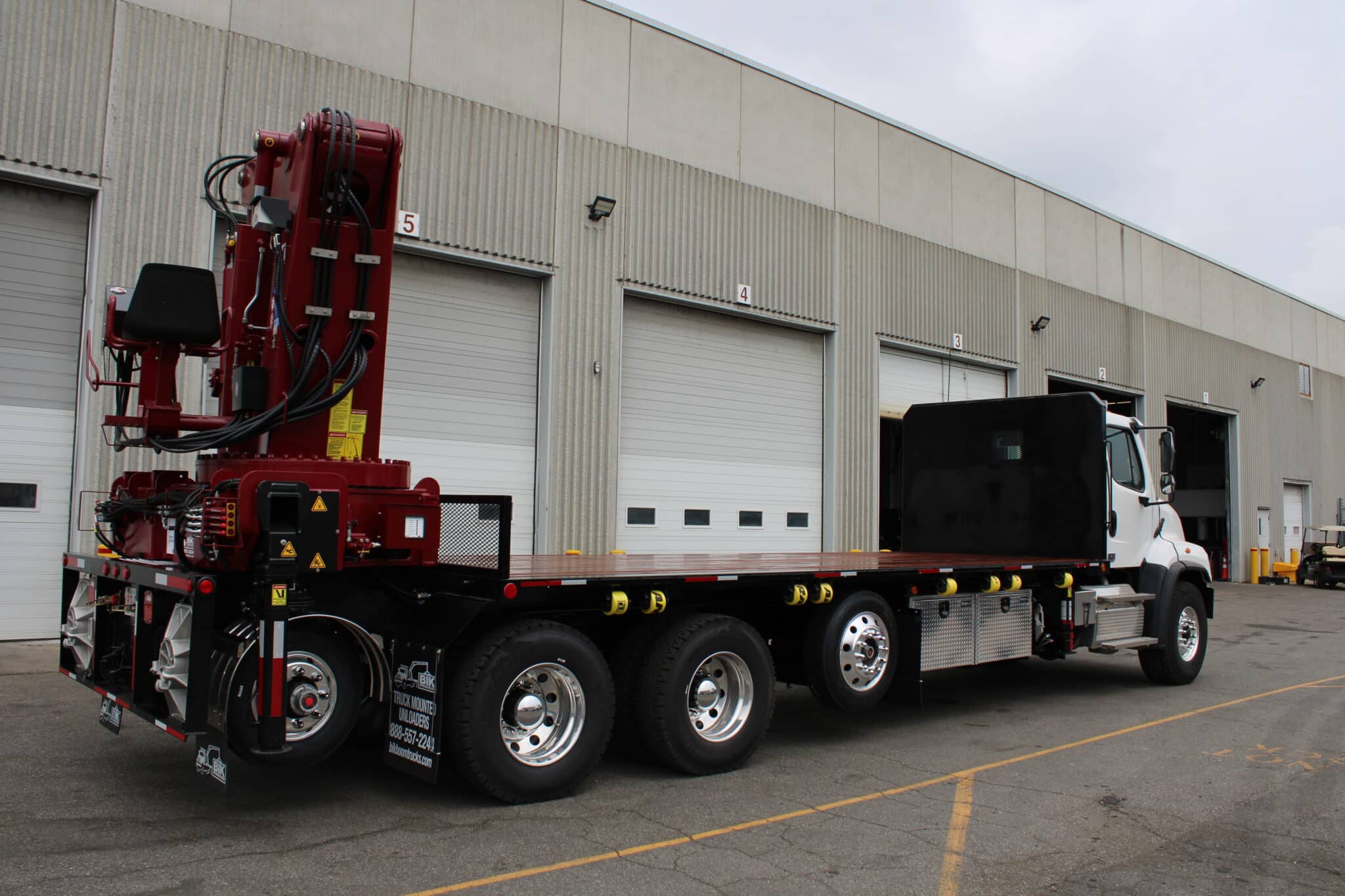

Deck Details

New – 21′ or 22′ x 102″ Deck

  • Installed on Truck with 54” of main sill overhang at front for Sub-Frame of Knuckle Boom
  • Hardwood Deck
  • 66” Headboard
  • Reverse Rail sliding track on passenger side
  • 6 winches and straps (30’) with required  Reflectors. All steel painted Gloss Black.

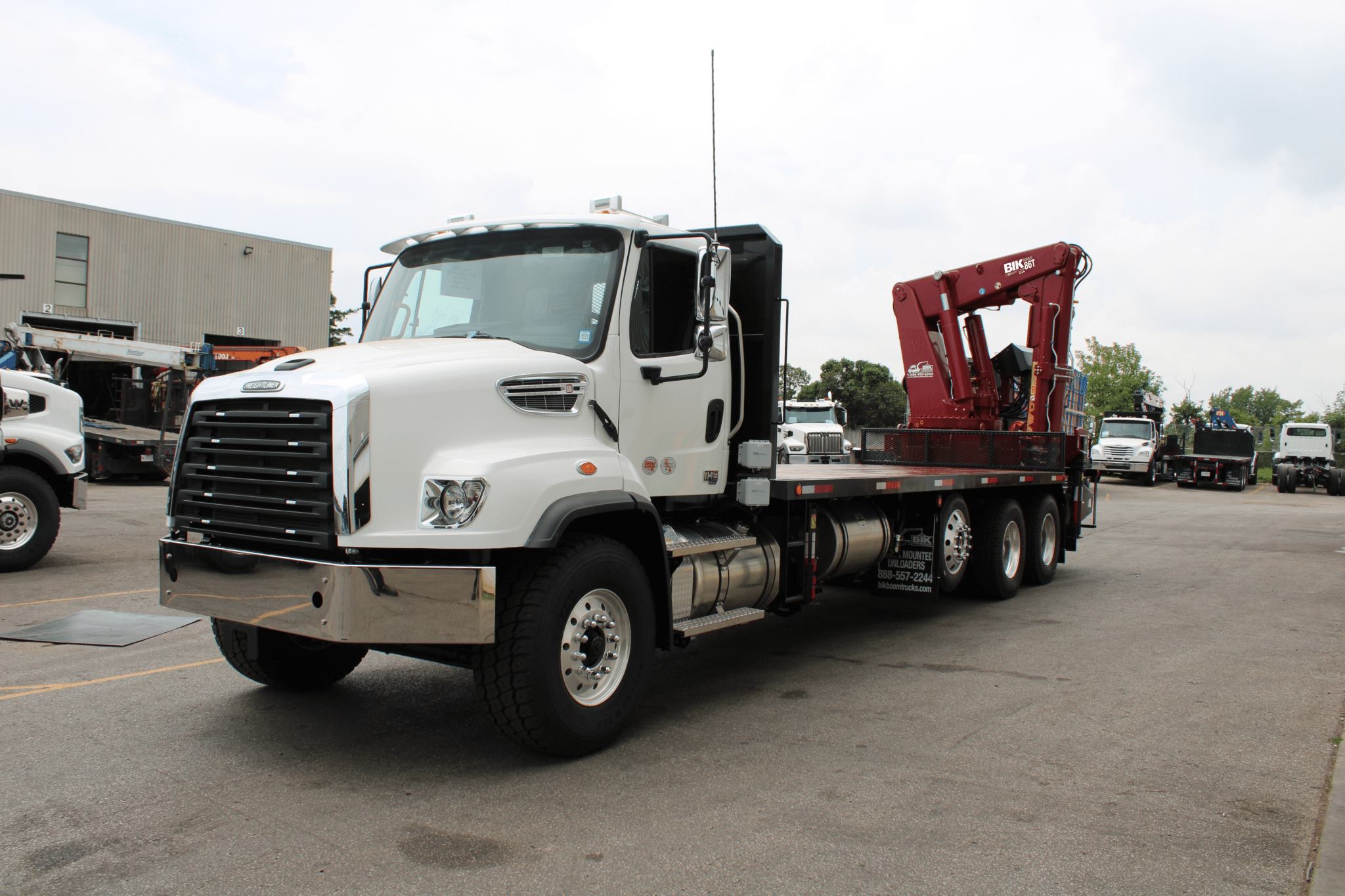

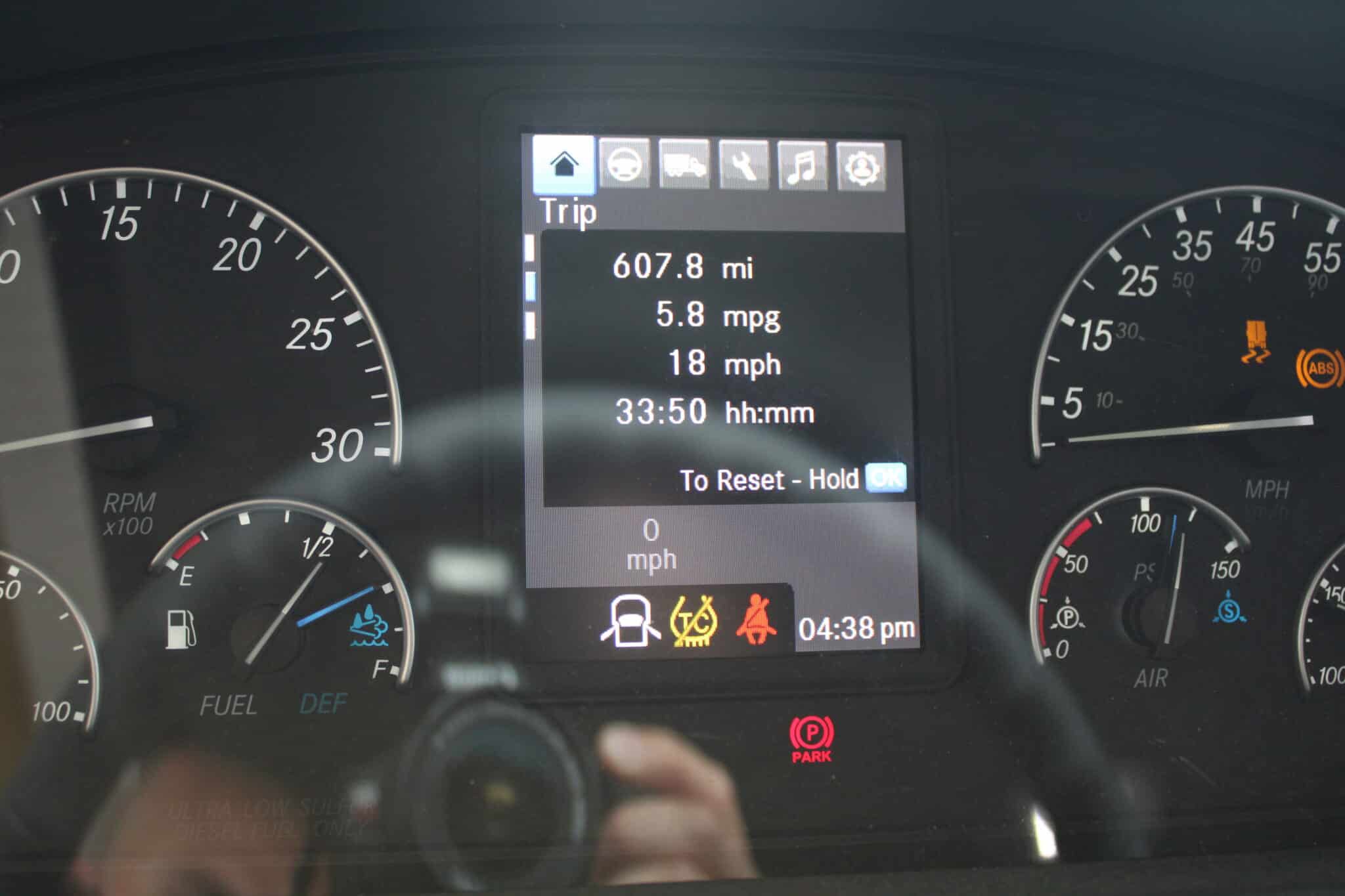

Truck Details

New Western Star 49X 5-Axle Truck

  • 88,000 lb GVWR
  • DD-16L565 HP
  • Jake Brake – Truck cab white
  • Eaton Ultrashift Plus Automated 18spd
  • 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
  • (2) x 13,000 lb self steer lift axles Ahead of t/a with 22.5” low profile float tires on alum rims
  • 46,000 LB Rears on Tuftrac Smooth-Ride Suspension with 11R22.5 tires on Aluminum outer rims
  • 9,000 lb rated self -steer tag axle with low profile 17” tires & alum rims
  • Double Frame,  Chrome single polished Exhaust, Chromed Grille & Bumper, single 120 gallon alum fuel tank

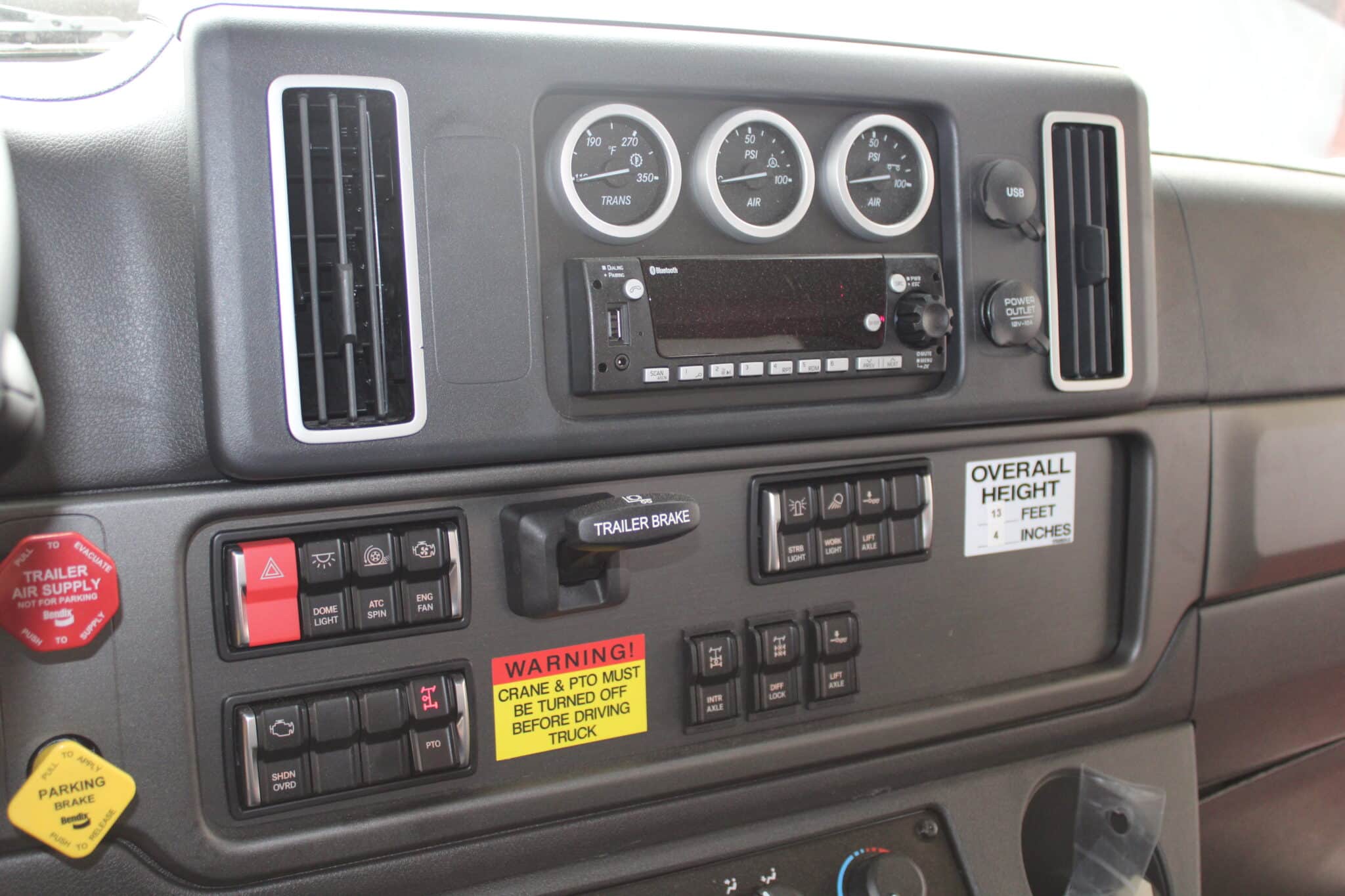

Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio, power windows & locks, air high back driver’s seat w/arm rest,  cruise, heated mirrors, All-way inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, etc.

Options Included:

  • Program Remote control to include engine start/stop and variable engine RPM
  • Aluminum Stabilizer Pads (2x) with holders installed at rear and at front
  • Deliver truck & pick up your trade at your location in MN
  • Front auxilary hyd out & down double beam stabilizers installed, 24’ spread
  • Aluminum storage box installed under deck.

Options at Extra Cost:

  • Paint truck cab Metalic Blue and install lettering/decals on truck.

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
